Wulian WL-ZSPDBPW-MT-01 User manual

Smart Contact Sensor
FOR WL-ZSPDBPW-MT-01
User Manual
©Nanjing IOT Sensor Technology Co., Ltd.
Publication Number: 2015-0407.V01

Federal Communications Commission
(FCC) Compliance Notice:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of thefollowing measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.

Federal Communications Commission
(FCC) Caution:
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Federal Communications Commission (FCC)
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. In order to avoid the possibility of
exceeding the FCC radio frequency exposure limits, human proximity
to the antenna shall not be less than 20cm during normal operation.

● 是南京物联传感技术有限公司的注册商标。本说明
书中提到所有其他产品名称或商标是其各自品牌所有者的商
标或注册商标。
●使用前请您认真阅读产品使用说明书，确保正确地、安全
地使用。
●Wulian门窗磁探测器产品（以下简称“本产品”）为南京
物联传感技术有限公司（以下简称“我司”）出品的智能家
居安防类产品。本产品需要与智能家居相应的APP客户端同
步使用，并须使用本产品自带的配件。如您未正确地安装及
使用本产品而造成的损失，我司将不承担任何责任。
●我司随时可能对本说明书中的产品信息进行更新，恕不另
行通知。请您及时关注我司资讯，下载最新版的APP客户
端。
●未经我司的明确书面许可，任何个人及企业不得复制本说
明书的全部或部分内容，不得使用我司注册商标。对非法使
用我司商标的行为，我司将依法追究行为人及企业法律责
任。
●欢迎您登录我司官网www.wulian.cc，了解更多智能家居
产品信息。
Welcome to use Smart Contact Sensor
User Manual
●is th
e registered trademark of Nanjing IOTSensor Technology
Co., Ltd. All the other trademarks and registered trademarks mentioned in
this manual are trademarks or registered trademarks of their respective
owners.
●Please read this manual carefully for the proper use of this product.
●Smart Contact Sensor (hereinafter referred to as “this product”) are
smart home audio and video products produced by Nanjing IOT
Sensor Technology Co., Ltd. (hereinafter referred to as “Wulian”).
This product shall be used with smart home APP as well as the
supplied accessories. Wulian is not responsible for any loss due to
improper installation and usage of this product.
●Please check the Wulian website periodically for manual and APP
update availability and the relevance.
●Without the written permission of Wulian, any individuals and
enterprises shall not copy all or part of the contents of this manual, or
use our registered trademark. Any illegal use of our trademarks shall
be investigated according to law.
●For more information about smart home products, please visit:
www.wulian.cc/english.

1
Features
●Support IEEE 802.15.4 ZigBee/SmartRoom protocol.
●Under defense, remotely control door is open or closed, and send
real-time monitor status to smart APP.
●Make scene setting by smart APP for linkage with our other
devices.
●Alarm with wireless transmission brings about rapid response,
high anti-interference, and low rate of false alarm.
●Low consumption, energy saving, and environment friendly
for building green human living environment.
●Wireless device with small size is for hiding and merging
with home environment perfectly.
●Made of high shock-resistance and temperature-resistance
material, shell is sturdy and durable.

Product Parameter
Antenna Type
Power Parameter
Battery Type
Stand-by Current
Warning Distance
Installation Method
Material &Color
Net Weight
Flame Retardant Rating
Operating Temperature
Operating Humidity
PCB Antenna
DC 3V
CR2*1
4uA
20mm
Window Mounted
PC，White
55
UL94 V-2
-10℃～+45℃
≤95%RH(Noncondensing)
IEEE 802.15.4
（ZigBee/SmartRoom）
Communication Protocol
Main Body 23×19×60
Magnetic Part 10×19×60
Notes: This product supports gateway with LAN
2
Current For Opening
/Closing Door
2uA at opening door
4uA at Closing Door
Overall Dimension
(L x W x H, mm)

Package List
Manual *1
Manual
Battery *1
Guarantee
Card
PE Form Tape *2
3
( Main Body + Base Of
Main Body) *1
(Magnetic Part + Base of
Magnetic Part)*1
Flat Cross-Recessed
Self-Tapping Screw with
Pointed Tail (ST3*12)*4
Guarantee Card *1

Function Illustration
4
Main Body Base of Main
Body
Battery
Compartment
SET Key
System
Indicator
Main Body Of
Magnetic Part
Base Of Magnetic
Part

Installation Steps

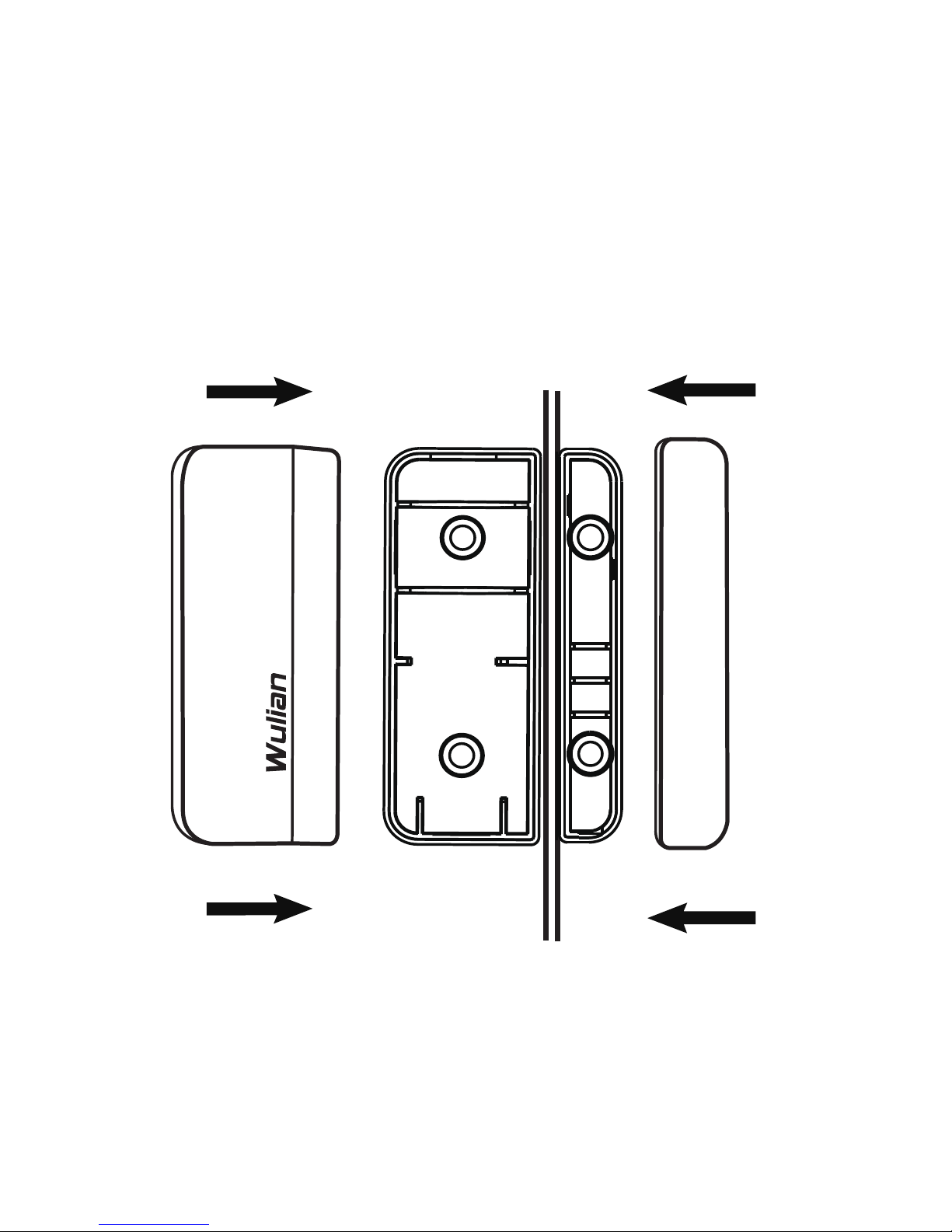

Step 1: Separate [Base of Main Body] & [Base of Magnetic
Part] from their respective main body as per below illustration.
5
Main Body Base of Main Body
Main Body of
Magnetic Part Base of Magnetic
Part

Step 2:

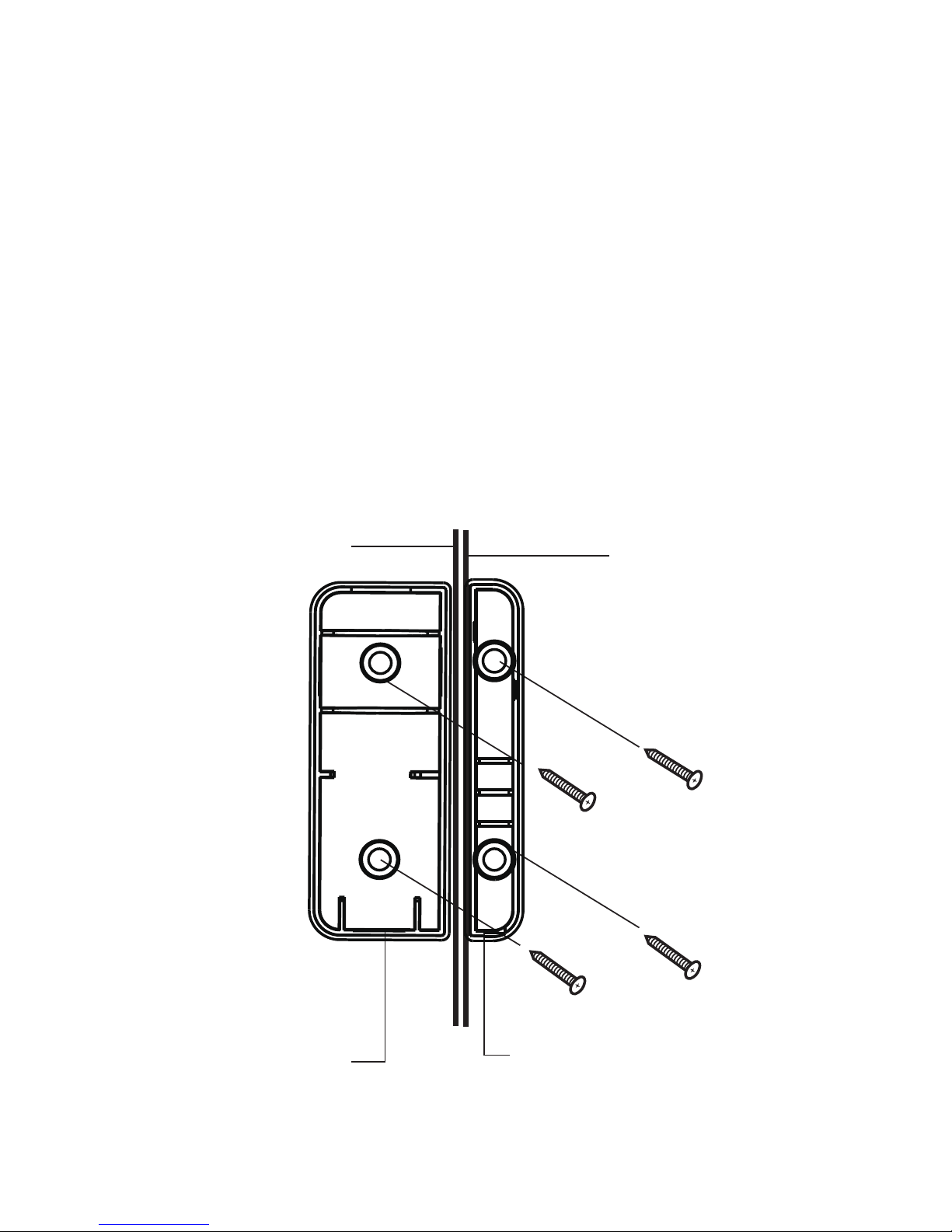

Option 1: Fix [Base of Main Body] on the door frame
or window frame.
[Base of Main Body] is fastened to the right position of
door frame or window frame via 2 pieces of screw.
Similarly, fix [Base of Magnetic Part] on the right position
of door or window via 2 pieces of screw.
6
Door Frame Door
Base of
Main Body Base of Magnetic
Part

CR2
Option 2: Stick this product on the proper flat surface by the
equipped PE form tape.Paste PE form tape on the base of
product, and then stick the product in the selected place.
Notes: Before installation, please keep the selected place tidy
and clean.
Step 3: Put 1 * CR2 battery into battery compartment of main
body.
7
Battery
Notes: Join the network before fastening this product

Step 4:
Aim [Main Body] & [Main Body of Magnetic Part] at the
respective card slot of main body to fix them.
Step 5:
Installation Finish
8

Join ZigBee Network
1.Before setting, please make sure the gateway (additional
purchase) works normally. Ensure that power is supplied to
this product, and it is within the effective communication
range of the gateway.
9

2.Quickly click [Multi-Functional Key] 4 times to apply for
joining ZigBee network, and each click is less than 1s. While
searching networking, [System Indicator] is flashing. After
joining ZigBee network successfully, [System Indicator] is on
2 seconds, and then goes out.
CR2
1
2
10
Quickly click 4 times, and each click is
less than 1s.
After joining the network successfully,
[System Indicator] is on 2 seconds, and
then goes out.

11
3.Long press [SET Key] 10 seconds. [System Indicator]
flashes 4 times, then goes out to restore to factory setting. The
default setting for factory setting does not join ZigBee network.
CR2
1
2
Long press 10s
Flashes 4 times , and then goes out

12
User Guide
After setting, user can control the monitor information of this
product by smart mobile terminal. Once door frame or
window frame is illegally open, this product will send alarm
signal to smart mobile terminal so that user can know
all to take corresponding measures.

13
Cautions
●Please do not install this product in the metal cover and other
fully closed devices. It may result in network signal interrupt
and low performance.
● Take routine tests periodically to find and remove trouble in
case of any alarm for stealing.
●Avoid fall or sever collision for product to for fear of damage
of internal part and impact on working life of product.
● Wipe the dust on the product by soft cloth. Clean by the
corrosive cleansing liquid and other chemical solvent is
forbidden.
●This product should be installed in dry and clean place to
prevent inner component from dampness or other debris.
● Please do not disassemble or refit this product and its
accessories.
●If this product breaks down, non-professional staff shall not
handle it. Send it to local service center for repair, or contact
our customer service staff.
!RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.

14
Trouble Shooting
How to deal with it when failed to join ZigBee network?
Please confirm gateway works normally, and is allowed
to add network, and this product iswithineffective
communication range.
Q:
A:
How to handle it when it stays alarming in the early
stage of installation?
Please confirm main body of door contact matches that of
magnetic parts, and size difference is within tolerance.
How to deal with it when this product is not online
displayed on the smart APP?
A1: Please check if it’s accessible to ZigBee network
gateway within?
A2: Please check if sensor is installed in the effective
communication range of gateway? Besides, switch on
smart APP to check power supply. If battery power is low,
please replace battery.
Q:
A:
Q:
A:

Purchasing Information
Product Name
Material & Color
Item No.
Model
Smart Contact Sensor
WL-ZSPDBPW-MT-01
PC，White
WLPN1448200
15

16
Software Download
Option A:
Download the latest smart APP by scanning QR code on the
package box of this product.
Option B:
Please visit our official website:
http://www.wulian.cc/service.shtml for downloading.
Warm prompt: For the first use, please download smart home
APP and read user manual carefully. Please pay attention to
Wulian information to download the latest APP in time.
