Operating Instructions
ONE MORE TIME VINYL
21
GB

OMT VINYL – edition: 13.08.2007 1
1 Technical details OMT VINYL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Dimensions:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Set up to play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Component functions and adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.1 Selection & Credit Computer (S&CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2 Service programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2.1 How to call up service program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2.2 How to leave the service program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2.3 Memory ON/OFF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Free play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 Playstimulator / continuous play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5 Coin and credit programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Device description of the amplifier K99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Technical data K99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Verification of power voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Position of fuses and plug connectors on the K99 . . . . . . . . . . . . . . . . . . . . . . 11
8 The first power ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10 The infrared remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
11 Treble and bass control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
12 Automatic volume correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13 Background Music - volume attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
14 External speaker connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
15 External amplifier connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
16 Disabling the internal mute circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
17 Input selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
18 Trouble shooting chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
18.1 Failures of the illumination, lamps and power system generally . . . . . . . . . . . . . . . . . . . . . . . . . . 18
18.2 Fuses of the power supply - which one controls what circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
18.3 Faults with the coin and credit system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
18.4 Faults with the selection system (Credit system is working) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
18.5 Repetitive play of records, selected or non-selected ones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
18.6 Failures of the record changer after properly completed selection . . . . . . . . . . . . . . . . . . . . . . . . 22
18.7 Failures with the tone arm or the tone system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

OMT VINYL – edition: 13.08.2007
2
18.8 Record not properly returned to carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
18.9 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18.9.1 Note 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18.9.2 Note 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18.9.3 Note 3 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18.9.4 Note 3 B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18.9.5 Note 3 C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18.9.6 Note 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18.9.7 Note 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18.9.8 Note 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18.9.9 Note 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
18.9.10 Note 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
18.9.11 Note 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
18.9.12 Note 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
19 Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
20 Circuit diagram OMT VINYL chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
21 Wiring diagram K99 - power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
22 Wiring diagram K99 - power amp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
23 Wiring diagram K99 - pre amp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
24 Wiring diagram K99 - sound controler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
25 Wiring diagram K99 - port A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
26 Wiring diagram K99 - mute. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
27 Wiring diagram K99 - power supply Euro 230V . . . . . . . . . . . . . . . . . . . . . . . . . 36
28 Connection diagram IR remote control/amplifier K99 . . . . . . . . . . . . . . . . . . . . 38

Features
OMT VINYL – edition: 13.08.2007 3
1 Technical details OMT VINYL
1.1 Features
!Stereo amplifier with automatic level control and electronic overload protection, power 2 x 55w
RMS
!3 way stereo loudspeaker system with 6 speakers
!100 selections (50 records) played by a high quality Tonar Magnetic System
!Microprocessor controlling all functions including credit and bonus steps as well as record plays
and automatic memory of the top tunes
!Playstimulator playing a record in intervals between 1 and 98 minutes automatically
!An LED display presents playing record or credit available
!Integrated volume control which can also be used as wired remote control
!Connections for additional amplifier, external loudspeakers, microphone kit and output
transformer
1.2 Power supply
100 - 240v, 50/60cps
1.3 Dimensions:
Height 1520mm / 60.0inch
Width 815mm / 32.0inch
Depth 640mm / 25.25inch
Weight 157kg / 346lbs
1.4 Optional
!Infrared remote control with selection buttons
!Output transformer
!Microphone kit
!External speakers: Model LS 121
2 way speaker system, floor standing or wall mounting, cabinet with wooden pattern or black high
polish surface.
Dimensions:
Height 520mm / 20.5inch
Width 320mm / 12.6inch
Depth 250mm / 9.8inch
Musical power 120w, 8ohms

Selection & Credit Computer (S&CC)
OMT VINYL – edition: 13.08.2007
4
2 Set up to play
The ONE MORE TIME VINYL is delivered ready to play. There are several tasks to perform in order
to ensure proper operation and best sound.
1. Open the jukebox. Apply slightly pressure against the door while turning the key. The lock is
spring loaded so the slight pressure against the door allows the key to turn easily.
2. Remove the shipping bolts (M8x70) from the mechanism platform. There are two, one in the
rear right corner near the base of the tone arm, the other one in the front left corner near the
record carrier.
These bolts secure the platform during transport. Remove these bolts completely.
3. Release the tie-down tone arm strap located at the base of the tone arm. This strap secures the
tone arm during transport. Check the cartridge and needle to insure proper position in the tone
arm.
4. Place the records in the record carrier and title strips into the corresponding numerical slots in
the title strip holder. The holder can be removed completely from the machine to allow better
access by pushing the two locking springs left and right side slightly inwards.
To turn the record carrier, operate the lever marked ’rotate carrier’. The record carrier can be
turned in steps to achieve the best position for loading.
To step up credit, please use the credit button on the coin acceptor interface (Europe version) or
the credit button on the coin channel (US version).
"You should now be ready to enter a selection.
NOTE: Save the shipping guards and the tone arm strap. You will need them in case you decide to
move the jukebox to another location. Records should be taken out for transportation.
ATTENTION! Some parts of the electrical circuitary are connected to the power line (power
transformer, fluorescent tube, ballast and accociated wiring).
Never attempt any intervention to these parts unless qualified.
3 Component functions and adjustment
3.1 Selection & Credit Computer (S&CC)
The Selection and Credit Computer is the brain of the One More Time Vinyl. There are several
optional programs and programming features which can be very useful.
!Service Program
This program allows to retrieve various information as well as concluding certain service checks
on the mechanism. All programs are communicated to the S&CC by means of the selection
buttons.
!Free play
This allows free selection of multiple titles.
!Playstimulator
The playstimulator plays a record automatically in intervals of 1 to 98 minutes.

Service programs
OMT VINYL – edition: 13.08.2007 5
3.2 Service programs
3.2.1 How to call up service program
1. Set slide switch ’SERVICE’ (1) to ’ON’.
2. Press ’LT’ button (2) once.
Button 0 - least popular titles (flops)
Pressing button 0 once indicates the least
popular record. Pressing button 0 again
shows the record with second lowest number
of plays. Press button 0 again shows the
third lowest etc..
Press button ’R’ (RESET) to terminate the
’flop’ call.
Button 1 - Top Tunes
Shows the record which was played most frequently followed by the number of plays (Max. 99). If
one record was played more often than 99 times, the counter remains in this position. Pressing
button 1 again shows the second popular record, etc.
Press button ’R’ RESET to terminate the ’Top Tune’ call.
Button 2 - cash box contents
Shows the cash box contents in basic units; basic units being the value of the lowest coin, resp. coin
value of coin output 1 on the S&CC.
Example (lowest coin 25ct): display readout: 0 4 5 = 45 x 25ct = $ 11.25
Press button ’R’ RESET to terminate the ’cash box contents’ call.
Button 3 - clear memory
Press and hold down button 3, then press button ’R’ RESET. All counters are reset to zero.
Button 4 - display check and program number version
When you press button 4 the digital display automatically indicates the number 8 on all three digits.
Successivly ’Record Playing’, ’Hit of the House’, ’Error’ and ’Credit’ will light and the program version
number will appear, e.g. 7.01 or higher.
Button 5 - Playstimulator
The playstimulator is playing a random record automatically after a programmed time period. It is
programmable between 1 and 98 minutes. For programming please refer to chapter 3.4, on page 7.
0047971
1
2
4
5
T1
10
20
T
+B
M
LT
Memory
ON
ST1 ST2 ST3
OFF
Selection &
Credit Computer
100 - 160 - 200
K
Z
ON
OFF
M3 M6 M C
Service
GP
BS B4 B3 B2 B1
Korb
Location
00
2
3
4
5
6
2
3
4
5
6
F
2
3
4
5
6
1
0
2
3
4
5
6
1
0
2
3
4
5
6
1
0
7
T.T.
+2
+3
GP
+
6
ACHTUNG:
ATTENTION:
A:TTENTION
MEMORY-Stecker von OFF
auf ON umstecken, wenn
Top Tunes, Popularitätszähler
oder Kassenzähler arbeiten soll.
Move MEMORY Plug from OFF
to ON if Top tunes, Pop Meter or
Cash Box Content Registration
is required.
Placer la prise MEMORY en
position ON de la position OFF
si le Top Tunes, le compteur de
popularité et le contenu de la
caisse sont demandés.
12

Free play
OMT VINYL – edition: 13.08.2007
6
Button 6 - A-side solenoid
When you press button 6 the display shows 6 - 1, relay M6 of the S&CC and the A-side solenoid
should be activated while the display shows 6 - 2.
Button 7 - check of gear box motor
When you press button 7 relay M should be activated and the changer plays the B-side of the record.
Display shows 7 - 4.
After the record has been played, it will be returned into the carrier.
Button 8 - check of record carrier
When you press button 8 relay M3 is activated and the record carrier turns as long as button 8 is
pressed. The gripper arm must be in rest position. The display shows 8 - 0.
Button 9 - gripper arm position
Press button 9, test of the gripper arm position. Display shows 9 - 0 if the gripper arm is in rest
position, 9 - 1 if the gripper arm is in play position.
3.2.2 How to leave the service program
1. Set slide switch ’SERVICE’ to ’OFF’.
1. Press ’LT’ button. The record carrier turns to position 101.
3.2.3 Memory ON/OFF
ATTENTION! Statistic read outs
(service programs 0 - 2) are only
valid if the internal memory
battery is connected to Memory
ON (plug on upper pin) as
shown.
With Memory OFF (plug on lower
pin) counters are reset when the
jukebox is switched off.
3.3 Free play
Connect jumper wire on ’GP’ between
0 and F on the S&CC. Press ’LT’
button.
Free play now allows free selections.
0047971
1
2
4
5
T1
10
20
T
+B
M
LT
Memory
ON
ST1 ST2 ST3
OFF
Selection &
Credit Computer
100 - 160 - 200
K
Z
ON
OFF
M3 M6 M C
Service
GP
BS B4 B3 B2 B1
Korb
Location
00
2
3
4
5
6
2
3
4
5
6
F
2
3
4
5
6
1
0
2
3
4
5
6
1
0
2
3
4
5
6
1
0
7
T.T.
+2
+3
GP
+
6
ACHTUNG:
ATTENTION:
A:TTENTION
MEMORY-Stecker von OFF
auf ON umstecken, wenn
Top Tunes, Popularitätszähler
oder Kassenzähler arbeiten soll.
Move MEMORY Plug from OFF
to ON if Top tunes, Pop Meter or
Cash Box Content Registration
is required.
Placer la prise MEMORY en
position ON de la position OFF
si le Top Tunes, le compteur de
popularité et le contenu de la
caisse sont demandés.
M
LT
ON
OFF
GP
BS B4 B3 B2 B1
Korb
Location
00
2
3
4
5
6
2
3
4
5
6
F
2
3
4
5
6
1
0
2
3
4
5
6
1
0
2
3
4
5
6
1
0
7
T.T.
+2
+3
GP
+
6

Playstimulator / continuous play
OMT VINYL – edition: 13.08.2007 7
3.4 Playstimulator / continuous play
The playstimulator may be programmed to random selection of a title in periods of 1 to 98 minutes.
(Factory preset is 99 for continuous play). Therefore:
1. Call up service program (slide switch SERVICE in position ON, press ’LT’ button once).
2. Press button 5.
3. Press button 9, display shows 9 _ _.
4. Enter number of minutes required for the interval between play
#01 = 1 minute
#02 = 2 minutes etc.
#00 = playstimulator is switched OFF
#99 = continuous play
5. Press button ’R’ RESET.
6. Set slide switch SERVICE to position OFF.
7. Press ’LT’ button.
NOTE: If the jukebox is equipped with
a continuous play switch, you only
have to set the slide switch to position
ON to activate the playstimulator/
continuous play.
Continuous
Play
on
off
0047971
1
2
4
5
T1
10
20
T
+B
M
LT
Memory
ON
ST1 ST2 ST3
OFF
Selection &
Credit Computer
100 - 160 - 200
K
Z
ON
OFF
M3 M6 M C
Service
GP
BS B4 B3 B2 B1
Korb
Location
00
2
3
4
5
6
2
3
4
5
6
F
2
3
4
5
6
1
0
2
3
4
5
6
1
0
2
3
4
5
6
1
0
7
T.T.
+2
+3
GP
+
6
ACHTUNG:
ATTENTION:
A:TTENTION
MEMORY-Stecker von OFF
auf ON umstecken, wenn
Top Tunes, Popularitätszähler
oder Kassenzähler arbeiten soll.
Move MEMORY Plug from OFF
to ON if Top tunes, Pop Meter or
Cash Box Content Registration
is required.
Placer la prise MEMORY en
position ON de la position OFF
si le Top Tunes, le compteur de
popularité et le contenu de la
caisse sont demandés.

Coin and credit programming
OMT VINYL – edition: 13.08.2007
8
3.5 Coin and credit programming
The price per play is set by jumper wires on the S&CC as shown in the examples. After having
changed wire links press ’LT’ button to confirm new settings.
NRI
G13
1 play for 50 cts
3 plays for $ 1.00
21 plays for $ 5.00
0,25 blue
1 $ grey
orange
yellow
white
brown
25cts
$ 1.00
GP
BS B4 B3 B2 B1
TT
+2
+3
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
LT
2
3
4
5
6
0
F
2
3
4
5
6
0
7
1
2
4
5
T1
10
20
+B
^
6
5
4
3
2
1
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
GP+6
Korb
Location
PRICE OF SELECTION
Select 222 for 8 Top Ten
Coinco
mech.
GP
BS B4 B3 B2 B1
Korb
Location
GP
+6
T.T.
+2
+3
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
LT
2
3
4
5
6
0
F
2
3
4
5
6
0
7
1
2
4
5
T1
10
20
+B
6
5
4
3
2
1
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
2 plays - 0,5
5 plays - 1,-
11 plays - 2,-
0,5
1,-
2,-
0,5 red.
1,0 brown
grey
green
violet
2,0 white
T
Credit button
on interface
US (example)
Europe (example)

Coin and credit programming
OMT VINYL – edition: 13.08.2007 9
4 Device description of the amplifier K99
The amplifier K99 is optimised for universal use in Deutsche Wurlitzer GmbH jukeboxes. Great
importance had been attached for an easy handling and stand alone function without the S&CC unit.
The output power is designed for the standard used internal speakers of Deutsche Wurlitzer GmbH
jukeboxes.
DETAILS:
Standard equipment:
!Hybrid power stage technology, short circuit and over temperature protected
!2 inputs (stereo): CD and tape
!1 mono input for optional microphone kit
!Volume control with 2 pots onboard
!Volume control possible with pots and / or IR at the same time. The pot used at last determines
the volume.
!The wired remote box is accessible from the machine rear wall with 2 volume control pots, cancel
and mute button (mute with toggle function).
!Bass and treble control with pots
!BGM volume reduction, controllable with pot
!Automatic volume correction (AVC), switchable
!2 channel operation switchable, RH = internal speakers, LH = external speakers
!Status display with 7segment display
!Independent controllable RCA output to connect external amplifiers
!For use with the old and the new changer mechanism.
!
Optional:
!Remote control with large distance range. Functions: track selection / volume chan. 1 / volume
chan. 2 / mute (toggle) / cancel
!70v output transformer
!Microphone kit
5 Technical data K99
General USA / Canada
Supply 100v - 240v 117v
Mains frequency 50cps - 60cps 60cps
Input voltage CD typ. 1.2v typ. 1.2v
Input voltage tape 300mv 300mv
Output voltage pre amplifier <=1veff <=1veff
Output power 2 x 55w (rms) 2 x 55w (rms)
Output impedance min. 4ohm min. 4ohm
Transmission range 20cps - 20,000cps 20cps - 20,000cps
Distorsion factor < 1% < 1%
Noise level Depending on the adjusted volume of the jukebox
noise levels of more than 70 dB(A) can be reached.

Coin and credit programming
OMT VINYL – edition: 13.08.2007
10

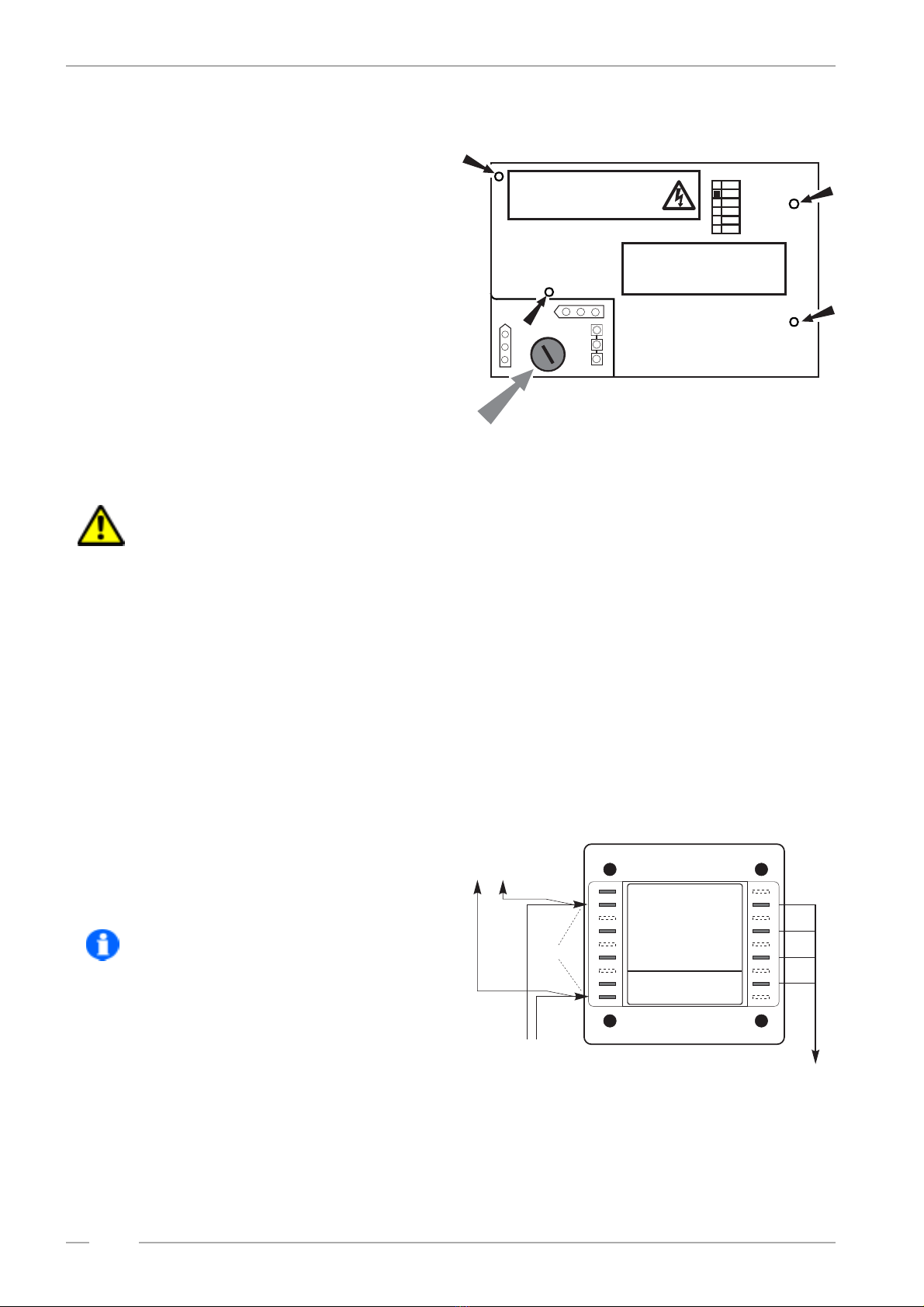

6 Verification of power voltage
The voltage settings are marked on
the cover plate of the mains
transformer. Machines for USA are
set to 117v. They have a special
transformer according to UL standard
which is not adjustable. Jukeboxes
“UNI-Pack” are shipped with 230v
setting. Mains voltage is indicated on
the label of the transformer cover. The
mains fuse (T3.15A/230v F6A/117v)
is located on the left bottom side in-
between the three terminals for the bill
acceptor, the external mains switch
and the fluorescent lamps.
Loosen the four screws to remove the
cover plate (small arrows) to get
access to the mains transformer.
ATTENTION! Always remove power plug before opening transformer cover plate. Never
attempt any intervention to these parts unless qualified!
The position of the two plug connectors on the transformer terminals 1 to 9 (primary side) indicates
the current voltage setting. The following combinations are possible:
240v = 1 - 9
230v = 1 - 8
220v = 2 - 9
210v = 2 - 8
117v = 1 - 6
100v = 2 - 6
Notice that these settings cannot be
made on machines produced
according to UL standard (US
version).
NOTE: Never connect the fluorescent
supply to other contact.
If you intend to change the power
voltage to a higher voltage (e.g. from
117v to 230v) it is recommended to
use a subtransformer for the
fluorescent lamps or change the
ballast according to the used voltage
(e.g. for 230v).
Netzsicherung
Mains Fuse
210-240V - T 4A
100-117V - F 6A
Leuchtstofflampen
Fluorescent Lamps
230V / 117V
Verstärker
Amplifier
Externer Hauptschalter
External Mains switch
Schein-
annehmer
Bill-
acceptor
Achtung
Vor A nahme er appe en Netzstecker
ziehen
arning
Shock hazar o not open
ur Beachtung Nur Sicherungen mit
gleicher r e un gleichem ert
erwen en, um Schä en zu ermei en
aution To re uce the risk of fire
replace onl with same t p an rating fuses
Netzspannung
50/60 Hz
Mains Voltage
50/60 cps
240
230
220
210
117
100
Netzsicherung/
Mains Fuse
210-240V - T3,15A
100-117V - F6A
1-8=230V
Mains voltage-Netzspannung
240V = 1 - 9
230V = 1 - 8
220V = 2 - 9
210V = 2 - 8
117V=1-6
100V=2-6
Temperaturwächter
thermalfuse =2-4
Deutsche Wurlitzer GmbH
Art.-Nr. 0058498 K99 210VA
VDE 0551/ EN 60742 50/60Hz
123456789
10 11 12 13 14 15 16 17 18
gy
br
y/r
wt
wt/r
bk
bl
bk
amplifier
mains
fluorescent
lamps

Coin and credit programming
OMT VINYL – edition: 13.08.2007 11

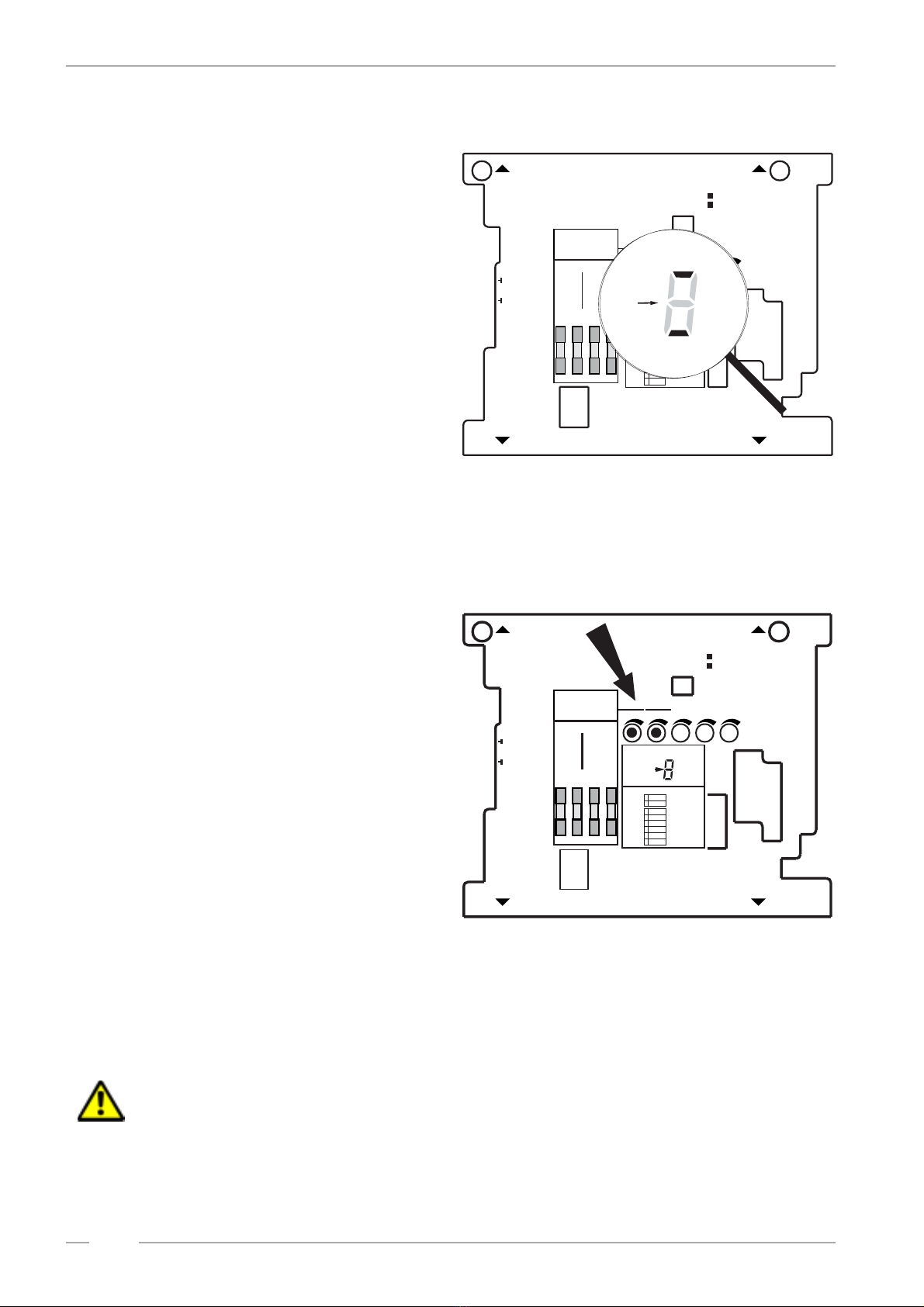

7 Position of fuses and plug connectors on the K99
Fuses used on the amplifier board
are DIN41571 5x20 slow blow or
medium blow in the US version
6x32 slow blow.
Value of used fuses is printed on
the amplifier cover. Please replace
only with same type and rating
fuses.
The fuse holders on the amplifier
P.C.B. are capable to hold fuses of
6x32mm or 5x20mm size.
You will find the fuses behind the
amplifier cover plate. To remove
the plate first unplug the cable
coming from the mains transformer
and cable to the IR remote control.
Next lose slightly both nuts on top
of the amplifier accessible through
the holes in the cover plate
(arrows). To remove the plate first take the bottom side out of its hinges and then the top side.
Connection plan of the plug terminals:
!1P09 - mechanism, SCC unit
!1P06A - option
!1P06B - RIAA decoder
!2LP04 - external speakers, LH
!2P04 - external speakers, ground
!2RP04 - external speakers, RH
!2P12 - Internal speakers
!1P03 - bubble tubes
Fuse Failure
Main fuse T 3.15 resp. F6 A for 110/117 V. No illumination, machine completely dead.
Fuse F1: T4A supply 30V ~ Credit circuit via LED M is interrupted. If credits are still in
memory or free play is programmed.
Fuse F2: T4A supply 26V ~
Fuse F3: T4A supply 26V ~ The colour tubes of the One More Time do not rotate, the
heating of the bubble tubes is off - no bubbles will appear.
Possibly defect of the power stage of the amplifier.
Fuse F4: T4A supply +12 V= SCC unit dead - digital display dark (except red LED M still
lighting up on coin insertion). The LED’s K and Z on the SCC
unit are dark. No initialisations run after power ON. The
status display on the amplifier is dark.
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE
B ass T reble
BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE
F1-F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8 / 80 W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-T UBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M ECHANIK
M ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
I
C1
ntern
hannel
E
C
xtern
hannel
2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
1P09
1P06B
2P04
2LP04
2RP04
2P12
1P04
1P03
1P06A
AVC
RS232
M
ICRO
T APE
M UTE
A/D NZEIGE ISPLAY
BGM
ok.
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
A
A
VC
VC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUT
CD T
APE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF

Coin and credit programming
OMT VINYL – edition: 13.08.2007
12
8 The first power ON
The mains switch is located at the rear
side of the jukebox. Wallboxes are
equipped with an external mains
switch accessible from the side. In
position ‘I’ jukebox and amplifier are
switched on.
Up to approx. 1 sec. after power on
random segments of the status display
will light. Followed by displaying the
version number of the amplifier
software (1.0, or higher). Then the
bottom segment for “ok.” and the
upper segment for MUTE will light.
The amplifier is now in STANDBY
MODE. Depending on other enabled
options more segments may light as
well (e.g. AVC).
9 Volume control
You can control the volume of the
jukebox from different points at the
same time:
!With the pots Channel 1 and
Channel 2 on the amplifier.
!With an optional available IR
remote control.
!With the pots of the control box at
the rear side of the jukebox.
The device from which the volume is
changed determines it.
The volume control box can be taken
out and be used as a remote control.
Its cable may be extended as required
with any kind of wire. The voltages of the control wires are max. 5v DC.
The control box has two volume knobs (Intern / Channel 1 and Extern / Channel 2). In position
”Stereo” the knob “Intern / Channel 1” is effective for the internal speakers. The knob Extern /
Channel 2 is controlling the volume of the RCA outputs for an optional external amplifier. In DIP
switch position ”2 Channel”, channel1 (RH) and 2 (LH) are controlled separately.
ATTENTION! The pots Channel 1 and Channel 2 on the amplifier are not effective if the wire
control box is connected.
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE
B ass T reble
BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE
F1 - F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8/80W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-T UBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M ECHANIK
M ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
AVC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUTCD T
APE
BGM
1
1
3
5
2
2
4
6
I
C1
ntern
hannel
E
C
xtern
hannel
2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
A/D NZEIGE ISPLAY
AVC
RS232
M
ICRO
T APE
M UTE
BGM
ok.
AVC
S232
M
ICRO
T APE
M UTE
BGM
ok.
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE
B ass T reble BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE
F1-F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8 / 80 W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-T UBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M ECHANIK
M ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
I
C1
ntern
hannel
E
C2
xtern
hannel
Verstärker K 99
Amplifier K 99 C-UL
AVC
RS232
M
ICRO
T APE
M UTE
A/D NZEIGE ISPLAY
BGM
ok.
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
A
A
VC
VC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUT
CD T
APE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF

Coin and credit programming
OMT VINYL – edition: 13.08.2007 13
10 The infrared remote control
An infrared remote control is installed from factory
or can be delivered as conversion kit (part no.
0058809). If it has been installed the hand
transmitter is located in the cash box.
If credit is given or free play is programmed a
record can be selected with the buttons 0 to 9 and
R.
Double button functions as required in the service
programs (i.e. press button 5 -hold down- and
press button R), are impossible. For this you can
only use the keyboard of the jukebox.
You can control the volume by means of the
buttons + and -. In stereo mode the internal +/-
buttons control the volume of the internal speakers.
The external +/- buttons control the volume of the
K99 RCA jacks for an optional external amplifier. In
2-channel mode these buttons control the volume
of the external speakers connected to the amplifier.
The power-on volume level is always set by the
channel 1 and 2 pots on the amplifier or on the
external volume control box.
Batteries are included: 4 micro cells type LR03
(AAA).
To open the battery compartment move the cover
like shown in the picture.
Type and position of the batteries are also shown
in the drawing.
Part no. of the hand transmitter: 0059745.
RCS-K
No.: 0059745
SELECTION
1 23
456
RESET
POWER
OPTION
789
0
-
+
-
+
BATTERY:
IEC LR03
(AAA)
+
+
+
+
CANCEL MUTE
VOLUME
INTERN
CHANNEL 1
EXTERN
CHANNEL 2
selection buttons
music control buttons
battery type
LR03 (AAA)
position of
the batteries

Coin and credit programming
OMT VINYL – edition: 13.08.2007
14
11 Treble and bass control
Sound control can be made by the bass and
treble pots on the amplifier.
12 Automatic volume correction
The AVC sets records with different volume levels to an
equal level. The level of records with a high level will be
reduced; the level of low-levelled records will be
increased. This control works rather slow to save the
dynamic range of the track.
You can enable the correction with the DIP switch “AVC”
(the 3rd switch of the 6 sw. group) on the amplifier board.
Factory preset is AVC disabled.
With the second DIP switch of the 6 sw. group you can
reduce the intensity of volume correction.
13 Background Music - volume attenuation
Complete function is only available for CD models.
You can switch on “BGM” by means of the DIP switch
“BGM”. The RH bottom segment of the status display on
the amplifier indicates “BGM active”. You can adjust the
volume attenuation with the pot “BGM”, as long it is
active.
This function can be used to limit the maximum output
volume.
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE Bass Treble BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE F1-F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8 / 80 W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-TUBBLE UBES
N
T
ETZTRAFO
RANSFORMER
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
MECHANIK
MECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
I
C1
ntern
hannel
E
C2
xtern
hannel
Verstärker K 99
Amplifier K 99 C-UL
AVC
RS232
MICRO
TAPE
MUTE
A/DNZEIGE ISPLAY
BGM
ok.
S/SCHALTER WITCHES
A/OUS FF
A/OUS FF
E/OIN N
E/OIN N
A
A
VC
VC
MODESTEREO 2-K /2CANAL HANNEL
INPUT
CD TAPE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF
ERWEITERUNG
E
E
RWEITERUNG
XTENSION
Bass Treble BGM
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
I
C1
ntern
hannel E
Cxtern
hannel2
AVC
RS232
MICRO
TAPE
MUTE
A/DNZEIGE ISPLAY
BGM
ok.
S/SCHALTER WITCHES
A/OUS FF
A/OUS FF
E/OIN N
E/OIN N
A
A
VC
VC
MODESTEREO 2-K /2CANAL HANNEL
INPUT
CD TAPE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF
EE RWEITERUNG
XTENSION
Bass Treble BGM
EE RWEITERUNG
XTENSION F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
I
C1
ntern
hannel E
Cxtern
hannel2
AVC
RS232
MICRO
TAPE
MUTE
A/DNZEIGE ISPLAY
BGM
ok.
S/SCHALTER WITCHES
A/OUS FF
A/OUS FF
E/OIN N
E/OIN N
A
A
VC
VC
MODESTEREO 2-K /2CANAL HANNEL
INPUT
CD TAPE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF

Coin and credit programming
OMT VINYL – edition: 13.08.2007 15
14 External speaker connection
The amplifier can operate in two
different modes. The normal operation
mode reproduces the music in normal
stereo sound. So external speakers
can be added to each channel.
The so-called 2-Channel mode uses
both stereo channels like separate
mono amplifiers so that the sound can
be reproduced in different rooms but
then in mono only.
The amplifier may not be loaded with
more than 4 ohms per channel (less
ohms means more load!). On an
overload it switches itself off. After a
certain cool down time it switches
itself on. So if you do not eliminate the
reason for the overload the amplifier
produces continuously volume drop-
outs.
The impedance of all external speakers per channel in ”Stereo” mode should not be less than 8
ohms, because the internal speakers represent a load of already 8 ohms per channel. If the amplifier
is operating in 2-Channel mode, the internal speakers are all connected to the RH channel (Channel
1); the LH channel (Channel 2) now applying to the screw terminals ”Externer Lautsprecher -
External speakers” may be loaded with max. 4 ohms.
The output power of the amplifier is approx. 55 watts (rms on max. 1% dist.) on a 4 ohms speaker
per channel, 18 watts to a 12 ohms speaker and approx. 9 watts to a 24 ohms speaker. That means,
that e.g., a 12 ohms speaker connected to the external channel at Dual Channel operation must be a
type of at least 18 Watts, otherwise the speaker is in danger of destruction at higher volumes. Note
that speaker groups like in hi-fi boxes may have, at certain frequencies, impedance much lower than
their rating. Make sure that all speakers are connected in correct polarity.
Position of the Stereo - Mono DIP switch (1), the
mode switch (2), the stereo - 2 channel switch (3)
and external speaker terminals (4).
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE Bass Treble BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE F1-F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
O
PTION
PTION
RL
EL
ES
8 / 80 W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-TUBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M
M
ECHANIK
ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
AVC
RS232
MICRO
TAPE
MUTE
A/DNZEIGE ISPLAY
BGM
ok.
S/SCHALTER WITCHES
A/OUS FF
A/OUS FF
E/OIN N
E/OIN N
A
A
VC
VC
MODESTEREO 2-K /2CANAL HANNEL
INPUT
CD TAPE
BGM
1
1
3
5
2
2
4
6
I
C1
ntern
hannel
E
C
xtern
hannel 2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
1
3
4
2
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF

Coin and credit programming
OMT VINYL – edition: 13.08.2007
16
NOTE: Connect external speakers to the screw terminals on the LH amplifier in 2-Channel mode
only!
15 External amplifier connection
The RCA terminals “Ausgang -
Output” can be connected to a line
input of an external amplifier. In
Stereo mode the output level is
normally controlled by means of the
pot for the 2nd channel. Alternatively
you can set the first DIP switch (1) to
ON to couple this output to the normal
volume control knobs (1st channel), so
that both amplifiers can be controlled
together.
Connecting an external amplifier in 2-
channel mode is not useful.
To avoid hum- (earth-) loops try to use
an external amplifier with ground lift; it has no earth contacts. If it is impossible (e.g. receivers with
cable supply) you can separate both amps by means of the ground isolator part no. 0053300.
The signal of the RCA terminals is also controlled by the settings of bass, treble, BGM, AVC and
Mute.
Netzsicherung
Mains Fuse
210-240V - T 4A
100-117V - F 6A
Leuchtstofflampen
Fluorescent Lamps
230V / 117V
Verstärker
Amplifier
Externer Hauptschalter
External Mains switch
Schein-
annehmer
Bill-
acceptor
Achtung!
Vor Abnahme der Kappe den Netzstecker
ziehen!
Warning!
Shock hazard! Do not open!
Zur Beachtung: Nur Sicherungen mit
gleicher Größe und gleichem Wert
verwenden, um Schäden zu vermeiden.
Caution: To reduce the risk of fire
replace only with same typ and rating fuses.
Netzspannung
50/60 Hz
Mains Voltage
50/60 cps
240
230
220
210
117
100
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATINGFUSE
B ass T reble BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE
F1 - F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250V AC
SLOWBLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8/80W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-T UBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M ECHANIK
M ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
AVC
RS232
M
ICRO
T APE
M UTE
A/D NZEIGE ISPLAY
BGM
ok.
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
AVC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUTCD T APE
BGM
1
1
3
5
2
2
4
6
I
C1
ntern
hannel
E
C
xtern
hannel
2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
Netzsicherung
Mains Fuse
210-240V - T 4A
100-117V - F 6A
Leuchtstofflampen
Fluorescent Lamps
230V / 117V
Verstärker
Amplifier
Externer Hauptschalter
External Mains switch
Schein-
annehmer
Bill-
acceptor
Achtung!
Vor Abnahme der Kappe den Netzstecker
ziehen!
Warning!
Shock hazard! Do not open!
Zur Beachtung: Nur Sicherungen mit
gleicher Größe und gleichem Wert
verwenden, um Schäden zu vermeiden.
Caution: To reduce the risk of fire
replace only with same typ and rating fuses.
Netzspannung
50/60 Hz
Mains Voltage
50/60 cps
240
230
220
210
117
100
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATINGFUSE
B ass T reble
BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE
F1 - F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250V AC
SLOWBLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8/80W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-T UBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR IR
NFRAROT- EGLER NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M ECHANIK
M ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
AVC
RS232
M
ICRO
T APE
M UTE
A/D NZEIGE ISPLAY
BGM
ok.
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
AVC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUTCD T APE
BGM
1
1
3
5
2
2
4
6
I
C1
ntern
hannel
E
C
xtern
hannel
2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
+
+
+
+
+
+
+
+
+
+
In Stereo mode do not connect a single
speaker with less than 8ohm to each
channel.
Two speakers of 4ohm (serie) also
represent total impedance of 8ohm.
8Ω8Ω4Ω4Ω
4Ω
4Ω
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE
B ass T reble
BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE
F1-F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
O
PTION
PTION
RL
EL
ES
8 / 80 W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-T UBBLE UBES
N
T
ETZTRAFO
RANSFORMER
F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
M
M
ECHANIK
ECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
I
C1
ntern
hannel
E
C
xtern
hannel
2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
AVC
RS232
M
ICRO
T APE
M UTE
A/D NZEIGE ISPLAY
BGM
ok.
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
A
A
VC
VC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUT
CD T
APE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF
E
E
RWEITERUNG
XTENSION

Coin and credit programming
OMT VINYL – edition: 13.08.2007 17
16 Disabling the internal mute circuit
With the optional BGM-Connector (part
no. 0048130) you can connect an
external source to the jukebox with
automatic switch over. In this case the
amplifier should not be muted during
standby of the jukebox.
To reach this disable the internal mute
circuit by setting the first DIP switch (1)
“Mute” to OFF.
For more information about the BGM
connector please order the Deutsche
Wurlitzer GmbH technical information
leaflets TI-MA-116.
17 Input selector
With DIP switch (1) you can set either CD
or tape input as active.
AVC
RS232
MICRO
TAPE
MUTE
A/DNZEIGE ISPLAY
BGM
ok.
S/SCHALTER WITCHES
A/OUS FF
A/OUS FF
E/OIN N
E/OIN N
A
A
VC
VC
MODESTEREO 2-K /2CANAL HANNEL
INPUT
CD TAPE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF
ERWEITERUNG
AVC
RS232
M
ICRO
T APE
M UTE
A/D NZEIGE ISPLAY
BGM
ok.
S/S CHALTER WITCHES
A/O US FF
A/O US FF
E/O IN N
E/O IN N
A
A
VC
VC
MODES
TEREO 2-K /2C ANAL HANNEL
INPUT
CD T
APE
BGM
1
1
3
5
2
2
4
6
SEPARATE
NORMAL
AUTO
VOLUME
RS232
MUTE
HIGH LOW
PARALLEL
SERVICE
AUS/OFF
E
E
RWEITERUNG
XTENSION

Failures of the illumination, lamps and power system generally
OMT VINYL – edition: 13.08.2007
18
18 Trouble shooting chart
18.1 Failures of the illumination, lamps and power system generally
Symptom Cause Possible faults
!No light, jukebox not working
at all !No power at wall socket
!Open primary circuit !House fuse blown. !Mains switch off or defective.
!Fuse of the jukebox Si1 blown, refer to
chapter 18.2, on page 19
!Defective power cord or plug
!Fluorescent tubes do not light,
jukebox working !defective circuit, refer to chapter 18.9.1, on page 25 !Lamps circuit plug not in light socket at amplifier
!Tube not properly seated in holder
!Defective starter, defective tube
!One or more of the lights of
the display do not light up,
jukebox working
!Lamps’ circuit open !Bulb defective
!Defective lamp socket
!Defective plug BROWN or its wiring
resp.
!Defect inside the S&CC, e.g. lamp
driver transistor
!All lights of the display are
dark, jukebox working !Supply or common return of lamps’ circuit open !Plug to the digital lights
!Wire +30v broken (plug BROWN, pole
6, white line)
!External short in lamps circuit has
tripped T5 (inside S&CC), this disables
IC14 to protect lamp driver transistors
!Lamps of too high current rating
!No 30VAC S&CC supply via pole 1,
plug RED, 30v rectifier D7 defective
(this, however, disables the coin
acceptance also)
!Digital display remains dark,
jukebox working !Display signal circuit interrupted !14-pole D.I.L. plug not in place or wrong way round
!Digital display shows nonsens
figures !Signal lines interchanged !14-pole D.I.L. plug to display displaced not in line with base
!S&CC defective, e.g. IC23
!Digital display shows
incomplete figures (missing
segment)
The fault is the same with all
three digits.
!Signal for one (or more)
segments missing !One (or more) of 14-pole plug(s) broken off
!One (or more) wire(s) of flat cable
broken
!Broken connection at display PC-board
!S&CC defective, e.g. IC23
!Digital display shows
incomplete figures (missing
segment)
The fault, however, occurs
with one of the three digits
only
!Segment signal does not
reach this digit !Cracked conductor on display PC-board
!Defective display unit (3 identical one-
digit units)
!One of the digits of the display
completely off !Multiplex signal missing !Defective plug to display or broken wire (A1, A2, A3)
!S&CC defective (T6, T7, T8)
!Defective display element
