Wurlitzer PRINCESS Troubleshooting guide

R
18
PRINCESS
18

WARNING! Although the beam emitted by the laser diodes is nearly invisible, it may cause severe damage to
the human eye. Use an infrared indicator to check the laser beam.
ATTENTION!
The CD mechanism and many ICs are extremely susceptible to electrostatic discharges. The photo diodes
and the laser diode are more sensitive to discharges than MOS ICs. Careless handling may immediately de-
stroy components or can drastically reduce life expectancy of these components so that it will lead to failure af-
ter several weeks or even months of use.
Before you touch the player, discharge your hands and tools by touching a grounded metal part of the jukebox,
such as the amplifier or the mechanism chassis. Make sure that you are connected via a wrist wrap with resis-
tance to the same potential as the chassis of the jukebox. Keep parts and tools at the same potential.
If you remove the player in case of repair or for transport, short the harness with a short circuit plug.
When repairing, observe all valid safety rules. Do not change the original condition of the jukebox. Use original
spare parts only.
This manual belongs to machines equipped with program versiones 4.09 (or higher).
Subject to alterations.
CLASS
LASER PRODUCT
1
3122 110 03420
ESD

PRINCESS – Edition: 17.02.2005 1
1 Unpacking - Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Removal of shipping guards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Verification of power voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Speaker connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.6 Power on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Loading compact discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Position of CDs in the magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Remove magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 CD handling precautions - CD and player cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Inserting title cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5 Programming number of CDs in the magazines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.6 Adjustment of the page limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Coin operation or free play? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Coin operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Free play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Test credit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Track selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1 How to select a track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 I do not like this track - the button CANCEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Albumplay - playing a whole CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Automatic random select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Volume, sound and balance control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.1 Volume, sound and balance control - amplifier F91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.2 Volume, sound and balance control - amplifier K99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Coin and price settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.1 Price settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.2 Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3 Free play programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.4 Color codes of coin input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.5 Selecting, displaying and programming of top tunes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8 Programming short view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9 Jukebox programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.1 Calling service programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.2 Programming of time functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9.3 Programming of the Playstimulator (random selections without coin insertion). . . . . . . . . . . . . 29
9.4 BackGround Music (BGM), level 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.5 Happy hour pricing (additional bonus plays) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.6 Number of tracks played successively on the same disc, level 2 button 3 . . . . . . . . . . . . . . . . . . 35
9.7 Disabling single tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PRINCESS – Edition: 17.02.2005
2
9.8 Location or Identification number, level 1 button 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.9 Album selection and memory reset by power off, level 1 button 9 . . . . . . . . . . . . . . . . . . . . . . . . 37
10 Data retrieval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10.1 Operator data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
11 Amplifier F91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
11.1 Verification of power voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
11.2 Position of fuses and plug connectors on the power amp board . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.3 The first power ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
11.4 Pre-settings for volume, bass, treble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
11.5 Speaker connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
11.6 Connecting external speakers in operating mode 2-CHANNEL . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
11.7 BGM mode - volume attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
11.8 Automatic volume control (AVC) and clipping stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
11.9 Overdrive protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
11.10 Overload protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11.11 Tape input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
12 Amplifier K99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12.1 Device description of the amplifier K99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12.2 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12.3 Verification of power voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
12.4 Position of fuses and plug connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12.5 The first power ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
12.6 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
12.7 The infrared remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
12.8 Treble and bass control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
12.9 Automatic volume correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
12.10 Background Music - volume attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
12.11 External speaker connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
12.12 External amplifier connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
12.13 Disabling the internal mute circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
12.14 Input selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
13 70v output transformer (0043157) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
13.1 Hints of connectable speaker loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
13.2 Determination of the connectable speaker power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
13.3 Hints for speaker connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
13.4 Connection of 70v systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
14 Technician Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
14.1 Service data, level 4 button 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
15 Function tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
15.1 Digital display test / EPROM-version, level 1 button 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
15.2 Mechanism single step tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
15.3 Light gate tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

PRINCESS – Edition: 17.02.2005 3
15.4 CD-PRO function tests, level 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
16 Integrated test program of the CD-PRO player . . . . . . . . . . . . . . . . . . . . . . . . . 72
16.1 Access to the player functions without S&CC unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
16.2 Special test functions of the CD-PRO player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
17 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
17.1 Microfone kit (part no. 0006953). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
17.2 BGM-Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
18 Steps to solve mechanical problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
18.1 Treating simple errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
18.2 Treating simple errors by hand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
18.3 Set the mechanism to ‘0’ position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
19 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Unlocking
PRINCESS – Edition: 17.02.2005
4
OPERATING INSTRUCTIONS
1 Unpacking - Installation
1.1 Unlocking

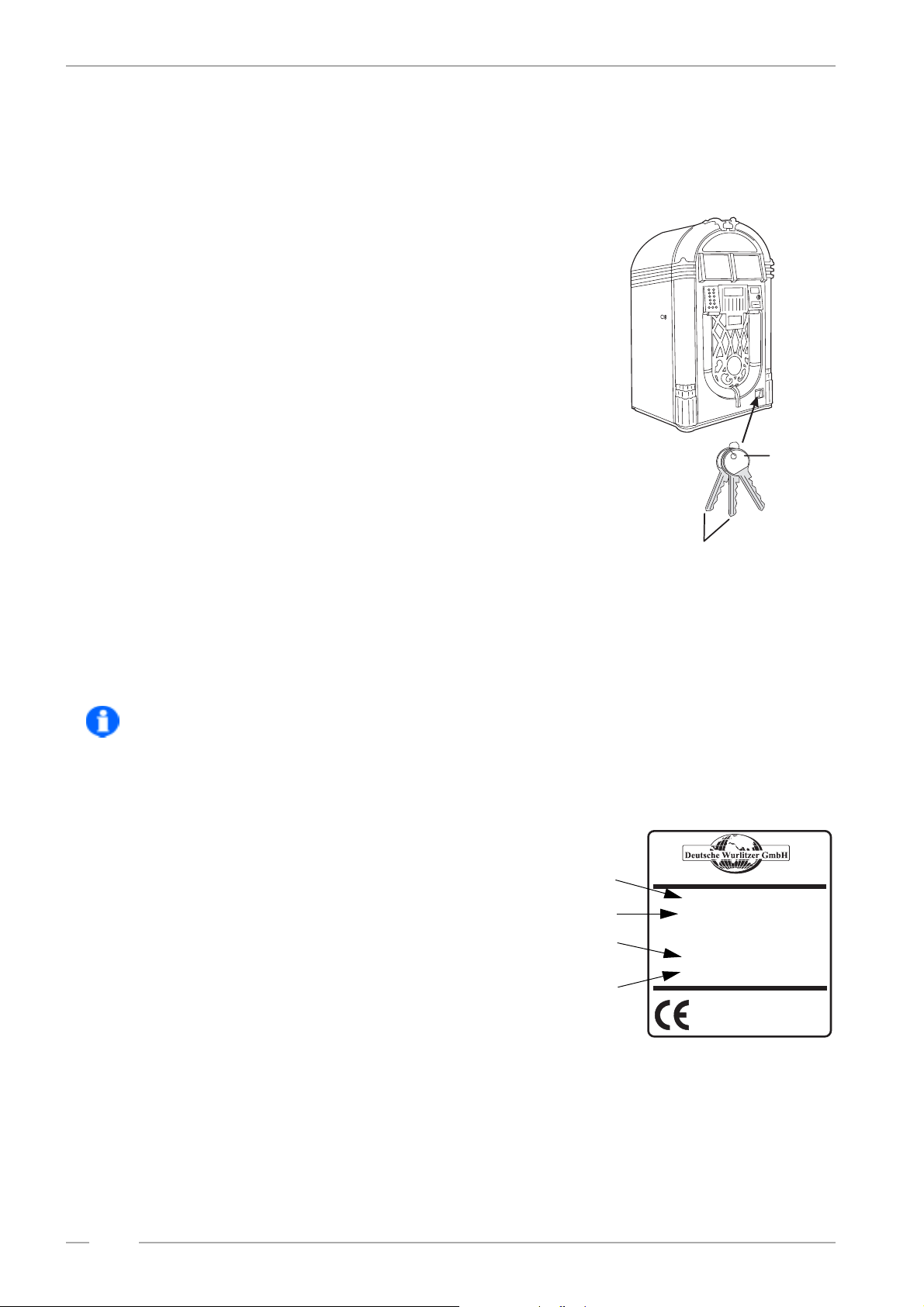

The key is stored in the coin return cup in the RH bottom
side of the door. The key WUA 1 unlocks the cabinet by tur-
ning the key clockwise. The lock is spring loaded, press
slightly against the door, this allows to turn the key easily.
The two other keys with 5 digit number codes unlock the
cash box inside of the cabinet. In this box also the hand
transmitter is located.
1.2 Removal of shipping guards

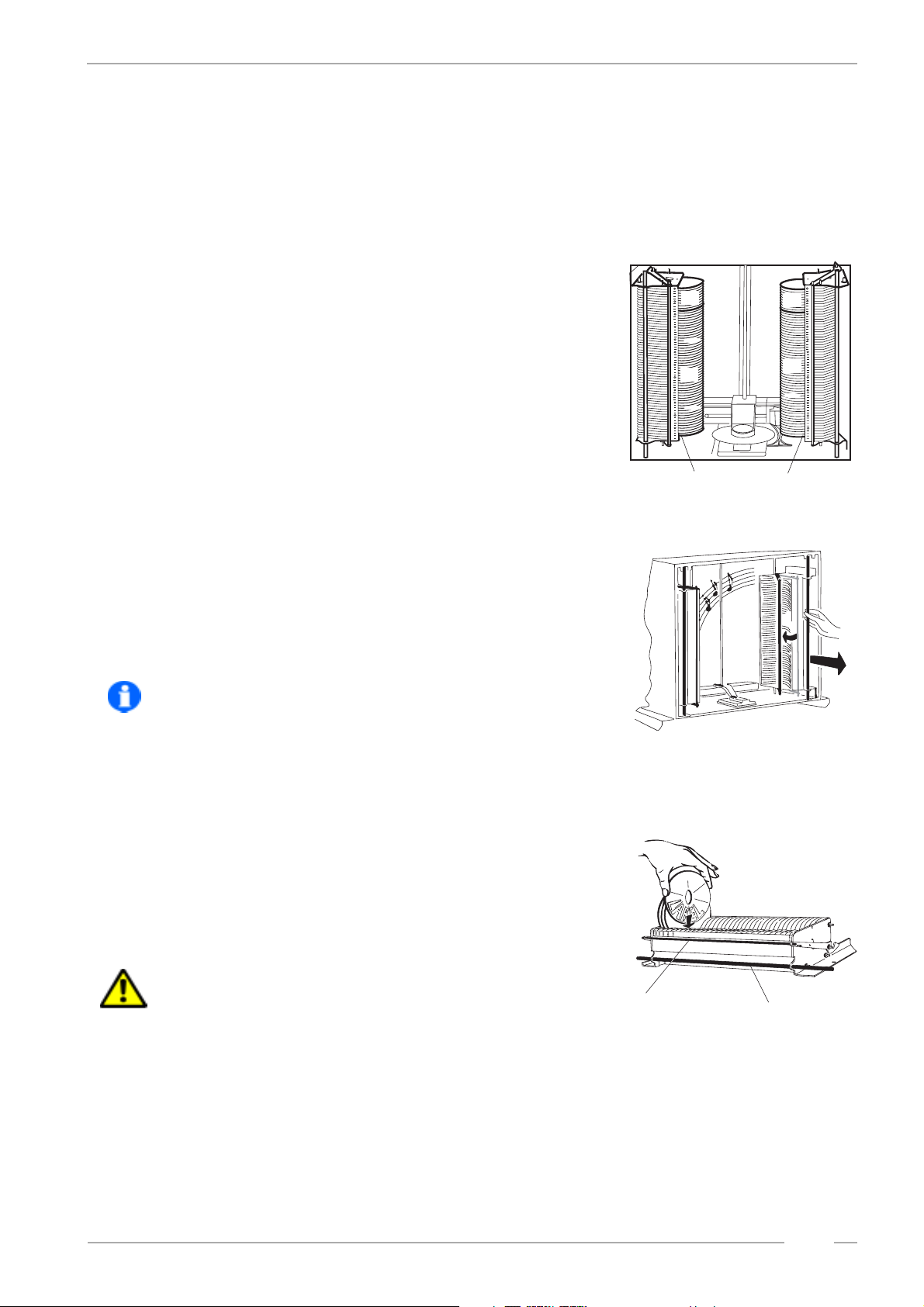

1. Remove elastic band from the magazine cabinet.
2. Open the magazine cabinet.
3. Push the latch bar of one magazine inwards and take it
out.
4. Remove elastic band and release the wing screw up to
limit stop.
5. Insert the magazine again and proceed the same way with the second magazine.
6. Finally remove the CD lens cover.
NOTE: Save the removed shipping guards. You may need them should you decide to move your
machine to another location.
1.3 Verification of power voltage
Compare your power voltage with the vol-
tage printed on the label inside of the door. If
your voltage does not match the voltage of
the label do not switch on the jukebox. Con-
tact your dealer to set the voltage according
to your mains.
In case of standard UL-versions (for USA) it
is impossible to adjust another voltage.
At the other types you can check and modify
the power setting on the power transformer
of the amplifier. It is described in the accor-
ding chapters ‘amplifier F91’ see page 41
and ‘amplifier K99’ see page 50.
For any service call please have ready your serial and version number.
WUA 1
WUA 1
456734
WUA 1
WUA 1
WUA1
for door
for cash box
Made in Germany
Typ CD-K-99
62792 PN.
Mod. O M T PRINCESS
CDV - K99 E
Nr. 43104113 Hz 50
V 100 - 240 W 270
Made by
Niederdorf 5 D-32351 Stemwede-Levern
amplifier type
serial number
power voltage
version number

Wall mounting
PRINCESS – Edition: 17.02.2005 5
OPERATING INSTRUCTIONS
1.4 Wall mounting
Depending on the installed amplifier the weight
of the jukebox is 78kg (amplifier K99) to 85kg
(amplifier F91). Because of this take great pains
when you mount it on a wall. Use the delivered
mounting frame (part no. 0051361) and check
the structural quality of the wall. Calculate a se-
curity factor of 2 (170kg) for home use and a
factor of 4 (340kg) for public use when you se-
lect your dowels. Use all the dowel holes of the
frame. Contact your architect and a dowel ma-
nufacturer to select suitable mounting devices.
The manufacturer does not accept liability for
damages caused of not proper mounted machi-
nes!
Fasten the jukebox with the locking bolt which
you will find in the accessories.
1.5 Speaker connection
To attain a good sound of the jukebox, take
care when connecting the speakers. Connect
the speakers to either the terminals inside of the
jukebox or to the terminals on the back side.
Pay attention of the correct polarity. The red ter-
minals belong to "+" the black ones to "-".
The jukebox can be delivered with two different
amplifiers F91 or K99. You can distinguish both
types by means of the product label inside the
door or compare your amplifier with the pictures
below here.
Both amplifiers may not be loaded with more
than 4Ωper channel. Less Ohm means more
load! The output of the amplifier K99 to a 4Ω
load is 55 Watts rms power at 1 % distortion, to
8Ωit is about 28 Watts, to 12Ωit is about 18
Watts.
The output of the amplifier F91 to a 4Ωload is
170Watts rms power, to 8Ωit is about 85 Watts,
to 12Ωit is about 57 Watts.
thread for
locking bolt
heights approx. 1.10m
hole for locking bolt
speaker terminals
inside
Verstärker-Sicherungen
210V - 240V
Si 1/Si 301
Si 2/Si 302
Si 102/Si 103
Si 100/Si 101
MT 4A T 3,15A
100V - 117V
Si 1/Si 301
Si 2/Si 302
T5A
Si 102/Si 103
Si 100/Si 101
T3A
Zur Beachtung Nur Sicherungen mit gleicher Größe und
gleichem Wert verwenden um Schäden zu vermeiden.
Caution: To reduce the risk of fire replace only with
same type and rating fuses.
Achtung!
Vor Abnahme der Kappe den Netzstecker
ziehen!
Attention!
Pull power plug before opening protective
lid!
Leuchtstofflampen/
Flourescent Lamps
230V / 117V
/ Amplifier Fuses
Netzspannung
50/60 Hz
Mains Voltage
50/60 cps
240
230
210
100
220
117
Low Level
BGM
Mic.-Kit
L
R
Line Out
L
R
Input Tape
L
R
Input CD
Amplifier F91
0039155
BGM Level
R
L
LR
Clipping
P10
Remote
P10
Remote
P4
1
2
4
1
2
4
Tone
off on
Treble
Bass
1
2
4
8
16
32
1
2
4
8
16
32
Volume
off on
R
L
Mode
Input
CD
Stereo
Tape
2-Kanal
R
L
CAUTION
TO REDUCETHE RISK
OF FIRE REPLACE ONLY
WITH SAMETYPE AND
RATING FUSE Bass Treble BGM
M
S
ONO
TEREO
ANAL HANNEL
TEREO
2-K / 2-C
S
S
F
ICHERUNG
USE F1 - F4
100-240V
50Hz/60Hz
117 V
60Hz
3,0 AMP
250 V AC
SLOW BLOW
T4A
30V~
AC
F1
26V~
AC
F2
26V~
AC
F3
12V=
DC
F4
IL
NTERNER AUTSPRECHER
NTERNAL PEAKER
IS
O
PTION
O
PTION
RL
EL
ES
8/80W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
B-TUBBLE UBES
N
T
ETZTRAFO
RANSFORMER
E
E
RWEITERUNG
XTENSION F
RC
ERNREGLER
EMOTE- ONTROL
RS 232
BGM
IR
IR
NFRAROT- EGLER
NFRARED- EMOTE
A
O
LR
USGANG
UTPUT
ECD
ICD
LR
INGANG
NPUT
E
E300mV
XTRA
XTRA
E300mV
I
LR
INGANG
NPUT
M
M
IKROFON
ICROPHONE
MECHANIK
MECHANISM
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
AVC
RS232
MICRO
TAPE
MUTE
A/DNZEIGE ISPLAY
BGM
ok.
S/SCHALTER WITCHES
A/OUS FF
A/OUS FF
E/OIN N
E/OIN N
AVC
MODESTEREO 2-K /2CANAL HANNEL
INPUTCD TAPE
BGM
1
1
3
5
2
2
4
6
I
C1
ntern
hannel
E
C
xtern
hannel
2
Verstärker K 99 0056041
Amplifier K 99 C-UL 0058484
K99
F91

Power on
PRINCESS – Edition: 17.02.2005
6
OPERATING INSTRUCTIONS
If the amplifier is operating in 2-Channel mode, the spea-
kers at the external terminals are all loaded in parallel to
the left hand channel. If you use 4Ωspeakers you must
disconnect one speaker from the terminals before you
switch the jukebox to 2-channel mode.
The right channel (now switched to the sockets “R-Ex-
tern” and “L-Extern”) now may be also loaded with a mini-
mum of 4Ω.
Note that speaker groups like in hi-fi boxes may have, at
certain frequencies, impedances much lower than their
rating.
After having connected all speakers disconnect the moni-
tor speaker inside the jukebox. It is for test purposes only.
1.6 Power on
NOTE: Make sure that power outlet is grounded properly.
Insert the power plug. Set the power switch on the L.H.
side of the jukebox to on. The illumination will light. The
selection sledge starts an initialisation run and the coun-
ting of the disc compartments can be watched in the dis-
play. If all compartments are recognized the display
shows "6 1 6 1" for short time. After all the sledge stops in
its home position. The digital display shows the most
played track. If the box is brandnew and the selection me-
mory empty the display shows "0 0 0 0”.
speaker terminals on
the rear side
?
o.k.
power
switch

Position of CDs in the magazines
PRINCESS – Edition: 17.02.2005 7
OPERATING INSTRUCTIONS
2 Loading compact discs
2.1 Position of CDs in the magazines
Up to 120 CDs can be inserted in total. The left magazine
contains all CD's with odd compartment numbers (01, 03,
05 ...), the right one contains all even numbers (02, 04,
06 ...). But only 100 CDs can be selected in normal ope-
ration. (CD-no. 01 to CD no. (1)00 ). The CDs number
101 - 120 you can use only for Back Ground Music.
You have to update the ‘number of CDs in the magazines’
in service level 1 button 5 if you insert less than 100 CDs
(100 CDs = factory pre-setting).
2.2 Remove magazines
You can pull out the magazines separately. By pushing
the latch bar (1) inwards the magazine is released. At the
same time the CDs are locked into place. Pull the handle
bar (2) to remove the magazine completely.
When you insert the magazine the latch bar clicks into
place and releases the CDs.
NOTE: In theory it is possible to use only one magazine.
In this case the empty one has to be removed and the
jukebox needs to be switched off and on once. After the
initialisation run all selections belonging to the missing
magazine are disabled. If e.g. the RH magazine is mis-
sing, all even selections are disabled. If an even number
is selected the digital display will flash.
You can lay the magazine on its back side. Note, that the
left magazine contains all CDs with odd numbers, the
right one all with even numbers. Insert the CDs starting
with the compartment 01, in the LH magazine then insert
the second CD into compartment 02 which belongs to the
RH one etc.. The CD label has to face upwards.
ATTENTION! Always push the magazine into its frame
until the latch bar clicks into place properly!
001
001
50
10 10
50
CD1 CD2
CD 101 - 120
for BGM only!
2.
1.
latch bar handle bar

CD handling precautions - CD and player cleaning
PRINCESS – Edition: 17.02.2005
8
OPERATING INSTRUCTIONS
2.3 CD handling precautions - CD and player cleaning
Dust, fingerprints or other dirt on the disc surface can
cause skipping, jumping or sticking problems.
Because of this never touch the surface of a disc! Howe-
ver it is rather easy to remove nicotine, dust or finger-
prints.
Nicotine, dust, fingerprints:
Dust can be removed with a lintfree soft cloth. If neces-
sary, remove heavy dirt or fingerprints with a moistened
soft cloth soaked in a solution of water and a detergent.
Never use record cleaning sprays or anti static sprays!
Furthermore, do not use other types of cleaners contai-
ning benzene, thinner or other solvents. These liquids will
cause damage to the surface of discs. Move the cloth
from the inside towards the outside and not in circular
motion.
Removing scratches:
Use a soft cloth and a soft polish.
Laser lens cleaning:
Smoke and dust soils the lens. It can be cleaned with a
cue-tip soaked in a detergent (i.e. Kodak Lens Cleaner,
part no. 0051735). Place the tip on the lens and press
down carefully.
ATTENTION! The whole laser unit is very sensitive!
!Move the cue-tip only in the direction shown in the pic-
ture (perp. to the sledge direction).
!Do not scratch the special treated surface of the
lense.
!Take care that the cleaning solution will not run into
the focus unit.
!Keep away metal parts from the lens unit. A strong magnet is located underneath the lens. It at-
tracts also smallest metal parts and so can block the complete unit.

Inserting title cards
PRINCESS – Edition: 17.02.2005 9
OPERATING INSTRUCTIONS
2.4 Inserting title cards
After inserting the CD it is recommeded to insert the
appropriate title card into the paternoster book at the
same time. Run through the book pages by means of
the two push buttons.
To remove the cabinet lid bend both springs to out-
side.
Now you can take out each page.
Insert the title cards as shown in the picture. After in-
serting a page turn it forward and backward once to
check its propper function.
If the page system works properly the red LED lights
continuously. A blinking LED indicates the following
errors:
1x - LH light gate indicates an error, or is defective
2x - Lead through gate indicates an error, or is
defective
3x - RH light gate indicates an error, or is defective
4x - no or to slow page transport
5x - no zero page identification
LED blinks continuously: BCD-switch adjustment out of range 0 to 120.
push buttons
44
0
0
1
1
2
2
3
3
7
7
B
B
F
F
A
A
E
E
6
6
5
5
D
D
9
9
8
8
C
C
red LED

Programming number of CDs in the magazines
PRINCESS – Edition: 17.02.2005
10
OPERATING INSTRUCTIONS
2.5 Programming number of CDs in the magazines
Level 1, button 5
You have to update the ‘number of CDs in the magazi-
nes’ and make page limitation adjustment if you insert
less than 100 CDs (factory pre-setting) or after a
change of the number of inserted CDs .
If the number of CDs is programmed correctly the dis-
play will flash when you select an empty compartment.
A flashing display indicates an ‘empty’ selection or no
credit.
On the RH wall inside of the jukebox cabinet the so-
called Selection & Credit Computer (SCC unit) is situ-
ated. On it you can find the switch "SERVICE" and the
button "LT".
To program the number of inserted CDs (service
level 1):
1. Set the slide switch ‘service’ at the SCC-unit to
ON.
2. Press ‘LT’ button.
3. Press selection button R -hold down- and press
selection button 0 then release both buttons.
4. Press selection button 1. Service level 1 is rea-
ched. Display is: 1_ _ _.
5. To check the current setting press button 5, the display shows e.g. 50 or 00.
6. To reprogram press selection button 5 -hold down- and press selection button R. Enter the desi-
red number of CDs with two digits (enter 00 for 100 CDs).
"To check the new settings, press button 5 again.
Exit the service program:
1. Set the slide switch ‘service’ at the SCC unit to OFF.
2. Press ‘LT’ button.
"The changer starts an initialisation run. After this the jukebox is ready to operate.
Selection & Credit
Computer
MEMORY - Stecker von OFF
auf ON umstecken, wenn
Top tunes, Popularitätszähler
oder Kassenzähler arbeiten soll.
Move MEMORY Plug from OFF
to ON if Top tunes, Pop Meter or
Cash Box Content Registration
is required.
Placer la prise MEMORY en
position ON, de la position OFF
si le Top Tunes, le compteur de
popularité et la contenu de la
caisse sont demandés.
ACHTUNG:
ATTENTION:
ATTENTION:
CD TOWER
Selection &
Credit Computer
CDM 12 ON
OFF
Memory
0045411
P8
P5
P6 1
6
1
5
1
8
GPGP + 6 BS B4 B3 B2 B1
F
6
5
4
3
2
0
7
6
5
4
3
2
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
ON
OFF
SERVICE
Z
K
T.T.
+2
+3
BR
1
2
4
5
T1
10
20
+B
T
MLT
SERVICE button LT

Adjustment of the page limitation
PRINCESS – Edition: 17.02.2005 11
OPERATING INSTRUCTIONS
2.6 Adjustment of the page limitation
If les than 100 CDs are installed it is useful to disable the
not needed pages. It will be done by two BCD switches at
the front side of the book.
For easy handling you can use the table below to adjust
the two switches.
Nevertheless you will find here an example how to calcu-
late the BCD switch adjustment.
The switch BCD1 has a valency of 16, the other one,
BCD2 a valency of 1. The meaning of the characters is
according to the hexadecimal character set:
A = 10 B = 11 C = 12
D = 13 E = 14 F = 15.
If you want to adust a number of 60 CDs divide 60 by 16.
It equals 3,75. The number before the decimal point has to be adjusted at BCD1. Ignore the num-
bers after the decimal point. After this multiply the adjusted number 3 by 16. It equals 48. Subtract
this number from the given number 60. This equals 12. Adjust this number at BCD2 as „C“ (=12) ac-
cording to the hexadecimal character set.
Pages BCD1 BCD2 Pages BCD1 BCD2 Pages BCD1 BCD2 Pages BCD1 BCD2 Pages BCD1 BCD2
101261A5133764C10165
202271B5234774D10266
303281C5335784E10367
404291D5436794F10468
505301E5537805010569
606311F563881511066A
7073220573982521076B
8083321583A83531086C
9093422593B84541096D
10 0 A 35 2 3 60 3 C 85 5 5 110 6 E
11 0 B 36 2 4 61 3 D 86 5 6 111 6 F
12 0 C 37 2 5 62 3 E 87 5 7 112 7 0
13 0 D 38 2 6 63 3 F 88 5 8 113 7 1
14 0 E 39 2 7 64 4 0 89 5 9 114 7 2
15 0 F 40 2 8 65 4 1 90 5 A 115 7 3
16 1 0 41 2 9 66 4 2 91 5 B 116 7 4
17 1 1 42 2 A 67 4 3 92 5 C 117 7 5
18 1 2 43 2 B 68 4 4 93 5 D 118 7 6
19 1 3 44 2 C 69 4 5 94 5 E 119 7 7
20 1 4 45 2 D 70 4 6 95 5 F 120 7 8
21 1 5 46 2 E 71 4 7 96 6 0
22 1 6 47 2 F 72 4 8 97 6 1
2317 4830 7349 9862
24 1 8 49 3 1 74 4 A 99 6 3
25 1 9 50 3 2 75 4 B 100 6 4
44
0
0
1
1
2
2
3
3
7
7
B
B
F
F
A
A
E
E
6
6
5
5
D
D
9
9
8
8
C
C
4
0
1
2
3
7
B
F
A
E
6
5
D
9
8
C
4
0
1
2
3
7
B
F
A
E
6
5
D
9
8
C
BCD1 BCD2

Coin operation
PRINCESS – Edition: 17.02.2005
12
OPERATING INSTRUCTIONS
3 Coin operation or free play?

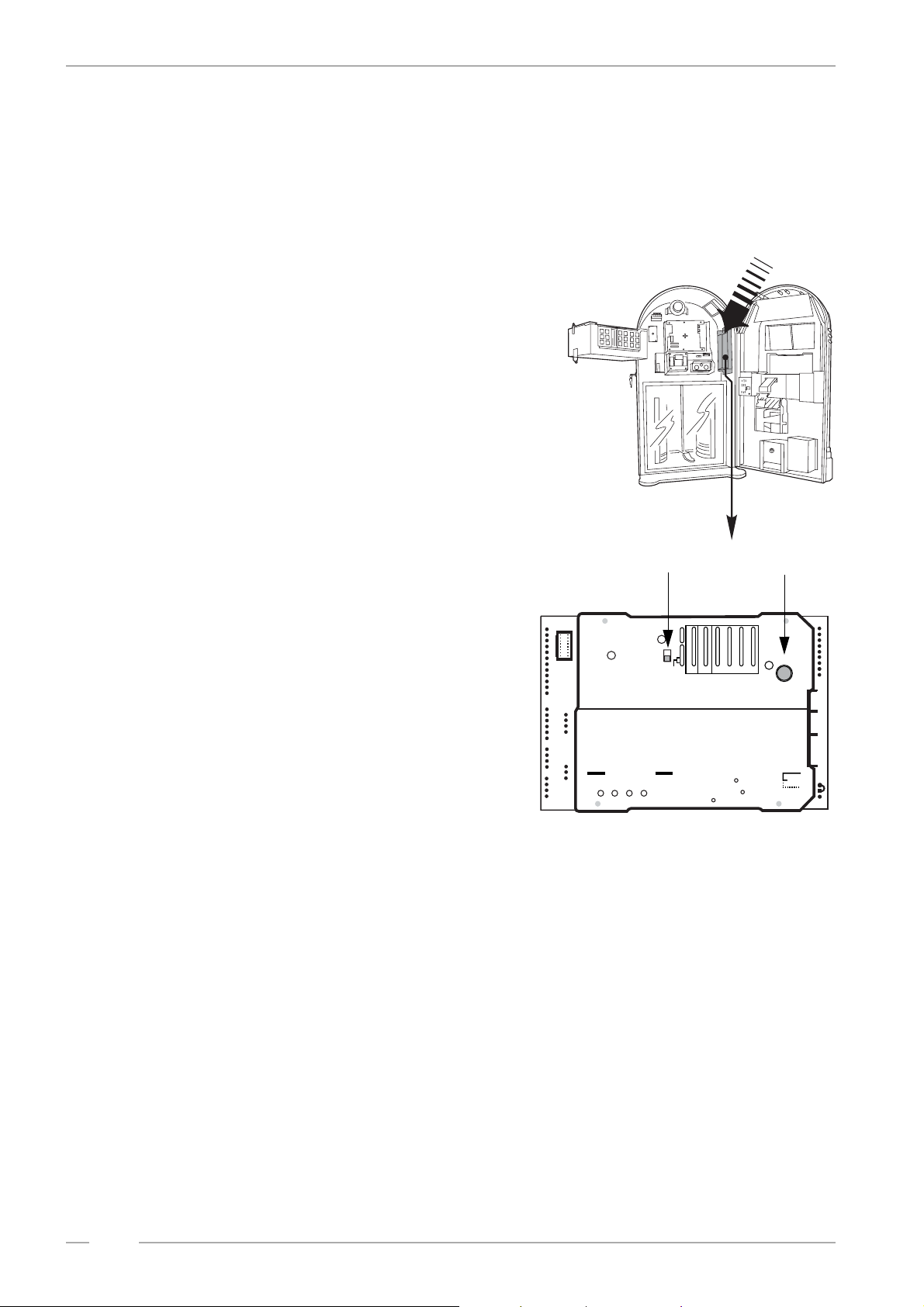

Both coin operation or free play are adjustable at the “Selection & Credit Computer”-unit. It is located
at the RH side of the cabinet. Special jumpers (short wires, located in the accessory pack of the ma-
nual ) are used to set prices on the SCC-unit. As long as no jumper is set in row GP from 0 to F and
the jumper in row GP+6 is not removed (free play) the jukebox works with coins only.
3.1 Coin operation
From factory the jukebox is set to coin operation. If you in-
sert a certain number of coins according the denomina-
tion label, the jukebox gives the credits or plays it is
adjusted for. If you want to change the play prices you
have to change the jumper settings on the SCC-unit.
3.2 Free play

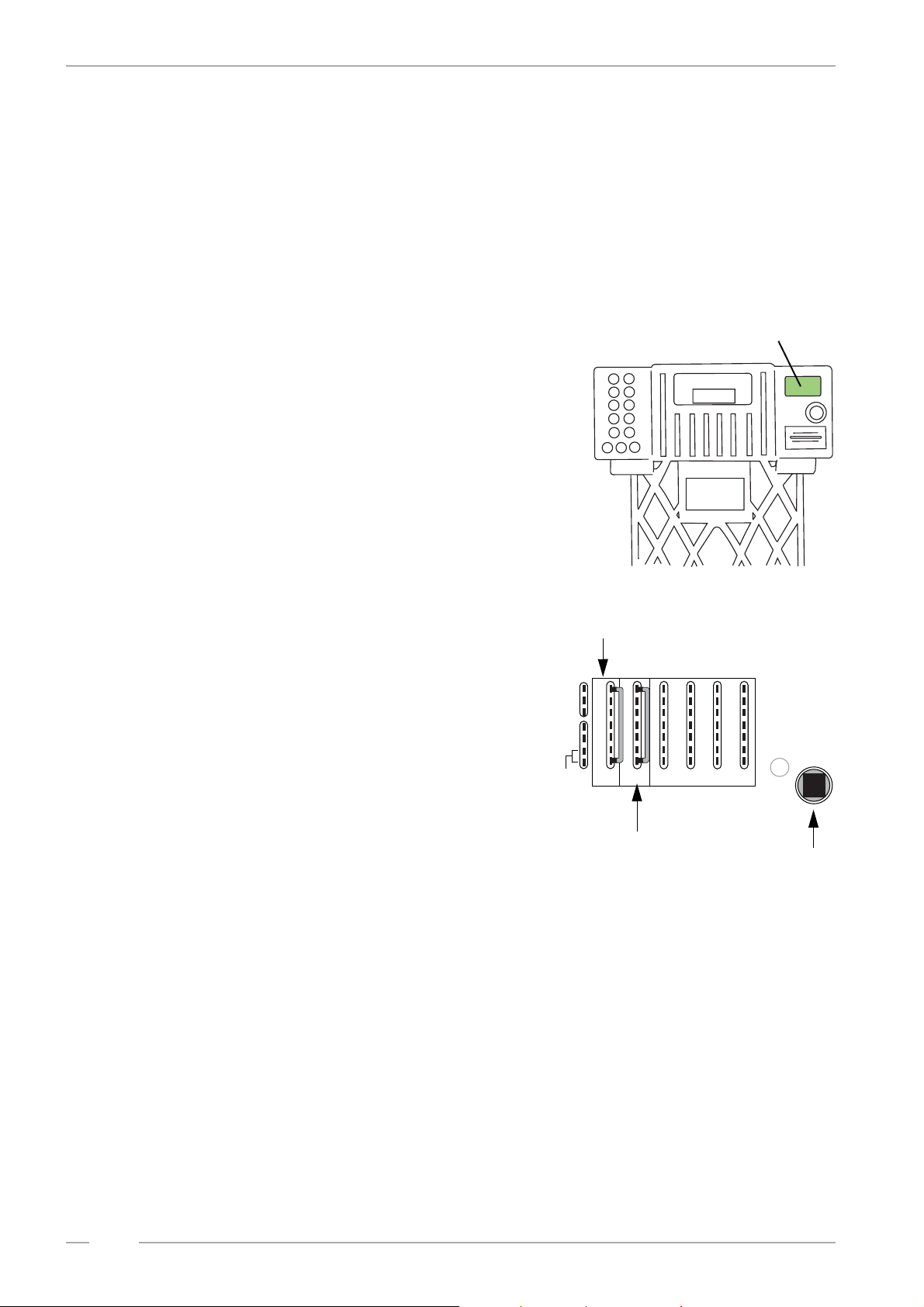

To set the jukebox to free play:
1. Remove all the jumpers on the SCC unit taking note
of current setting for future reference.
2. Set a jumper from 0 to F (free play) in the row GP on
the S&CC unit.
3. Press ‘LT’ button.
4. Now one track is selectable without coin insertion.
5. From two to six tracks are selectable by setting an
additionally jumper in the row ‘BS’ (Bonus Step) from
0 to 2 up to 0 to 6.
6. Up to 47 tracks are pre-selectable by setting a jumper in this row ‘BS from 0 to 7.
PRICE OF SELECTIONS
1play for50cts
Select 9999forTopTen
18 plays for $ 5
3 plays for $ 1
denomination
label
GPGP + 6 BS B4 B3 B2 B1
F
6
5
4
3
2
0
7
6
5
4
3
2
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
T.T.
+2
+3
BR
MLT
jumper from 0 to F
in row GP
jumper from 0 to 7
in row BS button LT

Test credit
PRINCESS – Edition: 17.02.2005 13
OPERATING INSTRUCTIONS
3.3 Test credit
For repair and test purposes it is possible to give test credits. By touching the test credit button (in
special cases several times) you get one credit also shown in the digital display. You can terminate
unused credits by pressing the LT button.

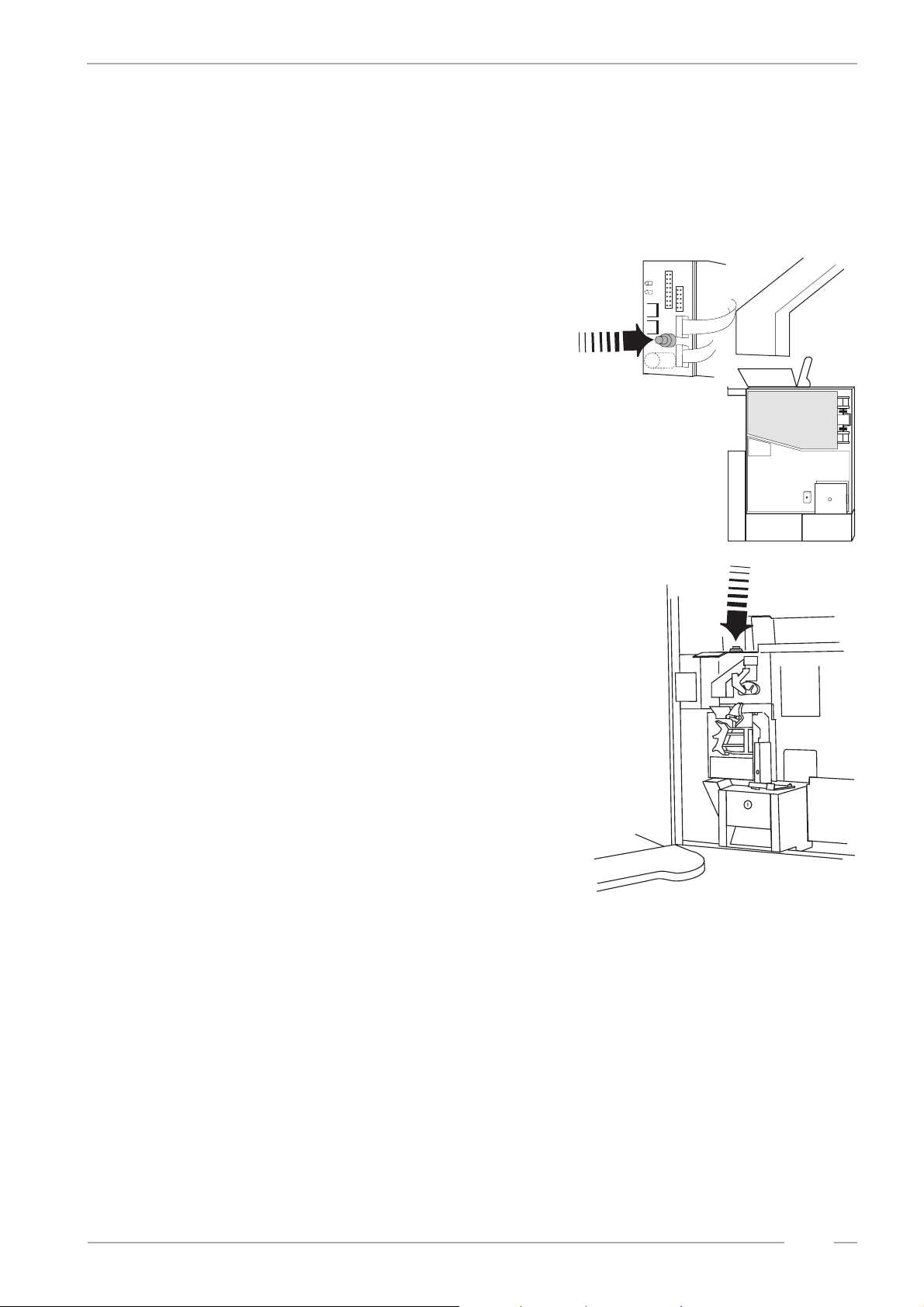

In jukeboxes with an electronic coin validator you can find
the test credit button on the coin validator interface board.
In jukeboxes with mechanical coin validator the test credit
button is mounted above the return lever inside.

How to select a track
PRINCESS – Edition: 17.02.2005
14
OPERATING INSTRUCTIONS
4 Track selections
4.1 How to select a track
If credit exists or free play is set you can select tracks
by means of the buttons 0 - 9 of the keyboard.
First enter the number of the CD with two digits, then
the track number with two digits too.(track numbers
higher than 35 will not be accepted).
Example: CD 2, track 9: Enter 0 - 2 - 0 - 9.
(Exception: CD 100 = 00.)
The button R
You can delete wrong entered numbers up to the third
digit by means of the button R (Reset). But after ha-
ving entered the fourth digit the jukebox stores and executes a selection also made by mistake. By
pressing the button R the available credit will be displayed for a few seconds.
The display flashes
After entering the fourth digit of a selection the jukebox starts to search
and play the selected CD immediately. If the display flashes the entered
selection was not valid. Check:
!if credit is available
!if the selection is higher than the programmed number of CDs in magazines
If you select a higher track number as available on a CD, the jukebox overcounts the tracks and
starts at the beginning.
Example:
CD 03 contains 17 tracks. But selected track is 0 - 3 - 1 - 9. The jukebox plays track 02 of CD 03.
Maximum 35 tracks per CD can be selected!
PRICEOFSELECTIONS
1 play for 50 cts
Select 9999 for Top Ten
18 plays for $ 5
3plays for $1
R
button R

I do not like this track - the button CANCEL
PRINCESS – Edition: 17.02.2005 15
OPERATING INSTRUCTIONS
4.2 I do not like this track - the button CANCEL

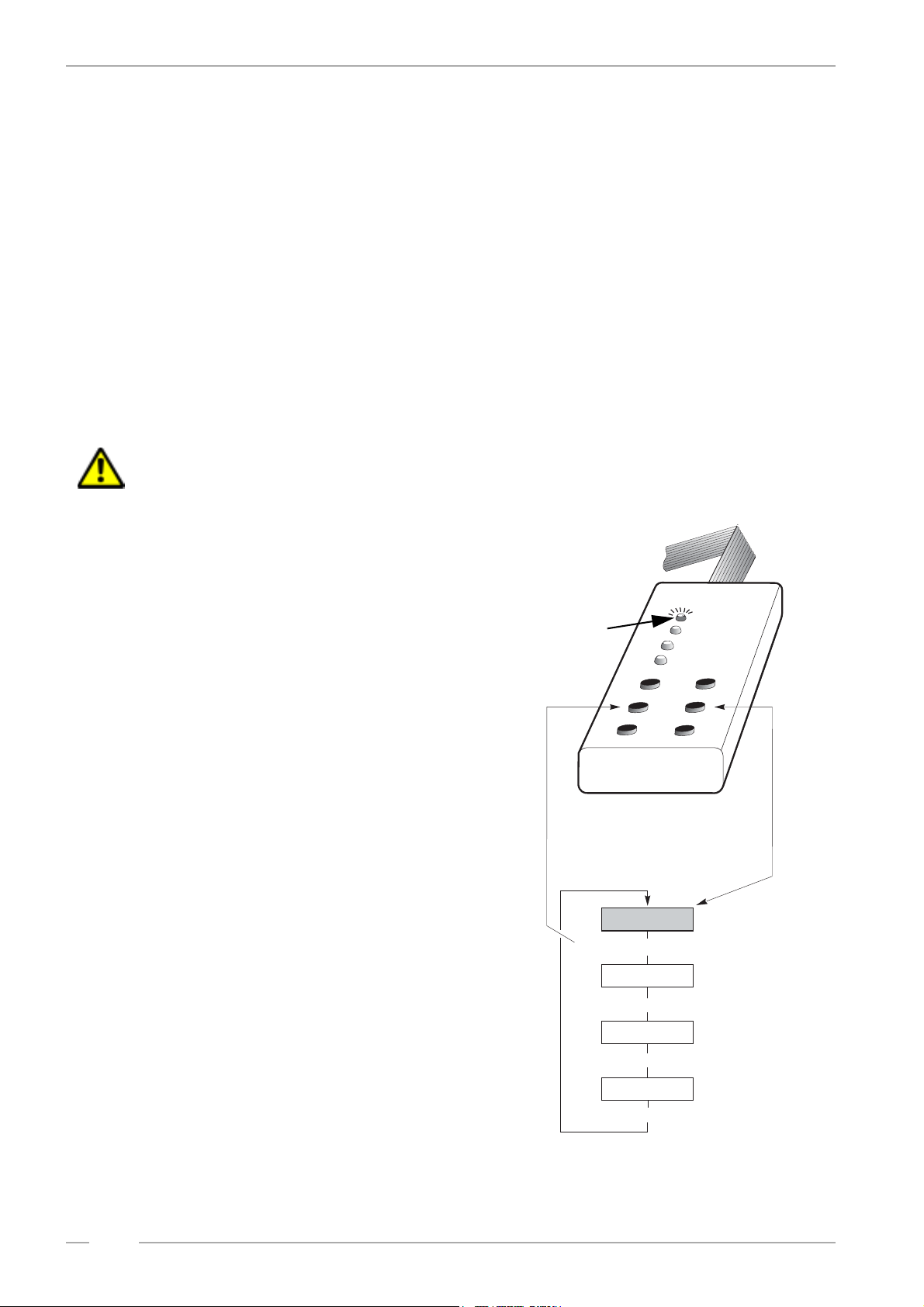

If you do not like a track you can either
cancel it by pressing the button 'CAN-
CEL' at the control box inside the jukebox
or at the infrared remote control. The
jukebox stops playing or plays the next
track if a selection has already been
made.
You can terminate all selections only by
pressing the button LT on the SCC unit .
You can loosen the control box inside the
jukebox to use it as an external wire re-
mote control. Its 10-line ribbon cable may
be extended as required with any kind of
wire .
As an option it is possible to connect two
wired remote controls in parallel or one
wired remote control together with one in-
frared remote control.
VOLUME
BASS
TREBLE
BALANCE
-+
MODE PRESET
CANCEL MUTE
VOLUME
BASS
TREBLE
BALANCE
-+
MODE PRESET
CANCEL MUTE
RCS
ART.NR.: 0040443
SELECTION
1
23
456
RESET
789
0
+/-
+/-
+/-
+/-
VOLUME
BASS
TREBLE
BALANCE
MODE
MODE
MODE
MODE
MUSIC
MODE
PRESET
CANCEL
MUTE
-
+
button CANCEL F91
C
ANCEL
M
UTE
M
IN
M
AX
M
IN
M
AX
0058407
I
C
NTERN
HANNEL1
E
C
XTERN
HANNEL2
RCS-K
No.: 0059745
SELECTION
1
23
456
RESET
POWER
OPTION
789
0
-
+
-
+
CANCEL MUTE
VOLUME
INTERN
CHANNEL 1
EXTERN
CHANNEL 2
CANCEL
MUTE
MIN MAX
MIN MAX
0058407
I
C
NTERN
HANNEL 1
E
C
XTERN
HANNEL 2
Netzsicherung
MainsFuse
Netzsicherung
Mains Fuse
210-240V -T4
A
100-117V-F6A
210-240V - T 4A
100-117V - F 6A
Leuchtstofflampen
Fluorescent Lamps
230V/11
7V
Leuchtstofflampen
Fluorescent Lamps
230V / 117V
Verstärker
Amplifier
Verstärker
Amplifier
Externer Hauptschalter
External Mainsswitch
Externer Hauptschalter
External Mains switch
Schein-
annehmer
Bill-
acceptor
Schein-
annehmer
Bill-
acceptor
Achtung!
VorAbnahmederKappedenNetzstecker
ziehen!
Achtung!
VorAbnahme der Kappe denNetzstecker
ziehen!
Warning!
Shock hazard! Donotopen!
Warning!
Shock hazard! Donot open!
ZurBeachtung:NurSicherungenmit
gleicherGrößeundgleichemWert
verwenden,umSchädenzuvermeiden.
Caution:To reducetheriskoffire
replaceonlywithsametypandratingfuses.
Zur Beachtung: Nur Sicherungen mit
gleicher Größe und gleichem Wert
verwenden, um Schäden zu vermeiden.
Caution: Toreduce the risk of fire
replace only with same typ and rating fuses.
Netzspannung
50/60Hz
MainsVoltage
50/60cps
Netzspannung
50/60 Hz
Mains Voltage
50/60 cps
240
230
220
210
117
100
240
230
220
210
117
100
CAUTION
CAUTION
TOREDUCETHERISK
OFFIREREPLACEONLY
WITHSAMETYPEAND
RATINGFUSE
TOREDUCETHE RISK
OFFIREREPLACE ONLY
WITHSAMETYPE AND
RATINGFUSE
B
ass
B
ass
T
reble
T
reble
BGM
BGM
M
S
ONO
TEREO
M
S
ONO
TEREO
ANALHANNEL
TEREO
2-K/2-C
S
ANALHANNEL
TEREO
2-K/2
-C
S
S
F
ICHERUNG
USE
S
F
ICHERUNG
USE
F1-F4
F1-F4
100-240V
50Hz/60Hz
100-240V
50Hz/60Hz
117V
60Hz
117V
60Hz
3,0AMP
250VAC
SLOWBLOW
3,0AMP
250VAC
SLOWBLOW
T4A
T4A
30V~
AC
30V~
AC
F1
F1
26V~
AC
26V~
AC
F2
F2
26V~
AC
26V~
AC
F3
F3
12V=
DC
12V=
DC
F4
F4
IL
NTERNERAUTSPRECHER
NTERNALPEAKER
IS
IL
IS
NTERNER AUTSPRECHER
NTERNAL PEAKER
O
PTION
O
PTION
O
O
PTION
PTION
RL
EL
ES
8/80W
XTERNERAUTSPRECHER
XTERNALPEAKER
W
R L
EL
ES
8/80W
XTERNER AUTSPRECHER
XTERNAL PEAKER
W
CD-T
CD-T
RAFO
RANSFORMER
CD-T
CD-T
RAFO
RANSFORMER
B-
T
UBBLEUBES
B-T
UBBLEUBES
N
T
ETZTRAFO
RANSFORMER
N
T
ETZTRAFO
RANSFORMER
EE
RWEITERUNG
XTENSION
EE
RWEITERUNG
XTENSION
F
RC
ERNREGLER
EMOTE-ONTROL
F
RC
ERNREGLER
EMOTE-ONTROL
RS232
RS232
BGM
BGM
IR
IR
NFRAROT-EGLER
NFRARED-EMOTE
IR
IR
NFRAROT-EGLER
NFRARED-EMOTE
A
O
LR
USGANG
UTPUT
A
O
L R
USGANG
UTPUT
EC
D
IC
D
LR
INGANG
NPUT
EC
D
ICD
L R
INGANG
NPUT
EE3
00mV
XTRA
XTRA
E3
00mV
I
LR
INGANG
NPUT
E E 300mV
EI300mV
L R
XTRA INGANG
XTRANPUT
M
M
IKROFON
ICROPHONE
M
M
IKROFON
ICROPHONE
M
ECHANIK
M
ECHANISM
M
M
ECHANIK
ECHANISM
DA
RC
ECKELBNEHMEN
EMOVEOVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
DA
RC
ECKELBNEHMEN
EMOVEOVER
DA
RC
ECKEL BNEHMEN
EMOVE OVER
AVC
AVC
RS232
RS232
M
ICRO
M
ICRO
T
APE
T
APE
M
UTE
M
UTE
A/
D
NZEIGEISPLAY
A/
D
NZEIGE ISPLAY
BGM
BGM
ok.
ok.
S/
S
CHALTERWITCHES
S/S
CHALTERWITCHES
A/O
USFF
A/O
US FF
A/
O
USFF
A/
O
US FF
E/
O
INN
E/O
INN
E/O
INN
E/O
INN
AVC
AVC
MODE
MODE
S
TEREO
S
TEREO
2-K/2C
ANALHANNEL
2-K/2C
ANAL HANNEL
INPUT
INPUT
CD
CD
T
APE
T
APE
BGM
BGM
1
1
3
5
2
2
4
6
I
C1
ntern
hannel
I
C1
ntern
hannel
E
C
xtern
hannel
2
E
C
xtern
hannel
2
Verstärker
Verstärker
K99
99
0056041
0056041
Amplifier
Amplifier
K99
99
C-UL
C-UL
0058484
0058484
button CANCEL K99

Albumplay - playing a whole CD
PRINCESS – Edition: 17.02.2005
16
OPERATING INSTRUCTIONS
4.3 Albumplay - playing a whole CD
You can select a whole CD by entering the CD number followed by two times 0, provided that 'Al-
bumplay' is enabled and the SCC has reached the fourth bonus level or if free play is set.
Programme:
To enable 'Albumplay', enter the service level 1:
1. Set the slide switch ‘service’ at the SCC unit to ON.
2. Press ‘LT’ button.
3. Press selection button R -hold down- and press selection button 0 then release both buttons.
4. Press selection button 1. Service level 1 is reached. Display is: 1_ _ _.
To enable 'Albumplay' press selection button 9 -hold down- and press selection button R. Release
both buttons. Enter 01 to enable (or 00 to disable) 'Albumplay'.
ATTENTION! If you press the CANCEL button while a complete CD is playing as long as the last
track is not reached the next track on this CD will be played.
Exit the service program:
1. Set the slide switch ‘service’ at the SCC unit to OFF.
2. Press ‘LT’ button.
"The changer starts an initialisation run. After this the jukebox is ready to operate.

Albumplay - playing a whole CD
PRINCESS – Edition: 17.02.2005 17
OPERATING INSTRUCTIONS
5 Automatic random select
If the playstimulator is switched on by means of the conti-
nuous play switch or the service program the jukebox
plays random tracks of the registered CDs in the magazi-
nes (service program level 1 button 5). CDs declared as
BGM CDs will not be used, refer to chapt. 9.4 on page 31!
The volume is the same as in normal operation. If a se-
lection is made the playstimulator will be interrupted im-
mediately and remains after having played the selected
tracks.
You can programme the playstimulator by software too.
Then the time between the random tracks of the playsti-
mulator is programmable between 1 up to 98 min. You
may also programme a time window in which the playsti-
mulator works, refer to chapt. 9.3 on page 29.
On jukeboxes with F91 amplifier or without remote con-
trols you can switch on CONTINUOUS PLAY with the
continuous play switch. Part number is 0034410. It has
to be connected to P8 of the SCC unit.
RCS-K
No.: 0059745
SELECTION
1 23
456
RESET
POWER
OPTION
789
0
-
+
-
+
CANCEL MUTE
VOLUME
INTERN
CHANNEL 1
EXTERN
CHANNEL 2
button to
switch
continuous
on and off
play
MEMORY - Stecker von OFF auf ON umstecken, wenn Top tunes, Popularitätszähler oder Kassenzähler arbeiten soll.
Move MEMORY Plug from OFF to ON if Top tunes, Pop Meter or Cash Box Content Registration is required. Placer la prise MEMORY en position ON, de la position OFF si le Top Tunes, le compteur de popularité et la contenu de la caisse sont demandés.
ACHTUNG:
ATTENTION: ATTENTION:
CD TOWER
Selection &
Credit Computer
CDM 12
Continuous
Play
on off
ON
OFF
Memory
0045411
P8
P5
P6
1
6
1
5
1
8
GP
GP + 6 BS B4 B3 B2 B1
F
6
5
4
3
2
0
7
6
5
4
3
2
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
6
5
4
3
2
1
0
ON
OFF
SERVICE
Z
K
T.T.
+2
+3
BR
1
2
4
5
T1
10
20
+B
T
MLT
continuous play
switch

Volume, sound and balance control - amplifier F91
PRINCESS – Edition: 17.02.2005
18
OPERATING INSTRUCTIONS
6 Volume, sound and balance control
6.1 Volume, sound and balance control - amplifier F91
With the control terminal inside of the jukebox the volume, treble, bass and balance can be cont-
rolled individually.
After power up or if no button has been pressed for approx. 5 sec or after the button PRESET has
been pressed, the terminal stays in the mode "VOLUME". The LED "VOLUME" lights. In this mode
you can control the volume by means of the buttons '+' and '-'. (Adjustments return to preset after po-
wer off.)
One LED corresponds to each mode. Use ‘mode’ button to activate desired mode. With the buttons
'+' and '-' treble, bass or balance can be controlled.
The control terminal can be taken out and be used as a wired remote control.
ATTENTION! Depending on the adjusted volume of the jukebox loudness levels of more than 70 dB
can be reached.
The meanings of the buttons...
!VOLUME:
!Volume LED lights.
!+ button increases volume
!- button decreases volume.
!BASS: (Press ‘MODE’ button once.)
!Bass LED lights.
!+ button increases bass volume
!- button decreases bass volume.
!TREBLE: (Press ‘MODE’ button twice.)
!Treble LED lights.
!+ button increases treble volume
!- button decreases treble volume.
!BALANCE: (Press ‘MODE’ button 3 times.)
!Balance LED lights.
!+ button increases right hand channel volume
and decreases left hand channel volume
!- button decreases right hand channel volume
and increases left hand channel volume.
MODE: Switches to the next operating mode. After
about 5 seconds without operating any buttons, ‘vo-
lume’ mode is resumed.
PRESET: Volume, bass, treble, and balance are set to
the preset according to DIP switch setting. Actual
mode is set to ‘Volume’.
CANCEL: Rejects a playing track. If album play is se-
lected the next track will be played.
MUTE: As long as this button is activated, the amplifier output is muted.
MODE PRESET
CANCEL MUTE
0039661
VOLUME
BASS
TREBLE
BALANCE
-
+
+/-
+/-
+/-
+/-
VOLUME
BASS
TREBLE
BALANCE
Press MODE button once
Press MODE button once
Press MODE button once
Press MODE button once
LED Volume lights
LED Bass lights
LED Treble lights
LED Balance lights
current
mode
