Wurth Elektronik 600 002 User manual

V1.0 2022
DIENECKARPRINZEN 99999921.0722.500.FLY
Use Condition
The operating instructions must always
be within reach of the insulation strip-
per. This insulation stripper may be used
only for the intended application and in
strict compliance with all applicable safety
rules, regulations and practices. It must
be properly maintained, undamaged and
in good working order. The manufactu-
rer is not liable for damages caused by
improper use or unauthorized technical
modifications of the tool. Unauthorized
modification is prohibited and voids the
manufacturer’s warranty. Always wear
safety glasses with side shields and other
appropriate personal protective equip-
ment. Wearing gloves is recommended.
Warranty
Designed and manufactured pursuant to
state of-the-art technical requirements
and safety standards, all “WE insulation
stripper tools“ are subject to thorough
quality control before leaving the factory.
The enclosed general terms and conditions
of warranty apply.
Service
Before using the insulation stripper tool,
make sure it is in a clean and proper ope-
rating state. Protect the joints from soi-
ling and apply light machine oil to them
regularly.
MISUSE MAY CAUSE PER-
SONAL INJURY. KEEP OUT
OF REACH OF CHILDREN!
NEVER INSERT FINGERS
BETWEEN THE JAWS OF
THE TOOL!
Find the “WE
insulation stripper
tool“ video manual
by scanning the
QR code

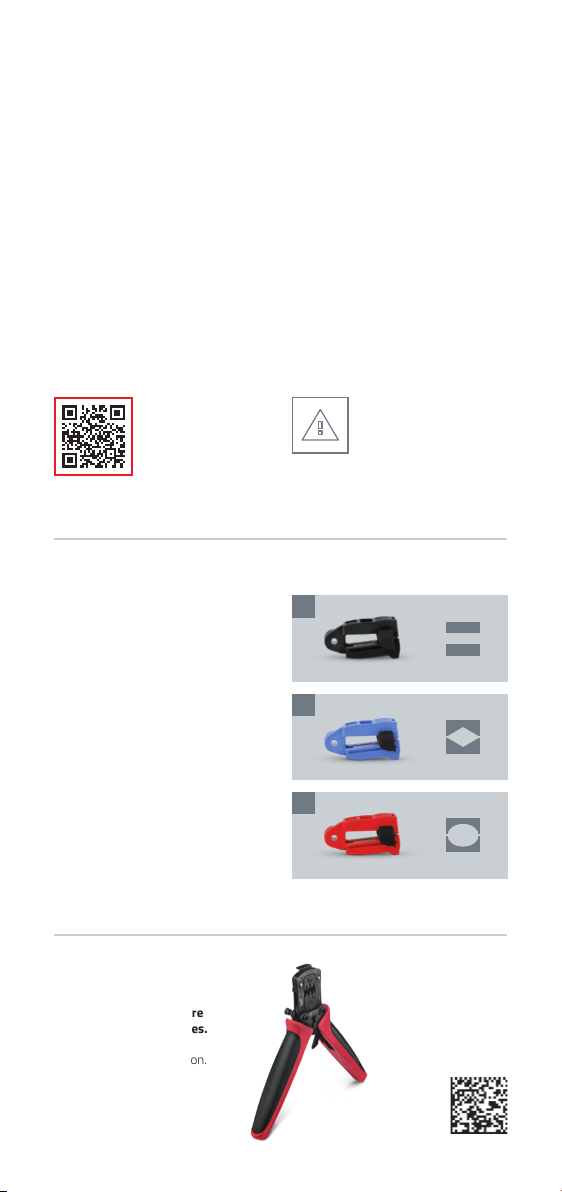

Stripping Blades
The “WE insulation stripper tool“ is desi-
gned for three stripping blades designs.
Each of those designs is dedicated to a
special wire application.
1. 600 002 1 | Straight blades
For wires: PVC insulation
34 AWG - 8 AWG (0.02mm² – 10mm²)
2. 600 002 2 | V blades
For wires: PTFE insulation
28 AWG – 12 AWG (0.1mm² – 4mm²)
3. 600 002 3 | Round blades
For wires: PVC insulation
10 AWG – 5 AWG (4mm – 16mm²)
1
2
3
For processing crimp
contact, crimping tools are
available for various series.
Please contact our sales
staff for further information.

OPERATION MANUAL
WE INSULATION STRIPPER
Part numbers:
600 002 |600 002 1 |600 002 2 |600 002 3
Read these instructions completely before using this tool
Application
The “WE insulation stripper tool“ is desig-
ned for high quality stripping of standard
insulated cables in a wire size range of
34 AWG to 5 AWG (0.02mm² to 16 mm²)
when using the appropriate stripping bla-
des. An adjusting system allow to set the
opening of the stripping blades to fit the
majority of the wires on the market to
ensure the best stripping and prevent
wire damage.
The cutter included in the “WE insulation
stripper tool“ is designed to cut stranded
wires up to 8 AWG (10mm²) and solid wi-
res up to 16AWG (1.5mm²).

CAUTION
10 000
10 000
Operating Instructions
2
2
1
3

Use Safety Glasses
to Avoid Eye Injury
1
2
