X-Micro EVA 120 User manual

X-MICRO EVA 120 MP3 PLAYER
User’s Manual
V1.0
Downloaded from ManualMPlayer.com Manuals

1
INFORMATION TO USER
Product Name: X-MICRO EVA 120 MP3 PLAYER
Model Name: XMP3A-F512, XMP3A-F1G, XMP3A-2G
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:(1)this device may not cause harmful
interference,and (2) this device must accpt any
interference received, including interference that may cause
undesired operation. Conforms to the following EMC Product
Testing Specifications FCC part 15.109, Class B-Residential
Emissions at 3 meters. Testing was performed in a FCC Listed 3
meter semi-anechoic chamber. FCC Part 15.107, Class B-
Residential Emissions at shield Room. Testing was performed in a
FCC Listed shield Room.
The referred test report(s) show that the product
complies with standard(s) recognized as giving
presumption of compliance with the essential
requirement in the above listed EU Directive(s).
Other relevant Directives have to be observed.
Downloaded from ManualMPlayer.com Manuals

2
Copyright
Copyright 2006 by X-Micro Technology Corp., All rights reserved.
No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of X-Micro
Technology Corp.
Disclaimer
X-Micro Technology Corp. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Any software described in this manual
is sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not this company, its
distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, X-Micro
Technology Corp., reserves the right to revise this publication and
to make changes from time to time in the contents hereof without
obligation to notify any person of such revision or change.
All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective
holders.
Downloaded from ManualMPlayer.com Manuals

3
INDEX
1. Introduction ……………………………………………..……4
2. Installing the MP3 Player………………………………..….5
3. Transfer data to and from the MP3 Player……………….6
4. Listen to WMA/MP3 music files with the MP3 Player…..7
5. MP3 Player Controls………………………………………….8
6. LCD Display …………………………………………………...9
7. Voice Recorder………………………………………………10
8. Advanced Settings………………………………………….15
9. Upgrade the Firmware………………………………………20
10. Removing the MP3 Player from your computer……….21
11. Trouble Shootings ………………………………………….22
12. Specifications ………………………………………………..24
13. Safety………………………………………………………….26
14. Contact us……………………………………………………26
Downloaded from ManualMPlayer.com Manuals

4
1. Introducing
The MP3 Player incorporates a portable WMA/MP3 Player, Voice Recorder ,
FM tuner(Optional) and USB Mass Storage Device .
MP3 Player Features:
•WMA/MP3 player.
•Synchronous lyric display with WMA/MP3 music.
•Voice recorder.
•FM Radio with 20 preset
•FM Recording
•Navigation function
•WMA DRM support
•USB mass storage device.
•Integrated USB connector.
•Backlit display.
•Superb audio quality.
•No cable required.
•Requires 1 AAA battery .
System support:
•Supports Windows Me/2000/XP.
Note for Windows Me/2000/XP users: Installation of the MP3 Player
drivers is required only if you wish to upgrade the firmware of the
player.
Note for Windows 2000 users: Windows Service Pack 3 must be
installed .
•Supports Windows 98 SE after installation of drivers (see below).
•Supports Mac OS X (version 10.2.6 or above) without driver.
Note:
•To minimize static electricity, avoid operating the player in an extremely
dry environment.
•Under the environment with electrostatic discharge, the product may
malfunction and requirement user to reset the product.
Downloaded from ManualMPlayer.com Manuals

5
2. Installing the MP3 Player
Installation of drivers for computers using Windows Me/2000/XP is not
necessary.
Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is
required only if you wish to upgrade the firmware of the player.
Note for Windows 2000 users: Windows Service Pack 3 must be installed .
Windows 98 SE users will need to install the MP3 Player on their system:
1. Please install the driver from the bundled CD disc.
2. Follow the on-screen instructions to complete the installation.
3. After installation is complete, please restart your computer.
Downloaded from ManualMPlayer.com Manuals

6
3. Transfer data to and from the MP3 Player.
1. Make sure that the MP3 Player is turned off.
2. Remove the USB port cover & disconnect the
earphone.
3. Plug the MP3 Player into the USB port of your
computer. The built-in LCD displays "USB
Connected", indicating that the MP3 Player is in
USB mode. The MP3 Player is then
automatically recognized (in 'My Computer') as
a removable media device.
4. Transfer files to or from the internal Flash RAM
using Windows explorer.
5. Unplug the MP3 Player from your computer
(click here to see how to do this safely),
WMA/MP3 files can now be listened to and all
data stored can be transferred to another
computer.
Downloaded from ManualMPlayer.com Manuals

7
4. Listen to WMA/MP3 music files with the MP3 Player
1. Follow the instructions for the transfer of data to and from the MP3
Player to copy WMA/MP3 music files to the MP3 Player.
2. Install 1 AAA/LR03 battery into the battery compartment.
3. Connect the supplied headphones to the headphone socket.
4. Press the Play button.
5. Use the MP3 Player controls to adjust playback and volume level to
listen to your WMA/MP3 music.
Note: Installing the battery:
1. Push and slide out the battery compartment door
2. Install the battery.
Lyric display function
The MP3 Player supports lyric files in LRC format.
1. Prepare a MP3 or WMA music, for example, happymusic.mp3;
2. Download a lyric file from internet. The lyric file must have to be with an
extension file name LRC. For example, happymusic-2004.lrc.
3. Rename the lyric file. For example, happymusic.lrc. It is to make sure
the lyric filename is same as the corrosponding music filename.
4. Copy the lyric file & music file to the MP3 player.
5. Disconnect the MP3 player.
6. Use Skip buttons to select the music file, for example, abc.mp3. Press
Play button to play.
7. The LRC icon would appears, and the lyric would display
Synchronously on LCD while the music is being playback.
Note: The MP3 player supports LRC format only.
Note: If the lyric does not synchronize with the music, please download one
better lyric file from internet and try again.
Note: Make sure the MP3 music and LRC file is located in same directory and
the filename is same. If not, the MP3 player can not recognize the lyric file.
Downloaded from ManualMPlayer.com Manuals

8

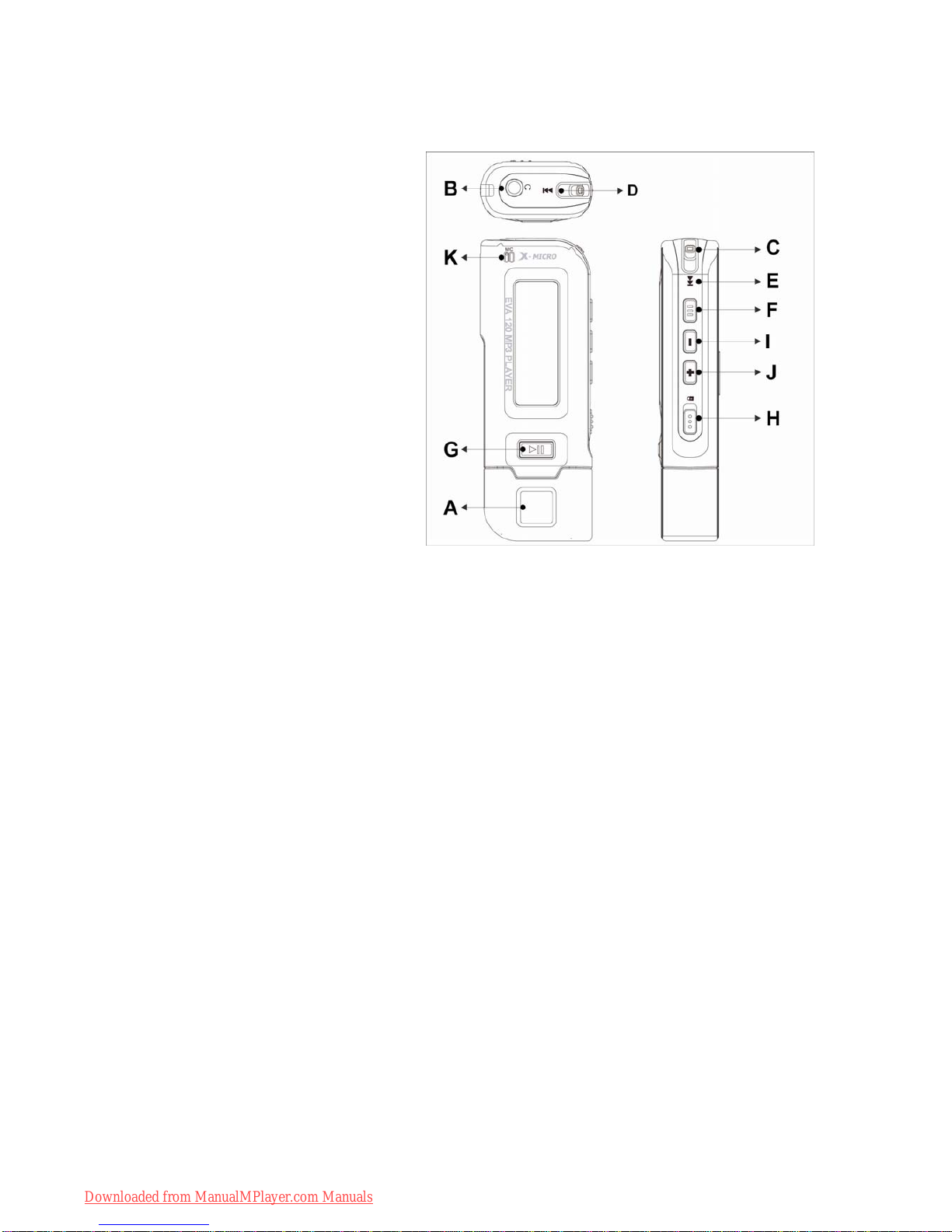

5. MP3 Player Controls
A. USB Port Cover
B. Headphone Socket
C. A-B / Menu Button
D. Skip Previous / Fast Rewind
E. Skip Next / Fast Forward
F. Power Off/Stop
G. Power On/Play/Pause
H. Hold Switch
I. Volume Down
J. Volume Up
K. Microphone
Downloaded from ManualMPlayer.com Manuals

9

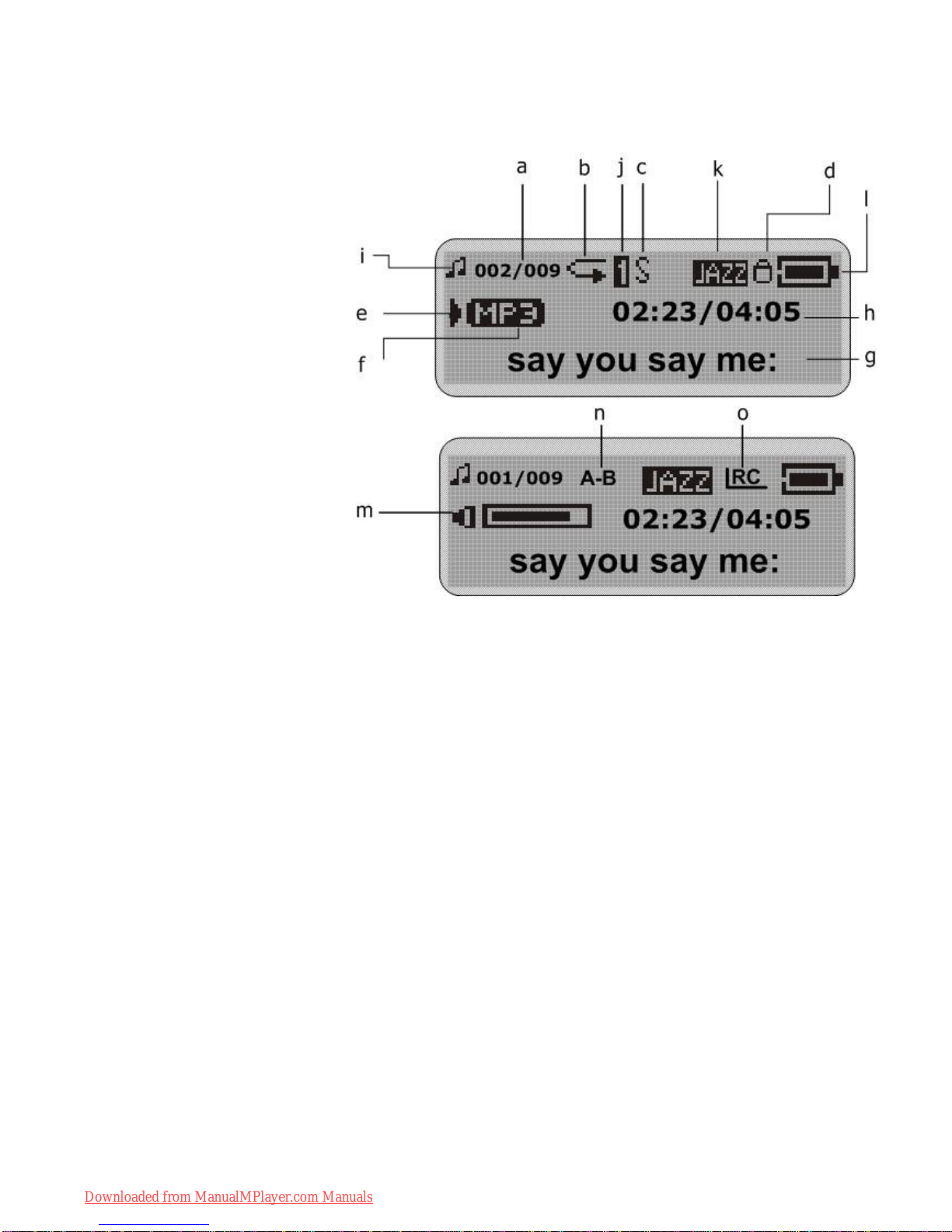

6. LCD Display
a. Track Number / Total
Tracks
b. Repeat all
c. Random
d. Hold
e. Play/Pause/Stop/Rec.
f. Music Type
g. ID3 Tag display
h. Elapsed Time/ Track
Time
i. Music Mode/ Voice
Mode
j. Repeat one
k. Equalizer
l. Battery Indicator
m. Volume
n. A-B Repeat
o. Lyric Display
Downloaded from ManualMPlayer.com Manuals

10
7. Voice Recorder
Record voice

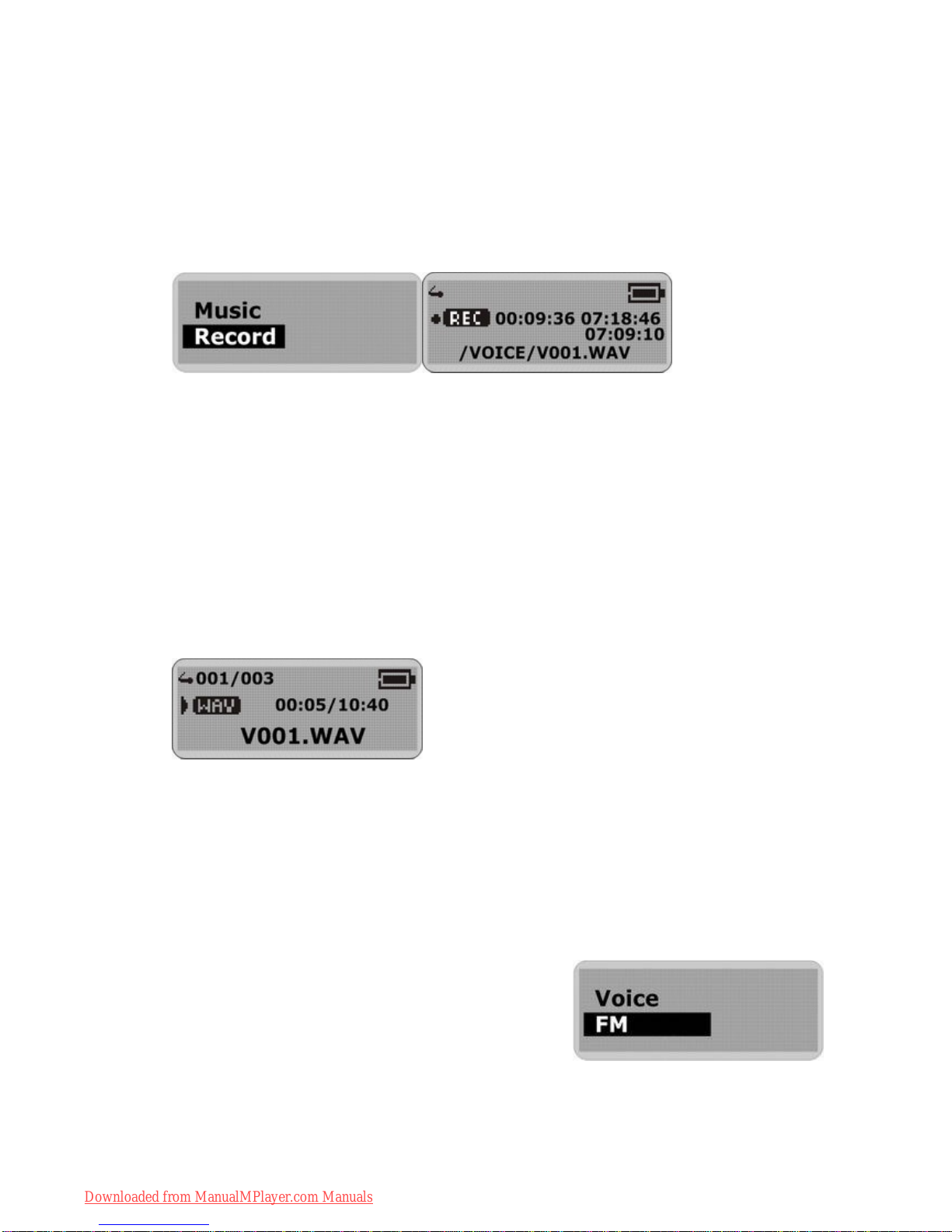

1. Select Record in the LCD menu list to begin recording.
2. Press the Stop or Menu button to stop the recording and enter Voice
mode.
The voice recording will have been saved as a file named Vxxx.WAV in the
Voice folder.
Note that the LCD display will read MEMORY FULL when all available
memory has been used.
Playback voice
This operation is similar to the playback of music.
1. Select Voice in the LCD menu to enter Voice mode.
2. Select a recording to listen to by pressing the Skip buttons.
3. Press the Play button to playback the recording.
FM Tuner
The MP3 Player allows you to listen to FM radio with the built-in digital FM
tuner.
Start the FM Tuner
To switch to FM radio mode, please select FM
Tuner from the Menu list and press the A-B/Menu
button.
Note: When using the MP3 Player Tuner at the first
time, the MP3 Player will automatically start to
seek all available FM radio stations and save them
into preset list. Please wait until the "Seeking"
Downloaded from ManualMPlayer.com Manuals

11
disappears from the display.
To exit FM radio mode, press and hold the A-
B/Menu button.
Exit to music mode from FM mode
Press and hold the A-B/Menu button for a while and release it. The MP3
Player will exit FM tuner mode and go back to music mode.
Listen to FM radio
After the FM tuner finishing the automatic seeking, the MP3 Player tuner will
stop at the first FM station of preset 01 (P01).
To listen to another FM radio which seek and saved automatically by the MP3
Player, press the Play or Stop button repeatedly. Every press on the buttons
will cause the MP3 Player change to another FM radio in the preset list.
Using the FM Menu
The FM menu offers several convenient functions.
To navigate the FM menu.
1. In FM Radio mode, press the A-B/Menu button to enter the FM menu.
2. Use the Skip control pad to select one menu item.
3. Press the A-B/Menu button to apply.
4. To exit the FM menu, press & hold the A-B/Menu button for a while and
release it to exit to FM tuner.
Add to Preset
The MP3 Player tuner allows user to save a FM radio station to preset. After
you have tuned to an FM radio station,
Downloaded from ManualMPlayer.com Manuals

12
1. Select "Add to Preset" in the FM menu and press the A-B/Menu button.
2. Use the Skip control pad to decide a preset will be used for current FM
radio.
3. Press the A-B/Menu button to save.
Note: The unit can save 20 preset stations.
Load Preset
To select a FM radio station from the preset list to listen,
1. Select "Load Preset" in the FM menu and press the A-B/Menu button.
2. Use the Skip control pad to select one FM radio station in the preset list.
3. Press the A-B/Menu button to listen.
Auto Scan
To re-scan all FM radio stations and save them to the preset list automatically,
1. Select "Auto Scan" in the FM menu and press the A-B/Menu button.
2. The MP3 Player tuner starts to seek and save the FM stations
automatically. Please wait a moment.
Note: The earphone must have to be connected to the MP3 Player otherwise
the FM tuner can not find any FM radio.
How to tune to one FM radio station manually
In FM Tuner, poke and hold the Skip control pad.
Downloaded from ManualMPlayer.com Manuals

13
The player searches for the nearest station. When it finds one, it stops and
plays the station.
Note: If this station is in the preset list, the corresponding preset number (e.g.
P02) will display on the LCD.
To tune manually, Use the Skip control pad. Each time the Skip control pad is
pressed, the player changes the frequency by 0.1MHz.
FM Recorder
FM Radio Recording
1. When listening to a FM radio, press and hold the Play button for a
while and release it.
2. The MP3 Player starts to record the FM radio.
3. Press the Stop or A-B/Menu button to stop the recording and continue
to listen the FM radio.

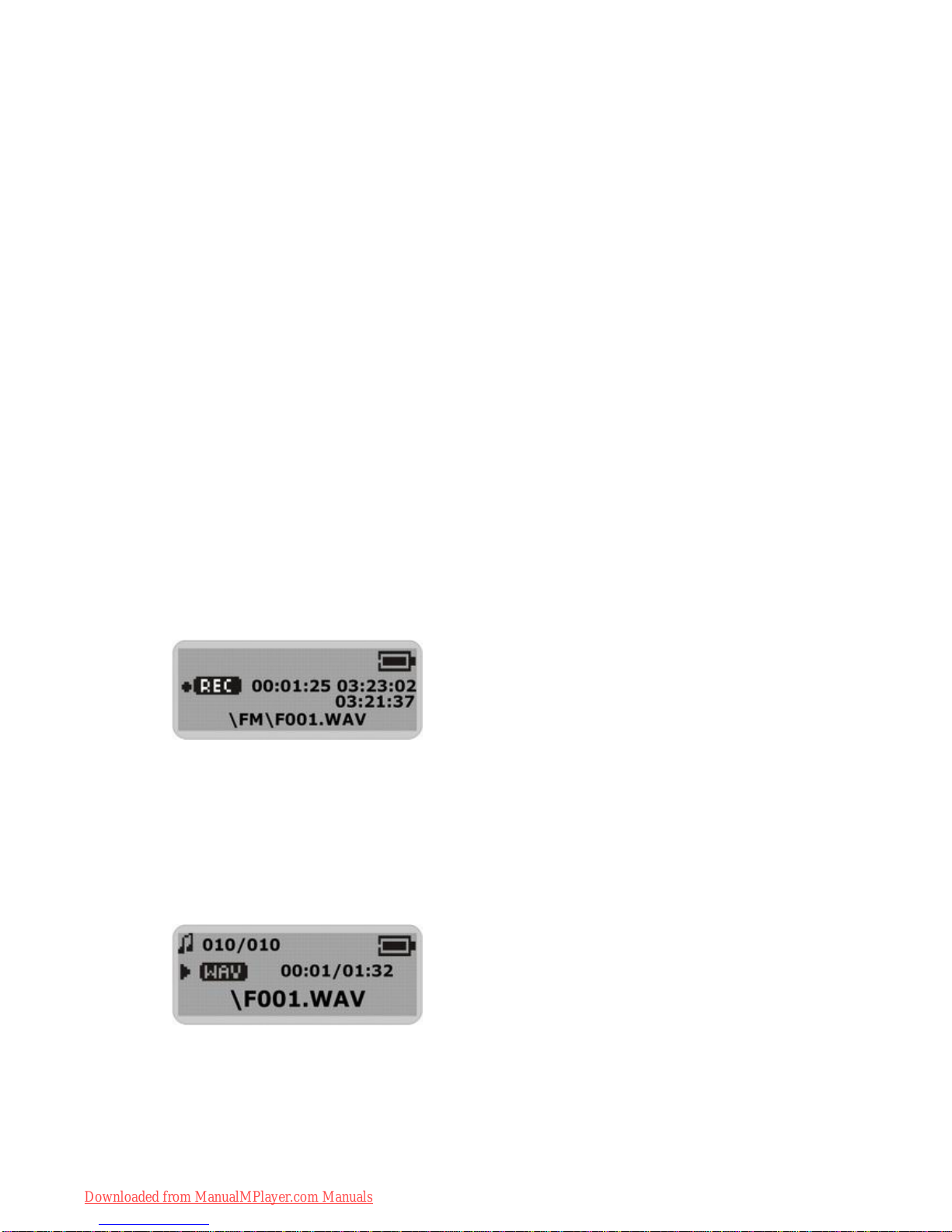

The FM recording will have been saved as a file named Fxxx.WAV in the FM
folder.
The LCD display will read MEMORY FULL when all available memory has
been used.
Playback FM Radio record
This operation is similar to the playback of music.
1. Select Music in the LCD menu to enter Music mode.
2. Use the Skip control pad to find the Fxxx.WAV files.
3. Press the Play button to playback the recording.
Downloaded from ManualMPlayer.com Manuals

14
Hold Function
Use the Hold function to deactivate the MP3 Player controls (to avoid
accidental activation).
1. To activate the Hold function, slide the Hold switch.
2. Slide the Hold switch back to turn off the Hold function.
Note: The MP3 Player will turn off automatically if the key is hold when turning
on the power.
Navigation
Use [Menu] button to enter Menu.
1 Select [Navigation] and press Menu button to enter navigation mode.
1.1 Line 1: Folder icon / MP3 music icon / WMA music icon / WAV
file icon / Upper directory icon
1.2 Line 2: Filename / Folder name / Return to previous level
2 Use [Skip] button to select a file or folder and use Play button to play
the music or enter the folder.
3 Use Stop button in Navigation mode to backward to upper level.
Note: When a folder is selected in navigation mode, press on Menu button, a
sub-menu window will pop-up. To enter the folder, select Enter. To play music
located in the folder, select Play.
When a file is selected in navigation mode, press on Menu button, a sub-
menu window will pop-up. To play this file, select Play. To erase, select
Delete.
Downloaded from ManualMPlayer.com Manuals

15
8. Advanced Settings
To navigate the settings menu.
1. Press & hold the A-B/Menu button for a
while and release it to enter the settings
menu.
2. Press the Skip buttons to choose a setting.
3. Press the A-B/Menu button to select that
setting.
4. After setting is finished, press & hold the A-
B/Menu button for a while and release it to
exit the Menu.

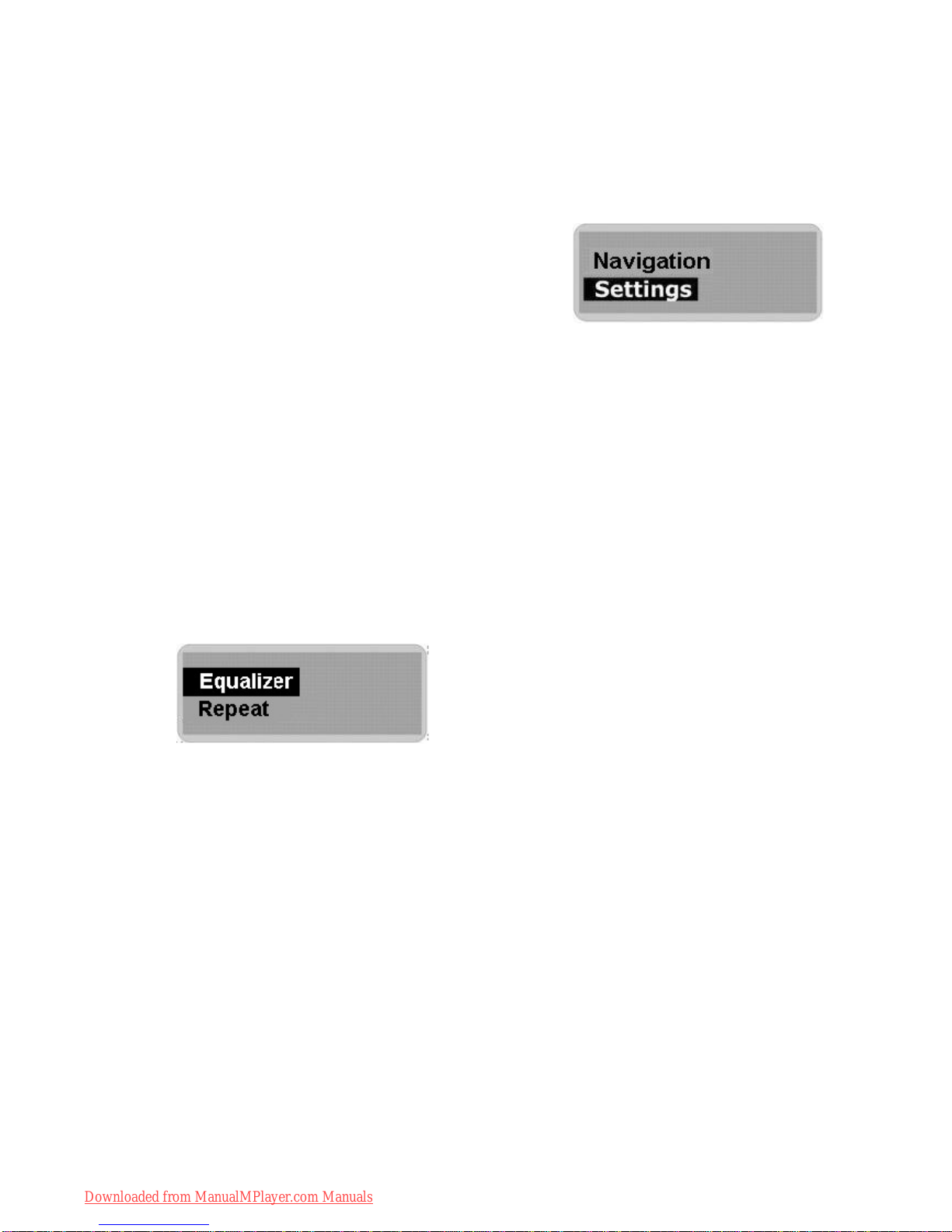

Equalizer Setting
The Equalizer (Eq) setting is to adjust the music playback effect. There are six
Eq presets available: Normal, XBass, Rock, Jazz, Classical and Pop.
1. Select Equalizer in the settings menu.
2. Press the Skip buttons to select a preset Eq.
3. Press the A-B/Menu button to activate.
Repeat mode Setting
The available Repeat modes are:
•Normal
•Repeat One
•Repeat All
•Random
•Random All
1. In the settings menu, select Repeat.
2. Press the Skip buttons to select a Repeat mode.
Downloaded from ManualMPlayer.com Manuals

16

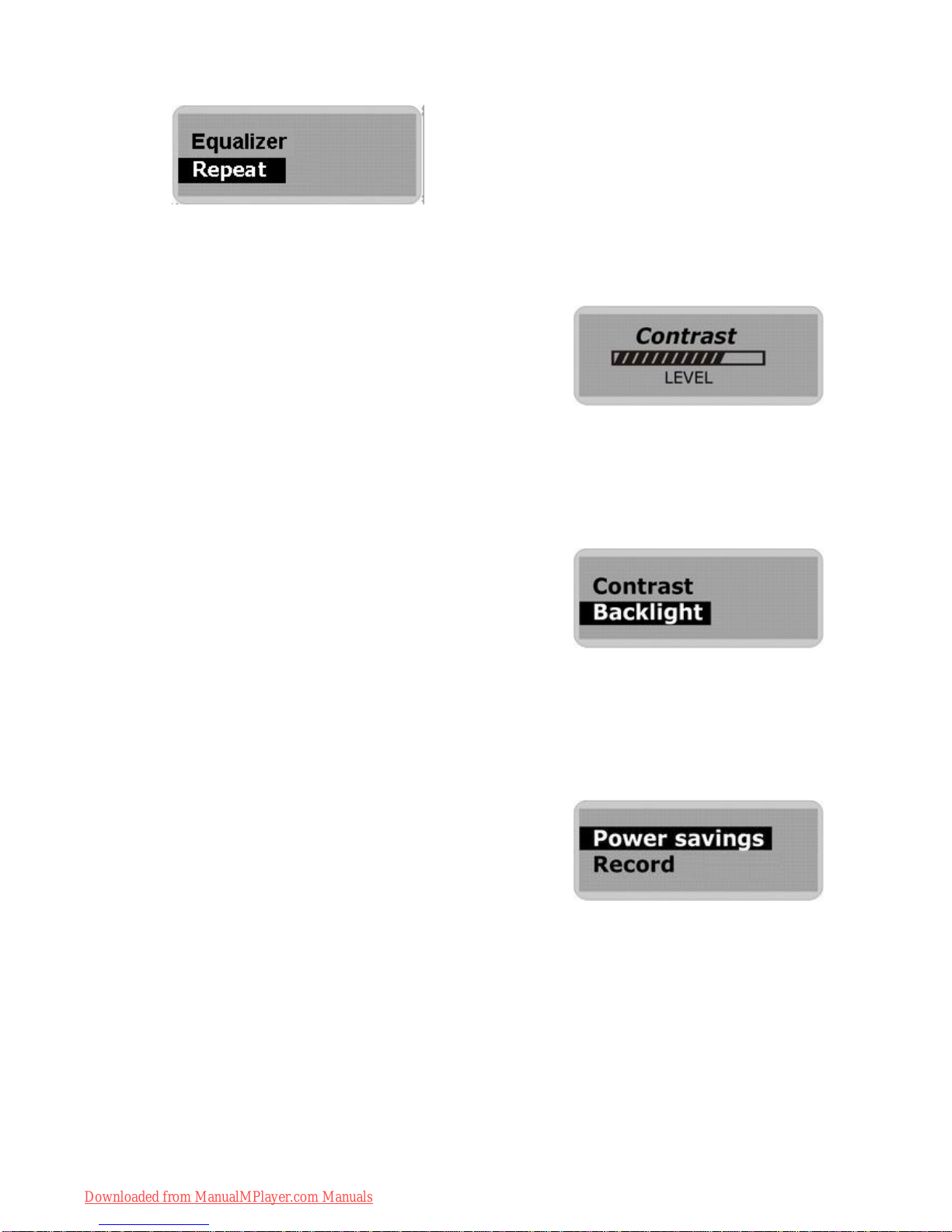

Adjust LCD Contrast
To adjust the LCD contrast
1. In the settings menu, select Contrast.
2. Press the Skip buttons to adjust the contrast
level.
3. Press the A-B/Menu button to go back to
setting menu.
Backlight
To adjust the backlight
1. In the settings menu, select Back Light.
2. Press the Skip buttons to adjust the delay
before the backlight is switched off.
Note: Selecting "Off" would turn off the backlight.
Selecting "Always On" would always turn on the
backlight.
Power Savings
Use the Power Saving function to automatically
turn the MP3 Player off after a predetermined
length of inactivity.
1. In the settings menu, select Power Savings.
2. Press the Skip buttons to select time.
Note: Selecting "Off" would never turn off the MP3
Player automatically.
Record Settings
A high record sampling frequency brings an increase in sound quality but also
a corresponding increase in memory usage.
Downloaded from ManualMPlayer.com Manuals

17

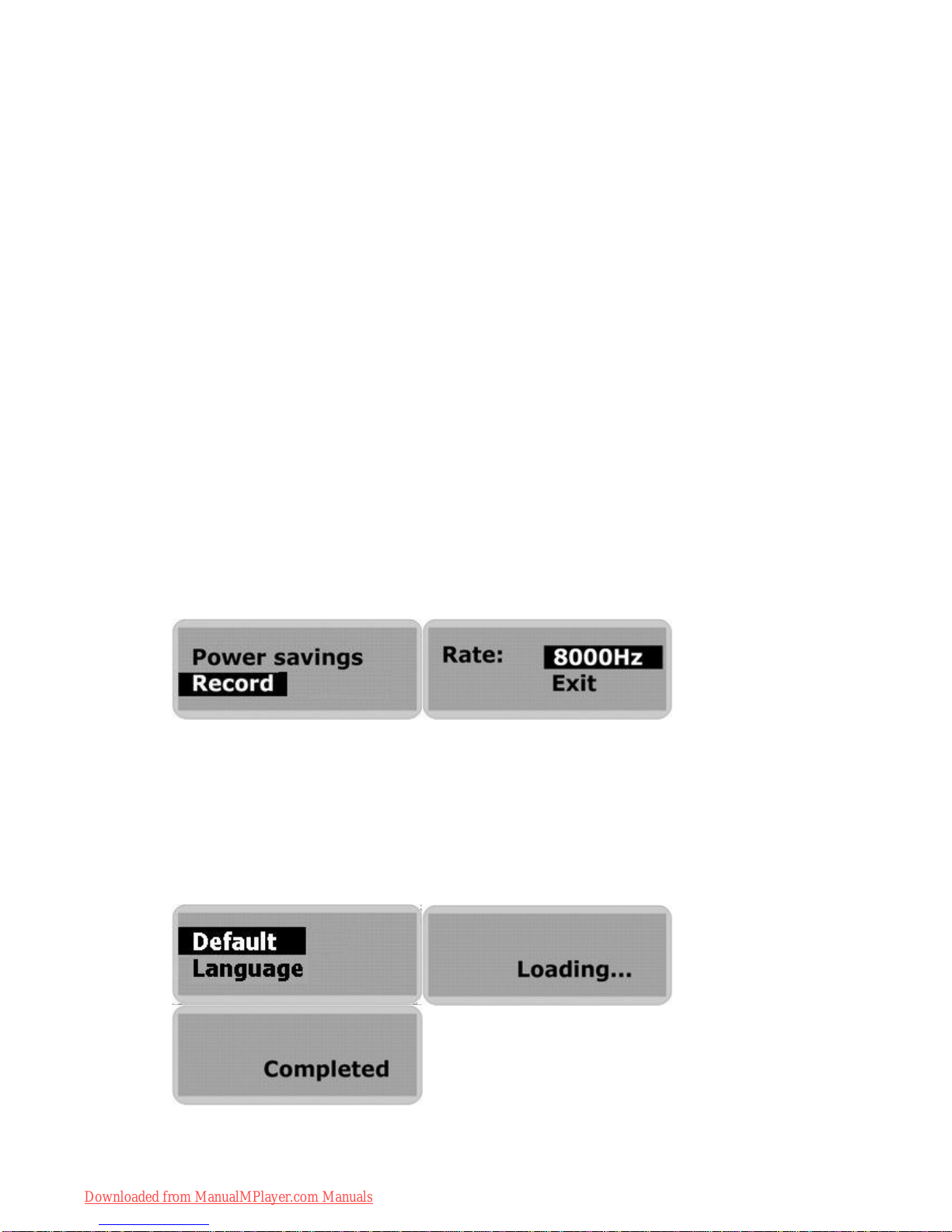

1. In the settings menu, select Record .
2. Press the Skip buttons to select "Source".
3. Press the Skip buttons to select "Encoder". Press the A-B/Menu button
repeatedly to select a recording format.
4. Press the Skip buttons to select "Rate". Press the A-B/Menu button
repeatedly to cycle through the available Recording Sampling
Frequencies.
5. Press the Skip buttons to select "Exit" and press the A-B/Menu button
to exit the Record menu.
Note: A higher recording sampling frequency brings better recording quantity,
but takes more memory space.
Sampling
Frequency Maximum Recording Time per 128MB
8000 Hz 8 hours
11025 Hz 5.8 hours
16000 Hz 4 hours
22050 Hz 2.9 hours
32000 Hz 2 hours
Note: The recording format options in "Encoder" are only a bit different. User
need not to change this setting.
Load default
To reset all setting to factory default setting,
1. In the settings menu, select "Default"
2. Press the A-B/Menu button. The default settings are loaded to the MP3
Player.
Downloaded from ManualMPlayer.com Manuals

18
Language select
1. Press the Menu button.
2. Slide the Menu button left or right to select Settings and press the Play
button.
3. In the Settings menu Slide the Menu button left or right to select
Language and press the Play button.
4. In the Language menu Slide the Menu button left or right to choose a
language and press the Play button.
All menu items will thereafter appear in the chosen language.

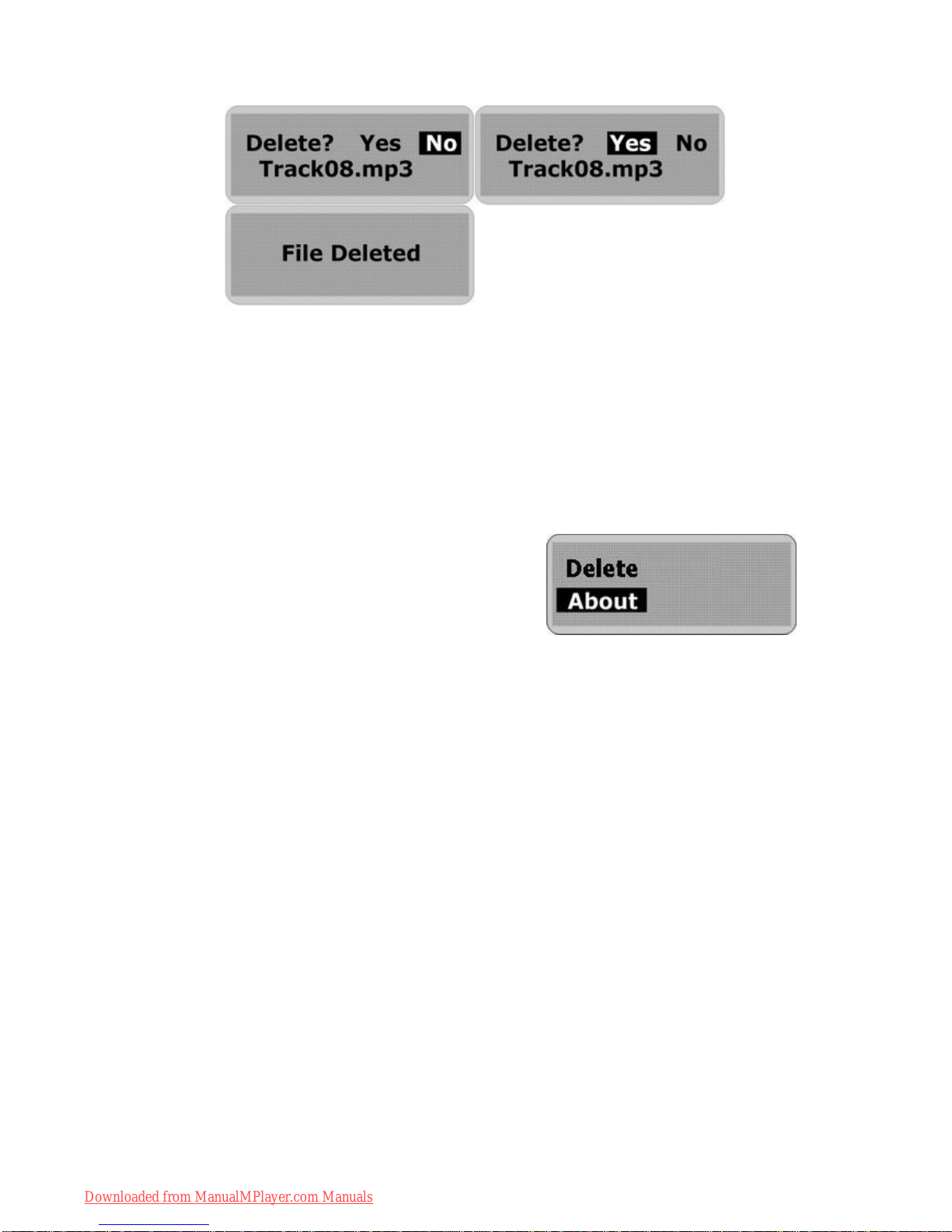

Delete
Warning: Erased files cannot be recovered.
1. Stop playback or recording before attempting to delete.
2. Press and hold the A-B/Menu button and release it to enter menu and
select Delete.
3. There are two options to choose from. To erase music files, select
Music. To erase voice recordings, select Voice.
4. You will be asked if you are sure you want to erase the listed music file
or voice memo.
5. If you are sure you want to erase the listed file, press the Skip buttons
to choose Yes. Then press the A-B/Menu button to confirm.
6. The file is erased. Another file will be listed on the screen and you will
be asked again if you want to erase this file.
7. When you have finished erasing the file, the player will automatically
exit to Erase Files screen.
8. Select Exit to exit to menu list.
Downloaded from ManualMPlayer.com Manuals

19
About
Information is available regarding the firmware version, built-in memory size
and free memory size.
1. Select About in menu list.
2. The firmware version and Internal Media info
appears.
3. Press the Skip buttons to read the Free
memory space.
4. Press A-B/Menu button to exit to menu list
screen.
Downloaded from ManualMPlayer.com Manuals
