x-sense WS01 User manual

X-SENSE
CERGHS Eft
OM Ms
X-Sense Innovations Co,, Ltd.
Email: [email protected]
User Manual
Water Leak Sensor (ED

English

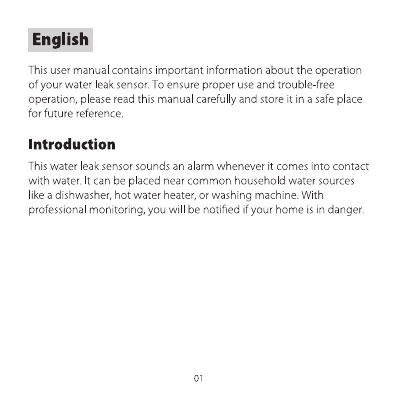

This user manual contains important information about the operation
of your water leak sensor. To ensure proper use and trouble-free
operation, please read this manual carefully and store it in a safe place
for future reference.
Contents
Introduction
English merrier 1-12 This water leak sensor sounds an alarm whenever it comes into contact
with water. It can be placed near common household water sources
like a dishwasher, hot water heater, or washing machine. With
Deutsch mre | 3-24 professional monitoring, you will be notified if your home is in danger.
Francais oo enrnrenrnrnnrnrnnrnrnrrnnrnrnrrersrrrsrrses DB 3G

Product Overview
Buzzer
LED Indicator
Sensor Probe
Sensor Probe
Test/Silence/
Activate Button
Screws
Package Contents
<“
- Y
1x 2x 1x
Water Leak Sensor AAA Batteries User Manual
Operating Your Device
Activating the Device
Press and hold the Activate button for 3 seconds. When the red LED
flashes once and the alarm sounds one beep, then the product is
activated and enters the normal working status.
[=> >
A y
RD Press and hold
03

Product Overview
Buzzer
LED Indicator
Sensor Probe
Sensor Probe
Test/Silence/
Activate Button
Screws
Package Contents
<“
- Y
1x 2x 1x
Water Leak Sensor AAA Batteries User Manual
Operating Your Device
Activating the Device
Press and hold the Activate button for 3 seconds. When the red LED
flashes once and the alarm sounds one beep, then the product is
activated and enters the normal working status.
[=> >
A y
RD Press and hold
03

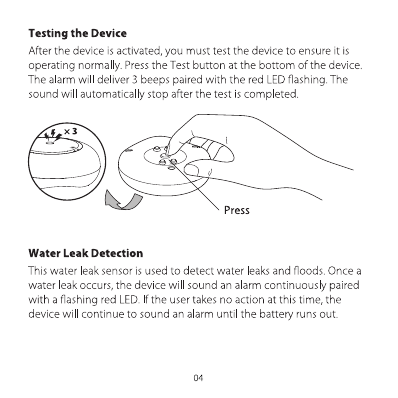

Testing the Device
After the device is activated, you must test the device to ensure it is
operating normally. Press the Test button at the bottom of the device.
The alarm will deliver 3 beeps paired with the red LED flashing. The
sound will automatically stop after the test is completed.
Water Leak Detection
This water leak sensor is used to detect water leaks and floods. Once a
water leak occurs, the device will sound an alarm continuously paired
with a flashing red LED. If the user takes no action at this time, the
device will continue to sound an alarm until the battery runs out.

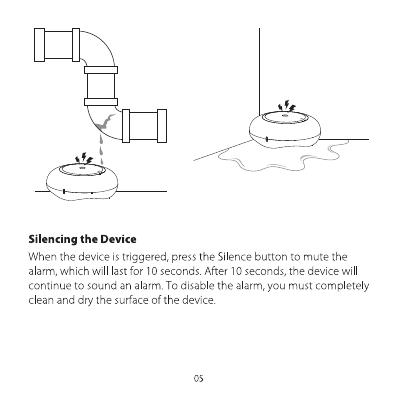

Silencing the Device
When the device is triggered, press the Silence button to mute the
alarm, which will last for 10 seconds. After 10 seconds, the device will
continue to sound an alarm. To disable the alarm, you must completely
clean and dry the surface of the device.
05

Testing the Device
After the device is activated, you must test the device to ensure it is
operating normally. Press the Test button at the bottom of the device.
The alarm will deliver 3 beeps paired with the red LED flashing. The
sound will automatically stop after the test is completed.
Water Leak Detection
This water leak sensor is used to detect water leaks and floods. Once a
water leak occurs, the device will sound an alarm continuously paired
with a flashing red LED. If the user takes no action at this time, the
device will continue to sound an alarm until the battery runs out.
Silencing the Device
When the device is triggered, press the Silence button to mute the
alarm, which will last for 10 seconds. After 10 seconds, the device will
continue to sound an alarm. To disable the alarm, you must completely
clean and dry the surface of the device.
05

Installing Your Device
Installation Location
You can use the device near places where water leaks are likely to
occur such as near water pipes, basement sump pumps, dishwashers,
washing machines, toilets, water heaters, window wells, etc.

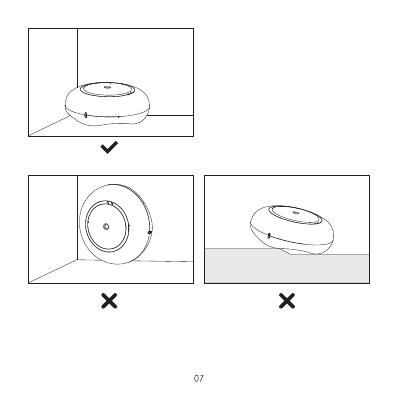

Installation Method
This sensor can simply be placed on a flat surface.
Note
1. Do not place the device upright, otherwise no alarm will be triggered.
2. Do not place the device on uneven surfaces as this may cause false alarms.
06 07

Installing Your Device
Installation Location
You can use the device near places where water leaks are likely to
occur such as near water pipes, basement sump pumps, dishwashers,
washing machines, toilets, water heaters, window wells, etc.
Installation Method
This sensor can simply be placed on a flat surface.
Note
1. Do not place the device upright, otherwise no alarm will be triggered.
2. Do not place the device on uneven surfaces as this may cause false alarms.
06 07

Battery Replacement
When the battery is low, the red LED will flash once every 60 seconds
paired with one beep to remind the user to replace the batteries. To
replace the batteries, remove all screws, take out the used batteries
and replace with two new AAA batteries. Then, reinstall the screws and
press and hold the Activate button for 3 seconds to activate the
device. Then test the device once again.
SS Sz
+ +{
08
Note: After replacing the battery, you need to align the positioning points
of the upper and fower cases to close the cover and then screw the device
closed.
Z\ WARNING
1. Keep the device operating at a temperature between 32-122°F
(0-50°C) and humidity below 90% RH.
2. Do not disassemble the device by force. Otherwise, the device may
become damaged.
09

Battery Replacement
When the battery is low, the red LED will flash once every 60 seconds
paired with one beep to remind the user to replace the batteries. To
replace the batteries, remove all screws, take out the used batteries
and replace with two new AAA batteries. Then, reinstall the screws and
press and hold the Activate button for 3 seconds to activate the
device. Then test the device once again.
SS Sz
+ +{
08
Note: After replacing the battery, you need to align the positioning points
of the upper and fower cases to close the cover and then screw the device
closed.
Z\ WARNING
1. Keep the device operating at a temperature between 32-122°F
(0-50°C) and humidity below 90% RH.
2. Do not disassemble the device by force. Otherwise, the device may
become damaged.
09

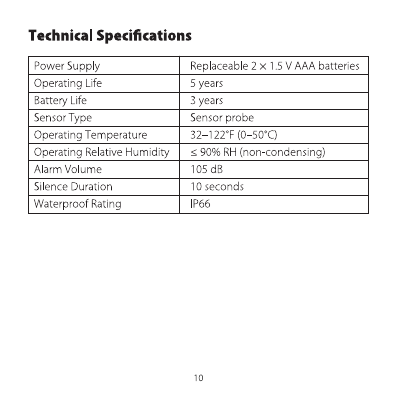

Technical Specifications
Power Supply Replaceable 2 x 1.5 V AAA batteries
Operating Life 5 years
Battery Life 3 years
Sensor Type Sensor probe
Operating Temperature 32-122°F (0-50°C)
Operating Relative Humidity < 90% RH (non-condensing)
Alarm Volume 105 dB
Silence Duration 10 seconds
Waterproof Rating IP66
Troubleshooting
Problem Solution
The device does
not work. It is
not triggered
when there is a
water leak.
The device is
not activated.
Check whether the device is
activated. The device needs to be
activated before it is used for the
first time. Otherwise, the device
will not be triggered (refer to
“Activating the Device” section).
Upon activation, press the Test
button to make sure it is
operating properly.
The battery is
low.
Please check whether the battery
power is sufficient. When the
battery is low, the red LED will
flash once every 60 seconds
paired with one beep. Please
replace the battery immediately.

Technical Specifications
Power Supply Replaceable 2 x 1.5 V AAA batteries
Operating Life 5 years
Battery Life 3 years
Sensor Type Sensor probe
Operating Temperature 32-122°F (0-50°C)
Operating Relative Humidity < 90% RH (non-condensing)
Alarm Volume 105 dB
Silence Duration 10 seconds
Waterproof Rating IP66
Troubleshooting
Problem Solution
The device does
not work. It is
not triggered
when there is a
water leak.
The device is
not activated.
Check whether the device is
activated. The device needs to be
activated before it is used for the
first time. Otherwise, the device
will not be triggered (refer to
“Activating the Device” section).
Upon activation, press the Test
button to make sure it is
operating properly.
The battery is
low.
Please check whether the battery
power is sufficient. When the
battery is low, the red LED will
flash once every 60 seconds
paired with one beep. Please
replace the battery immediately.
