Xact Edge 1.4 User manual

3
x
CONTENTS
Important Information
6 What’s in the box?
7 For your safety
7 Installation requirements
7 Need help
Your Phone Overview
8 Overview of the handset
9 Handset Keys
10 Display icons
11 Base station overview
12 Menu navigation
Connect
13 Connect to the base station
13 Position the base station
14 Connect the cables
Install
15 Install and charge the handset batteries
15 Battery life and range
16 Out of range
17 Setting up your phone
Call
18 Make a call
20 Call in progress
TABLE OF CONTENTS

CONTENTS(cont.)
22 Hotkeys
22 Intercom
23 Three party conference call
23 Call waiting
24 Caller identification
24 Voicemail
Phonebook
25 View and dial phonebook entries
26 Edit phonebook entry
28 Copying phonebook entries
29 Dialing code
30 Useful numbers
Calls List
32 Calls List
33 Viewing the calls list
35 Access the redial list
Clock & Alarm
36 Date & time
37 Alarm
Settings
38 Handset setting
45 Base settings
47 System PIN
47 Factory Default
4

CONTENTS(cont.)
Registration
48 Registration
50 Switch Bases
Troubleshooting
52 Troubleshooting
General Information
54 Conformity
55 Recycling and disposal
TABLE OF CONTENTS
5
x

6
ongratulations on your selection of this quality product by XACT Communication.
With proper care and adherence to the set-up and user instructions in this Owner's
Manual, this unit will provide you with years of trouble-free service. XACT is
committed to providing quality products that fit your needs.We would like to have
any comments or suggestions you might have on this product.You may mail your
comments to:
XACT Communication, LLC
105 Madison Avenue
New York, NY 10016
[email protected]
WHAT’S IN THE BOX?
User manual
Edge 1.4 handset
Edge 1.4 base station
Line cord
Power adapter for base station
Battery door
2 x AAA rechargeable batteries
Warranty information
In the event that any item is missing or if you find any mismatch or damage,
promptly contact your retailer.
C

FOR YOUR SAFETY
7
x
FOR YOUR SAFETY
This equipment is not designed to make emergency calls in the event of a power failure.An
alternative means of communication must be available to make emergency calls when this
phone has no power.
• Do not allow the product to come into contact with liquid.
• Do not open it as you could be exposed to high voltages.
• Never use any battery type other than the one supplied.There is a risk of
explosion if the batteries are replaced by an incorrect type. Dispose of used
batteries according to all applicable laws and regulations.
• When the phone is ringing or when activating the speaker phone, please do not
hold the handset too close to your ear as it may damage your hearing.
INSTALLATION REQUIREMENTS
This product requires an electrical supply of 110 volts of alternating current. In case of power
failure, the communication will be lost.The electrical network is classified as hazardous
according to criteria in the standard UL 60-950.The only way to power down this product
is to unplug the power supply unit from the electrical outlet. Ensure the electrical outlet is
located close to the apparatus and is always easily accessible.
The voltage on the network is classified as TNV-3 (Telecommunication Network
Voltages), as defined in the standard EN 60-950.
NEED HELP?
Troubleshooting on Page 50-53
Online Help: www.getxact.com

FCC INTERFERENCE INFORMATION
x
FCC Interference Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference; and (2) This device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that
is “receiving” the interference.
• Reorient or relocate and increase the separation between the telecommunications equip-
ment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from that
to which the receiving antenna is connected.

FCC RF Radiation Exposure Statement
The installation of the base unit should allow at least 20 centimeter between the base and
persons in compliance with FCC RF exposure guidelines. For body worn operation, the
portable part (handset) has been tested and meets FCC RF exposure guidelines.
This device must not be co-located or operating in conjunction with any other antenna or
transmitter.The changes or modifications not expressly approved by the party responsible for
compliance could void user’s authority to operate the equipment.
FCC Part 15.19
FCC Part 15.21
FCC Part 15.105(b)
FCC Part 2.1091
FCC Part 2.1093

Consumer Information:
a) This equipment complies with Part 68 of the FCC rules and the requirements
adopted by the ACTA. On the bottom of this equipment is a label that
contains, among other information, a product identifier in the format
US:AAAEQ##TXXXX. If requested, this number must be provided to the
telephone company.
b) An applicable certification jacks Universal Service Order Codes (USOC) for
the equipment is provided (i.e., RJ11C) in the packaging with each piece of
approved terminal equipment.
c) A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular
plug is provided with this product. It is designed to be connected to a
compatible modular jack that is also compliant. See installation instructions
for details.
d) The REN is used to determine the number of devices that may be connected
to a telephone line. Excessive RENs on a telephone line may result in the
devices not ringing in response to an incoming call. In most but not all areas,
the sum of RENs should not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the total RENs,
contact the local telephone company. [For products approved after July 23,
2001, the REN for this product is part of the product identifier that has the
format US:AAAEQ##TXXXX. The digits represented by ## are the REN
without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the
REN is separately shown on the label.]
e) If this equipment XV6601;XHB661 causes harm to the telephone network,
the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn't
practical, the telephone company will notify the customer as soon as possible.
Also, you will be advised of your right to file a complaint with the FCC if you
believe it is necessary.
f) The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the equipment. If
this happens the telephone company will provide advance notice in order for
you to make necessary modifications to maintain uninterrupted service.

g) Should you experience trouble with this equipment, please contact:
Company name: XACT COMMUNICATION,LLC.
Address: 105 Madison Avenue New York, NY 10016
Telephone: [phone]
for repair or warranty information. If the equipment is causing harm to the
telephone network, the telephone company may request that you disconnect
the equipment until the problem is resolved.
h) Please follow instructions for repairing if any (e.g. battery replacement
section); otherwise do not alternate or repair any parts of device except
specified.
i) Connection to party line service is subject to state tariffs. Contact the state
public utility commission, public service commission or corporation
commission for information.
j) NOTICE: If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this XV6601;XHB661 does not
disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
k) This equipment is hearing aid compatible.

8
OVERVIEW OF THE HANDSET
Earpiece
Right soft key/Contacts
End call/Exit menu key
Down key
Alphanumeric keypad
Intercom keyFlash key
Talk/Speakerphone key
Up key
Left soft key/Menu
LCD screen
Microphone

HANDSET KEYS
9
x
HANDSET KEYS
SOFT KEYS
The soft keys are the and keys directly below the screen.
Up/Down Key
Scroll through lists and menus
Increase earpiece volume or speaker volume
Answer a call
Switch between handset and speakerphone during a call
End a call
Exit a menu key
Alphanumeric keypad
Switch between phone calls
Intercom
Right soft key (Menu)
Left soft key (Contacts)
Press To

10
DISPLAY ICONS
Status Icon Description
Handset battery charge level
Ringer volume is set to ‘off’
Alarm clock is activated
Reminder Icon Description
New voicemail messages on your network answer service
Missed call

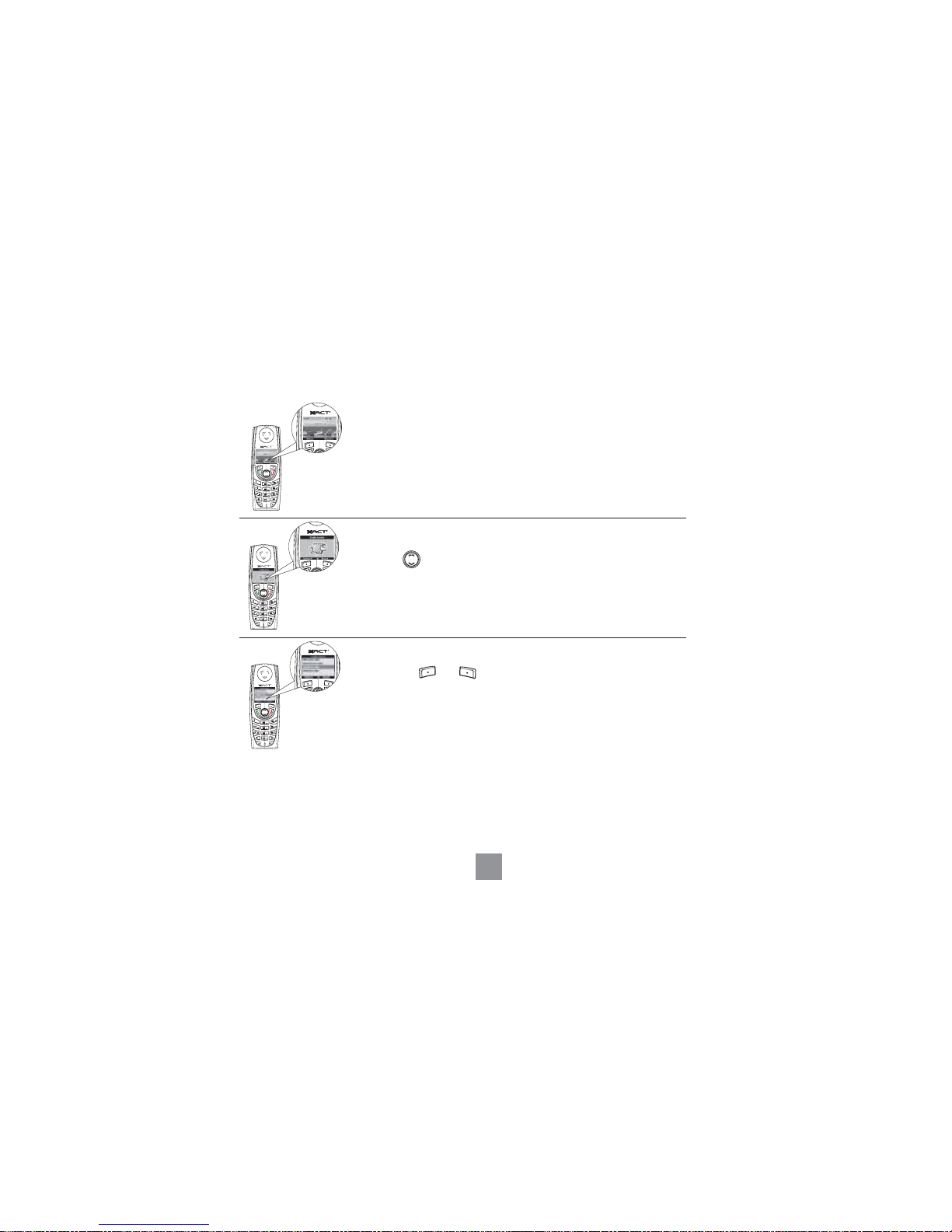

MENU NAVIGATION
The basic steps of navigating through the menus and on-screen options:
(1) From the standby screen, press Menu.
The main menu is opened.
(2) Use scroll through the options and press
Select to open the menu displayed.
(3) Use the and soft keys to select on-screen options, eg.
Select to choose the highlighted option, or Back to return to the
previous menu.
STANDBY MODE
If you do not press any button on the handset for 30 seconds the display will automatically
return to standby mode. It will also return to standby mode if the handset is placed on the
base station.
12

INSTALL AND CHARGE THE HANDSET BATTERIES
INSTALL AND CHARGE THE HANDSET BATTERIES
(1) Slide off the battery door (if fitted).
(2) Insert the batteries as shown. Slide the battery door back in place.
Charge Batteries
(1) Place the Edge 1.4
handset face-up on the
base station.A beep
confirms that the handset
is placed correctly.
A charging animation on the
handset screen shows that
the battery is charging.
(2) Leave the handset on
the base station until the
batteries are fully charged
(at least 24 hours).
The handset batteries are fully charged when the charging animation stops and the full battery icon is displayed.
BATTERY LIFE AND RANGE
Talk time and standby time
When the battery is fully charged, the talk time of your Edge 1.4 is approximately 12 hours
and the standby time is approximately 150 hours.
Low battery warning
The battery level is shown in the top left-hand corner of the handset screen. If the battery
level becomes low, you will hear a beep and the icon will flash.
Slide Cover
off.
15
x

16
BATTERY LIFE (CONT.)
A low battery alert will inform you that the handset has to be recharged. If this happens
during a call, the call may end shortly after the alert. If the battery level becomes exceedingly
low, the phone automatically switches off shortly after the alert.Any function in progress will
not be saved.
The approximate power levels of your battery are indicated as follows:
Battery is fully charged
Battery is partially charged
Battery is running low
Battery is almost fully discharged
Out of Range Warning
In ideal conditions, the range of the phone may exceed 150 feet indoors and 1000 feet
outdoors. If the handset moves outside this range, the display will show Searching… then Not
Available. Move back towards the base to ensure your connection remains established.

SETTING UP YOUR PHONE
SETTING UP YOUR PHONE
You may wish to set the display language to an alternate language when you first use your
phone. The default language is English (US)
If the Welcome Screen Appears
(1) The welcome screen will briefly appear, then a list of countries is displayed.
(2) Scroll to your country and press Select. A list of network operators is displayed. If
you made an incorrect entry, press Back.
(3) Scroll to your operator. and press Select.
The standby screen is displayed and your phone is ready to use.You can still make and
receive calls without first selecting your country and network operator, however the
Welcome screen will appear after each call.
If the Welcome Screen Does Not Appear
Your language and network operator has been preset at the factory.
17
x

General VOIP descriptions:
1. You need to install the program “ivo” and ”skype ” successfully first, then
open “ivo”, you call see two images display on the bottom right corner of you
computer. Please see the below picture:
2. Power on the base and the handset, then waiting until they are linking. After
linking, press the talking key, the base LED will wink, then press the talking key
again.
3. Connect the computer and the base with the USB, then waiting until they are
connecting. After connecting, you can see the color of the ”ivo” image
becomes blue from gray. Please see the below picture:
To make and end a VoIP call:
1. Press the VoIP key to enter Buddy list, Then you call see the below picture:
2. Scroll to the name you want to call. means Chris is on line.
3. Press the VoIP key to dial
4. If you want to end the VoIP call, press the VoIP key again.

18
MAKE A CALL
(1) Press . Display shows Dialing.
(2) Enter the number
Pre-dial
(1) Enter the phone number (maximum 32 digits). If you make an error, press Clear
to delete the last digit.
(2) Press to dial the number.
Call from the phonebook
(1) Press in standby mode.
(2) Scroll to a phonebook entry.
(3) Press to dial the number.
Search alphabetically for phonebook entries
(1) Press Names then press Select to choose Search.
(2) Press the numeric key containing the first letter of the name you want. For example,
pressing will show the entries starting with A. Pressing again will show the
entries starting with B, etc…
Call from the useful numbers list
(1) Press Menu and scroll to Useful Numbers.
(2) Press Select and scroll to the number.
(3) Press Dial to dial the number.

CONNECT THE BASE STATION
Call from the call lists
(1) Press Menu and scroll to Calls Lists.
(2) Press Select and scroll to the Calls List you want.
(3) Press Select and scroll to an entry.
(4) Press to dial the number.
You need to subscribe to your network’s Caller Line Identification (Caller ID) service to be
able to see the caller’s number in the Missed and Received Calls logs.
Answer a call
(1) When the phone rings, press .
Note: If Auto Talk mode is activated, you can simply lift up the handset from its base station
to answer the call.The default setting is off.
An incoming call has priority over other events.Whenever there is an incoming call,
other status in progress such as phone setting, menu navigation, etc. will be aborted.
WARNING: When the handset rings during an incoming call, please do not hold the handset
too close to your ear as the volume of the ringing tone may damage your
hearing.
19
x
