Xantech Xis100 User manual

08905180X1 - 1 -

MODEL

XIS100

Integration Dock for iPod

INSTALLATION INSTRUCTION

DESCRIPTION

Xantech's ‘XIS100' docking station is the industry's first iPod docking station designed for the high-

resolution television revolution. It features a unique component video output capability that will enable

owners of the new 480P video output iPods to see their video in full native resolution on a plasma,

LCD, or other compatible TV screen with component video output. The ‘XIS100' features a unique on-

screen menu display and control system and is compatible with the latest iPod video technology.

KEY FEATURES

• Stand-Alone iPod Dock

• Stylish Remote with Hi-End Chrome Design

• Compatible with All Current iPods (iPod Classic, iPod Touch, Nano 3g etc...)

• Allows Menu Viewing and Control Direct from Any Viewing Monitor (i.e. Plasma, LCD

Projector etc.)

• COMPONENT Video and Composite Video Output

• RS232 and IR Controllable

• Touch Panel Support

• Multi-Language Menu Support

• Direct IR Input on Rear

• Works as Stand Alone or Via On-Screen Video Display

• Album Art Display

• Metadata to and from Xantech CSPLCD Displays with Multi Line Display (or to XTR39 with

New RF2IR2w)

• Single Line Metadata Display with Xantech MRC Keypads

• Threaded Inserts for Secure Mounting in Public Places

PACKAGE INCLUDES

• Component Video Cables

• Composite Video and Audio Left & Right Cable

• Power Supply with North America, Europe, UK, and Australia/New Zealand Adapters

• XIS100 Docking Station

• XIS100 Remote Control

• Instruction Manual

• DB9 to RJ45 Adaptor

08905180X1 - 2 -

QUICK START

STEP 1:

Connect the XIS100 to the power supply and use the included

A/V cable to connect to a composite video and audio amplifier.

Direct the included remote control to the XIS100 and press the

‘power’ button. The ring on the XIS100 will light ‘on’. Be sure the

remote control has batteries installed.

With a connected display and the XIS100 powered on, the

screen on the right will appear indicating no iPod has been

connected to the XIS100.

STEP 2:

Once and iPod has been connected to the XIS100, the screen

on the right will appear showing the main menu options.

The menu is similar to the iPod menu and all functions can be

selected using the remote control.

STEP 3:

The ‘settings’ menu page is unique to the XIS100. On this page,

the screensaver time out, color scheme, and language can be

changed.

On the color scheme selection, there are five schemes to select

from.

On the language selection, there are eight different languages

to select from.

08905180X1 - 3 -

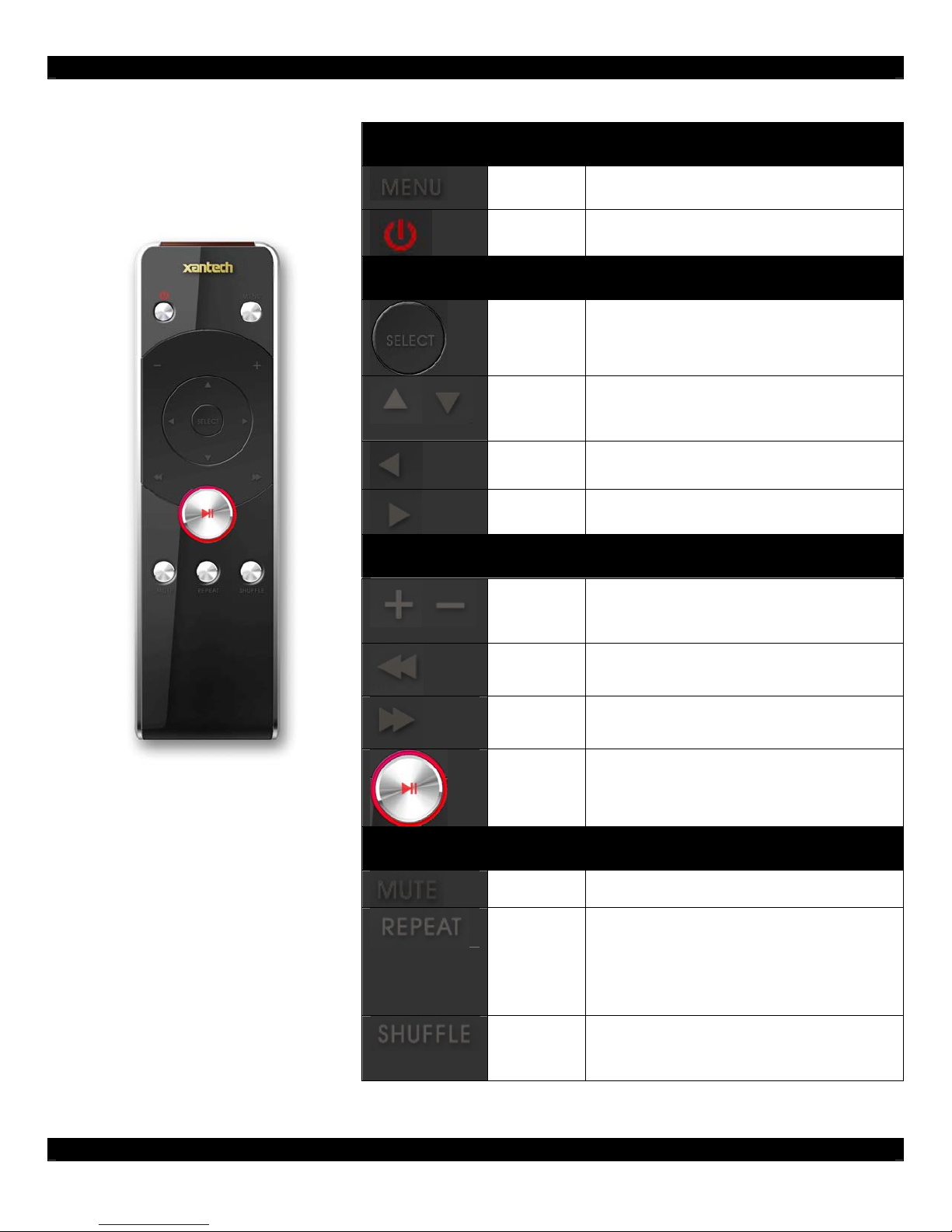

REMOTE CONTROL

UPPER PART

Home Whenever pressing this button, you

can go back to the Main Menu.

Power Press it to power on and off.

SELECT PART

Select When you decide to select a item,

press it to enter or play it.

Select

UP/

DOWN

When you are in a menu, press

them to go up and down and select

what you want.

Page Press it and you can return to the

previous page.

Page Press it and you can enter the next

page.

ADJUST PART

Volume

UP/

DOWN

Press them to adjust the volume.

Track Press it to go back to the previous

track.

Track Press it to go to the next track.

Play/

Pause Press it to start playing and get

pausing.

BOTTOM PART

Mute Turn to the Mute state.

Repeat Press it once and the now-playing

song will be repeated. Press it twice

and the songs in the folder will be

repeated. And press it again (the

third time) and you can remove.

Shuffle Press it to “randomly” play the

songs in the same folder. repeat

mode.

08905180X1 - 4 -

BASE STATION – FRONT VIEW

BASE STATION

1 Dock Well Connects to the iPod connector. Gently slide the iPod unit into the vertical

connector and verify it is not tilted. Included with the XIS100 is a Dock Well

adaptor for smaller iPod units.

2 IR Eye Discreetly hidden is a front panel IR eye used to communicate with the

XIS100 remote control. Be sure the remote control is directly towards this

lens.

08905180X1 - 5 -

BASE STATION – REAR VIEW

BASE STATION

3 Video Format This selector switch is used to select NTSC or PAL format.

4 IR IN Modulated IR input use to connect to a Xantech IR bus system.

5 RS232/422 Port to connect to RS232 or RS422 communications devices. To change

between 232 and 422, use the on-screen ‘settings’ menu.

6 Component Out Component video output to be connected to a display.

7 A/V Output Composite video and Left & Right Audio output Use included cable adaptor

to break-out RCA connections. Audio output is always active. Composite

and component video selection is made using the on-screen ‘settings’

menu. Only one video format can be active.

8 Power In Power input using wall adapter power supply.

08905180X1 - 6 -

CONTROL COMMANDS – RC68X IR COMMANDS

The RC68+ should be set to Group Code “B9”.

Key Definition RC68X

1 Menu 80

2 Power 90

3 Up 20

4 Left E0

5 Select 48

6 Right A8

7 Down 08

8 Volume Up F0

9 Volume Down 98

10 Play/Pause 10

11 Forward A9

12 Rewind 89

13 Shuffle 68

14 Repeat C8

15 Mute 38

16 Power On C9

17 Power Off E1

18 Component Video Output 00

19 Composite Video Output C0

20 Artist 50

21 Album D0

CONTROL COMMANDS – RS232 SERIAL STRING COMMANDS

See document 089051XXX – XIS100 Serial Protocol. Available on www.xantech.com

Limited Warranty

Xantech® warrants its products to be free of defects in materials or workmanship. This is a Limited Lifetime warranty from the date of purchase by the

original consumer. Any products returned to Xantech and found to be defective by Xantech within the warranty period will be repaired or replaced, at

Xantech’s option, at no charge. Xantech will not be responsible for the actual cost of installation or removal of the product, nor for any incidental or
