Xenith X1 Operator's manual

PLAYER’S MANUAL
TM

3
Fit Seeker® Technology
Aware-Flow® Shock Absorber Technology
Fitting Instructions

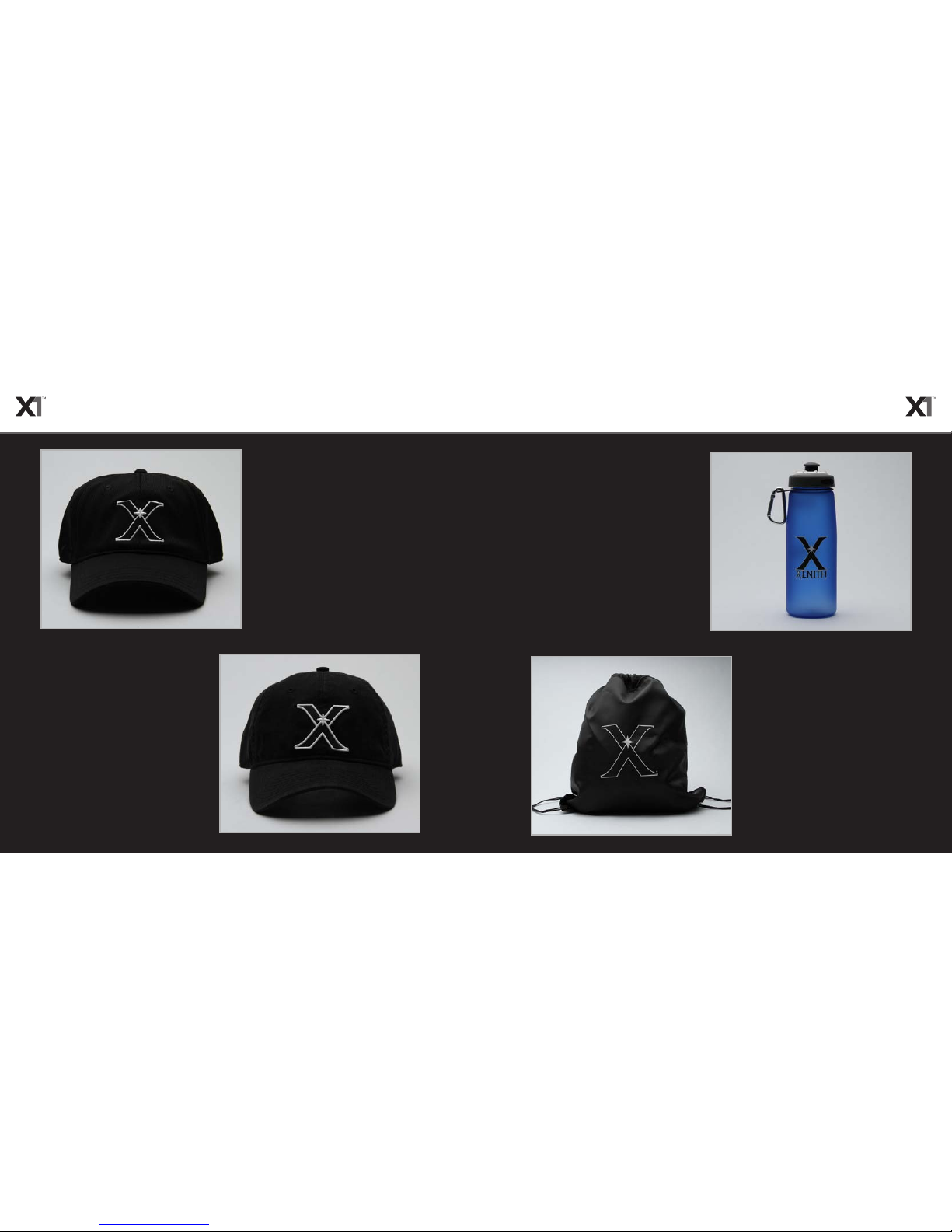

Components & Accessories
Xenith Academy Team Enrollment
$1 Per Helmet Donation Program
Contact Information
4
5
6
22
28
29
30
CONTENTS
3
I AM COURAGEOUS, BUT NOT RECKLESS
I AM CONFIDENT, BUT NOT COCKY
I AM TOUGH, AND I AM SMART
I AM ALWAYS FOCUSED, AND ALWAYS AWARE
I RESPECT MY TEAMMATES, AND MY OPPONENTS
I LEARN FROM VICTORY, AND FROM DEFEAT
I DO NOT SPEAK OF MY SUCCESSES
THEY SPEAK FOR THEMSELVES
I LEAD BY MY ACTIONS
I PERFORM ON AND OFF THE FIELD
I AM WELL INFORMED, AND WELL EQUIPPED
I AM PREPARED FOR ANY BATTLE
MY STRENGTH, MY SPEED, AND MY INTELLIGENCE
ARE MY WEAPONS
I AM AN ENLIGHTENED WARRIOR.
Myron Rolle, Enlightened Warrior

4 5
4 5
AWARE-FLOW® SHOCK ABSORBER TECHNOLOGY
TM
FIT SEEKER® TECHNOLOGY
TM
ADAPTS TO THE HIT.
Aware-Flow® Shock Absorbers adapt the helmet’s compression
to the magnitude and direction of the impact, reducing the sudden
movement of the head.
ADAPTS TO THE HEAD.
Fit Seeker® creates a customized fit instantly, with no pumps
needed. It provides outstanding comfort, and keeps the helmet
secure during impact.

6 7
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
1
XENITH X1 SIZE CHART
WIDEST POINT
MEASURE YOUR HEAD
Using a standard measuring tape, measure the circumference
of your head. Then consult the Xenith X1 Size Chart and
choose your correct size X1 helmet. The X1 can be ordered in
“Snug” sizes which include thicker comfort pillows for addi-
tional sizing options.
A proper fit is integral to a helmet’s performance. Please read
the following instructions to be sure your X1 is fitted properly,
or view our fit video at: xenith.com/fitvideo.
FIT CHECKPOINT
Ensure that you are measuring the head at the widest point,
about an inch above the ears and eyebrows.
Note: it may be helpful to do this in front of a mirror or seek the
help of a parent, coach or other staff member.
STEP 1
6Inches
Hat Size
51 52 53 54 55 56 57 58 59 60 61 62 63 64cm
21 22 23 24 2520
6 1/2 6 7/86 3/4 7 1/87 87 3/87 1/4 7 5/87 1/2 7 7/87 3/46 5/86 3/8
SMALL
SNUG
SMALL MEDIUM
SNUG
MEDIUM LARGE
SNUG
LARGE XLARGE
SNUG
XLARGE
SMALL MEDIUM LARGE XLARGE

9
2
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
PROPER SETUP
Unbuckle all four snap buckles and feed the chinstraps through
the first slot of the snap buckles only. This will make it easier to
adjust the chinstraps during fitting. See that the high chinstrap
runs in between the low chinstrap (as shown).
FIT CHECKPOINT
Ensure that you have read and understand the warnings inside
your helmet and on the inside back cover of this booklet.
If not, take a moment and read them now.
STEP 2
CHINSTRAP FED
THROUGH FIRST
SLOT ONLY
SNAP BUCKLES
UNBUCKLED
HIGH CHINSTRAP
8

10 11
3
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
SEAT THE HELMET ON YOUR HEAD
Use the image to the left and the diagram below to ensure the
helmet is seated properly on your head. The front edge of the
helmet should rest just above your brow, and not be rotated
excessively forward or backward.
FIT CHECKPOINT
If the helmet is rotated properly but still seated too low on your
head, you may need larger crown shock absorbers.
STEP 3
10

12 13
4
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
CINCH THE LOW STRAPS BY PULLING FIRMLY
OUTWARD
Pull the low chinstraps outward, which will cause the chincup
to slide up to meet your chin, and the Shock Bonnet to snug
down around your head. Be sure to pull evenly on both sides
so that the chincup stays centered. Do not overtighten, as this
may cause discomfort.
FIT CHECKPOINT
Ensure the chincup is centered and symmetrical.
If not, loosen the chincup and repeat Step 3.
Note: it may be helpful to do this in front of a mirror.
STEP 4
12
MOUTHGUARD IN

15
5
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
ADJUST LOW BUCKLES AND SNAP INTO PLACE
Bring the low chinstraps under the jawline of the shell (as
shown) and up to the snap. Then slide each buckle along the
chinstrap and snap it into place, leaving minimal slack in the
chinstrap.
FIT CHECKPOINT
Ensure the pads of the shock absorbers in the jaw area make
solid contact with the side of the face.
If not, you may need the larger size jaw shock absorbers.
Note: if there is too much pressure in this area, you may need
smaller size jaw shock absorbers.
STEP 5
14
CHINSTRAP UNDER JAWLINE

16 17
6
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
ADJUST THE HIGH CHINSTRAPS AND SNAP
INTO PLACE
Pull the high chinstraps upward so that the chincup pivots
under your chin. Slide the buckles down along each chinstrap
and snap into place, leaving minimal slack in the chinstrap.
FIT CHECKPOINT
Ensure the high chinstrap runs in-between the low chinstrap.
If not, unbuckle the straps and adjust. Refer to Step 2.
STEP 6
16
HIGH CHINSTRAP RUNS
THROUGH LOW CHINSTRAPS

19
7
FITTING INSTRUCTIONSFITTING INSTRUCTIONS
CHECK FOR PROPER FIT AND ADJUST AS
NEEDED
With all four buckles snapped into place, apply force to the
facemask in multiple directions. If there is excessive move-
ment, tighten the chinstraps further and readjust the buckles.
FIT CHECKPOINT
Ensure the helmet is secure by exerting upward force to the
facemask. The chincup should stay secure on the chin.
If not, unbuckle the high straps and adjust.
Note: if the helmet still wobbles excessively, you can order
thicker comfort pillows, or you may need a smaller size.
STEP 7
18
