About This Document
2022-06-25
v
About This Document
Purpose
This document describes the FusionServer 1288H V6 rack server in terms of features,
structure, specifications, and component hardware and software compatibility.
Intended Audience
This document is intended for pre-sales engineers.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
Indicates a hazard with a medium level of risk which, if not
avoided, could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to personal
injury.
Supplements the important information in the main text.
NOTE is used to address information not related to personal
injury, equipment damage, and environment deterioration.

FusionServer 1288H V6 Server
Technical White Paper
About This Document
2022-06-25
vi
Change History
Issue
Release Date
Change Description
04
2022-06-25
⚫Added a figure that shows how to measure
dimensions.
⚫Upgrades the standards of CE, UKCA, and CCC
certifications in the chapter 10 Certifications.
⚫Added A.1 Chassis Label.
⚫Updated A.3 Operating Temperature Limitations.
03
2022-05-18
Added support for 5.4.2 PMem.
02
2022-03-18
⚫Updated 5.4.1.6 Memory Protection
Technologies.
⚫Updated 6.1 Technical Specifications and claimed
support for U.2 drives.
⚫Added 10 Certifications.
01
2021-12-24
This issue is the first official release.

FusionServer 1288H V6 Server
Technical White Paper
1 Overview
2022-06-25
7
1 Overview
FusionServer 1288H V6 (1288H V6) is a new-generation 1U 2-socket rack server designed
for Internet, Internet Data Center (IDC), cloud computing, enterprise, and telecom
applications.
The 1288H V6 is ideal for IT core services, cloud computing, virtualization,
high-performance computing, distributed storage, big data processing, enterprise or telecom
service applications, and other complex workloads.
The reliable 1288H V6 features low power consumption, high scalability, easy deployment,
and simplified management.
For details about the 1288H V6 nameplate information, see A.4 Nameplate.

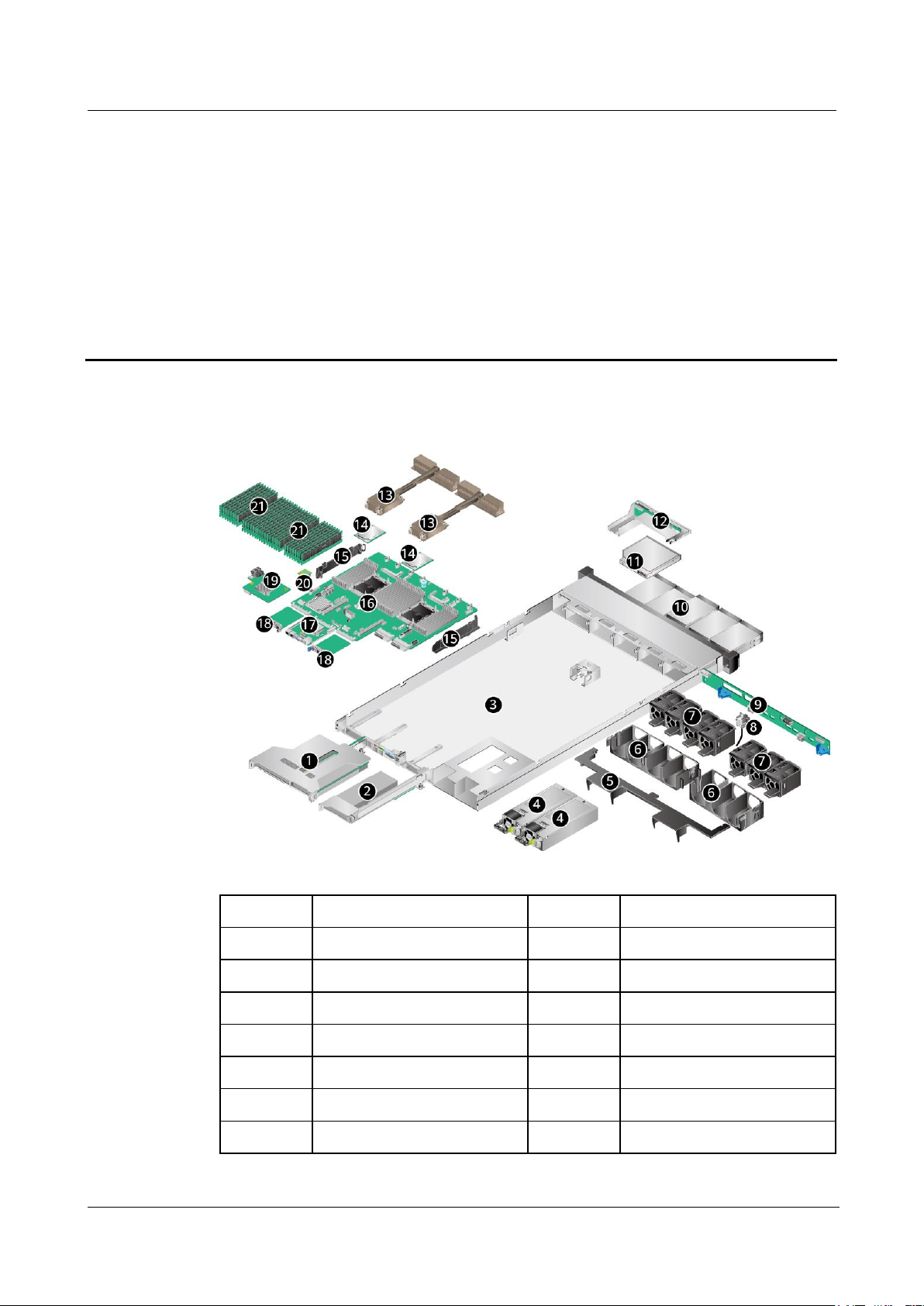

Figure 1-1 Physical structure of a 1288H V6 with 8 x 2.5" drives (example)

FusionServer 1288H V6 Server
Technical White Paper
2 Features
2022-06-25
8
2 Features
Performance and Scalability
⚫Powered by the third-generation Intel®Xeon®Scalable Ice Lake processors, the server
provides up to 40 cores, 3.6 GHz frequency, a 60 MB L3 cache, and up to three 11.2
GT/s UPI links between the processors, which deliver supreme processing performance.
−It supports up to two processors with 80 cores and 160 threads to maximize the
concurrent execution of multithreaded applications.
−The L2 cache capacity is increased. Each core exclusively occupies 1.25 MB L2
cache, and at least 1.5 MB L3 cache.
−Intel Turbo Boost Technology 2.0 allows processor cores to run faster than the
frequency specified in the Thermal Design Power (TDP) configuration if they are
operating below power, current, and temperature specification limits.
−Intel Hyper-Threading Technology enables each processor core to run up to two
threads, improving parallel computation capability.
−The hardware-assisted Intel® Virtualization Technology (Intel® VT) allows
operating system (OS) to better use hardware to address virtualization workloads.
−Intel® Advanced Vector Extensions 512 (Intel AVX-512) significantly accelerates
floating-point performance for computing-intensive applications.
−Intel DL Boost (VNNI) is supported to improve the performance of deep learning
applications.
−The Intel®SGX and Intel®TME security features provide fine-grained data
protection through application isolation in the memory, and defend against physical
attacks through full memory encryption.
⚫The server supports a maximum of 32 memory modules in the following memory forms:
−The server supports a maximum of 32 DDR4 ECC 3200 MT/s DIMMs. The DDR4
ECC DIMMs support registered DIMMs (RDIMM) and load-reduced DIMMs
(LRDIMMs), which provide high speed and availability. A server supports a
maximum memory capacity of 8192 GB and a maximum memory bandwidth of
400 GB/s in theory.
−The server supports a maximum of 16 Intel®OptaneTM Persistent Memory Module
200 series (PMem modules for short), which must be used with the DDR4 memory
modules. When the DDR4 memory modules are used together, the server supports a
maximum of 12 TB memory capacity (calculated based on a maximum of 256 GB
capacity per DDR4 memory module and a maximum of 512 GB capacity per PMem
module).

FusionServer 1288H V6 Server
Technical White Paper
2 Features
2022-06-25
9
⚫Flexible drive configurations meet a variety of business requirements and ensure high
elasticity and scalability of storage resources.
⚫The use of all solid-state drives (SSDs) is supported. An SSD supports up to 100 times
more I/O operations per second (IOPS) than a typical hard disk drive (HDD). The use of
all SSDs provides higher I/O performance than the use of all HDDs or a combination of
HDDs and SSDs.
⚫The use of 12 Gbit/s SCSI (SAS) serial connection for internal storage provides 2x data
transmission rate than the use of 6 Gbit/s SAS connection, maximizing the performance
of I/O-intensive applications.
⚫With Intel integrated I/O, the third-generation Intel®Xeon®Scalable processors integrate
the PCIe 4.0 controller to shorten I/O latency and improve overall system performance.
⚫The server supports a maximum of three PCIe 4.0 expansion slots
⚫The server supports two FlexIO cards (applicable to the OCP 3.0 network adapter) with
flexible configuration of GE/10GE/25GE/100GE network adapters, which are hot
swappable.
Availability and Serviceability
⚫Carrier-class components with process expertise ensure high system reliability and
availability.
⚫The server supports hot-swappable SAS/SATA/NVMe drives. SAS/SATA drives support
RAID 0, 1, 1E, 10, 5, 50, 6, and 60, depending on the RAID controller card used. It also
uses a supercapacitor to protect the RAID cache data against power failures.
⚫SSDs offer better reliability than HDDs, prolonging system uptime.
⚫The server provides simplified O&M and efficient troubleshooting through the UID/HLY
indicators on the front panel, fault diagnosis LED, and iBMC WebUI.
⚫The panel provides iBMC direct connect management ports to support local iBMC O&M,
improving O&M efficiency.
⚫A server provides two hot-swappable PSUs in 1+1 redundancy mode and seven
hot-swappable fan modules in N+1 redundancy mode, improving system availability.
⚫The built-in iBMC monitors system parameters in real time, triggers alarms, and
performs recovery actions to minimize the system downtime.
⚫For details about the warranty policy, visit Warranty.
Manageability and Security
⚫The built-in iBMC monitors server operating status and provides remote management.
⚫A password is required for accessing the BIOS, ensuring system boot and management
security.
⚫The NC-SI feature allows a network port to serve as a management port and a service
port. The NC-SI feature is disabled by default and can be enabled through the iBMC or
BIOS.
⚫The integrated Unified Extensible Firmware Interface (UEFI) improves setup,
configuration, and update efficiency and simplifies fault handling.
⚫The server chassis panel ensures security of local data.
⚫Chassis cover opening detection is supported to enhance security.
⚫Intel Execute Disable Bit (EDB) function prevents certain types of malicious buffer
overflow attacks when working with a supported OS.

FusionServer 1288H V6 Server
Technical White Paper
2 Features
2022-06-25
10
⚫The Intel Converged Boot Guard & Trusted Execution Technology (Intel CBnT)
prevents malicious software attacks based on hardware, prevents the firmware from
being maliciously modified, and prevents the execution of unauthorized boot blocks. It
also allows applications to run in their own independent space without being affected by
other software running in the system, thereby enhancing security.
⚫The secure boot based on the chip RoT implements level-by-level firmware verification
starting from the hardware RoT and builds a complete secure boot chain.
⚫The trusted platform module (TPM) and trusted cryptography module (TCM) provide
advanced encryption functions, such as digital signatures and remote authentication.
⚫The following requirements in NIST SP 800-147B are met:
−The BIOS firmware digital signature update mechanism is supported. During the
upgrade, the digital signature is verified to prevent unauthorized BIOS firmware
upgrade.
−The flash security protection mechanism is supported to prevent unauthorized
modification of the flash memory in the OS.
The service port with NC-SI enabled supports the following configuration:
⚫Configuring any network port on the FlexIO card 1, FlexIO card 2, or PCIe NIC (with NC-SI
enabled).
⚫Enabling, disabling, and setting a virtual local area network (VLAN) ID for this port. The VLAN ID
is 0and disabled by default.
⚫Configuring IPv4 addresses (IPv4 address, subnet mask, and gateway) and IPv6 addresses (IPv6
address, prefix length, and gateway) for this port.
Energy Efficiency
⚫The server supports 80 Plus Platinum/Titanium PSUs of different energy efficiency
levels. The PSU efficiency reaches 96% at 50% load.
⚫Active/standby power supply and HVDC power supply are supported, improving the
efficiency of the power supply system.
⚫Efficient voltage regulator-down (VRD) power supplies for boards minimize the energy
loss from DC/DC power conversion.
⚫Area-based, Proportional-Integral-Derivative (PID) intelligent fan speed adjustment and
intelligent CPU frequency scaling optimize heat dissipation and reduce overall system
power consumption.
⚫The improved thermal design with energy-efficient fans ensures optimal heat dissipation
and reduces system power consumption.
⚫The server is protected with power capping and power control measures.
⚫Staggered spin-up of drives reduces the server boot power consumption.

FusionServer 1288H V6 Server
Technical White Paper
3 Physical Structure
2022-06-25
11
3 Physical Structure
Figure 3-1 Physical structure of a server with 8 x 2.5" drives (example)
1
I/O module 1
2
I/O module 2
3
Chassis
4
PSUs
5
Air duct
6
Fan module brackets
7
Fan modules
8
Intrusion sensor
9
Front-drive backplane
10
Front drives
11
Built-in DVD drive
12
Indicator board
13
Processor heat sinks
14
Processors
15
Cable organizers
16
Mainboard

FusionServer 1288H V6 Server
Technical White Paper
3 Physical Structure
2022-06-25
12
17
BMC card
18
OCP 3.0 network adapters
19
Screw-in RAID controller
card
20
TPM/TCM
21
Memory modules
-
-

FusionServer 1288H V6 Server
Technical White Paper
4 Logical Structure
2022-06-25
13
4 Logical Structure
Figure 4-1 Logical Structure
⚫The server supports one or two third-generation Intel®Xeon®Scalable Ice Lake
processors.
⚫The server supports up to 32 memory modules.
⚫The CPUs (processors) interconnect with each other through three UPI links at a speed
of up to 11.2 GT/s.
⚫The PCIe riser card connects to the processors through PCIe buses to provide ease of
expandability and connection.
⚫CPU1 and CPU2 each support one OCP 3.0 network adapter.
⚫The screw-in RAID controller card on the mainboard connects to CPU 1 through PCIe
buses, and connects to the drive backplane through SAS signal cables. A variety of drive
backplanes are provided to support different local storage configurations.
⚫The LBG-R Platform Controller Hub (PCH) is integrated on the mainboard to support
four USB 3.0 ports.

FusionServer 1288H V6 Server
Technical White Paper
4 Logical Structure
2022-06-25
14
⚫The BMC management chip integrated on the mainboard supports a video graphic array
(VGA) port, a management network port, and a serial port.

FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
15
5 Hardware Description
5.1 Front Panel
5.2 Rear Panel
5.3 Processors
5.4 Memory
5.5 Storage
5.6 Network
5.7 I/O Expansion
5.8 PSUs
5.9 Fan Modules
5.10 Boards
5.1 Front Panel
5.1.1 Appearance
⚫4 x 3.5" drive configuration

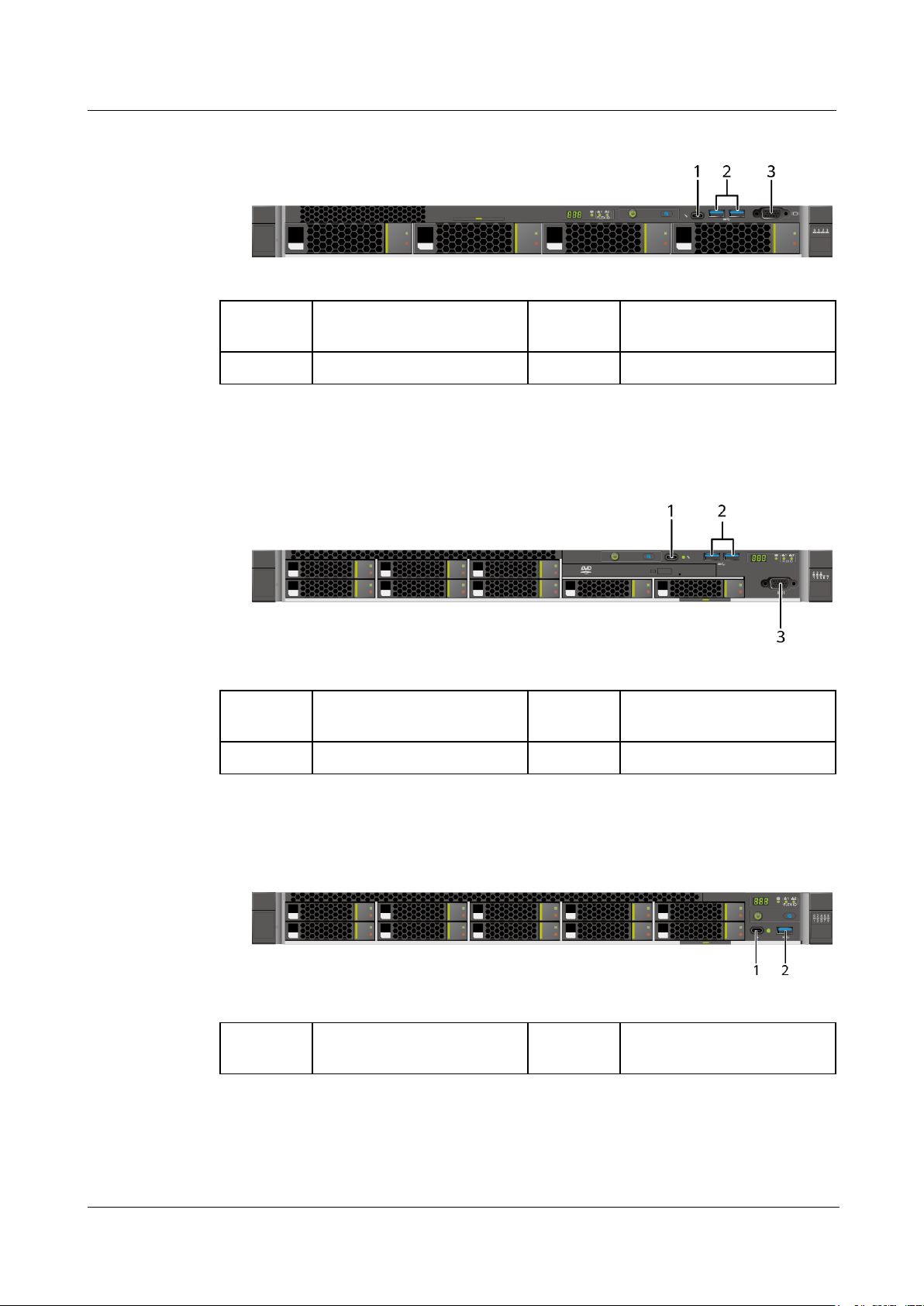

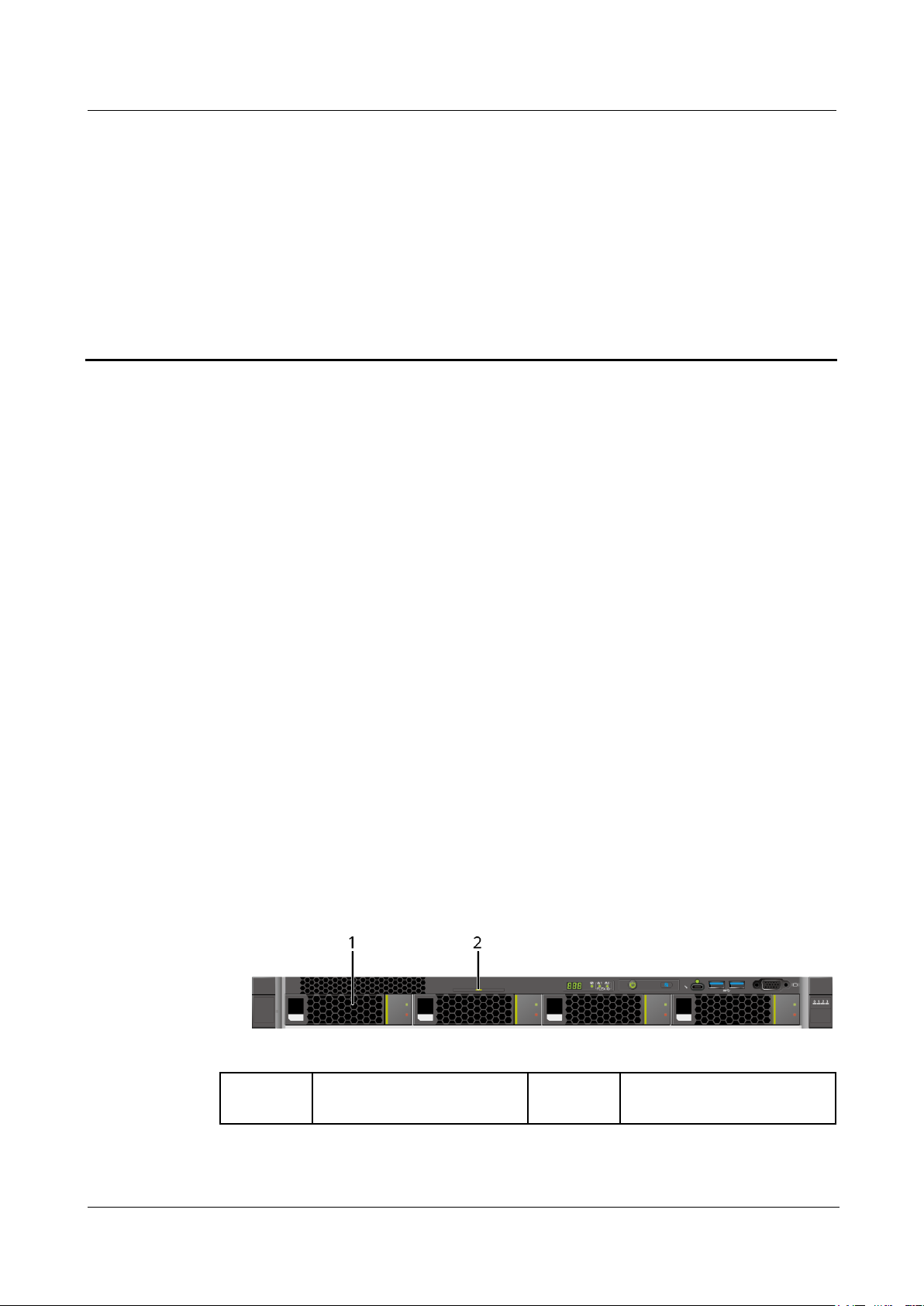

Figure 5-1 Front view
1
Drive
2
Slide-out label plate (with an
SN label)

FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
16
⚫8 x 2.5" Drive Configuration
Figure 5-2 Front view
1
Drive
2
(Optional) Built-in DVD
drive
3
Label with SN
-
-
⚫10 x 2.5" drive configuration
Figure 5-3 Front view
1
Drive
2
Slide-out label plate (with an
SN label)
5.1.2 Indicators and Buttons
Indicator and Button Positions
⚫4 x 3.5" drive configuration
Figure 5-4 Indicators and buttons on the front panel
1
Fault diagnosis LED
2
Health status indicator
3
FlexIO card 1 presence
4
FlexIO card 2 presence

FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
17
indicator
indicator
5
Power button/indicator
6
UID button/indicator
7
iBMC direct connect
management port indicator
-
-
⚫8 x 2.5" drive configuration
Figure 5-5 Indicators and buttons on the front panel
1
Power button/indicator
2
UID button/indicator
3
iBMC direct connect
management port indicator
4
Fault diagnostic LED
5
Health status indicator
6
FlexIO card 1 presence
indicator
7
FlexIO card 2 presence
indicator
-
-
⚫10 x 2.5" drive configuration
Figure 5-6 Indicators and buttons on the front panel
1
Fault diagnosis LED
2
Health status indicator
3
FlexIO card 1 presence
indicator
4
FlexIO card 2 presence
indicator
5
Power button/indicator
6
iBMC direct connect
management port indicator
7
UID button/indicator
-
-

FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
18
Indicator and Button Descriptions
Table 5-1 Description of indicators and buttons on the front panel
Silkscreen
Indicator and
Button
Description
Fault diagnosis
LED
⚫---: The device is operating properly.
⚫Error code: A component is faulty.
For details about error codes, see the
FusionServer Rack Server iBMC Alarm Handling.
Health status
indicator
⚫Off: The device is powered off or is faulty.
⚫Blinking red at 1 Hz: A major alarm has been
generated on the system.
⚫Blinking red at 5 Hz: A critical alarm has been
generated on the system.
⚫Steady green: The device is operating properly.
FlexIO card
presence
indicator
Indicates whether the FlexIO card is detected.
⚫Off: The FlexIO card is not detected.
⚫Blinking green at 0.5 Hz: The FlexIO card is
detected but is not powered on.
⚫Blinking green at 2 Hz: The FlexIO card is
detected and has just been inserted.
⚫Steady green: The FlexIO card is detected and the
power supply is normal.
Power
button/indicator
Power indicator:
⚫Off: The device is not powered on.
⚫Steady green: The device is powered on.
⚫Blinking yellow: The iBMC is starting. The power
button is locked and cannot be pressed. The iBMC
is started in about 1 minute, and then the power
indicator is steady yellow.
⚫Steady yellow: The device is standby.
Power button:
⚫When the device is powered on, you can press this
button to gracefully shut down the OS.
NOTE
For different OSs, you may need to shut down the OS as
prompted.
⚫When the device is powered on, you can hold
down this button for 6 seconds to forcibly power
off the device.
⚫When the power indicator is steady yellow, you
can press this button to power on the device.

FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
19
Silkscreen
Indicator and
Button
Description
UID
button/indicator
The UID button/indicator helps identify and locate a
device.
UID indicator:
⚫Off: The device is not being located.
⚫Blinking or steady blue: The device is being
located.
UID button:
⚫You can control the UID indicator status by
pressing the UID button or using the iBMC.
⚫You can press this button to turn on or off the
UID indicator.
⚫You can press and hold down this button for 4 to
6 seconds to reset the iBMC.
iBMC direct
connect
management
port indicator
Indicates the status when the iBMC direct connect
management port connects to a terminal (local PC or
Android mobile phone):
⚫Off: No terminal is connected.
⚫Blinking green at short intervals for 3 seconds and
then off: The port is disabled.
⚫Steady green: The terminal is connected.
Indicates the status when the iBMC direct connect
management port connects to a USB device:
⚫Blinking red at long intervals: The job fails or an
error is reported when the job is complete.
⚫Blinking green at short intervals: The job is being
executed.
⚫Blinking green at short intervals for 3 seconds and
then off: The port is disabled.
⚫Steady green: The server configuration file is
being copied from the USB device or the job is
successfully completed.
5.1.3 Ports
Port Positions
⚫4 x 3.5" drive configuration

FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
20
Figure 5-7 Ports on the front panel
1
iBMC direct connect
management port
2
USB 3.0 port
3
VGA port
-
-
⚫8 x 2.5" drive configuration
Figure 5-8 Ports on the front panel
1
iBMC direct connect
management port
2
USB 3.0 port
3
VGA port
-
-
⚫10 x 2.5" drive configuration
Figure 5-9 Ports on the front panel
1
iBMC direct connect
management port
2
USB 3.0 port
