XLC BS-C09 User manual

MANUAL
MONO
KIDS TRAILER
BS-C09 | 3092000700 / - 01

XLC MONO KIDS TRAILER
BS-C09
ATTENTION
MEETS ASTM /ENSTANDARDS
F1975-09/ EN 15918 Bicycle Trailer Designed for Human Passengers
F833-13b/EN 1888-2:2018 Safety Performance Specifications for Carriages and Strollers
Owner’s Manual
Please keep this Owner’s Manual for future reference.
PRIOR TO ASSEMBLY Please read this Owner’s Manual completely before assembling or operating this product.
This product should be assembled by an adult. IMPORTANT SAFETY INFORMATION
Manual / 3092000700 / - 01
01
!

Clean trailer only with soap and water. Do not use solvents
Cycle trailers pulled by EPAC, (Electronically Power Assisted Cycles) can be restricted by law.
Please check national and local laws regarding the use of an EPAC to pull a trailer.
SAFE TOWING TIPS
Make sure your bike brakes work properly! Braking distance is increased when pulling a trailer!
This trailer is wide! Allow extra clearance near curbs, signs, parked cars, and other obstacles!
A bicycle with trailer attached requires a wide turning radius! Do not turn sharply!
Children must wear an approved safety helmet when using this product in trailer mode!
Never remove protective canopy when pulling children in the trailer!
Always use the safety flag when pulling this trailer!
Do not ride over curbs! Avoid bumps and holes! Always signal your turns!
Use extra caution when turning on uneven pavement, and going downhill!
Not for use at high speeds! Do not exceed 25 km/h /15 mph
Do not pull this trailer at night!
Install a rearview mirror on your bike to check on children in trailer!
Dress children appropriately to prevent them from getting chilled or overheated while riding
Parcels or accessory items or both, placed on the unit may cause the unit to become unstable.
Failure to follow these warnings and assembly instructions could result in serious injury or death!
Immediately discard all plastic bags and plastic wrapping materials!
Never use this trailer if it becomes damaged!
Avoid serious injury from falling out, always use seat belt and shoulder straps!
Never leave children unattended in or around this product!
Never allow children to assemble, fold, or disassemble this unit!
Accessories or parcels placed in trailer may cause it to become unstable!
Not for use with children under 6 months old! Children must be able to support their own head!
Child weight: 22kg
Total weight: 51kg (Trailer weight + Nominal Load)
Nominal load: 35kg (Children + Load)
Before riding, check that all parts are assembled according to the manufacturer instructions!
Tires should be inflated to 35-40 PSI for maximum comfort! Check tire pressure before each use!
Use a foot pump or hand pump to inflate tires! Pressurized air hoses can cause over inflation!
Periodically re-check all fasteners to make sure they are tight!
WARNING
!
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
02

INSTRUCTIONS FOR ASSEMBLY AND OPERATION
1. Key Features
2. Pre-Ride Safety Check
3. Safety Guidelines
4. Main Frame and Cabin Assembly
5. Installing Wheels
6. Installing Tow Arm
7. Using Parking Brake
8. Installing Wheel Guards
9. Using Top Cover/Windscreen
10. Installing Safety Flag
11. Using Five-point Harness
12. Removal of Passengers
13. Folding
14. Storage
15. Attaching Trailer to Bicycle
16. Fitting of Light Sets
17. Attaching Jogger Wheel
18. Using Stroller Wheel
19. Suspension Set up
20. Feature for Cable Lock
Please Read all instructions and examine contents carefully before assembly.
Important – Keep these instructions for future reference
!
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01

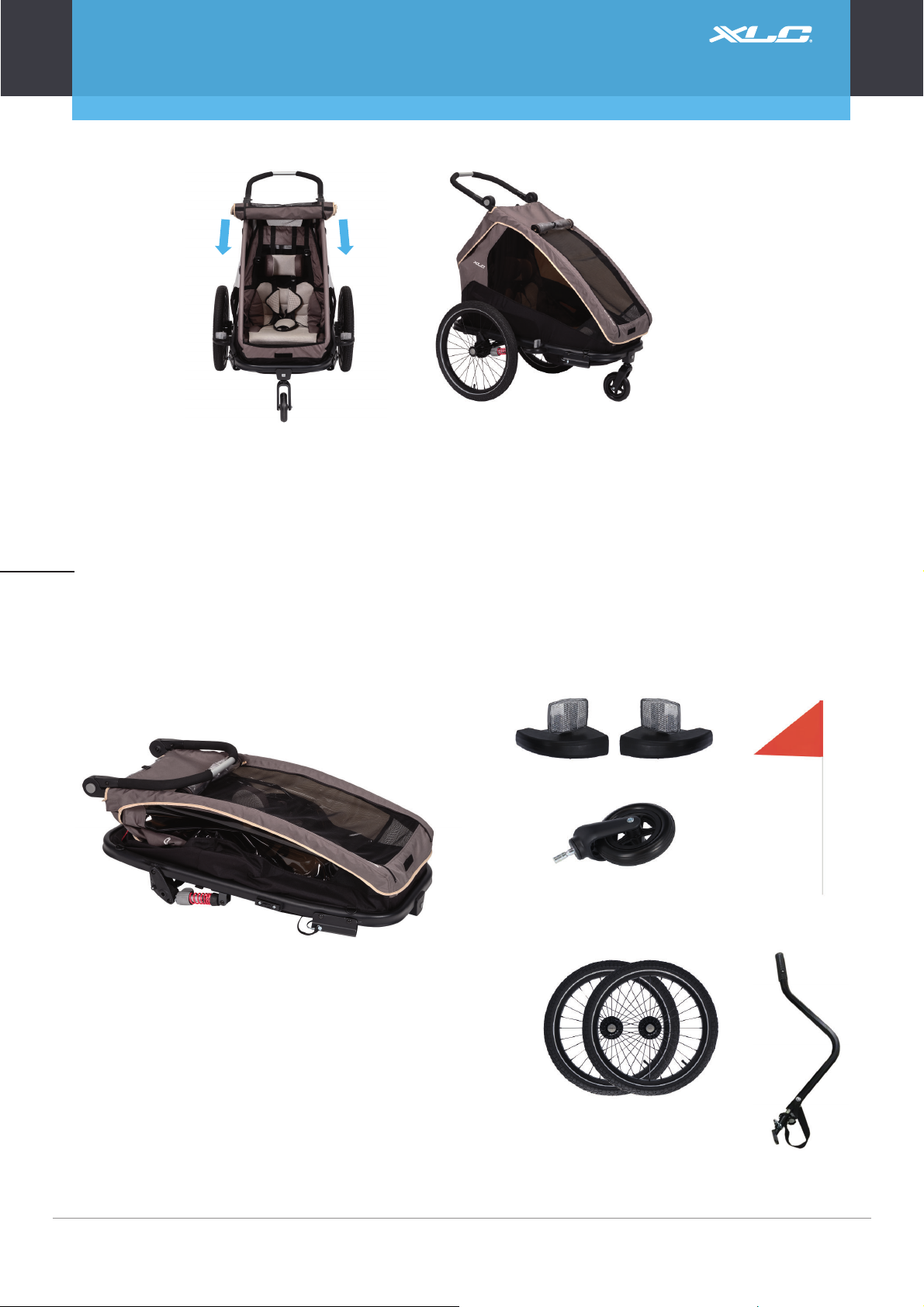

PARTS LIST
1 Frame w/canopy
1 Sling seat with 5-point safety harness
2 20” alloy wheels
1 Safety flag
1 Adjustable handlebar
1 Tow bar, tow bar coupler
03

1. KEY FEATURES
1. Quick Assembly, take down and storage
2. Forward facing one passenger seating
3. Five-point seating harness with quick lock and release
4. Full rain cover with roll-up window
5. Quick release wheels with sealed bearings
CAUTION
Please carefully read the instruction manual and all safety warning labels before using the trailer.
IMPORTANT
Passengers and riders should always wear properly fitted, approved cycling helmets. In some countries, helmets
are a legal requirement.
WARNING
• This seat unit is not suitable for children under 6 months
• The use of the seat belt is mandatory to avoid children slipping or falling off the trailer. Always use the
restraint system.
• Children must be able to hold head up with helmets on
• Ensure that all the locking devices are engaged before use
• To avoid injury ensure that your child is kept away when unfolding and folding this product
• Do not let your child play with this product
• Always use the restraint system
• Never leave the child unattended
• Always ride defensively
• This product is not suitable for running or skating
• For vehicles fitted with load carrying accessory(ies), do not exceed 51 kg total weight, or 35kg
nominal load
• Maximum 1 passenger - passenger weight 22kg max
• Maximum passenger height 1.05 m
• Do not exceed 25 KM/H (15MPH) maximum speed, slower for turns or rough roads
• Braking Distances are increased when pulling the trailer. Slow down and allow extra stopping distance.
• Only drive the trailer on clean and paved roads and never on uneven flat, bumpy paths
• Always instruct children NOT to rock, bounce or lean
• NEVER use the trailer off-road. This may result in damage to the trailer and or serious injury to the
passengers
• Do not use the trailer in extreme weather, such as heat, cold, wind or rain. Passengers must be clothed
appropriately to prevailing weather conditions.
• Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will
affect the stability of it.
• The use of an EPAC (Electronically Power Assisted Cycles) to pull the trailer can be restricted by low in your
country. Please check national and local laws regarding the use of an EPAC to pull a trailer.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
04

2. PRE-RIDE SAFETY CHECK
1. Check to insure hitch clamp is tight
2. Check to insure hitch safety strap is secure
3. BUCKLE UP! Check seat harness and secure all baggage
4. Inspect bike and trailer condition before each use
5. HELMETS ON! Insure rider and child helmets are on and secure
6. Check tire air pressure. Always maintain between 35 and 40 PSI
7. The bicycle to which the trailer will be attached should be inspected by a qualified bicycle mechanic before
attaching the trailer to it.
Think Safety First! Check the working condition of both bicycle and trailer before every use. If you discover
broken components, misalignments, or missing parts, correct the problem prior to use.
Please follow these safety guidelines when using your trailer:
• This trailer is intended only for transport of children and cargo in the manner as described in the following
pages of the owners’ manual. Use of the trailer apart from these guidelines is not recommended, and may
result in injury or damage to the trailer or the bicycle.
• Inspect the trailer and its parts before and after each use. Proper maintenance of the trailer is essential to
safety.
• When assembling the trailer, make sure that wheels are correctly and securely installed as described in the
assembly instructions. If you are not familiar with the type of wheels used on this trailer, contact your place
of purchase or a reputable bicycle shop to receive instruction in the correct operation of these devices.
Inflate tires to 35-40 PSI and check air pressure before each use. Over inflation may cause the trailer to
bounce or turn over. Use only tires with street tread, and not with BMX or Knobby tread.
• Be sure that the bicycle used with the trailer is in good working condition, is appropriate in size and type to
pull the cycle trailer, and has good brakes. Refer to the bicycle owners’ manual for any advice regarding
use of the bicycle with a trailer. A bicycle shop can help you with the inspection to determine if your bike is
of the correct type to use with the trailer, and with routine maintenance of the cycle and the trailer.
• The parking device shall be engaged when placing and removing the children.
• Do not overload the trailer. The load limit for cargo and passengers is 35kg. Position the load as low as
possible and center it within the trailer, (front to rear, and left to right). Any extra gear should be placed
towards the rear. All load should be secured so that it does not shift. IMPORTANT: Instruct children riding
in the trailer not to bounce, rock or lean. Such movements may cause the trailer to lean or flip.
• When fully loaded, the Drawbar load measured at the hitch should be between 3-8kgs. This can be verified
by lifting the tow bar of the loaded trailer before attaching the trailer to the bicycle. Make sure parking
brakes are engaged when loading trailer.
3. SAFETY GUIDELINES
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
05
!

• Do not attempt to install other seating systems in this trailer. It is not designed for car seats, stroller seats,
infant beds, or any other type of seating. Use of any accessories other than the original equipment will void
the warranty, and may result in damage to the trailer or injury to the passenger. Only replacement parts
supplied or recommended by the manufacturer/distributor shall be used.
• Never take this trailer off-road. It is intended for use on paved road surfaces. Use in any other conditions
may result in damage to the product or injury to the passengers.
Pulling this trailer alters the operation of the bicycle. Stopping, starting, and turning are affected, depending on
the weight of the cargo. To familiarize yourself with the changes, load the trailer to capacity and practice in a
safe area. Do not use your trailer until you have become accustomed to how it affects your bicycle handling.
Further safety strategies include the following:
• Never assume you will be given the right of way.
• Do not try to predict the actions of car drivers.
• Do not travel on highways, busy streets, or in areas unsafe for bicycling.
• Avoid riding at night. If you must ride at night, use lights and bright, reflective clothing. Do not ride at night
with children in the trailer. Before use, consult your local authorities to determine appropriate lighting and
safety requirements to conform to traffic code.
• To prevent overturning your trailer, do not pull over curbs or holes or hit obstacles in the roadway.
• Do not turn sharply, because trailer may turn over.
• Do not travel at high speeds.
• Do not exceed 25 km/h (15 MPH ), slow for turns and rough road conditions. High speeds adversely affect
your ability to control the bike and notice road irregularities. Braking distances are increased when pulling a
trailer.
• Never take the trailer off road. It is designed for use on paved roadways. Off road use may result in
damage to trailer or injury to passengers.
The safety of your child is of great concern. The trailer seat is intended for passengers older than 6 months
and able to wear an approved helmet. Your child must be able to hold his head upright. Check with your
pediatrician to make sure your child’s development makes him or her a suitable passenger in the trailer.
Helmets are recommended for all passengers, and may be required by law. Please check national and local
laws regarding trailers and helmet use prior to operation. Make sure that your child is seated securely and the
harness is properly engaged. The child’s sitting height should be below the upper crossbar, and the correct
shoulder strap height must be used.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
06

Refer to the instructions to adjust. The four-season cover must be fitted when children are in the trailer. This
protects the child from road debris.
4. MAIN CABIN FRAME AND ASSEMBLY
Remove the trailer, wheels, hitch arm and walking kit from the box. Set the walking kit small wheel aside, as you
will install this later. Lay the trailer on the ground with the black fabric side down.
PARTS LIST
1 Frame w/canopy
1 Sling seat with 5-point safety harness
2 20” alloy wheels
1 Safety flag
1 Adjustable handlebar
1 Tow bar, tow bar coupler
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
07

To open frame, first, lift front cabin tube up, place one hand on upper crossbar to stabilize frame, and then pull
back with a quick “snap” of force on rear cabin tube (Fig 1), until you hear the audible “Click” as both sides of
the trailer frame lock in place (Fig 2).
CLICK
After open, the trailer frame, look inside the trailer at the folding latches on both sides to make certain they have
locked in place. See photos below for reference:
Fig 1 Fig 2
CLICK
FOR
HELP -
PULL
If the latches look like the “WRONG!!” photo above, the trailer is not locked correctly. Pull back on the tube until
the latch locks in place as in the “RIGHT” photo above, or pull the string like shown on right picture.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
08

You must make certain the frame is locked before using the trailer. Failure to do so could result in
serious injury to you or your child. Make sure the spring latches are engaged on both sides prior to
use. Both latches are necessary for safe operation. Press forward on the rear frame tube to make
sure the frame is locked. If the frame moves forward as to fold, the frame is not secure. If not
latched, repeat above, pulling with some force until the frame locks with an audible “Click”.
!
5. INSTALLING WHEELS
Your XLC Mono Kids Trailer uses simple and convenient push button quick-release wheels. To install the wheel,
first push the button on the outside of the wheel hub, and insert the axle through the hanger bracket on the
frame as shown. Push all the way in and release the pushbutton. The wheel is automatically locked in place.
Give each wheel a tug to make sure they are secure.
Check the wheels
periodically during and
before each use to be sure
they have not become
loose. Failure to do so
could result in serious injury
to you or your child.
!
To close/fold trailer frame, press handles together on right and left side. In case the handles are hard to press
you can help out by pulling the string while pressing the handle.
FOR
HELP -
PULL
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
09

6. INSTALLING TOW ARM
Locate the tow/hitch arm, and position on the left side of the trailer, as shown. The hitch arm is held in place by
a spring pin and a quick release pin.
Depress the spring pin and insert the hitch arm in the bracket on the frame as shown.
Once the spring pin locks in place in the hole in the bracket. Locate the quick release pin, attached by nylon
strap to the trailer frame, then insert the pin through the bracket and into the hole in the tow arm. The pin
should go completely through the tow arm and bracket. Once the pin is through, flip the safety clasp over and
onto the pin. Give the pin a tug to be sure it is secure.
Check this pin periodically during and before each use to be sure it has not become loose. Failure
to do so could result in serious injury to you or your child.
!
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
10

7. USING PARKING BRAKE
The Wing trailer has a foot-operated parking brake for use when in stroller/jogger mode.
PARKING BRAKE OPERATION
To operate brake, simply put your foot on link brake and push down, then it locked, and put your foot under link
brake and raise up to unlock your brake.
Make certain link brake is released prior to riding.
8. INSTALLING WHEEL GUARD
Your XLC MONO KIDS TRAILER is equipped with a wheel guard for added safety. The wheel guard helps to
deflect the tire from obstructions that might stop the trailer and result in an accident.
INSTALLING THE WHEEL GUARD
Slide wheel guard over fixation until you here a click.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
11

Manual / 3092000700 / - 01
9. USING TOP COVER/WINDSCREEN
The clear vinyl windscreen and the protective mesh barrier zip open for loading. In inclement weather, the clear
windscreen protects your passengers from the elements. Weather permitting, you can roll up the clear window
and affix with Velcro straps provided. The mesh allows ventilation, but prevents debris from entering the trailer.
Rocks and castoff from the bicycle wheels could injure your child. Never use the trailer without
closing the mesh cover. Failure to do so could result in serious injury to your child.
!
This flag is meant for use only with the trailer. This flag is not a toy. Do not let your child play with
this flag when not in use. Failure to comply with this warning could result in serious injury of your
child.
!
10. INSTALLING SAFETY FLAG
Assemble the flag and insert the end into the small button hole on the top of the trailer skin. Feed through to the
sleeve just inside the rear cabin, adjacent to the frame tube.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
12

Unclip the straps and place your child in the seat (Fig1). Adjust the upper buckles to fit snugly above your child’s
shoulders (Fig2). The crotch strap buckle should come just below your child’s belly button, where a normal belt
could lay. Adjust the ladder lock so the buckle is in the correct position. Buckle the two side straps (Fig3) to the
crotch strap and adjust snugly (Fig4) so you can fit average size fingers between belt and your child (Fig 5).
11. USING FIVE-POINT HARNESS
The buckle should be centered in your child’s abdomen. Hook the shoulder straps to the D-rings on the buckle
and adjust the ladder locks so they fit snugly.
OPEN THE BUCKLE:
slide grip to right, and hold the grip while removing the two straps on the top. See pictures below.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
13

To avoid serious injury or death,
children must always wear the seat
belt and shoulder straps.
!
CLOSE THE BUCKLE:
snapping in the two straps on the top. No need to touch the grip. See pictures below.
12. REMOVAL OF PASSENGERS
Before removing children or cargo from the trailer, stop the bicycle, and lock the trailer parking brakes on both
wheels. Then open the passenger compartment window, release the safety harness, and allow the passengers
to exit the trailer. Take care the bicycle attached to the trailer does not fall over during loading or unloading.
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
14

13. FOLDING
To fold your trailer, simply open the rear compartment flap and locate the release latches on the vertical frame
tubes. To operate the latches, simply grab the handles on both sides, and squeeze simultaneously to unlock
frame. While holding the latches, push forward to fold. TIP: A quick forward snap of the wrist will suffice to fold
the frame – alternatively, a slight “nudge” with a knee on the rear basket frame cross-tube works as well.
The trailer can be folded with or without the wheels on. If the wheels are removed, they can be stowed inside
the trailer when not in use. To remove the wheels, simply push the button in the wheel, and pull the wheel out
from the frame. To remove the handlebar, simply depress the spring pin in the upper frame and pull the han-
dlebar off. TIP: Quickest way to remove is one side at a time. Depress the spring pin on one side, then pull
slightly until handlebar moves a bit over the release pin, then do same on other side. Finally, pull the handlebar
away from the trailer is a slight right-to-left rocking motion to release the handlebar.
FOR
HELP -
PULL
STRING
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
15

14. STORAGE
The trailer has a rear storage area. This is not intended for items weighing more than 5 kg.
Your trailer is designed to attach easily to just about any full-size bicycle. The hitch fitting must be attached to
the rear axle of the bike.
Do not attach to any cycle where it cannot attach to the axle. It is recommended that the bicycle(s) to which the
trailer will be attached undergo a safety check by a qualified bicycle mechanic before attaching the trailer to it.
This trailer is not designed to be used with electric bikes or motorcycles.
Distribute items carefully and evenly. Items may cause the trailer to become unstable. Failure to
comply with this warning could result in serious injury to your child.
!
15. ATTACHING TRAILER TO BICYCLE
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
16

Removal of Trailer
1. Remove QR snap pin from hitch connection
2. Pull trailer arm away from black hitch
3. Black hitch attached to axle can remain with the bicycle for easy reattachment.
Trailer Maintenance
Your trailer will give you many years of service with minimal care. To ensure safe and dependable operation, we
recommend the following regular maintenance:
Before each ride
- Check all fasteners to make sure they are tight. Tighten or replace if needed
- Check to make sure wheels are fully secure in the frame. Wheels must be fully inserted to lock in
place, Attempt to pull the wheel out without pushing the release button. Wheel should not move.
- Check tires for wear and proper inflation as listed on tire sidewall. Use only hand operated pump to
avoid tire damage. Under inflation or over inflation can result in unsafe handling.
- Double check hitch attachment, making sure QR pin is locked, and safety strap is in place.
- Check harness straps for wear, and make sure buckles lock properly
Annual check-up
- Once a year, or sooner if needed, have the trailer inspected by a qualified bicycle mechanic for signs
of wear or needed adjustment.
As needed
- Trailer can be cleaned with mild detergent and water. Do not remove the seat or cover for washing. Do
not use harsh chemicals or cleaners, as they may damage the fabrics or the frame materials or
surfaces.
!
1. Loosen left side rear axle to allow the hitch to attach to frame.
2. Position hitch over left rear axle of bicycle frame.
3. Tighten axle nut (Quick Release) securely, testing to see the hitch is unable to pull loose.
4. Secure Quick Release Pin on hitch arm.
Make sure spring pin is locked.
If not locked, the pin may fall
out, releasing the fork.
This may cause injury to you or
your child.
!
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
17

Your trailer can accept an optional jogger kit. If not included with your trailer at time of purchase, please contact
your retailer for more information on how to purchase this accessory.
The kit consists of 2 fork tubes, and a quick release 16 inch wheel.
17. ATTACHING JOGGER WHEEL
Plastic bags could cause suffocation. Plastic bags are not a
toy; dispose of them properly.
Never ride with your trailer at night without an approved lightset.
!
!
It is not recommended to use your trailer at night. Your trailer is equipped with reflectors and a safety flag for
maximum visibility during low-light conditions, but if you plan to ride at night, you should install an approved
lightset. The lightset should mount to the frame of the trailer, and be visible from front and rear sides. Your
bicycle dealer can recommend the appropriate lightset to comply with your local lighting regulations.
16. FITTING LIGHTSETS16. FITTING LIGHTSETS
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
18

To install the jogger kit, first remove the hitch arm by releasing opening and releasing the (Quick Realease) QR
pin, then press the spring pin and pull out the arm. Also remove the pin on the opposite side clamp.
Next take one jogger arm, insert into the aluminum bracket, align with the fixing hole and insert and lock the
spring pin. (Make sure the hooks show to the ground.) Do the same with the second jogger arm. Fix the two
jogger arms together with the two screws.
Hooks show
to the ground
Make sure spring pin is locked.
If not locked, the pin may fall out, releasing the fork.
This may cause injury to you or your child.
!
XLC MONO KIDS TRAILER BS-C09
Manual / 3092000700 / - 01
19
!
