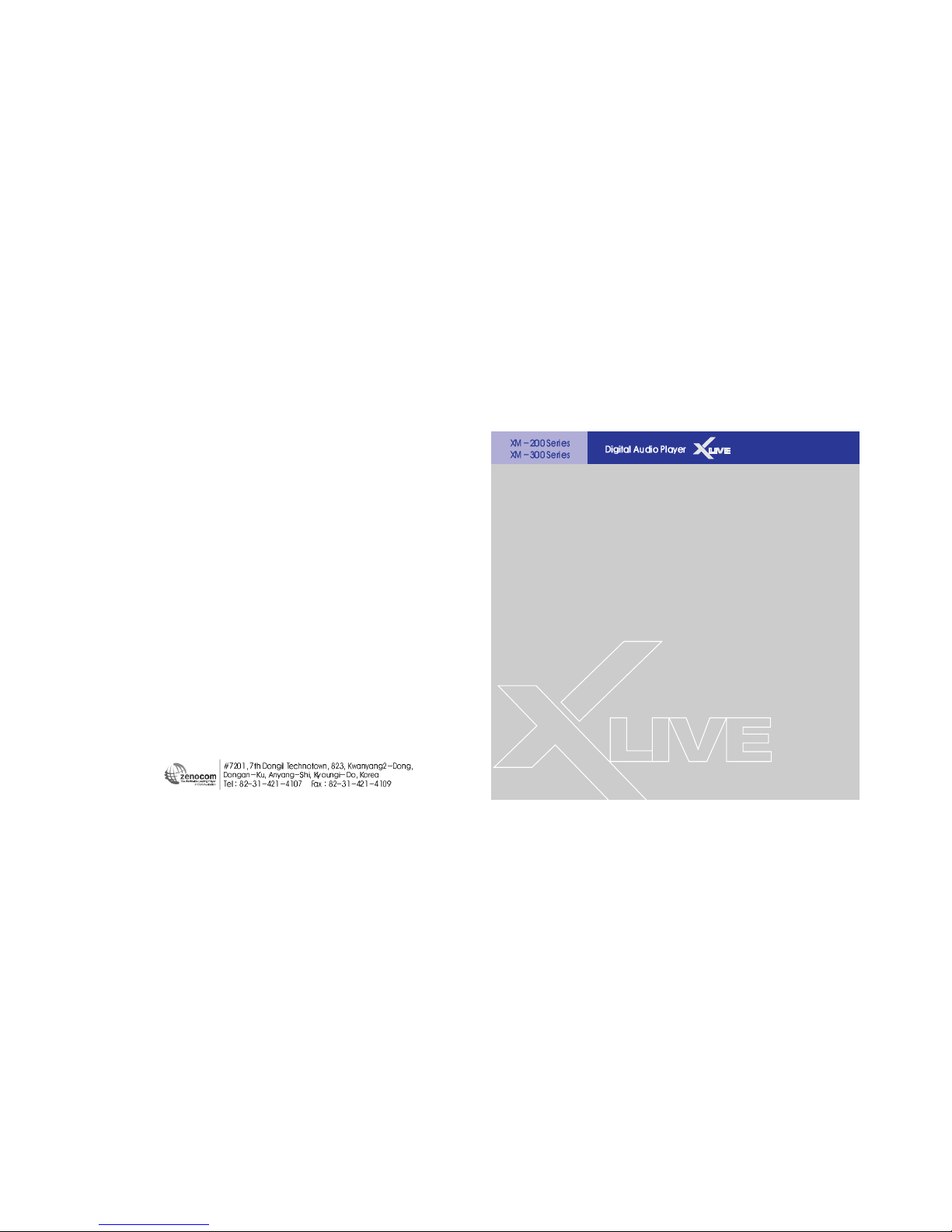

XLIVE XM-200 series User manual

User Manual
www.myxlive.com

This manual includes : Usage, safety, repair and maintenance.
Before using XLIVE, read this manual carefully.
Thank you for your purchasing XLIVE
Zenocom does its best to satisfy its customers with its advanced technology.
XLIVE introduces the technology of Bluetooth for a next generation multimedia
system. You can talk to the others while listening to music and easily upload and
download files wirelessly.

4
38 Seeing Image File JPEG/BMP File Viewer (JPEG VIEWER : XM-200 series)
39 New Bluetooth Technology Let's See Optimal Range(XM-300 series)
40 New Bluetooth Technology Bluetooth Operation Environment Setting(XM-300 series)
45 New Bluetooth Technology Bluetooth Headset(XM-300 series)
48 New Bluetooth Technology Bluetooth Handsfree(XM-300 series)
53 New Bluetooth Technology Bluetooth File Transmission(XM-300 series)
56 Menu Configuration My XLIVE Configured With My Own Choice
65 How To Install USB Mass Storage Driver Install USB Driver On My PC
66 Homepage Service & Support Our On-Line Services
67 The Way To Upgrade Gradual Upgrade Of Firmware And Font Setting
69 About POWER How To Insert Battery
70 To Connect USB Cable USB Cable Connection Between XLIVE And PC
71 Confirming Error Let's Solve Simple Problems By Ourselves
72 Product Standard
73 Warranty
C o n t e n t s
3
05 Notes For Safety Pay Attention To The Following For Safe Usage Of XLIVE
07 Characteristics Of XM-200/300 series Let's Learn Various Features Of XM-200/300 series
08 Components Let's Check The Components Of XLIVE
09 Operation Environment Let's See The Operation Environment Of XLIVE
10 Names Of Each Part Let's Learn The Names Of Each Part In Detail
13 Basic Operation Let's Learn Basic Operation
17 Basic Operation MUSIC
19 Search and Playback/Repetition Mode Functions Easily Finding file and Setting playback/
Repetition
22 Equalizer / SRS Function Dancing Equalizer / SRS World
24 Lyrics Service MediaSync Program / Lyrics Editor
27 When Listening To FM Radio When You Want To Enjoy FM Radio Broadcast
32 When Recording Voice Voice Recording By One Touch
34 Line In Function Recording Files Of Separate Device
36 VOICE RECOGNITION(XM-200 series only) Find & Operate a File or Folder By Voice
37 Configuring Introduction Window Edit or Revise The Introduction Image Directly

Safe Usage
6
Be careful that it doesn t harm your hearing. If you keep the volume of earphone high, it
could permanently harm your ear. To prevent the hearing damage, maintain adequate
volume level. If you have a ringing in your ears, reduce the volume or stop using XLIVE.
If you have to drive a car or concentrate on something, stop using XLIVE when it distracts you.
When you wear XLIVE around your neck, be careful not to be caught by doors or the other
objects.
Notes For Management
Pay Attention To The Following For Safe Usage Of XLIVE
5
Before connecting XLIVE into an outlet, read this manual carefully.
Keep this manual to hand while introducing yourself to the XLIVE player.
Don't expose it to high or low temperature, high humidity or highly dusty environments.
Never disassemble, repair or remodel XLIVE.
Remove the battery if the player is not to be used for a long time.
Don't expose XLIVE to direct sunlight or put it in a confined space of extreme temperatures.
Don't put metals(hairpin) or something easy to burn inside XLIVE.
Before cleaning XLIVE, turn off the power and remove the battery.
Don't use solvents or chemicals to clean XLIVE as this could result in the surface becoming
distorted or the paint coming off. Use dampened and soft cloth to clean XLIVE. Be careful
that water doesn’t get into XLIVE unit.
Don't apply impact on the XLIVE player. Don't put it on a machine that vibrates heavily.
Be careful not to use it near to any magnetic devices.

XLIVE includes the following components
Let's Check The Components Of XLIVE
8
The following components for helping a user understanding may be differed from the real things :
Functions Of XM-200/300 series
Let's Learn Various Features Of XM-200/300 series
7
MP3 Player Install CD User Manual USB Cable
Audio Cable AAA Battery Neck Strap Earphone
(XM-200) (XM-200)
Integrated Earphone Mini USB Jack Carrying Case Arm Band
(XM-300) (Option) (Option) (Option)
Common Features
It provides the superior GUI with Color LCD.
Lyrics service including a music file provided by the automatic lyrics support program
“MediaSync” is available.
It is available to revise and edit the wanted introduction screen directly.
Viewer function of BMP file can be seen through file browsing.
All songs contained in CD can be recorded as each file using CD SYNC.
SRS, VAD(Voice Activity Detector), MP3 Direct Encoding, MP3/WMA File Formats
FM Radio, Sound Recording, Various Equalizer, Multi Languages, Firmware Upgrade,
USB Memory Storage
XM-200 Series
It supports OGG Vorbis that is the newest compression file format.
Voice Recognition enables to find a file and operate the functions of button.
Viewer function supports to see JPEG file through file browsing.
XM-300 Series
Make a call after XLIVE stops music automatically if there is a phone call.
Send and receive files wirelessly between two units of XLIVE.
Record the important conversation during a call.

Let's look at the front of XLIVE
Let's Learn The Names Of Each Part In Detail
10
Basic specification of a computer for using XLIVE
Let's See The Operation Environment Of XLIVE
9
CPU : Above Intel Pentium II 233MHz
Memory : Above 64MB (128MB recommended)
Hard Disk : Above 20MB
Operating system : Microsoft Windows 98SE/ ME/ 2000/ XP, Mac OS 9.x
USB Interface : Ver 1.1
CD-ROM Drive
Link for NECKLACE
MIC
LCD WINDOW
NAVI/MENU

Let's look at the sides of XLIVE
11
LCD Display
12
The following is a display explaining the information of LCD.
VOICE RECOGNITION Button
(XM-200)
BLUETOOTH Button(XM-300)
EARPHONE
LINE-IN
HOLD
USB
PLAY/STOP (
/ )
MODE/EQ (M)
A-B/REC ( )
PLAYING MODE
EQ/SRS HOLD
BATTERY
FILE NAME
NUMBER OF MUSIC
BIT RATE
SAMPLING RATE
FOLDER NAME
FILE TYPE
PLAYING TIME
Volume Level
REPEAT
SECTION

Operation Explained with a Drawing
14
Connect Earphone
Connect the other A/V devices through LINE-IN cable.
Push the HOLD button to direction to close all the
buttons.
Connect USB terminal of PC through supplied USB
cable.
XM-200 Series : Voice Recognition Button
Input Command, File Name, Folder Name, etc by Voice
after pushing the center of Voice Recognition button.
Push and hold the center of Voice Recognition button to
display Menu.
XM-300 Series : Bluetooth Button
Make a call by pushing Bluetooth button when there is a
phone call. Push and hold Bluetooth button to get into
Bluetooth menu.
Play and stop music files, Switch to stereo or mono
when listening to FM radio, Turn on or off the power.
Change Mode, erase stored FM Radio channels,
proceed Auto FM Radio channel scan, and set equalizer
/ SRS during listening to music file.
Repeat specific parts, record, move to previous position,
and set a repeat mode during listening to music file.
Operation Explained with a Drawing
Let's Learn Basic Operation
13
Integrated MIC.
Indicating the operation status and playing file
information on LCD.
Push the center of NAVI/MENU button to enter the
Navigation state. Push and hold to enter Menu.
Hear previous playing file or FM program by pushing
of NAVI/MENU button.
Hear next playing file or FM program by pushing of
NAVI/MENU button.
Control the volume by pushing or of
NAVI/MENU button.

Menu
16
Push and hold the center of NAVI/MENU button to see Menu.
Push or of NAVI/MENU button to select a menu.
Push the center or of NAVI/MENU button to select Menu.
To get out of Menu, push and hold the center of NAVI/MENU button or push of
NAVI/MENU button or push A-B/ REC button.
Basic Operation
15
Push PLAY/STOP button to turn on the power. If you push and hold, the power turns off.
Push and hold Voice Recognition button to access its Menu.
Push MODE/EQ button to change Mode (MUSIC FM RADIO VOICE LINE IN).
Push PLAY/STOP button to change FM Mode (Stereo/Mono).
Push or of NAVI/MENU button to control the volume.
Navigation (file browsing)
Push the center of NAVI/MENU button andcontrol or of NAVI/MENU button to find a
file.
Push the center or of NAVI/MENU button to play a selected music file or to display a
selected image file.
Push and hold MODE/EQ button to delete a selected file.
Push or of NAVI/MENU button to move to upper or lower folder.
Other features
Push and hold A-B/REC button while listening to a music file to select Repeat mode.
Push A-B/REC button while listening to FM radio for recording.
Push A-B/REC button to move to previous state.

Deleting Files
18
You may be bored of listening to same music repeatedly.
If you want to hear new music files but their is no space left on the player, delete the music file
on XLIVE.
Listening To Music
MUSIC
17
Listen to music with perfect clarity using XLIVE
1
1Connect the earphone to XLIVE.
2
2Turn on the power.
Push PLAY/STOP button to turn on the power.
If you push it once again, it plays.
3
3Select music file
Push or of NAVI/MENU button toselectmusic.
Control to select previous music.
Control to select next music.
4
4Control volume
Push or of NAVI/MENU button to control the volume.
Push to increase the volume.
Push to decrease the volume.
5
5Forward or Rewind
Push and hold or of NAVI/MENU button to forward or rewind a piece of
music.
* Caution : If push HOLD buttonto direction, the buttons don’t work.
1
1Stop playing.
2
2Push the center of NAVI/MENU button.
3
3Control or of NAVI/MENU button to select a file to delete.
4
4Delete a file by pushing of NAVI/MENU button or cancel by pushing of
NAVI/MENU button after pushing & holding MODE/EQ button.
