XLPower Specter 700 User manual

1

2
Instructions Manual
Release 1.0
Always check on www.xlpower-rc.com for a more recent version of this manual
Length without main blades.......
Overall height........................
Width..................................
Tail rotor-Main rotor ratio..........
Main pulley............................
Autorotation pulley..................
Tail pulley.............................
Main Gear ratio......................
Weight without battery.............
Main shaft diameter.................
Feathering shaft diameter.........
Tail boom diamater.................
Battery tray size....................
1300mm
376mm
134mm
4.7 (5.0 optional)
106T M1
80T
17T
9.636 (10.6-8.3 optional)
Arround 3.6kg
15mm
10mm
27mm
350mm*66mm*70mm(12s-14s)

3
Always follow these rules for safety
Operate the helicopter in open areas with no people nearby.
Do NOT operate the helicopter in the following places and situations (or else you risk severe
accidents):
-in places where children gather or people pass through
-in residential areas and parks
-indoors and in limited space
-in windy weather or when there is rain, snow, fog or other precipitation
If you do not observe these instructions you may be held liable for personal injury or property damage!
Always check the R/C system prior to operating your helicopter.
When the R/C system batteries get weaker,the operational range of the R/C system decreases.
Note that you may lose control of your model when operating it under such conditions.
Keep in mind that other people around you might also be operating a R/C model.
Never use a frequency which someone else is using at the same time.
Radio signals will be mixed and you will lose control of your model.
If the model shows irregular behavior, bring the model to a halt immediately and disconnect the batteries.
Investigate the reason and x the problem.
Do not operate the model again as long as the problem is not solved, as this may lead to further trouble
and unforeseen accidents.
In order to prevent accidents and personal injury, be sure to observe the following:
Before ying the helicopter, ensure that all screws are tightened.
A single loose screw may cause a major accident.
Replace all broken or defective parts with new ones, as damaged parts lead to crashes.
Never approach a spinning rotor. Keep at least 10 meters/yards away from a spinning rotor blades.
Do not touch the motor immediately after use. It may be hot enough to cause burns.
Perform all necessary maintenance.
PRIOR TO ADJUSTING AND OPERATING YOUR MODEL, OBSERVE THE FOLLOWING
Operate the helicopter only outdoors and out of people’s reach as the main rotor operates at high rpm!
While adjusting, stand at least 10 meters
Novice R/C helicopter pilots should always seek advice from experienced pilots to obtain hints with assembly
and for pre-ght adjustments.
Note that a badly assembled or insuciently adjusted helicopter is a safety hazard!
In the beginning, novice R/C helicopter pilots should always be assisted by an experienced pilot
and never y alone!

4
R/C equipment and required for assembly
Main blades:
standard full carbon blades
690mm - 716mm
Tail blades:
standard full carbon blades
105mm to 115mm
Swashplate servos supported:
all standard servos (qnty. 3)
Tail servo supported:
all standard servos (qnty. 1)
Trasmitter
Receiver/satellite
Flybarless unit
Battery pack:
LiPo 6s 4000-5500mAh *2
ESC:
130HV-250HV
Motor:
4525-4530 500kv-550kv
Hexagon screw drivers :
1,5mm,2mm,2*2.5mm,3m-
m,2*4mm
Thrust bearing grease
where indicated use
Thread lock MEDIUM
Pitch gauge

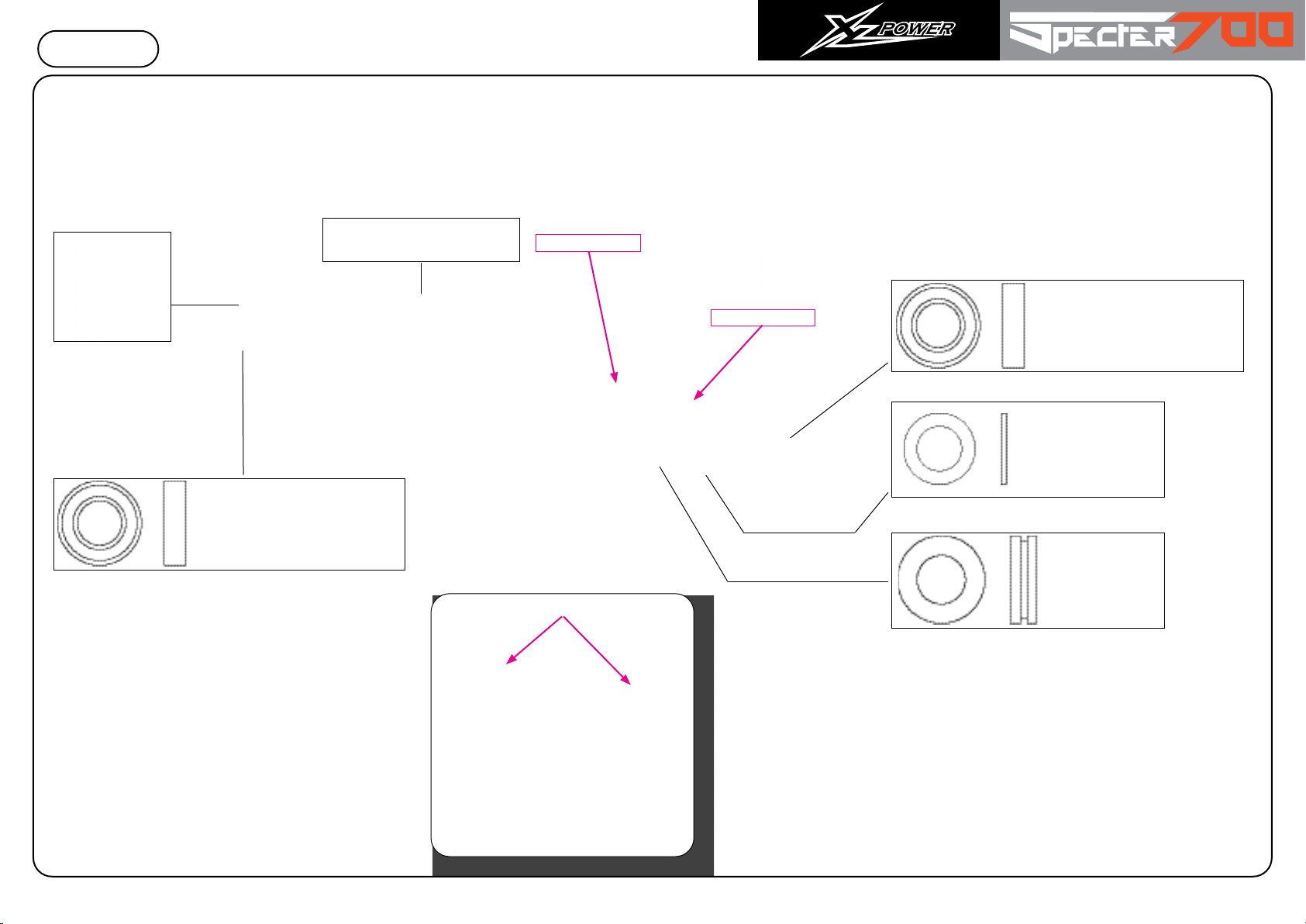

5
double row angular contact
ball bearing
10x19x7
ART. XL70H04
Thrust
10x18x5,5
ART. XL70H05
Washer
10x16x1
ART. XL70H05
Main blade holder
ART. XL70H03
SMALLER hole
BIGGER hole
Apply grease on thrust bearing
HB-1HB-1
double row angular contact
ball bearing
10x19x7
ART. XL70H04

6
Main blade holder arm
ART. XL0H08
Outter hole for stable
Inner hole for agile
Ball M3x3
ART. 70A01
Hex screw
M3x10
ART. XL70
HB-1HB-1

7
ART. XL70H02
sport / 3D(POW with 70° O ring)
ART. XL70H02-2
Hard 3D （Full POM）
Optional
Head dampeners
Screw M6x12
ART.XL70H07
Spindle spacer
ART. XL70H05
Spindle
ART. XL70H07 M6 Washer
ART. XL70H07
Main Rotor Head
Block
ART. XL70H01
HB-1HB-1

8
Ball M3x3
ART. XL70H11
XL70A01
Swashplate
ART. XL70H11
Ball M3x3
ART. XL70H11
XL70A01
Swashplate（up）
ART. XL70H11-1
Swashplate（outer）
ART. XL70H11-2
Pre Assembled with
locktite
Swashplate（inner）
Carbon cover
M2*4 screw
Angular contact ball
bearing 3806
ART. XL70H11-3
GE15C bearing
HB-1HB-1

9
Main shaft
ART. XL70H12
Pay attention to the hole position
Screw M4x25
ART.XL70H01
HB-1+HB-2HB-1+HB-2

10
Ball bearing
3x7x3
ART. XL52A12
ART.XL70H09
Spacer 3X5X0.5
ART. XL70H09
screw M3x25
ART. XL70H09
Pin 3x14
ART.XL70H09
Control arm
ART.XL70H09 Radius arm
ART.XL70H09
ART.XL70H10
Spacer 3X5X0.5
ART. XL70H09
Pre Assembled
HB-1HB-1

11
Ball link M3
ART.XL70A02
Servo rod lenght may dier slightly
with dierent servo brand
37,5mm
Right thread
Left thread
Pay attention to
the Mark
31.5mm
Titanium Main rotor
linkage
ART. XL70H14
Titanium Servo rod
ART. XL70H14
HB-1HB-1

12
Button head screw M3x16
ART. XL70B24-3
Ball bearing
3x6x2.5
ART.XL52A13
New belt tensioner
ART. XL70B24-3
Spacer 3X5X0.5
ART. XL70B24-3
Pulley must move freely
This upgrade included in the
world champion edition
Hex screw M2.5x8
ART. XL70B24-2 belt tensioner Reinforcement
ART. XL70B24-2
belt tensioner pulley(Front)
ART. XL70B24-1
Belt tensioner mounting block
ART. XL70B24
Ball bearing
3x6x2.5
ART.XL52A13
Special washer(Note direction. Gap face to bearing)
ART. XL70B24-1
Pin 3x14
ART.XL70B24
Hex screw M2.5x6
ART. XL70B24
Carbon Fiber Main Frame(L)
ART. XL70B17
If you choose basic kit
pls follow this manual
BB-1BB-1

13
Ball M2.5x3
XL70A04
Hex screw
M3x6
ART. MSH71108
Servo horn
XL70A04
Optioal:XL70A04-1
Carbon servo washer
ART. XL70A03
Plastic servo mounting block
ART. XL70A03
Hex screw M2,5x10
ART. MSH71103
XL70A03
BB-1+BB-2BB-1+BB-2

14
Double row angular
contact Bearing
15x24x7
ART. XL70B02
Main shaft bearing block
ART. XL70B01
Double row angular
contact Bearing
15x24x7
ART. XL70B02
Third bearing block
ART. XL70B22
Anti Rotation Bracket
ART. XL70B13
Carbon Fiber Gyro Mount
ART. XL70B14
Hex screw M3x6
ART. MSH71108
XL70B13
Hex screw M3x6
ART. XL70B14
Pre Assembled
Pre Assembled
BB-1BB-1

15

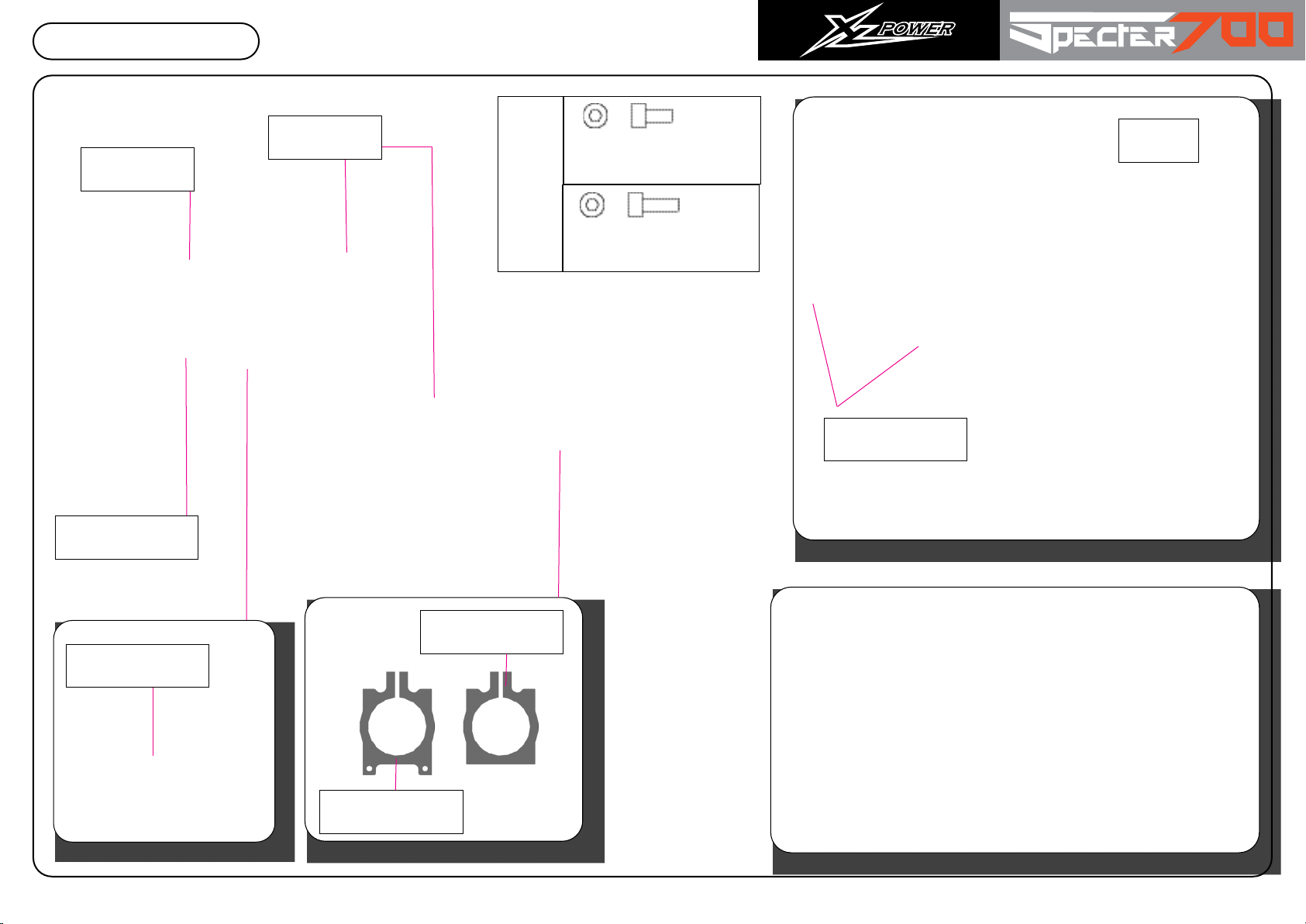

Hex screw
M3x6(Purple in picture)
ART. MSH71108
Hex screw
M3x8 (RED in picture)
ART. MSH71109
Aluminum Bolt
ART. XL70B40
Servo mount(up)
ART. XL70B03
Canopy mount(Rear)
ART. XL70B30
Lower servo mount(L)
ART. XL70B04
Tail boom clamp(Rear)
ART. XL70B16
Tail boom clamp(Front)
ART. XL70B15
Turn
Two hole in this side
BB-1+BB-2BB-1+BB-2

16
Button head screw M3x16
ART. XL70B24-3
Ball bearing
3x6x2.5
ART.XL52A13
If you choose basic kit
pls follow this manual
belt tensioner pulley(Front)
ART. XL70B24-1
Belt tensioner mounting block
ART. XL70B24
Special washer(Note direction. Gap face to bearing)
ART. XL70B24-1
Pin 3x14
ART.XL70B24
Hex screw M2.5x6
ART. XL70B24
Hex screw M2.5x8
ART. XL70B24-2
belt tensioner Reinforcement
ART. XL70B24-2
Carbon Fiber Main Frame(R)
ART. XL70B18
Spacer 3X5X0.5
ART. XL70B24-3
New belt tensioner
ART. XL70B24-3
Pulley must move freely
This upgrade included in the
world champion edition
Ball bearing
3x6x2.5
ART.XL52A13
BB-1+BB-2BB-1+BB-2

17
Hex screw
M3x6(Purple in picture)
ART. MSH71108
Hex screw
M3x8 (RED in picture)
ART. MSH71109
Servo mount(up)
ART. XL70B03
Lower servo mount(R)
ART. XL70B04-1
Canopy mount(Rear)
ART. XL70B30
BB-1+BB-2BB-1+BB-2

18
Hex screw M3x6
ART. XL70B42-1
Quick release battery system
ART. XL70B42-1
Not included in the basic kit For Basic kit
Center plate V2
ART. XL70B42-2
Center plate
ART. XL70B23
BB-3BB-3

19
Hex screw M2.5x4
ART. XL70B27-1
Battery guide(L)
ART. XL70B27
Battery guide(R)
ART. XL70B28
For Basic kit
Thumb screw for battery tray
ART. XL70B28
Thumb screw for battery tray
(must put double rubber washer
on the center carbon)
ART. XL70B28
BB-3BB-3

20
Hex screw M2.5x5
ART. XL70B22
MSH51148
BB-3BB-3
