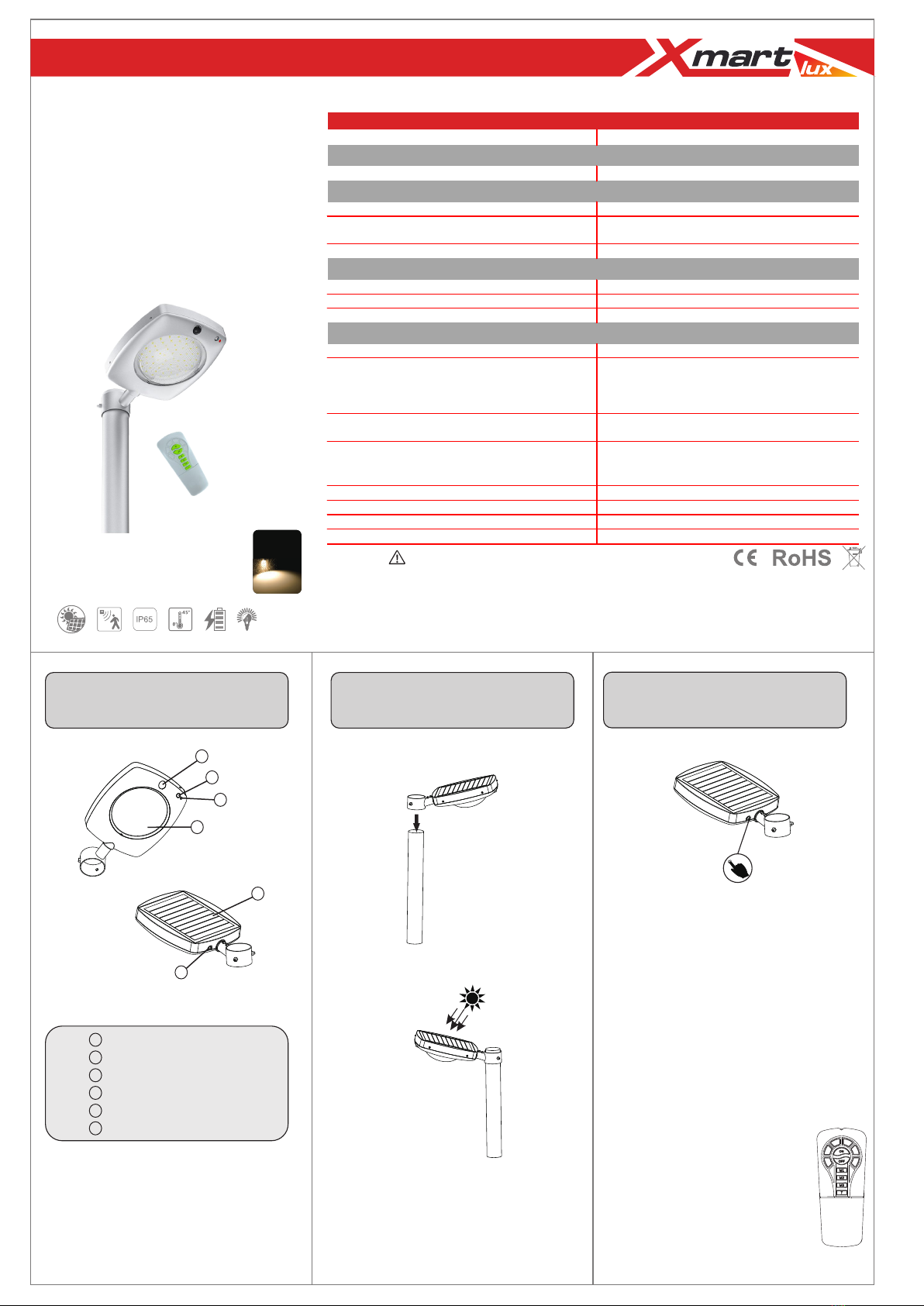

USER MANUAL
Parts Identication Operation Instructions
Installation Instructions
Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1,
Mode 2, or Mode 3.
Available Modes:
Mode 1 120LMx5H + PIR 3000LM x 10s (Red):
Mode 2 (Orange): 240lmx5H + PIR 3000LM x 10s
Mode 3 (Green): 400LMx5H + 80LM/PIR 3000LM Until dawn
Battery Power Indication:
> 80%Green:
Orange: Between 50% and 80%
Red: < 50%
Special Features:
Polycrystalline Solar Panel
Li-ion Rechargeable Battery
Congurable Operation Modes
Material: Aluminum Alloy & PC
3000
lumens
www.xmart-ups.com
Select Operation Mode according to your own requirements
Remote Control
ON/OFF: Turn lamp On and Off respectively
M1 / M2 / M3: Operation Mode Setting
T: Timer
Short press once for 100% bright for 10 min
Short press twice (within 2 Sec) for 100%
bright for 2 min.
After selected time, lamp will go back to
previous mode.
Cancel Timer: Long press T
Note: Indicator LED regularly shows Battery Capacity. When
changing Operation Mode it shows selected mode for 30 Sec,
then it returns to show Battery Capacity
Use supplied screws to x the lamp to the pole
PIR
Remote Control Receiver
Indicator Light
Lampshade
Solar Panel
Switch
3
2
1
4
5
6
4
2
1
3
5
6
Solar Panel must be oriented toward sun for battery
charging efciency
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
HL-POLE-03
Solar Lamp
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
HL-POLE-03 - TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
Luminosity / Luminosidad (LM) 3000
SOLAR PANEL / PANEL SOLAR
Type & Capacity / Tipo y Capacidad Polycristalline / Policristalino, 5W
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad 3.7 Vdc / 38.48 WH / 2.600 mAH
Charge & Discharge Temperature /
Temperatura de Carga y Descarga
Charge / Carga: 0 to/a 45 °C
Discharge / Descarga: -20 to/a 60 °C
Recharge Time / Tiempo de Recarga 10 H
ILLUMINATION / ILUMINACION
LED (OSRAM) 2835 - 60pcs
Light Color Temperature / Temperatura de Color de la Luz 4000K, Ra 80+
Efciency / Eciencia 190 lm/W
OPERATION / OPERACION
Backup (During cloudy days) / Autonomía (con Poca Luz Solar) Up to 10 nights / Hasta 10 noches
Operation Modes / Modos de Operación
Mode 1: 120 LM + PIR 3000 LM x 10s
Mode 2: 240 LM + PIR 3000 LM x 10s
Mode 3: 400 LM x 5h + 80LM / PIR 3000 LM x 10s until dawn
(Hasta amanecer)
Mode Indication / Indicación de Modo Mode 1: Red - Mode 2: Green - Mode 3: Orange
Modo 1: Rojo - Modo 2: Verde - Modo 3: Naranja
Capacity Indication / Indicador de Capacidad
Green / Verde: >70%
Orange / Naranja: 70% to / a 30%
Red / Rojo: <30%
PIR 120º, >5m
IP/IK Codes / Códigos IP/IK IP65 / IK10
Directives / Normativas CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Installation Height / Altura de Instalación 3m to/a 6m
