Xmart STL-6-S User manual

STL-6-S
Street Light Series
User Manual
Operation Instructions
Installation Instructions
Power On/Off: Press switch for 1.5 Sec, approx.
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Highly Efcient Operation Mode
Material: Aluminum alloy & PC
IMPORTANT NOTES:
1. Solar Panel must be oriented toward sun and avoiding any shade for battery
charging efciency
2. Use standard installation accessories
3. If stored, charge the lamp every 3 months, to avoid battery damage
4. If stored for more than 1 year without charging, make a charge & discharge
process to assure battery is in good condition, otherwise it is not allowed to use
Battery Power Indication:
100%4 LEDs On:
3 LEDs On: 80% to 100%
2 LEDs On: 60% to 80%
1 LED On: 30% to 60%
LED 1 Flashing Slowly: <30%

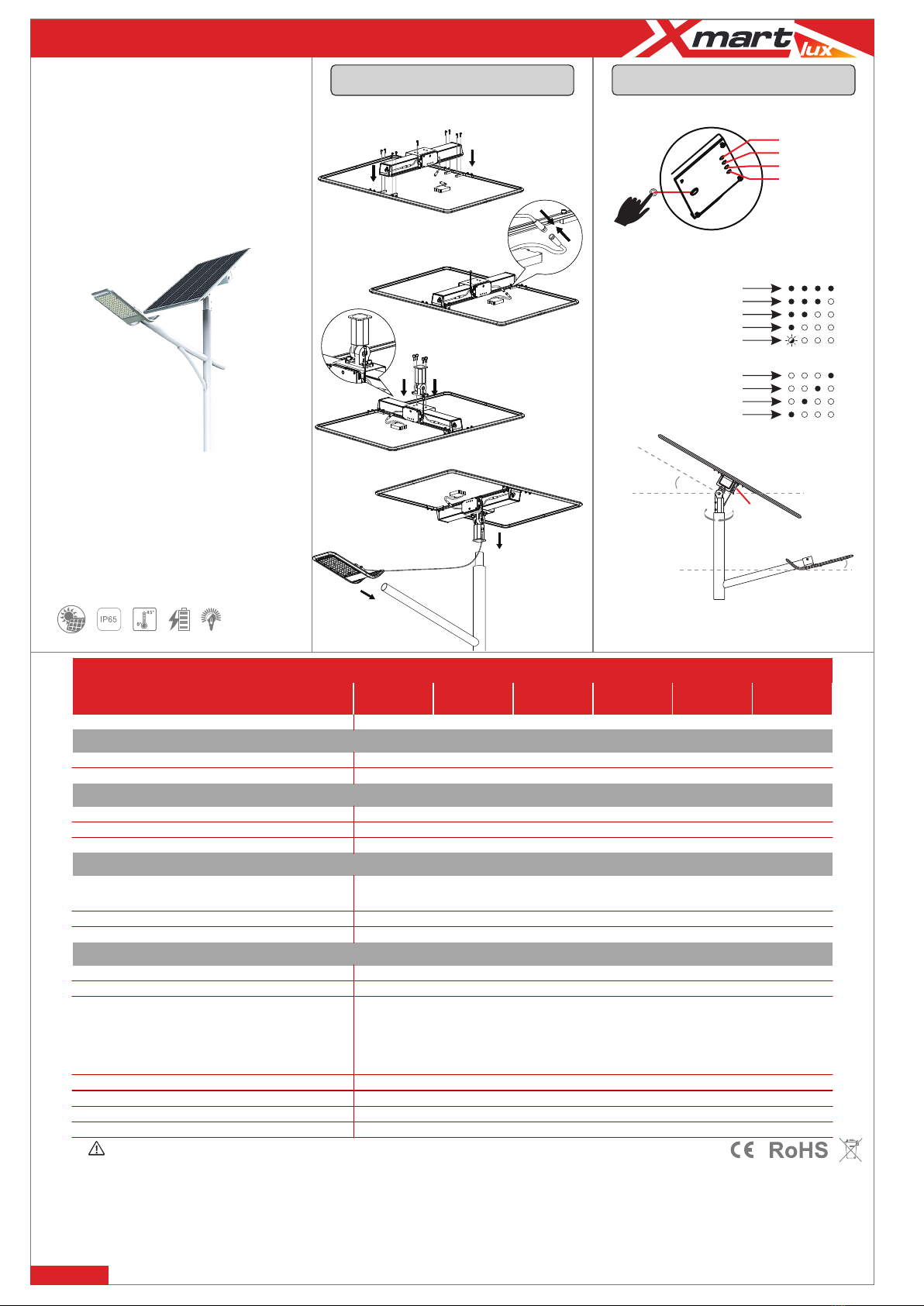

STL-6-S (P1)
Operation Mode: 100%x5Hrs + 20% Untill dawn
1: Fix base to the panel using supplied screws
2: Connect cables
www.xmart-ups.com
TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
LED Panel:
LED 1
LED 2
LED 3
LED 4
Internal Fault Indication:
Controls FaultLED 4 On:
LED 3 On: LED Panel Fault
LED 2 On: Solar Panel Fault
LED 1 On: Battery Fault
3: Fix bracket to base using
supplied screws
4: Install panel and lamp
on the pole
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts in the lamp. If disassembled warranty will be void.
3. Do not remove battery for any other use. If backup time is too short, battery pack needs to be recharged under bright
sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage. Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
Adjustable vertical
angle from 0 to 180º
Indicator
Position
15º
When adjusting Vertical Angle, keep indicator facing down
to assure indicator can be seen from below.
STL-6-S 04 06 08 10 12 15
Luminosity / Luminosidad (LM) 4.000 6.000 8.000 10.000 12.000 15.000
SOLAR PANEL / PANEL SOLAR
Type / Tipo
Capacity / Capacidad (W) 48.75 48.75 133.34 133.34 200 200
Li-Ion BATTERY / BATERIA Li-Ion (14.8 Vdc / 2.6 AH Pc)
Capacity / Capacidad (WH) 288.6 384.8 481 625.3 769.6 962
Operation Temperature / Temperatura de Operación
Recharge Time / Tiempo de Recarga (Hrs) 6.7 9 4.2 5.5 4.5 5.6
ILLUMINATION / ILUMINACION
LED (OSRAM) 3030
72pcs
3030
72pcs
3030
288pcs
3030
288pcs
3030
288pcs
3030
288pcs
Light Color Temp. / Temp. de Color de la Luz
Efciency / Eciencia
OPERATION / OPERACION
Backup (Cloudy days) / Autonomía (con Poca Luz Solar)
Operation Modes / Modos de Operación
Capacity Indication /
Indicador de Capacidad
Alarm Indication LED / LED Indicación de Alarmas
IP/IK Codes / Códigos IP/IK
Directives / Normativas
Inst. Height & Spacing / Altura de Inst. y Separación 2 / 20 m 6 / 25 m 8 / 30 m 10 / 35 m 12 / 42m 12 / 50m
Built-In / Incluido
4 LEDs On / Encendidos: 100%
3 LEDs On / Encendidos: 100% to / a 80%
2 LEDs On / Encendidos: 80% to / a 60%
1 LED On / Encendido: 60% to / a 30%
LED 1 Flashing / Intermitente: Low Batt / Bat. Baja
IP65 / IK08
CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
100% x 5H + 20% Until Dawn / Hasta Amanecer
Monocrystalline / Monocristalino
-20 to / a 60 °C
4000K, Ra 70+
190 lm/W
Up to 10 nights / Hasta 10 noches

5
6
4
3 2
1
STL-6-S
www.xmart-ups.com
STL-6-S (P2)
Parts ID / Identicación de Partes
1. Solar Panel / Panel Solar
2. Switch / Interruptor
3. Indicator LEDs / LEDs Indicadores
4. LED Lamp / Lámpara LED
5. Battery Pack / Baterías
6. Bracket / Soporte
Detailed View / Vista Detallada
Packing Information / Información de Empacado:
Dimensions (mm)
Dimensiones (mm) Net / Neto Gross / Bruto
Inner Box / Caja Interna 1 610 x 290 x 155 1.75 2.30
Carton / Cartón 4 625 x 595 x 325 7.00 10.50
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Weight / Peso (Kg)
Lamp / Lámpara
For All Models
Para Todos los Modelos
Dimensions / Dimensiones
Carton / Cartón (mm) Net / Neto Gross / Bruto
Bracket / Soporte 1 8 426 x 210 x 165 7.08 8.00
Solar Panel 1 1 678 x 175 x 617 7.49 8.45
Bracket / Soporte 1 1 220 x 145 x 715 6.10 6.60
Solar Panel 1 1 1215 x 110 x 765 8.50 10.00
Bracket / Soporte 1 1 220 x 145 x 860 8.50 9.00
Solar Panel 1 1 1438 x 110 x 940 13.00 15.00
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
STL-6-S-12 / STL-6-S-15
STL-6-S-04 / STL-6-S-06
STL-6-S-08 / STL-6-S-10
Model / Modelo Item Pcs x Box
Pzs x Caja
Boxes x Carton
Cajas x Cartón
Carton Weight / Peso Cartón (Kg)

STL-6-S
www.xmart-ups.com
STL-6-S (P3)
Models / Modelos: STL-6-S-04 / 06
542
604
528
235
224
for 60mm dia pole
Models / Modelos: STL-6-S-08 / 10
542
235 697 336
1162
for 60mm dia pole
Models / Modelo: STL-6-S-12 / 15
1353
336
857
235
542
for 60mm dia pole
Dimensions / Dimensiones
