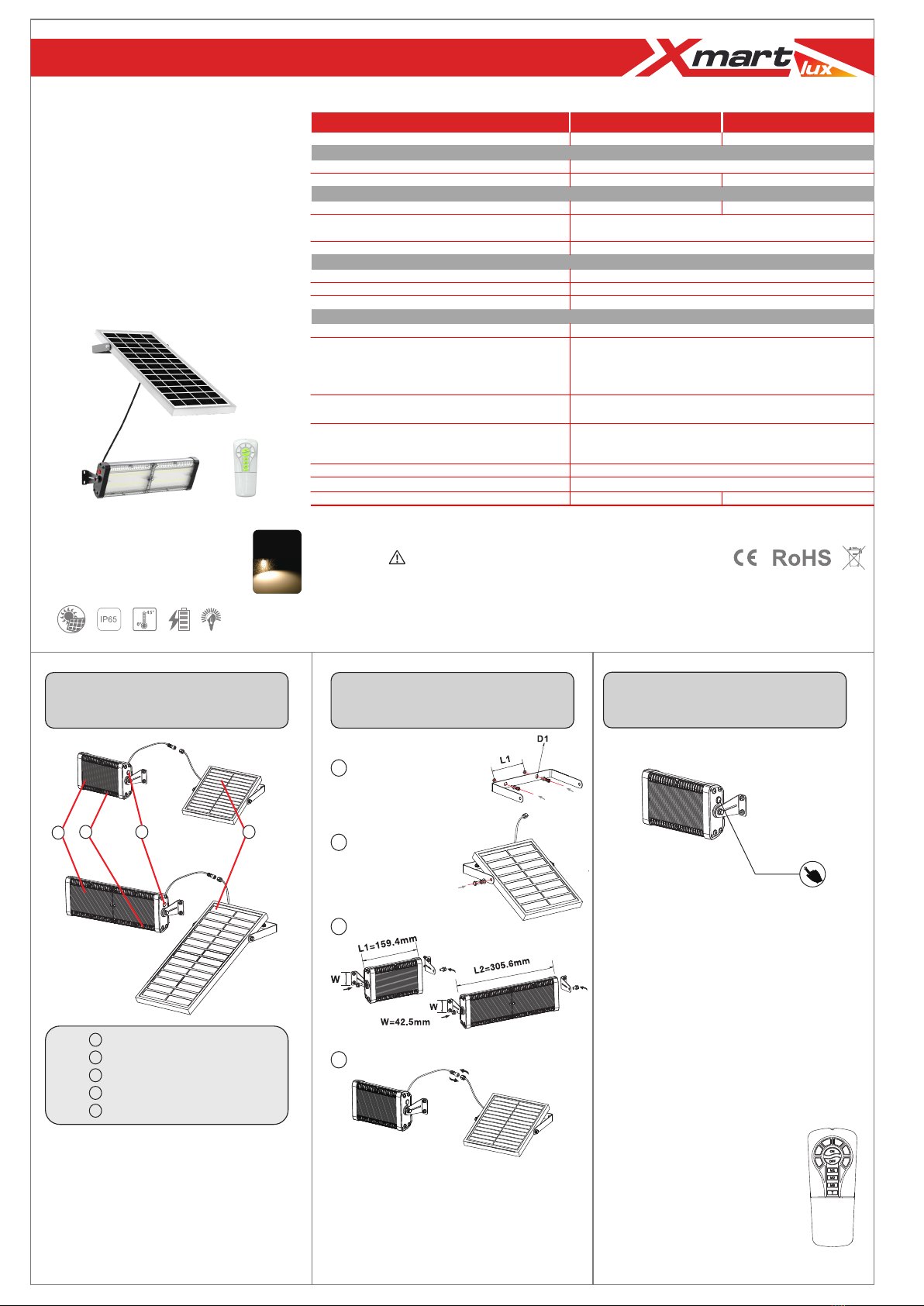

HL-WALL-20 / HL-WALL-40
Solar Lamp
USER MANUAL
Parts Identication Operation Instructions Installation Instructions
Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1, Mode
2, or Mode 3.
Available Modes:
Mode 1 50% x 5H + 10% Until dawn (Red):
Mode 2 (Green): 30% x 5H + 10% Until dawn
Mode 3 (Orange): 20% Until dawn
T Mode (Green Flasing): See note below
Battery Power Indication:
> 70%Green:
Orange: Between 30% and 70%
Red: < 30%
Led Panel
Indicator Light
Switch
Bracket
Solar Panel
3
2
1
4
5
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Congurable Operation Modes
Material: Aluminum Alloy & PC
3K & 6K
lumens
www.xmart-ups.com
Select Operation Mode according to your own requirements
T Button on Remote Control
Short press once for 100% bright for 1 hour
Short press twice for 100% bright for 2 hours
After selected time, lamp will go back to
previous mode.
Solar Panel must be oriented toward sun for battery
charging efciency
4
2
13
Note: Indicator LED regularly shows Battery Capacity. When
changing Operation Mode it shows selected mode for 5 Sec,
then it returns to show Battery Capacity
Fix Solar Panel Bracket to the wall:
D1 (10W/5W): 6.5 mmF
L1 (10W/5W): 100 mm
1
2Screw Solar Panel to Bracket:
3Screw Lamp Bracket to the wall
4Connect Lamp and Solar Panel cables
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
MODEL / MODELO HL-WALL-20 HL-WALL-40
Luminosity / Luminosidad (LM) 3000 6000
SOLAR PANEL / PANEL SOLAR
Type / Tipo
Capacity / Capacidad 14V / 5W 14V / 10W
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad 3.7V / 28.86WH / 2.600 mAH 3.7V / 57.72WH / 2.600 mAH
Charge & Discharge Temperature /
Temperatura de Carga y Descarga
Recharge Time / Tiempo de Recarga
ILLUMINATION / ILUMINACION
LED (OSRAM)
Light Color Temperature / Temperatura de Color de la Luz
Efciency / Eciencia
OPERATION / OPERACION
Backup (During cloudy days) / Autonomía (con Poca Luz Solar)
Operation Modes / Modos de Operación
Mode Indication / Indicación de Modo
Capacity Indication / Indicador de Capacidad
IP Code / Código IP
Directives / Normativas
Installation Height / Altura de Instalación 2m to/a 4m 4m to/a 6m
Monocrystalline / Monocristralino
CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Charge / Carga: 0 to/a 45 °C
Discharge / Descarga: -20 to/a 60 °C
7.5 H
3030 - 30 pcs
5700K, Ra 80+
190 lm/W
Up to 10 nights / Hasta 10 noches
Mode 1: 50% x 5h+10% Until Dawn / Hasta amanecer
Mode 2: 30% x 5h + 10% Until Dawn / Hasta amanecer
Mode 3: 20% Until Dawn / Hasta amanecer
T: 100% x 1h or 2h (Remotely Adjustable/Ajustable con control)
Mode 1: Red - Mode 2: Green - Mode 3: Orange - T: Green Flashing
Modo 1: Rojo - Modo 2: Verde - Modo 3: Naranja - T: Verde Intermitente
Green / Verde: >70%
Orange / Naranja: 70% to / a 30%
Red / Rojo: <30%
IP65

HL-WALL-20
203.4
67.0
184.8
159.4
103.3
79.5
43.5
Front View / Vista Frontal
Right Side View / Vista Lateral Derecha
Top View / Vista Superior
Packing Information / Información de Empacado:
Dimensions / Dimensiones
Dimensions / Dimensiones
Carton / Cartón (mm) Net/Neto Gros/Bruto
Inner Box / Caja Interna 1 190 x 85 x 210 1,2 1,4
Carton / Cartón 8 400 x 360 x 230 9,6 11,2
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
Model
Modelo
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Carton Weight / Peso Cartón (Kg)
HL-WALL-20

79.5
43.5
67.0
305.6
316.6
331.0
103.3
Packing Information / Información de Empacado:
Dimensions / Dimensiones
Front View / Vista Frontal
Right Side View /
Vista Lateral Derecha
Top View / Vista Superior
HL-WALL-40
Dimensions / Dimensiones
Carton / Cartón (mm) Net/Neto Gros/Bruto
Inner Box / Caja Interna 1 390 x 85 x 190 2,2 2,6
Carton / Cartón 6 530 x 410 x 210 13,2 15,6
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
Model
Modelo
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Carton Weight / Peso Cartón (Kg)
HL-WALL-40
