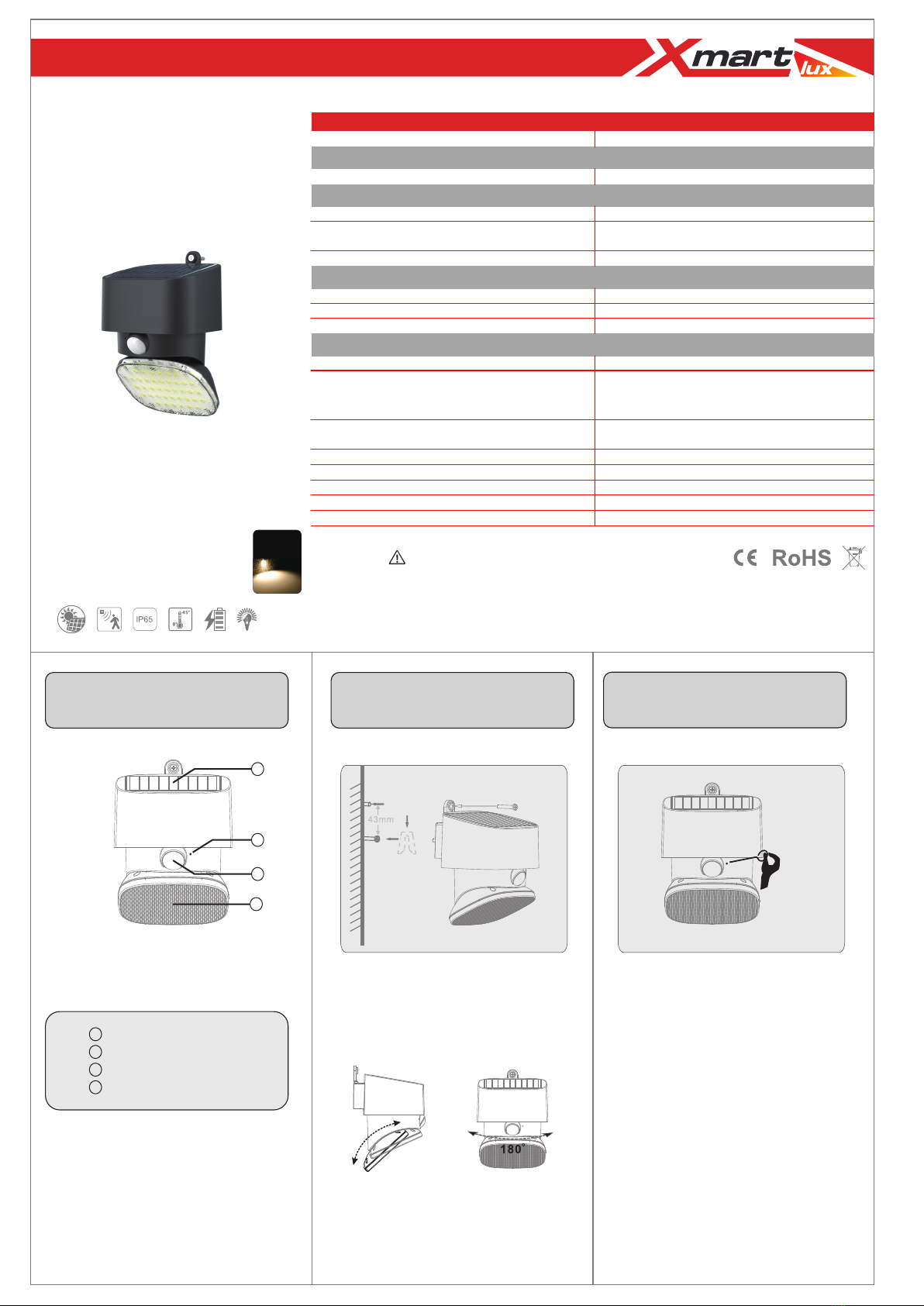

Xmart HL-WALL-12 User manual

HL-WALL-12
Solar Lamp
USER MANUAL
Parts Identication Operation Instructions Installation Instructions
Solar Panel must be oriented toward sun for battery
charging efciency
Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1,
Mode 2, or Mode 3.
Indicator LED will ash once when selecting Mode 1,
twice when selecting Mode 2, and 3 times when
selecting Mode 3
Available Modes:
Mode 1 50LM + PIR 1000LM x 10s:
Mode 2: 0LM + PIR 1000LM x 10s
Mode 3: 50LM Until Dawn
Solar Panel
Switch
PIR
Lampshade
3
2
1
4
Special Features:
Polycrystalline Solar Panel
Li-ion Rechargeable Battery
Equipped With PIR Sensor
Congurable Operation Modes
Multi-angle Adjustable
Multiple Installation Possibilities
ABS & PC Case
Compact Design, High Brightness
2000
lumens
4
2
1
3
Fix the lamp to the wall with screws
www.xmart-ups.com
Give lighting proper orientation by Vertical Sliding
and/or Horizontally Moving
Select Operation Mode according to your own
requirements
Operation Mode Indicator:
Mode 1: 1 Flash
Mode 2: 2 Flashes
Mode 3: 3 Flashes
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
HL-WALL-12 - TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
Luminosity / Luminosidad (LM) 2000
SOLAR PANEL / PANEL SOLAR
Type & Capacity / Tipo y Capacidad Monocrystalline / Monocristalino, 1W
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad 3.7 Vdc / 14.8 WH / 2.000 mAH
Charge & Discharge Temperature /
Temperatura de Carga y Descarga
Charge / Carga: 0 to/a 45 °C
Discharge / Descarga: -20 to/a 60 °C
Recharge Time / Tiempo de Recarga 20 H
ILLUMINATION / ILUMINACION
LED (OSRAM) 2835 - 39pcs
Light Color Temperature / Temperatura de Color de la Luz 4000K, Ra 80+
Efciency / Eciencia 190 lm/W
OPERATION / OPERACION
Backup (During cloudy days) / Autonomía (con Poca Luz Solar) Up to 10 nights / Hasta 10 noches
Operation Modes / Modos de Operación
Mode 1: 50LM + PIR 2000LM
Mode 2: 0LM + PIR 2000LM
Mode 3: 50LM until Dawn (Hasta amanecer)
Mode Indication / Indicación de Modo Mode 1: 1 Flash - Mode 2: 2 Flashes - Mode 3: 3 Flashes
Modo 1: 1 Destello - Modo 2: 2 Destellos - Modo 3: 3 Destellos
Capacity Indication / Indicador de Capacidad N/A
PIR 120º, >5m
IP/IK Codes / Códigos IP/IK IP65 / IK10
Directives / Normativas CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Installation Height / Altura de Instalación 3 m

HL-WALL-12
57.06
53.44
74.49
Top View / Vista Superior
Side View / Vista Lateral Front View / Vista Frontal
Packing Information / Información de Empacado:
Dimensions / Dimensiones
Dimensions / Dimensiones
Carton / Cartón (mm) Net/Neto Gros/Bruto
Inner Box / Caja Interna 1 113 x 125 x 140 0.5 0.55
Carton / Cartón 24 467 x 387 x 298 12 12.5
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
Model
Modelo
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Carton Weight / Peso Cartón (Kg)
HL-WALL-12
