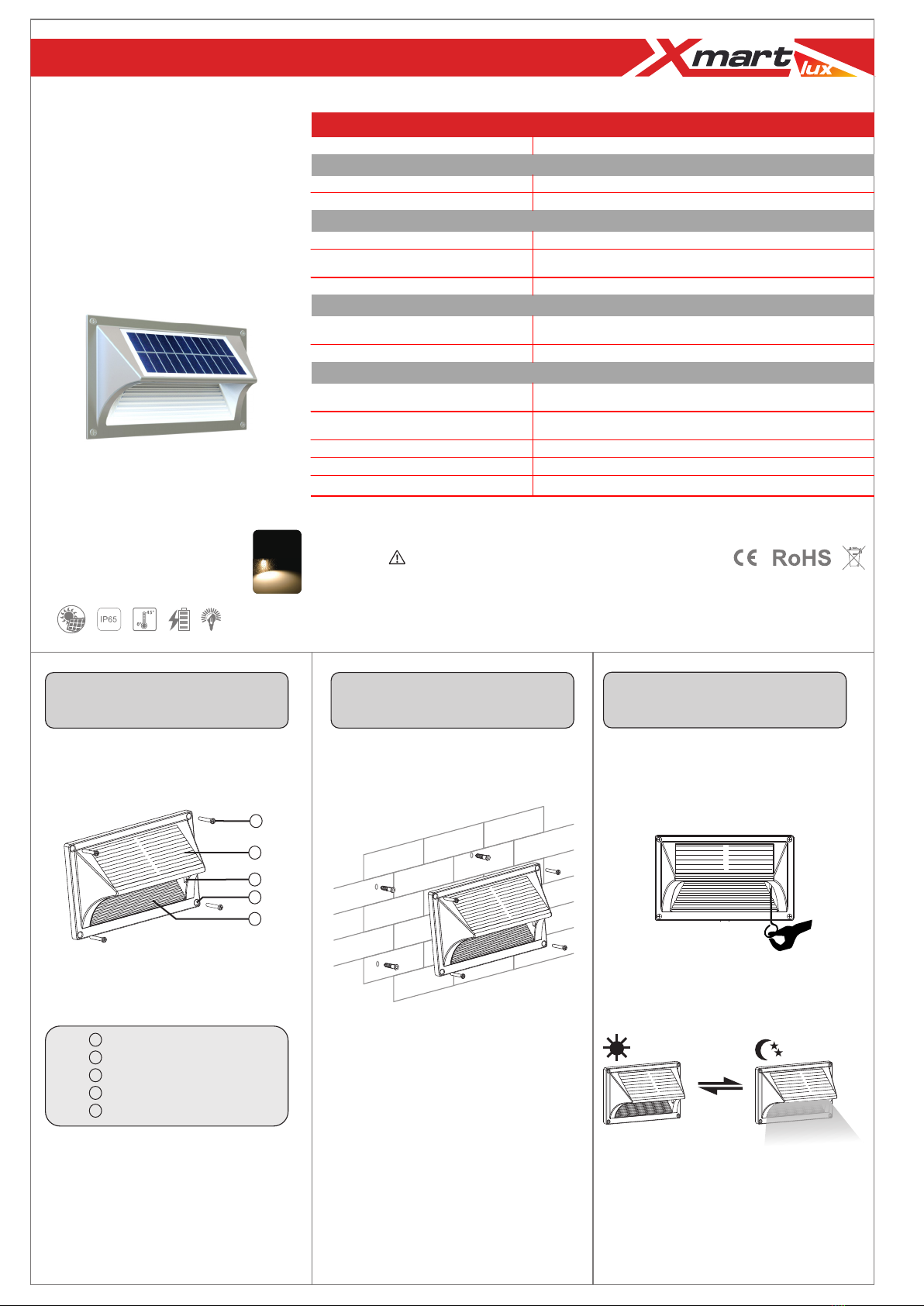

Xmart HL-STEP-06 User manual

HL-STEP-06
Solar Lamp
USER MANUAL
Parts Identication Operation Instructions Installation Instructions
20
lumens
4
5
2
1
3
www.xmart-ups.com
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
Screw
Solar Panel
Switch
Fastening Hole
LED Light
3
2
1
4
5
Special Features:
Polycrystalline Solar Panel
Li-ion Rechargeable Battery
Automatic Operation
Material: Aluminum + ABS
Drill the holes in the wall, insert wall plugs and use
screws to x the lamp to the wall
Solar Panel must be oriented toward sun for battery
charging efciency
Use supplied key to click in on/off switch hole to unlock
the system and either start it up or shut it down.
Automatic Operation:
Auto turn-off for charging during daytime
Auto turn-on for lightning at night
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
HL-STEP-06 - TECHNICAL SPECIFICATIONS / ESPECIFICACIONES
Luminosity / Luminosidad (LM) 20
SOLAR PANEL / PANEL SOLAR
Type / Tipo Polycrystalline / Policristalino
Capacity / Capacidad 1W
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad 3.7 Vdc / 7.4 WH / 2.000 mAH
Charge & Discharge Temperature /
Temperatura de Carga y Descarga
Charge / Carga: 0 to/a 45 °C
Discharge / Descarga: -20 to/a 60 °C
Recharge Time / Tiempo de Recarga 11 H
ILLUMINATION / ILUMINACION
Light Color Temperature /
Temperatura de Color de la Luz 3000K, Ra 80+
Efciency / Eciencia 190 lm/W
OPERATION / OPERACION
Backup (During cloudy days) /
Autonomía (con Poca Luz Solar) Up to 3 nights / Hasta 3 noches
Operation Modes / Modos de Operación Automatic Turn-On, Turn-Off, and Battery Charge. Constant Bright all night
Encendido, Apagado y Carga de batería automáticos, iluminación constante
IP Code / Código IP IP65
Directives / Normativas CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Installation Height / Altura de Instalación < 2m

HL-STEP-06
Dimensions
Front View / Vista Frontal
Left Side View / Vista Lateral
Rear View / Vista Trasera
188.0
111.0
200.0
123.0
63.5
Packing Information / Información de Empacado:
Dimensions / Dimensiones
Carton / Cartón (mm) Net/Neto Gros/Bruto
Inner Box / Caja Interna 1 200 X 64 X 123 0.5 0.55
Carton / Cartón 20 205 x 325 x 620 10 11
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Carton Weight / Peso Cartón (Kg)
HL-STEP-06
Model
Modelo
