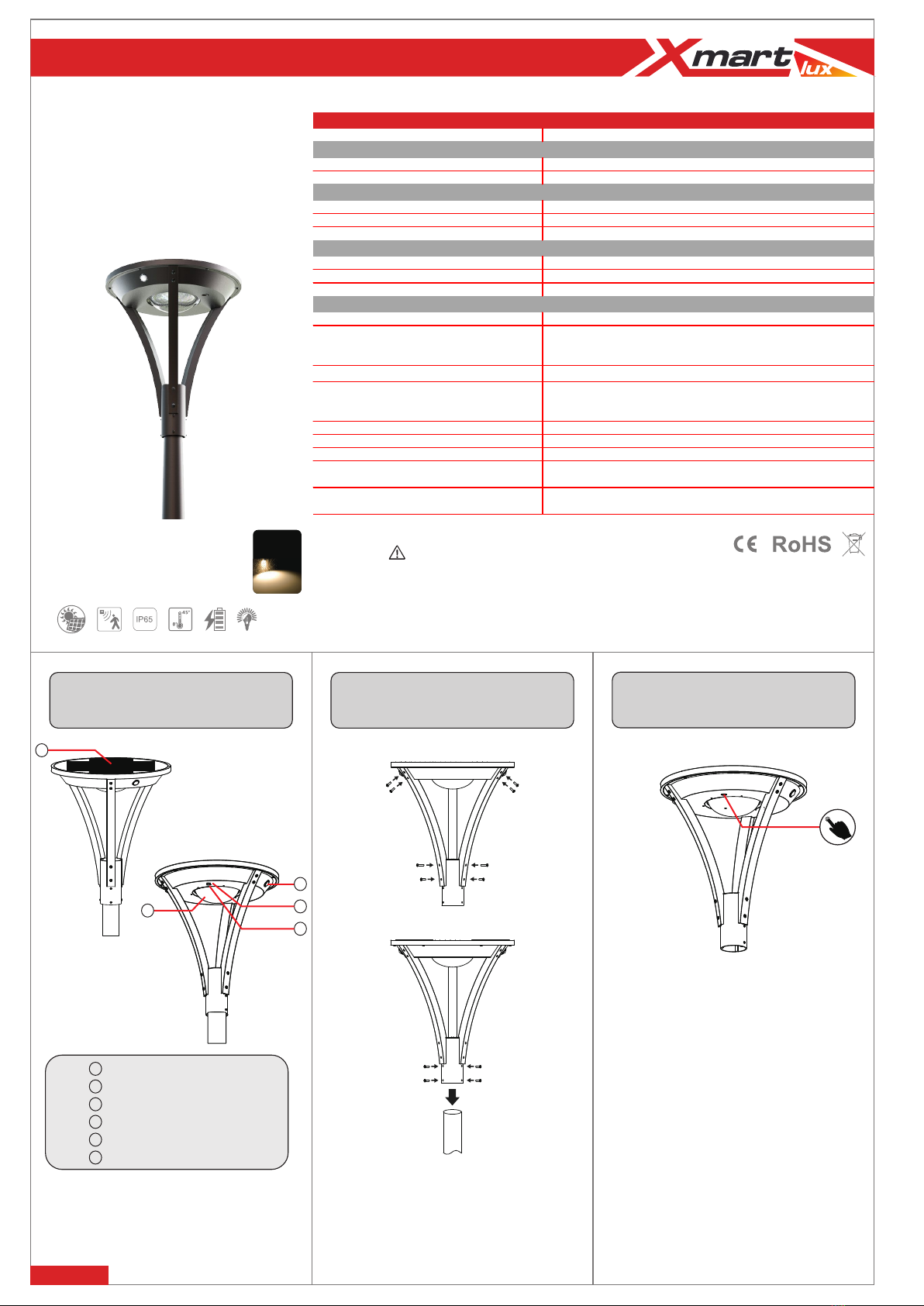

Xmart LSC-31 User manual

LSC-31
USER MANUAL
Parts Identication Operation Instructions Installation Instructions
Power On/Off: Press switch for 1.5 Sec, approx.
Available Modes:
Mode 1 (15%+PIR) Until dawn (Red):
Mode 2 (Green): 30% x 5Hr + (15%+PIR) Until Dawn
Mode 3 (Orange): 35% Until Dawn
3000
lumens
www.xmart-ups.com
Battery Power Indication:
> 70%Green:
Orange: Between 70% and 30%
Red: < 30%
Note: Indicator regularly shows Battery Capacity. When
changing Operation Mode it shows selected mode for 5
Sec, then it returns to show Battery Capacity
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
Landscape Series
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Congurable Operation Modes
Material: Aluminum alloy & PC
Solar Panel
PIR Sensor
LED Lamp
Indicator Light
Switch
Bracket
3
2
1
4
5
6
1
4
5
2
3
1: Fix the lamp, supports, and bracket with screws
2: Fix the Bracket to the pole using screws
Mode Change: Press switch shortly to choose Mode 1, Mode
2, or Mode 3.
Select Operation Mode according to your own requirements
LSC-31 (P1)
Solar Panel must be oriented toward sun and avoiding any
shade for battery charging efciency
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove battery for any other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
LSC-31 - TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
Luminosity / Luminosidad (LM) 3000
SOLAR PANEL / PANEL SOLAR
Type / Tipo Monocrystalline / Monocristalino
Capacity / Capacidad 18.75 W / 16.2V
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad 3.7 Vdc / 115.44WH / 2.6AH
Charge & Discharge Temp. / Temp. de Carga y Descarga Charge/Carga: 0 to/a 45 °C - Discharge/Descarga:-20 to/a 65 °C
Recharge Time / Tiempo de Recarga 7 H
ILLUMINATION / ILUMINACION
LED (OSRAM) 3030 / 42pcs
Light Color Temp. / Temp. de Color de la Luz 4000K, Ra 80+
Efciency / Eciencia 190 lm/W
OPERATION / OPERACION
Backup (cloudy days) / Autonomía (con Poca Luz Solar) Up to 10 nights / Hasta 10 noches
Operation Modes / Modos de Operación
Mode 1: (15% + PIR) Til Dawn / Hasta Amanecer
Mode 2: 30% x 5H + (15%+PIR) Til Dawn / Hasta Amanecer
Mode 3: 35% Til Dawn / Hasta Amanecer
Mode Indication LED / LED Indicación de Modo Mode 1: Red/Rojo - Mode 2: Green/Verde - Mode 3: Orange/Naranja
Capacity Indication /
Indicador de Capacidad
Green / Verde: ³ 70%
Orange / Naranja: 70% to/a 30%
Red / Rojo: < 30%
PIR Sensor / Sensor de Presencia (PIR) 120º, >5m
IP Code / Código IP IP65 / IK08
Directives / Normativas CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Light Sensitivity /
Sensibilidad Lumínica
> 50 Lux: Off / Apagado
< 10 Lux: On / Encendido
Installation Height & Spacing /
Altura de Instalación y Separación 3 to/a 3.5 m, 12m

LSC-31
Top View / Vista Superior
Side View / Vista LateralFront View / Vista Frontal
Packing Information / Información de Empacado:
Dimensions / Dimensiones
430.0
For 60mm pole
76.0
500
www.xmart-ups.com
LSC-31 (P2)
Dimensions / Dimensiones
Carton / Cartón (mm) Net/Neto Gros/Bruto
LSC-31 Carton / Cartón 1 505 x 160 x 500 9 9.5
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
Model
Modelo
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Carton Weight / Peso Cartón (Kg)
