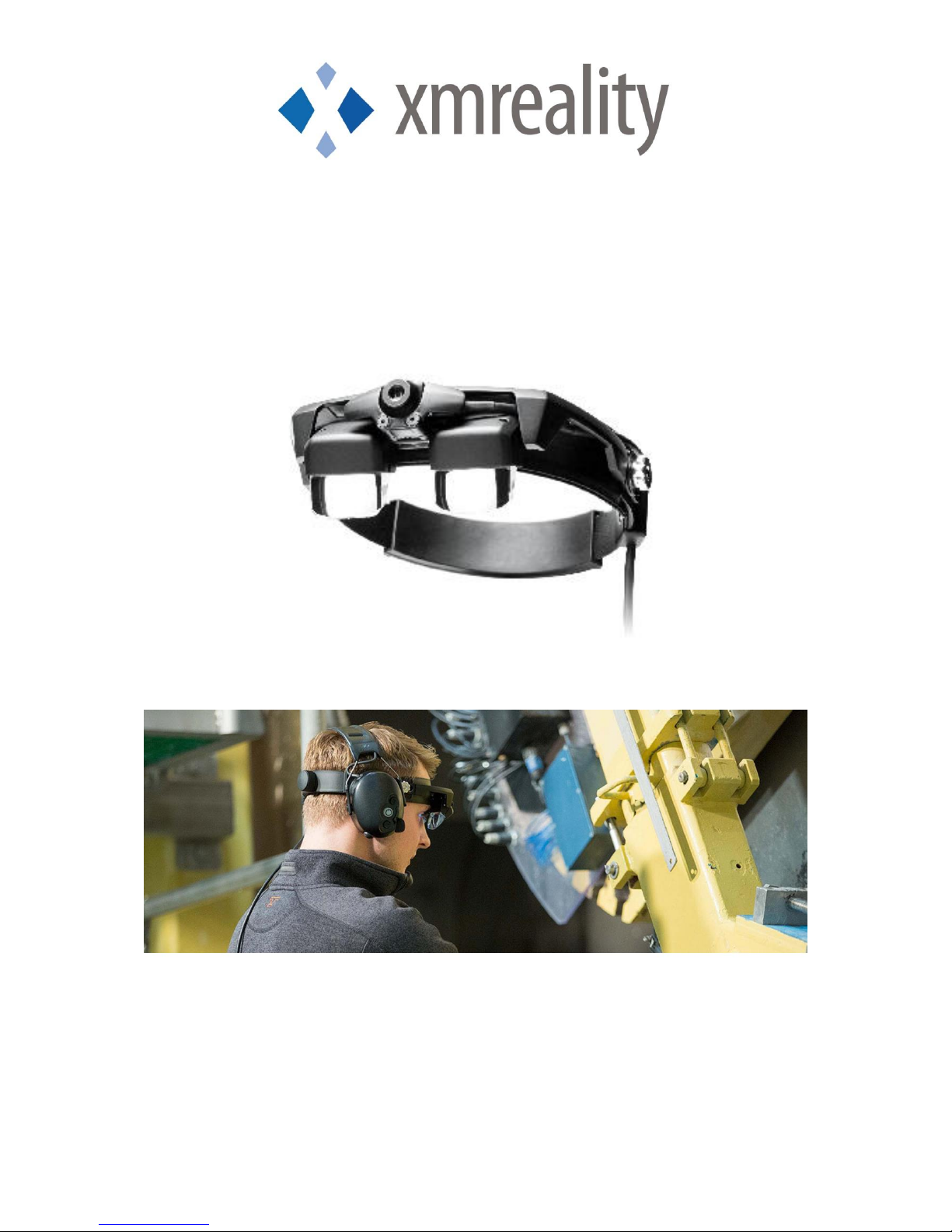

XMReality RG15 User manual

© XMReality AB, 2016
Manual
XMReality
Smart Glasses RG15
XMReality Remote Guidance Solution
“Like Being There”

XMReality Manual ”Smart Glasses”
Ver160913 Page 2
Contents
1About this document..................................................................................................................................................... 3
1.1 Terminology.............................................................................................................................................................. 3
1.2 Contact Information............................................................................................................................................. 3
1.3 Disclaimer................................................................................................................................................................... 3
2About XMReality Remote Guidance Solution................................................................................................. 4
2.1 Delivery Content.................................................................................................................................................... 4
2.2 Description................................................................................................................................................................ 5
2.3 How to connect ..................................................................................................................................................... 5
2.4 How to adjust the head band......................................................................................................................... 6
2.5 How to adjust the displays................................................................................................................................ 6
3Safety instructions ............................................................................................................................................................ 7
4Use warnings....................................................................................................................................................................... 8
5Troubleshooting................................................................................................................................................................ 9
6Specifications.....................................................................................................................................................................10
7Regulatory information................................................................................................................................................11
7.1 CE.................................................................................................................................................................................11
7.2 FCC .............................................................................................................................................................................11

XMReality Manual ”Smart Glasses”
Ver160913 Page 3
1About this document
This manual contains a general introduction to the XMReality Smart Glasses RG15, how to
connect and adjust them, plus safety information.
The Glasses are meant to be used with XMReality Remote Guidance Solution
Read all Safety Warnings and Cautions in this manual before using this product
1.1 Terminology
The following terms and concepts are used in this document.
Term
Description
XMReality AB
The company delivering XMReality Remote Guidance Solution
XMReality Remote
Guidance Solution
A system where a guide connected to an on-site follower can
help a follower with joint problem-solving over the internet
XMReality
The software, sometimes referred to as XMReality Software
XMReality Smart Glasses
A hands free option to XMReality Remote Guidance Solution
Guide
A person that guides a follower
Follower
A person that is guided by a guide
XM Server
A server provided by XMReality that connects a guide to a
follower
XMReality Point Pad
A device delivered by XMReality that facilitates the guide’s
hand, a tool or a gesture to be extracted
1.2 Contact Information
Website: www.xmreality.com
E-mail: [email protected]
Address: XMReality AB
Diskettgatan 11B
SE-583 35 Linköping
Sweden
Phone: [phone]
1.3 Disclaimer
XMReality AB makes no warranty, expressed or implied, including but not limited to any implied
warranties of merchantability or fitness for a particular purpose, regarding this product and accepts a
limited warranty only for manufacturing faults as set out in XMReality AB’s terms and conditions for
the product. In no event shall XMReality AB be liable for special, collateral, incidental, or
consequential damages in connection with or arising out of use of the product. XMReality AB reserves
the right to, at any time, revise and improve its products as it fit.

XMReality Manual ”Smart Glasses”
Ver160913 Page 4
2About XMReality Remote Guidance Solution
A Guide connects to an On-site Follower to allow joint problem-solving over the internet. The
Guide runs the program on his computer (PC/laptop/tablet) and a Follower runs a similar
program on his portable computer (laptop/tablet). When working hands-free, the Follower
wears the XMReality Smart Glasses connected to his computer.
Using an internet connection (cable/3G/4G/WIFI/satellite) the Follower can anywhere in the
world feel like the Guide is right next to him in the room, guiding him through the problem - no
matter how complex - step by step.
The Guide’s and the Follower’s computers initially communicate over a server; the XM Server,
which reports certain information such as name, password, IP and port numbers. In the standard
set-up, the XM Server is hosted by XMReality AB.

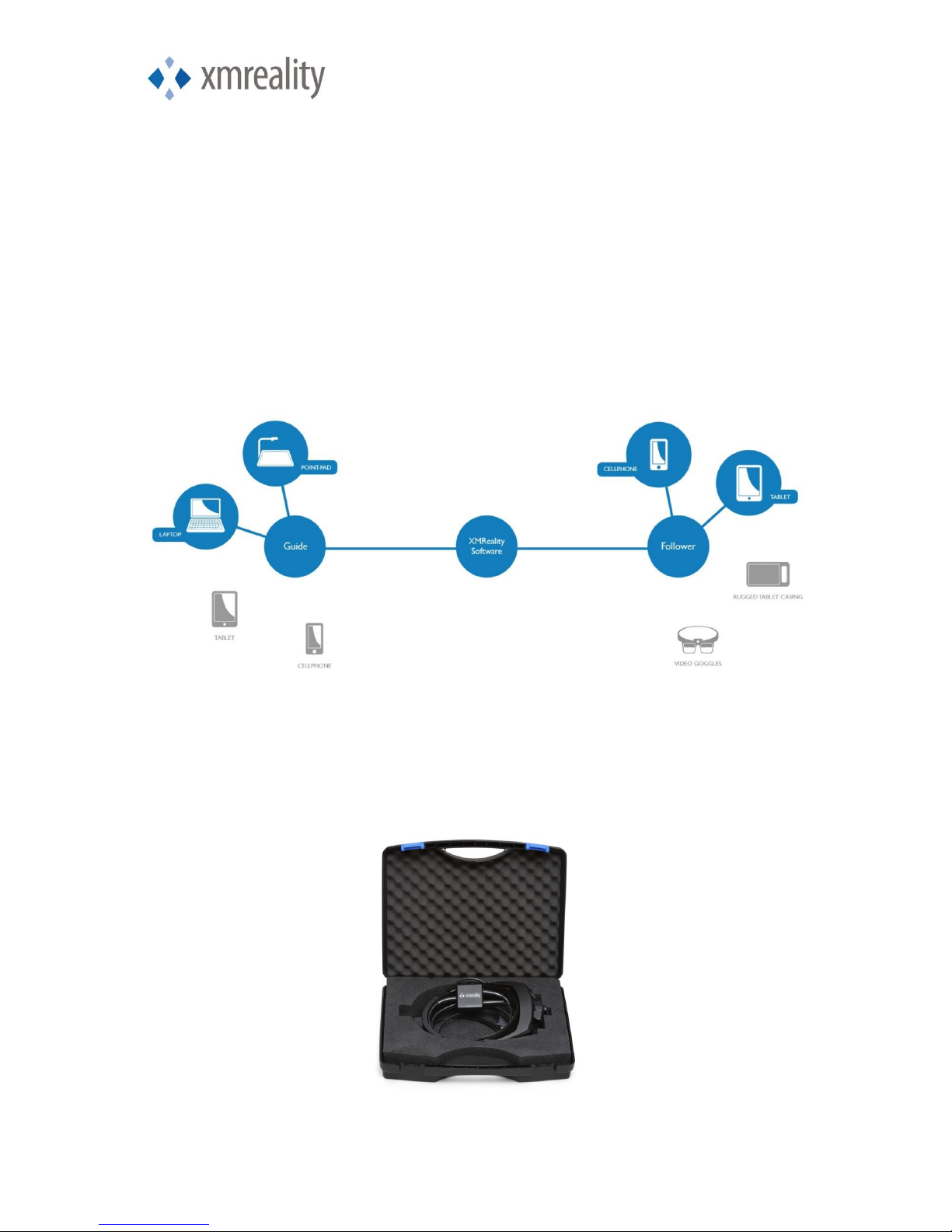

Figure 1: XMReality Remote Guidance Solution connections alternatives
2.1 Delivery Content
One pair of XMReality Smart Glasses model RG15
One Manual
One Carrying case
Figure 2: XMReality Smart Glasses in the Carrying case

XMReality Manual ”Smart Glasses”
Ver160913 Page 5
2.2 Description
XMReality Smart Glasses RG15 is a hands free option to the XMReality Remote Guidance
Solution. The glasses consist of two near-eye micro displays and a video camera. The glasses are
based on the video-see-through principle as opposed to optical see-through. What you see in
the displays is a video image of the reality in front of you, as captured by the camera. The image
is the same image as you would otherwise see on your tablet/ laptop as you run the XMReality
software, but now optically matched with the real image in front of you. You get your hands
free to perform your work. The Guide can also see exactly what you are looking at as the
camera follows the movements of your head.
The glasses cover 40 degrees of your field-of-view, while allowing you to be aware of your
surroundings by leaving space open to your peripheral eyesight. When you don’t need to be
guided the micro displays can easily be lifted without being taken off. The camera can still stay
directed forward so that the guide can remain in touch.
The glasses are equipped with an adjustable head-band to secure them to your head. (Model
RG15H is fitted to a 3M G2000 Safety Helmet.)
2.3 How to connect
The glasses need two connections to your portable computer. One USB 2.0 and one VGA
output. If your portable computer doesn’t have a VGA output, you will need a converter (to for
example HDMI, mini-HDMI, Mini DisplayPort, etc.), see Figure 3 below.
Figure 3
Note: Some converters have additional features (such as audio output) that may interfere with
the communication. Hence, some converters may not be compatible. Look for simple straight-
forward converters without audio.

XMReality Manual ”Smart Glasses”
Ver160913 Page 6
2.4 How to adjust the head band
The head band is adjusted simply by turning the knob at the back of your head.
Note: No need to remove your own glasses.
2.5 How to adjust the displays
The display angle can be adjusted (see Figure 4). The camera remains aligned with the displays
as they are tilted. The display can also be moved forwards and backwards (see Figure 4).
Figure 4
The frame can also be raised to your forehead as you walk around when you don’t need
guidance. You can still have the camera directed forward to allow the Guide to see the image
right in front of you.
Caution: For your safety, avoid walking around with the displays down unless necessary for
guidance.

XMReality Manual ”Smart Glasses”
Ver160913 Page 7
3Safety instructions
Follow all safety and operational instructions for maximum performance and safety.
Heed warnings to avoid personal injury.
Care and cleaning. Unplug the devices when not in use. Place the devices in the casing
when not in use. Do not use water or other liquids when cleaning the devices.
Individuals suffering from or exhibiting characteristics of the conditions below should use
extreme caution when using this product!
Children under 7 years of age. Prolonged use of this product by young children may interfere
with eye and visual system development and small parts may come loose that could generate
injury if swallowed.
Convulsive or epileptic disorders. This product may cause a reoccurrence of symptoms to
anyone who has experienced a convulsive or epileptic condition, or loss of consciousness due to
light flashes or oscillation.
Eye disorder. An individual with eye movement or visual field disorders, or anyone who cannot
see conventional computer monitor images clearly or wears glasses that make it hard to see the
image should consult an ophthalmologist before use of this equipment.
Physical impairments. Anyone with a heart disorder, high blood pressure, visual field impairment
or eye movement disorders or any other serious medical condition should consult a doctor before
using this product

XMReality Manual ”Smart Glasses”
Ver160913 Page 8
4Use warnings
Follow all manufacturers’ instructions for proper adjustment of the product.
Improper adjustment of the eyepiece optics may cause serious injury.
Improper setup and adjustment of the eyepiece optics may cause headache, nausea,
dizziness, motion sickness, eye fatigue or balancing difficulty. These symptoms may
temporarily disturb your vision and balance. Walking or operating a vehicle should be avoided
if you are experiencing these symptoms.
Do not use this product where situational awareness is critical, such as operating vehicles, in
areas where there are moving vehicles or stairs or while operating machinery or in potential
dangerous situations.
Avoid using the product in any situation where occluded vision would create a risk to you,
others or property.
If you experience any discomfort, stop using the product immediately until the symptoms
subside.
Always protect product from liquids; never immerse the product in water.
Power off product when not in use. Do not leave product on for extended periods of time.
To avoid damage to the optic lenses and assembly do not drop, or submit product to rough
use not intended by the manufacturer.
This product is not specified for use in temperatures below 0 degrees Celsius or above 40
degrees Celsius. (32 degrees F, or above 104 degrees F)
Do not disassemble or try to repair the products provided by XMReality. Instead contact
[email protected]
If there are any uncertainty as to how to dispose of the product, turn to XMReality for
instructions, or return the product to XMReality with a clear, written, instruction that you want
the product to be disposed of.
XMReality AB
Diskettgatan 11B
583 35 Linköping
Sweden

XMReality Manual ”Smart Glasses”
Ver160913 Page 9
5Troubleshooting
Symptom
Cause
Remedy
No camera image
USB cable not properly
connected.
Check USB connections.
Restart Computer.
Double image
Displays not properly aligned.
Probably loose on the axis.
Tighten the four screws on
the display housings.
No image in Glasses
Computer power off, and/or
program not running.
Restart Computer.
Double-click the icon ”Follow
with Glasses”.
Image on computer screen
but no image in Glasses
The computer doesn’t find
the glasses as an external
display.
Double-click desktop the
icon ”Follow with Glasses”.
Or… VGA connector on
XM Connector box, is not
properly connected, see
Figure 3 above.
Check VGA connections on
XM connector box.
Or… Mini
DisplayPort/HDMI/mini-
HDM connector is not
properly connected in
Surface Pro tablet, see Figure
3 above.
Check Mini
DisplayPort/HDMI/mini
HDMI connections.

XMReality Manual ”Smart Glasses”
Ver160913 Page 10
6Specifications
System
Principle Video See Through
Total Weight 220 g
Temp Range 0-40 °C or 32-104 °F
Display
Type A pair of OLED full color micro displays with optic prism
Resolution SVGA 800x600 per display
Frame rate 60 fps*
Field of view 40 degrees
Aspect Ratio 4 x 3
Eye Relief 25 mm
Exit Pupil 17 mm (H), 6 mm (V)
Power USB 2.0
Camera
Resolution 2592x1944
Frame rate 5MP video 15 fps
Frame rate with reduced resolution* 30 fps
Auto Focus Range From 10 cm up to ∞
Power USB 2.0
*/ Running XMReality Remote Guidance Application in Real Time Mode the Resolution is 640x480
pixels and the Frame Rate is 30 fps.

XMReality Manual ”Smart Glasses”
Ver160913 Page 11
7Regulatory information
7.1 CE
This device complies with EN55022:2010 Class A. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate measures.
7.2 FCC
This device is also verified according to the requirements of FCC regulation Part 15. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
