Rokid RG101 User manual

Rokid Glass
Product Manual
【OS Version：2.1.4】
2020.04

Table of Contents
1. PRODUCT OVERVIEW................................................................................................................................................. 3
1.1 PRODUCT DESCRIPTION.............................................................................................................................................3
1.2 PRODUCT INFORMATION.............................................................................................................................................4
1.3 Specifications....................................................................................................................................................... 5
1.4 Test Report...........................................................................................................................................................6
1.5 Appearance.......................................................................................................................................................... 7
1.6 Features................................................................................................................................................................ 8
2.THERMAL VISION APP................................................................................................................................................. 9
2.1 FEATURES................................................................................................................................................................... 9
2.2 INTERACTION............................................................................................................................................................ 10
2.3 USER MANUAL..........................................................................................................................................................11
2.4 THERMOMETER SETTINGS MENU............................................................................................................................ 14
3. NOTICE.......................................................................................................................................................................... 15
3.1 READ BEFORE USE..................................................................................................................................................15
3.2 SAFETY PRECAUTIONS.............................................................................................................................................15

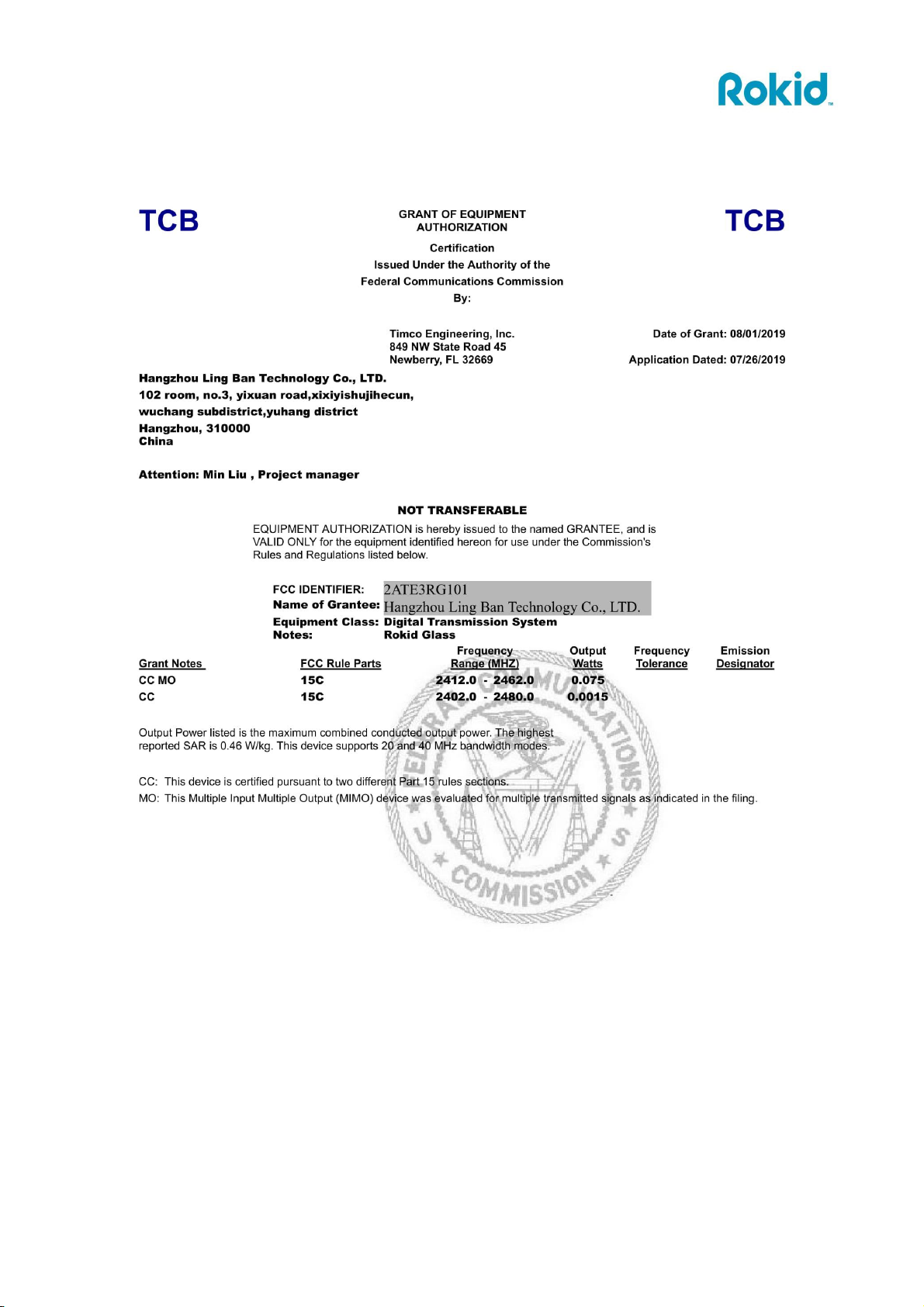

4. PRODUCT CERTIFICATION......................................................................................................................................17

3
1. Product Overview
1.1 Product Description
Rokid Glass is a high-tech product specially developed for epidemic prevention. It
integrates infrared thermal imaging technology, AI capability, AR technology, big data and
other advanced technologies. Rokid Glass is the world's first safe and efficient non-
contact temperature measurement equipment, with the focus of aiding mobile patrols in
external environments. This product enhances the ability of mobile patrol officers to
quickly and accurately measure human temperature in large and crowded areas with a
high volume of traffic, including but not limited to hospitals, train stations, airports, parks,
and tourist attractions. This product aims to help increase the efficiency and effectiveness
of epidemic prevention personnel, and protect these individuals by reducing close physical
contact with other people while conducting their duties. It is a high-tech intelligent terminal
equipment that can meet the practical needs of body temperature screening and epidemic
prevention and control.

4
1.2 Product information
#
Components
Description
1
AR glasses
Visual terminal and AR optical screens are used to
display real-time data of temperature measurement
and provide visual prompts.
Audio system is used for sending alarms.
Computing unit is used to process the information
collected from the infrared module.
2
Infrared module
The use of Uncooled Infrared Focal Plane thermal
imaging sensor can measure temperature in the
range of 30~45℃with an accuracy of ±0.3℃within
a distance of 2 meters.
4
Accessories
One (1) USB Type-C cable
One (1) Adapter
Two (2) Non-slip mat for temples
One (1) Strap set to be attached to temple
tips to reduce the pressure on nose pads
One (1) Wipe cloth
One (1) Eyewear pouch
One (1) connector
5
Others
One (1) Instruction Manual (English)
One (1) Service Card

5
1.3 Specifications
AR Glass
CPU
Qualcomm® Snapdragon™ 835
Camera
12MP COMS Image Sensor/optical anti-shake
Resolution
1280*960
Display FPS
60fps
Field of View
30°
Bluetooth Version
5.0
Wi-Fi
802.11a/b/g/n/ac
Battery
1300mAh
Power
DC 5V, 2A
Storage
RAM 4G/ROM 64G
Weight
150g
Operation system
Android 7.1
Interaction
Touch pad, press key
Infrared Thermometry Module
IR Sensor Type
Uncooled Infrared Focal Plane
Resolution
384*288
Framerate
25Hz
FOV and Focal length
28.4°*21.4° and 13mm
Temperature Sensitivity
≤0.04℃
Power consumption
＜300mW
Measuring temperature range
30℃~45℃
Operating environment
temperature range
10℃~40℃
Accuracy
±0.3℃within 2 meters (~13.2 feet), ±0.4℃at 4
meters (~19.6 feet) （Laboratory data）
Weight
＜30g

6
1.4 Test Report
Testing Scenario
Testing time：2020/4/16 15:24 16:43
Test benchmarking:Medical Forehead Thermometry
Indoor
Temperature：25.5℃\27.1℃
Humidity：43.6%
Distance/M
A（Male）（ 36.6℃）
B (Female)（36.4℃）
1.0
36.4 ℃
36.4 ℃
1.5
36.4 ℃
36.3 ℃
2.0
36.3 ℃
36.2 ℃
2.5
36.3 ℃
36.2 ℃
3.0
36.3 ℃
36.2 ℃
4.0
36.3 ℃
36.2 ℃
5.0
36.2 ℃
36.1 ℃
6.0
36.2 ℃
36.1 ℃
Testing Scenario
Testing time：2020/4/16 12:10 16:16
Test benchmarking:Medical Forehead Thermometry
Outdoor
Back Facing Sunlight
Temperature: 30℃\33℃
Humidity: 36%
Distance/M
A（Male）（ 36.4℃）
B (Female)（36.6℃）
1.0
36.3 ℃
36.6 ℃
1.5
36.4 ℃
36.6 ℃
2.0
36.4 ℃
36.7 ℃
2.5
36.5 ℃
36.6 ℃
3.0
36.3 ℃
36.7 ℃
4.0
36.5 ℃
36.8 ℃
5.0
36.8 ℃
36.8 ℃
6.0
36.4 ℃
36.9℃

7

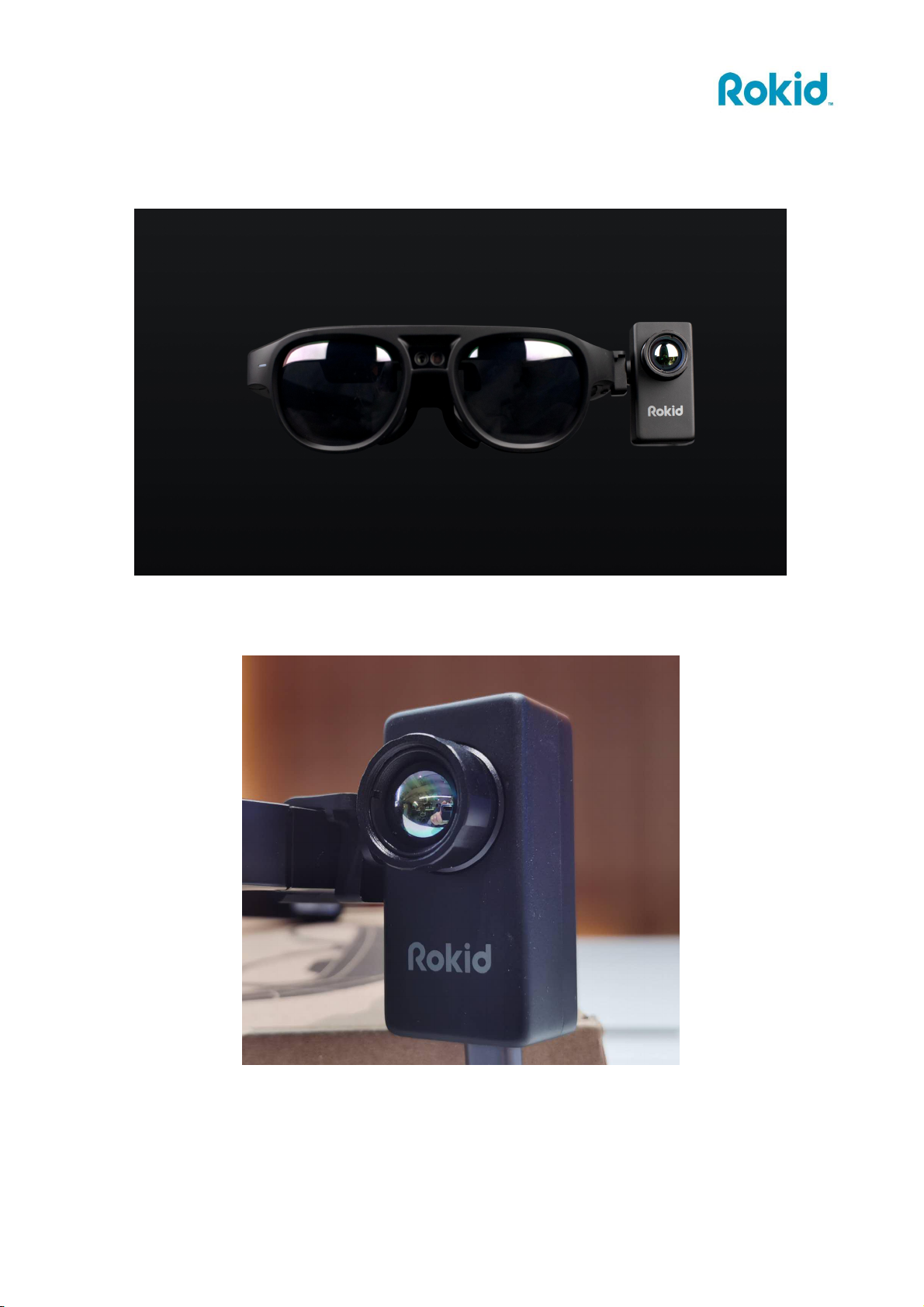

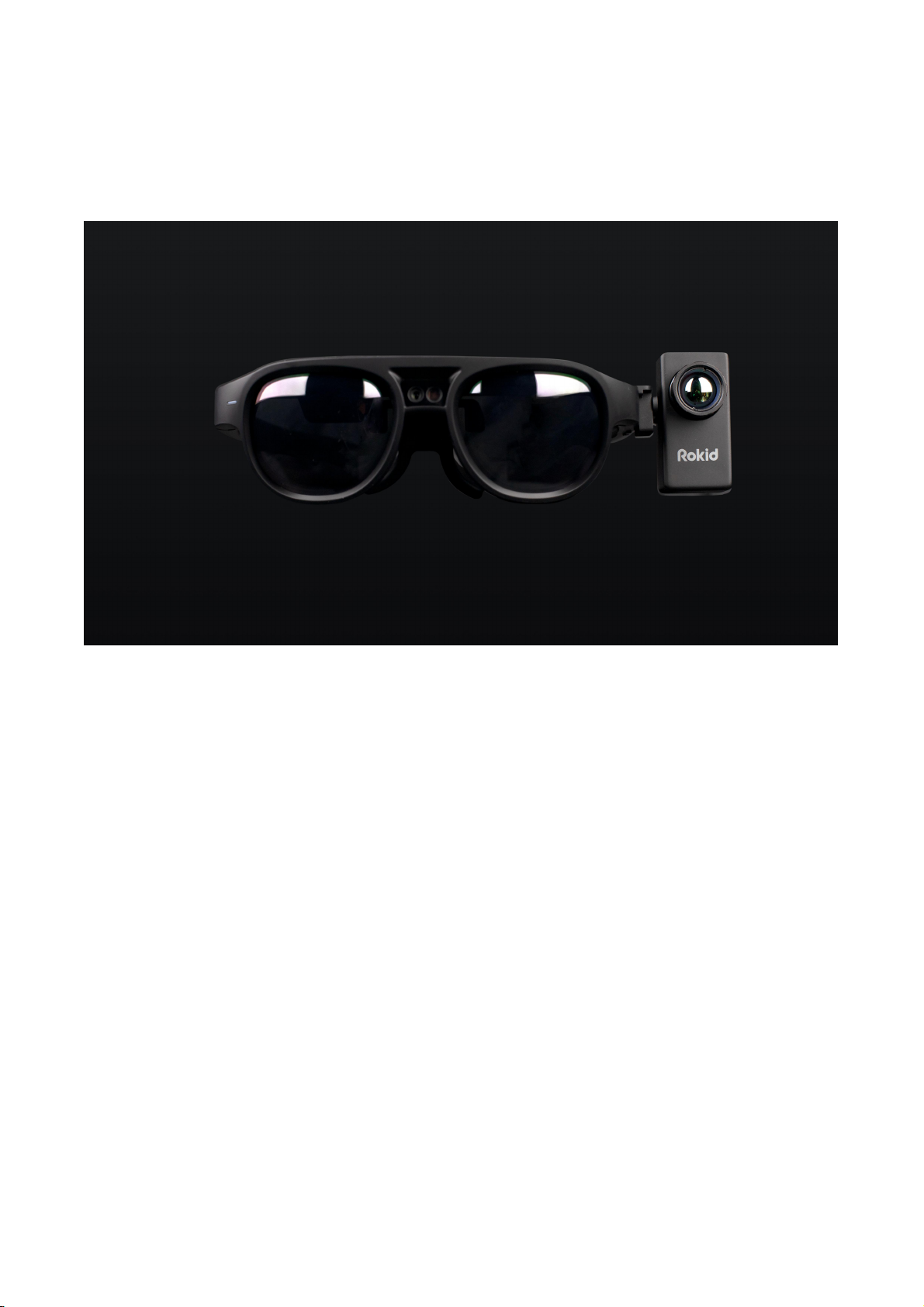

1.5 Appearance
Front view
Close-up on Infra-Red (IR) module

8
1.6 Features
Non-Contact Usage to Enhance Safety
Compared to the traditional hand-held thermometer, Rokid Glass enables temperature
measurement from a distance of about two meters away. This heavily reduces the risk of
disease transmission through close physical contact.
Powerful AI for Greater Accuracy
Rokid Glass’ embedded deviation-rectifying algorithm provides greater accuracy. At a
distance of 2 meters, the deviation is within ±0.3℃for outdoor temperature readings, and
within ±0.3℃for indoor temperature readings. At a distance of 4 meters, the deviation is
within ±0.4 ℃for outdoor temperature readings and ±0.4 ℃for indoor temperature
readings. The maximum distance for effective measurement is 6 meters.
Real-time Reading with High Efficiency
Integrated AR glasses and infrared modules (including block calculation unit, storage unit,
and display unit) produce temperature readings in less than 300 micro-seconds (ms).
Lightweight and Comfortable
Weighing only 180g, Rokid Glass is both well-balanced and comfortable to wear. Its
ergonomic design and efficient cooling mechanism allow the user to comfortably wear it
for extended period of time.
Diverse User Cases via An Open Platform
Rokid Glass can be configured with a wide range of technological capabilities such as
voice assistant, face and object recognition, license plate recognition, remote assistant,
head movement control, sharing camera and audio for multiple security and business
scenarios.

9
2.Thermal Vision App
2.1 Features
2.1.1 Multi-language Supported
a) Both Simplified Chinese and English are supported. The system language can
be selected in “Settings – Language”.
b) The default language can be chosen at initial setup.
2.1.2 Temperature Unit
Both Centigrade (℃) and Fahrenheit (℉) are supported.
2.1.3 High Temperature Alert
a) If the target’s temperature is higher than the pre-set alert temperature at 37.3℃,
the system will sound an alarm.
b) Alert Mode: “Normal” mode or “Strict” mode.
c) The system sets “Normal” mode as default. The alarm will only sound when the
target’s temperature exceeds the pre-set temperature threshold.
d) In “Strict” mode, the system will account for certain margin of error, and the
alarm may sound when the target’s temperature is marginally below the pre-set
temperature threshold.

10
2.2 Interaction
2.2.1 Button Interaction
a) Power Button (button above the left leg): Press to Wake/Sleep the screen. Hold
for three seconds to power On/Off.
b) Volume Button (button below the left leg): Press to Volume Up/Down.
c) Back Button (button above the right leg): Press to return to previous page,
Double-press to capture a screenshot.
2.2.2 Touchpad Interaction
a) Tap: Confirm/Select.
b) Slide Forward/Backward: Switch to Next/Previous.
c) Long-Press: Pop-up Settings Menu.

11
2.3 User Manual
Step 1: Power On
Hold Power Button for two seconds to switch on the system with 20 seconds length boot
animation. If booting the device for the first time, the system will activate the initial setup
page.
Step 2: Wearing & Adjustment
Put on the glasses, adjust the nose pad to the ideal height and angle, to ensure the text
and UI element are clear within the user’s vision.
Step 3: Initial Setup
1) System Language Selection
a) Swipe on the touch pad to switch between “Chinese” and “English”
language.
b) Tap to confirm and proceed to the next section.
2) Tutorial
a) Please watch the tutorial video.
b) Press ”Back Button” to skip the Tutorial Video.
3) Set the date and time
a) Swipe on the touch pad to set the date & time.
b) Tap the touch pad to set the next item.

12
Step 4: Launch Thermal Vision APP
In system launcher, swipe on the touch pad to “Thermal Vision”, tap the touch pad to launch
the app.

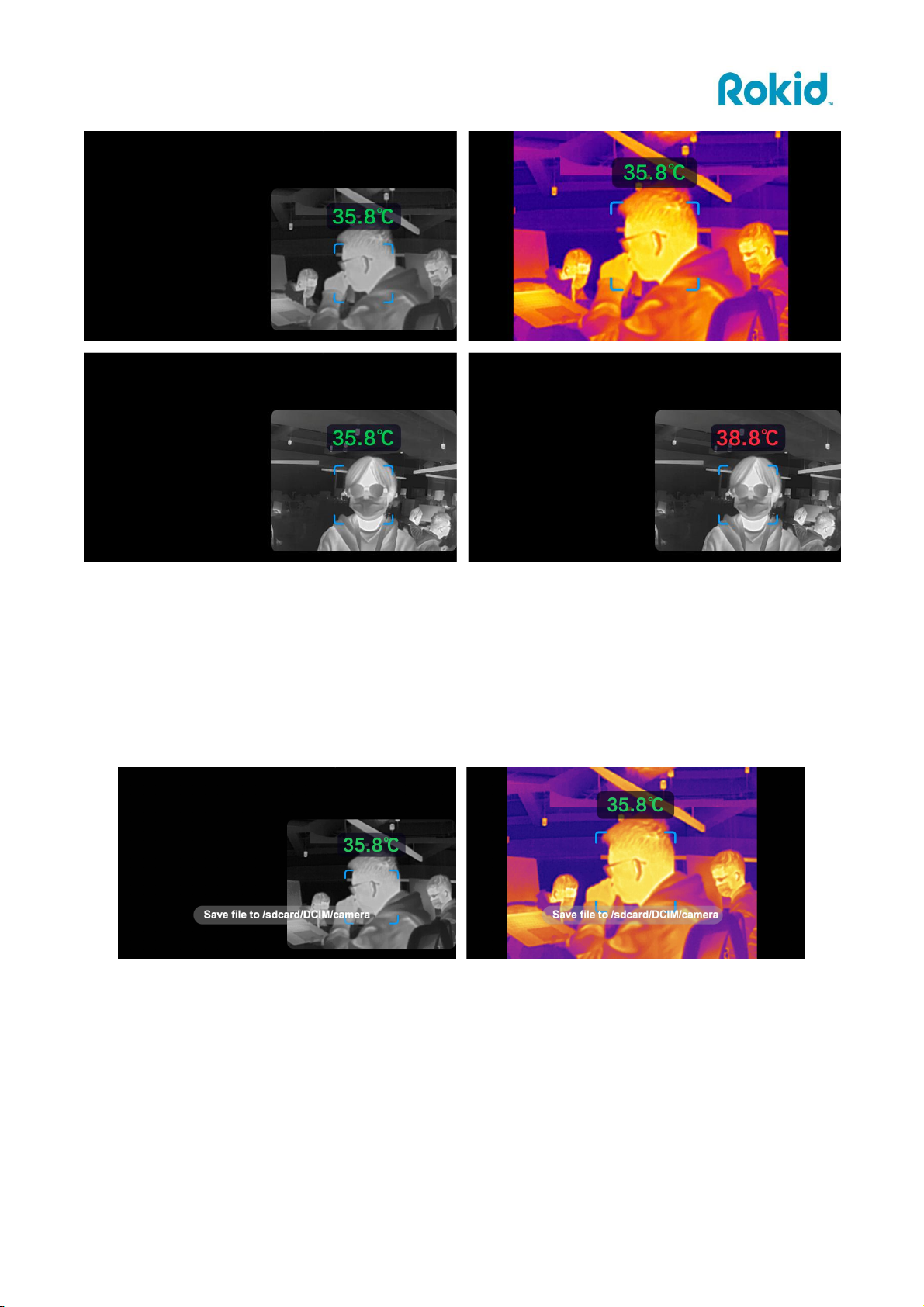

Step 5: App Functions
1) Use the detection frame to identify the target for temperature measurement. The
target’s temperature will be measured automatically and the result will be
displayed.
2) If the detection temperature is lower than the pre-set alert temperature, the
number will be displayed in green.
3) If the detection temperature is higher than the pre-set alert temperature, the
number will be displayed in red and an alarm will sound.

13
4) Tap the touchpad to switch the display mode: Full-Screen (Thermal) mode or
Mini-Window (Grayscale) mode. To reduce the eye strain and fatigue, Full-
Screen mode is set as the default.
5) In temperature measurement, double-tap “Back Button” to capture a screenshot,
which will be saved into the gallery in Rokid Glass.

14
2.4 Thermometer Settings Menu
Long-press the touch pad to display the settings menu. Swipe on the touch pad to scroll
between options. Tap the touchpad to confirm.
2.4.1 Alert Mode
1) Swipe the touch pad to select the ”Alert Mode” (Selected Item is highlighted).
2) Tap the touch pad to switch between “Normal” mode or “Strict” mode.
2.4.2. Temperature Unit
1) Swipe the touch pad to select the ”Temperature Unit” (Selected Item is
highlighted).
2) Tap the touch pad to switch between “℃”(Centigrade) mode or “℉”(Fahrenheit)
mode.

15
3. Notice
3.1 Read Before Use
Thermometry Burn-In: For optimal performance, the equipment will heat up when
launching the "Thermal Vision" app. The status of the burn-in phase can be seen on the
display. Please wait patiently.
Do not pull the legs of the glasses too far outward as this may result in the wire
connection problems.
3.2 Safety Precautions
Keep the equipment dry. Do not use the equipment in a dusty, dirty, wet, high-salt
environment (e.g., by the sea), which may cause circuit failure within the equipment.
Do not use this equipment during a storm. Otherwise, it may cause equipment failure or
shock hazard.
Use this equipment below 6,562 ft (2,000 m) above sea level and within the ambient
temperature range of -18°F (-10°C) and 72°F (+40°C). Store the equipment and its
accessories within the range of -18°F (-10°C) to 81°F (+45°C). When the ambient
temperature is too high or too low, it can cause equipment failure.
If the device needs to be charged, be sure to use the adapter provided by the original
manufacturer. The use of unapproved or incompatible adapters, power supplies or
batteries may result in fire, explosion, or other hazards.
If the device needs to be connected to the USB-type C port for charging, please make
sure that the USB port has the USB-type C logo and its performance conforms to the
relevant specifications of USB-type C.
Do not expose the equipment to high temperatures or near heat sources such as strong
sunlight, heaters, microwaves, ovens or water heaters. Overheating of the device can
cause the battery to explode.
Do not disassemble or modify the equipment, insert foreign objects, or immerse it in
water or other liquids that may cause short circuit, leakage of battery fluid, overheating,
fire or explosion.
Do not throw the equipment into a fire. It may cause the equipment to catch fire and
explode.
Dispose of the equipment in accordance with local regulations. Do not dispose of the
equipment as regular waste. Improper disposal of equipment may result in equipment
explosion. Please comply with local ordinances for the disposal of this equipment and
its accessories and support recycling where possible.
Do not allow children or pets to chew on the equipment as this may cause injury or
cause the equipment to explode.

16
Do not drop, squeeze, or puncture the equipment to avoid exposing the equipment to
external stresses that could cause damage, failure, short circuit, fire, or explosion.
The equipment and its accessories may contain small parts which should be kept out of
the reach of children. Children may inadvertently damage equipment and its
accessories, or swallow small parts causing suffocation or other hazards.
This equipment is equipped with a non-removable internal battery. Do not replace the
battery yourself to avoid damage to the battery and equipment.

17
4. Product Certification
CCC Certificate Number：2019200805000131

18
CE Certificate Number：TCF-834CC20

19
FCC Certificate Number：2ATE3RG101

20

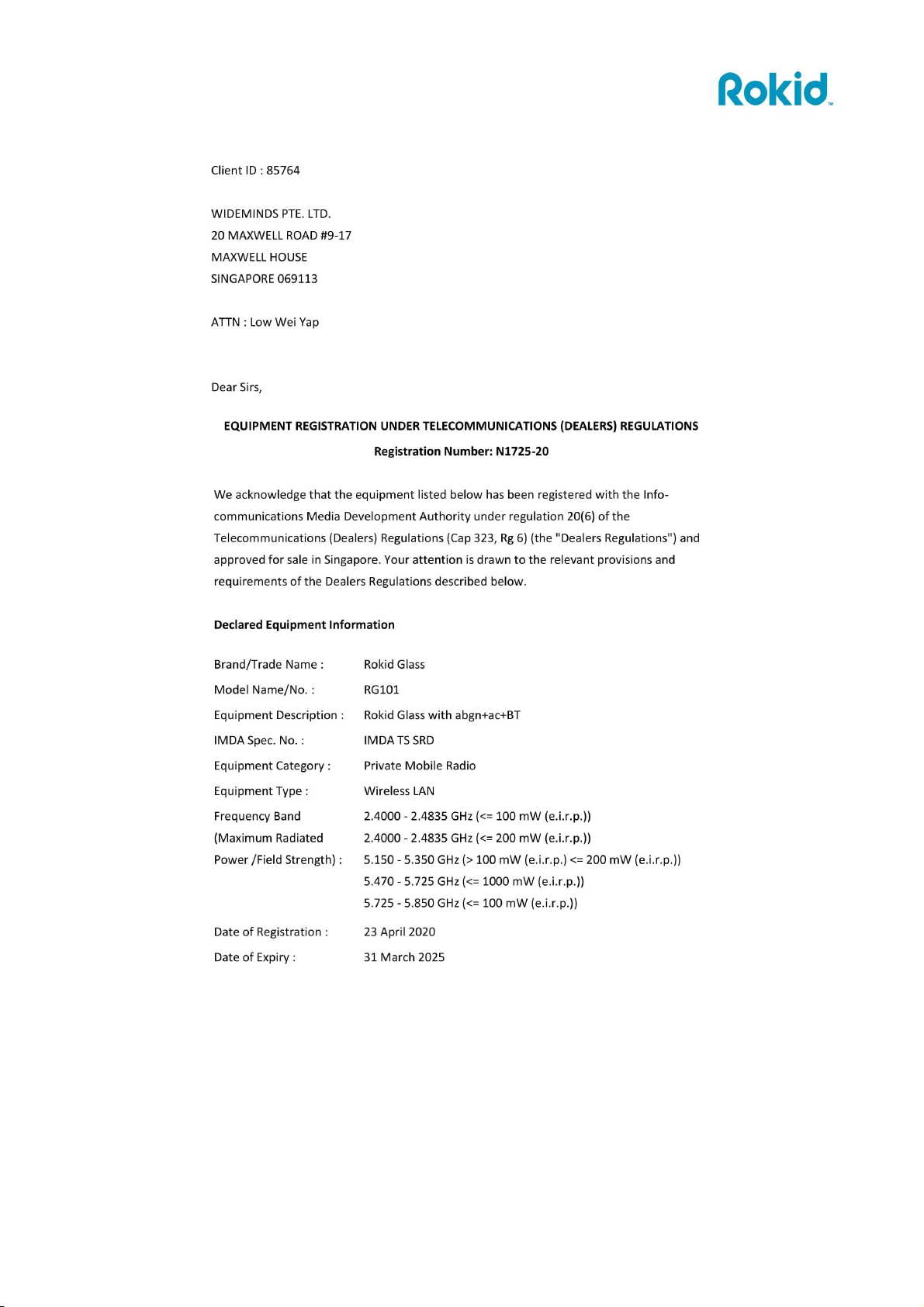

IMDA Certificate Number：N1725-20
