Xomax XM-KI360 User manual

ISOFIX child seat with
top tether
Manual
Groups 0, I, II and III.
For babies and children
from 0 to 36 kg.
XM-KI360
Attention
Please read all instructions before using the child car seat and
always keep this in place so that the safety of your child will
not be compromised. Your XOMAX Customer service or your
specialist dealer can be contacted for questions regarding the
Child seat gladly for you there.

1
XM-KI360
Introduction
INTRODUCTION.............................................................2
Important safety instructions...................................... 3
Overview ....................................................................... 7
Positioning ............................................................... 8
Installation .................................................................... 9
ISOFIX and Top Tether Installation ....................... 9
Rotate child seat up to 360° ................................11
Installation group 0 ( up to 10 Kg)....................... 12
Installation Group I (9-18 Kg) ............................. 13
Installation size II (9-18Kg) and III (22-36Kg) ......14
Remove belt ............................................................ 15
Adjusting the headrest height ..................................16
Belt buckle Application ........................................... 17
Tighten belts tighter.................................................... 18
Loosen belts .............................................................. 19
Cleaning the cover .....................................................20
........................................................ 20
WARNING ................................................................... 22
Care instructions

2
XM-KI360
Introduction
Thank you for choosing to purchase a XOMAX
I'll tell you what we've decided about the child seat.
This child seat is designed for babies and children
up to 36Kg and complies with the ISOFIX standard
Groups 0, I, II and III.
The child seat meets the given safety standards.
and is certified to GB 27887-2011 and to ECE R44
certified.
!Always keep this manual in the vicinity of
of the child seat. If other people use the
child seat in use, you should make sure,
that they are familiar with the use and the
safety instructions are also familiar.

XM-KI360
Important safety instructions
Make sure to install the child seat only as follows
in the notes. To ensure the safety
to ensure your child's safety, please read all of the
Notes in this manual and the notes in the
Your vehicle's installation manual
of child restraint systems carefully.
Incorrect use or improper use of the Installation
can reduce the safety of your child.
This child seat is a "Semi-Universal"
Restraint device designed in accordance with ECE
Regulation No 44 for general use in motor vehicles
with the ISOFIX anchorage system is approved.
»Please refer to the operating manual of your vehicle,
whether it is equipped with the ISOFIX anchorage
system or not and whether your vehicle is equipped
with the Use of a "Semi-Universal" or "ISOFIX".
child seat is intended.
»The child seat is designed for the ISOFIX weight
classes Group 0/I/II/III (0-36kg) and ISOFIX size class
"B."
»The vehicle must be equipped with a 3-point safety
belt with an approval according to the ECE regulation
No. 16 (or equivalent).
3

4
XM-KI360
»Please also observe the safety instructions on the
Use of child restraint systems in the Operating
manual of your vehicle.
»Attention: A proper fastening of the
child seat is unavoidable, otherwise there is no
Danger to life.
»The child seat may only be opened to the front.
directional vehicle seats are fitted
»Warning: The child seat must never be fitted with
a 2-point straps can be fastened.
»Warning: Never install the child seat on vehicle
seats which extend to the rear or to the side
are directed.
»Warning: Before installing the child seat,
Make sure that the vehicle seat backrest
is locked upright.
»Warning: The belts must not be twisted.
This can lead to dangerous functional restrictions.
lead.
»Warning: Never use the child seat on seats with
an active airbag.
»Warning: Do not use the child seat with defective
or damaged vehicle seat belts.

5
XM-KI360
»The lap belt must be pulled down correctly.
to provide a secure foothold.
»Before each journey, make sure that the child seat
is permanently installed, nothing wobbles and no
parts are trapped by the door or other seats.
»Always buckle up the child when he or she is in the
Child seat is in place. Even if the vehicle does not
you should buckle the child up in order to keep
to avoid falls.
»Make sure that the straps are always fastened to the
the size of your child are set correctly.
»Do not leave your child unattended as a matter of
principle sitting in the car.
»The child seat should not be exposed to direct
sunlight be abandoned. The plastic - and metal parts
can become very hot and touching can lead to lead.
In addition, the color of the covers can be
and it'll bleach the skin out. Cover the child seat
best with a blanket, if you want the car
I'll leave you.
»In the event of an accident, the child seat could be
damaged that are not inevitably visible, and that are
are. Please leave the child seat after each accident
expertly check and replace it where appropriate.

6
XM-KI360
»It's not advisable to use a child seat to buy, because
also invisible damages could pose a significant
security risk represent.
»Replace the child seat if it is defective,
is damaged, worn or if parts are missing.
»The cover is a safety system component. The child
seat may only be used with the original cover and
may under no circumstances be used without
reference.
»The child seat may only be used as a child restraint
system be used in the vehicle. It is not suitable for the
Use as a seat outside the vehicle suitable.
»Do not remove any labels from the Child seat,
these contain important information.
»The product must not be manipulated or altered.
will be. Otherwise, the safety of your child is of
paramount importance is in danger and the
product loses its approval.

7
XM-KI360
Overview
1
9
2
3
4
5
6
7
8
10
11
12
13
14
1. head cushion
2. side pads
3. seat base
4. adjustment belt
5. turning device
6.
7. seat belt
8. seat cushion
9. headrest
10. back support
11. ISOFIX rails
12. top tether device
13. seat belt
14.
base handle
headrest adjustment handle

8
XM-KI360

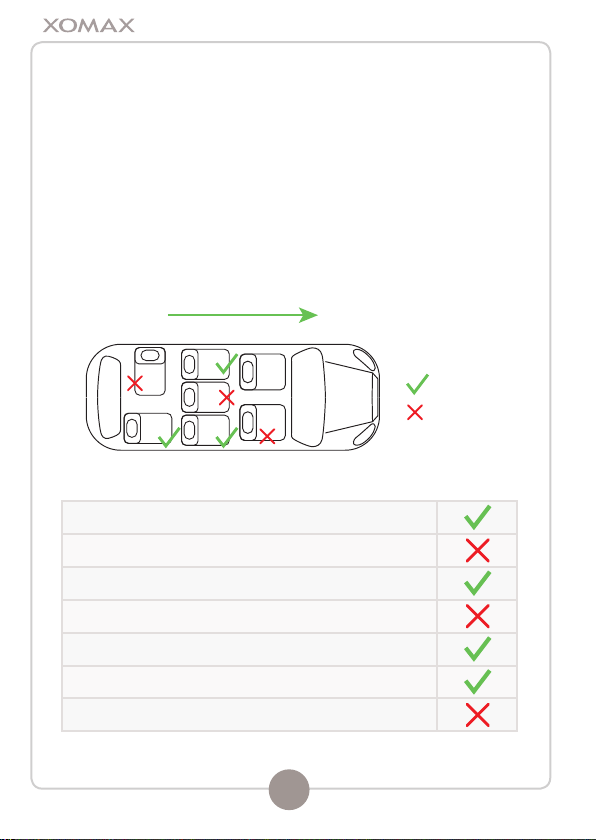

Positioning
»The child seat may only be opened to the front.
directional vehicle seats without activated airbag
can be installed.
»Please note the correct installation method for
your child's weight class.
1*
2
3
4
5
6
Direction
admissibly
inadmissible
Forward facing seat
Rear-facing seat
three-point safety harness
two-point safety belt
ISOFIX anchorage and safety belt
Positions 2, 4 and 6 (see illustration)
Positions 1, 3 and 5 (see illustration)

9
XM-KI360
Installation
»The child seat must be secured with the ISOFIX
anchorage and the Top Tether device installed
will be. Also note the positioning options
on page 8.
»Observe the correct installation method for
your child's weight class.
IISOFIX AND TOP TETHER INSTALLATION

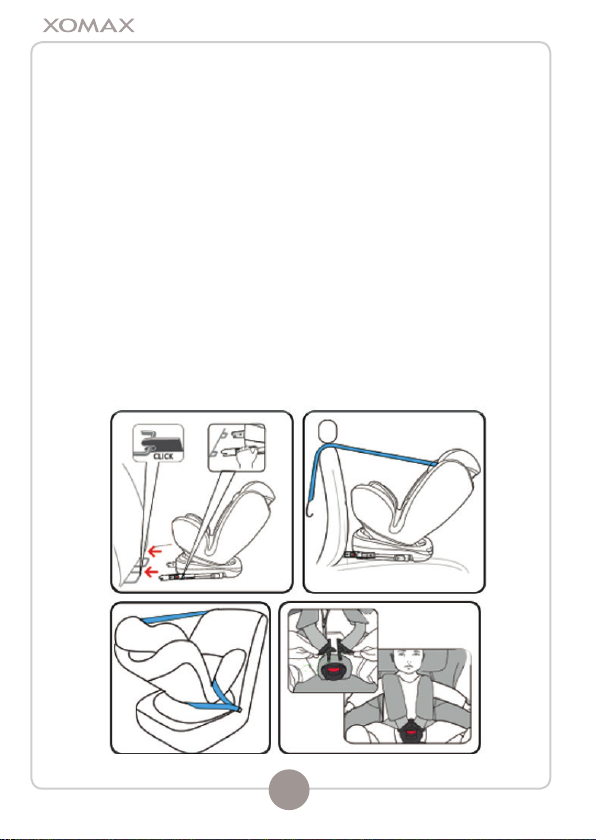

1. press the two red buttons first the ISOFIX rails
and pull the rails to your maximum length.
2. You will normally find the two ISOFIX anchors
between the backrest and the seat cushion.
If you are unsure, refer to the manual to see
of the vehicle.

10
XM-KI360
3. snap the hooks at the end of the ISOFIX
rails into the ISOFIX anchors.
4. press the two red buttons on the ISOFIX
rails at the same time and slide the seat on.
the back of the seat.
5. the Top Tether anchors can be found either at the
top or at the bottom near the rear parcel shelf
(type 1), on the vehicle floor behind the seat (type 2)
or directly on the back of the backrest (type 3).

11
XM-KI360
6. hook the Top Tether Hook into the Top
Tether anchor of your vehicle.
ROTATE CHILD SEAT UP TO 360°
The child seat can be adjusted at the base by up
to 360° around its own axis.
This enables the child seat to be installed with a
View against the direction of travel.
1.
2. grasp the backrest and turn the Seat around its
own axis in the desired position.
pull the handle on the base as shown on the
Illustration shown.

12
XM-KI360
INSTALLATION GROUP 0 ( UP TO 10 KG)
1. do not turn the seat while it is still in position has
been fi xed and the rails are extended backwards
as described in the chapter "Child seat for up to
360° rotation" on page 11.
2. Install ISOFIX and Top Tether first as described in
chapter "ISOFIX and Top Tether Installation"
described on page 9 on the front facing vehicle
seat.
3. place the child in the seat and buckle the seat and
put it on properly with the help of the 5-point
harness.

13
XM-KI360
INSTALLATION GROUP I (9-18 KG)
1. install ISOFIX (fig. 1) and Top Tether such as
in chapter "ISOFIX and Top Tether Installation"
described on page 9 to the forward
directional vehicle seat.
2. place the child in the seat and buckle the seat and
put it on properly with the help of the 5-point
harness.

14
XM-KI360
INSTALLATION GR. II (9-18KG) AND III (22-36KG)
1. install ISOFIX and Top Tether as described in the
Chapter "ISOFIX and Top Tether Installation" on
Page 9 described on the front directional vehicle
seat.
2. remove the 5-point seat belt as described in the
chapter on "Removing the belt" on page 15.
3. Pull the vehicle seat belt through the red
marked belt guides on the child seat.
4. place the child in the child seat and
strap it in with the help of the vehicle's own
3-point harness on.

15
XM-KI360
Removing the belt

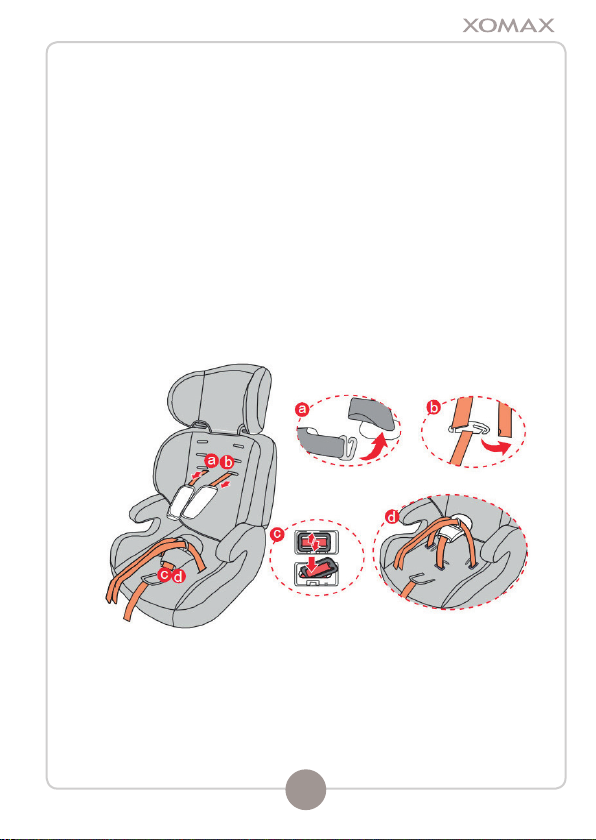

1. remove the Velcro fastened Belt pad.
2.
3. remove the connection plate and pull out the
the belts through the belt slots on the seat
out.
at the bottom of the back you will find the belt
connection plate, from which you remove all 5
belts.

16
XM-KI360

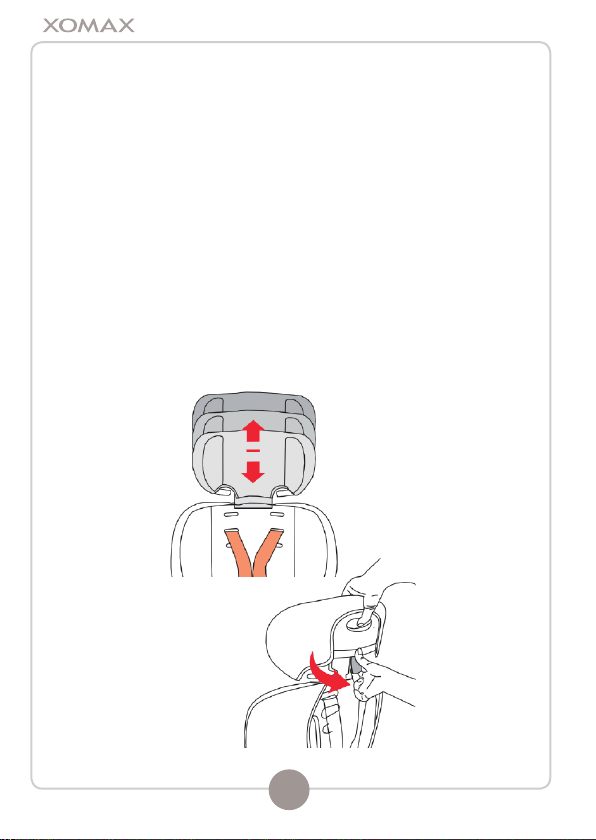

Adjusting the headrest height
»Remember to adjust the height of the headrests and
the Adjust the belt height to the size of your child.
The height of the headrest can be adjusted by pulling
it out of the adjustment knob and at the same time
after Sliding the headrest up or down adjusted
will be.
Afterwards, please make sure that the headrest
is properly engaged again.

17
XM-KI360
Belt buckle Use
BUCKLE BELT
1. bring the two upper latch tongues together.
2. slide both latch tongues into the belt buckle.
until you hear a click.
3. Always make sure that the straps are properly
fastened are fastened by tightening the straps
according to the pull up.
RELEASE BELT BUCKLE
4. to release the belt buckle again, press the button
on the red button on the buckle.

18
XM-KI360
Pull belts tighter
1. pull the shoulder straps upwards in order to fasten
the Lap belts too tight.
2. then pull on the adjustment belt (see picture) in
order to also the to tighten the shoulder straps.
3. the straps must be tightened as tightly as possible
will be. But only so tight that the child will still be
comfortable.
4. make sure that the lap belts are as deep as possible
sit as possible. You should sit at the hip and not
to the abdomen.
5. incorrectly adjusted belts will result in the child is
not protected in the event of an accident.
Before each journey, make sure that the seat belts
sit right.
