Xomax XM-KI6 User manual

INSTRUCTIONS
ISOFIX CAR SEAT (with top tether) Group 1, ,3
INSTRUCTIONS: PLEASE READ CAREFULLY
AND KEEP FOR FUTURE REFERENCE. YOUR
CHILD’S SAFETY MAY BE AFFECTED IF YOU
DO NOT FOLLOW THESE INSTRUCTIONS.

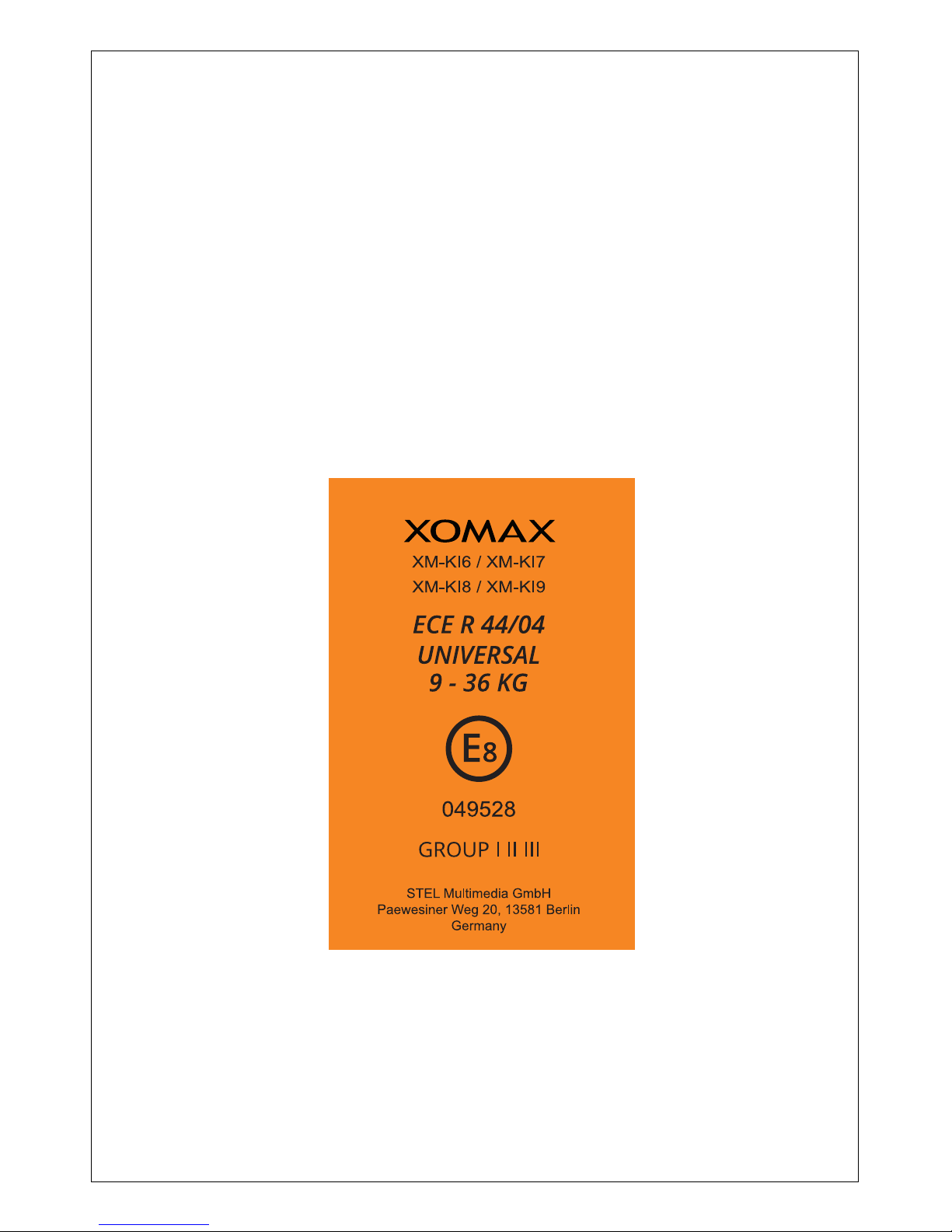

This product conforms to ECE R44.04
Group 1, ,3 child car seat.
Suitable for children from 9kg to 36kg (approx 9
months to 1 years old)

1.1 NOTICES
1. This child car seat is approved for two different types of fitting:
a) “Universal ISOFIX” for use as a group 1 [9-18kg] car seat locked onto
the vehicle’s ISOFIX anchor points in conjunction with the car seat’s
integral 5-point harness.
b) “Universal” for use with just the vehicle’s 3-point safety belt.
. This is a “Universal” child restraint for groups ,3 [15-36kg]. It is
approved to ECE R44.04 ,For general use in vehicles and will fit most, but
not all, car seats.
3. A correct fit is likely if the vehicle manufacturer has declared in the
vehicle handbook that the vehicle is capable of accepting a Universal
child restraint for the stated age group.
4. This child restraint has been classified as UNIVERSAL under more
stringent conditions than those which applied to earlier designs which
do not carry this notice.
5. If in doubt, consult either the manufacturer or the retailer.
6. Only suitable if the approved vehicles are fitted with
3-point/static/retracting seat belts which are approved to ECE R16 or
equivalent.
7. This is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved to ECE
R44.04 for general use in vehicles fitted with ISOFIX anchorage systems.
8. It will fit vehicles with position approved ISOFIX attachment points
(consult the vehicle handbook), depending upon the category of the child
seat and of the ISOFIX fixture position.
9. The mass Group and the ISOFIX weight range for which this device is
intended is: Group 1 9-18kg, ISOFIX size class A.

1. GETTING STARTED
Read carefully before attempting to fit the child car seat
WARNING: NEVER leave your child unattended – your child’s safety is
your responsibility. WARNING: The child car seat must be fitted in
accordance with the manufacturer’s instructions. Incorrect installation
could be dangerous.
WARNING: This installation must only be performed by a competent
adult. Don’t try to install the seat when intoxicated or drowsy.
WARNING: Always ensure that new or occasional users [e.g.
Grandparents] have read the instructions or been taught the correct
installation by someone who has read and understood the instructions.
WARNING: Always keep this instruction manual with the child car seat,
or in the vehicle in which you are carrying the child car seat. Some
models of child car seat have a pocket to store the instructions.
WARNING: Do not fit the child car seat on a side or rear facing vehicle
seat.
WARNING: Before installing the child car seat ensure that the passenger
seat you are using is locked in the upright position.
WARNING: Do not use the child car seat in the home - it has only been
designed to be used in the car.
WARNING: Do not leave loose/unsecured objects on the back seat of
your car or the parcel shelf. They may be dangerous to your child if you
are forced to brake suddenly.
WARNING: Make sure that the child car seat is placed somewhere so that
rigid items and plastic
parts do not become trapped in doors or movable
seat units when the seat is in everyday use.
WARNING: Always use the vehicle’s door child safety lock system, if one
is available, to make it impossible for the child to open the car doors

from inside.
WARNING: Allow the child a break during long car journeys and make
sure they don’t get out of the car unaided and without supervision.
WARNING: The child car seat must be fitted securely to the passenger
seat. Ensure that it is not loose or wobbly after you have fitted it. If it is
loose, re-fit it.
WARNING: The child car seat must not be used without its original cover.
The original cover is essential for the safe operation of the child car seat.
WARNING: Stop the car at regular intervals to check that the child car
seat is in the correct position and that both the car seatbelt (if used) AND
the child car seat harness are still taut and latched.
WARNING: Ensure that no part of the child car seat is trapped in a door
or folding seat.
WARNING: In the event of an emergency it is important to be able to
release the child quickly. This means that the seat buckle cannot be fully
tamper proof and you should actively discourage your child from playing
with or using the buckle.
WARNING: If you travel with passengers using both the front and the rear
passenger seats, the lighter occupants should be in the rear and the
heavier occupants in the front.
WARNING: If you have no option other than to put your child car seat on
a rear passenger seat next to side airbags:
- Consult with your vehicle manufacturer for side airbag details. It may
not be safe.
- Make sure your child does not lean into the area immediately around
the airbag.
WARNING: Do not place anything under the child
car seat (e.g. A towel
or cushion) as this could affect the performance of the seat in an
accident.

WARNING: Avoid winter clothing bundling - bulky clothing can lead to
incorrect harness tightening. In an accident, the child can slip right out of
the extra padding - and thus out of the seat. Let the car warm up or cool
down prior to placing your child in there if possible. If your child is cold,
place a blanket over the top of the harness.
WARNING: Never use any load bearing contact points other than those
described in these instructions or marked on the child car seat.
WARNING: Ensure that the lap section of the harness is worn low down,
so that the pelvis is firmly engaged.
WARNING: Make sure that ALL the passengers in your vehicle have their
seatbelts fastened, as unrestrained people can be very dangerous to the
child in an accident.
WARNING: NEVER use a seatbelt routing scheme that differs from these
instructions.
WARNING: The harness must be used at all times when your child is in
the child car seat.
WARNING: If you are installing the child car seat using a seatbelt ensure
there are no twists in the seatbelt.
WARNING: Don’t leave your child in the child car seat while parked in
direct sunlight or on a hot day.
WARNING: Do not subject the child car seat to prolonged direct sunlight
as this may be dangerous for your child (the metal and plastic fittings
could become hot) and may cause the fabric to fade. You can reduce this
problem by covering the child car seat with a sheet when not in use.
WARNING: Ensure that the child car seat is as close as possible to the
backrest of the car seat.
WARNING: NEVER buy a second hand child car seat. It may have unseen
damage.
WARNING: The manufacturer only guarantees this product when the

original owner uses it.
WARNING: You MUST replace the child car seat and your vehicles
seatbelts if they becomes badly worn or damaged.
WARNING: You MUST replace the child car seat if it is involved in an
accident – it may have unseen damage and may not protect your child as
well as they should. At the very least send the child car seat to the
manufacturers for inspection, together with the accident report.
1.3 PART CHECKLIST
1.Headrest .Belt pad 3.Buckle 4. Harness adjuster buttom(under cover)
5. Adjuster strap 6.Isofix arms adjuster handle 7. Belt slots 8. Headrest
adjust button 9.Top tether hook 10.Harness belt 11.Connect plate
1 .Isofix arms

1.4 POSITIONING THE CAR SEAT
The child car seat MUST ONLY ever be used on a forward facing
passenger seat WITHOUT an active airbag.
Whilst in group 1 mode, the child car seat can only be installed using the
ISOFIX anchor points WITH the top tether. It MUST NOT be installed with
out the top tether whilst in group 1 mode.
Whilst in group and 3 modes, the child car seat can be installed using
the vehicle’s 3-point seatbelt.
WARNING! The top tether MUST NOT be used if installing the seat using
only the 3-point seatbelt. WARNING: Never attempt to use a -point
seatbelt to secure the seat.
WARNING: Never use on a seat with an active airbag.
WARNING: Never use on rearward or side facing vehicle seats.
If fitting the car seat using ISOFIX in group 1 mode, then your
vehicle MUST have top tether anchor points and you MUST use the top
tether system.
The top tether is not necessary in group & 3 modes .
The top tether MUST NOT be used for non-ISOFIX installation.
1. To check if you have ISOFIX points, eel between the joint of the
passenger seat back and passenger seat base (A) for two metal brackets

similar to (B). If unsure or in any doubt then consult your vehicle
manufacturer.
. Locate your vehicle
’
’’
’ s top tether anchor points. These may be either
located high up near a parcel shelf (Type 1), or low down on the vehicle
floor (Type ) or on the back of the passenger seat(Type 3).
WARNING! DO NOT attempt to use the car seat in group 1 mode without
a top tether. The top tether MUST be used in group 1 mode.

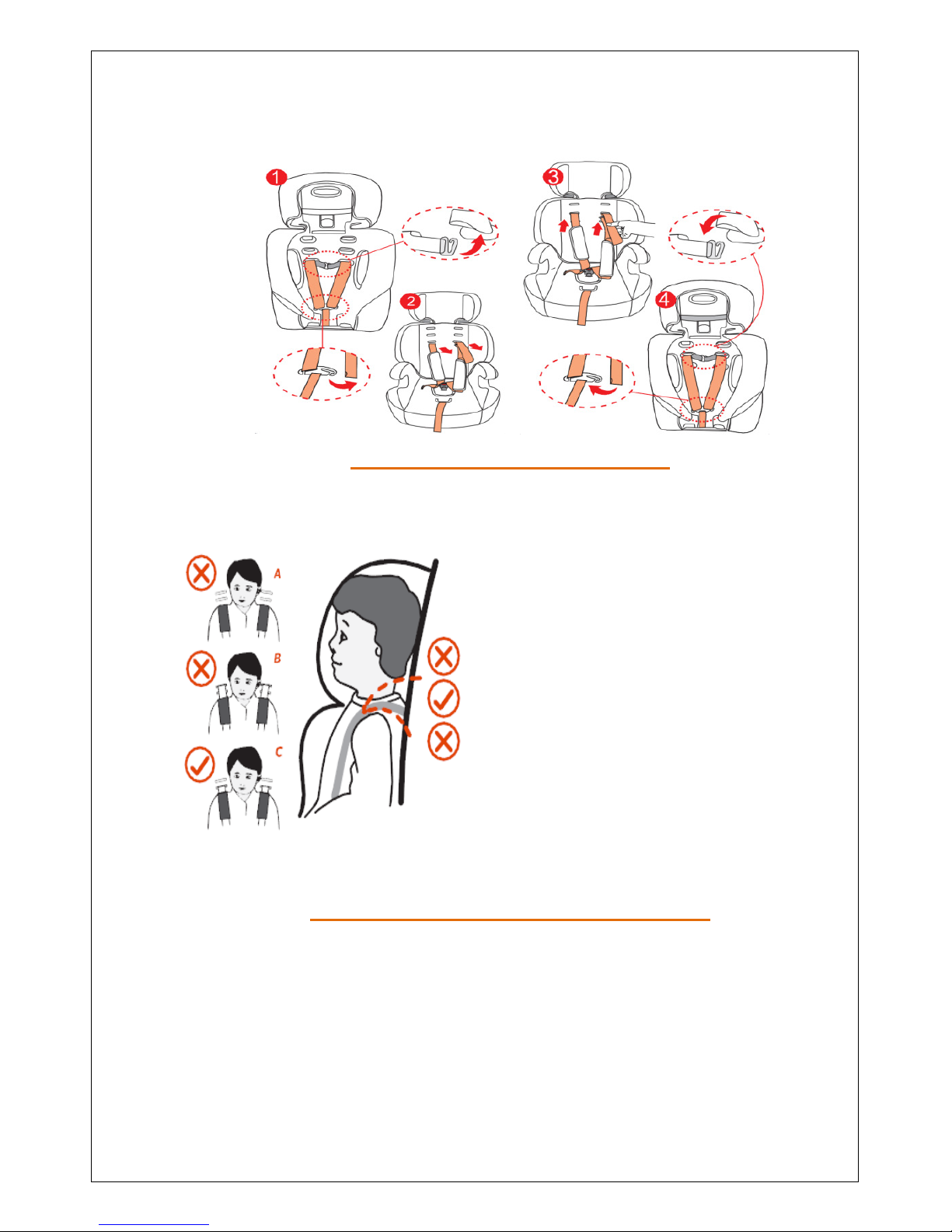

1.5 ADJUSTING THE HEAD/HARNESS HEIGHT
1.Remove the harness strap loops from the yoke.
.Pull the harness straps through the backrest.
3.Reinsert the harness straps through proper slots.Make sure both
straps are at the
same level and are not twisted.
4.Reassemble the harness strap loops on the yoke,Secure the shoulder
pad straps behind the backrest, pull the shoulder pads to make sure the
shoulder straps are fastened firmly.

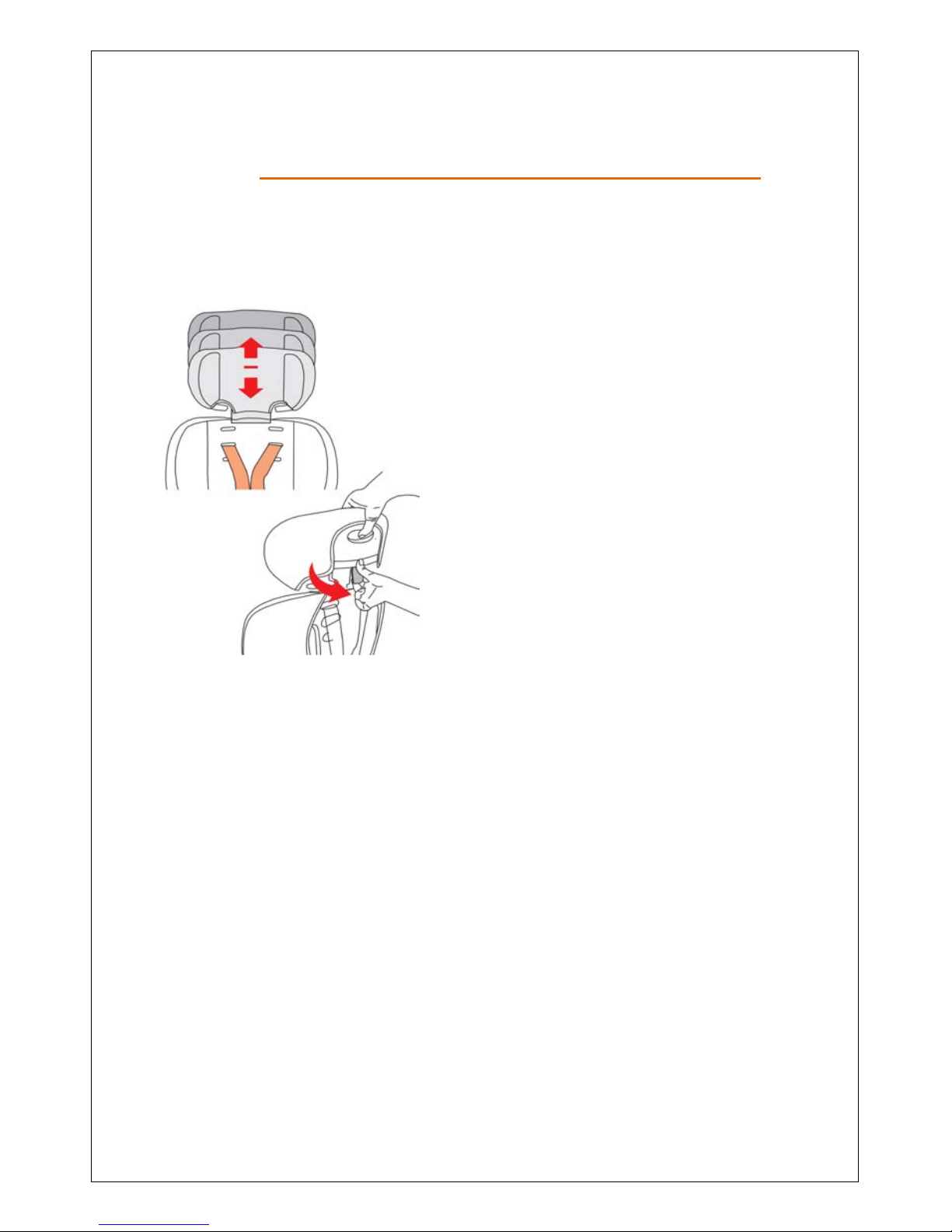

The headrest height can be adjusted by
pulling out the adjustment button and at
the same time pushing the headrest up
and down. Make sure the headrest is
locked into place.

1.6 FIVE POINT POSITIONING
1.7 REMOVE THE 5 POINT HARNESS
From the back of the carseat can release the velcro of the shoulder.
From the bottom of the carseat can take over the metal plate, then
remove all 5 point harness.
Remove the metal plate, need cut of the front of the webbing which has
already sewn.
Position the height of harness
according to the child’s
height.The harness straps
should be level with or just above
the child’s shoulders.Do not use
the child restraint
with the harness if thechild’s
shoulders are above the highest
slots in the backrest
or if the child’s weight exceeds
18kg.

1.8
ADJUSTING THE BUCKLE
1.Join the buckle metal connectors.
.Pass
both connectors through the slot in the upper part of the
until you hear a “click”.
3.
Always make sure the harness is properly fastened by pulling the
harness straps upwards.
4.
To unfasten the harness press the red button on the buckle
downwards.
1.9
TIGHTENING THE HARNESS
ADJUSTING THE BUCKLE
both connectors through the slot in the upper part of the
buckle
Always make sure the harness is properly fastened by pulling the
To unfasten the harness press the red button on the buckle
TIGHTENING THE HARNESS

1.10
LOOSING THE HARNESS
1.
The harness is loosened by pressing the
adjustment button of the
harness (under the
seat cover) at the front of the seat
.
Press the lever that is marked with “press”
down with one hand
while holding both harness
straps with your other hand.
3.
Pull the harness straps towards you to
loosen the harness.
4.
Be careful when adjusting the harness strap
not to trap the harness ad
justment strap when
you press the button down.
1.
Pull the harness straps up to remove the slack
from the lap section of the harness, then pull the
harness regulating strap until the harness is fully
stretched.
.
The harness should be as tight as possible
without causing
discomfort to your child.
3.
Make sure the lap section of the harness is
positioned as low as
possible, surrounding your
child’s hips and not his
stomach.
4.
A harness that is not properly tightened can be
dangerous. Checkthe harness adjustme
tighten whenever you put your child in the child
safety seat.
LOOSING THE HARNESS
The harness is loosened by pressing the
harness (under the
seat cover) at the front of the seat
.
Press the lever that is marked with “press”
while holding both harness
straps with your other hand.
.
Pull the harness straps towards you to
loosen the harness.
Be careful when adjusting the harness strap
justment strap when
you press the button down.
Pull the harness straps up to remove the slack
from the lap section of the harness, then pull the
harness regulating strap until the harness is fully
The harness should be as tight as possible
discomfort to your child.
Make sure the lap section of the harness is
possible, surrounding your
stomach.
A harness that is not properly tightened can be
dangerous. Checkthe harness adjustme
nt and
tighten whenever you put your child in the child

1.11 ADJUSTING THE ISOFIX
Pulling the red handle attached to the base meanwhile pull out both
ISOFIX arms as far as they will go.If you want to remove ISOFIX fitted,
Pulling the red handle attached to the base meanwhile pull in both
ISOFIX arms as far as they will go.
1.1 INSTALLING THE CAR SEAT AND PLACING
THE CHILD IN THE VEHICLE
Group 1 (9-18kg) with ISOFIX+Top tether, Universal use
WARNING! Your ISOFIX Group 1 car seat MUST be fitted using the Top
Tether strap provided!Your child’s safety cannot be guarant eed if you
install your ISOFIX Group 1 car seat without the top Tether strap.
1. Put the headrest of the car seat at its lowest position. old the Top
Tether strap over the back of the car seat so that it does not get trapped
during installation
. Extend the ISOFIX/EASYFIX connectors from the car seat as far as
possible by pulling simutaneously on the red handle on the base and the

red ISOFIX/EASYFIX system strap(Refer to 1.11).
3. Position the car seat on the rear seat of the vehicle bring the
ISOFIX/EASYFIX connectors in line with the seat’s ISOFIX anchor points .

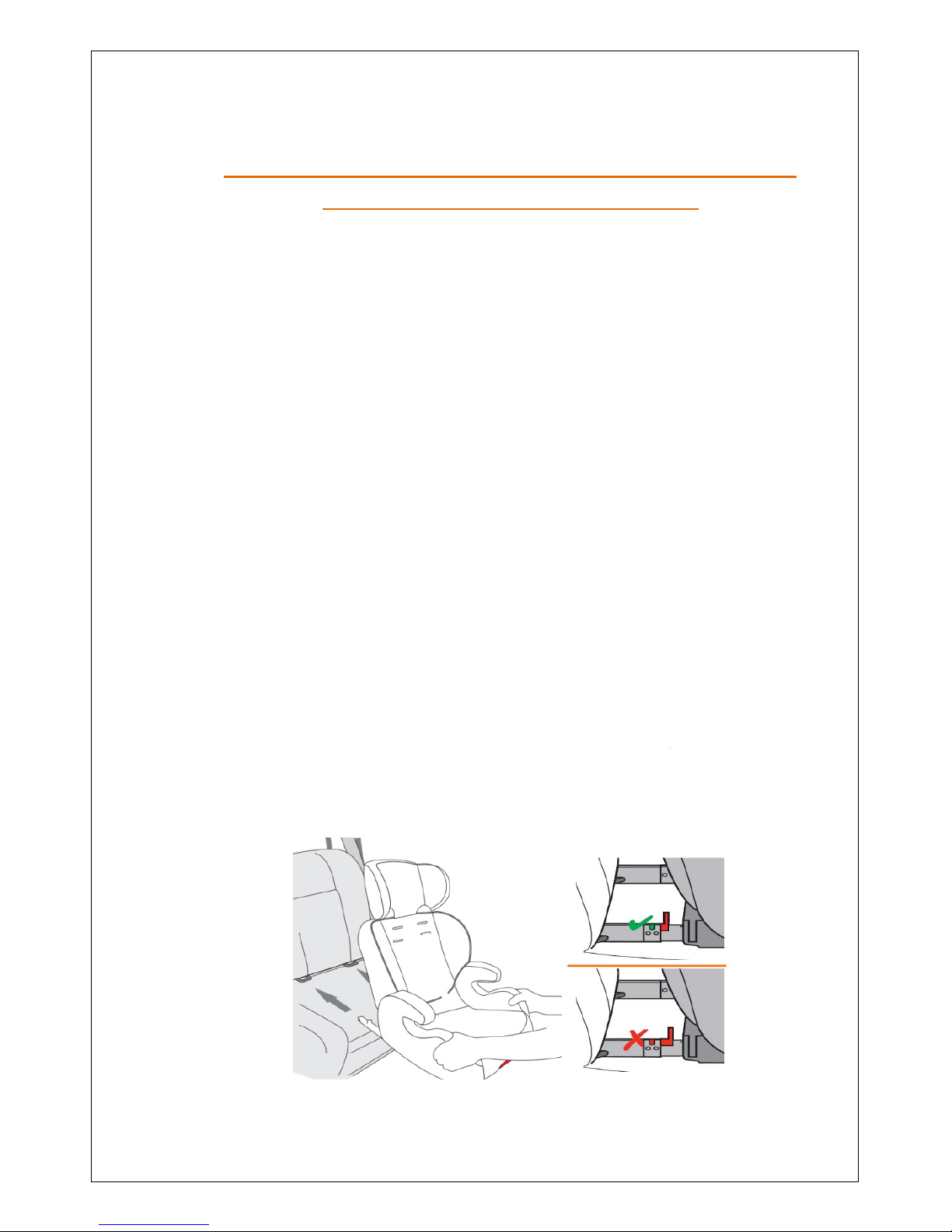

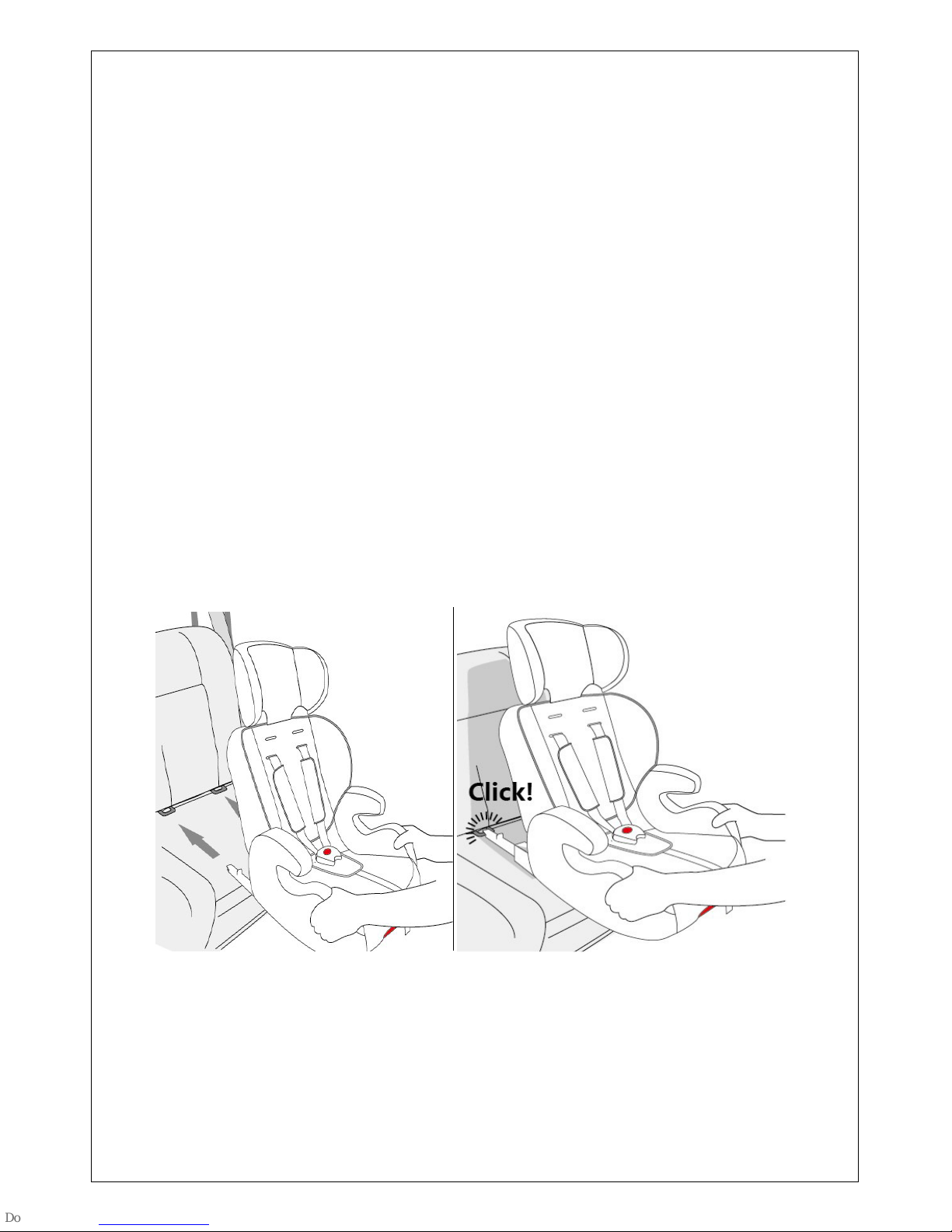

4. Click the ISOFIX/EASYFIX connectors into the anchor points; the
indicators on each connector should turn from red to green.
5. Release the safety catch of the ISOFIX/EASYFIX system by pulling the
red handle attached to the base and gently pushing the car seat until the
rear of the car seat is a pressed firmly against the vehicle seat.
7.Bring the top Tether strap over the vehicle seat and attach the clasp to
the vehicle's Top tether anchor point.
8.Push the car seat against the back of vehicle seat and pull on the loose
end of the top Tether strap.When the belt is fully tightened,the indicator
on the top Tether strap will tern from red to green.
9.Then,refer to 1.6/1.8/1.9 to place your child in the baby car seat.

10. If you want to remove ISOFIX fitted, Pulling the red handle attached to
the base meanwhile pull in both ISOFIX arms as far as they will go.
Group &3 (15-36kg) with 3-point Safety Belts, Universal u
se
Ensure the child car seat is correctly installed using either the ISOFIX
system or if no ISOFIX system is available, that the child car seat is
pushed firmly into the vehicle seat. If using the ISOFIX system to install
the car seat, then you may optionally use the top tether.If you are just
using the 3-point seatbelt to install the car seat, then you MUST NOT use
the top tether.
Please refer to 1.7 Remove the 5 point harness.

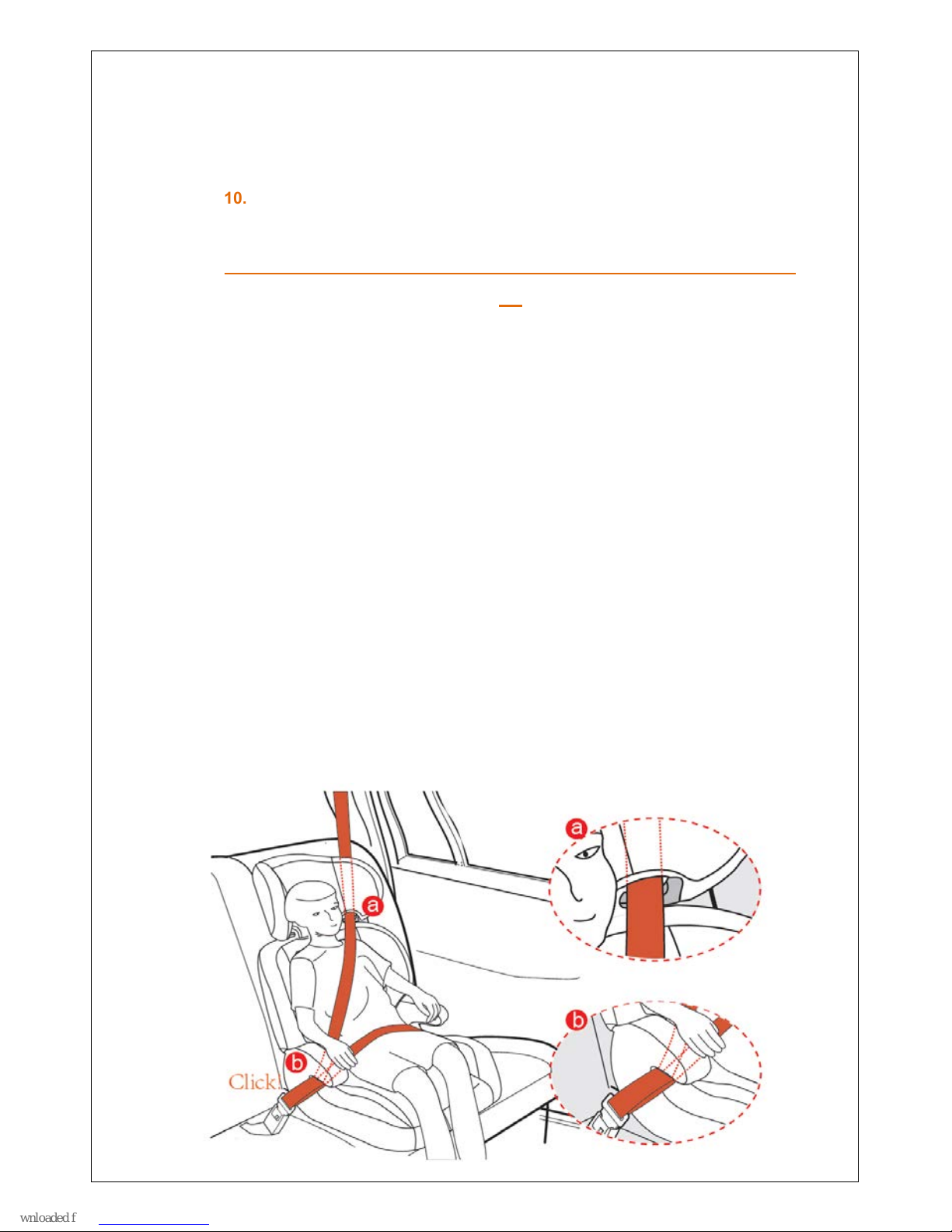

1.Put the child seat on a forward-facing vehicle seat.
.Position your child in the child car seat and place the shoulder belt
through the shoulder belt guide. The shoulder belt should pass over your
child’s shoulder and should not be against their neck.
3. Place the lap belt over your child’s lap and fasten the seatbelt ensuring
the lap belt is routed through both armrests and the shoulder belt passes
through the armrest nearest the buckle.It is ok when you hear the "Click".

Group &3 (15-36kg) with 3-
point Safety Belts + Additional
Attachments (FIT), Semi-
universal use
If you are just using the 3-point seatbelt
+additional attachments (FIT)
install the car seat, then you MUST
NOT use the top tether.
Please refer to 1.7
Remove the 5 point harness
1.Put the child seat on a forward-
facing vehicle seat.
.
Extend the ISOFIX/EASYFIX connectors from the car seat as far as
possible by pullin
g simutaneously on the red handle on the base and the
red ISOFIX/EASYFIX system strap(Refer to 1.11).
3.
Position the car seat on the rear seat of the vehicle bring the
ISOFIX/EASYFIX connectors in line with the seat’s ISOFIX anchor points
4.
Click the ISOFIX/EASYFIX connectors into the anchor points; the
indicators on each connector should turn from red t
o green
5
. Release the safety catch of the ISOFIX/EASYFIX system by pulling the
red handle attached to the b
ase and gently pushing the car seat.

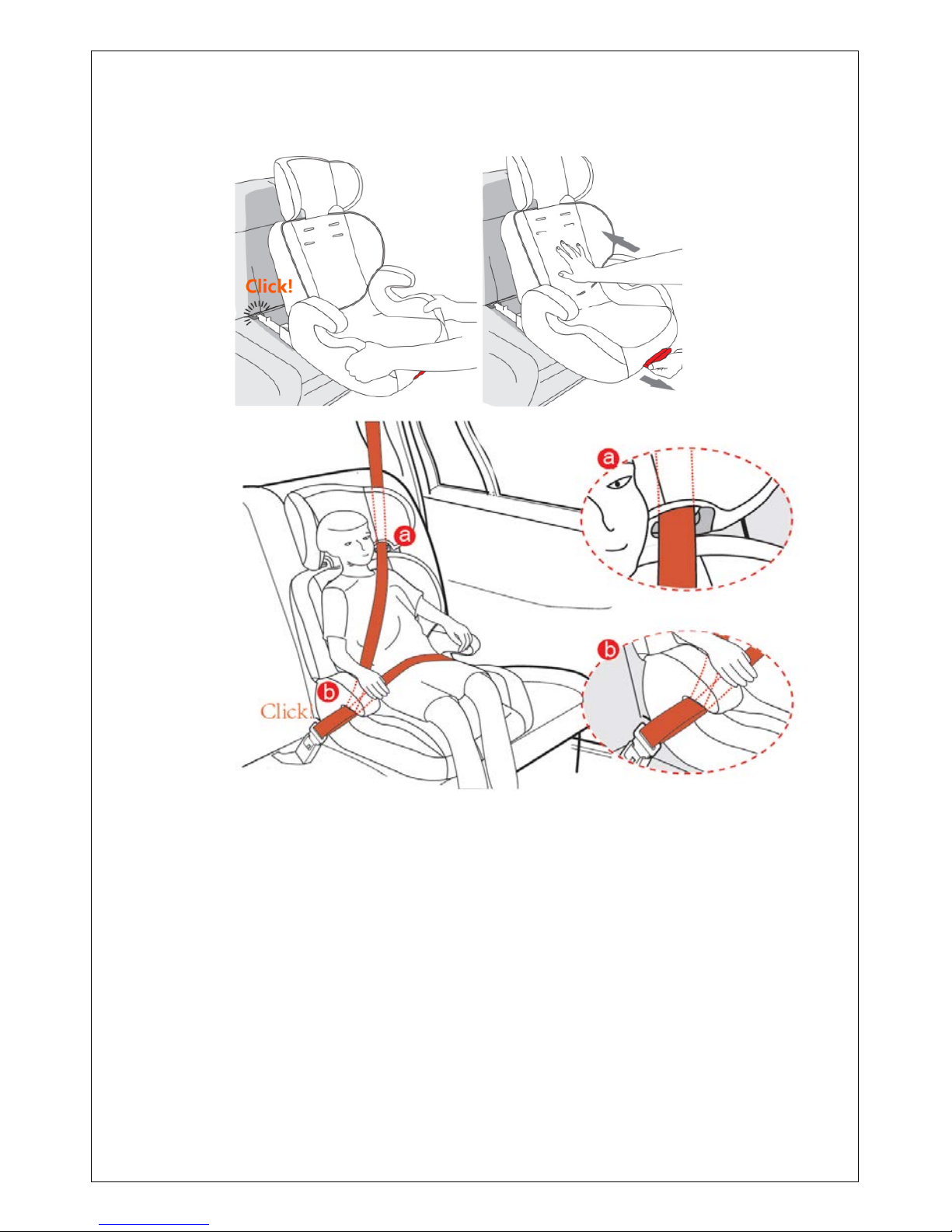

6.Position your child in the child car seat
and place the shoulder belt
through the shoulder belt guide. The
shoulder belt should pass over your
child’s shoulder and should not be against their neck.
7.
Place the lap belt over your child’s lap and fasten the seatbelt ensuring
the lap belt is routed through both armrests and the shoulder belt passes
through the armrest nearest the buckle
.It is ok when you hear the "Click".
point Safety Belts + Additional
universal use
+additional attachments (FIT)
to
NOT use the top tether.
Remove the 5 point harness
.
facing vehicle seat.
Extend the ISOFIX/EASYFIX connectors from the car seat as far as
g simutaneously on the red handle on the base and the
Position the car seat on the rear seat of the vehicle bring the
ISOFIX/EASYFIX connectors in line with the seat’s ISOFIX anchor points
.
Click the ISOFIX/EASYFIX connectors into the anchor points; the
o green
.
. Release the safety catch of the ISOFIX/EASYFIX system by pulling the
ase and gently pushing the car seat.
and place the shoulder belt
shoulder belt should pass over your
Place the lap belt over your child’s lap and fasten the seatbelt ensuring
the lap belt is routed through both armrests and the shoulder belt passes
.It is ok when you hear the "Click".

REMOVING THE COVER
Remove the headrest cover.
Remove the backrest cover.
Remove the cushion cover`.
CARE & MAINTENANCE
1) Store this child car seat in a safe place when not in use.
)DO NOT place heavy objects on top of it.
3) Always store the child car seat in a dry environment.
4) DO NOT store the child car seat near a direct heat source such as a
radiator.
5) The seat cover is easily removable and should be hand washed with a
pH neutral soap and cold water.
6) Do not press, iron, dry clean, tumble dry or wring the covers.
7) Do not use solvents, caustic or abrasive cleaning materials.
8) Dry flat, away from direct heat and sunlight.
9) If the seat covers need to be replaced only use parts certified by the
manufacturer. They are the only ones that are guaranteed to have been
safety tested and designed to fit this seat.
10) You must not remove, dismantle or alter any part of the seat shell.

11)You must not oil or lubricate any part of the seat shell.
1 ) The child car seat may have a slight rattle when not in use, this is
normal. If in any doubt, contact distributor immediately.
13) Check the adjustable parts of your child seat at intervals of about 6
months to ensure it is still fits correctly for your growing child.
