Xomax XM-K1 User manual

Car Seat
Instruction Manual
GROUP 1, 2, 3
Suitable for Children
9-36kg
INSTRUCTIONS
ABOUT COVER
DO NOT use the this car seat without the car seat cover.
The cover can be removed for cleaning,but not recommend for constant
remove.Once you removed the cover,you should install it per the original
structure and make sure no component is missing or incorrectly installed.
Spot clean with mild soap and warm water.
No bleach,solvent or powerful soap.
.
DO NOT detach,remove or change any structure and component of baby
seat cover or harness system.
.DO NOT add any lubricant or other chemical agent on the seat cover and
harness system.Shoulder pad and crotch pad is hand washonly (<30°warm)
and dry flat.DO NOT dry clean or tumble dry and away from direct heat.

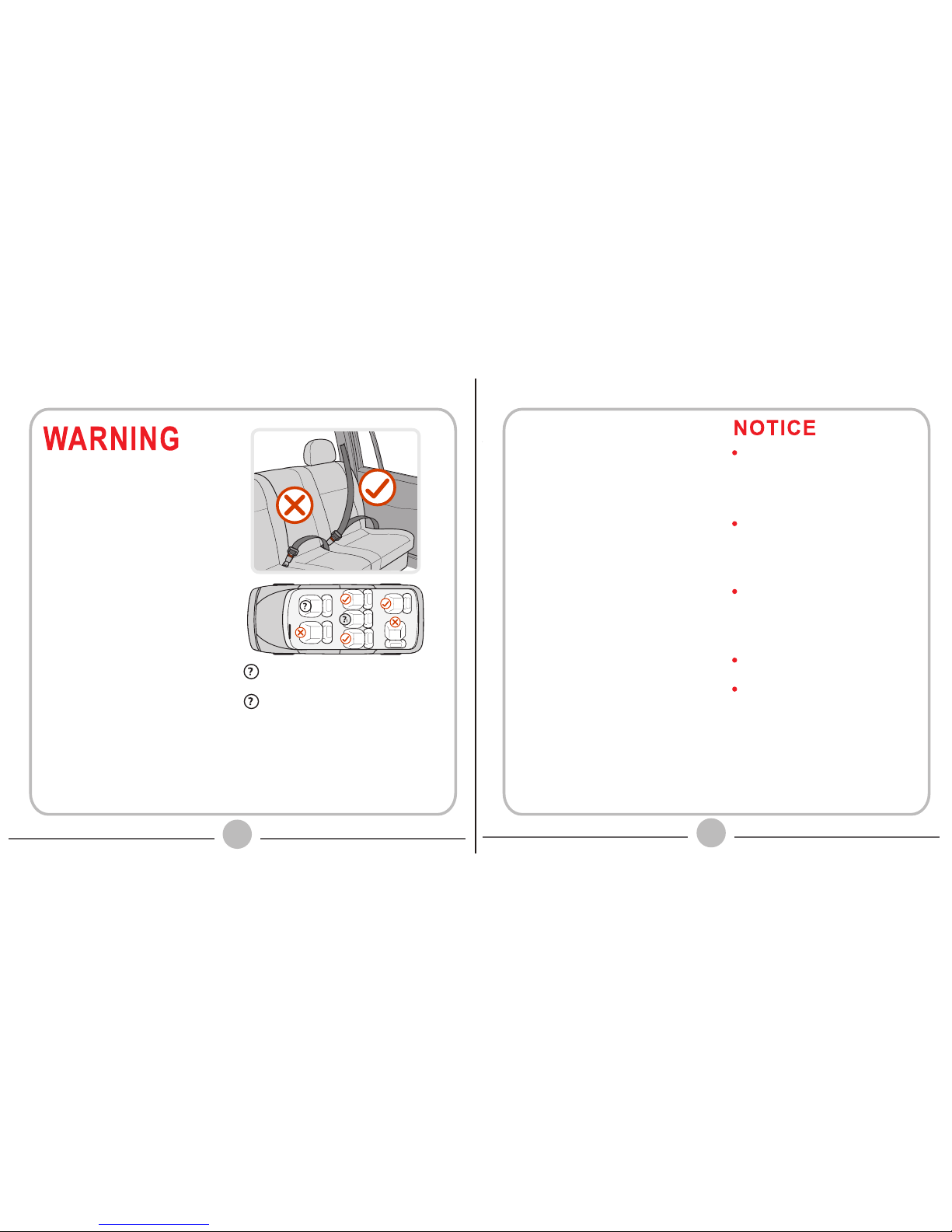

WARNING
Please read all instructions in this manual carefully before using.
Please retain this instruction manual for future use.
The child seat MUST be used with 3 point vehicle seat belt when used
as child restraint with harness.
Please use this car seat with great caution if your car equipped with SRS.
DO NOT use a second-hand child car seat or assign this type of products.
DO NOT put this car seat on high place.
HAND WASH ONLY (30
O
Warm)
Use Mild Detergent
Do not Iron, Dry Clean, Bleach or Tumble Dry
Dry flat - away from direct heat
DO NOT USE BLEACH, ABRASIVE
OR UPHOLSTERY CLEANING AGENTS
Made for STEL Multimedia GmbH,
Paewesiner Weg 20,
13581 Berlin,
GERMANY Read all instructions before using this child restraint,keep instructions for
future use.If these instructions are not followed, the safety of a child may
be severely endangered.

This is a “Universal” child restraint.
It is approved to Regulation No.
44, 04 series of amendments, for
general use in vehicles and it will
fit most, but not all, car seats.
A correct fit is likely if the vehicle
manufacturer has declared in the
vehicle handbook that the vehicle
is capable of accepting a “Universal”
child restraint for this age group.
This child restraint has been classified
as “Universal” under more stringent
conditions than those which applied
to earlier designs which do not carry
this notice.
If in doubt, consult either the child
restraint manufacturer or the retailer.
Only suitable if the approved vehicles
are fitted with 3 point safety belt,
approved to UN/ECE Regulation
No. 16 or other equivalent standards.
12
! Important! Please read all
instructions in this manual and
in the vehicle owner’s manual
related to child safety seats
carefully and understand them.
Install and use the child safety
seat as described in the instruction
manual. Failure to do this could
result in serious injury or death
of yout child. The instructions
shall be retrained with the child
restraint for the future use.
!DO NOT remove any labels on
the child safety seat. Important
information is contained on the
labels.
!DO NOT use a child safety seat
with damaged or missing parts.
!DO NOT use damaged or frayed
harness straps or vehicle belt.
!DO NOT modify or attempt to
modify the child safety seat in
any way.
Only suitable for the seat without
active airbag.
Only suitable for the seat with 3
point belt. Can not be used on seat
with 2 point lap belt.
! DO NOT USE in any configuration
not shown in the instructions.
2
1
2
! Make sure the adult safety-belt
buckle do not contact or interfere
with the main load bearing contact
points on the car seat,contact the
child restraint manufacturer if in doubt
about this point.
!This child seat must be used with
aharness system suitablefor children
of 9kg to 18kg in weight(approx.9
months to years of age).
!This child seat can be used without
harness for children of 15kg to 36kg
(approx,4years to 12years of age).
!DO NOT use belt routing methods
not shown in these instructions.
!DO NOT use any load bearing
contact points other than those
described in the instructions and
marked in the child restraint.
!DO NOT allow children to play with
or adjust the child safety seat. Always
check the tightness of the restraint
and the harness before each use.
The straps holding the restraint to the
vehicle should be tight, that any straps
restraining the child (harness) should
be adjusted to the child's body, and
that straps should not be twisted.

Setup

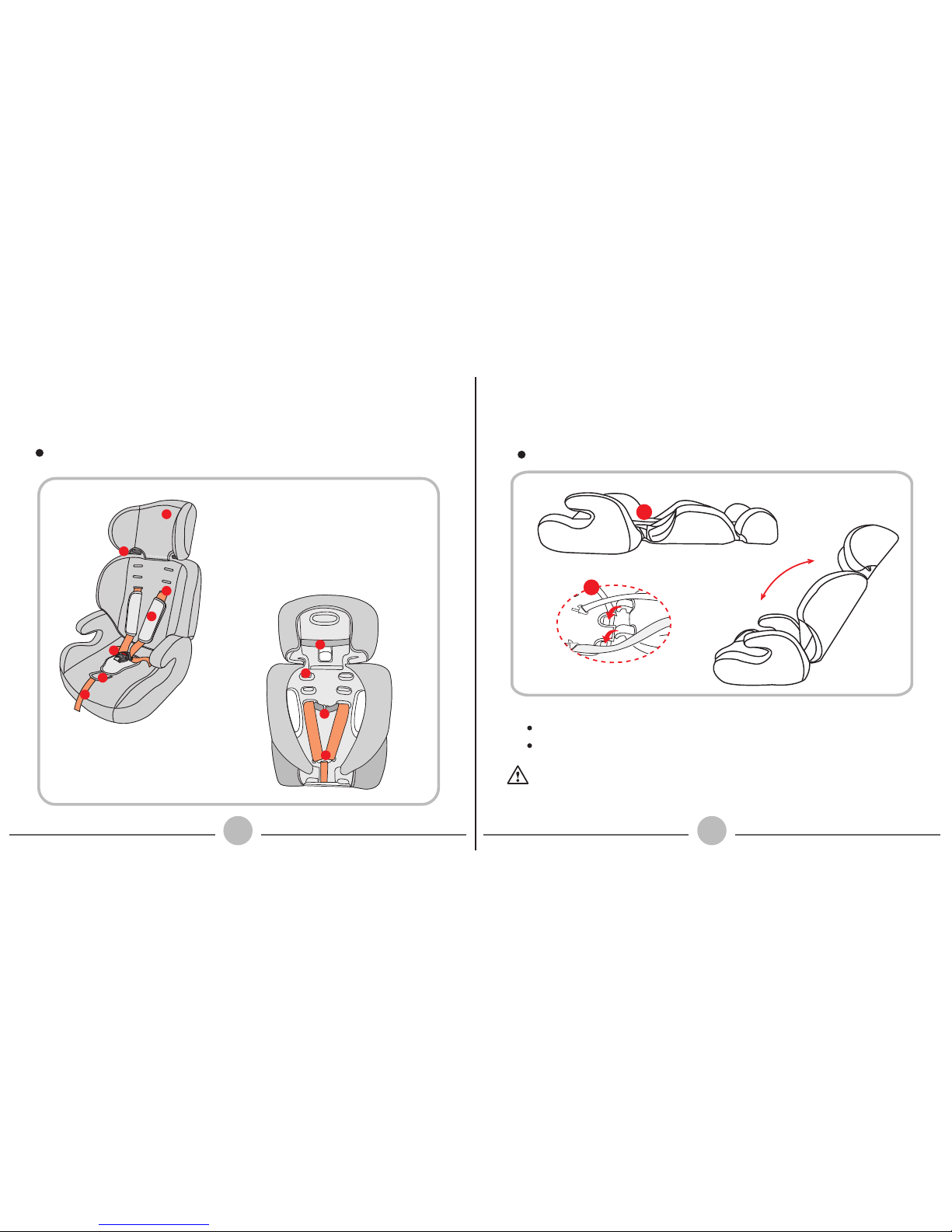

Parts List
34
XOMAX XOMAX
1.Headrest
2.Belt guide
3.Harness strap
4.Harness pad
5.Harness buckle
7.Headrest strap
8.Seat
9.Harness slots
10.Metal yoke
11.Headrest adjust button
12.
1
6
7
3
4
11
9
10
12
5
2
6.Harness adjuster buttom(under cover)
Lift backrest,push the hook into slots of booster seat.
click the backrest into slots of booster seat.
Pull the backrest to make sure the booster seat are
installed firmly.
a
a

56
XOMAX
XOMAX
Adjusting Harness Height Adjusting Harness
Length Five Point Harness Positioning
2
a
3
4
b
a
156
5.Press the harness adjuster button and at the same time pull bothharness straps.
6.Position the height of harness according to the child’s height.The harness straps
should be level with or just above the child’s shoulders.Do not use the child restraint
with the harness if thechild’s shoulders are above the highest slots in the backrest
or if the child’s weight exceeds 18kg.
1.Remove the harness strap loops from the yoke
2.Pull the harness straps through the backrest.
3.Reinsert the harness straps through proper slots.Make sure both straps are at the
same level and are not twisted.
4.Reassemble the harness strap loops on the yoke,Secure the shoulder pad straps
behind the backrest, pull the shoulder pads to make sure the shoulder straps are
fastened firmly.
a

a
ba
78
XOMAX
XOMAX

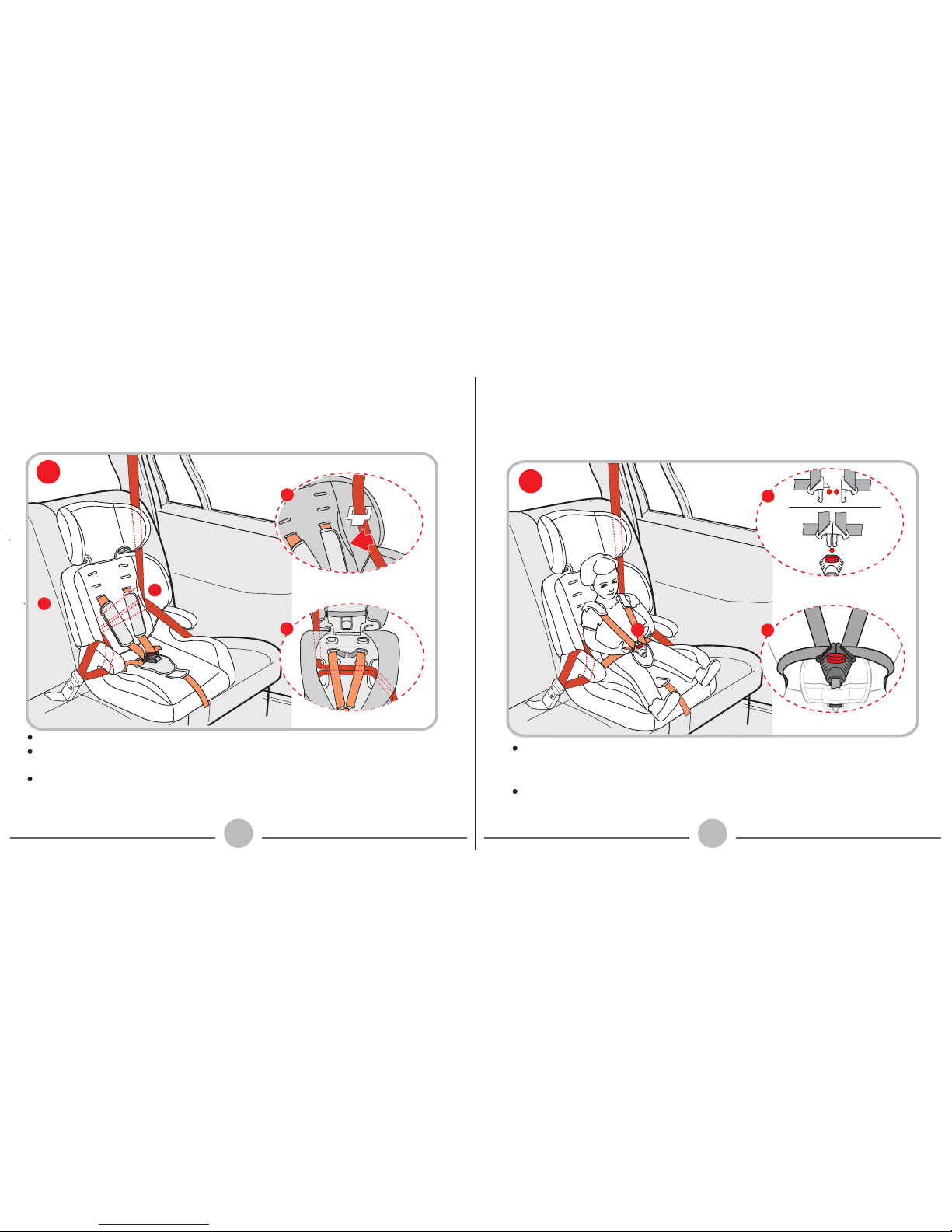

Child restrant with harness (9-18kg child)
a
b
a
a
79
Put the child restraint onto a forward-facing vehicle seat .
Route the vehicle belt latch plate ,from the front of the child restraint towards the
back through the slot of the front of the backrest .
Route the belt around the back of child restraint, below the harness, and then out
from the slot on the other side. Route the vehicle belt between the harness and the
backrest.Make sure to route the lap belt under the armrest . Buckle the vehicle latch
plate into the vehicle buckle.
Pull the vehicle belt as shown to remove all the slack.push the red button to
release the harness buckle,move the harness straps to the side and place the
child in the child restraint.Then place harness straps on the child’s shoulders.
Make sure that the harness is not twisted and lies over the center of the childs
shoulders.Combine the buckle tongues to form one tongue and insertinto the
harness buckle.You will hear a click.

Adjusting Headrest Height
ab
b
910
XOMAX
XOMAX
Remove the 5 point harness
10
d
cd
From the back of the carseat can release the velcro of the shoulder.
From the bottom of the carseat can take over the metal plate, then remove all 5
point harness.
Remove the metal plate, need cut of the front of the webbing which has already
sewn.
a
The headrest height can be adjusted by
pulling out the adjustment button and at
the same time pushing the headrest up
and down. Make sure the headrest is
locked into place.
！DO NOT use 2 point vehicle
belts to install this child seat.
! Route the vehicle belt
BETWEEN the backrest and
harness straps,The vehicle
belt must not be over the
harness straps.(See7 pic )
!DO NOT route the vehicle
belt using any other path when
using this child seat with the
harness,For assistance contact
your retailer or child restraint
manufacturer.
a
c
9

b
a
11
11 12
XOMAX
XOMAX
a
b
Child Restraint without Harness (15-36kg Child)
Put the child seat on a forward-facing vehicle seat.
Adjusting Headrest Height(See 9 pic).
Have the child sit on the booster seat so their back contacts the backrest from
shoulders to bottom.
REMOVING THE COVER
Remove the headrest cover.
Remove the backrest cover.
Remove the cushion cover.

13 14
XOMAX
XOMAX

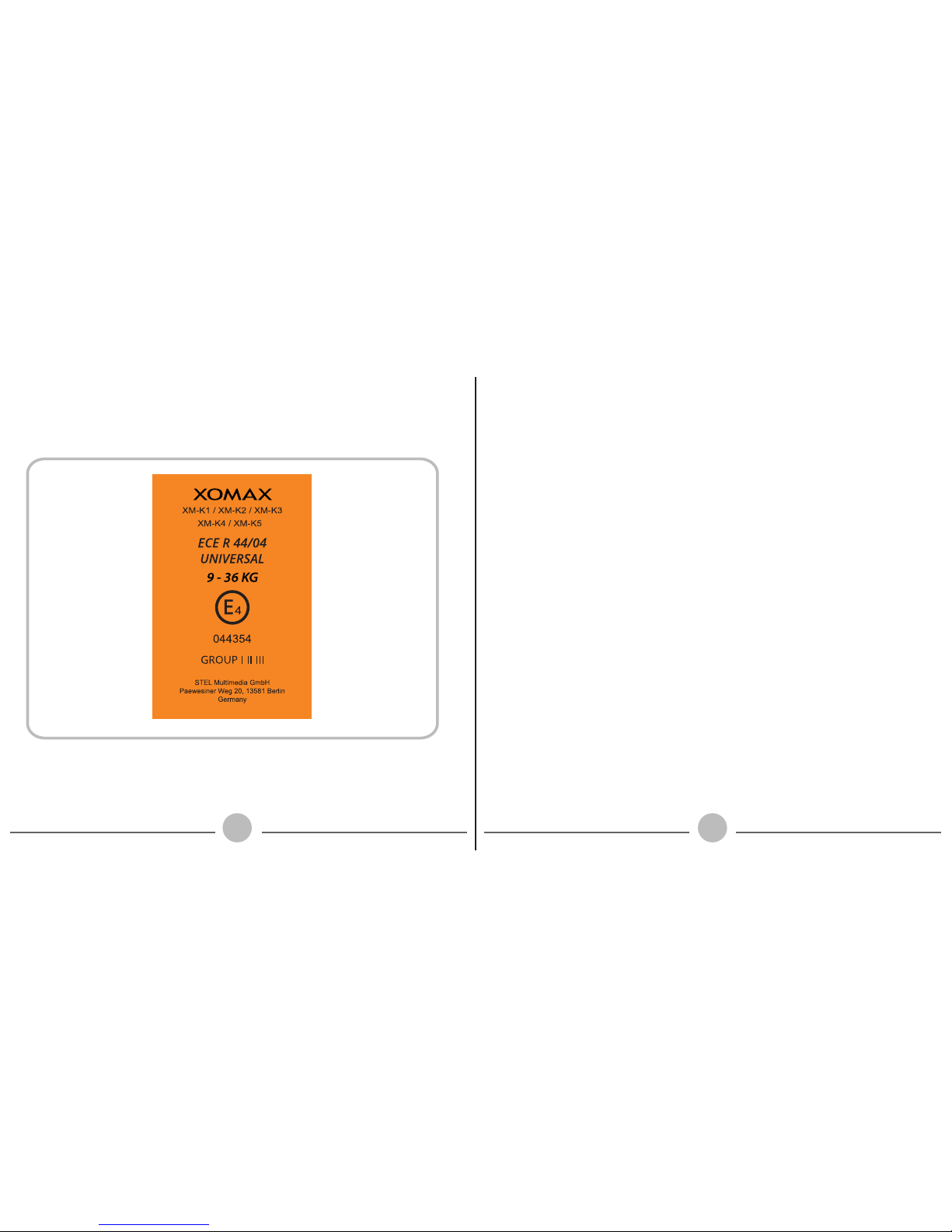

Approval
