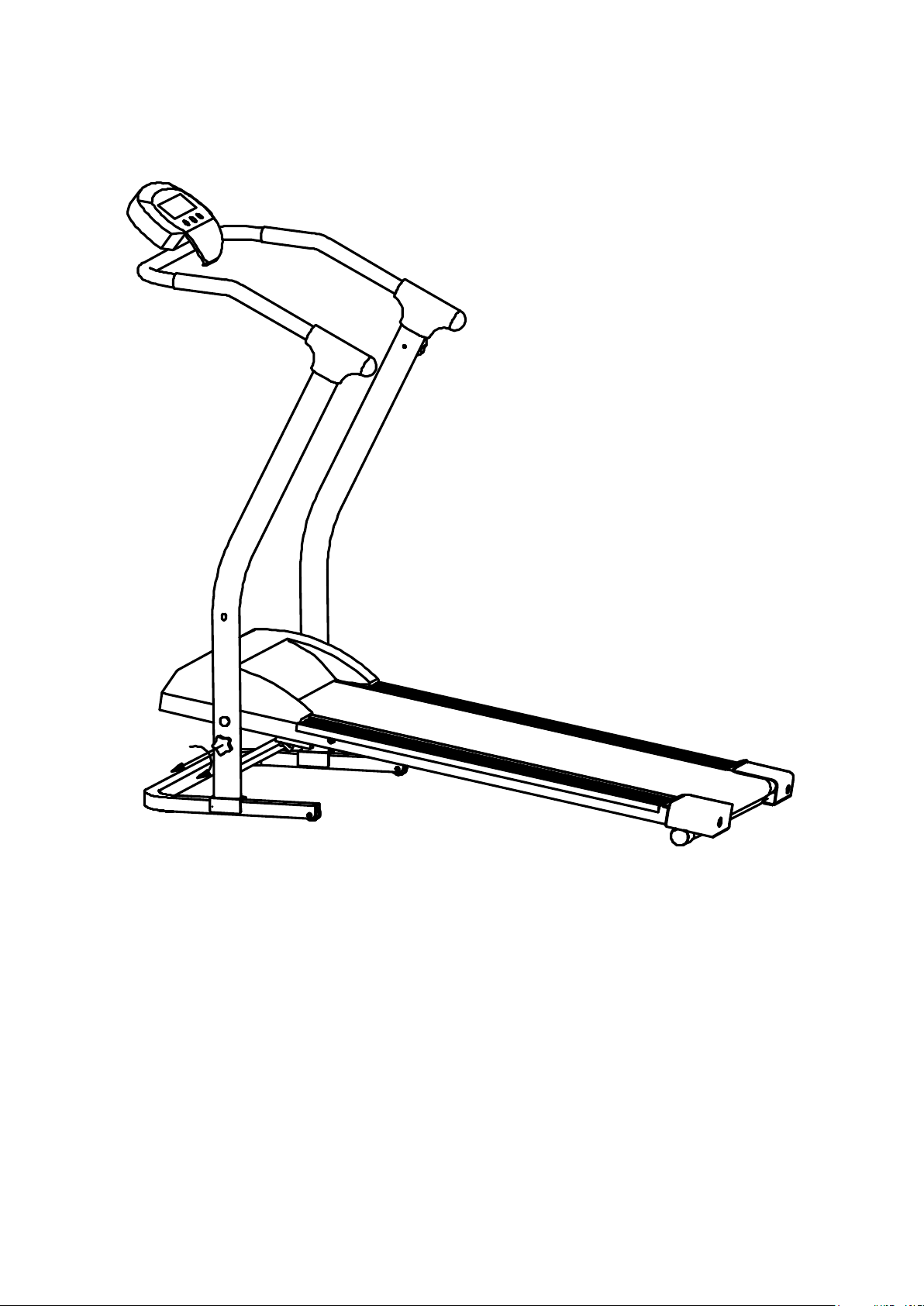

Xplore Blaze User manual

1
USER’S MANUAL
http://www.body--sculpture.com
http://www.body--sculpture.com

2
http://www.body--sculpture.com
Important Safety Information
Please keep this manual in a safe place for easy reference.
1. It is important to read this entire manual before assembling and using the equipment.
Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
2. Before starting any exercise program you should consult your doctor to determine if
you have any medical or physical conditions that could put your health and safety at
risk, or prevent you from using the equipment properly. Your doctor's advice is
essential if you are taking medication that affects your heart rate, blood pressure or
cholesterol level.
3. Be aware of your body's signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, extreme shortness of breath,
lightheadedness, dizziness or feelings of nausea. If you do experience any of these
conditions you should consult your doctor before continuing with your exercise
program.
4. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
5. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 0.5 meters of free space
all around it.
6. Before using the equipment, check that the nuts and bolts are securely tightened.
7. The safety of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear.
8. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during use, stop immediately. Do not use the equipment until the
problem has been rectified.
9. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that
may get caught in the equipment or that may restrict or prevent movement.
10. The equipment has been tested and certified to EN957 under class H.C. Suitable for
home use only. Maximum weight of user: 100kg. Braking ability is independent of
speed.
11. The equipment is not suitable for therapeutic use.
12. Care must be taken when lifting or moving the equipment so as not to injure your
back. Always use proper lifting techniques and/or seek assistance if necessary.

2
EXELODED-VIEW ASSEMBLY DRAWING
28
28

3
PART LIST
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1
MAIN FRAME
1
31
COMPUTER SENSOR WIRE
1SET
2
REAR ROLLER
1
32
BOLT M5*25
8
3
PLASTIC WASHER
4
33
LEFT SIDE HANDLE POST
1
4
STEEL END
2
34
SPRING
1
5
BOLT M6
2
35
RUNNING BOARD
1
6
REAR END CAP(L/R)
2
36
RUNNING BELT
1
8
REAR AXLE
1
38
COVER
1
9
END CAP
2
39
FRONT AXLE
1
10
SIDE RAIL
2
40
FRONT ROLLER
1
11
T TYPE PLUG
2
43
HANDLEBAR GRIP
2
13
BOLT M8*45
1
44
COMPUTER MOUNT BRACKET
1
16
BOLT M6*35
1
46
BOLT M4*10
4
17
NUT M6
1
47
BOLT M5*10
2
18
BASE OF TIIE MAGNET
1
A
BOLT M8*50
4
19
NUT M8
2
B
WASHER Φ8
4
20
BOLT M8*40
2
C
BOLT M5*10
2
21
PLASTIC WHEEL
2
D
NUT M8
4
23
BOTTOM FRAME
1
F
BOLT M8*50
2
24
RIGHT SIDE HANDLE POST
1
G
WASHER Φ8
2
25
TENSION KNOB
1
H
BOLT M8*45
4
26
BOLT M5*20
1
I
BOLT M4
4
28
COVER OF HANDLE(R)
1
J
KNOB M8
1
28
COVER OF HANDLE(L)
1
K
WRENCH
1
29
HANDLEBAR
1
N
WRENCH S5
1
30
COMPUTER
1

4
PART LIST
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1
MAIN FRAME
1
29
HANDLEBAR
1
23
BOTTOM FRAME
1
30
COMPUTER
1
24
RIGHT SIDE HANDLE POST
1
33
LEFT SIDE HANDLE POST
1
28
COVER OF HANDLE(R)
1
38
COVER
1
28
COVER OF HANDLE(L)
1
44
COMPUTER MOUNT BRACKET
1
28R-L
28R-R

5
Notice
Read this manual before assembly
Recognize the spare parts first
Check the hardware
Ensure that you have the right tools
Prepare an area to assemble
Follow the instruction accordingly
Never force the joints
Periodically tighten the joints

6
6

7
ASSEMBLY INSTRUCTION
Φ8
STEP 1
Open the carton, get the above parts out and put the bottom frame (23) on the level ground.
Attach right side handle post (24) and left side handle post (33) onto bottom frame (23) and
fasten with M8*50 bolts (A), washers (B) and M8 nuts (D).

8
STEP 2
Before you assemble the tension cable, please make sure that it is at the level 8
Insert M5*10 bolt (C), M8 nut (D), M8*50 bolt (F), nut (E) onto tension cable
Mount the magnetic tension adjusting set onto bracket and fasten with M8*50 bolt (A) and
washer (B)
Before you assemble the
tension cable, please
make sure that it is at the
level 8

9
STEP 2 -1
The assembly step for magnetic tension adjusting set:
Insert M5 bolt*10 (C) and M8*50 (A) through the bracket (Note: lay the tension cable under
the main frame)
STEP 2 -2
Pull tension cable downward
Insert M8*50 bolt (F) into the bracket

10

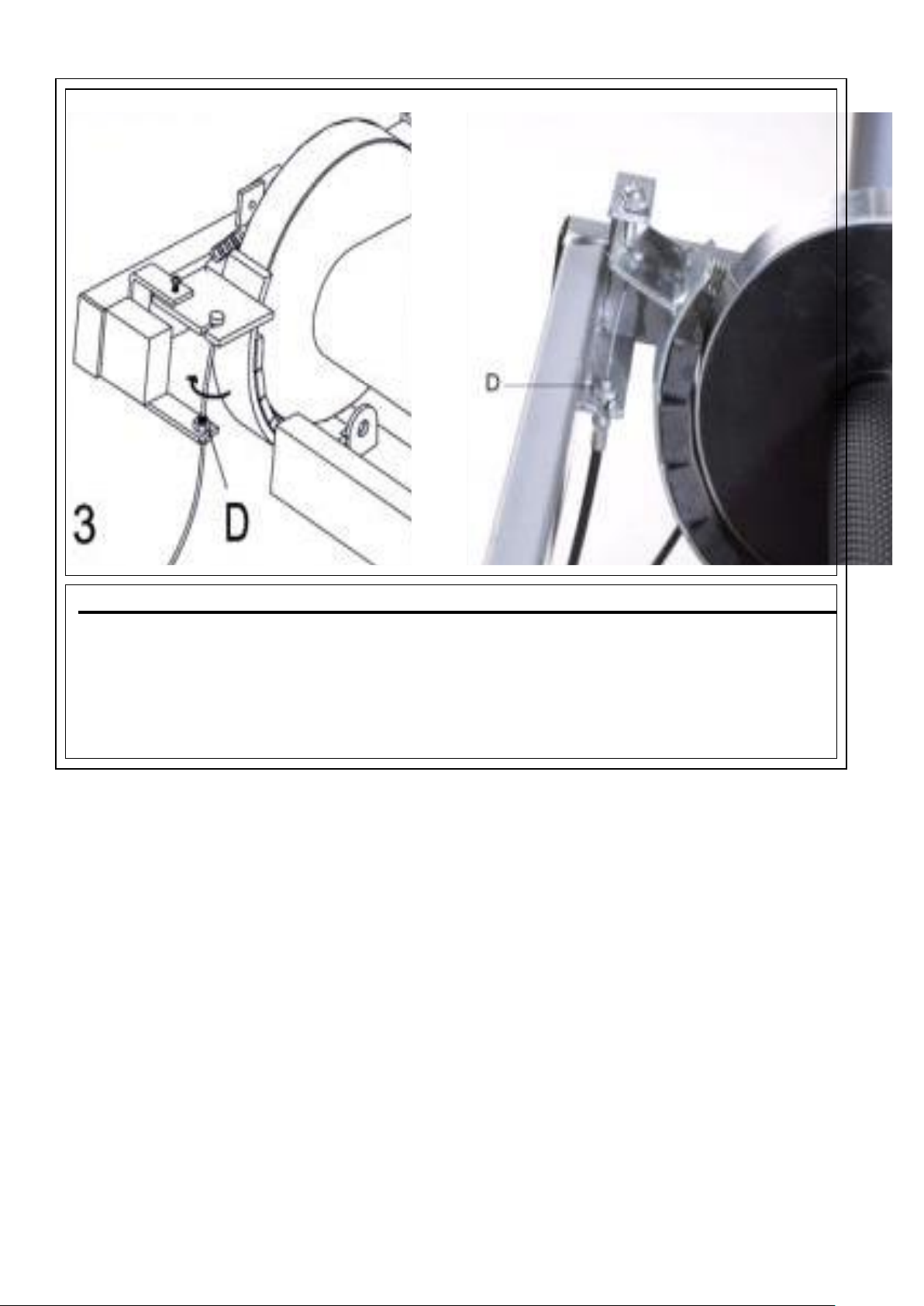

STEP 2-3
Revolve M8 nut (D) as the drawing direction in order tighten the parts well

11
# 46 M4*10L 4PCS
#46 M4

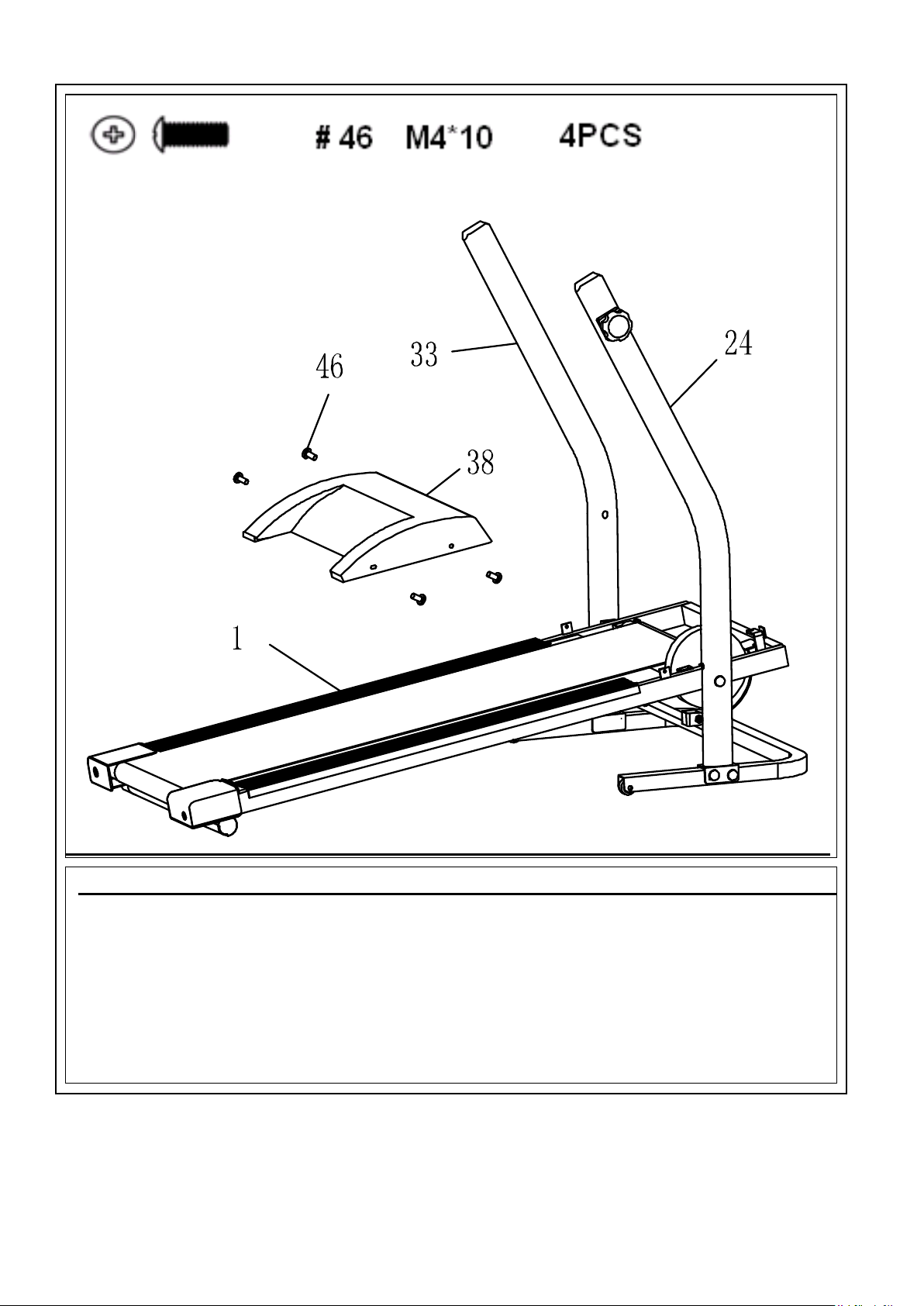

STEP 3
Attach main frame (1) onto right side handle post (24) and left side handle post (33)
Attach cover (38) onto main frame (1) and fasten with M4*10 bolts (46)

12

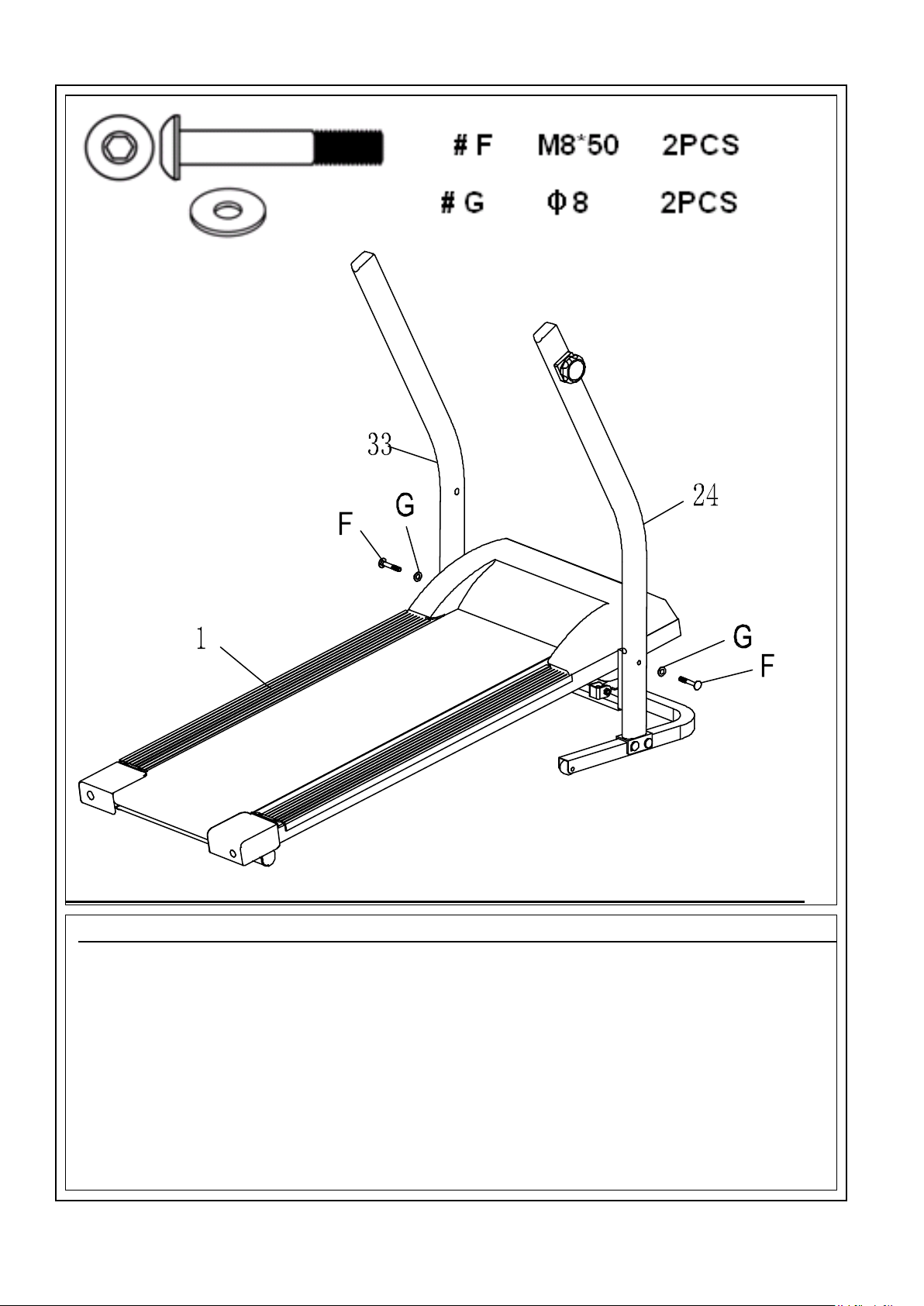

STEP 4
Fasten right side handle post (24) and left side handle post (33) onto main frame (1) with
M8*50 bolts (F) and washers (G)

13
STEP 5
Connect computer sensor wires (31) together
Attach handlebar (29) onto handle posts, and fasten with M8*45 bolts (H)

14
STEP 6
Attach covers of handle L,R (28) onto handlebar and fasten with M4 bolt (I)
Attach computer mount bracket (44) onto handlebar and fasten with M5*10 bolt (C)
28
28

15

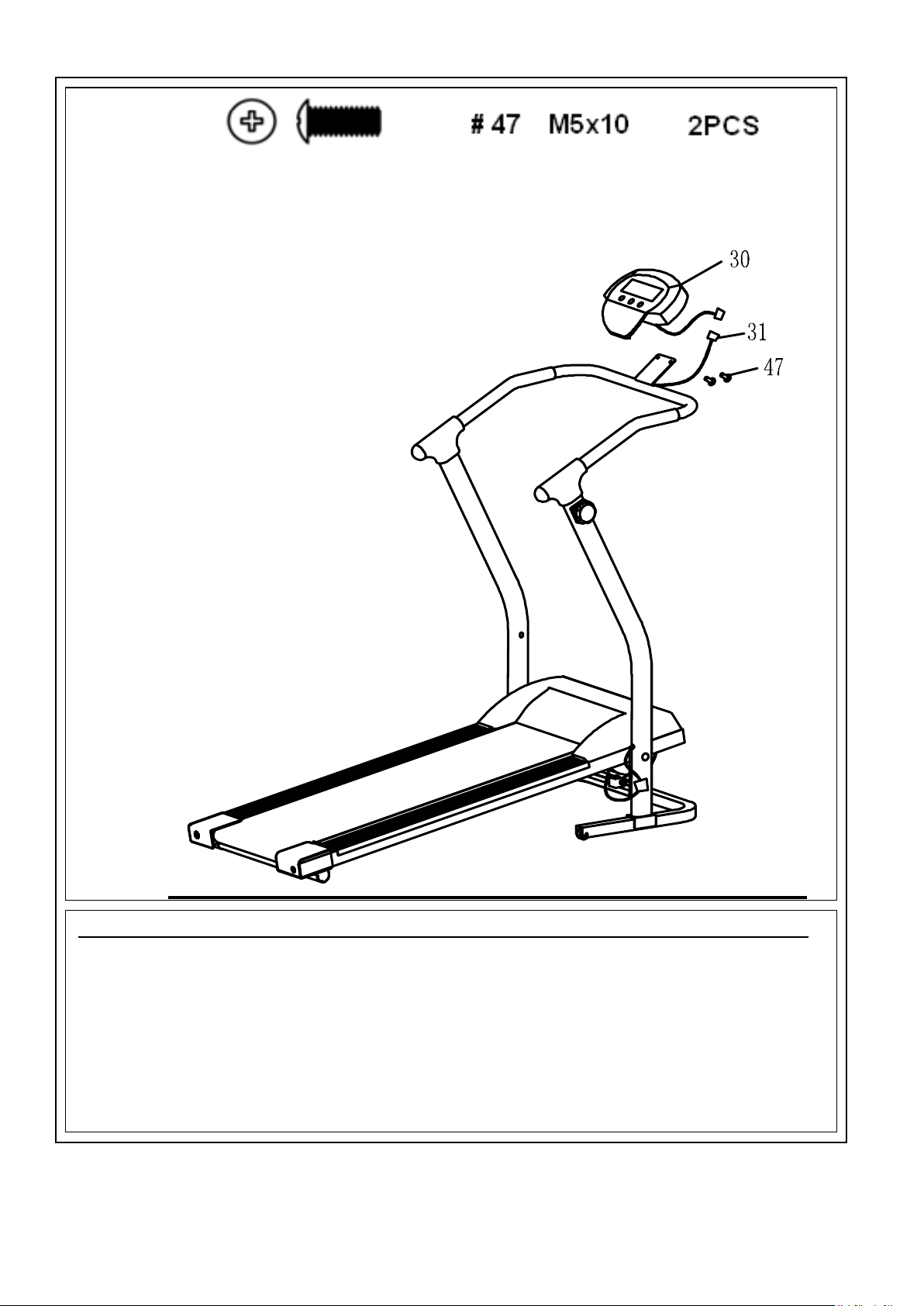

STEP 7
Connect computer sensor wires (31)
Attach computer (30) onto computer mount bracket (44) and fasten with M5*10 bolts (47)

16
STEP 8
Insert M8 knob (J) to secure the platform

17
FOLDING INSTRUCTION
Please loosen knob(J) completely before folding the treadmill. Then lift the NO.1 Main frame to
the upright position and use knob(J) to fasten it tightly to prevent any accident in advance

18
THE TENSION ADJUSTMENT ON THE MACHINE
The tension power has a great influence on the effect of the exercise, such as the consumption
of the calories. The exerciser can set the desired tension power according to the photo as below
(1) When revolving the bolt No.16 in the a-direction, the tension power will be less
(2) When revolving the bolt No.16 in b-direction, the tension power will be more
Once after adjusting the No.16 bolt, you also have to check if the tension wire is too loose, if
necessary you just adjust the bolt No, D,E
adirection------------loosen
b direction------------tighten

19
ADJUSTING (CENTERING) AND TIGHTENING THE TREADMILL
The treadmill is properly centered by the factory. However, after a long usage you must check to make
sure the treadmill is still centered on the running deck and that it still runs with enough tension to ensure a
smooth run. If this is not the case, the treadmill has to be adjusted.
To do this, proceed as follows: If the treadmill is running to far to the left, the turn the left screw clockwise
so that the band will be adjusted to the right. If the problem is not corrected after doing this, then please
turn the right screw as well, but counter clockwise, until the band is the middle and has the correct
tension.
If the bank is in general too loose (fluttering), then turn both screws clockwise using the hexagon wrench
until it is tighter. If you notice that the band “wanders” to the left or the right during training, then repeat the
adjustment procedure and re-centre it.
Depending on the circumstances, this could be necessary a few times.
Warning: When adjusting the band with the screws, do it carefully and with as few turns as possible
because over tightening the screws could result in damages of the plastic end caps. Check the location of
the band during the centering procedure by walking a little bit in between adjustments.
If the band has been correctly adjusted, it will be sufficient to check the position in regular intervals of
several weeks.
In addition, the correct centering must be checked after each time the treadmill is folded up as well as
after every transport.
