Xray T2R PRO User manual

®

2
BEFORE YOU START
The T2R PRO is a high-competition, high-quality, 1/10-scale touring car intended
for persons aged 16 years and older with previous experience building and
operating RC model racing cars. This is not a toy; it is a precision racing model. This
model racing car is not intended for use by beginners, inexperienced customers,
or by children without direct supervision of a responsible, knowledgeable adult.
If you do not fulfill these requirements, please return the kit in unused and
unassembled form back to the shop where you have purchased it.
Before building and operating your T2R PRO, YOU MUST read through all of the
operating instructions and instruction manual and fully understand them to get
the maximum enjoyment and prevent unnecessary damage. Read carefully and
fully understand the instructions before beginning assembly.
Make sure you review this entire manual, the included set-up book, and examine
all details carefully. If for some reason you decide The T2R PRO is not what you
wanted or expected, do not continue any further. Your hobby dealer cannot
accept your T2R PRO kit for return or exchange after it has been partially or fully
assembled.
Contents of the box may differ from pictures. In line with our policy of continuous
product development, the exact specifications of the kit may vary without prior
notice.
SAFETY PRECAUTIONS
Contains:
LEAD (CAS 7439-92-1) ANTIMONY (CAS 7440-36-0)
WARNING: This product contains a chemical known to the state of California to
cause cancer and birth defects or other reproductive harm.
CAUTION: CANCER HAZARD
Contains lead, a listed carcinogen. Lead is harmful if ingested. Wash thoroughly
after using. DO NOT use product while eating, drinking or using tobacco
products. May cause chronic effects to gastrointestinal tract, CNS, kidneys, and
blood. MAY CAUSE BIRTH DEFECTS.
When building, using and/or operating this model always wear protective
glasses and gloves.
Take appropriate safety precautions prior to operating this model. You are
responsible for this model‘s assembly and safe operation! Please read the
instruction manual before building and operating this model and follow
all safety precautions. Always keep the instruction manual at hand for quick
reference, even after completing the assembly. Use only genuine and original
authentic XRAY parts for maximum performance. Using any third party parts on
this model will void guaranty immediately.
Improper operation may cause personal and/or property damage. XRAY and
its distributors have no control over damage resulting from shipping, improper
construction, or improper usage. XRAY assumes and accepts no responsibility for
personal and/or property damages resulting from the use of improper building
materials, equipment and operations. By purchasing any item produced by XRAY,
the buyer expressly warrants that he/she is in compliance with all applicable
federal, state and local laws and regulation regarding the purchase, ownership
and use of the item. The buyer expressly agrees to indemnify and hold harmless
XRAY for all claims resulting directly or indirectly from the purchase, ownership
or use of the product. By the act of assembling or operating this product, the
user accepts all resulting liability. If the buyer is not prepared to accept this
liability, then he/she should return this kit in new, unassembled, and unused
condition to the place of purchase.
IMPORTANT NOTES – GENERAL
• This product is not suitable for children under 16 years of age without the
direct supervision of a responsible and knowledgeable adult.
• Carefully read all manufacturers warnings and cautions for any parts used in
the construction and use of your model.
• Assemble this kit only in places away from the reach of very small children.
• First-time builders and users should seek advice from people who have
building experience in order to assemble the model correctly and to allow the
model to reach its performance potential.
• Exercise care when using tools and sharp instruments.
• Take care when building, as some parts may have sharp edges.
• Keep small parts out of reach of small children. Children must not be allowed
to put any parts in their mouth, or pull vinyl bag over their head.
• Read and follow instructions supplied with paints and/or cement, if used (not
included in kit).
• Immediately after using your model, do NOT touch equipment on the
model such as the motor and speed controller, because they generate high
temperatures. You may seriously burn yourself seriously touching them.
• Follow the operating instructions for the radio equipment at all times.
• Do not put fingers or any objects inside rotating and moving parts, as this
may cause damage or serious injury as your finger, hair, clothes, etc. may get
caught.
• Be sure that your operating frequency is clear before turning on or running
your model, and never share the same frequency with somebody else at the
same time. Ensure that others are aware of the operating frequency you are
using and when you are using it.
• Use a transmitter designed for ground use with RC cars. Make sure that no
one else is using the same frequency as yours in your operating area. Using
the same frequency at the same time, whether it is driving, flying or sailing,
can cause loss of control of the RC model, resulting in a serious accident.
• Always turn on your transmitter before you turn on the receiver in the car.
Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of
the radio equipment.
• Disconnect the battery pack before storing your model.
• When learning to operate your model, go to an area that has no obstacles
that can damage your model if your model suffers a collision.
• Remove any sand, mud, dirt, grass or water before putting your model away.
• If the model behaves strangely, immediately stop the model, check and clear
the problem.
• To prevent any serious personal injury and/or damage to property, be
responsible when operating all remote controlled models.
• The model car is not intended for use on public places and roads or areas where
its operation can conflict with or disrupt pedestrian or vehicular traffic.
• Because the model car is controlled by radio, it is subject to radio interference
from many sources that are beyond your control. Since radio interference can
cause momentary loss of control, always allow a safety margin in all directions
around the model in order to prevent collisions.
• Do not use your model:
- Near real cars, animals, or people that are unaware that an RC car is being
driven.
- In places where children and people gather
- In residential districts and parks
- In limited indoor spaces
- In wet conditions
- In the street
- In areas where loud noises can disturb others, such as hospitals and
residential areas.
- At night or anytime your line of sight to the model may be obstructed or
impaired in any way.
To prevent any serious personal injury and/or damage to property, please be
responsible when operating all remote controlled models.
Failure to follow these instructions will be considered as abuse and/or neglect.
CUSTOMER SUPPORT
XRAY Europe
K Vystavisku 6992
91101 Trenčín
Slovakia, EUROPE
Phone: [phone]
Fax: [phone]
Email: [e-mail]
We have made every effort to make these instructions as easy to understand as possible.
However, if you have any difficulties, problems, or questions, please do not hesitate to
contact the XRAY support team at [e-mail]. Also, please visit our Web site
at www.teamxray.com to find the latest updates, set-up information, option parts, and
many other goodies. We pride ourselves on taking excellent care of our customers.
You can join thousands of XRAY fans and enthusiasts in our online community at:
www.teamxray.com
XRAY USA
RCAmerica, 167 Turtle Creek Boulevard Suite C
Dallas, Texas 75207
USA
Phone: [phone] * [phone]
Fax: [phone]
Email: [email protected]

3
IMPORTANT NOTES – ELECTRICAL
• Insulate any exposed electrical wiring (using heat shrink tubing or electrical
tape) to prevent dangerous short circuits. Take maximum care in wiring,
connecting and insulating cables. Make sure cables are always connected
securely. Check connectors for if they become loose. And if so, reconnect
them securely. Never use R/C models with damaged wires. A damaged wire
is extremely dangerous, and can cause short-circuits resulting in fire. Please
have wires repaired at your local hobby shop.
• Low battery power will result in loss of control. Loss of control can occur due to
a weak battery in either the transmitter or the receiver. Weak running battery
may also result in an out of control car if your car‘s receiver power is supplied
by the running battery. Stop operation immediately if the car starts to slow
down.
• When not using RC model, always disconnect and remove battery.
• Do not disassemble battery or cut battery cables. If the running battery short-
circuits, approximately 300W of electricity can be discharged, leading to fire
or burns. Never disassemble battery or cut battery cables.
• Use a recommended charger for the receiver and transmitter batteries
and follow the instructions correctly. Over-charging, incorrect charging, or
using inferior chargers can cause the batteries to become dangerously hot.
Recharge battery when necessary. Continual recharging may damage battery
and, in the worst case, could build up heat leading to fire. If battery becomes
extremely hot during recharging, please ask your local hobby shop for check
and/or repair and/or replacement.
• Regularly check the charger for potential hazards such as damage to the
cable, plug, casing or other defects. Ensure that any damage is rectified
before using the charger again. Modifying the charger may cause short-circuit
or overcharging leading to a serious accident. Therefore do not modify the
charger.
• Always unplug charger when recharging is finished.
• Do not recharge battery while battery is still warm. After use, battery retains
heat. Wait until it cools down before charging.
• Do not allow any metal part to short circuit the receiver batteries or other
electrical/electronic device on the model.
• Immediately stop running if your RC model gets wet as may cause short
circuit.
• Please dispose of batteries responsibly. Never put batteries into fire.
WARRANTY
XRAY guarantees this model kit to be free from defects in both material and
workmanship within 30 days of purchase. The total monetary value under
warranty will in no case exceed the cost of the original kit purchased. This
warranty does not cover any components damaged by use or modification or
as a result of wear. Part or parts missing from this kit must be reported within
30 days of purchase. No part or parts will be sent under warranty without proof
of purchase. Should you find a defective or missing part, contact the local
distributor. Service and customer support will be provided through local hobby
store where you have purchased the kit, therefore make sure to purchase any
XRAY products at your local hobby store. This model racing car is considered
to be a high-performance racing vehicle. As such this vehicle will be used in
an extreme range of conditions and situations, all which may cause premature
wear or failure of any component. XRAY has no control over usage of vehicles
once they leave the dealer, therefore XRAY can only offer warranty against all
manufacturer‘s defects in materials, workmanship, and assembly at point of
sale and before use. No warranties are expressed or implied that cover damage
caused by what is considered normal use, or cover or imply how long any
model cars‘ components or electronic components will last before requiring
replacement.
Due to the high performance level of this model car you will need to periodically
maintain and replace consumable components. Any and all warranty coverage
will not cover replacement of any part or component damaged by neglect,
abuse, or improper or unreasonable use. This includes but is not limited to
damage from crashing, chemical and/or water damage, excessive moisture,
improper or no maintenance, or user modifications which compromise the
integrity of components. Warranty will not cover components that are considered
consumable on RC vehicles. XRAY does not pay nor refund shipping on any
component sent to XRAY or its distributors for warranty. XRAY reserves the right to
make the final determination of the warranty status of any component or part.
Limitations of Liability
XRAY makes no other warranties expressed or implied. XRAY shall not be liable
for any loss, injury or damages, whether direct, indirect, special, incidental, or
consequential, arising from the use, misuse, or abuse of this product and/or any
product or accessory required to operate this product. In no case shall XRAY‘s
liability excess the monetary value of this product.
Take adequate safety precautions prior to operating this model. You
are responsible for this model’s assembly and safe operation.
Disregard of the any of the above cautions may lead to accidents,
personal injury, or property damage. XRAY MODEL RACING CARS
assumes no responsibility for any injury, damage, or misuse of this
product during assembly or operation, nor any addictions that may
arise from the use of this product.
All rights reserved.
QUALITY CERTIFICATE
XRAY MODEL RACING CARS uses only the highest quality materials, the best
compounds for molded parts and the most sophisticated manufacturing processes
of TQM (Total Quality Management). We guarantee that all parts of a newly-
purchased kit are manufactured with the highest regard to quality. However, due
to the many factors inherent in model racecar competition, we cannot guarantee
any parts once you start racing the car. Products which have been worn out,
abused, neglected or improperly operated will not be covered under warranty.
We wish you enjoyment of this high-quality and high-performance RC car and
wish you best success on the track!
In line with our policy of continuous product development, the exact specifications of the kit may
vary. In the unlikely event of any problems with your new kit, you should contact the model shop
where you purchased it, quoting the part number.
We do reserve all rights to change any specification without prior notice. All rights reserved.
R/C & BUILDING TIPS
• Make sure all fasteners are properly tightened. Check them periodically.
• Make sure that chassis screws do not protrude from the chassis.
• For the best performance, it is very important that great care is taken to ensure
the free movement of all parts.
• Clean all ball-bearings so they move very easily and freely.
• Tap or pre-thread the plastic parts when threading screws.
• Self-tapping screws cut threads into the parts when being tightened. Do not use
excessive force when tightening the self-tapping screws because you may strip
out the thread in the plastic. We recommended you stop tightening a screw
when you feel some resistance.
• Ask your local hobby shop for any advice.
Please support your local hobby shop. We at XRAY Model Racing Cars support
all local hobby dealers. Therefore we ask you, if at all possible, to purchase
XRAY products at your hobby dealer and give them your support like we do. If
you have difficulty finding XRAY products, please check out www.teamxray.com
to get advice, or contact us via email at [e-mail], or contact the XRAY
distributor in your country.

4

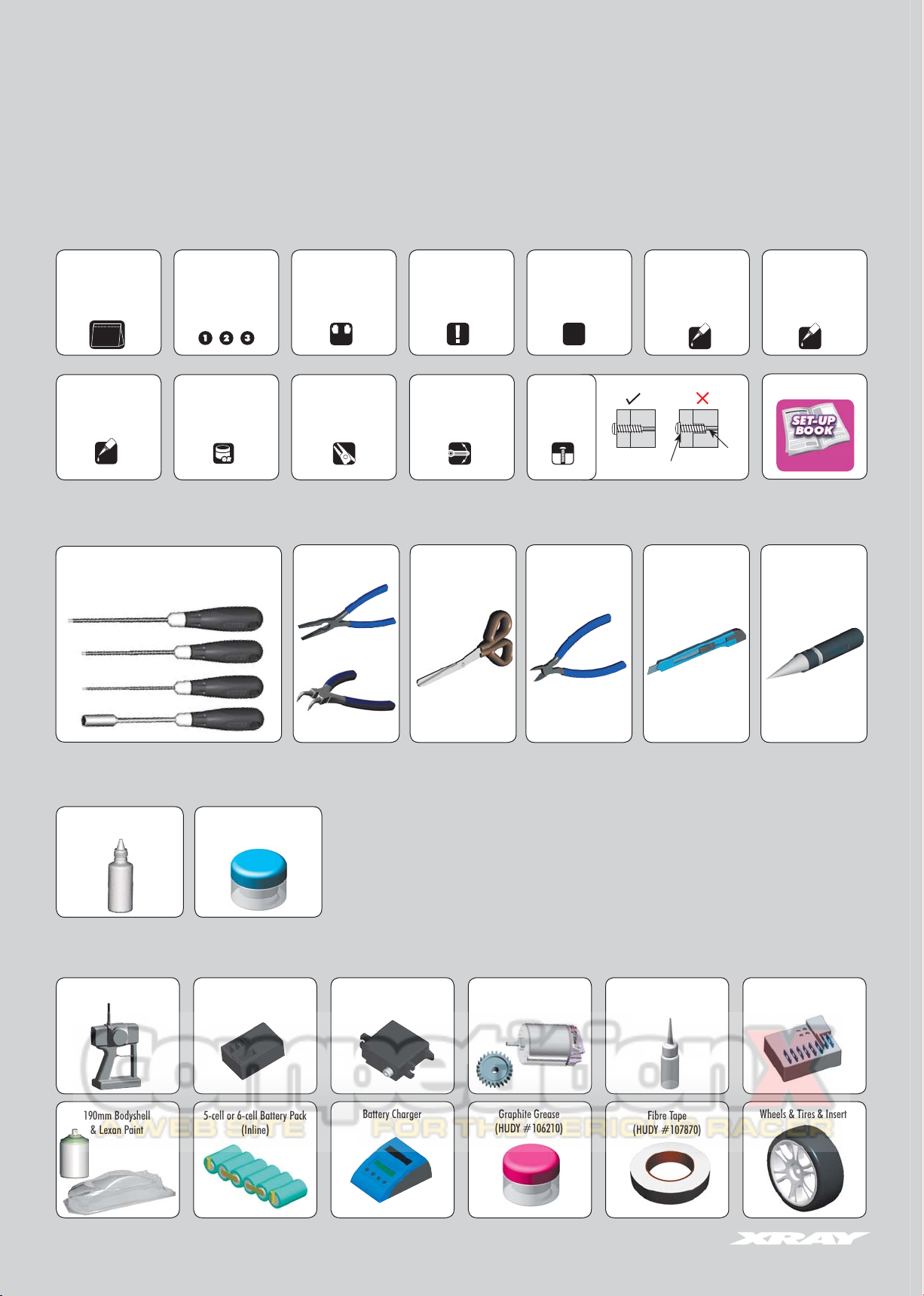

SYMBOLS USED
L=R
2x
CA
OIL
CORRECT WRONG
Overtightened The threads
are stripped.
Part bags used Assemble left and right
sides the same way
Assemble in the specified
order
Pay attention here Assemble as many times
as specified (here twice)
Apply CA glue
TOOLS REQUIRED
EQUIPMENT REQUIRED
EQUIPMENT INCLUDED
Apply oil Use pliers
XRAY Premium Silicone
Oil 350cSt (#359235)
Side Cutters Hobby Knife Reamer
(HUDY #107600)
PliersHUDY TOOLS: Allen: 1.5mm, 2.0mm, 3.0mm
Socket: 7.0mm
Transmitter Steering ServoReceiver
Diff. Grease
(HUDY #106211)
TL
05
Tighten screw
gently
Apply thread lock
Battery Charger Wheels & Tires & Inserts
Apply grease Ensure smooth non-
binding movement
2.0 mm
3.0 mm
1.5 mm
7.0 mm
Graphite Grease
(HUDY #106210)
Bearing Oil
(HUDY #106230)
Folow Set-Up Book
FRONT & REAR AXLES
Scissors
CONTENTS
Speed Controller
5-cell or 6-cell Battery Pack
(Inline)
Pinion Gear and Setscrew
190mm Bodyshell
& Lexan Paint
Electric Motor &
Fibre Tape
(HUDY #107870)
WARNINGS 2-3
TOOLS AND ACCESSORIES 4
0. KIT 5
1. BALL DIFFERENTIAL & FRONT SOLID AXLE 6-7
2. FRONT & REAR SUSPENSION 8-10
3. CENTRAL TRANSMISSION 11-13
4. STEERING 14-15
5. FRONT & REAR TRANSMISSION 16-21
6. SHOCK ABSORBERS 22-24
7. FRONT & REAR ASSEMBLY 25-27
8. FINAL ASSEMBLY 28-30

5
KIT
The XRAY T2R PRO comes partially pre-assembled. Before starting assembly, disassemble the chassis parts, noting the position and orientation of the parts,
particularly the bulkheads. Keep the parts, including the screw hardware, close at hand. In the assembly steps that follow, each section begins with a parts list. Parts
indicated with STYLE B are from the previously disassembled chassis parts in section 0.
CA
At the beginning of each section is an exploded view of the parts to be assembled. There is also a
list of all the parts and part numbers that are related to the assembly of that section.
The part descriptions are color-coded to make it easier for you to identify the source of a part.
Here are what the different colors mean:
STYLE A - indicates parts that are included in the bag marked for the section.
STYLE B - indicates parts that were set aside in Section 0.
STYLE C - indicates parts that are already assembled from previous steps.
0. KIT (FACTORY PRE-ASSEMBLED)
CORRECT INCORRECT
Lightly file edges of battery slots to remove
sharp edges.
Please note that the optional US Foam-Spec
3.5mm Extra-Thick Chassis requires the battery
slots to be filed more than the standard 2.5mm
thick chassis.
Do not file battery slots too much, or batteries
may protrude below the chassis bottom.
To protect and seal edges of graphite parts, sand edges smooth and then apply CA glue.
Do this for: chassis edges; filed battery slots, countersunk holes for front bumper screws.
For the optional US extra-thick chassis, we recommend rounding the bottom forward edge
of the chassis (using a file or sandpaper).
CA
Apply only a bit of CA glue on
the countersunk holes
903306
302019
303051
303012
301128 (OPTION)
301126 (OPTION)
302019
303013
FortheoptionalUSextra-thickchassis,werecommendroundingthe
bottom forward edge of the chassis (using a file or sandpaper).
303012
903306
30 1126 CHASSIS 3.5MM GRAPHITE - 6-CELL - FOAM-SPEC (OPTION)
30 1128 CHASSIS 2.5MM GRAPHITE - 6-CELL - RUBBER-SPEC (OPTION)
30 2019 ALU FRONT LOWER SUSP. ADJUST. BULKHEAD
30 3012 ALU REAR LOWER SUSP. ADJUST. BULKHEAD
30 3013 RIGHT ALU LAYSHAFT BULKHEAD
30 3051 MOTOR MOUNT BULKHEAD
90 3306 HEX SCREW SFH M3x6 (10)

6
30 5003 ALU BALL DIFFERENTIAL 34T+38T PULLEY - SET (OPTION)
30 5006 T2R PRO COMPOSITE BALL DIFFERENTIAL - SET
30 5018 T2R PRO COMPOSITE DIFF OUTPUT SHAFTS (2)
30 5052 COMPOSITE DIFF PULLEY 34T WITH COVERS
30 5083 D-LOCK DIFF WASHER - D 17 x 23 x 1 (2)
30 5104 XRAY MULTI-DIFF™ (OPTION)
30 5135 COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS (2)
30 5136 ALU SOLID AXLE DRIVESHAFT ADAPTERS (2) (OPTION)
30 5184 COMPOSITE SOLID AXLE 34T - SET
30 5188 COMPOSITE SOLID AXLE 38T - SET (OPTION)
90 2310 HEX SCREW SH M3x10 (10)
90 8275 HEX SCREW SOCKET HEAD CAP M2.5x25 (10)
93 0120 CARBIDE BALL 2.4 MM (12)
93 0128 CARBIDE BALL-BEARING AXIAL 2.8x6.5x0.8
93 0508 BALL-BEARING MR85ZZ 5x8x2.5 (2)
94 1015 HIGH-SPEED BALL-BEARING 10x15x4 RUBBER SEALED (2)
96 0025 NUT M2.5 (10)

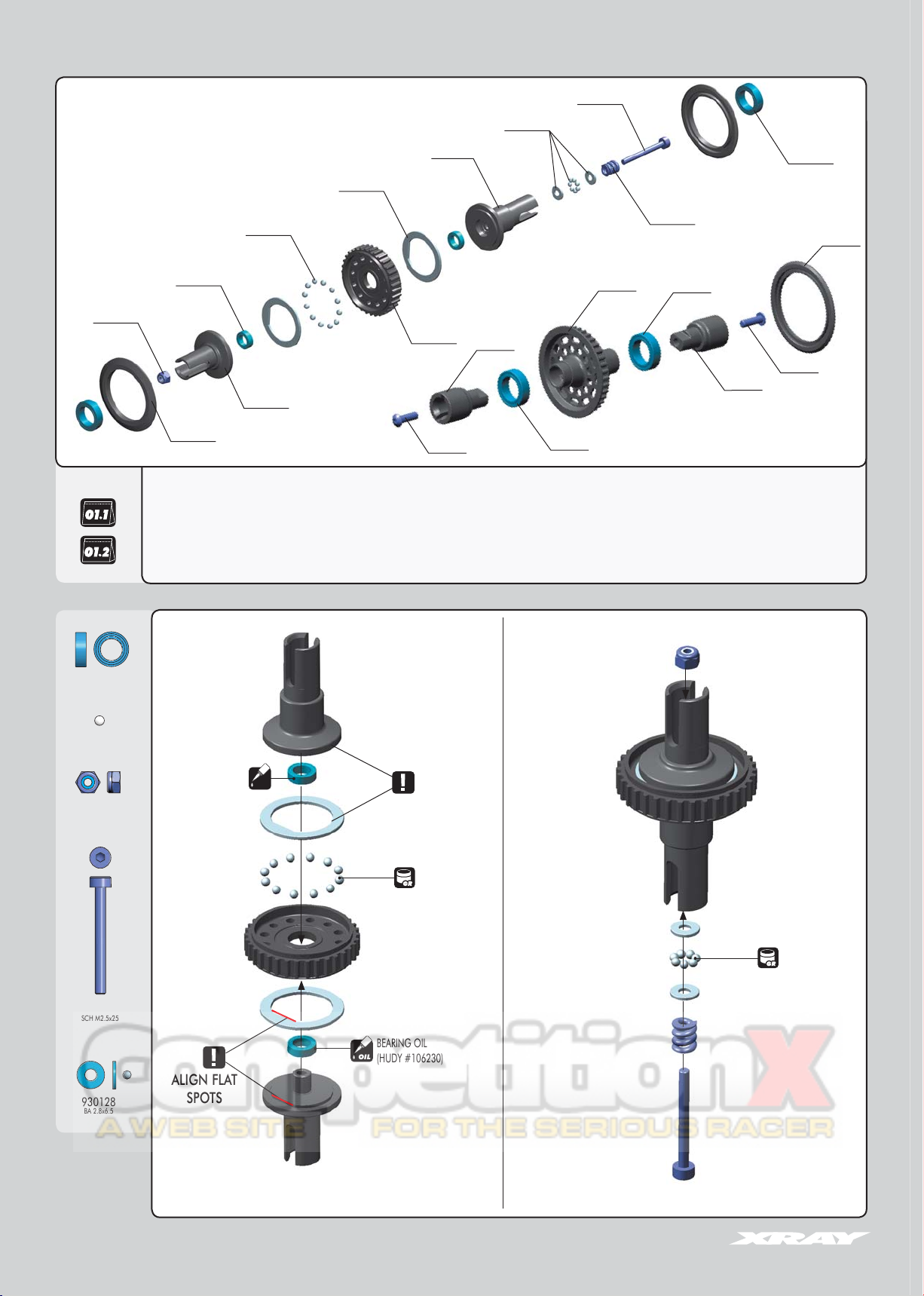

1. COMPOSITE BALL DIFF. & FRONT SOLID AXLE
BAG
305006
305052
305006
941015
930508
960025
305052
930120
305083
305006
930128
908275
960025
N 2.5
930508
BB 5x8x2.5
930120
B 2.4
908275
SCH M2.5x25
930128
BA 2.8x6.5
ALIGN FLAT
SPOTS
ALIGN FLAT
SPOTS
OIL
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
Diff. Grease
(HUDY #106211)
Diff. Grease
(HUDY #106211)
305184
941015
305184
305135
902310
305135
941015
902310

7

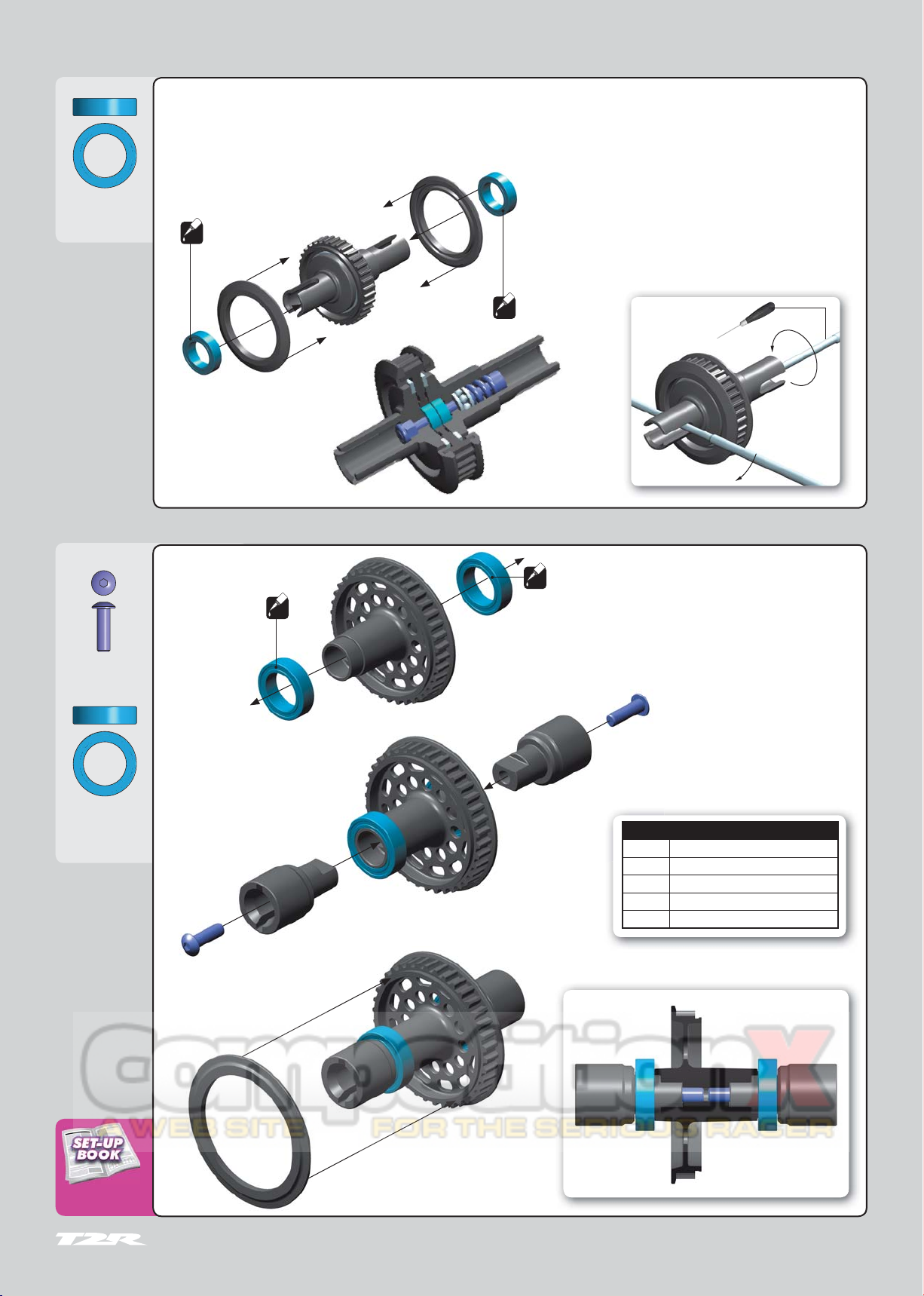

COMPOSITE BALL DIFF. & FRONT SOLID AXLE
COMPOSITE FRONT SOLID AXLE
FRONT & REAR AXLES
902310
SH M3x10
941015
BB 10x15x4
941015
BB 10x15x4
OIL
OIL
2.0mm
Allen Driver
ASSEMBLED VIEW
IMPORTANT: When you build the differential, do not tighten it fully initially; the differential needs to be broken in properly. When you build the
diff tighten it very gently. When you put the diff in the car and complete the assembly, run the car for a few minutes, tighten the diff a little bit,
and then recheck the diff. Repeat this process several times until you have the diff tightened to the point you want it. Final adjustments should
ALWAYS be made with the diff in the car and on the track.
To access the diff when it is installed in the car, you need
to remove the front right camber linkage and/or the rear
left camber linkage to detach the front/rear suspension
accordingly.
Use a 2mm hex wrench to adjust the diff.
DO NOT TIGHTEN THE DIFF COMPLETELY
THE DIFF MUST BE BROKEN IN PROPERLY!
OIL
BEARING OIL
(HUDY #106230)
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
FRONT & REAR AXLES
#305003 ALU DIFF 34T + 38T PULLEY
#305006 COMPOSITE DIFF 34T PULLEY
#305104 XRAY ALU MULTI-DIFF
#305184 COMPOSITE SOLID AXLE 34T PULLEY
#305188 COMPOSITE SOLID AXLE 38T PULLEY
CUTAWAY VIEW

8
302019

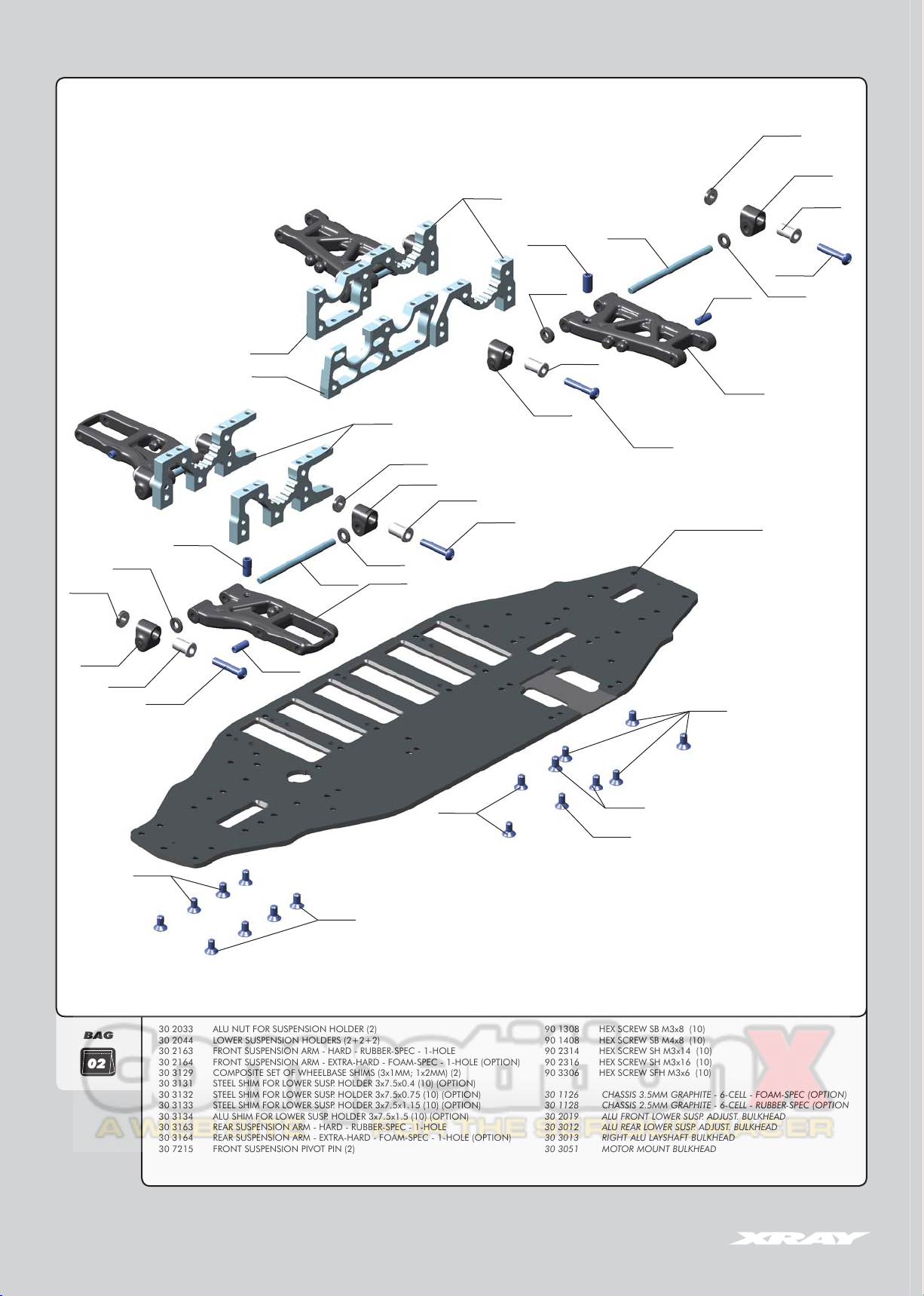

2. FRONT & REAR SUSPENSION
BAG
02
30 2033 ALU NUT FOR SUSPENSION HOLDER (2)
30 2044 LOWER SUSPENSION HOLDERS (2+2+2)
30 2163 FRONT SUSPENSION ARM - HARD - RUBBER-SPEC - 1-HOLE
30 2164 FRONT SUSPENSION ARM - EXTRA-HARD - FOAM-SPEC - 1-HOLE (OPTION)
30 3129 COMPOSITE SET OF WHEELBASE SHIMS (3x1MM; 1x2MM) (2)
30 3131 STEEL SHIM FOR LOWER SUSP. HOLDER 3x7.5x0.4 (10) (OPTION)
30 3132 STEEL SHIM FOR LOWER SUSP. HOLDER 3x7.5x0.75 (10) (OPTION)
30 3133 STEEL SHIM FOR LOWER SUSP. HOLDER 3x7.5x1.15 (10) (OPTION)
30 3134 ALU SHIM FOR LOWER SUSP. HOLDER 3x7.5x1.5 (10) (OPTION)
30 3163 REAR SUSPENSION ARM - HARD - RUBBER-SPEC - 1-HOLE
30 3164 REAR SUSPENSION ARM - EXTRA-HARD - FOAM-SPEC - 1-HOLE (OPTION)
30 7215 FRONT SUSPENSION PIVOT PIN (2)
30 7314 REAR SUSPENSION PIVOT PIN (2)
30 9319 COMPOSITE UNIVERSAL SET OF SHIMS
90 1308 HEX SCREW SB M3x8 (10)
90 1408 HEX SCREW SB M4x8 (10)
90 2314 HEX SCREW SH M3x14 (10)
90 2316 HEX SCREW SH M3x16 (10)
90 3306 HEX SCREW SFH M3x6 (10)
30 1126 CHASSIS 3.5MM GRAPHITE - 6-CELL - FOAM-SPEC (OPTION)
30 1128 CHASSIS 2.5MM GRAPHITE - 6-CELL - RUBBER-SPEC (OPTION)
30 2019 ALU FRONT LOWER SUSP. ADJUST. BULKHEAD
30 3012 ALU REAR LOWER SUSP. ADJUST. BULKHEAD
30 3013 RIGHT ALU LAYSHAFT BULKHEAD
30 3051 MOTOR MOUNT BULKHEAD
90 3306 HEX SCREW SFH M3x6 (10)
303129
309319
302044
302033
902316
307314
901408
901308
303163
301128 (OPTION)
301126 (OPTION)
303129
302033
902314
902316
302033
302044
309319
303129
307215
901408
302163
303129
309319
302044
302033
902316
901308
903306
303013
303051
303012
302044
903306
903306
903306
903306
903306

9

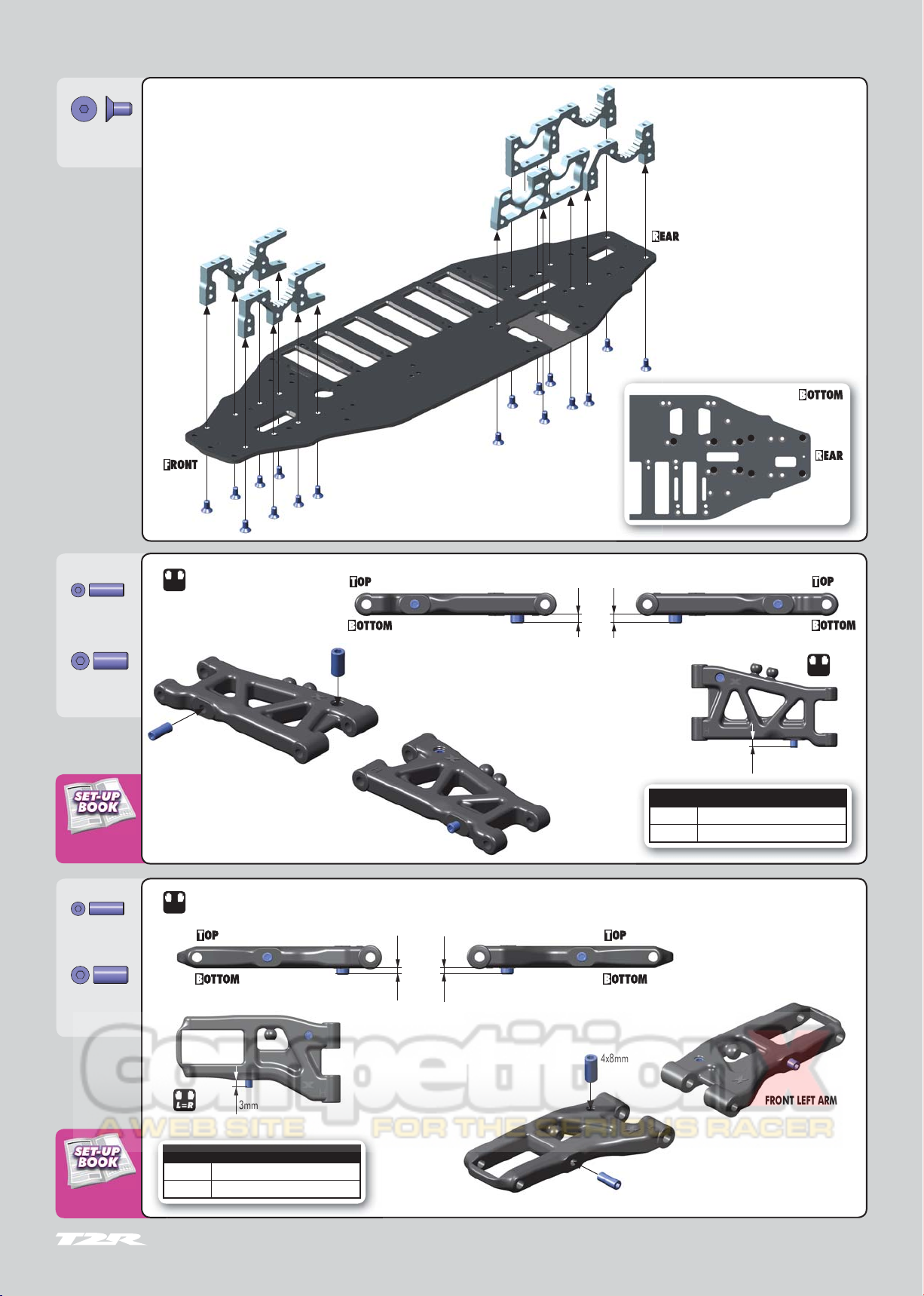

REAR DOWNSTOP
ADJUSTMENT
FRONT DOWNSTOP
ADJUSTMENT
903306
SFH M3x6
901308
SB M3x8
901408
SB M4x8
901308
SB M3x8
901408
SB M4x8
REAR ARMS
#303163 EU RUBBER-SPEC - HARD (H)
#303164 US FOAM-SPEC - EXTRA-HARD (XH)
FRONT ARMS
#302163 EU RUBBER-SPEC - HARD (H)
#302164 US FOAM-SPEC - EXTRA-HARD (XH)
REAR LEFT ARM REAR RIGHT ARM
RIGHT REAR ARM
FRONT LEFT ARMFRONT RIGHT ARM
LEFT REAR ARM
REAR ARMS
2. FRONT & REAR SUSPENSION
3mm
2.2mm
3mm
4x8mm
3x8mm
L=R
FRONT LEFT ARM
FRONT RIGHT ARM
L=R
COMPLETED ASSEMBLY
3x8mm
4x8mm
COMPLETED ASSEMBLY
FRONT ARMS
L=R
2.7mm
ASPHALT
3.0mm
CARPET
L=R

10
TRACK WIDTH ADJUSTMENT
WHEELBASE ADJUSTMENT
ROLL CENTER ADJUSTMENT
DIVE ADJUSTMENT
TOE-IN ADJUSTMENT
TRACK WIDTH ADJUSTMENT
WHEELBASE ADJUSTMENT
ROLL CENTER ADJUSTMENT
SQUAT ADJUSTMENT
DETAILDETAIL
DETAIL DETAIL

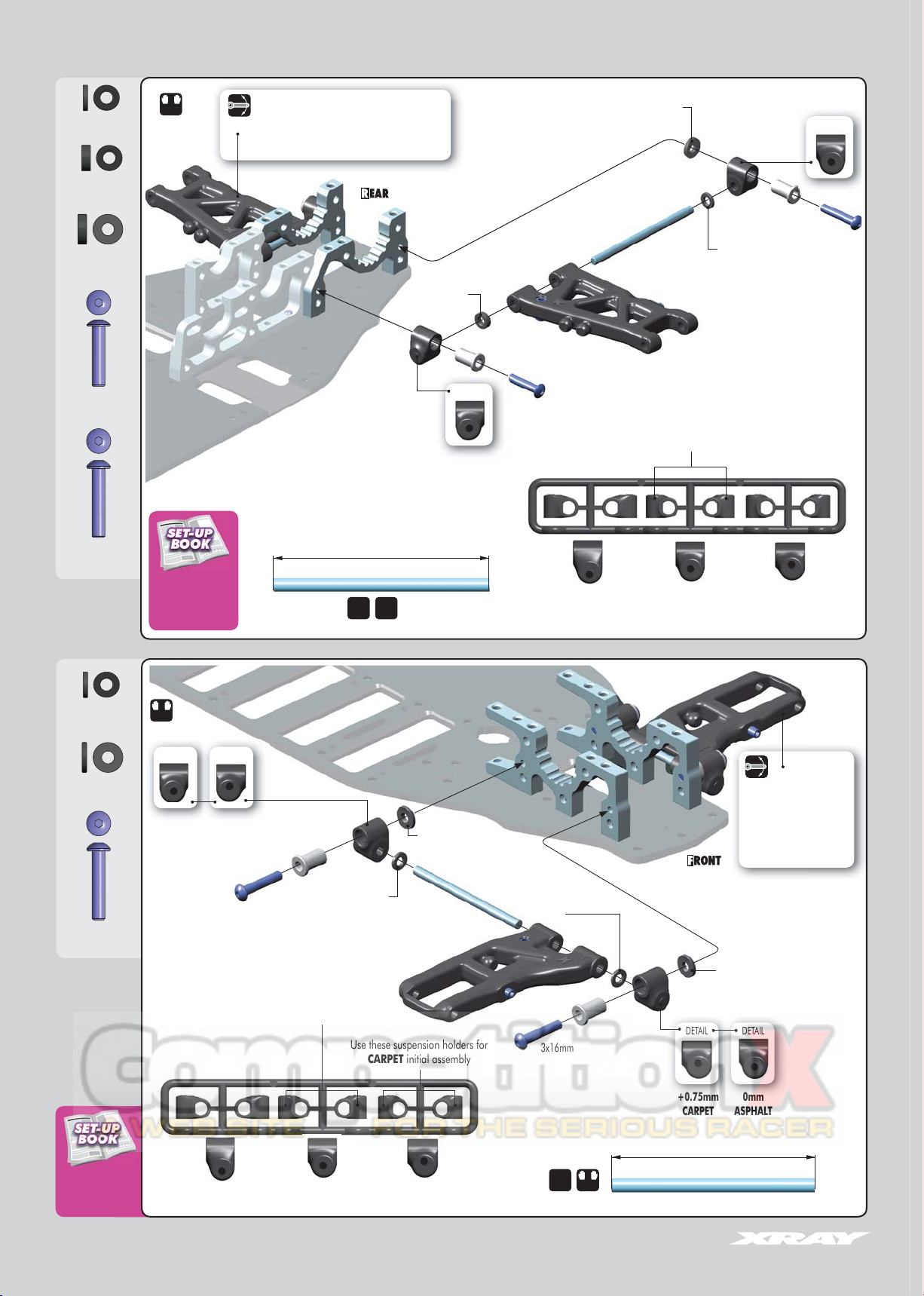

2. FRONT & REAR SUSPENSION
47.5 mm
3x16mm
50.5 mm
THIN COMPOSITE SHIM
3x6x1mm
THIN COMPOSITE SHIM
3x7x2mm
3x14mm
3x16mm
DETAIL
2x 1:1
L=R
L=R
2x
3x16mm
L=R
REAR LEFT ARM
Roll Center Position:
-0.75mm
Roll Center Position:
0mm
Roll Center Position:
+0.75mm
Use these suspension holders for
initial assembly
Roll Center Position:
-0.75mm
Roll Center Position:
0mm
Roll Center Position:
+0.75mm
FRONT LEFT ARM
FRONT RIGHT ARM
303129
SHIM 3x6x1
902316
SH M3x16
303129
SHIM 3x6x2
309319
SHIM 3x7x2
309319
SHIM 3x7x1
902314
SH M3x14
902316
SH M3x16
303129
SHIM 3x6x1
THICK COMPOSITE SHIM
3x6x2mm
DETAIL
THIN COMPOSITE SHIM
3x6x1mm
THIN COMPOSITE SHIM
3x6x1mm
It is extremely important that
the arms move freely on the
pivot pins. If they do not, use
the #107633 HUDY Arm
Reamer to slightly resize the
holes in the arms.
It is extremely important that the arms move freely
on the pivot pins. If they do not, use the #107633
HUDY Arm Reamer to slightly resize the holes in
the arms.
+0.75mm
CARPET
+0.75mm
CARPET
0mm
ASPHALT
0mm
ASPHALT
THIN COMPOSITE SHIM
3x7x1mm
THIN COMPOSITE SHIM
3x7x1mm
Use these suspension holders for
CARPET initial assembly
Use these suspension holders for
ASPHALT initial assembly

11
3. CENTRAL TRANSMISSION
BAG
30 2023 ALU UPPER BULKHEAD
30 2078 SET OF COMPOSITE HUBS FOR BULKHEADS (4+2)
30 2087 SHOCK TOWER FRONT 3.0MM GRAPHITE (OPTION)
30 3046 RUBBER-SPEC REAR UPPER DECK GRAPHITE (OPTION)
30 3047 FOAM-SPEC REAR UPPER DECK GRAPHITE (OPTION)
30 3096 SHOCK TOWER REAR 3.0MM GRAPHITE (OPTION)
30 5431 HIGH-PERFORMANCE KEVLAR DRIVE BELT FRONT 3 x 507 MM
30 5443 HIGH-PERFORMANCE KEVLAR DRIVE BELT REAR 3 x 186 MM (OPTION)
30 5444 HIGH-PERFORMANCE KEVLAR DRIVE BELT REAR 3 x 183 MM
30 5521 ALU SOLID LAYSHAFT (OPTION)
30 5576 FIXED PULLEY 16T (2) (OPTION)
30 5577 FIXED PULLEY 20T (2)
30 5778 OFFSET SPUR GEAR 78T / 48 (OPTION)
30 5781 OFFSET SPUR GEAR 81T / 48 (OPTION)
30 5784 SPUR GEAR 84T / 48
30 5787 SPUR GEAR 87T / 48 (OPTION)
30 5790 SPUR GEAR 90T / 48 (OPTION)
30 5874 OFFSET SPUR GEAR 104T / 64 (OPTION)
30 5876 OFFSET SPUR GEAR 106T / 64 (OPTION)
30 5878 OFFSET SPUR GEAR 108T / 64 (OPTION)
30 5880 OFFSET SPUR GEAR 110T / 64 (OPTION)
30 5882 OFFSET SPUR GEAR 112T / 64 (OPTION)
30 5884 OFFSET SPUR GEAR 114T / 64 (OPTION)
30 5886 OFFSET SPUR GEAR 116T / 64 (OPTION)
30 5888 OFFSET SPUR GEAR 118T / 64 (OPTION)
90 2304 HEX SCREW SH M3x4 - STAINLESS (10)
90 2306 HEX SCREW SH M3x6 (10)
94 0510 HIGH-SPEED BALL-BEARING 5x10x4 RUBBER SEALED (2)
96 5050 E-CLIP 5 (10)
98 1210 PIN 2x10 (10)
30 5006 T2R PRO COMPOSITE BALL DIFFERENTIAL 34T PULLEY - SET
30 5184 COMPOSITE SOLID AXLE 34T - SET
03
902306
902306
302087 (OPTION)
902306
302023
902306
303046 (OPTION)
303096 (OPTION)
302023
902306
305184
302078
965050 981210
902304
940510
940510
305521 (OPTION)
965050
302078
305006
305444
305431
305577
305577
305784
302078

12
GEARING ADJUSTMENT
902304
SH M3x4
965050
C5
981210
P 2x10
940510
BB 5x10x4
SPUR GEARS
#305778 OFFSET SPUR GEAR 78T / 48P
#305781 OFFSET SPUR GEAR 81T / 48P
#305784 SPUR GEAR 84T / 48P
#305787 SPUR GEAR 87T / 48P
#305790 SPUR GEAR 90T / 48P
#305874 OFFSET SPUR GEAR 104T / 64P
#305876 OFFSET SPUR GEAR 106T / 64P
#305878 OFFSET SPUR GEAR 108T / 64P
#305880 OFFSET SPUR GEAR 110T / 64P
#305882 OFFSET SPUR GEAR 112T / 64P
#305884 OFFSET SPUR GEAR 114T / 64P
#305886 OFFSET SPUR GEAR 116T / 64P
#305888 OFFSET SPUR GEAR 118T / 64P
NOTE ORIENTATION
TO TIGHTEN FRONT BELT: Rotate both front nylon hubs in arrow direction (B)
FRONT BELT TENSION ADJUSTMENT
A
A
B
B
TO LOOSEN REAR BELT:
Rotate both rear nylon hubs in arrow direction (A)
REAR BELT TENSION ADJUSTMENT
B
B
A
A
L=R L=R
! IMPORTANT
Insert composite bushings perfectly
straight in bulkheads so the bearings spin
freely. If the bearings do not spin freely,
reinstall the composite bushings properly.
NOTE ORIENTATION
Only when using XRAY
OFFSET spur gears
A
A
B
B
A
A
B
B
TO LOOSEN FRONT BELT:
Rotate both front nylon hubs in arrow direction (A)
TO TIGHTEN REAR BELT:
Rotate both rear nylon hubs in arrow direction (B)
LOWER DIFF POSITION
UPPER DIFF POSITION
LOWER DIFF POSITION
UPPER DIFF POSITION
short beltlong belt
Lower diff position is recommended for large open asphalt
tracks with long sweepers.
Upper diff position is recommended for tight and technical carpet
tracks. The upper diff position improves handling in chicanes as
it provides more traction, increased steering and makes the car
easier to drive.
Lower diff position is recommended for large open asphalt tracks with
long sweepers.
Upper diff position is recommended for tight and technical carpet tracks.
The upper diff position improves handling in chicanes as it provides more
traction, increased steering and makes the car easier to drive.
OIL
BEARING OIL
(HUDY #106230)
OIL
BEARING OIL
(HUDY #106230)
INITIAL POSITION US FOAM-SPEC
PLACE TAB IN THIS NOTCH
INITIAL POSITION EU RUBBER-SPEC
PLACE TAB IN THIS NOTCH
INITIAL POSITION EU RUBBER-SPEC
PLACE TAB IN THIS NOTCH
INITIAL POSITION US FOAM-SPEC
PLACE TAB IN THIS NOTCH
3. CENTRAL TRANSMISSION
Y
CUTAWAY
VIEW
1. 2. 3.

13
902306
SH M3x6
902306
SH M3x6
902306
SH M3x6
L=R L=R

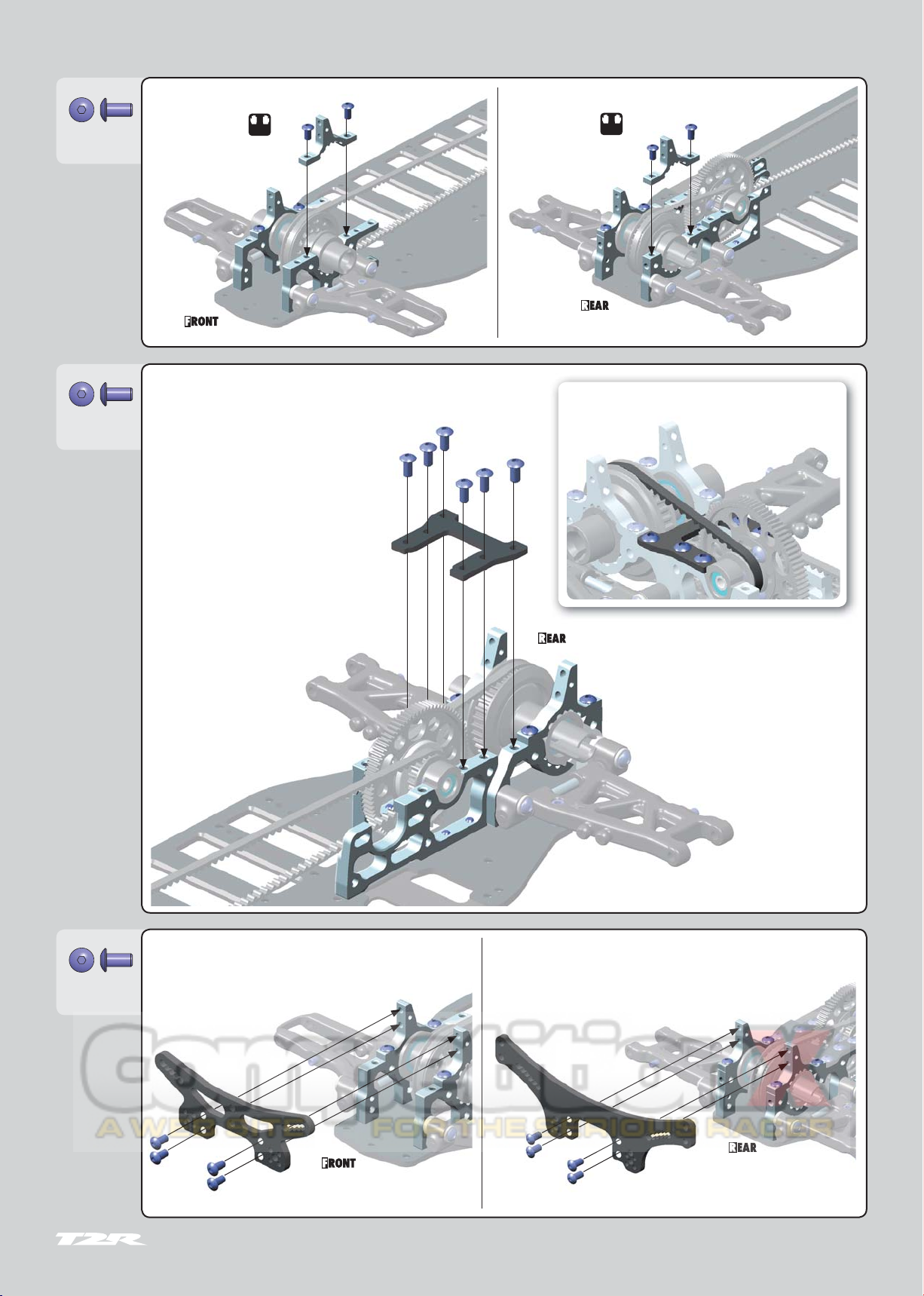

Position the rear upper deck inside of the rear drive belt
! IMPORTANT
3. CENTRAL TRANSMISSION

14
ACKERMANN ADJUSTMENT
FRONT TOE-IN ADJUSTMENT
BAG
30 1159 ALU COUNTERSUNK SHIM (4)
30 1183 RUBBER-SPEC UPPER DECK GRAPHITE (OPTION)
30 1184 FOAM-SPEC UPPER DECK GRAPHITE (OPTION)
30 2504 XRAY QUICK-SAVER™ - ADJUSTABLE SERVO SAVER SET
30 2511 XRAY QUICK-SAVER - COMPOSITE SERVO SAVER PARTS
30 2551 SERVO SAVER PLASTIC COVER - ECCENTRIC (2)
30 2581 COMPOSITE SERVO HORN - KO, JR, AIRTRONICS
30 2583 COMPOSITE SERVO HORN - FUTABA, ROBE
30 2610 ADJ. TURNBUCKLE M3 L/R 40 MM - HUDY SPRING STEEL (2) (OPTION)
30 2630 ADJ. TURNBUCKLE L/R 20 MM - HUDY SPRING STEEL (2) (OPTION)
30 2652 BALL END 5 MM WITH THREAD (2) (OPTION)
30 2663 BALL JOINT 5 MM - OPEN (8)
30 6513 ALU LOW TOP DECK MOUNT (2) (OPTION)
30 6514 COMPOSITE LOW TOP DECK MOUNT (2)
30 7455 PIVOT BALL 5.0 MM DOUBLE BEVEL SHOULDERS (10)
90 1320 HEX SCREW SB M3x20 (10)
90 2306 HEX SCREW SH M3x6 (10)
90 2308 HEX SCREW SH M3x8 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 3308 HEX SCREW SFH M3x8 (10)
90 3310 HEX SCREW SFH M3x10 (10)
93 0407 BALL-BEARING MR74ZZ 4x7x2.5 (2)
1:1
1:1
903310
SFH M3x10
901320
SB M3x20
2x
L=R
approximately 46mm
SERVO LINK
64.6mm 64.6mm
Adjust servo link to fit your servo
There are 5 different Ackermann settings possible with the Quick-Saver™
302504
FACTORY ASSEMBLED
301183 (OPTION)
902306
902308
902306
306514
903308
902310
902310
307455
302663
302581
or 302583
307455
302663
901320
302663
302504
302551
930407
903310
301159
302511
302551
930407
902310
302610 (OPTION)
302610 (OPTION)
302663
307455
For initial Ackermann setting, use
Step 2 (2nd shortest length).
Step 1 gives the most Ackermann and
makes the car understeer more into and
out of corners. It offers good corner speed
and creates very good traction mainly in
chicanes, because the car is more stable.
We recommend using Step 1 on low-
traction carpet tracks with a lot of
chicanes.
Step 5 gives the least Ackermann
and creates a lot of steering into
and out of corners. However, the car
is more difficult to drive in chicanes
because there is less traction and
stability.
We recommend using Step 5 on
high-traction asphalt tracks.
4. STEERING
INITIAL POSITION #2
1 STEP OUT
5 STEPS OUT
5
4
3
2
1
5
4
3
2
1
04

15
ACKERMANN ADJUSTMENT
STEERING THROW SYMMETRY
CHASSIS FLEX SETTING
TOP DECK FLEX SETTING
307455
PB 5mm
902310
SH M3x10
902306
SH M3x6
902308
SH M3x8
903308
SFH M3x8
930407
BB 4x7x2.5
Install this stand on carpet; the stand will
decrease front traction so that the front tires
do not overheat too quickly thus preventing
the car from stopping quickly in corners.
The stand is not necessary on low-traction
or technical asphalt tracks because the car
will understeer more.
For super-high traction tracks and races where the
tires have a lot of natural traction (for example: LRP
tires, Much More tires, soft compound tires), we
recommend using the optional front brace which will
make the car easier to drive with smoother steering.
OIL
BEARING OIL
(HUDY #106230)
#302054
4. STEERING
RIGHT STEERING
ROD 64.6mm
LEFT STEERING
ROD 64.6mm
SERVO LINK F = Futaba, Robe
K = KO, JR, Airtronics, Sanwa
Splines for servo on this side
(away from linkage)
TAB TO FRONT
TAB TO FRONT
DETAIL
NOTE ORIENTATION
TAB TO FRONT
NOTE position of adjusting points
on turnbuckles (towards outside).
3x6mm
3x6mm
3x8mm
3x8mm

16
901302
SB M3x2.5
980210
P 2x10

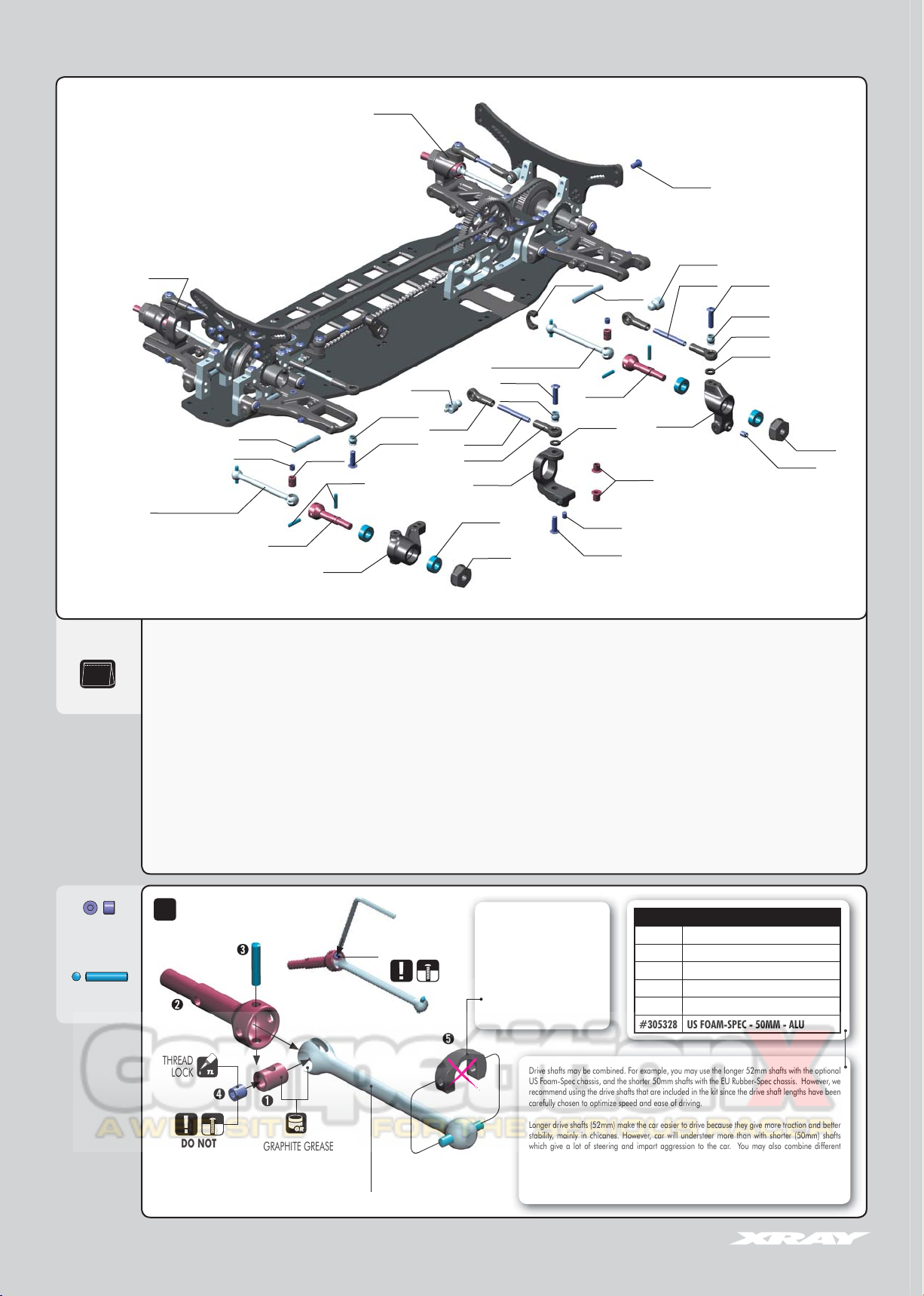

DRIVE SHAFTS
#305323 US FOAM-SPEC - 50MM - STEEL
#305324 EU RUBBER-SPEC - 52MM - STEEL
#305325 ECS US FOAM-SPEC - 50MM - STEEL
#305326 EU RUBBER-SPEC - 52MM - ALU
#305327 ECS EU RUBBER-SPEC - 52MM - STEEL
#305328 US FOAM-SPEC - 50MM - ALU
05
4x
305326 (OPTION)
305340
940510
980210
902310
307455
307221
901302
302291
901304
902310
302663
901325
303032
305355
302663
307455
902310901325
303032
307321
902306
302252
302346
302345
901304
303363
902314
307455
303353
305326 (OPTION)
305340
309319
THREAD
LOCK
GRAPHITE GREASE
(HUDY #106210)
TL
DO NOT
OVERTIGHTEN
302664
Drive shafts may be combined. For example, you may use the longer 52mm shafts with the optional
US Foam-Spec chassis, and the shorter 50mm shafts with the EU Rubber-Spec chassis. However, we
recommend using the drive shafts that are included in the kit since the drive shaft lengths have been
carefully chosen to optimize speed and ease of driving.
Longer drive shafts (52mm) make the car easier to drive because they give more traction and better
stability, mainly in chicanes. However, car will understeer more than with shorter (50mm) shafts
which give a lot of steering and impart aggression to the car. You may also combine different
lengths of shafts in front and rear (for example, using long shafts in the rear and short shafts in the
front) depending on track conditions.
Both left & right shafts should ALWAYS be the same length at one end of the car (front or rear).
305241
305355
! IMPORTANT
DO NOT use the plastic caps with
composite solid axle included in
the kits.
The new #305241 3.5mm plastic
caps are for use ONLY in REAR
with T2R PRO COMPOSITE ball diff
or with ALU ball diffs or the XRAY
Multi-Diff™.
1.5MM ALLEN
WRENCH
DO NOT
OVERTIGHTEN
305231
309319
52MM DRIVE SHAFTS
ARE INCLUDED IN KIT
BAG
5. FRONT & REAR TRANSMISSION
30 2252 COMPOSITE STEERING BLOCK - MEDIUM - RUBBER-SPEC
30 2253 COMPOSITE STEERING BLOCK - HARD - FOAM-SPEC (OPTION)
30 2291 STEEL STEERING BUSHING (2+2)
30 2345 COMPOSITE C-HUB FRONT BLOCK, RIGHT - 4° DEG.
30 2346 COMPOSITE C-HUB FRONT BLOCK, LEFT - 4° DEG.
30 2363 C-HUB RIGHT - 4° DEG. - MEDIUM - RUBBER-SPEC (OPTION)
30 2364 C-HUB LEFT - 4° DEG. - MEDIUM - RUBBER-SPEC (OPTION)
30 2373 C-HUB RIGHT - 4° DEG. - HARD - FOAM-SPEC (OPTION)
30 2374 C-HUB LEFT - 4° DEG. - HARD - FOAM-SPEC (OPTION)
30 2663 BALL JOINT 5 MM - OPEN (8)
30 2664 BALL JOINT 5 MM UNIDIRECTIONAL - OPEN (4)
30 3032 ALU QUICK ROLL-CENTER HOLDER™ 4.9MM (2)
30 3122 ALU SHIM 3x6x1.0MM (10) (OPTION)
30 3123 ALU SHIM 3x6x2.0MM (10) (OPTION)
30 3210 TURNBUCKLE L/R 25 MM - HUDY SPRING STEEL (2) (OPTION)
30 3352 UPRIGHT 0° OUTBOARD TOE-IN - MEDIUM - RUBBER-SPEC (OPTION)
30 3353 UPRIGHT 1° OUTBOARD TOE-IN - RIGHT - HARD - FOAM-SPEC
30 3363 UPRIGHT 1° OUTBOARD TOE-IN - LEFT - HARD - FOAM-SPEC
30 5231 DRIVE SHAFT COUPLING - HUDY SPRING STEEL
30 5241 DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5 MM (4)
30 5323 DRIVE SHAFT 50MM - HUDY SPRING STEEL (OPTION)
30 5324 DRIVE SHAFT 52MM - HUDY SPRING STEEL (OPTION)
30 5326 ALU DRIVE SHAFT SWISS 7075 T6 - HARD COATED - 52MM (OPTION)
30 5328 ALU DRIVE SHAFT SWISS 7075 T6 - HARD COATED - 50MM (OPTION)
30 5325 EQUALIZED CORNERING SPEED (ECS) DRIVE SHAFT 50MM (OPTION)
30 5327 EQUALIZED CORNERING SPEED (ECS) DRIVE SHAFT 52MM (OPTION)
30 5340 DRIVE AXLE - HUDY SPRING STEEL
30 5341 DRIVE AXLE - LIGHTWEIGHT - HUDY SPRING STEEL (OPTION)
30 5350 ALU WHEEL HUB (2) (OPTION)
30 5351 ALU WHEEL HUB - OFFSET “-0.75MM” (2) (OPTION)
30 5352 ALU WHEEL HUB - OFFSET “+0.75MM” (2) (OPTION)
30 5353 ALU WHEEL HUB - OFFSET “+1.5MM” (2) (OPTION)
30 5355 COMPOSITE WHEEL HUB (2)
30 7221 FRONT ARM PIVOT PIN (2)
30 7321 REAR ARM PIVOT PIN (2)
30 7455 PIVOT BALL 5.0 MM DOUBLE BEVEL SHOULDERS (10)
90 1302 HEX SCREW SB M3x2.5 (10)
90 1304 HEX SCREW SB M3x4 (10)
90 1325 HEX SCREW SB M3x25 (10)
90 2306 HEX SCREW SH M3x6 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 2314 HEX SCREW SH M3x14 (10)
94 0510 HIGH-SPEED BALL-BEARING 5x10x4 RUBBER SEALED (2)
98 0210 PIN 2x10 (10)

17
CASTER ADJUSTMENT
REAR TOE-IN ADJUSTMENT
940510
BB 5x10x4
980210
P 2x10
940510
BB 5x10x4
980210
P 2x10
902310
SH M3x10
WHEEL HUBS
#305350 ALU - OFFSET 0 MM
#305351 ALU - OFFSET -0.75 MM
#305352 ALU - OFFSET +0.75 MM
#305353 ALU - OFFSET +1.5 MM
STEERING BLOCKS
#302252 MEDIUM - RUBBER-SPEC
#302253 HARD - FOAM-SPEC
#302256 ALU
C-HUBS
#302334 ALU 0° - R+L
#302335 ALU 2° - RIGHT
#302336 ALU 2° - LEFT
#302337 ALU 4° - RIGHT
#302338 ALU 4° - LEFT
#302339 ALU 6° - RIGHT
#302340 ALU 6° - LEFT
#302343 COMPOSITE 2° - RIGHT
#302344 COMPOSITE 2° - LEFT
#302345 COMPOSITE 4° - RIGHT
#302346 COMPOSITE 4° - LEFT
#302347 COMPOSITE 6° - RIGHT
#302348 COMPOSITE 6° - LEFT
#302361 2°- RIGHT - MEDIUM - RUBBER-SPEC
#302362 2°- LEFT - MEDIUM - RUBBER-SPEC
#302363 4°- RIGHT - MEDIUM - RUBBER-SPEC
#302364 4°- LEFT - MEDIUM - RUBBER-SPEC
#302365 6°- RIGHT - MEDIUM - RUBBER-SPEC
#302366 6°- LEFT - MEDIUM - RUBBER-SPEC
#302371 2°- RIGHT - HARD - FOAM-SPEC
#302372 2°- LEFT - HARD - FOAM-SPEC
#302373 4°- RIGHT - HARD - FOAM-SPEC
#302374 4°- LEFT - HARD - FOAM-SPEC
#302375 6°- RIGHT - HARD - FOAM-SPEC
#302376 6°- LEFT - HARD - FOAM-SPEC
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
OIL
UPRIGHTS
#303351 1° - RIGHT - MEDIUM - RUBBER-SPEC
#303352 0° - R/L - MEDIUM - RUBBER-SPEC
#303353 1° - RIGHT - HARD - FOAM-SPEC
#303354 0° - R/L - HARD - FOAM-SPEC
#303361 1° - LEFT - MEDIUM - RUBBER-SPEC
#303363 1° - LEFT - HARD - FOAM-SPEC
#303358 ALU 1° - R/L
#303359 ALU 2° - R/L
5. FRONT & REAR TRANSMISSION
2x
COMPLETED
ASSEMBLY
LEFT STEERING BLOCK = RIGHT STEERING BLOCK
2x
L=R
2x
COMPLETED ASSEMBLY
L=R
RIGHT C-HUB "4R"
LEFT C-HUB "4L"
SHORT
LONG
COMPLETED
ASSEMBLY

18

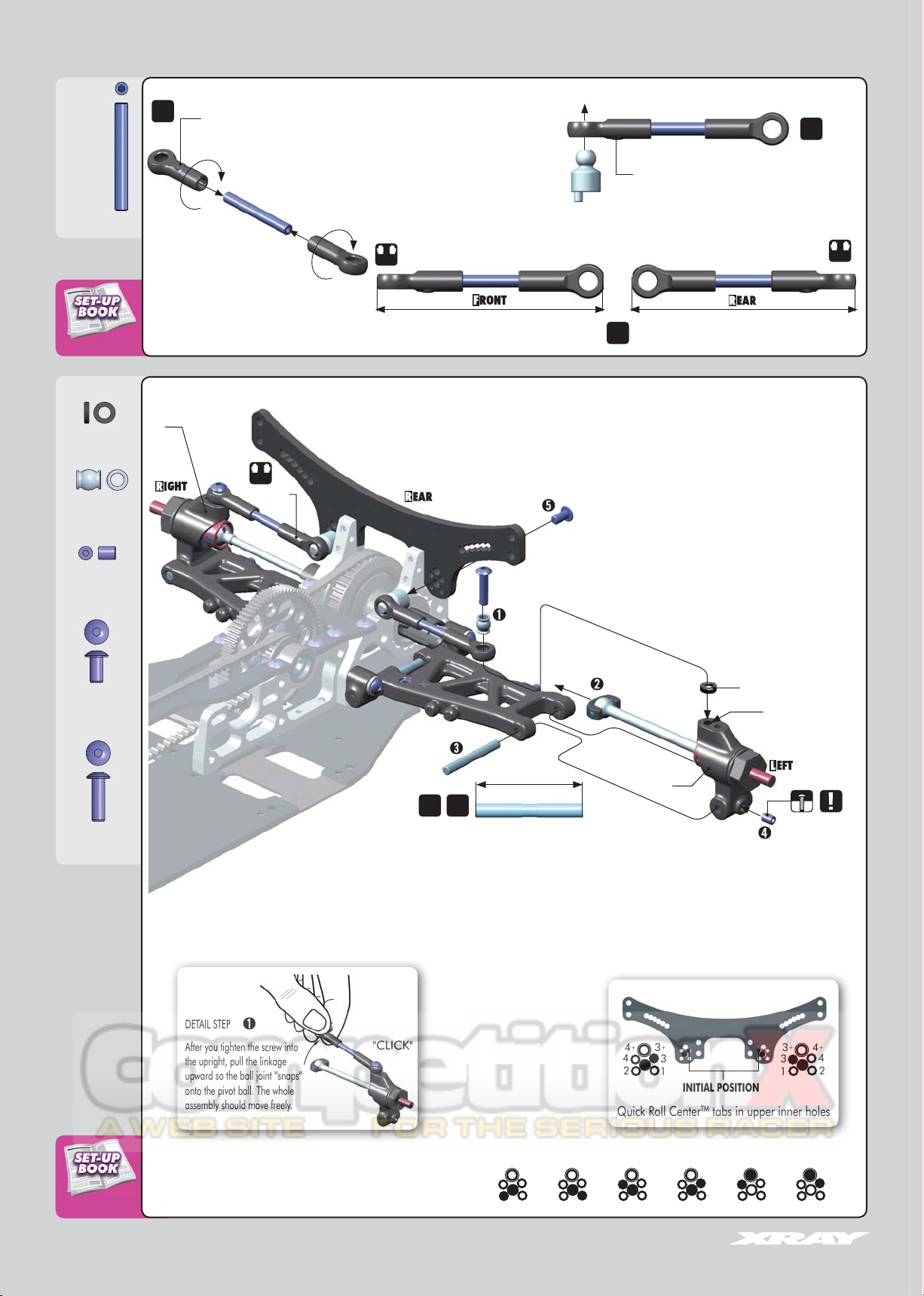

ROLL-CENTER ADJUSTMENT
CAMBER ADJUSTMENT
901325
SB M3x25
902306
SH M3x6
307455
PB 5mm
901304
SB M3x4
309319
SHIM 3x5x1
902310
SH M3x10
1:1
(52.3 mm)
L=R
52.3 mm53 mm
L=R L=R
5. FRONT & REAR TRANSMISSION
1:1
25 mm
2x
TIGHTEN GENTLY
3x10mm
COMPOSITE SHIM
3x5x1mm
Quick Roll CenterTM tabs in upper inner holes
INITIAL POSITION
After you tighten the screw into
the upright, pull the linkage
upward so the ball joint
" snaps "
onto the pivot ball. The whole
assembly should move freely.
DETAIL STEP
"CLICK"
INITIAL POSITION
Use inner hole
4
2
1
3
3
+
4
+
4
2
1
3
3
+
4
+
4
2
1
3
3
+
4
+
4
2
1
3
3
+
4
+
4
2
1
3
3
+
4
+
4
2
1
3
3
+
4
+
Quick Roll Center positions guideline
for use in the T2’008 SET-UP SHEET.
4
2
1
3
3
+
4
+
4
21
3
3
+
4
+
"1R"
"1L"
3x6mm
MOLDED DOT
FRONT RIGHT = FRONT LEFT REAR RIGHT = REAR LEFT
SPECIAL UNIDIRECTIONAL BALL-JOINT
WITH MOLDED DOT
4x
4x
4x
FACTORY PREASSEMBLED

19
ROLL CENTER ADJUSTMENT
ACKERMANN ADJUSTMENT
19
902306
SH M3x6
902314
SH M3x14
307455
PB 5mm
901304
SB M3x4
307455
PB 5mm
902310
SH M3x10
309319
SHIM 3x5x1
Use the composite 3x5x1mm shim.
When using these shims, use the
upper roll center positions on the
front shock tower.
(53 mm)
L=R
"4L"
"4R"
TIGHTEN GENTLY
5. FRONT & REAR TRANSMISSION
After you tighten the screw into the steering block, pull
the linkage upward so the ball joint
" snaps " onto the
pivot ball. The whole assembly should move freely.
DETAIL STEP
"CLICK"
Quick Roll CenterTM tabs in upper inner holes
INITIAL POSITION
4
2
1
3
4
21
3
FREE MOVEMENT
FREE MOVEMENT INITIAL POSITION
L=R
3x14mm
3x6mm
1:1
23 mm
2x

20

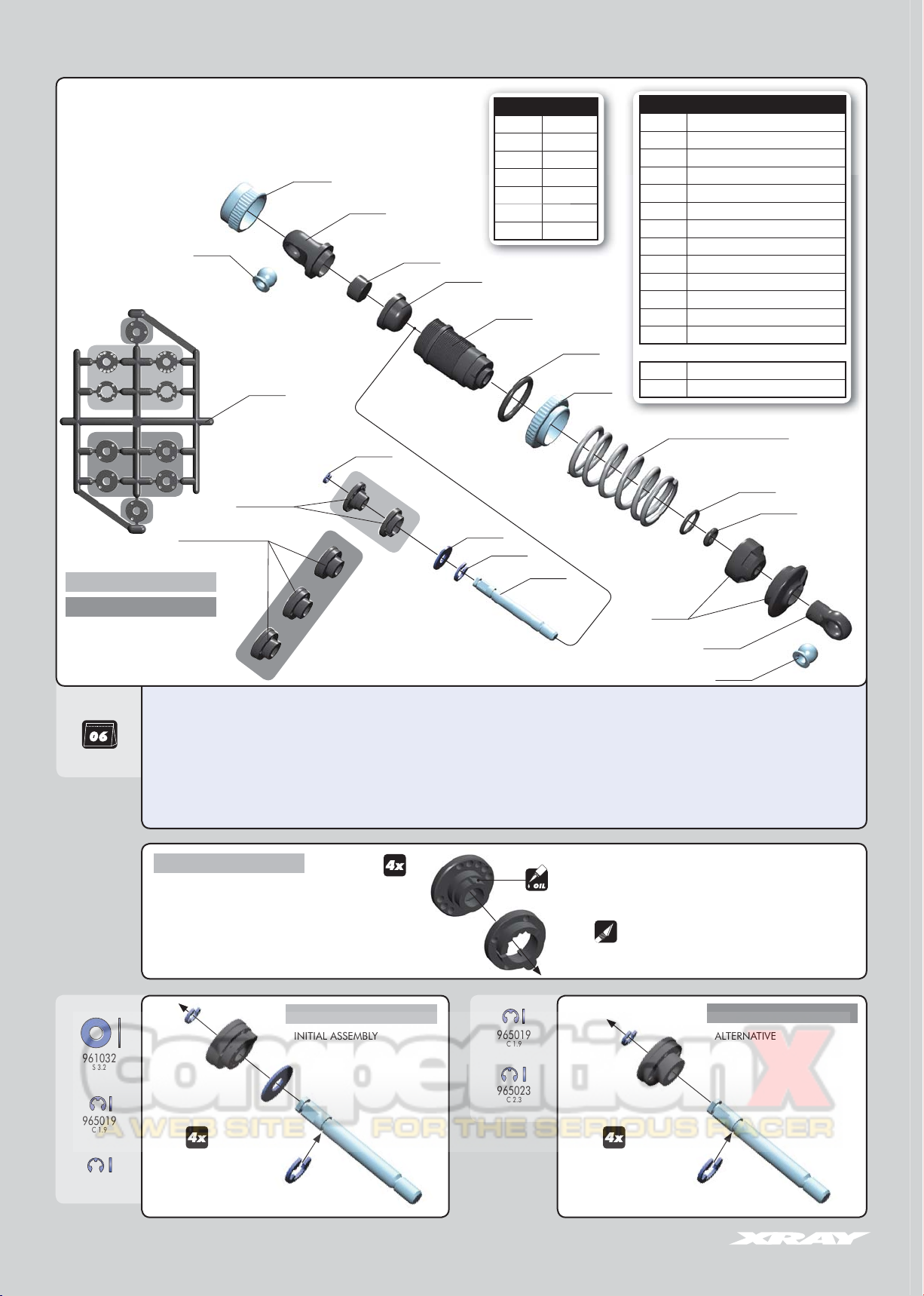

XRAY SPRINGS
#308373 C = 2.2 (2)
#308374 C = 2.4 (2)
#308375 C = 2.6 (2)
#308376 C = 2.8 (2)
#308377 C = 3.0 (2)
#308378 C = 3.2 (2)
#308379 C = 3.4 (2)
XRAY SPRINGS
#308390 SPRING SET (24)
#308393 (14 LB) YELLOW - SUPER-SOFT (4)
#308394 (17.5 LB) WHITE - SOFT (4)
#308395 (22.5 LB) BLUE - SOFT-MEDIUM (4)
#308396 (28 LB) VIOLET - MEDIUM (4)
#308397 (33 LB) PURPLE - MEDIUM-HARD (4)
#308398 (38 LB) RED - HARD (4)
#308380 ADDITIONAL SPRING SET (20)
#308384 (15 LB) BLUE-GREEN (4)
#308385 (20 LB) LIGHT-BLUE (4)
#308386 (25 LB) DARK-BLUE (4)
#308387 (30 LB) LIGHT-PURPLE (4)
#308388 (35 LB) LIGHT-RED (4)
#308382 (14 LB) GOLD (4)
#308383 (17.5 LB) SILVER (4)
30 3241 BALL UNIVERSAL 5.8 MM HEX (4)
30 8035 COMPOSITE PISTONS ADJUSTABLE + NON-ADJUST. (SET 2+6)
30 8040 SHOCK ADJ. NUT ALU + O-RING (4+4)
30 8080 SHOCK ABSORBER MEMBRANES (4)
30 8090 SHOCK FOAM INSERTS (4)
30 8302 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2)
30 8306 XRAY ALU SHOCK ABSORBER-SET (2) (OPTION)
30 8316 SHOCK BALL JOINT - OPEN (4)
30 8331 COMPOSITE FRAME SHOCK PARTS 4-STEP - SHORT
30 8352 ALU SHOCK CAP-NUT WITH VENT HOLE (2)
30 8362 HARDENED SHOCK SHAFT - SHORT (2)
308331
303241
303241
308352
308090
308080
308331
970121
308040
308382 (GOLD) (REAR)
308383 (SILVER) (FRONT)
308316
970050
308331
971031
965019
961032
965023
308362
308035
NON-ADJUSTABLE
965019
C 1.9
965023
C 2.3
961032
S 3.2
BAG
ADJUSTABLE PISTONS
NON-ADJUSTABLE PISTONS
2 HOLES
3 HOLES
4 HOLES
1-4 HOLES
308035
ADJUSTABLE
308035
ADJUSTABLE PISTONS
NON-ADJUSTABLE PISTONS
ADJUSTABLE PISTONS
965019
C 1.9
965023
C 2.3
SHOCK OIL
INITIAL ASSEMBLY ALTERNATIVE
Carefully remove the shock pistons from the
frame, and remove all excess plastic flash
30 8380 ADDITIONAL XRAY ULTIMATE RACING SPRINGS (20) (OPTION)
30 8390 XRAY SELECTED ULTIMATE RACING SPRINGS (24) (OPTION)
30 8382 XRAY PROGRESSIVE SPRING-SET D=1.4 (14 LB) GOLD (4)
30 8383 XRAY PROGRESSIVE SPRING-SET D=1.5 (17.5 LB) SILVER (4)
96 1032 WASHER S 3.2 (10)
96 5019 E-CLIP 1.9 (10)
96 5023 E-CLIP 2.3 (10)
97 0050 O-RING 5x1 (10)
97 0121 O-RING 12.1x1.6 (10)
97 1031 SILICONE O-RING 3.1x1.6 (10)
6. SHOCK ABSORBERS
