PREFACE
Dear customers,
Sincerely thank you to become users of Xiangtong products! Xiangtong X-mill
500 series of five-axis dental milling machines are quality equipment of the compa-
ny for dental denture processing. To use the equipment better, you are wanted to
read the operating manual provided with the equipment before starting to operate
the equipment. The manual is intended for user’s installation, commissioning,
processing, troubleshooting and routine maintenance. Please pay attention to the
relevant precautions, so as to avoid equipment damage and personal injury due to
misuse.
X-mill 500 five-axis dental milling machine is made of high-quality components,
materials, and specially developed motion control technology. The machine adopts
high precision and high intelligence integrated design and assembly, uses dry
milling processing, is compatible with zirconia block/wax/PMMA. The machine
features double dust prevention, easy operation and digital, multi-sensor monitor-
ing and design free of maintenance.
The milling machine is precise processing equipment. To ensure the safety of
operators and the machine, it should be operated by professional operators. If you
have any questions, please contact us in a timely manner, and our professionals
will always be ready to help you.
Shenzhen Xiangtong Medical Technology Co., Ltd.
Address: 4/F, Building No.1, Block 2, South Section, HongHualing Industry Zone,
Xili Town, Nanshan District, Shenzhen
Postal code: 518055
Tel.: [phone] 86001802 86001803 86001804
Fax: [phone]
Email: [email protected]
Website: www.xtcera.com
CONTENTS
Preface I
Chapter 1: Introduction to X-Mill 500 Five-Axis Dental Milling machine 1
1-1 Product Introduction 1
1-2 Shape Structure 2
1-3 Technical Parameters 4
1-4 Operating Environment & Requirements 4
Chapter 2: Installation and Commissioning 5
2-1 Equipment Installation prcautions 5
2-2 Equipment Commissioning 5
Chapter 3: Pilot Run and Processing 8
3-1 Pilot Run 8
3-2 Processing Run 10
3-3 Selection and Replacement of Burs 11
3-4 Special notes for holder installation
13
3-5 Troubleshooting 14
Chapter 4: Maintenance and Precautions 15
4-1 Maintenance Instructions: 15
4-2 Special Statement 16
4-3 Precautions 16
Chapter 5: Common Abnormality and Countermeasures 18
Appendix I: overall Equipment Operation Flow Chart 19
Appendix II: Reference for Processing File Information 20

X-mill 500 is the five-axis dental milling machine developed by Shenzhen Xiang-
tong Medical Technology Co., Ltd. It adopts the horizontal integrated design. Key
machinery and control components are high-quality imported components. The
specially developed control system features high speed, high precision and high
intelligence. The system can automatically select best processing parameters
based on materials and customer processing requirements, and uses multiple intel-
ligence and protection procedures.
X-mill 500 can complete one-button operation, automatically replace the bur in
the entire process, automatically detect the length of the bur, automatically correct
the bur, and has eight burs. The maximum speed of spindle can be up to 60000 rpm,
which is extremely strong, accurate, and reliable.
The machine has strong adaptability and selects different processing strategies
according to the type of materials and tooth crowns, to meet diverse needs of differ-
ent users and different products.
(Select processing strategies strictly in accordance with training require-
ments. Processing strategies vary with different materials. Please con-
tact our technical staff before material replacement)
CHAPTER 1: INTRODUCTION TO X-MILL 500 FIVE-AXIS DENTAL
MILLING MACHINE
1-1 PRODUCT INTRODUCTION 1-2 SHAPE STRUCTURE
Right side
Power
switch
Cooling water inlet
Flush interface
Water pump power supply
Switch power supply
Vacuum cleaner power supply
USB interface
Network interface
Cooling water outlet
interface
outlet
interface
Back side
Air inlet
power

3 4
1-4 Use Environment and Requirements
1.Power supply should be grounding in accordance with the third method described in
the Electrical Engineering Rules, to prevent damage to the human body caused by elec-
tricity leakage.
2.Milling machine should be horizontally placed on a stable workbench.
3.The wall should be greater than 40cm away from all around, to ensure good heat
dissipation.
4.The exhaust port of vacuum cleaner must be connected outside, and the operator
needs to wear dust masks.
5.Use ambient temperature: 10 ℃～30 ℃.
Strictly ensure that the equipment can be used in this temperature range, to prevent poor
electrical components caused by insufficient heat dissipation.
6.Use ambient humidity: 30% RH ～80% RH
7.Keep away from vibrating sources and high frequency launchers (eg ultrasonic).
8.Keep away from fire and inflammable and explosive articles.
2-1 Equipment Installation Considerations:
1. Open the packing box and check that the appearance of the equipment is damaged.
External dimension: 720x850x860 mm
Weight: 225 kg
Power supply voltage: Single phase AC 220V 50 Hz
Maximum power: 2.5 KW
Max spindle speed: 60000 rpm
Max feed speed: 6000 mm/min
Air supply pressure: > 0.5 Mpa
(Customers need to ensure that the air supply pressure is stable enough, and the air
supply is clean after effective filtering.
Unstable air pressure will have serious impact on the stability of equipment processing.
Unclean air supply will greatly reduce the life of elements).
Spindle cooling: Water cooling
(Every day when the water pump is started, check whether it is running normally, to
ensure the cooling effect).
X , Y, Z-AXIS trip: 220 mm\160 mm\120 mm
X, Y, Z-AXIS resolution: 0.001 mm
A-axis rotation range: 0°- 360°(±20º location processing)
B-axis rotation range: 360°
Maximum size of processed materials: 100 mm
Wax pattern 3 - 4 min/one tooth
Zirconia 8 - 10 min/one tooth
Tooth preparation model 1 h 20 min/one set
1-3 TECHNICAL PARAMETERS
CHAPTER 2 INSTALLATION AND COMMISSIONING

56
CAUTION! TAKE CARE NOT TO BE CRUSHED!
2. Count the accessories according to the packing list.
3. Install the equipment body on the horizontal and firm workbench, and remove the
transportation fasteners.
4. Connect the power cable, air supply system, cooling water system and vacuum
system according to the instructions.
5. Do not move the equipment by handling the enclosure and movable door. Instead,
you shall handle the equipment bottom plate.
6. Do not move the equipment by pulling or pushing the equipment enclosure on the
floor.
2-2 EQUIPMENT COMMISSIONING
1. Turn on the equipment power switch. The lighting lamp of the processing area and
the screen will turn on.
2. Run the XMILL220, and click “MANUAL” button to enter the manual operation inter-
face, as shown in the following figure.
3. Click X+, X-, Y+, Y-, Z+, Z- and A+, A- respectively to check if all axes operate
normally.
4. Click “COLLET”, “SPINDLE”, “CLEANER”, “FIRST REFERENCE”, and “SECOND
REFERENCE” respectively to check if their actions and positions are normal. After the
inspection, stop the corresponding actions to avoid any danger to the subsequent opera-
tions.
5. After confirming that the above components function normally, click “AUTO” button to
enter auto interface, as shown in the following figure.

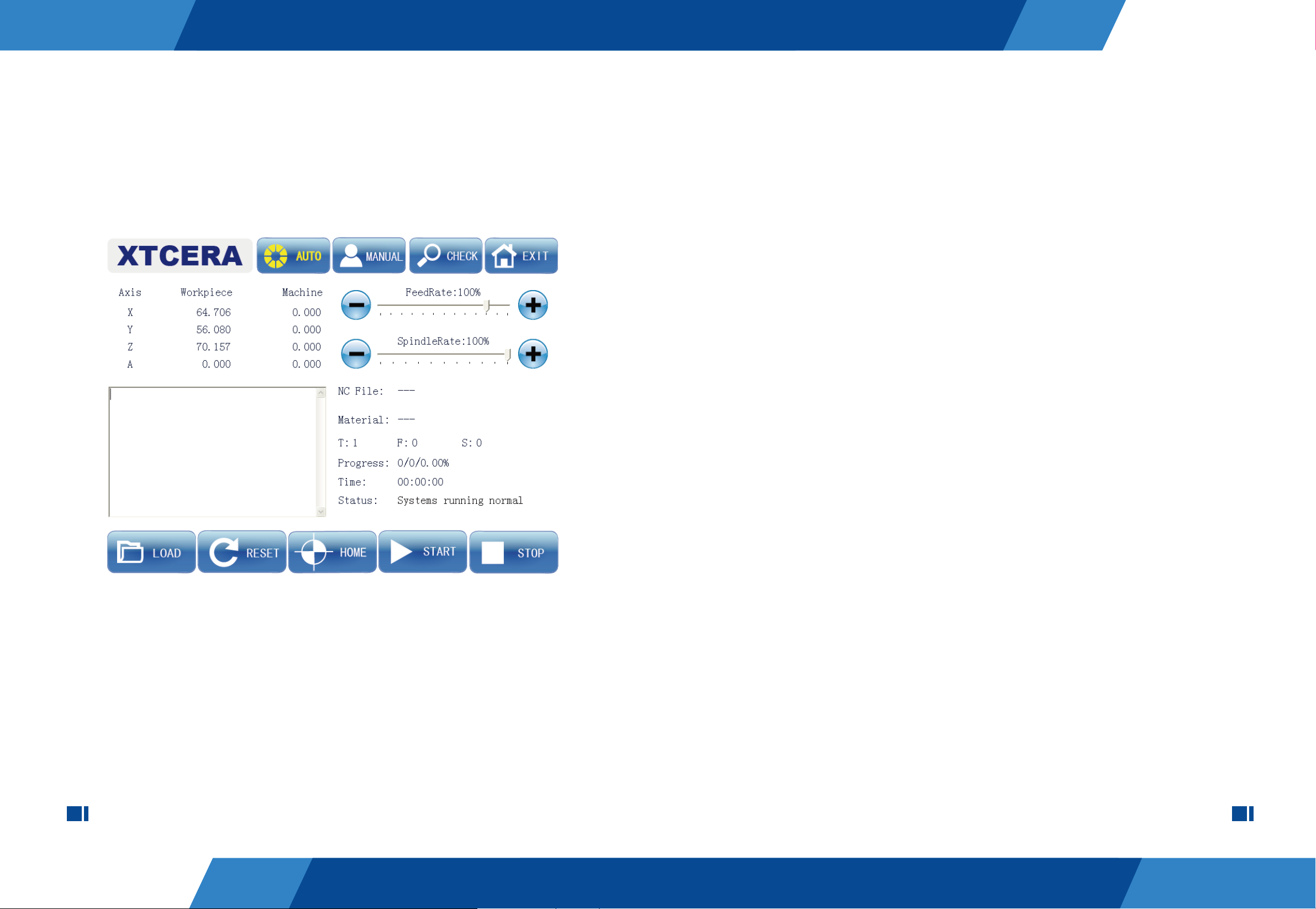

Figure 2-1

78
CHAPTER 3 PILOT RUN AND PROCESSING
3-1 PILOT RUN
1. Select auto mode. If the system has not performed mechanical homing, execute
“Home” function.
6. Click “HOME” button to execute axis mechanical homing operation. When homing is
completed successfully, “HOME” button is highlighted, indicating that the homing function
is normal.
7. Switch back to the manual operation interface. The highlighted “T1”, “T2” or “T3”
indicates the current bur number on the spindle. When first put the milling burs into the
spindle, please check if there is a protection bar inside the collet. Use left hand to hold
tight the protection bar and click “COLLET”. Then take out the protection bar and put T1
(the biggest bur) into it. Check if the NO. behind T on the screen is 1 or not. (like picture
below)
If the NO is 1, then click “T2” on the manual interface and machine will put T1 bur into the
tool station. After, you can put T2 bur into spindle. Then check tool NO. on the screen and
click “T3”. Machine will put T2 bur into tool station and you can put T3 bur into the collet
manually. At this time, you can click “T1”, “T2” and “T3” respectively to check if the tool
change is normal.
8. When the bur changing operation is completed, click “TLC” button to execute the auto
tool length checking operation. Watch this action and check if it is normal. Now, the instal-
lation and commissioning are finished.

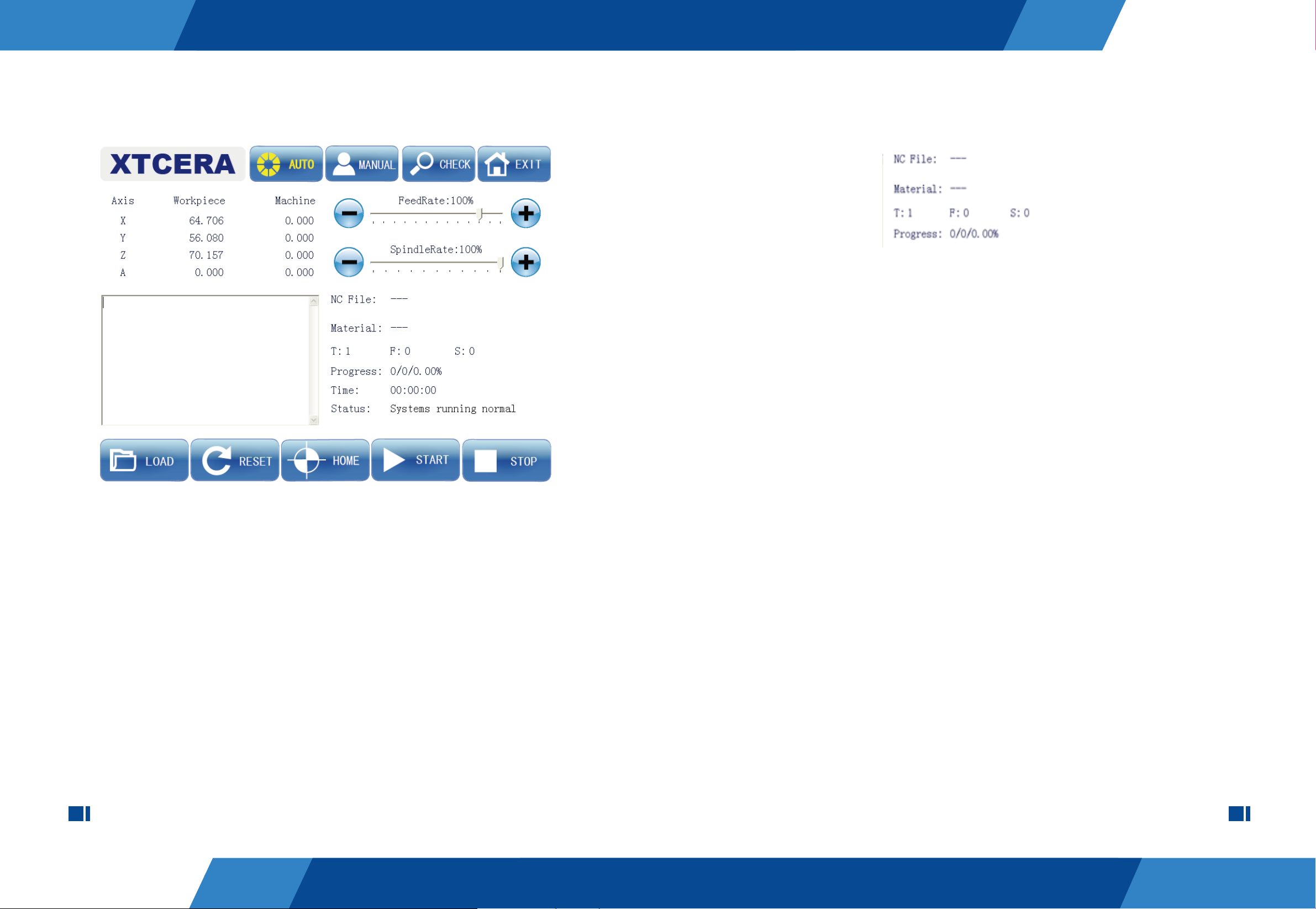

Figure 2-2

910
3. As shown in the above figure, you can adjust the feed rate and spindle rate under
“AUTO” mode. Click the ‘+’ or ‘-’ button to adjust the feed rate to about 50%, and the
spindle rate to about 30%. Pay attention that it is the rate adjustment under auto mode
rather than the rate adjustment under manual mode.
4. Click “START” button to start the pilot run and auto processing, and the button will
change to “pause”. Observe the equipment action and interface prompts, until the
processing is finished without any abnormality.
2. Click “load” button and select the test processing file for pilot run. Load the file
after confirmation. The relevant information of the processing file will be displayed after
successful loading, such as the file name, material type, processing grade. For the
specific meaning of the processing file information, please refer to Appendix II.
5. Click “START” button again to start the auto processing. If you click “pause” button
during the processing, the milling process will stop at the current point, the system will
stop processing and return to the reference point automatically. When you click “START”
button, the system will continue to run, starting from the paused point. If you click “stop”
button during the processing, the system will not remember the current point, and the
system will start from the beginning point when you resume milling again.
6. You can repeat the actions in step 5 to observe if the functions are normal. Now the
pilot run and test are completed.
3-2 PROCESSING AND RUNNING
1. Start the software and click “home” to conduct the mechanical homing operation
when the system initialization is completed without exception prompt.
2. Click “First reference” under manual mode, and each axis will return automatically
to the position suitable for loading/unloading disc. Attach the work piece for processing
to the clamp and tighten the locking screw.
3. Load the proper processing file, as done in the pilot run operation. The system will
automatically select the processing strategy according to the file information. Adjust the
federate and relevant auxiliary functions, and click “START” after confirmation to exe-
cute the auto processing.
4. If you need to suspend the operation during the processing, click “pause” button. If
you need to stop the processing, click “stop” button. If any exception appears during
the processing, the system will automatically interrupt the current processing and main-
tain the information of the current line. After troubleshooting, you can continue the
interrupted processing by clicking “START”.
Figure 3-1

11 12
5. If power outage occurs during the processing, start the software after the system is
powered on again. The system will automatically load the processing file loaded before
the power outage and recover the saved information of the interrupted line. You can click
“START” to resume the interrupted processing after the loading is completed. In the case
of sudden power outage, as long as you don’t press the “stop” button, when you restart
the software and click “START” again, the system will continue the interrupted processing.
3-3 SELECTION AND REPLACEMENT OF MILLING BUR
Bur replacement is very important in the daily processing. It will directly affect the equip-
ment safety and processing quality. Therefore, careful operation is required. When the
bur has been used for a period of time or affects the processing quality, you need to
replace the bur according to the following steps:
1. Execute the “home” function to ensure that system has been homed.
2. If the current bur is not the bur for replacement, you can click the corresponding bur
button under manual mode to remove the target bur. When the bur is removed, click
“SECOND REFERENCE” to move the axes to the reference position.
3. Use left hand to hold tight the milling bur before loosen the spindle chuck to avoid
any injury from the ejected bur( same as picture below ) . Please remember, the equip-
ment shall not be operated simultaneously by several persons. Even when it is operated
by a single person, special care shall be taken in each step, in order to avoid any person-
al injury due to the activation of spindle by mistake.
4. The new milling bur is equipped with collar. Insert the bur handle into the spindle
chuck, ensuring that the collar is against the chuck. Tighten the chuck after it is in position.
The collar is designed to ensure that the bur installation depth meets the equipment
processing requirement. Do not put bur without collar into the chuck or magazine. Now
the bur replacement is completed.
If too much part of the bur is exposed, the tool-cashing will be caused when it turns
over, damaging the magazine. Therefore, the installation position of the bur with collar
must be specified. When the bur is replaced, you shall manually turn it over to check if the
position is correct, in order to avoid any exception.
5. Key points for installation: (Mark the position) to ensure that the exposed part is kept
at the same position each time. Check if there is enough space in the magazine for the
bur twice each day. If not, replace it with a new bur with collar.

13 14
6. When the number of teeth engraved by the bur reaches 150 units, you need to strictly
monitor the bur edge and check if there is any breakage. If you have the 20X microscope,
you can check if there is any breakage to the bur coating and edge and the sharpness of
the bur. The quality of the machine needle must be ensured for the graving of high diffi-
culty.
7. Special notes for T3 bur
The T3 bur we offer is a very small bur (cutting diameter: 0.6mm), which is made of
materials of high hardness and low toughness.
You need to take care of the T3 bur and avoid applying force on it. Take care not to touch
the bur when cleaning up.
3-4 SPECIAL NOTES FOR LOADING MILLING MATERIAL
No matter what type of material is used, the following loading requirements must be
observed, in order to avoid any failure.
1. No residual dust is allowed on the clamp, which shall be cleaned each time when
loading the material.
2. Do not use the clamp with any defect, such as the bulging caused by bumping.
3. No residual dust is allowed on the edge of the material when it is installed. Be sure to
clean it, in order to avoid the breakage caused by uneven force during the installation.
4. When tightening the clamp, be sure to evenly tightening each screw. Do not fully
tighten a screw and then tighten other screws. It will cause uneven force to break the
material or cause internal stress which results in breakage during the processing.
3-5 Trouble shooting
System information will be displayed on the screen during milling process. In case of
any abnormality, the system will show error information on the screen. To ensure
safety, most operations are accepted by the system only in normal situation. When you
conduct the relevant operation in abnormal situation, the system will generate corre-
sponding prompts.
Therefore, when there is any exception prompt, you can click “reset” button to reset the
relevant exception. If the exception still exists after the reset operation, you need to
take the corresponding troubleshooting measures according to the exception message
and prompts, and then execute the reset or restart the software to remove the excep-
tion message.

15 16
CHAPTER 4 MAINTENANCE AND PRECAUTIONS
4-1 INSTRUCTIONS FOR MAINTENANCE:
1. Clean the dust in the equipment processing chamber every day, and ensure that
there is no dust buildup in the spindle sleeve groove and on the surface of tool length
checking unit.
2. Clean the equipment processing chamber before replacing the materials for
processing.
3. Remove the dust in the vacuum weekly to ensure functionality of it.
(If the dust in the vacuum is not removed in time, the filter will be blocked. The suction
power will be reduced. As a result, the dust will enter the equipment chamber, causing
damage to the internal electronic components, triggering exception alarm and reducing
its service life)
4. Inspect the water level of the cooling water tank each week, and check the output of
the water pump each day. When the water level is low, make up or replace the water. The
cooling water must be added with proper amount of antirust powder.
5. The self-contained computer is dedicated to the equipment. Please do not change
the relevant setting of the system, install or uninstall any software. To ensure the normal
operation of the system, please conduct virus checking and killing operation regularly.
6. To ensure the reliable operation of the system, please use a dedicated USB for this
equipment. Do not mix it with the USB for life and learning use, in order to avoid virus and
unnecessary trouble.
7. You are suggested to clean the equipment internal once each 2 months: Disconnect
the equipment power and manually clean the equipment internal with dry and clean towel,
gently wipe the sensors with clean tissue, in order to avoid any exception alarm caused
by dust buildup.
4-2 SPECIAL NOTES:
1. If you use our equipment to process products other than the above-mentioned mate-
rials, please make evaluation according to the equipment parameters. You shall be fully
liable for any accident caused by processing products of other materials.
2. Without the prior approval of our company, you shall not disassemble the external
and internal components and electric components of the equipment. Our company shall
not be liable for any equipment damage thus incurred.
3. The equipment adopts precise electronic components and has high requirement on
the cleanness of the air source. The equipment is delivered with triple air filter. To
increase the equipment operation reliability and service life, please ensure the cleanness
of the air source and install the triple air filter as instructed.
4-3 PRECAUTIONS
1. The power socket must be connected with functioning ground wire. Otherwise, the
equipment grounding protection will fail, the internal components will be burned, and
electric shock will be caused in severe situation.
2. The vacuum discharge pipe must be extended to outdoors, in order to avoid polluting
the indoor environment, impairing people’s health and reducing the service life of the
equipment.
3. Proper connect must be ensured when connecting the cooling water system, air
supply system and vacuum system. Mismatch must be avoided; otherwise, important
components will be severely damaged. If water leakage should occur, please stop using
the equipment and contact us.
4. The cooling water must be added with antirust powder (two lids of antirust powder for
a tank of water). Please check the water flow in time as instructed. If the water flow decreases
obviously, please contact us.

17 18
CHAPTER 5 COMMON ERRORS AND SOLUTIONS
4. The air source of the system shall adopt clean air which has been processed by air
filter. Otherwise, the product surface quality will be affected, and the service life of the
equipment components will be reduced. Enough air pressure shall be ensured to avoid
the relevant exception alarm.
5. The status of the axes shall be observed during the manual operation. If they are not
in the safe positions, do not return to the “auto interface”. Instead, you shall execute the
manual “Home” operation. Please always observe the position and status of the axes to
avoid any tool crashing or crash with the spindle. Otherwise, the important components
will be severely damaged. In case of any emergency, please immediately press the
Emergency Stop button.
6. Please strictly follow the equipment operation flow chart in the Appendix I when
operating the equipment. Be sure to operate the computer according to the normal
turn-on/off method, in order to avoid the loss of system files, which will prevent the start-
ing of the system, reduce the system response or even cause system crash.
7. Do not move the equipment after it is installed. If it is necessary to move it, please
contact us. You can only apply force to the bottom plate during the movement.
No force shall be applied to any part of the enclosure. Otherwise, enclosure deformation
or even equipment dropping will be caused, resulting in severe accident.
8. If there is any abnormal noise or abnormal action during the use, please record the
relevant exception message and contact us.
9. To avoid unnecessary injury, this equipment shall not be operated simultaneously by
several persons.
Failure symptom
Axis limit alarm(positive or
negative)
communication error( alarm
1)
Check signal line
Communication line is
loose.
The air supply pressure
did not reach the required
level or the pipe had
leakage.
The cooling system is
abnormal, the water level
of the water tank is low, or
the cooling loop was
blocked.
Low air pressure alarm
Inverter alarm: 34
Overheat of spindle
Powder on axis sensor. Use clean tissue to gently wipe
the powder on the axis sensor.
Open the back cover and
check signal line.
Check the air supply source
and air supply pipe. Then click
“reset” and system is back to
normal
Check the water pump, water
level in the water tank and the
cooling loop.
Cause analysis Solution

19 20
APPENDIX I: OVERALL OPERATION FLOW
CHART OF THE EQUIPMENT
APPENDIX II REFERENCE TABLE FOR PROCESSING
FILE INFORMATION
Yes
No
Yes
No
Yes
No
Connect power cable
Turn on power switch and power on the system
System startup
Wait for the system startup
Run the software and execute the processing operation
Daily milling finished
Continue to use it
Exit the software, turn off the computer
Normal shutdown
Wait for system shutdown
Turn off the power switch
SN
1
2
3
4
5
6
7
Module name Information Module meaning
Customized processing mode, where the
rate can be adjusted and vacuum can be
manually started and shut down
CA Custom
Wax, high-efficiency processing mode,
where the rate cannot be adjusted, and
the vacuum is started
WA Wax
Class A
Wax, conventional processing mode,
where the rate cannot be adjusted, and
the vacuum is started
WB
Wax
Class B
Wax, high-quality processing mode, where
the rate cannot be adjusted, and the vacuum
is started
WC Wax
Class C
Porcelain, high-efficiency processing
mode, where the rate cannot be adjusted,
and the vacuum is started
ZA Porcelain
Class A
Porcelain, conventional processing mode,
where the rate cannot be adjusted, and
the vacuum is started
ZB Porcelain
Class B
Porcelain, high-quality processing mode,
where the rate cannot be adjusted, and
the vacuum is started
ZB Porcelain
Class C
