Xtreamer Prodigy User manual

User Manual
Xtreamer Prodigy Ver.3.0.*

2
Introduction
Congratulations on your purchase of the Xtreamer Prodigy media player, a state-of-the-art
consumer electronic device that will enrich your home multimedia experience.
Xtreamer Prodigy is a new generation Realtek based media player equipped with
enhanced top quality hardware commonly used in high-end computing and consumer
electronic solution. It has an additional memory, USB 3.0 slave connection for high-speed
data transfer, GB LAN and can be equipped with one 3.5” HDD.
With Xtreamer Prodigy media player you can bring your movies, music and images to your
living room, get rid of that bulky DVD collection, access hundreds of internet feeds and
channels, check your favorite online services and social nets, browse the web, stream
from your iOS device via Airplay, use Android applications and so on.
This is the first media player that incorporates the full 3D support. Enjoy a full movie
theater experience at home.
In Xtreamer Prodigy we also introduce Android 2.2.1 support opening you to the wide
world of thousands of Android applications.
Using the DVB-T tuner module (pre-installed on Xtreamer Prodigy Black) Xtreamer Prodigy
supports Digital Broadcasting and has a built-in recording feature.
Due to the rapid development of our product we cannot possibly guarantee that this
Guide will include all its features. So if you have questions please feel free to browse the
Xtreamer Knowledge base or contact our staff.
Please make sure to visit our site www.xtreamer.net for the Xtreamer news, official
announcements and firmware upgrade.

Table of contents
Page 5 –Hard Drive installation and connections
Page 11 –Remote Control Functions
Page 15 –Main Menu and Settings
Page 29 –Basic Functions
Movie, music and image playback
Page 37–Advanced Functions
Internet, Android, Playlists etc
Page 47 –Network Setup
Page 51 –NFS Shortcut setup
Page 56 –Settings up Network Shares
Page 79 –Prodigy Bit-Torrent client
Page 83 –DVB-T Tuner
Page 92 –Android App installation
Page 97–Web UI
Page 104 –Firmware Upgrade and Emergency Procedure
Page 108 –Useful Links

Connections

6
Hard-Disk Installation
Open the hard disk cover on the
front panel
Connect the HDD guard to an HDD as shown
on the picture. Fasten the screws.
As shown here, slowly and carefully push the HDD
guard together with the HDD into the main body of
Xtreamer Prodigy.
01.
02.
03.

7
Video & Audio Output Connections
ㆍHDMI cable connection
Connections
ㆍComposite cable connection
Connect HDMI cable to HDMI terminal at the back of product. Connect the remaining cable
terminal to HDMI terminal at the back of a digital TV. Make sure to carefully distinguish
between input and output terminals.
Connect yellow cable for video signal to the terminal located at the back of side of TV. Then,
select external input of TV. Connect the remaining red and white terminal cables to the left/ right
and audio output terminal at the back of the device. Then, connect red and white cables to the
left/ right terminal of DTV input or component audio input located at the back of a digital TV.

8
Connection
ㆍComponent cable connection
Connect the green, blue and red terminal cables to the Xtreamer Prodigy and TV in accordance with
the color scheme; connect white AV cable to L terminal, and red AV cable to R terminal.
(Component cable is an optional item)

9
ㆍOptical cable connection
Connection
You can enjoy high-quality 5.1CH sound when connected to an amplifier or a receiver with
optical cable. Connect optical cable to Optical port on Xtreamer Prodigy as shown above. Then,
connect to an amplifier or a receiver. ( Optical cable is optional )
ㆍCoaxial cable connection
You can enjoy high-quality 5.1CH sound when connected to an amplifier or a receiver with
coaxial output cable. Connect coaxial cable to coaxial port on Xtreamer Prodigy as shown above. Then,
connect to an amplifier or a receiver. ( Coaxial cable is optional )

10
Connect to the Network
ㆍWired and Wireless Network
Connection
Wireless IP Sharing Router
To set up your network connection please check the Settings guide below.
To setup shared folders on your local network, please refer to this online guide or check
a dedicated section below.

Remote Functions

12

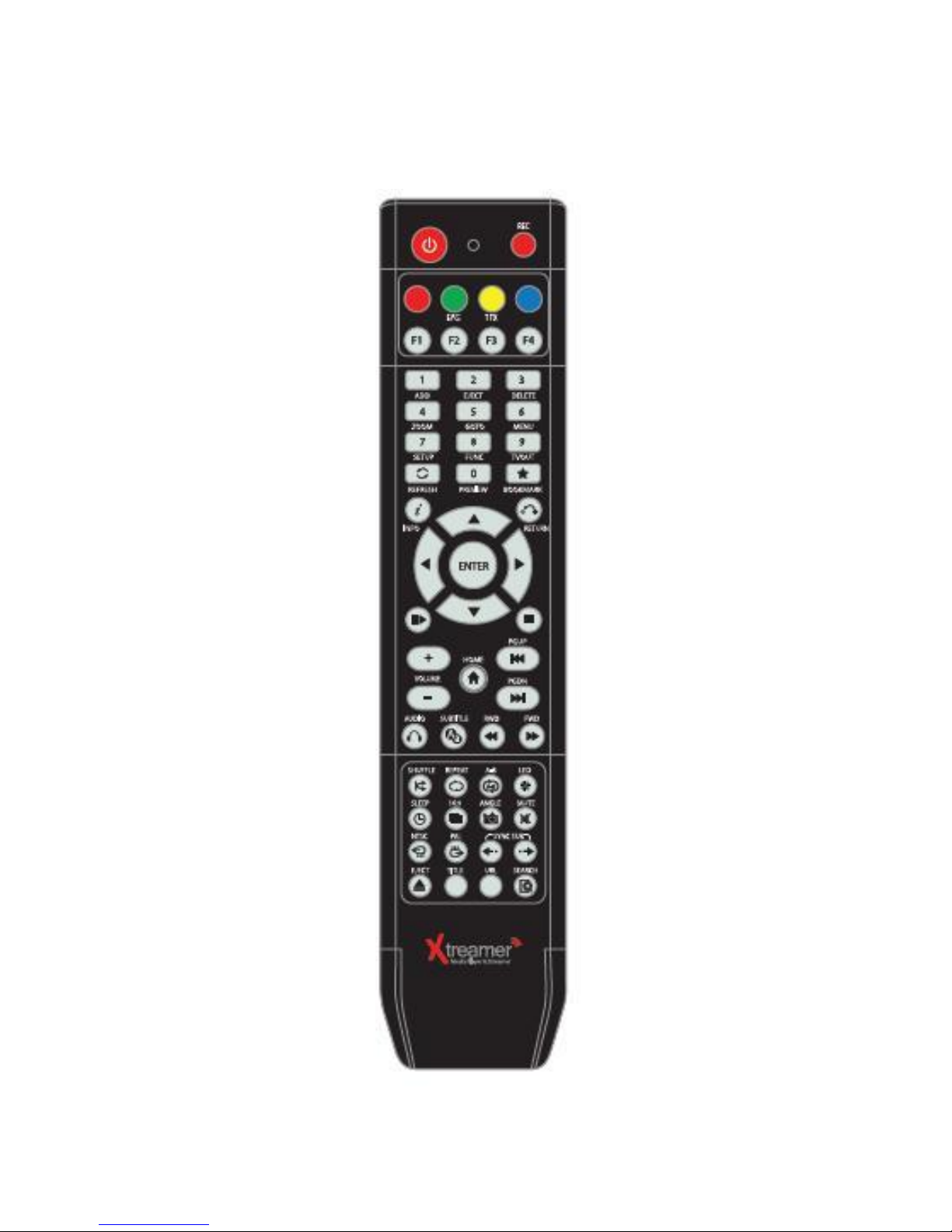

Remote Control Functions

13
General Remote Control Functions
1 POWER Power on / off
2
Record (DVB-T Tuner modulerequired)
3
Page mode in browser, special functions
4
Bookmarks,playlist, special functions,access TV channels in DVB
5 Address bar input, special functions
6
Special functions, playlistoperations
7
8
9 ADD Add
10 EJECT Eject for DVD
11 DELETE Delete
12 ZOOM
To enlarge and reduce screen/ repeatedly pressing for adjusting
zoomingpercentage/movingto positionof enlarged output by using
directionkeys./ Setup the X,Y positionon screen
13 GOTO To select file in the same title or to execute shortcut to the already
designated chapter position/shortcutto the desired timeposition
14 MENU Opens a list of availablefunctions in Media Libraryand during
playback,allowsaccess to DVD menu.
15 SETUP Function available when playing media file or using menu’s in
VIDEOIN screen to displayvarious setup screens
16 FUNC Opens a list of availablefile functionsin Media Library
17 TVOUT Toggle Video Output Modes and resolution(HDMI, AV) - double
press
18 REFRESH Refreshes the lists
19 PREVIEW To turn on/ off preview screen automaticallydisplayed in mediaplay
filesearch mode
20 BOOKMARK Supportsadding a file to bookmarkand to show bookmarklists
21 INFO To display the current status function availablewhile playback /
Open informationof the movie playing

14
General Remote Control Functions
22 RETURN Return to previous screen
23 NAVIGATION
KEYS To move the cursor and select files
24 ENTER To confirm selection / play. When used to play a file toggles single-
fileplayback.
25 PLAY/PAUSE To play and pause a selected file. Whenused toggles consecutive
(file-by-file)playback.
26 STOP To stop playback
27 HOME To return to the Main Menu.
28 PGUP To move to previous chapter or file (list)
29 PGDN To move to next chapter or file (list)
30 VOLUME Volumeadjustment
31 AUDIO Optionto change or select multipleaudio tracks
32 SUBTITLE Opens Subtitlebrowser
33 RWD/FWD 1.5x/2x/4x/8x/16x/32x speed, function available in movie files, mp3
as well sound output availablein 2x speed
34 SHUFFLE To change play sequence to shuffle
35 REPEAT To repeat file in play or to repeat all mediafiles in the corresponding
folder
36 A-B To set zone repetition
37 LED TurnsOn/OffLED part of Xtreamer
38 SLEEP Can be used to set the timerto turn off the player
39 16:9 Screen shifts into 16:9/16:10/4:3ratio during playback
40 ANGLE Used if Angle is supported in a DVD file.
41 MUTE Mutes the sound
42 NTSC Change output to NTSC
43 PAL Change output to PAL
44 SYNC
SUBTITLE Adjust subtitlefiles to synch with a moviefile(100ms/0.1sec)
45 EJECT Eject disc
46 TITLE Go to title menu (DVD-Video)
47 URL This function will be supported in the future.
48 SEARCH This function will be supported in the future.

Main Menu and Settings

16
Main Menu
Favorites
Under FAVORITES you can find the shortcuts to the files and folders you
added to your Favorites list as well as the playlists you created
History
HISTORY tab gives you a quick access to the Recently Played and Recently
Added files.
Media Library
MEDIA LIBRARY is your getaway to the contents of your local storage and
the network.
Android
ANDROID tab is your conduit to the wide and exciting world of Android OS
with its tens of thousands of applications.
Enjoy advanced web browsers, file managers, Internet Radio, online feeds
and channels, reading documents, browsing Google maps and a more.
Download and install new apps.
App
APP screen give you access to the built-in Internet applications and the
Web-Browseras well as Shoutcast radio stations, xLive and other RSS-based
projects. DVB getaway to the digitally broadcasted channels is in this tab
also.
Settings
And finally SETTINGS which are very intuitive and user-friendly and allow
you to easily configure your device to suit all your multi-media needs.

1. Automatically adjust the TV output mode when connected via HDMI cable.
Cycle through available resolutions.
Remote Control Key: TVOUT // Press 2 times consecutively
2. . Connect Component / Composite cable
Please note that video might suffer when connected via analogue.
Remote Control Key: TVOUT // Press 2 times consecutively
Different regions use different output standards:
-- PAL(B) : HDMI Auto, 576P 50Hz, 720P 50Hz, 1080i 50Hz, 1080P 50Hz
Europe, South Africa, Middle East, China, Austria, India
-- NTSC : HDMI Auto, 480P 60Hz, 720P 60Hz, 1080i 60Hz, 1080P 60Hz
Korea, Japan, US, Canada, Taiwan, Philippines, Colombia
17
1. Adjusting output mode with TV output and Video output
2. Select OSD language menu (default : English)
Select the OSD language.
Setting Look and Feel Menu Language Select
3. Select Subtitle\ID3-Tag encoding(default : Unicode(UTF8) )
Select the subtitle code.
Setting Look and Feel Text Encoding Select.
4. Select Audio Output.
Select the audio setting according to your audio system.
HDMI Outut
Setting Audio HDMI Output Select
SPDIF Output
Setting Audio SPDIF Output Select
Basic Setup

18
Video
Settings
TV System
You will be able to select proper display resolution and video output type.
1080P 24Hz
This feature allows you 1080P 24Hz output when playing Blu-ray files (BD); however, this function is
only available when Xtreamer is connected using a HDMI cable to a TV that supports 24Hz frame rate.
PAL (B) (50Hz)
Europe, Greenland, South Africa, the Middle East, China, Austria, India, Indonesia.
NTSC (60Hz)
Korea, the USA, Japan, Canada, Taiwan, the Philippines, Colombia.
Display
Resolution
HDMI Auto / NTSC / PAL / 480P / 576P / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz /
1080P 50Hz / 1080P Supported.
※In some cases, display resolution on your TV can not be supported due to inactivity; therefore,
you should check your TV specification.
Note for 1080p 24p
- TV, AV amp and media file you use must support 1080P 24Hz and your media file should be
encoded 1080P 23.976fps.
- If video isn’t properly played by selecting *ON+, you will be required to select *Off+.
- The initial TV screen can be flickering when you switch on “1080P 24Hz” mode

19
Video
Settings
PanScan 4:3 16:9 Ratio converted to 4:3 Ratio is referred to as high definition TV. It will reduce
scan lines to 4:3.
LetterBox 4:3 16:9 Ratio converted to 4:3 Ratio is referred to as your TV. It will decompress image
to 4:3.
16:9 Video is fully displayed in 16:9 DVD frame as well as 4:3 Ratio fully displayed.
16:10 It enables you to add letterboxing bars above and below video screen, meanwhile,
your TV maintains its aspect ratio of 16:9, e.g. 16:9=1920x1080 / 16:10=1920x1200.
Brightness
Brightness in video refers to the luminance portion of a video signal. It enables you to use Increase Brightness
and Decrease Brightness commands by pressing [SETUP] button on your remote during playback.
Contrast
Allow you to adjust video contrast when using Increase Contrast and Decrease Contrast commands by pressing
[SETUP] button on your remote during playback.
Hue
This option provides how to use the Hue adjustment to enhance your colors. Along the way, you will be able to
use Increase Hue and Decrease Hue commands by pressing [SETUP] button on your remote during playback.
Saturation
This feature, saturation is one of three coordinates in the HSL and HSV color spaces. It enables you to use
Increase Saturation and Decrease Saturation commands by pressing [SETUP] button on your remote while
playback.
Aspect Ratio
You will be able to select Aspect Ratio type of movie screen for playback.

20
20
Audio
Settings
HDMI Output
Select a desired configuration for your digital audio output.
SPDIF output
Select a desired configuration for your optical audio output.
Night Mode
Off
Outputting raw sound.
On
It provides high-definition audio that is identical to, and every bit as spectacular as, the master
recording. In spite of decreasing volume, you will be able to experience incredible surround
sound that puts you right in the middle of the action without disturbing others.
Comfort
You will be able to hear every tiny sound in rich detail as well as comfortable sound
levels solely for you.
