Xtreme Power 96137 Original instruction manual

ABDOMINAL FITNESS MACHINE
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 96137
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

1
SAVE THESE WARNINGS
IMPORTANT SAFETY INFORMATION PRODUCT INFORMATION
GENERAL SAFETY WARNINGS
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all instructions before operating. Failure to follow the safety rules and other basic
safety precautions may result in serious personal injury.
Assemble the machine exactly as the description given in this manual.
Check all screws, nuts and other connections before using the machine for the rst
time to ensure user safety.
Set up and operate the machine on a dry, level surface. DO NOT allow water or
moisture to get on this machine.
Place a rubber mat under the machine and keep the area free of debris and dirt.
Before beginning training, make sure there is at least 7 feet away from other objects.
DO NOT use abrasive cleaners to clean the machine. Use a damp wash cloth and
if necessary, dish washing liquid.
Consult a doctor before using this machine. This machine is NOT suitable for
therapeutic purposes and is designed for home use only.
Prior to working out, be sure to check the machine for any loose or worn parts and
x or replace them prior to using the machine.
This machine is design for single rider use ONLY. Never allow more than one person
at a time to operate this machine.
Children and handicap persons should only use the machine in the presence of an
adult who can give assistance if needed.
The power of this machine increases when you increase the speed of the machine.
Be mindful of this fact when operating this machine.
The maximum weight capacity for this machine is 220lbs. Please DO NOT exceed
this weight limit.

2
PRODUCT INFORMATION
• Design to target your upper abs, lower abs and side obliques
• Help to increase cardio, strengthen core, lose weight, tighten & tone and more
• Simple to use at home, ofce and more places
• All steel construction for high durability
• Assembly required
• Weight plate capacity: 30 lbs
• Product dimension: 49 inch(L) x 18 inch(W) x 51 inch(H)
• Product Weight: 51 Lbs

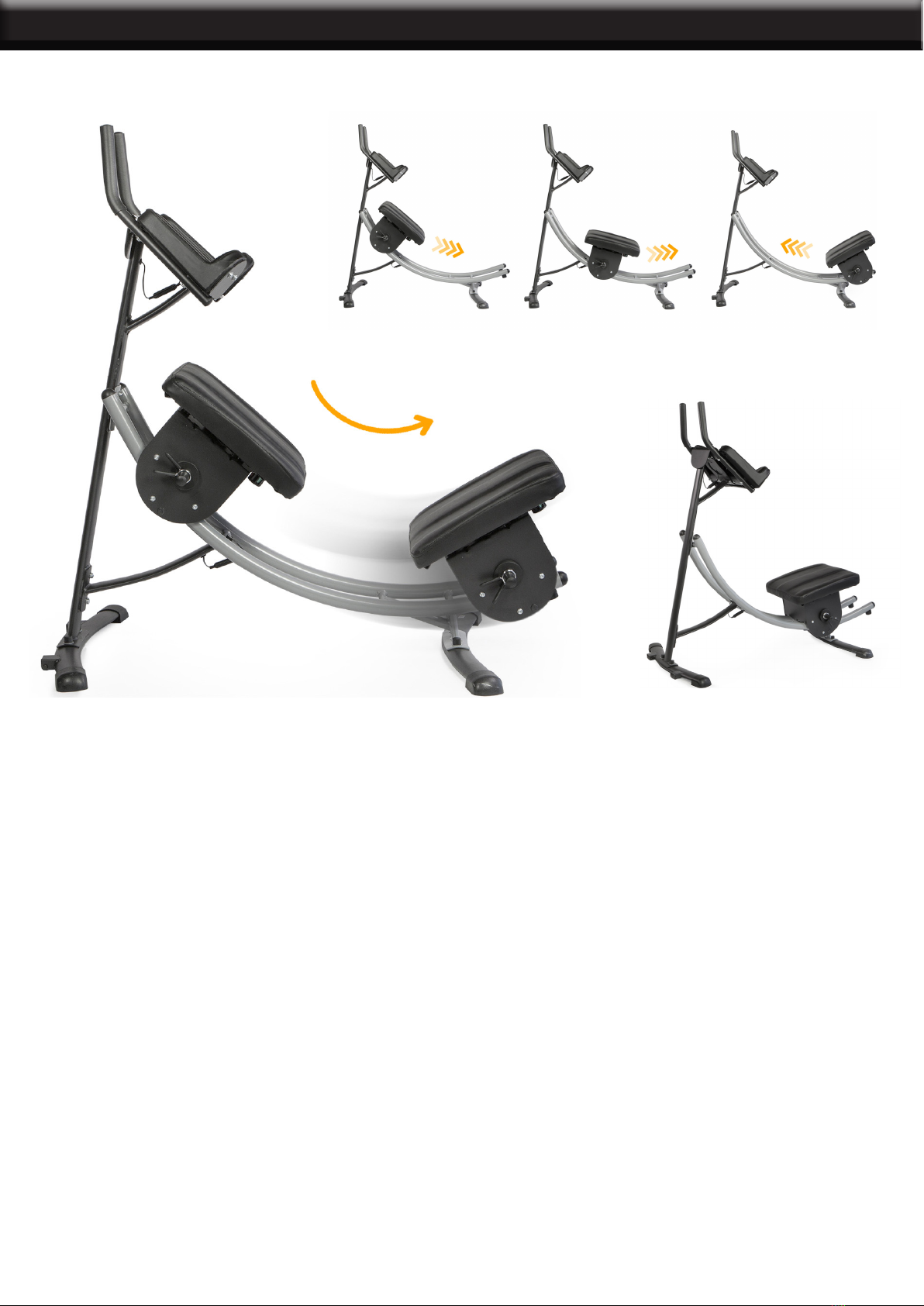

ROLLER COASTER ABDOMINAL MACHINE
XtremepowerUS present a new roller crunch coaster tness machine provides new
workout solution for strengthening your midsection of your body. It designs bottom
up workout function that is opposite from other abs crunch machine. In this way, it
also works shoulders, back, arms and legs. It integrates contoured padded cushion
for supporting arms and legs during workout. This machine can be used as a part of
complete tness routine or as an abdominal trainer.

3
PARTS DIAGRAM

4

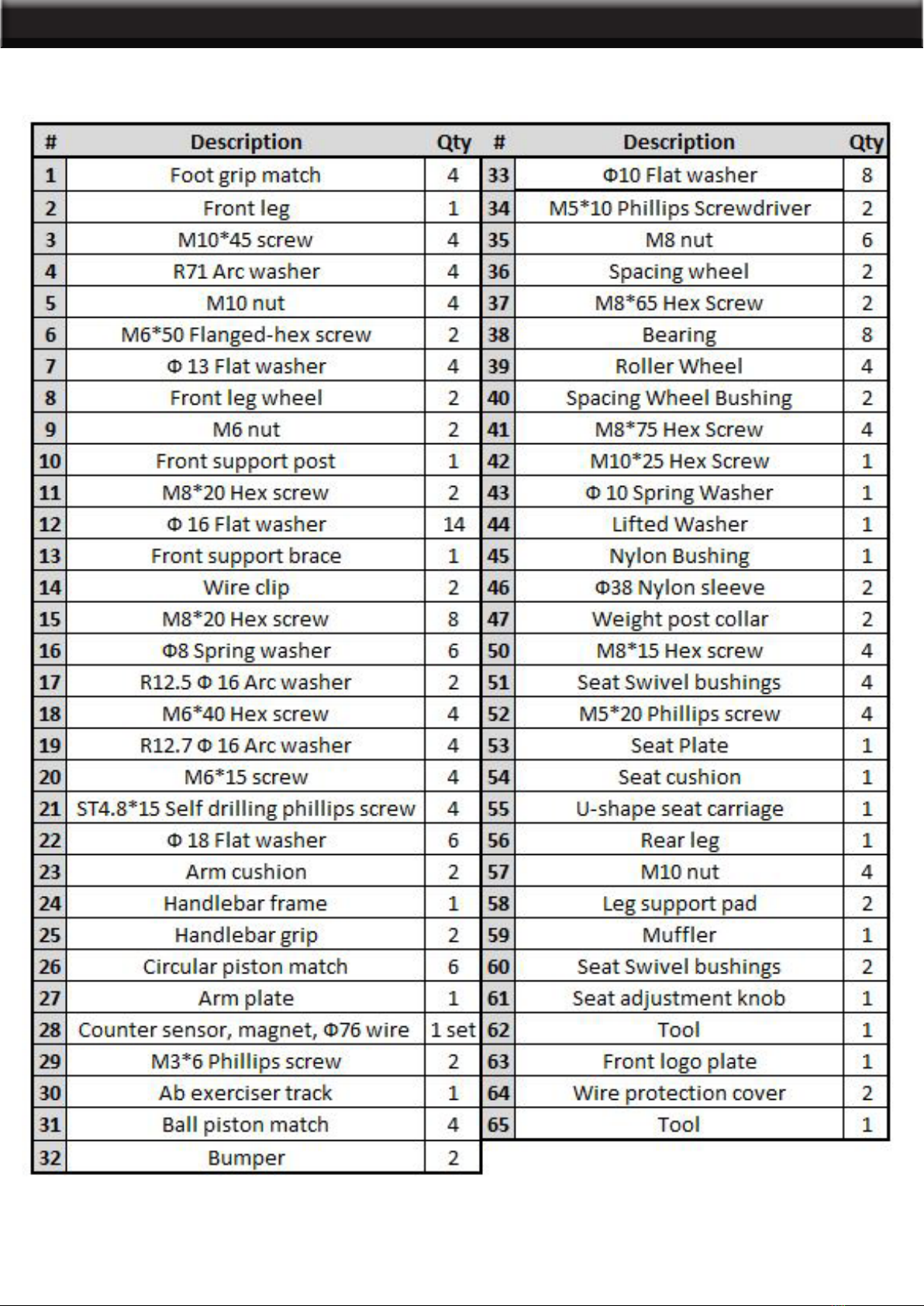

PARTS DIAGRAM PARTS LIST

ASSEMBLY
The machine has been thoroughly inspected and partly assembled before shipment.
Please take the time to nish assembly by following the steps below.
Step 1: Attach the rear foot
Step 2: Attach the front foot
Step 3: Attach the front post
Step 4: Attach the armrest console
Step 5: Connect the wires
Step 1: Attach the rear foot to the rear of the curved track. Remove the 2 bolts which
have been pre-attached to the rear foot, then re-attach the bolts to connect the
foot to the track. Finger tighten the bolts only. DO NOT tighten the bolts with a tool
until the unit is fully assembled.
3

ASSEMBLY
4
Step 2: Attach the front foot (with wheels) to the front post using the 2 pre-attached
bolts. Finger tighten only.
Step 3: Attach the front post to the curved track. The front post is attached to the
track in two locations as shown using the 2 pre-attached Allen head screws for each
location. Finger tighten only.

ASSEMBLY
Step 4: Attach the armrest console to the top of the front post using the 4 pre-attached
Allen head screws. Tighten all bolts and screws using the tools provided. Cover the
bolts with black plastic caps provided.
3
Step 5: Connect the counter wires in
2 locations as shown. Install the wire
protection covers to cover the wire
connections.
METER: The digital repetition counter
helps to keep your workout on track. The
digital display requires one AAA battery
(included). Press the MODE key to start
the count function. To reset the counter,
press and hold the button for 3 seconds.

ASSEMBLY
4
ADJUSTING THE SEAT
The seat on this machine can be adjusted to target different areas of your abdominal
muscles. The seat adjusting pin is located at the seat below the cushion.
There are 4 seat settings: Front, left, right and free-style motion.
To lock the seat into the front, right and left settings, pull down the pin and move the
seat to the desired setting (front, right or left). Release the pin and adjust the seat until
the pin “pops” into the hole underneath the seat at the desired setting. Make sure the
pin is in the locked position and the seat is secure before you use the ab machine.
To adjust the seat for freestyle motion, pull down the pin and twist the pin to the
“unlocked” setting. Rotate the seat by hand to ensure that it is moving freely.
CAUTION: Use caution when getting on and off the machine when the seat is in the
“unlocked”, free-style position.
CAUTION: DO NOT add more than 20lbs of weight in total to the posts (4 plates of 5lbs
each) before adding any weight, ensure that you are able to perform the exercise
with proper form without any additional weights.

5
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
WARRANTY
PRODUCT MADE IN CHINA
