Xylem Goulds CentriPro M05430 User manual

4" Submersible Pumps
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
INSTRUCTION MANUAL
IM096R10

2
Table of Contents
SUBJECT PAGE
Safety Instructions ................... 3 & 4
Pump Protection Devices.................4
Installation Checklist .......................5
1.0 Typical Installations ...................6
2.0 Piping and Tank.........................7
3.0 Wire Sizing, Splicing and
Power Supply ...............................9
4.0 Wiring the Controls and
Switch .......................................10
5.0 Starting the Pump....................12
6.0 Paperwork and IOM ...............12
CentriPro 4" 1 Ph Motor Data ......13
Single Phase Wire Sizing Charts ....14

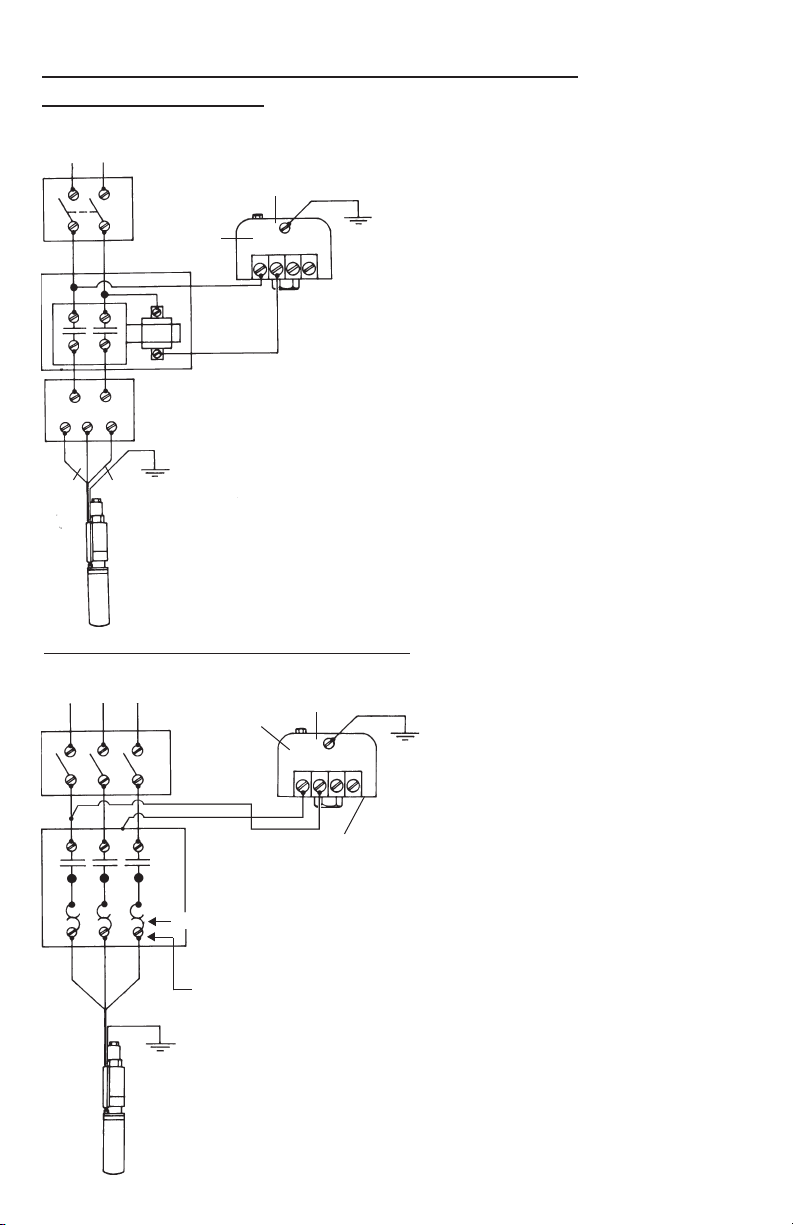

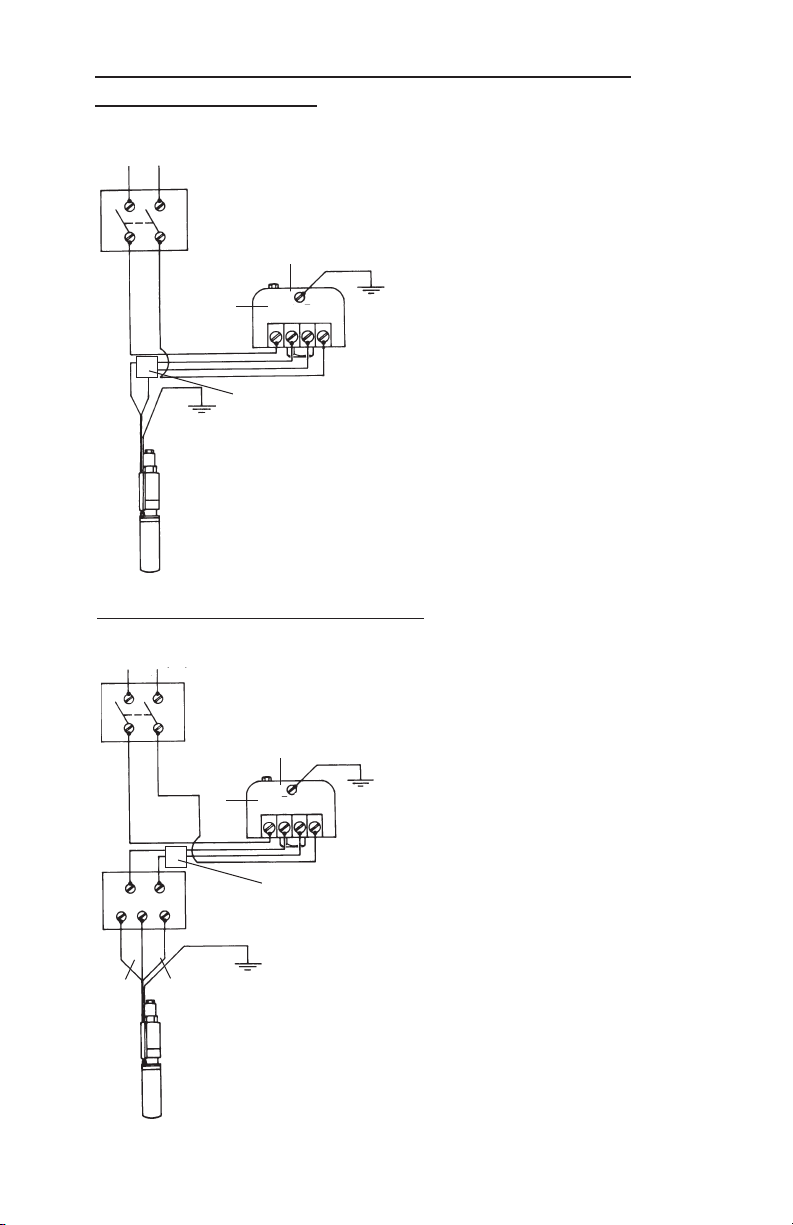

PumpSaver Schematics ..................14
Three Phase Motor Data...............15
Three Phase Motor
Electrical Data...........................16
Three Phase Motor
Wire Chart................................17
Resistance and Generator Data .....18
Wiring Diagrams ................. 19 & 20
Three Phase Starters ......................21
Troubleshooting.............................22
Limited Consumer Warranty.........66
Owner’s Information
Pump Model #:
Pump Serial #:
Motor Model #:
Motor Serial #:
Dealer:
Dealer Telephone:
Purchase Date:
Installation Date:
Volts:
Amps:
Owner’s Information Table of Contents

3
All electrical work must be performed by a qualified
technician. Always follow the National Electrical Code (NEC),
or the Canadian Electrical Code, as well as all local, state and provincial
codes. Code questions should be directed to your local electrical inspector.
Failure to follow electrical codes and OSHA safety standards may result
in personal injury or equipment damage. Failure to follow manufacturer’s
installation instructions may result in electrical shock, fire hazard, personal
injury or death, damaged equipment, provide unsatisfactory performance,
and may void manufacturer’s warranty.
Standard units are not designed for use in swimming pools,
open bodies of water, hazardous liquids, or where flammable
gases exist. Well must be vented per local codes. See specific pump catalog
bulletins or pump nameplate for all agency Listings.
Disconnect and lockout electrical power before installing or
servicing any electrical equipment. Many pumps are equipped
with automatic thermal overload protection which may allow an overheated
pump to restart unexpectedly.
Never over pressurize the tank, piping or system to a pressure
higher than the tank's maximum pressure rating. This will
damage the tank, voids the warranty and may create a serious hazard.
Protect tanks from excessive moisture and spray as it will cause
the tank to rust and may create a hazard. See tank warning
labels and IOM for more information.
WARNING
WARNING
WARNING
Important notice: Read safety instructions before proceeding with any wiring
SAFETY INSTRUCTIONS
TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MAJOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN MANUAL AND ON PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE INSTALLATION AND
OPERATION OF THIS UNIT AND MUST BE KEPT WITH THE PUMP.
This is a SAFETY ALERT SYMBOL. When you see this
symbol on the pump or in the manual, look for one of the
following signal words and be alert to the potential for
personal injury or property damage.
Warns of hazards that WILL cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause personal injury or property
damage.
NOTICE:INDICATES SPECIAL INSTRUCTIONS WHICH ARE VERY
IMPORTANT AND MUST BE FOLLOWED.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND WARNINGS
PRIOR TO PERFORMING ANY WORK ON THIS PUMP.
MAINTAIN ALL SAFETY DECALS.
DANGER
CAUTION
WARNING
WARNING
WARNING

4
CAUTION
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
DANGER
WARNING
CAUTION
SAFETY INSTRUCTIONS (continued)
Do not lift, carry or hang pump by the electrical cables.
Damage to the electrical cables can cause shock,
burns or death.
Use only stranded copper wire to pump/motor and ground.
The ground wire must be at least as large as the power supply
wires. Wires should be color coded for ease of maintenance
and troubleshooting.
Install wire and ground according to the National Electrical
Code (NEC), or the Canadian Electrical Code, as well as all
local, state and provincial codes.
Install an all leg disconnect switch where required
by code.
The electrical supply voltage and phase must match all equip-
ment requirements. Incorrect voltage or phase can cause fire,
motor and control damage, and voids the warranty.
All splices must be waterproof. If using splice kits follow
manufacturer’s instructions.
Select the correct type and NEMA grade junction box for the
application and location. The junction box must insure dry,
safe wiring connections.
All motors require a minimum 5' submergence for proper refill
check valve operation.
Failure to permanently ground the pump, motor and controls
before connecting to power can cause shock, burns or death.
All three phase (3Ø) controls for submersible pumps must
provide Class 10, quick-trip, overload protection.
4" motors ≥2 HP require a minimum flow rate of .25 ft/sec.
or 7.62 cm/sec. past the motor for proper motor cooling.
The following are the minimum flows in GPM per well
diameter required for cooling: 1.2 GPM/4", 7 GPM/5",
13 GPM/6", 20 GPM/7", 30 GPM/8" or 50 GPM in a 10"
well.
Pumps ≥2 HP installed in large tanks should be installed in a
flow inducer sleeve to create the needed cooling flow or veloc-
ity past the motor.
This pump has been evaluated for use with Water Only.
CAUTION
CAUTION
PUMP PROTECTION
We recommend using SymCom’s PumpSaver to protect the system from low
water, rapid cycling, high/low voltage, dead heading/flow restriction and
overcurrent.

5
INSTALLATION CHECK LIST
• Enter the pump and motor information and other requested data on the front
of this manual.
• Inspect all components for shipping damage, report damage to the distributor
immediately.
• Verify that motor HP and pump HP match.
• Match power supply voltage and phase to motor and control specifications.
• Select a dry, shaded location in which to mount the controls.
• Make all underwater and underground splices with waterproof splice
connections.
• Hold the pump at the discharge head when installing threaded pipe or an
adapter fitting as most pumps have left hand threads which will be loosened
if you hold the pump anyplace except the discharge head.
• Check all plumbing connections to insure they are tight and sealed with
Teflon tape.
• Verify that the pipe pressure rating is higher than pump shut-off pressure.
• Install a pressure relief valve on any system capable of creating over 75 PSI.
The system pressure cannot exceed the tank's maximum pressure rating.
• Locating the tank and controls in an area protected from rain, spray and
other environmental factors may prolong their useful life. Especially in areas
with acid rain and saline water.
• Locate the pressure switch within 4' of the pressure tank to prevent switch
chatter.
• Adjust tank pre-charge to 2 PSI below the system cut-in pressure setting, ex.
28 on a 30/50 system.
• Set the pump 10' above the well bottom to keep above sediment and debris.
• Insure that main power is disconnected, turned OFF, before wiring any com-
ponents.
• Wiring should be performed only by qualified technicians.
• Wiring and Grounding must be in compliance with national and local codes.
• Restrict the flow with a ball or globe valve, 1/3 open, before starting pump
for first time.
• Open a faucet or discharge valve on start-up to keep dirty water from enter-
ing the tank.
• Turn main breaker or disconnect ON.
• Run through several on/off cycles to verify proper switch operation.
• Check amps and enter the data on the front of this manual.
• Leave the manual with the owner or at the job site.

6
Figure 1
Figure 2
Protected Power Supply
Disconnect Switch
Control Box Pressure
Gauge To House
Piping
Shut-off Valve
Union
Drain Tap
Pressure Relief Valve
Air Escape Control
Pressure Switch
Line Check Valve with Snifter
Union
Pitless Adapter
Drain and Y Fitting
Approximate Drain Fitting Setting
Distance Drain and “Y”
Tank Capacity Fitting Below the Line Check
42 gallon (159 L) 7 feet (2.1m)
82 gallon (310 L) 10 feet (3m)
120 gallon (454 L) 15 feet (4.6m)
220 gallon (833 L) 15 feet (4.6m)
315 gallon (1192 L) 20 feet (6.1m)
525 gallon (1981 L) 20 feet (6.1m)
Protected Power Supply To House Piping
Disconnect Switch
Shut-off Valve
Union
Pressure Relief Valve
Drain Tap
Tank Tee
Check Valve ②
Frost Level
GALVANIZED TANK INSTALLATION
1.0 TYPICAL INSTALLATIONS
1.0 TYPICAL INSTALLATIONS
Check Valve ①
Pitless Adapter ①
Pressure Switch
①On installations with a pitless adapter the top check
valve should be below the pitless, not at the tank, as the
discharge line should be pressurized back to the pitless.
②On installations with well seals or well pits it is allowable
to locate the top check valve near the tank.
CAPTIVE AIR TANK INSTALLATION
NOTICE: TANK PRE-CHARGE PRESSURE CHANGES MUST BE
MADE USING THE AIR VALVE ON TOP OF THE TANK.

7
2.0 PIPING
Notice: Most 4" submersibles have
left-hand discharge head threads,
hold the pump only at the
“discharge head” when installing
fittings or threaded pipe.
2.1 General
The pump discharge
piping should be sized
for efficient pump opera-
tion. Use the Friction Loss
Tables to calculate total
dynamic head using different pipe
sizes. As a rule of thumb, use 1" for
up to 10 gpm, 1¼" for up to 30 gpm,
1½" for up to 45 gpm, and 2" for up
to 80 gpm. In the case of long pipe
runs it is best to increase pipe size.
Some pumps are capable of very high
discharge pressures, please select pipe
accordingly. Consult with your pipe
supplier to determine the best type of
pipe for each installation.
2.2 Pressure Tank,
Pressure Switch
and Pressure
Relief Valve
Select a dry location in
which the ambient temper-
ature is always above 34º
F (1º C) in which to install
the tank, pressure switch,
and pressure relief valve. The tank
should be located in an area where a
leak will not damage property.
The pressure switch should be
located at the tank cross tee and
never more than 4' from the tank.
Locating the switch more than
4' from the tank will cause
switch chatter.
Do not install valves, filters, or high
loss fittings between the switch and
the tank(s) as switch chatter may
result. As an example, a 1¼" spring
check valve has friction loss equal to
12' of pipe, placing the valve between
the pressure switch and the pressure
tank is the same as moving the pres-
sure switch 12' away from the tank. It
will create switch chatter.
On multiple tank installations the
switch should be as close to the cen-
ter of the tanks as possible. Multiple
tank installations should have a mani-
fold pipe at least 1½ times the size of
the supply pipe from the pump. This
will reduce the Friction Head in the
manifold and reduce the possibility
of switch chatter.
Pressure relief valves are required on
any system that is capable of
producing 100 psi or 230' TDH. If
blow-off may damage property,
connect a drain line to the pressure
relief valve and run it to a suitable
drain.
2.3 Adjusting Tank
Pre-Charge
Insure that the tank is empty of
water. Use a high quality pressure
gauge to check the tank pre-charge
pressure. The pressure should be 2 psi
below the pump cut-in pressure. As
an example, a 30-50 psi system would
use a tank pre-charge of 28 psi.
2.4 Discharge Pipe
Note: Most discharge heads are
threaded into the casing with left-
hand threads. Hold the pump only
at the discharge head when installing
fittings. Failure to hold the discharge
head will loosen it and pump damage
will result on start-up.
If your pipe requires an adapter we
strongly recommend using stain-
less steel. Galvanized fittings or pipe
should never be connected directly to
a stainless steel discharge head as
galvanic corrosion may occur. Plastic
or brass pumps can use any
material for this connection. Barb
type connectors should always be
double clamped.
Hazardous pressure can
cause personal injury
or property damage.
CAUTION
2.0 PIPING
Do not install tank where
it will be subjected to
spray from irrigation
systems. Exposure to such
spray could result in
corrosion of the tank,
eventually leading to an
explosion which can cause
property damage, serious
personal injury or death.
DANGER

8
The pump discharge head has a loop
for attaching a safety cable. The use
of a safety cable is recommended
when using poly pipe as the pipe
stretches when under pressure and
filled with water.
2.5 Assemble Pump End to
Motor
Remove the cable guard from the
pump (water end). Attach the water
end to the motor aligning the cou-
pling grooves to the grooves on the
motor shaft. Important: the coupling
should be completely lowered onto
the motor shaft, spin the motor shaft
to check for free rotation. Secure
the four motor nuts in an alternating
pattern at 13 ft-lbs. Align the wires in
the cable guard, place the blue wire
protector inside the cable guard at
the top end of the pump for strain
relief. The blue wire protector must
be between the wires and the pump
end. Reattach the cable guard to the
water end making sure not to pinch
the motor wires.
2.6 Installing Pump in Well
If using a torque arrestor, install it
per the manufacturer’s installation
instructions. Consult the seller for
information on torque arrestors and
for installation instructions.
Connect the discharge pipe to the
discharge head or adapter. Barb
style connectors should be double
clamped. Install the pump into the
well using a pitless adapter or similar
device at the wellhead. Consult the
fitting manufacturer or pitless
supplier for specific installation
instructions.
Using waterproof electrical tape,
fasten the wires to the drop pipe at
10' intervals. Pump suppliers also sell
clip-on style wire connectors that
attach to the drop pipe.
2.7 Special Piping For
Galvanized Tank
Systems
When using a galvanized tank install
an AV11 Drain & Y fitting in the well
and a check valve with snifter valve
at the tank. This will add air to the
tank and prevent water logging the
tank. Use an AA4 Air Escape on the
tank to allow excess air to escape.
The distance between the AV11
and check valve with snifter valve
determines the amount of air intro-
duced on each cycle. See the table for
recommended settings. See Figure 2
in Sec 1.0.
Gaseous wells should use galvanized
or glass lined steel tanks with AA4
air escapes to vent off excess air and
prevent “spurting” at the faucets.
Methane and other explosive or
dangerous gases require special water
treatment for safe removal. Consult a
water treatment specialist to address
these issues.
Installations with top feeding wells
should use flow sleeves on the pump.
2.8 Check Valves
Our pumps use four different styles of
check valves. We recommend check
valves as they prevent back-spinning
the pump and motor which will
cause premature bearing wear. Check
valves also prevent water hammer and
upthrust damage. Check valves should
be installed every 200' in the vertical
discharge pipe. See notes 1 & 2 on
Figure 1 for other check valve place-
ment recommendations.
If you wish to disable a check valve
for a drain back system, you should
use other means to prevent water
hammer and upthrust damage:
• Built-in stainless steel valves have a
flat which is easily drilled through
using an electric drill and a ¼" or
3⁄8" drill bit to disable the valve.

9
• Poppet style check valves which
are threaded in from the top of
the discharge head can be easily
removed using a ½" nut driver or
deep socket. The hex hub is visible
and accessible from the top.
• Internal Flomatic™ design plastic
poppet style valves must be
removed from inside which
requires pump disassembly.
• Built-in plastic poppet style valves
with a stem through the top may
be removed from discharge head
by pulling on the stem with pliers.
3.0 WIRE
SIZING,
SPLICING and
POWER SUPPLY
Always follow the National Electric
Code (N.E.C.), Canadian Electrical
Code, and any state, provincial, or
local codes.
We suggest using only copper wire.
Size wire from the charts found in
the Technical Data section of this
manual, MAID manual, or an
N.E.C. (National Electric Code)
code book. If discrepancies exist the
N.E.C. book takes precedence over a
manufacturer’s recommendations.
3.1 Splicing Wire to
Motor Leads
When the drop cable must be spliced
or connected to the motor lead, it is
necessary that the splice be water-
tight. The splice can be done with
heat shrink kits or waterproof tape.
A. Heat Shrink Splice Instructions
To use a typical heat shrink kit: strip
½" from the motor wires and drop
cable wires; it is best to stagger the
splices. Place the heat shrink tubes
on the wires. Place the crimps on the
wires and crimp the ends. Slide the
heat shrink tubes over the crimps and
heat from the center outward. The
sealant and adhesive will ooze out
the ends when the tube shrinks. The
tube, crimps, sealant, and adhesive
create a very strong, watertight seal.
B. Taped Splice Instructions
A) Strip individual conductor of
insulation only as far as
necessary to provide room for a
stake type connector. Tubular
connectors of the staked type are
preferred. If connector O.D. is
not as large as cable insulation,
build-up with rubber electrical
tape.
B) Tape individual joints with
rubber electrical tape, using two
layers; the first extending two
inches beyond each end of the
conductor insulation end, the
second layer two inches beyond
the ends of the first layer. Wrap
tightly, eliminating air spaces as
much as possible.
C) Tape over the rubber electrical
tape with #33 Scotch electrical
tape, or equivalent, using two
layers as in step "B" and making
each layer overlap the end of the
preceding layer by at least two
inches.
In the case of a cable with three
conductors encased in a single outer
sheath, tape individual conductors as
described, staggering joints.
Total thickness of tape should be no
less than the thickness of the conduc-
tor insulation.
WARNING
Hazardous voltage
can shock, burn or
cause death.
3.0 WIRE
SIZING,
SPLICING and
POWER SUPPLY

10
4.0 WIRING
THE
CONTROLS and
SWITCH
4.1 Mounting the Motor
Control Box
Single phase 3-wire control boxes
meet U.L. requirements for Type
3R enclosures. They are suitable for
vertical mounting in indoor and out-
door locations. They will operate at
temperatures between 14ºF (-10ºC)
and 122ºF (50ºC). Select a shaded,
dry place to mount the box. Insure
that there is enough clearance for the
cover to be removed.
4.2 Verify Voltage and Turn
Supply Power Off
Insure that your motor voltage and
power supply voltage are the same.
Place the circuit breaker or discon-
nect switch in the OFF position to
prevent accidentally starting the
pump before you are ready.
Three-phase starter coils are very
voltage sensitive; always verify actual
supply voltage with a voltmeter.
High or low voltage, greater than
±10%, will damage motors and
controls and is not covered under
warranty.
4.3 Connecting Motor Leads
to Motor Control Box,
Pressure Switch or
Starter
Caution Do not power the
unit or run the pump until
all electrical and plumbing
connections are completed.
Verify that the disconnect
or breaker is OFF before
connecting the pressure switch line
leads to the power supply. Follow
all local and national codes. Use a
disconnect where required by code.
A. Three-Wire Single Phase Motor
Connect the color coded motor leads
to the motor control box terminals
- Y (yellow), R (red), and B (black);
and the Green or bare wire to the
green ground screw.
Connect wires between the Load
terminals on the pressure switch
and control box terminals L1 and
L2. Run a ground wire between the
switch ground and the control box
ground. See Figure 4 or 5.
B. Two-Wire Single Phase Motor
Connect the black motor leads to the
Load terminals on the pressure switch
and the green or bare ground wire
to the green ground screw. CentriPro
2-wire motors will not work with
Franklin Electric PumpTec. Use a
PumpSaver. See Figure 3.
C. Three phase motors
Connect the motor leads to T1, T2,
and T3 on the 3 phase starter. Con-
nect the ground wire to the ground
screw in the starter box. Follow
starter manufacturers instructions
for connecting pressure switch or
see Figure 6.
4.4 Connect To
Power Supply
Complete the wiring by
making the connection
from the single phase pres-
sure switch Line terminals
to the circuit breaker panel
or disconnect where used.
Three phase - make the connections
between L1, L2, L3, and ground on
the starter to the disconnect switch
and then to the circuit breaker panel.
Three phase installations must be
checked for motor rotation and
phase unbalance. To reverse motor
rotation, switch (reverse) any two
leads. See the instructions for check-
ing three phase unbalance in section
4.6. Failure to check phase unbalance
can cause premature motor failure
WARNING
Hazardous voltage
can shock, burn or
cause death.
WARNING
Hazardous voltage
can shock, burn or
cause death.
WARNING
Hazardous voltage
can shock, burn or
cause death.
4.0 WIRING
THE
CONTROLS and
SWITCH

11
and nuisance overload tripping. If
using a generator, see Technical Data
for generators.
4.5 Three Phase Overload
Protection
Use only Class 10, quick-trip over-
load protection on three-phase
submersible motors. See Definite
Purpose Starters in this manual.
Call the pump manufacturer’s
Customer Service group for selection
assistance.
4.6 Three Phase Power
Unbalance
A full three phase supply consist-
ing of three individual transformers
or one three phase transformer is
recommended. “Open” delta or wye
connections using only two trans-
formers can be used, but are more
likely to cause poor performance,
overload tripping or early motor
failure due to current unbalance.
Check the current in each of the three
motor leads and calculate the current
unbalance as explained below.
If the current unbalance is 2% or
less, leave the leads as connected.
If the current unbalance is more
than 2%, current readings should
be checked on each leg using each
of the three possible hook-ups. Roll
the motor leads across the starter in
the same direction to prevent motor
reversal.
To calculate percent of current
unbalance:
A. Add the three line amp values
together.
B. Divide the sum by three, yield-
ing average current.
C. Pick the amp value which is
furthest from the average current
(either high or low).
D. Determine the difference
between this amp value (furthest
from average) and the average.
E. Divide the difference by the
average.
Multiply the result by 100 to
determine percent of
unbalance.
Hookup 1 Hookup 2 Hookup 3
Starter Terminals L1 L2 L3 L1 L2 L3 L1 L2 L3
Motor Leads R B Y Y R B B Y R
T3 T1 T2 T2 T3 T1 T1 T2 T3
Example:
T3-R = 51 amps T2-Y = 50 amps T1-B = 50 amps
T1-B = 46 amps T3-R = 48 amps T2-Y = 49 amps
T2-Y = 53 amps T1-B = 52 amps T3-R = 51 amps
Total = 150 amps Total = 150 amps Total = 150 amps
÷ 3 = 50 amps ÷ 3 = 50 amps ÷ 3 = 50 amps
– 46 = 4 amps – 48 = 2 amps – 49 = 1 amps
4 ÷ 50 = .08 or 8% 2 ÷ 50 = .04 or 4% 1 ÷ 50 = .02 or 2%

12
Current unbalance should not exceed
5%. If the unbalance cannot be cor-
rected by rolling leads, the source of
the unbalance must be located and
corrected. If, on the three possible
hookups, the leg farthest from the
average stays on the same power
lead, most of the unbalance is coming
from the power source.
Contact your local power company
to resolve the imbalance.
5.0 STARTING
THE PUMP
5.1 Install a Valve
and Run the Pump To
Clear the Water
On a new well - Install a
ball or globe valve on the
pump discharge line and
with the valve 1⁄3open, pump the
well until the water begins to run
clear. Open the valve slowly to check
flow and when the water runs clear
turn the pump Power Off.
Remove the ball or globe valve and
connect the pump discharge to the
house plumbing, pressure tank and
switch. Turn Power On. Run a few
cycles through the tank to rinse it
out and to verify proper pump and
switch operation. Use this time to
check all fittings for leaks.
CAUTION: If the well has a high
static level, please see next section
for important pump protection
information.
5.2 Throttling A
High Static
Level Well To
Prevent Upthrust
Any well with a high static water
level may allow the pump to operate
off the curve to the right or outside
the “Recommended Range” shown
on the pump curve. We recommend
using a “Dole” flow restrictor or
throttling with a ball valve to prevent
upthrust damage to the pump and
motor. The maximum flow must be
restricted to be within the pumps
recommended operating range. If
you use a ball valve, set it, remove the
handle, tape the handle to the pipe,
and tag the valve with a note saying,
“Do not open this valve or pump
may be damaged”. The easiest way
to “set” the flow is to fill a 5 gallon
bucket and time how long it takes to
produce 5 gallons. Calculate the flow
in gpm based on this value. As the
water level drops in the well the flow
will be reduced due to increased head
and the valve will not interfere with
performance.
6.0 PAPERWORK
and IOM
Please give this filled-in IOM and
your business card to the owner.
A sticker with your name and phone
number on the tank or control box is
a great sales tool for future business!
We now provide an extra pump label
which you can affix to the IOM, put
on a 3-wire control box or locate
near the tank and pressure switch for
future pump identification.
Hazardous pressure can
cause personal injury
or property damage.
CAUTION
Hazardous pressure can
cause personal injury
or property damage.
CAUTION
6.0 PAPERWORK
and IOM
5.0 STARTING
THE PUMP

13
GENERATION II – 2-WIRE, 4" SINGLE PHASE
ELECTRICAL DATA, 60 HERTZ, 3450 RPM
GENERATION II – 3-WIRE, 4" SINGLE PHASE
ELECTRICAL DATA, 60 HERTZ, 3450 RPM
Full Load Service Factor Locked
Rotor
Amps
Winding
Resis-
tance
KVA
Code
Type CentriPro
Order No. HP KW Volts SF Amps Watts Amps Watts
2-
Wire
(PSC)
M05421 0.5 0.37 115 1.6 7.9 910 9.8 1120 28 1.4-2.0 H
M05422 0.5 0.37 230 1.6 4.0 845 4.7 1050 16 6.1-7.2 J
M07422 0.75 0.55 230 1.5 5.0 1130 6.2 1400 18 5.9-6.9 F
M10422 1.0 0.75 230 1.4 6.7 1500 8.1 1800 24 4.2-5.2 F
M15422 1.5 1.1 230 1.3 9.0 2000 10.4 2350 43 1.8-2.4 H
Full Load Service Factor Locked
Rotor
Amps
Winding
Resistance Required
Control
Box1
Type Order
No. HP KW Volts SF Amps Watts Amps Watts Main (B-Y)
Start
(R-Y)
3-
Wire
with
Q.D.
Cap.
Start
Box
M05411 0.5 0.37 115 1.6
Y – 8.8
B – 8.8
R – 0
675
Y – 10.9
B – 10.9
R – 0
980 44 1.0-
1.4
2.5-
3.1 CB05411
M05412 0.5 0.37
230
1.6
Y – 5.3
B – 5.3
R – 0
740
Y – 6.1
B – 6.1
R – 0
1050 21 5.1-
6.1
12.4-
13.7 CB05412
M07412 0.75 0.55 1.5
Y – 6.6
B – 6.6
R – 0
970
Y – 7.8
B – 7.8
R – 0
1350 32 2.6-
3.3
10.4-
11.7 CB07412
M10412 1.0 0.75 1.4
Y – 8.1
B – 8.1
R – 0
1215
Y – 9.4
B – 9.4
R – 0
1620 41 2.0-
2.6
9.3-
10.4 CB10412
3-
Wire
with
CSCR
(CR)
or
Mag-
netic
Contac-
tor
(MC)
Control
Box
M05412 0.5 0.37 1.6
Y – 4.2
B – 4.1
R – 1.8
715
Y – 4.8
B – 4.3
R – 1.8
960 21 1.0-
1.4
2.5-
3.1 CB05412CR
M07412 0.75 0.55 1.5
Y – 4.8
B – 4.4
R – 2.5
940
Y – 6.0
B – 4.9
R – 2.3
1270 32 5.1-
6.1
12.4-
13.7 CB07412CR
M10412 1.0 0.75 1.4
Y – 6.1
B – 5.2
R – 2.7
1165
Y – 7.3
B – 5.8
R – 2.6
1540 41 2.6-
3.3
10.4-
11.7 CB10412CR
M15412 1.5 1.1 1.3
Y – 9.1
B – 8.2
R – 2.0
1660
Y – 10.9
B – 9.4
R – 1.9
2130 49 2.0-
2.6
9.3-
10.4
CB15412CR
or
CB15412MC
M20412 21.5 1.25
Y – 9.9
B – 9.1
R – 2.6
2170
Y – 12.2
B – 11.7
R – 2.6
2660 49 1.6-
2.2
10.8-
12.0
CB20412CR
or
CB20412MC
M30412 32.2 1.15
Y – 14.3
B – 12.0
R – 5.7
3170
Y – 16.5
B – 13.9
R – 5.6
3620 76 1.1-
1.4
2.0-
2.5
CB30412CR
or
CB30412MC
M50412 53.7 1.15
Y – 24.0
B – 19.1
R – 10.2
5300
Y – 27.0
B – 22.0
R – 10.0
6030 101 .62-
.76
1.36-
1.66
CB50412CR
or
CB50412MC
¹ A CSCR control box with a CR sufx can be replaced by a Magnetic Contactor model ending in MC.

14
PRESSURE SWITCH
OR OTHER CONTROL
PUMPSAVER
111 / 233
L1
IN L1
OUT
L2
IN OUT
L2
FUSED DISCONNECT
OR CIRCUIT BREAKER
GND L1 L2
PRESSURE
SWITCH
OR OTHER
CONTROL
L1
L1
L1
L1
L2
L2
L2
L2
GND
GND
GND
PRESSURE SWITCH MAY BE INSTALLED
AHEAD OF THE PUMPSAVER WHEN
RAPID CYCLE PROTECTION IS
NOT REQUIRED
GND
TO MOTOR OR CONTROL BOX
GND L2 L1
FUSED
DISCONNECT OR
CIRCUIT
BREAKER
L1
L2
CT
L1SW L2 YEL BLK RED
DELUXE CONTROL BOX
PUMP
MOTOR
TO PUMP
PUMP
PRESSURE
SWITCH OR
OTHER CONTROL
L1 CT1 CT2 L2 IN L2 OUT
PUMPSAVER 235
PUMPSAVER 235 PUMPSAVER 111 / 233 PUMPSAVER 111 / 233
GENERATION II, 2-WIRE MOTORS, RECOMMENDED LEAD LENGTHS
Released for Sale in November/December 2011
GENERATION II, 3-WIRE, 4" 1Ø, RECOMMENDED WIRE LENGTHS
CentriPro Motor Lead Lengths - 2 Wire Motors, 1Ø, 4" Motors
Based on Service Factor Amps, 30º C Ambient and 5% Voltage Drop
Motor Rating 60º C and 75º C Insulation - AWG Copper Wire Size
Volts HP kW FLA SFA 14 12 10 8 6 4 2 1/0 2/0 3/0 4/0
115 ½ 0.37 7.9 9.8 112 178 284 449 699 1114 1769 2814 3550 4481 5646
230
½ 0.37 4.0 4.7 466 742 1183 1874 2915 4648 7379 11733
¾ 0.55 5.0 6.2 353 562 897 1420 2210 3523 5594 8895 11222
1 0.75 6.7 8.1 271 430 686 1087 1692 2697 4281 6808 8590 10843
1½ 1.1 9.0 10.4 211 335 535 847 1318 2100 3335 5303 6690 8445
CentriPro 3-Wire Motors – Recommended Motor Lead Lengths
Based on Service Factor Amps, 30º C Ambient and 5% Voltage Drop
Motor Rating 60º C and 75º C Insulation - AWG Copper Wire Size
Volts HP kW FLA SFA 14 12 10 8 6 4 2 1/0 2/0 3/0 4/0
115 ½ 0.37 8.8 10.9 101 160 255 404 629 1002 1591 2530 3192 4029 5076
230
½ 0.37 5.3 6.1 359 571 912 1444 2246 3581 5685 9040 - - -
¾ 0.55 6.6 7.8 281 447 713 1129 1757 2800 4446 7070 8920 - -
1 0.75 8.1 9.4 233 371 592 937 1458 2324 3689 5867 7402 - -
1½ 1.1 9.1 10.9 201 320 510 808 1257 2004 3182 5059 6383 - -
2 1.5 9.9 12.2 180 286 456 722 1123 1790 2843 4520 5703 - -
3 2.2 14.3 16.5 133 211 337 534 830 1324 2102 3342 4217 5323 -
5 3.7 24 27 - - 206 326 507 809 1284 2042 2577 3253 -

15
CENTRIPRO THREE PHASE, 4", MOTOR DATA
EFFICIENCY, THRUST RATING, FUSE/CIRCUIT BREAKER, KVA CODES
Efciency %
Thrust
Rat-
ing
KVA
Code
Standard
Fuse DE-TD Fuse Circuit Breaker
Model
#HP Volts F.L. S.F.
Meets
NEC
based
FLA
Max.
Value
based
SFA
Meets
NEC
based
FLA
Max.
Value
based
SFA
Meets
NEC
based
FLA
Max.
Value
based
SFA
M05430 0.5
200
62 68
700 #
R 10 15 6 10 10 10
M07430 0.75 69 74 R 15 15 10 15 10 15
M10430 1 66 70 M 15 20 10 10 10 15
M15430 1.5 72 74 L 20 25 10 15 15 20
M20430 2 74 75 900 # K 25 30 15 20 20 25
M30430 3 77 77 K 35 40 20 25 30 35
M50430 5 76 76 1500 # J 60 70 35 40 50 60
M75430 7.5 74 74 J 80 90 50 60 70 80
M05432 0.5
230
61 68
700 #
R 6 10 6 6 6 10
M07432 0.75 66 71 R 6 15 6 10 6 10
M10432 1 69 72 M 10 15 6 10 10 15
M15432 1.5 75 76 K 15 20 10 15 15 20
M20432 2 75 75 900 # K 15 25 15 15 20 20
M30432 3 77 77 J 25 35 15 20 25 30
M50432 5 76 76 1500 # J 45 60 30 35 40 45
M75432 7.5 75 75 J 70 80 45 50 60 70
M05434 0.5
460
61 68
700 #
R363336
M07434 0.75 69 73 R 3 10 6 6 3 6
M10434 1 65 69 M 6 10 3 6 6 10
M15434 1.5 72 73 K 10 10 6 6 6 10
M20434 2 74 75 900 # L 15 15 6 10 10 10
M30434 3 76 77 J 15 20 10 10 15 15
M50434 5 77 77
1500 #
J 25 30 15 20 15 25
M75434 7.5 76 76 L 40 50 25 30 30 35
M100434 10 79 80 K 45 60 25 35 35 45
M15437 1.5
575
73 74 700 # J 6 10 3 6 6 10
M20437 2 78 78 900 # M 10 10 6 6 10 10
M30437 3 78 78 J 10 15 10 10 10 15
M50437 5 74 75 1500 # M 20 25 15 15 20 20
M75437 7.5 77 77 J 25 35 20 20 25 30

16
THREE PHASE, 4" MOTOR DATA
Electrical Data, 60 Hz, 3450 RPM
THREE PHASE 4" MOTOR DATA
Electrical Data, 60 Hz, 3450 RPM
Full Load Service Factor Locked Line - Line
Model # HP kW Volts SF Amps Watts Amps Watts Rotor Amps Resistance
M05430 0.5 0.37 1.6 2.9 600 3.4 870 22 4.1-5.2
M07430 0.75 0.55 1.5 3.8 812 4.5 1140 32 2.6-3.0
M10430 1 0.75 1.4 4.6 1150 5.5 1500 29 3.4-3.9
M15430 1.5 1.1 200 1.3 6.3 1560 7.2 1950 40 1.9-2.5
M20430 2 1.5 1.25 7.5 2015 8.8 2490 51 1.4-2.0
M30430 3 2.2 1.15 10.9 2890 12.0 3290 71 0.9-1.3
M50430 5 3.7 1.15 18.3 4850 20.2 5515 113 0.4-0.8
M75430 7.5 5.5 1.15 27.0 7600 30.0 8800 165 0.5-0.6
M05432 0.5 0.37 1.6 2.4 610 2.9 880 17.3 5.7-7.2
M07432 0.75 0.55 1.5 3.3 850 3.9 1185 27 3.3-4.3
M10432 1 0.75 1.4 4.0 1090 4.7 1450 26.1 4.1-5.1
M15432 1.5 1.1 230 1.3 5.2 1490 6.1 1930 32.4 2.8-3.4
M20432 2 1.5 1.25 6.5 1990 7.6 2450 44 1.8-2.4
M30432 3 2.2 1.15 9.2 2880 10.1 3280 58.9 1.3-1.7
M50432 5 3.7 1.15 15.7 4925 17.5 5650 93 .85-1.25
M75432 7.5 5.5 1.15 24 7480 26.4 8570 140 .55-.85
M05434 0.5 0.37 1.6 1.3 610 1.5 875 9 23.6-26.1
M07434 0.75 0.55 1.5 1.7 820 2.0 1140 14 14.4-16.2
M10434 1 0.75 1.4 2.2 1145 2.5 1505 13 17.8-18.8
M15434 1.5 1.1 1.3 2.8 1560 3.2 1980 16.3 12.3-13.1
M20434 2 1.5 460 1.25 3.3 2018 3.8 2470 23 8.0-8.67
M30434 3 2.2 1.15 4.8 2920 5.3 3320 30 5.9-6.5
M50434 5 3.7 1.15 7.6 4810 8.5 5530 48 3.58-4.00
M75434 7.5 5.5 1.15 12.2 7400 13.5 8560 87 1.9-2.3
M100434 10 7.5 1.15 15.6 9600 17.2 11000 110 1.8-2.2
M15437 1.5 1.1 1.3 2.0 1520 2.4 1950 11.5 19.8-20.6
M20437 2 1.5 1.25 2.7 1610 3.3 2400 21 9.4-9.7
M30437 3 2.2 575 1.15 3.7 2850 4.1 3240 21.1 9.4-9.7
M50437 5 3.7 1.15 7.0 5080 7.6 5750 55 3.6-4.2
M75437 7.5 5.5 1.15 9.1 7260 10.0 8310 55 3.6-4.2

17
Motor Lead Lengths – 3-Phase Motors –
Based on Service Factor Amps, 30º C Ambient and 5% Voltage Drop
Motor Rating 60º C and 75º C Insulation - AWG Copper Wire Size
Volts HP kW FLA SFA 14 12 10 8 6 4 3 2 1 1/0 2/0 3/0 4/0
.5 .37 3.8 2.9 657 1045 1667 2641 4109
.75 .55 3.8 4.5 423 674 1074 1702 2648
1 .75 4.6 5.5 346 551 879 1392 2166 3454 4342
200 1.5 1.1 6.3 7.2 265 421 672 1064 1655 2638 3317
2 1.5 7.5 8.8 217 344 549 870 1354 2158 2714 3427 4317 5449
3 2.2 10.9 12.0 159 253 403 638 993 1583 1990 2513 3166 3996
5 3.7 18.3 20.2 94 150 239 379 590 940 1182 1493 1881 2374 2995 3781 4764
7.5 5.5 27.0 30.0 64 101 161 255 397 633 796 1005 1266 1598 2017 2546 3207
.5 .37 2.4 2.9 756 1202 1917 3037 4725 7532 9469
.75 .55 3.3 3.9 562 894 1426 2258 3513 5601 7041 8892
1 .75 4 4.7 466 742 1183 1874 2915 4648 5843 7379
230 1.5 1.1 5.2 6.1 359 571 912 1444 2246 3581 4502 5685 7162 9040
2 1.5 6.5 7.6 288 459 732 1159 1803 2874 3613 4563 5748 7256 9155
3 2.2 9.2 10.1 217 345 551 872 1357 2163 2719 3434 4326 5460 6889 8696 10956
5 3.7 15.7 17.5 318 503 783 1248 1569 1982 2496 3151 3976 5019 6323
7.5 5.5 24 26.4 334 519 827 1040 1314 1655 2089 2635 3327 4192
.5 .37 1.3 1.5 2922 4648 7414
.75 .55 1.7 2.0 2191 3486 5560 8806
1 .75 2.2 2.5 1753 2789 4448 7045
1.5 1.1 2.8 3.2 1370 2179 3475 5504
460 2 1.5 3.3 3.8 1153 1835 2926 4635 7212
3 2.2 4.8 5.3 827 1315 2098 3323 5171
5 3.7 7.6 8.5 516 820 1308 2072 3224 5140
7.5 5.5 12.2 13.5 325 516 824 1305 2030 3236 4068 5138 6472
10 7.5
1.5 1.1 2.0 2.4 2283 3631 5792
2 1.5 2.7 3.3 1660 2641 4212 6671
575 3 2.2 3.7 4.1 1336 2126 3390 5370
5 3.7 7.0 7.6 721 1147 1829 2897 4507
7.5 5.5 9.1 10.0 548 871 1390 2202 3426
THREE PHASE, 4" MOTOR WIRE CHART
THREE PHASE 4" MOTOR WIRE CHART

18
Technical Data
MOTOR INSULATION RESISTANCE READINGS
Normal Ohm/Megohm readings, ALL motors, between all leads and ground
Condition of Motor and Leads OHM Value Megohm Value
New motor, without power cable 20,000,000 (or more) 20.0
Used motor, which can be reinstalled in well 10,000,000 (or more) 10.0
Motor in well – Readings are power cable plus motor
New motor 2,000,000 (or more) 2.0
Motor in reasonably good condition 500,000 to 2,000,000 0.5 – 2.0
Motor which may be damaged or have
damaged power cable 20,000 to 500,000 0.02 – 0.5
Do not pull motor for these reasons
Motor definitely damaged or with
damaged power cable 10,000 to 20,000 0.01 – 0.02
Pull motor and repair
Failed motor or power cable
Pull motor and repair Less than 10,000 0 – 0.01
To perform insulation resistance test, open breaker and
disconnect all leads from QD control box or pressure switch.
Connect one ohmmeter lead to any motor lead and one to metal drop pipe
or a good ground. R x 100K Scale
WARNING
Hazardous voltage
can shock, burn or
cause death.
Generator Operation
FAILURE TO USE A MANUAL OR AUTOMATIC
TRANSFER SWITCH WHEN GENERATOR IS USED AS
STANDBY OR BACKUP CAN CAUSE SHOCK, BURNS
OR DEATH. FOLLOW THE GENERATOR MANUFACTURER’S
INSTRUCTIONS CAREFULLY. TWO WIRE DATA IS ONLY FOR
PSC TYPE MOTORS, SPLIT PHASE 2 WIRE SHOULD BE 50%
LARGER THAN 3 WIRE GENERATOR RATING.
Generator Operation
Technical Data
CAUTION
Minimum Generator Rating
Externally Regulated Internally Regulated
Motor HP KW KVA KW KVA
.5 2.5 3.1 1.8 2.2
.75 3.5 4.4 2.5 3.1
1 5 6.3 3.2 4
1.5 6 7.5 4 5
.5 2 2.5 1.5 1.9
.75 3 3.8 2 2.5
1 4 5 2.5 3.2
1.5 5 6.3 3 3.8
2 7.5 9.4 4 5
3 10 12.5 5 6.3
5 15 18.8 7.5 9.4
7.5 20 25 10 12.5
10 30 37.5 15 18.8
2 Wire
1Ø
PSC Only
3 Wire
1Ø or 3Ø

19
L1 L2
Disconnect
Switch (2)
Pressure
Switch (5)
Line Load Load Line
NOTE: PumpSaver (6)
Pressure
Switch (5)
Disconnect
Switch (2)
Three Wire
Control Box (7)
L1 L2
Line Load Load Line
1. Suministro de entrada de la caja de fusibles o del
cortacircuitos
2. Interruptor de desconexión
3. Línea
4. Carga
5. Interruptor por caída de presión
6. NOTA: PumpSaver
7. Cajadecontroltrilar
8. Rojo
9. Amarillo
10. Negro
1. Courant d’entrée provenant de la boîte à fusibles
ou du disjoncteur
2. Sectionneur
3. Ligne
4. Charge
5. Pressostat
6. Protection PumpSaver
7. Boîtedecommandeàtroisls
8. Rouge
9. Jaune
10. Noir
(3)
Two Wire – Direct Connected to
Pressure Switch
Bilar–conectadodirectamenteal
interruptor por caída de presión
Moteuràdeuxls–connecté
directement au pressostat
Figure (Figura) 3
Three Wire – Direct Connected to Pressure
Switch
Trilar–conectadodirectamentealinterruptor
por caída de presión
Moteuràtroisls–connectédirectement
au prossostat
Figure (Figura) 4
Incoming Supply from Fuse Box or
Circuit Breaker (1)
NOTE: PumpSaver (6)
(4)
(3)
(4)
L1 L2
R Y Blk
Red
Yellow
Black
(8)
(9) (10)
Wiring Diagrams — Esquemas de conexión —
Schémas de câblage
Wiring Diagrams — Esquemas de conexión —
Schémas de câblage
Incoming Supply from Fuse Box or
Circuit Breaker (1)

20
Incoming Supply from Fuse Box or
Circuit Breaker (1)
L1 L2
Disconnect
Switch (2)
Pressure
Switch (5)
Line Load Load
Line
Magnetic
Contactor
(6)
Three Wire Control Box (7)
L1 L2
L1 L2
T1 T2
R Y Blk
Red
Yellow
Black
Incoming Supply from Fuse Box or
Circuit Breaker (1)
Disconnect
Switch (2)
L1 L2 L3
T1 T2 T3 Heaters (11)
Ambient Compensated
Magnetic Starter with
Quick-Trip Heaters
(12) or ESP100 Class 10
overloads
Pressure Switch (5)
Line Load Load Line
Three Phase Connections
Tres conexiones de fase
Circuit triphasé
Figure (Figura) 6
1. Suministro de entrada de la caja de
fusibles o del cortacircuitos
2. Interruptor de desconexión
3. Línea
4. Carga
5. Interruptor por caída de presión
6. Contactador magnético
7. Cajadecontroltrilar
8. Rojo
9. Amarillo
10. Negro
11. Calentadores
12. Arrancador magnético con compensación
ambiental con calentadores de disparo
rápido
1. Courant d’entrée provenant de la boîte à
fusibles ou du disjoncteur
2. Sectionneur
3. Ligne
4. Charge
5. Pressostat
6. Contacteur magnétique
7. Boîtedecommandeàtroisls
8. Rouge
9. Jaune
10. Noir
11. Dispositifs de protection contre la
surcharge (DPS)
12. Démarreur magnétique compensé
(température ambiante) avec DPS à
déclenchement rapide rapide ou limiteurs
de surcharge ESP100 de classe 10
Three Wire – Connected through
Magnetic Contactor
Trilar–conectadoatravésdel
contactador magnético
Moteuràtroisls–reliéaupressostatparun
contacteur magnétique
Figure (Figura) 5
(8) (9) (10)
3
(3)
(4)
(3)
(4)
Wiring Diagrams — Esquemas de conexión —
Schémas de câblage
Wiring Diagrams — Esquemas de conexión —
Schémas de câblage
