Yada AC532710 User manual

1
1A Battery Charger
and Maintainer
IMPORTANT!
READ THE ENTIRE INSTRUCTION MANUAL
CAREFULLY AND MAKE SURE THAT YOU
FULLY UNDERSTAND IT BEFORE YOU USE
THE EQUIPMENT. KEEP THE MANUAL FOR
FUTURE REFERENCE.
BC
WP ITM. AC532710 User Manual

2
100-120VAC, 50-60Hz, 22W
6VDC, 12VDC
1A (6VDC), 1A (12VDC)
<5mA
3.75V (6VDC), 7.5V (12VDC)
32°F - 104°F / 0°C - 40°C
-4°F - 140°F / -20°C - 60°C
Standard (Wet Cell / Flooded, SLA & Maintenance Free)
AGM, GEL
Battery Clamps and Ring Terminals
Up to 20Ah, maintains all battery sizes.
2.46 x 4.36 x 2.2 inch (62.5 x 110.7 x 56 mm) (charger only)
0.8 lb (363 g)
Input Rating:
Charging Voltage:
Charging Current:
Reverse Current:
Low Voltage Detection:
Operating Temperature:
Storage Temperature:
Battery Types:
Connector:
Battery Capacity:
Product Dimensions:
Product Weight:
TECHNICAL SPECIFICATIONS:

3
BATTERY
STATUS
REVERSE
POLARITY
1A
6V 12V
3
FEATURE OVERVIEW :
1. LED Indicators
2. 6V/12V Switch
3. Battery Clamps
4. Ring Terminals
1
2
4

4
• The product may be used by children of 8 years and above and by persons with reduced
physical, sensory or mental capability or lack of experience and knowledge provided
they have been given supervision or instruction concerning use of the product in a safe
way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be made by children without supervision.
• Warning: Charging produces explosive gases, make sure that the place where the
product is used is free from sparks and naked ames. Make sure that the place where the
product is used is well ventilated.
• The product is intended for indoor use only.
• Warning: Never try to charge non-rechargeable batteries.
• Warning: Keep the product, its mains lead and plug away from water and moisture to
avoid the risk of electric shock.
• If the mains lead is damaged it should only be replaced by a qualied electrician.
• Ensure that the mains lead is unplugged before connecting a battery to the product.
Please read the entire instruction manual before using the product and then save it for future
reference. We reserve the right for any errors in text or images and any necessary changes
made to technical data. In the event of technical problems or other queries, please contact our
Customer Services (see address details on the back).
WARNING

5
• The charger is only intended for charging rechargeable Gel and AGM type lead-acid
batteries. Charging other types of batteries than these can damage the charger, battery
or other property.
• The product is not intended to be used as a power supply unit for other products.
• Never try to charge dry-cell batteries, they can explode and cause damage.
• Do not use the charger if the mains lead is damaged. If the mains lead is damaged it
should only be replaced by a qualied electrician.
• The charger should not be used if it is in any way damaged or malfunctioning.
• Do not place the charger close to the battery being charged, the battery will emit fumes
which can corrode the charger. Place the charger as far as possible from the battery as
the connection cables allow.
• Never try to dismantle, repair or modify the charger in any way.
• Make sure that the Battery Clamps of the charger leads don’t touch each other once the
charger has been connected to a wall socket.
• Always unplug the charger from the wall socket before disconnecting the charger leads
from the battery.
• See that the place where charging takes place is well-ventilated.
• During charging the battery can emit explosive gases. Be careful to ensure that the
charger leads don’t touch each other when they are being disconnected from the
battery after charging.

6
• Do not smoke in the vicinity of the battery whilst charging is in progress.
• Do not cover the charger.
• The charger should not be used by persons who have not read and understood the
contents of this manual.
• A frozen battery must never be charged, always defrost it rst.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS - This manual contains important safety and
operating instructions for battery charger Models AC532710.
1. Do not expose charger to rain or snow.
2. Use of an attachment not recommended or sold by the battery charger manufacturer
may result in a risk of re, electric shock, or injury to persons.
3. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when
disconnecting charger.
4. An extension cord should not be used. Use of improper extension cord could result in a
risk of re and electric shock.
5. Do not operate charger with damaged cord or plug – replace the cord or plug
immediately.
6. Do not operate charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualied serviceman.

7
7. Do not disassemble charger; take it to a qualied serviceman when service or repair is
required. Incorrect reassembly may result in a risk of electric shock or re.
8. To reduce risk of electric shock, unplug charger from outlet before attempting any
maintenance or cleaning. Turning o controls will not reduce this risk.
WARNING – RISK OF EXPLOSIVE GASES.
a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE
EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST
IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
b) To reduce risk of battery explosion, follow these instructions and those published by
battery manufacturer and manufacturer of any equipment you intend to use in vicinity of
battery. Review cautionary marking on these products and on engine.
PERSONAL PRECAUTIONS
a) Consider having someone close enough by to come to your aid when you work near a
lead-acid battery.
b) Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing,
or eyes.

8
c) Wear complete eye protection and clothing protection. Avoid touching eyes while
working near battery.
d) If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters eye, immediately ood eye with running cold water for at least 10 minutes and get
medical attention immediately.
e) NEVER smoke or allow a spark or ame in vicinity of battery or engine.
f) Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or
short-circuit battery or other electrical part that may cause explosion.
g) Remove personal metal items such as rings, bracelets, necklaces, and watches when
working with a lead-acid battery. A lead-acid battery can produce a short-circuit current
high enough to weld a ring or the like to metal, causing a severe burn.
h) Use charger for charging a LEAD-ACID battery only. It is not intended to supply power
to a low voltage electrical system other than in a starter-motor application. Do not
use battery charger for charging dry-cell batteries that are commonly used with home
appliances. These batteries may burst and cause injury to persons and damage to
property.
i) NEVER charge a frozen battery.
PREPARING TO CHARGE
a) If necessary to remove battery from vehicle to charge, always remove grounded terminal
from battery rst. Make sure all accessories in the vehicle are o, so as not to cause an arc.

9
b) Be sure area around battery is well ventilated while battery is being charged.
c) Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes.
d) Add distilled water in each Standard wet cell until battery acid reaches level specied
by battery manufacturer. Do not overll. For a battery without removable cell caps,
such as valve regulated lead acid batteries, carefully follow manufacturer’s recharging
instructions.
e) Study all battery manufacturer’s specic precautions while charging and recommended
rates of charge.
f) Determine voltage of battery by referring to car owner’s manual and make sure that
output voltage selector switch is set at correct voltage. If charger has adjustable charge
rate, charge battery initially at lowest rate.
CHARGER LOCATION
a) Locate charger as far away from battery as dc cables permit.
b) Never place charger directly above battery being charged; gases from battery will
corrode and damage charger.
c) Never allow battery acid to drip on charger when reading electrolyte specic gravity or
lling battery.
d) Do not operate charger in a closed-in area or restrict ventilation in any way.
e) Do not set a battery on top of charger.

10
DC CONNECTION PRECAUTIONS
a) Connect and disconnect dc output Battery Clamps only after setting any charger
switches to“o”position and removing ac cord from electric outlet. Never allow Battery
Clamps to touch each other.
b) Attach Battery Clamps to battery and chassis as indicated.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE.
A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO
REDUCE RISK OF A SPARK NEAR BATTERY:
a) Position ac and dc cords to reduce risk of damage by hood, door, or moving engine part.
b) Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
c) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has larger
diameter than NEGATIVE (NEG, N,–) post.
d) Determine which post of battery is grounded (connected) to the chassis. If negative post
is grounded to chassis (as in most vehicles), see (e). If positive post is grounded to the
chassis, see (f).
e) For negative-grounded vehicle, connect POSITIVE (RED) Battery Clamp from battery
charger to POSITIVE (POS, P, +) ungrounded post of battery. Connect NEGATIVE (BLACK)
Battery Clamp to vehicle chassis or engine block away from battery. Do not connect
Battery Clamp to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy

11
gage metal part of the frame or engine block.
f) For positive-grounded vehicle, connect NEGATIVE (BLACK) Battery Clamp from battery
charger to NEGATIVE (NEG, N, –) ungrounded post of battery. Connect POSITIVE (RED)
Battery Clamp to vehicle chassis or engine block away from battery. Do not connect
Battery Clamp to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy
gage metal part of the frame or engine block.
g) When disconnecting charger, turn switches to o, disconnect AC cord, remove Battery
Clamp from vehicle chassis, and then remove Battery Clamp from battery terminal.
h) See operating instructions for length of charge information.
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE. A
SPARK NEAR THE BATTERY MAY CAUSE BATTERY EXPLOSION. TO
REDUCE RISK OF A SPARK NEAR BATTERY:
a) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a larger
diameter than NEGATIVE (NEG, N, –) post
b) Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to NEGATIVE
(NEG, N, –) battery post.
c) Connect POSITIVE (RED) charger Battery Clamp to POSITIVE (POS, P, +) post of battery.
d) Position yourself and free end of cable as far away from battery as possible – then
connect NEGATIVE (BLACK) charger Battery Clamp to free end of cable.

12
Cleaning
Unplug the charger before cleaning it with a damp cloth. Use only mild cleaning
agents, no solvents or corrosive chemicals.
Storage
If the charger is not to be used for an extended period, it should be unplugged and
stored in a dry and dust-free location and out of reach of children.
CARE AND MAINTENANCE
e) Do not face battery when making nal connection.
f) When disconnecting charger, always do so in reverse sequence of connecting
procedure and break rst connection while as far away from battery as practical.
g) A marine (boat) battery must be removed and charged on shore. To charge it on board
requires equipment specially designed for marine use.

13
PACKAGE CONTENTS
1A Battery Charger and Maintainer with detachable ring terminals x 1
BATTERY
STATUS
REVERSE
POLARITY
1A
6V 12V

14
BATTERY
STATUS
REVERSE
POLARITY
1A
6V 12V

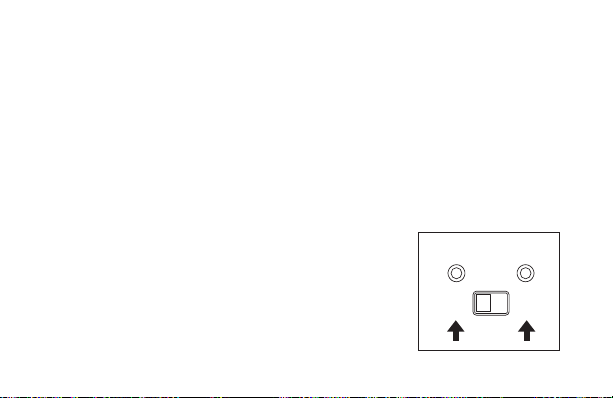

OPERATING INSTRUCTIONS
FEATURE OVERVIEW
Battery Status
Reverse Polarity
6V Vehicle Battery
12V Vehicle Battery
Note: Please read the vehicle’s Owner’s Manual before charging its battery or
removing any of its battery leads. Check if there are any recommendations
for charging the battery of your vehicle.
a
a
bb
c
d
cd

15

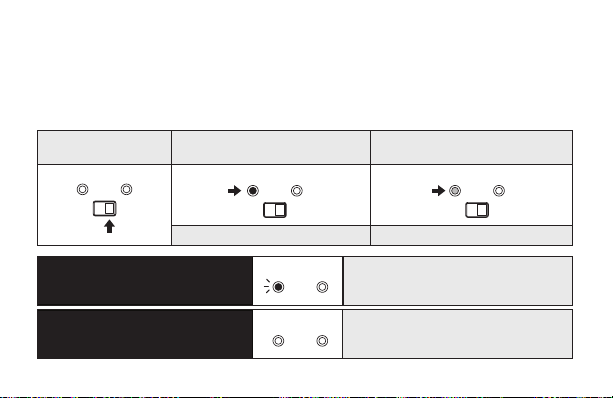

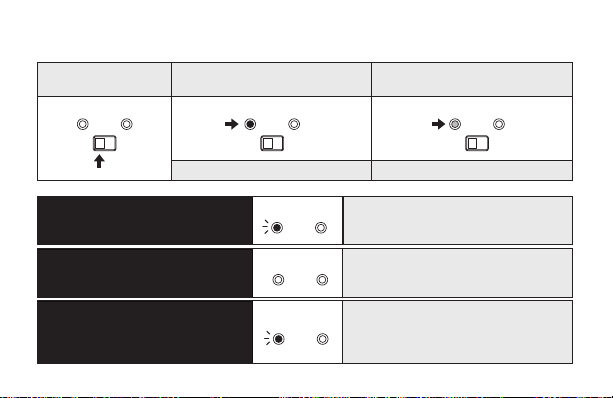

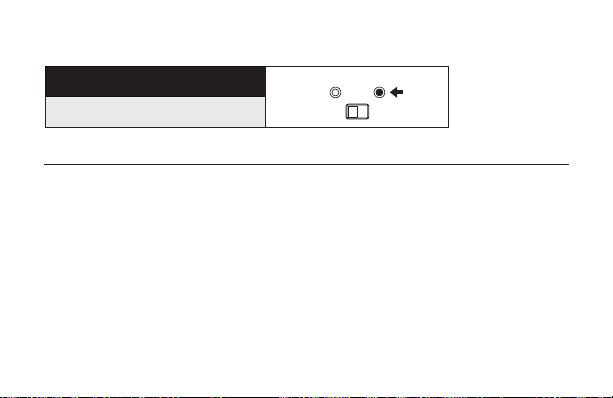

CHARGING STATUS
While charging vehicle battery, the LED Indicators will show the charging status.
Please see example below for 12V & 6V battery:
iii) 12V Battery Fully Charged; Maintenance
Mode in Progress (0.2A):
i) 12V Battery Connected :
12V BATTERY CHARGING
ii) Charging in Process :
RED Battery Status LED lights up GREEN Battery Status LED lights up
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
Low Battery Voltage
(3.75V < 12V Vehicle Battery Voltage < 7.5V)
BATTERY
STATUS
REVERSE
POLARITY RED Battery Status LED ashes and no
charging will be performed. Please consult
qualied technician for repair or replacement.
Bad Battery
(12V Vehicle Battery Voltage < 3.75V)
BATTERY
STATUS
REVERSE
POLARITY All LED off and no charging will be performed.
Please consult qualied technician for repair or
replacement.

16
iii) 6V Battery Fully Charged; Maintenance
Mode in Progress (0.2A):
i) 6V Battery Connected : ii) Charging in Process :
RED Battery Status LED lights up GREEN Battery Status LED lights up
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
6V BATTERY CHARGING
Low Battery Voltage
(1V< 6V Vehicle Battery Voltage < 3.75V)
BATTERY
STATUS
REVERSE
POLARITY RED Battery Status LED ashes and no
charging will be performed. Please consult
qualied technician for repair or replacement.
Bad Battery
(6V Vehicle Battery Voltage < 1V)
BATTERY
STATUS
REVERSE
POLARITY All LED off and no charging will be performed.
Please consult qualied technician for repair or
replacement.
Wrong Charging Voltage Charging voltage is wrongly selected. RED
Battery Status LED ashes and no charging will
be performed. Please check the voltage of battery
again and reselect the correct charging voltage.
BATTERY
STATUS
REVERSE
POLARITY

17
BATTERY
STATUS
REVERSE
POLARITY
6V 12V
AUTOMATIC CHARGING
1. Clean the battery terminals if necessary, always wear safety glasses to protect
your eyes.
2. Verify the voltage and type of battery.
3. Connect the RED Clamp / ring terminal to the POSITIVE (+) post of the battery
terminal. The POSITIVE battery post will be marked with a PLUS (+) sign.
There may also be a RED plastic protective cover over the positive battery post.
Reverse Polarity
RED Reverse Polarity LED lights up
Reverse Polarity

18
Connect the BLACK Clamp / ring terminal to the NEGATIVE (-) post of the battery
terminal. The NEGATIVE battery post will be marked with a MINUS (-) sign. There
may be a BLACK plastic protective cover over the negative battery post.
NOTE: When charging a battery that is mounted on a vehicle, the cables
should be attached in the following order:
- Connect the RED lead to the POSITIVE (+) terminal of the battery.
- Connect the BLACK lead to a metal part of the vehicle chassis. Choose
a spot on the chassis that is some distance away from the battery itself
and any fuel lines.
4. Select 6V or 12V manually by switching the button
to the corresponding reading. Connect the AC
power plug of battery charger into a wall socket and
charging will be started automatically.
BATTERY
STATUS
REVERSE
POLARITY
6V 12V

19
FCC Compliance Statement:
1A Battery Charger and Maintainer
Model: AC532710 / Responsible Party: YADA
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 / Tel: [phone]
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2)This device must accept
any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications or change to this equipment. Such modications or change
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
STATEMENT

20
Made in China
CAN ICES-3 (B)/NMB-3(B)
ML-532710_V1
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626
Mon - Fri, 8AM - 5PM (Pacic Time)
Tel: [phone] (English only)
[email protected]
©2021 ADC Solutions Auto, LLC. All rights reserved.
www.letsyada.com
