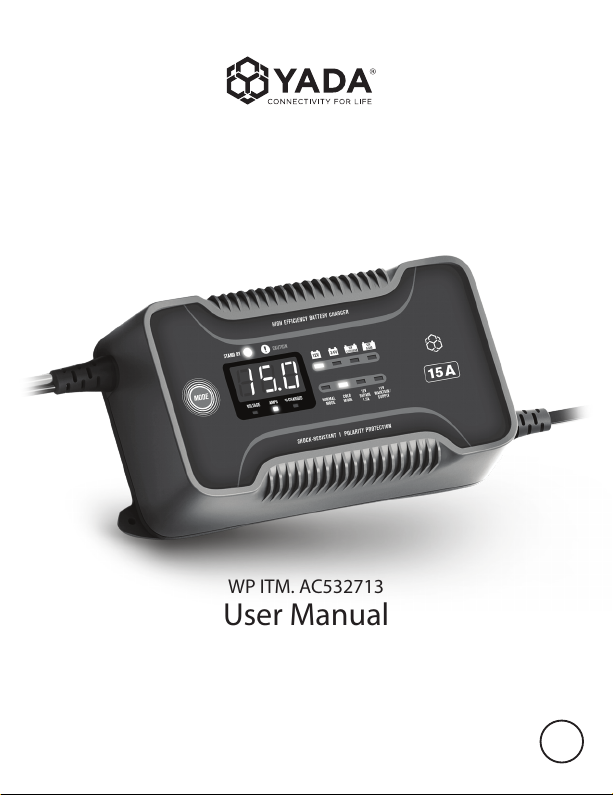

Yada AC532713 User manual

WP ITM. AC532713
User Manual
15A Battery Charger
and Maintainer
IMPORTANT!
READ THE ENTIRE INSTRUCTION MANUAL CAREFULLY AND MAKE SURE
THAT YOU FULLY UNDERSTAND IT BEFORE YOU USE THE EQUIPMENT.
KEEP THE MANUAL FOR FUTURE REFERENCE.
BC

2
12V
AGM
12V 24V
12V
LITHIUM
CAUTIONSTAND BY
MODE
12V
MAINTAIN
/
SUPPLY
12V
REPAIR
1.5A
NORMAL
MODE
COLD
MODE
15 A
VOLTAGE AMPS % CHARGED
100-120VAC, 50-60Hz, 300W
12.9VDC 15.0A, 25.6V DC 7.5A
12VDC, 24VDC
15A (12VDC), 7.5A (24VDC)
<5mA
3.75V (12VDC), 15.5V (24VDC)*
0.5V (12VDC)
32°F - 104°F / 0°C - 40°C
-4°F - 140°F / -20°C - 60°C
Standard (Wet Cell / Flooded, SLA & Maintenance Free)
AGM, GEL, Lithium-ion ( incl. LiFePO₄ )
Up to 250Ah 12V batteries, maintains all battery sizes.
Up to 120Ah 24V Lead Acid Battery, maintains all battery sizes.
IP68 Water-resistant
8 x 4.5 x 2.4 inch (203 x 114 x 60 mm) (charger only)
3.6 lb (1657 g)
Input:
Output :
Charging Voltage:
Charging Current:
Reverse Current:
Low Voltage Detection:
Low Voltage Detection
(Push Mode):
Operating Temperature:
Storage Temperature:
Battery Types:
Battery Capacity:
IP Rating:
Product Dimensions:
Product Weight:
TECHNICAL SPECIFICATIONS:
1
2
3

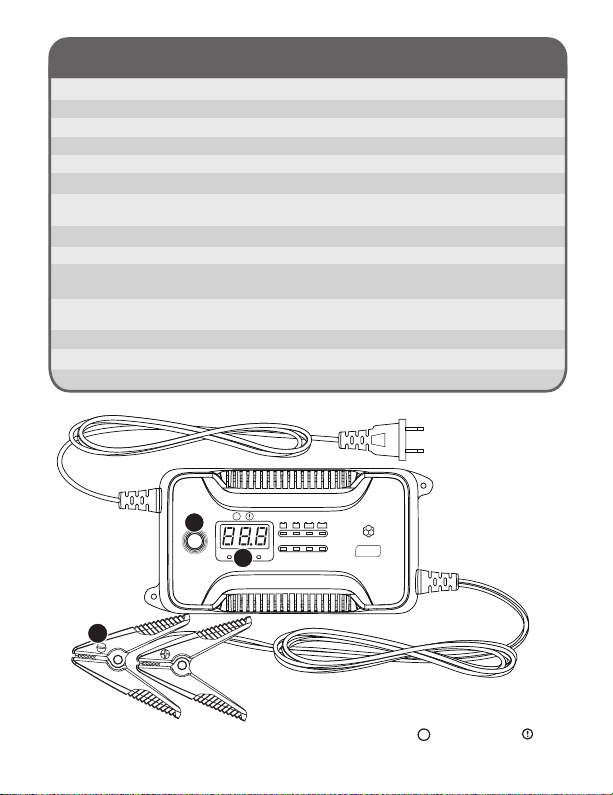

FEATURE OVERVIEW:
1. Mode Button
2. LED Display
3. Battery Clamps
* If battery voltage detected at below 3.75V on a 12V battery, the STAND BY LED & Error Indicator LED
light up and charger enters Standby Mode. Please refer to page 12, Push Mode section for more information.
CAUTION
STAND BY

3
• The product may be used by children of 8 years and above and by persons with
reduced physical, sensory or mental capability or lack of experience and knowledge
provided they have been given supervision or instruction concerning use of the
product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be made by children without supervision.
• Warning: Charging produces explosive gases, make sure that the place where the
product is used is free from sparks and naked ames. Make sure that the place where
the product is used is well ventilated.
• The product is intended for indoor use only.
• Warning: Never try to charge non-rechargeable batteries.
• Warning: Keep the product, its mains lead and plug away from water and moisture
to avoid the risk of electric shock.
• If the mains lead is damaged it should only be replaced by a qualied electrician.
• Ensure that the mains lead is unplugged before connecting a battery to the product.
• The charger is only intended for charging rechargeable Li-ion, Gel and AGM type lead-
acid batteries. Charging other types of batteries than these can damage the charger,
battery or other property.
• Never try to charge dry-cell batteries, they can explode and cause damage.
• Do not use the charger if the mains lead is damaged. If the mains lead is damaged it
should only be replaced by a qualied electrician.
• The charger should not be used if it is in any way damaged or malfunctioning.
• Do not place the charger close to the battery being charged, the battery will emit
fumes which can corrode the charger. Place the charger as far as possible from the
battery as the connection cables allow.
• Never try to dismantle, repair or modify the charger in any way.
• Make sure that the Battery Clamps of the charger leads don’t touch each other once
the charger has been connected to a wall socket.
• Always unplug the charger from the wall socket before disconnecting the charger
leads from the battery.
• See that the place where charging takes place is well-ventilated.
• During charging the battery can emit explosive gases. Be careful to ensure that the
charger leads don’t touch each other when they are being disconnected from the
battery after charging.
• Do not smoke in the vicinity of the battery whilst charging is in progress.
• Do not cover the charger.
• The charger should not be used by persons who have not read and understood the
contents of this manual.
• A frozen battery must never be charged, always defrost it rst.
Please read the entire instruction manual before using the product and then save it for
future reference. We reserve the right for any errors in text or images and any necessary
changes made to technical data. In the event of technical problems or other queries, please
contact our Customer Services (see address details on the back).
WARNING:

4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS - This manual contains important safety
and operating instructions for battery charger Model AC532713.
1. Do not expose charger to rain or snow.
2. Use of an attachment not recommended or sold by the battery charger
manufacturer may result in a risk of re, electric shock, or injury to persons.
3. To reduce risk of damage to electric plug and cord, pull by plug rather than
cord when disconnecting charger.
4. An extension cord should not be used. Use of improper extension cord could
result in a risk of re and electric shock.
5. Do not operate charger with damaged cord or plug – replace the cord or
plug immediately.
6. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged in any way; take it to a qualied serviceman.
7. Do not disassemble charger; take it to a qualied serviceman when service
or repair is required. Incorrect reassembly may result in a risk of electric shock
or re.
8. To reduce risk of electric shock, unplug charger from outlet before
attempting any maintenance or cleaning. Turning o controls will not reduce
this risk.
WARNING – RISK OF EXPLOSIVE GASES.
a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES
GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION.
FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU FOLLOW THE
INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
b) To reduce risk of battery explosion, follow these instructions and those
published by battery manufacturer and manufacturer of any equipment
you intend to use in vicinity of battery. Review cautionary marking on these
products and on engine.
PERSONAL PRECAUTIONS
a) Consider having someone close enough by to come to your aid when you
work near a lead-acid battery.
b) Have plenty of fresh water and soap nearby in case battery acid contacts
skin, clothing, or eyes.
c) Wear complete eye protection and clothing protection. Avoid touching eyes
while working near battery.
d) If battery acid contacts skin or clothing, wash immediately with soap and
water. If acid enters eye, immediately ood eye with running cold water for at

5
least 10 minutes and get medical attention immediately.
e) NEVER smoke or allow a spark or ame in vicinity of battery or engine.
f) Be extra cautious to reduce risk of dropping a metal tool onto battery. It
might spark or short-circuit battery or other electrical part that may cause
explosion.
g) Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with a lead-acid battery. A lead-acid battery can
produce a short-circuit current high enough to weld a ring or the like to
metal, causing a severe burn.
h) Use charger for charging a LEAD-ACID battery only. It is not intended to
supply power to a low voltage electrical system other than in a starter-motor
application. Do not use battery charger for charging dry-cell batteries that
are commonly used with home appliances. These batteries may burst and
cause injury to persons and damage to property.
i) NEVER charge a frozen battery.
PREPARING TO CHARGE
a) If necessary to remove battery from vehicle to charge, always remove
grounded terminal from battery rst. Make sure all accessories in the vehicle
are o, so as not to cause an arc.
b) Be sure area around battery is well ventilated while battery is being charged.
c) Clean battery terminals. Be careful to keep corrosion from coming in contact
with eyes.
d) Add distilled water in each Standard wet cell until battery acid reaches level
specied by battery manufacturer. Do not overll. For a battery without
removable cell caps, such as valve regulated lead acid batteries, carefully
follow manufacturer’s recharging instructions.
e) Study all battery manufacturer’s specic precautions while charging and
recommended rates of charge.
f) Determine voltage of battery by referring to car owner’s manual and make
sure that output voltage selector switch is set at correct voltage. If charger
has adjustable charge rate, charge battery initially at lowest rate.
CHARGER LOCATION
a) Locate charger as far away from battery as dc cables permit.
b) Never place charger directly above battery being charged; gases from
battery will corrode and damage charger.
c) Never allow battery acid to drip on charger when reading electrolyte specic
gravity or lling battery.
d) Do not operate charger in a closed-in area or restrict ventilation in any way.
e) Do not set a battery on top of charger.

6
DC CONNECTION PRECAUTIONS
a) Connect and disconnect dc output Battery Clamps only after setting any
charger switches to“o”position and removing ac cord from electric outlet.
Never allow Battery Clamps to touch each other.
b) Attach Battery Clamps to battery and chassis as indicated.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A SPARK
NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A
SPARK NEAR BATTERY:
a) Position ac and dc cords to reduce risk of damage by hood, door, or moving
engine part.
b) Stay clear of fan blades, belts, pulleys, and other parts that can cause injury
to persons.
c) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has
larger diameter than NEGATIVE (NEG, N,–) post.
d) Determine which post of battery is grounded (connected) to the chassis. If
negative post is grounded to chassis (as in most vehicles), see (e). If positive
post is grounded to the chassis, see (f).
e) For negative-grounded vehicle, connect POSITIVE (RED) Battery Clamp from
battery charger to POSITIVE (POS, P, +) ungrounded post of battery. Connect
NEGATIVE (BLACK) Battery Clamp to vehicle chassis or engine block away
from battery. Do not connect Battery Clamp to carburetor, fuel lines, or
sheet-metal body parts. Connect to a heavy gage metal part of the frame or
engine block.
f) For positive-grounded vehicle, connect NEGATIVE (BLACK) Battery Clamp
from battery charger to NEGATIVE (NEG, N, –) ungrounded post of battery.
Connect POSITIVE (RED) Battery Clamp to vehicle chassis or engine block
away from battery. Do not connect Battery Clamp to carburetor, fuel lines, or
sheet-metal body parts. Connect to a heavy gage metal part of the frame or
engine block.
g) When disconnecting charger, turn switches to o, disconnect AC cord,
remove Battery Clamp from vehicle chassis, and then remove Battery Clamp
from battery terminal.
h) See operating instructions for length of charge information.
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE. A SPARK
NEAR THE BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF
A SPARK NEAR BATTERY:
a) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has
a larger diameter than NEGATIVE (NEG, N, –) post

7
12V
AGM
12V 24V
12V
LITHIUM
CAUTIONSTAND BY
MODE
12V
MAINTAIN
/
SUPPLY
12V
REPAIR
1.5A
NORMAL
MODE
COLD
MODE
15 A
VOLTAGE AMPS % CHARGED
PACKAGE CONTENTS:
Cleaning
Unplug the charger before cleaning it with a damp cloth. Use only mild cleaning agents,
no solvents or corrosive chemicals.
Storage
If the charger is not to be used for an extended period, it should be unplugged and
stored in a dry and dust-free location and out of reach of children.
CARE AND MAINTENANCE:
b) Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to
NEGATIVE (NEG, N, –) battery post.
c) Connect POSITIVE (RED) charger Battery Clamp to POSITIVE (POS, P, +) post
of battery.
d) Position yourself and free end of cable as far away from battery as possible –
then connect NEGATIVE (BLACK) charger Battery Clamp to free end of cable.
e) Do not face battery when making nal connection.
f) When disconnecting charger, always do so in reverse sequence of
connecting procedure and break rst connection while as far away from
battery as practical.
g) A marine (boat) battery must be removed and charged on shore. To charge
it on board requires equipment specially designed for marine use.
15A Battery Charger and Maintainer x 1

8
12V
AGM
12V 24V
12V
LITHIUM
CAUTIONSTAND BY
12V
MAINTAIN
/
SUPPL Y
12V
REPAIR
1.5A
NORMAL
MODE
COLD
MODE
VOLTAGE AMPS % CHARGED
n
m
l
j
e
d
c
OPERATING INSTRUCTIONS:

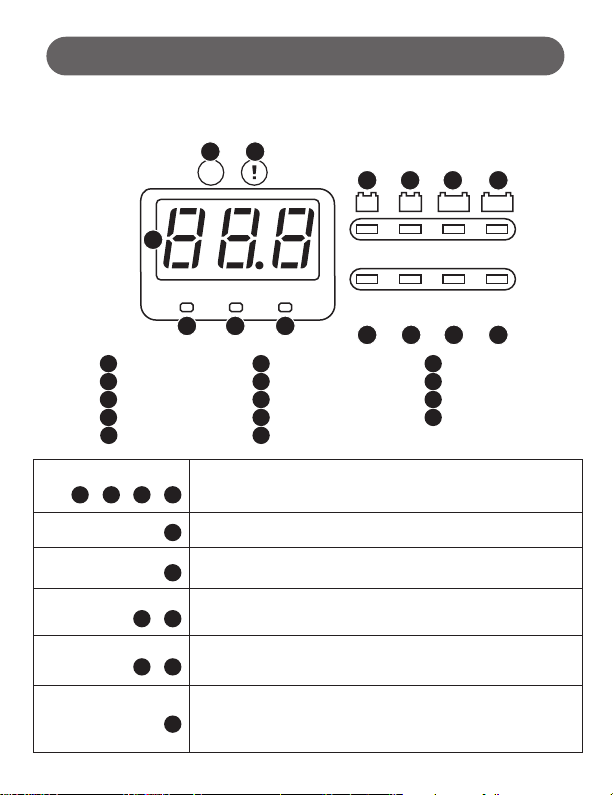

LED DISPLAY
GUIDE
Note: Please read the vehicle’s Owner’s Manual before charging its battery or
removing any of its battery leads. Check if there are any recommendations
for charging the battery of your vehicle.
bc
g
k
d
a
ef
i
m
h
l
j
n
LED Screen
Standby Mode
Error Indicator
Battery Voltage
Charging Current
LED Screen
Standby Mode
Error Indicator
12V Lead-Acid Battery
(Normal Mode)
24V Lead-Acid Battery
(Normal Mode)
12V Lithium Battery
(Normal Mode)
- Battery Voltage
- Charging Current
- Percentage Charged
No charging or power delivered to the battery. Press MODE button to
start charging.
Error indicator will be ON for reverse polarity, poor connection, low
voltage battery, over-voltage battery and temperature protection.
12V Lead-Acid Battery Normal Mode is designed for 12V Lead-Acid
batteries with capacities higher than 50Ah being charged under normal
weather conditions.
24V Lead-Acid Battery Normal Mode is designed for 24V Lead-Acid
batteries with capacities higher than 25Ah being charged under normal
weather conditions.
12V Lithium Battery Normal Mode is designed for 12V Lithium
batteries including Lithium Iron Phosphate (LiFePO4) batteries being
charged under normal weather conditions. PLEASE ENSURE THIS
MODE IS SELECTED FOR 12V LITHIUM BATTERIES ONLY.
Percentage Charged
12V Lead-Acid Battery
24V Lead-Acid Battery
12V Lithium Battery
12V AGM Battery
Normal Mode
Cold Mode
12V Repair Mode
12V Maintain or
Supply Mode
i
k
b
h
a
g
f
h
g
ade
i
k
f
b
c
k
+
++ +
+

9
12V AGM Battery Normal Mode is designed for AGM / GEL batteries
orbatteries with capacities higher than 50Ah being charged under
normal weather conditions.
12V Lead-Acid Battery Cold Mode is designed for 12V Lead-Acid
and AGM batteries with capacities higher than 50Ah being charged at
cold temperatures (below 10°C).
24V Lead-Acid Battery Cold Mode is designed for 24V Lead-Acid
and AGM batteries with capacities higher than 25Ah being charged at
cold temperatures (below 10°C).
12V Maintain Mode is designed for 12V Lead-Acid, AGM, GEL and
Lithium batteries being charged and maintained at 5A max.
12V Supply Mode works as a 12V DC power supply for powering 12V
devices or as a memory retainer when replacing a battery.
12V Repair Mode is designed for 12V LEAD-ACID BATTERIES ONLY.
It is a battery recovery mode for repairing & restoring damaged, stratied
and sulphated batteries.
12V AGM Battery
(Normal Mode)
12V Lead-Acid Battery
(Cold Mode)
24V Lead-Acid Battery
(Cold Mode)
12V Maintain Mode
12V Supply Mode
12V Repair Mode
OPERATING INSTRUCTIONS CONT.:
CHARGING STATUS
While battery clamps are connected to the vehicle battery properly, STAND BY LED is
ON, press the MODE button to start, the LED Screen will show the charging status.
Please see example below for 12V & 24V battery:
Battery voltage, charging current and battery percentage charged will alternate every
5 seconds.
Charging CurrentBattery Voltage Battery Percentage Charged
12V Lead-Acid Battery
5s. 5s.
VOLTAGE AMPS % CHARGED
iii) Fully Charged; Maintenance
Mode in Progress
i) 12V Battery Connected ii) Charging in Process
j
n
n
m
h
gl
l
+
+

10
OPERATING INSTRUCTIONS CONT.:
AUTOMATIC CHARGING
1. Clean the battery terminals if necessary, always wear safety glasses to protect your eyes.
2. Verify the voltage and type of battery.
3. Connect the RED Clamp / ring terminal to the POSITIVE (+) post of the battery terminal. The
POSITIVE battery post will be marked with a PLUS (+) sign. There may also be a RED plastic
protective cover over the positive battery post.Connect the BLACK Clamp / ring terminal to the
NEGATIVE (-) post of the battery terminal. The NEGATIVE battery post will be marked with a MINUS
(-) sign. There may be a BLACK plastic protective cover over the negative battery post.
NOTE: When charging a battery that is mounted on a vehicle, the cables should be attached in the
following order:
- Connect the RED lead to the POSITIVE (+) terminal of the battery.
- Connect the BLACK lead to a metal part of the vehicle chassis. Choose a spot on
the chassis that is some distance away from the battery itself and any fuel lines.
4. Connect the AC power plug of battery charger into a wall socket.
Battery voltage is auto-detected and charging will be started
automatically. To manually select voltage or other charging mode,
press MODE button for selection.
Reverse Polarity Low Battery VoltageTest Mode
iii) Fully Charged; Maintenance
Mode in Progress
i) 24V Battery Connected ii) Charging in Process
24V Lead-Acid Battery
NOTE: If 24V battery is connected and charging does not started after 1-2 minutes scan time, please
press MODE button once to resume charging.
Test Mode: If 12V or 24V ashes alternatively it means that the connected battery is either a
discharged 24V battery (down to roughly 15.5-21V) or a fully charged 12V battery. The charger is
trying to determine which kind of battery has been connected. After 1-2 minutes the charger will
determine whether the battery is a 12V or 24V battery and it will either perform a maintenance
charge for a 12V battery or start charging for a 24V battery.
% CHARGED

11
OPERATING INSTRUCTIONS CONT.:
ii) 12V Lead-Acid Battery Cold Mode is designed for 12V Lead-Acid and
AGM batteries with capacities higher than 50Ah being charged at cold
temperatures (below 10°C).
iv) 12V AGM Battery Normal Mode is designed for AGM / GEL batteries or
batteries with capacities higher than 50Ah being charged under normal
weather conditions.
v) 12V Repair Mode is designed for 12V LEAD-ACID BATTERIES ONLY.
It is a battery recovery mode for repairing & restoring damaged, stratied
and sulphated batteries. At Standby Mode, press and hold the MODE
button for 3 seconds to start battery repairing. The 12V REPAIR 1.5A
LED ashes and charging starts. The recovery process will take one
to four hours and the battery will be charged in 12V Lead-Acid Battery
Normal Mode if recovery is successful or STAND BY LED will be lighted
for failure.
i) 12V Lead-Acid Battery Normal Mode is designed for 12V Lead-Acid
batteries with capacities higher than 50Ah being charged under normal
weather conditions.
iii) 12V Lithium Battery Normal Mode is designed for 12V Lithium batteries
including Lithium Iron Phosphate (LiFePO4) batteries being charged
under normal weather conditions. PLEASE ENSURE THIS MODE IS
SELECTED FOR 12V LITHIUM BATTERIES ONLY.
vi) 12V Maintain Mode is designed for 12V Lead-Acid, AGM, GEL and
Lithium batteries being charged and maintained at 5A max. At Standby
mode, press and hold MODE button for 3 seconds, the 12V REPAIR
1.5A LED will be lighted and then press MODE button one more time to
enter 12V Maintain Mode.
vii) 12V Supply Mode works as a 12V DC power supply for powering 12V
devices or as memory retainer when replacing a battery. THIS FEATURE
WILL OVERRIDE SHORT-CIRCUIT AND REVERSE-POLARITY
PROTECTION. Disable these protection can cause sparks, re or
damage your charger and/or device connected if used improperly. DO
NOT USE THIS FEATURE FOR BATTERY CHARGING.
At Standby mode before connecting battery clamps to 12V device, press
and hold MODE button for 3 seconds, to enter the 12V Supply Mode. DO
NOT USE THIS FEATURE FOR BATTERY CHARGING.
5. While you are in 12V Charging Mode, press MODE once to cycle through the following charge modes.

12
FCC Compliance Statement:
15A Battery Charger and Maintainer
Model: AC532713 / Responsible Party: YADA
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 / Tel: [phone]
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modications or change to this equipment. Such modications or change could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
OPERATING INSTRUCTIONS CONT.:
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626
Mon - Fri, 8AM - 5PM (Pacic Time)
Tel: [phone] (English only)
[email protected]
©2021 ADC Solutions Auto, LLC. All rights reserved.
www.letsyada.com Made in China
CAN ICES-3 (B)/NMB-3(B)
ML-532713_V1
viii) Push Mode (for 12V Lead-Acid battery only) is designed for charging
batteries with voltage 0.5V to 3.75V. At Standby mode with battery
clamps are connected to 12V Lead-Acid battery, if the battery voltage is
measured at 0.5V to 3.75V, both LEDs light on. Press and hold MODE
button for 3 seconds to enter Push Mode. Connect battery clamps to
vehicle battery and the battery will be charged with maximum current of
0.5A until the voltage is up to 3.75V and it will enter the 12V Lead-Acid
Battery Mode for charging onwards or it will return to Standby mode and
stop charging after 5 minutes if 3.75V can not be reached.
