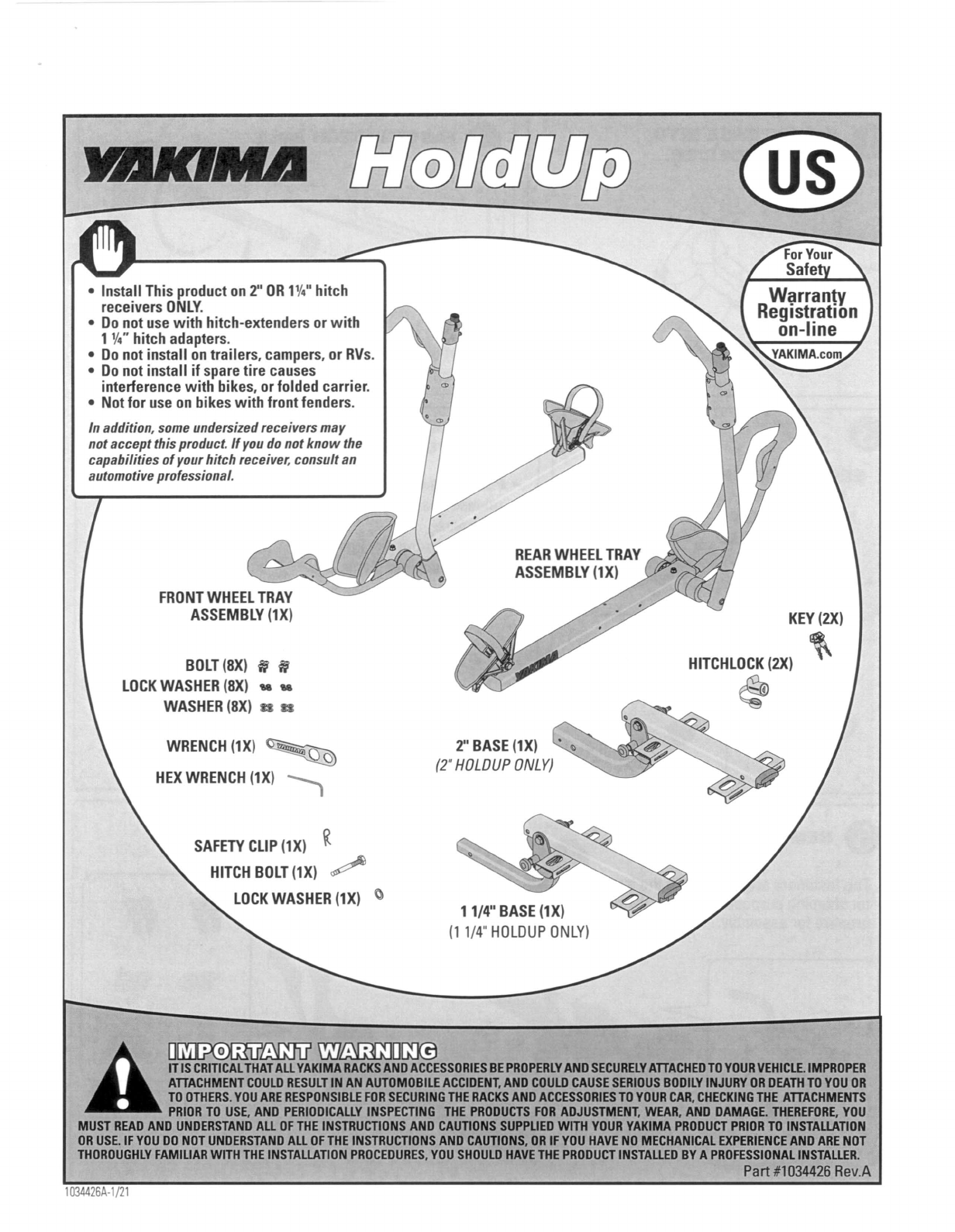

Yakima HoldUp User manual

• Install This product on 2" OR1%"hitch
receivers ONLY.
• Do not use with hitch-extenders or with
1 %" hitch adapters.
• Do not install on trailers. campers. or RVs.
• Do not install if spare tire causes
interference with bikes. or folded carrier.
• Not for use on bikes with front fenders.
Inaddition. some undersized receivers may
not accept this product. If you do not know the
capabilities of your hitch receiver. consult an
automotive professional.

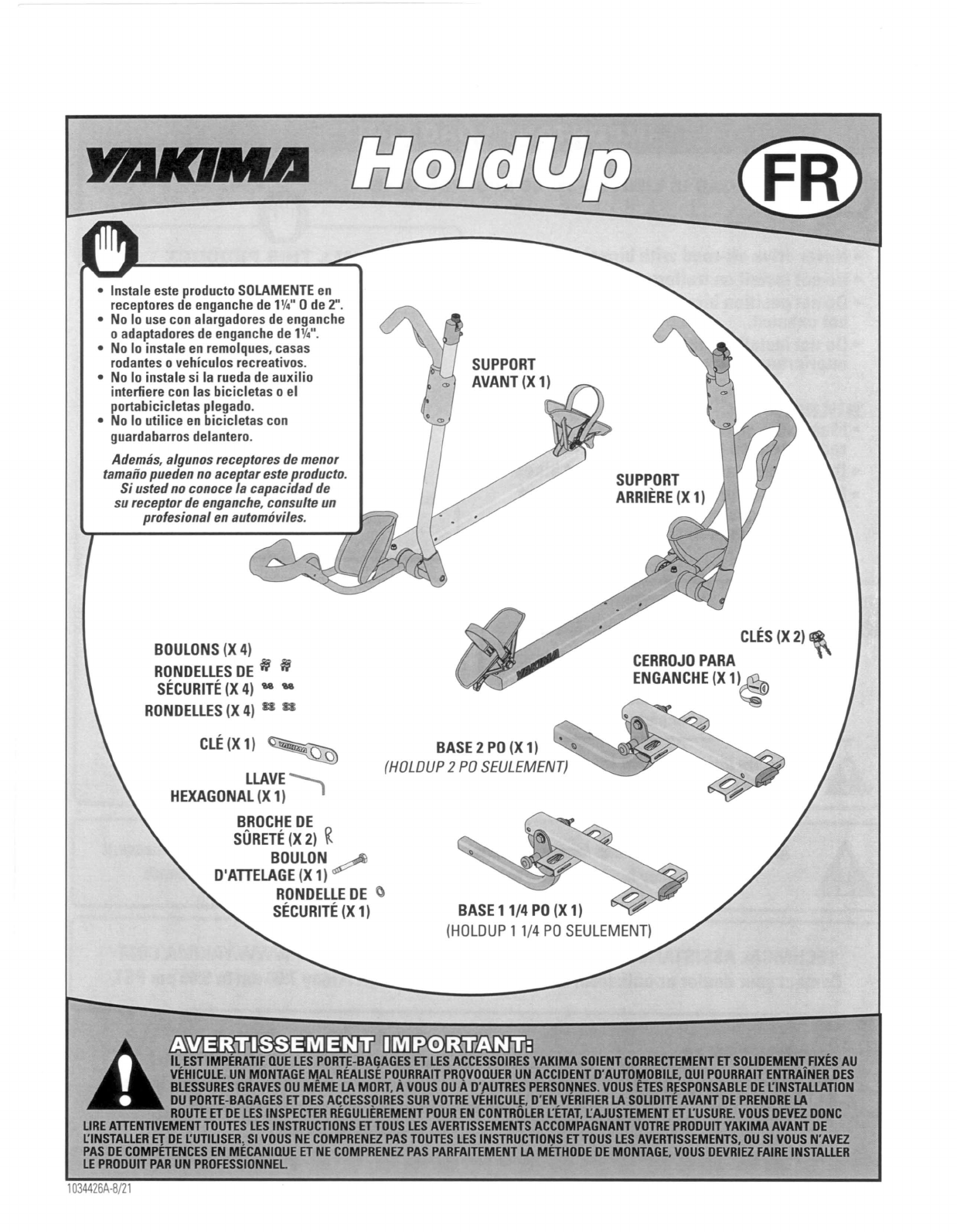

REARWHEELTRAY
ASSEMBLY (lX)
WRENCH(lX) ~
HEXWRENCH(lX) ~
2 BASE (lX)
(2" HOLDUP ONLY)
HITCHLOCK(2X)
~
KEY(2X)
~
BOLT(8X) fI fI
LOCKWASHER(8X) __
WASHER(8X) u u
SAFETYCLIP(lX) ~
HITCHBOLT(lX) ~
LOCKWASHER (lX) \) 11/4" BASE (lX)
(1 1/4" HOLDUP ONLY)
D~ WL0iillJD~
IT IS CRITICAL THAT AU YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER
ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT. AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR
TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR. CHECKING THE ATTACHMENTS
PRIOR TO USE. AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT. WEAR. AND DAMAGE. THEREFORE. YOU
MUST READ AND UNDERSTAND AU OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION
OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS. OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT
THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES. YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTAUER.
Part #1034426 Rev.A
, 034426A·' /21

oINSERT BASE INTO
HITCH RECEIVER.
The holes in
the base must
align to the
holes in the
hitch receiver.
SECURE HITCH
BOLT WITH
SAFETY CLIP
AND INSTALL
HITCHLOCK.
o REMOVE FASTENERS.
The fasteners are installed in the trays
for shipping purposes. Remove them to
prepare for assembly.
@ FASTEN HITCH BOLT.
• Insert hitch bolt and lock washer, from RIGHT TO LEFT.
• Tighten with wrench.
~ ROTATE BASE TO
'i7 UP POSITION.
• Pull spring pin to
release base.
• Lift frame.
• Release spring pin. Pin
should snap into place.

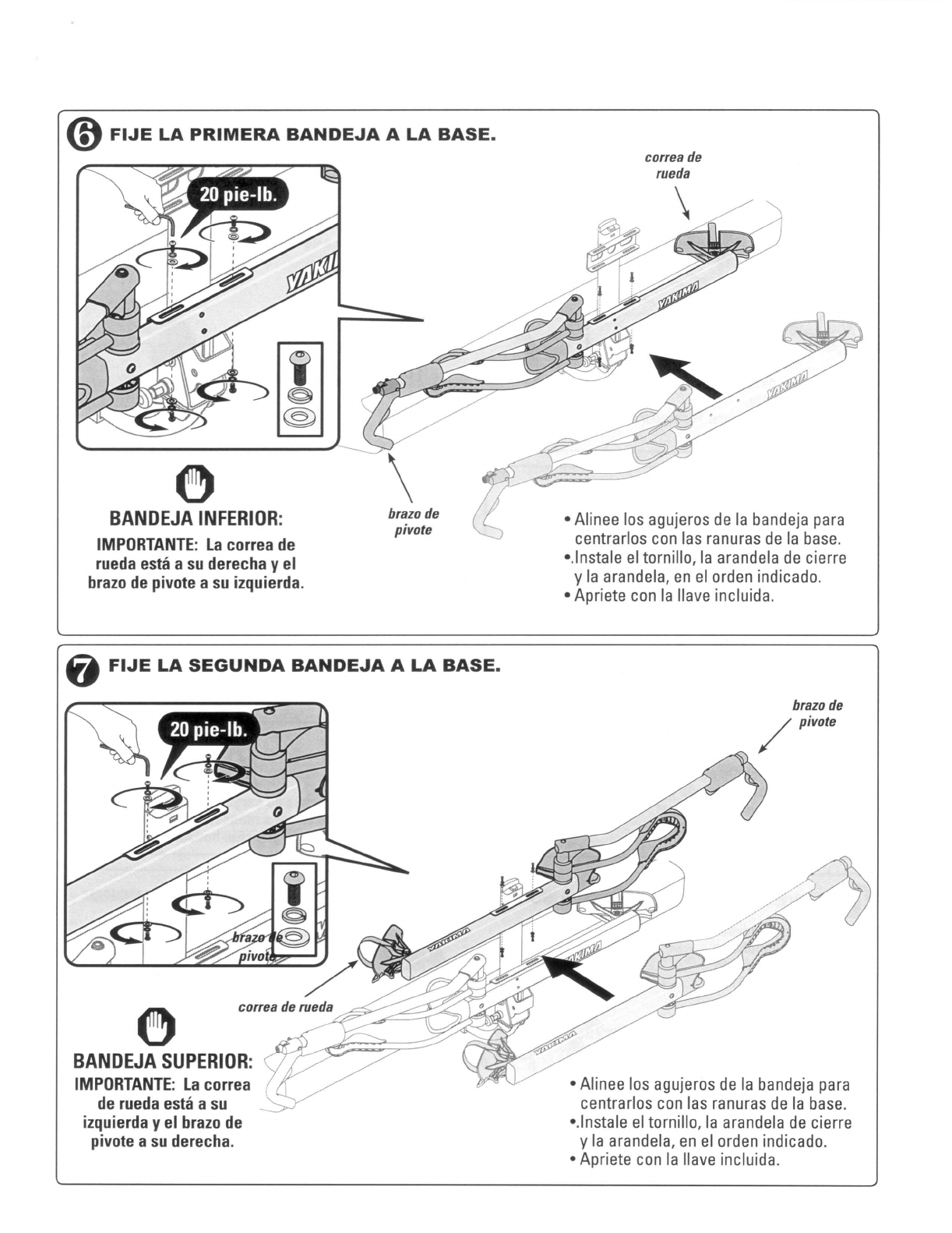

<D ATTACH FIRST TRAY TO BASE.
o
LOWER TRAY:
IMPORTANT: Wheel strap
is to your right, and pivot
arm is to your left.
pivot arm
• Align holes in tray to be centered in slots on base.
• Install bolt, lock-washer, and washer, in order shown.
• Tighten with supplied wrench.
8 ATTACH SECOND TRAY TO BASE.
o
UPPER TRAY:
IMPORTANT: Wheel
strap is to your left, and
pivot arm is to your right.
• Align holes in tray to be centered in slots on base.
• Insert bolt, washer, and lock-washer, in order shown.
• Tighten with supplied wrench.

/\j
f--1
J;2X

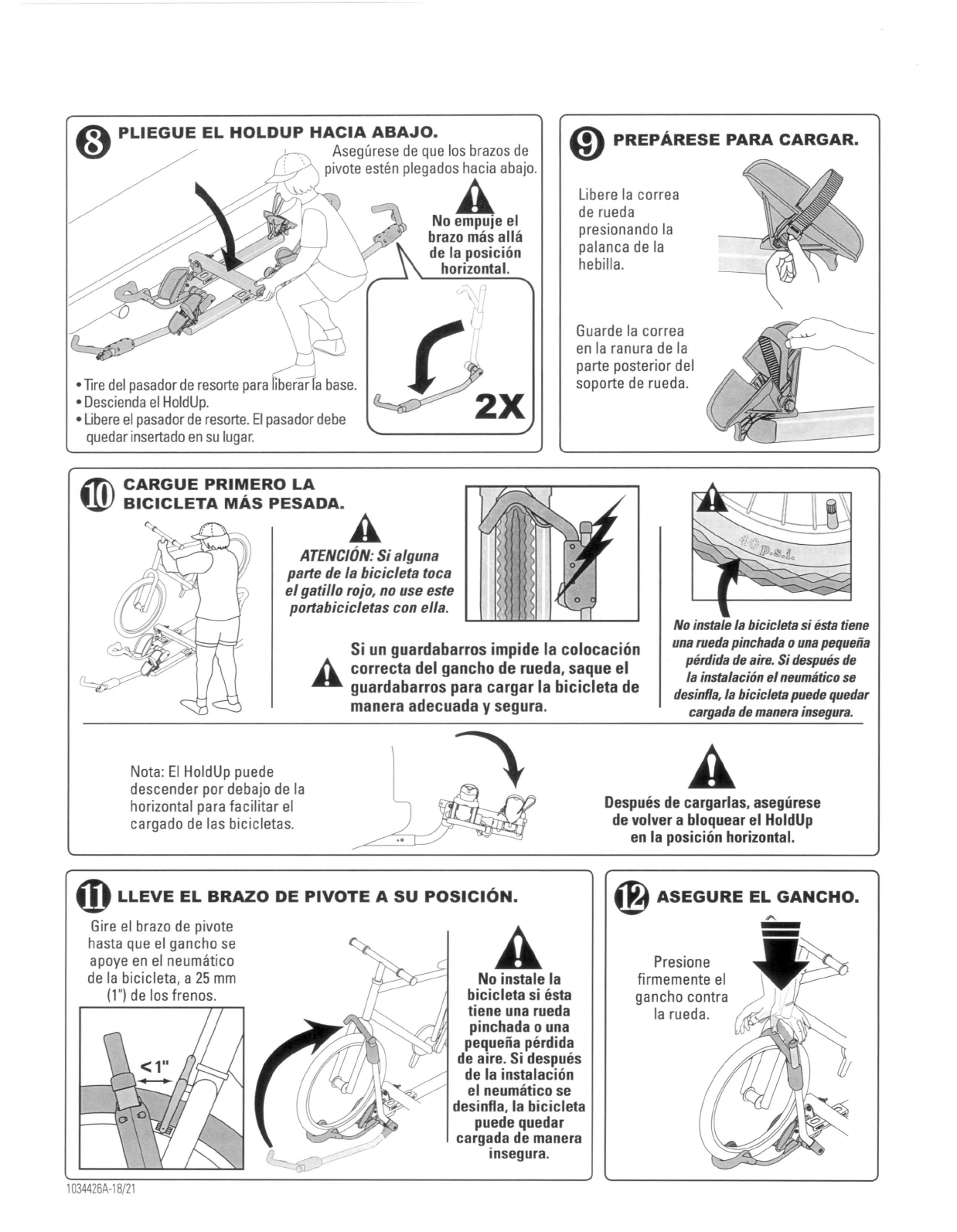

G} FOLD HOLDUP D~~N.
• Pull spring pin to release base.
• Folddown holdup
• Release Pin. Pin should snap into place.
Be sure pivot
arms are folded
down.
Do not push arm
beyond horizontal.

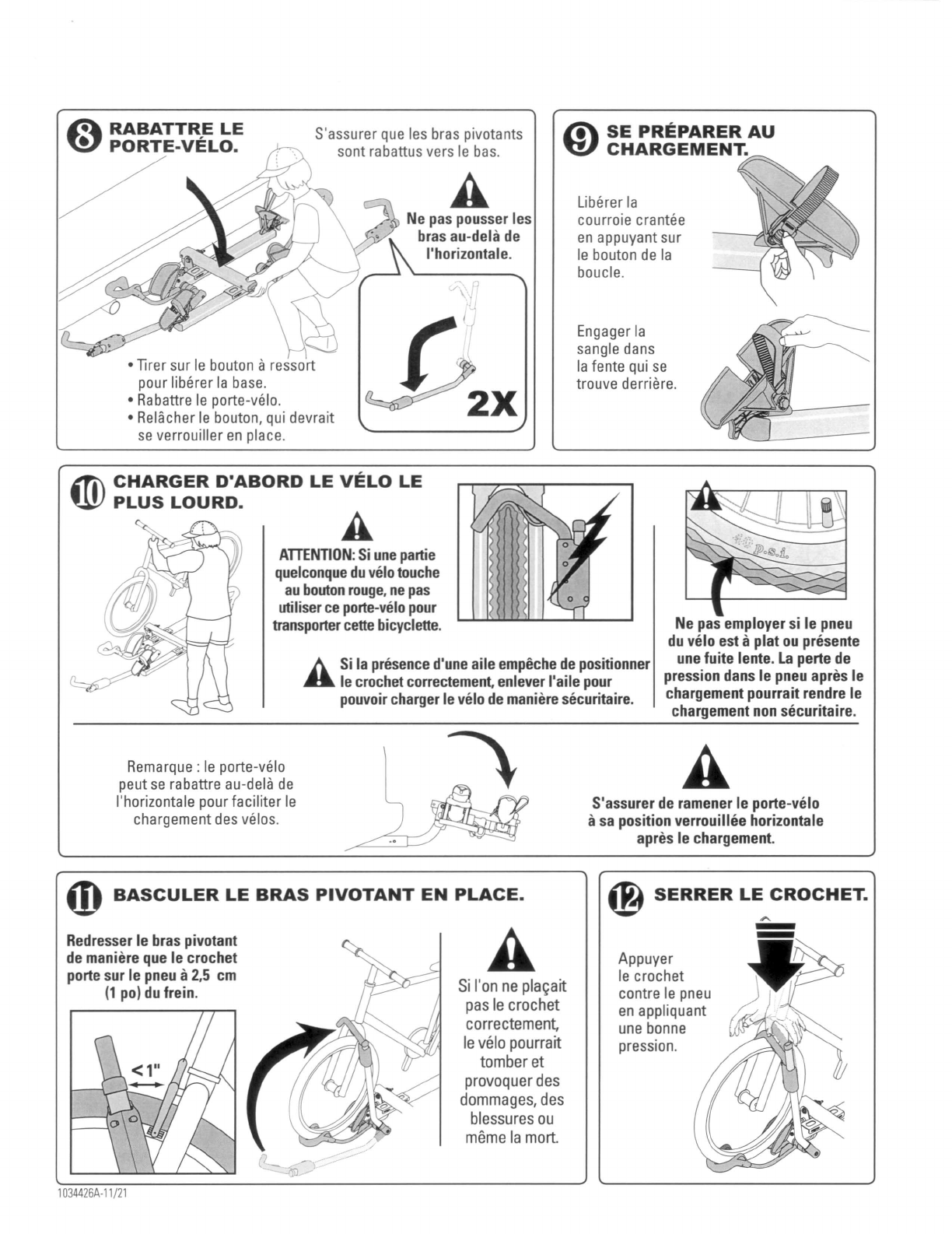

ID PREPARE FOR LOADING.
Release
wheelstrap by
pressing the lever
on the buckle.
f]) LOAD HEAVIEST BIKE FIRST.
A
CAUTION: If any part
of your bike comes in
contact with the red
trigger, do not use this
carrier with that bike.
Note: HoldUp can fold down
past horizontal to aid in
loading your bikes.
Tuck strap into
slot at rear of
whelltray.
Failure to place
wheel hook in the
correct position
can cause your
bicycle to eject,
and cause
personal injury ,
property damage,
or death.
00 not install if your bike
has aflat tire or has aslow
leak. Lost tire pressure
after install may result in
an insecure load.
If a fender prevents proper placement
of the wheel hook, remove the fender
for proper and safe loading.
Be sure to return the HoldUp to the locked
horizontal position after loading.
m SWING PIVOT ARM INTO PLACE.
Rotate the pivot arm up until the
hook rests on the bike tire 1" or
less from the brakes or the fork.
1034426A-4/21
@ SECURE THE HOOK.
"
-
-
Compress
the hook
against the
wheel by
applying firm
pressure.

~ TIGHTEN REAR WHEEL STRAP.
·Insertthe
strap end
through
the top of
the ratchet
buckle.
• Be sure the
pad rests on
the rim.

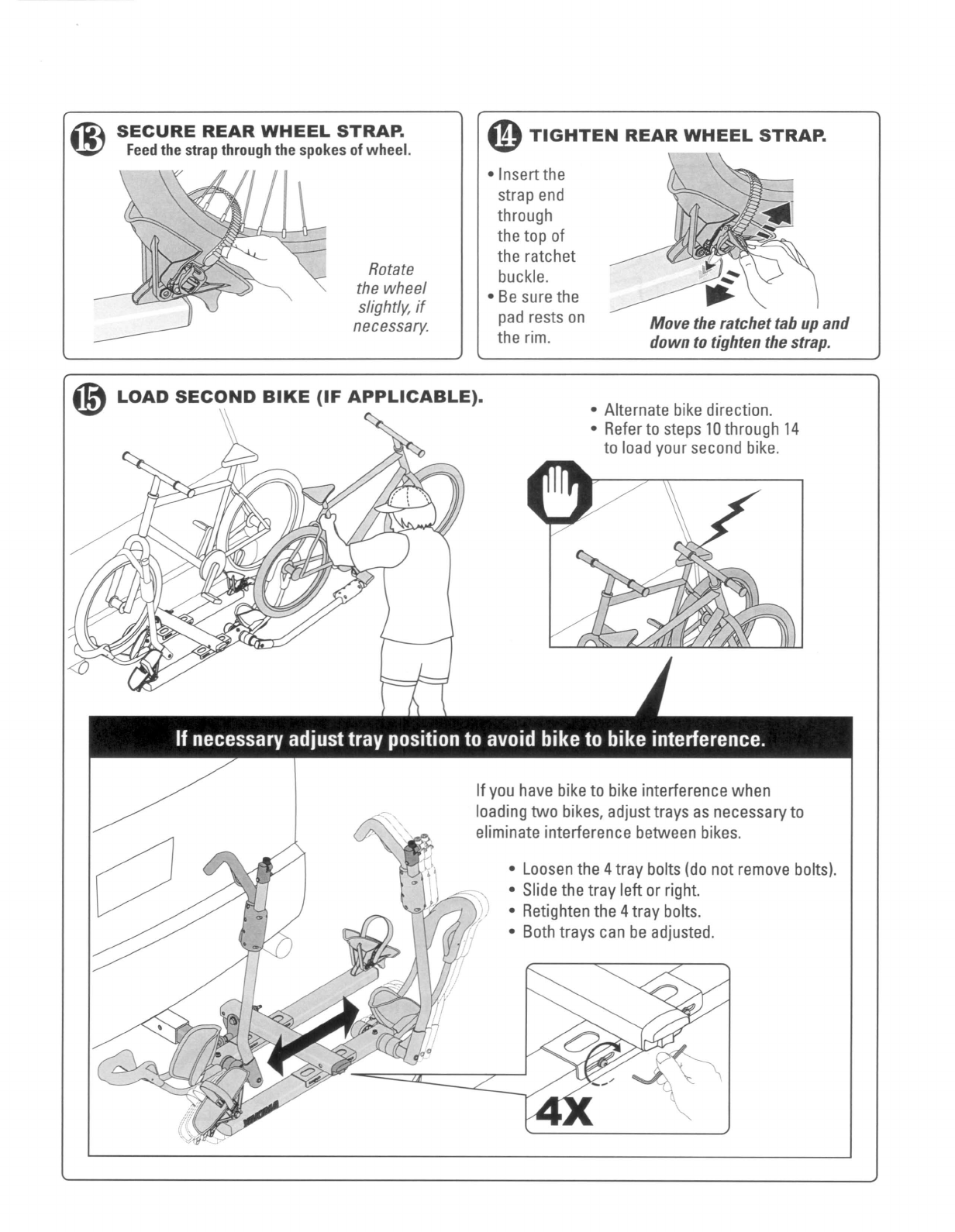

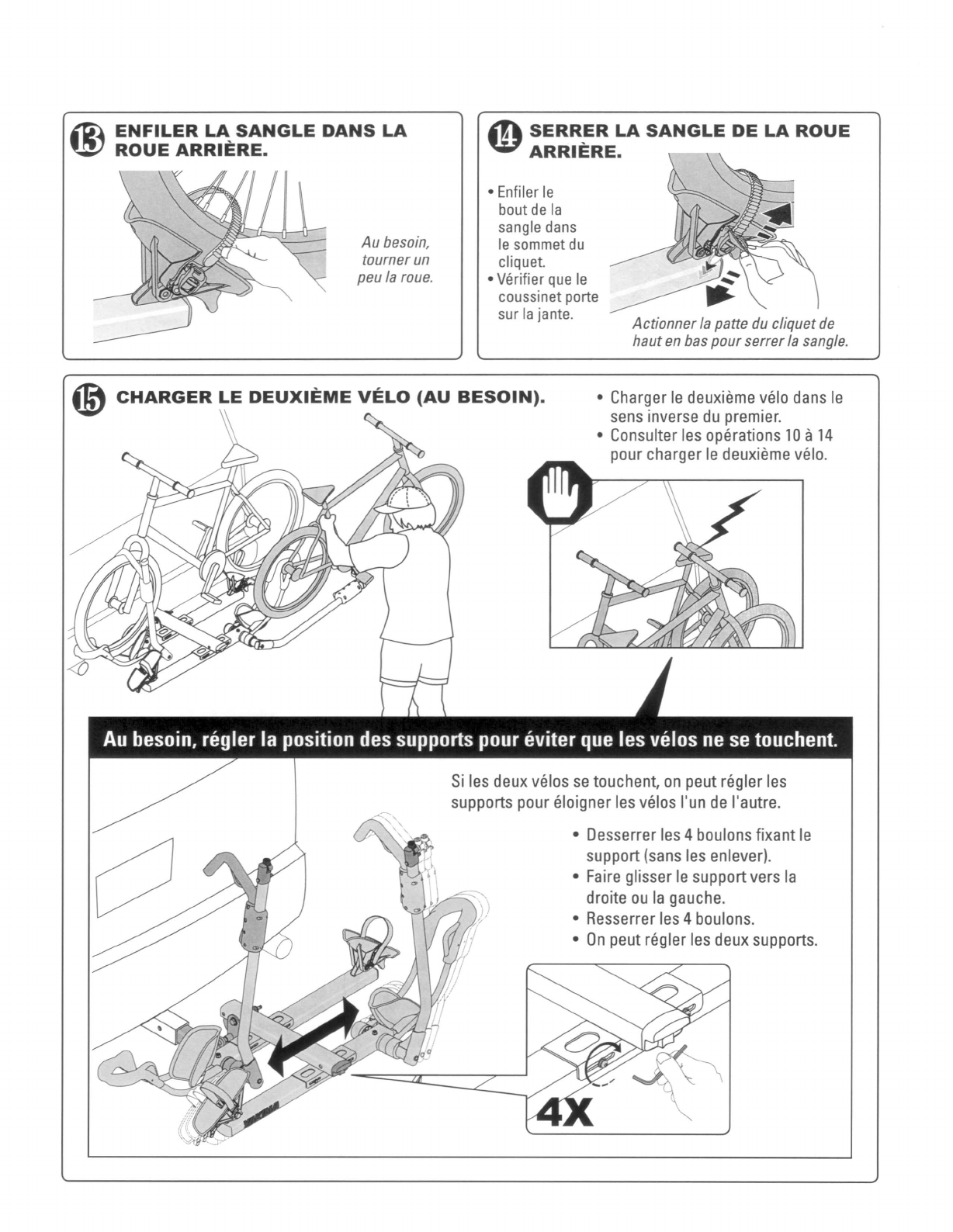

SECURE REAR WHEEL STRAP.
Feedthe strap through the spokes of wheel.
,
wi-
Move the ratchet tab up and
down to tighten the strap.
Rotate
the wheel
slightly, if
necessary.
( O LOAD SECOND BIKE (IF APPLICABLE).
• Alternate bike direction.
• Refer to steps 10through 14
to load your second bike.
If you have bike to bike interference when
loading two bikes, adjust trays as necessary to
eliminate interference between bikes.
• Loosen the 4 tray bolts (do not remove bolts).
• Slide the tray left or right.
• Retighten the 4 tray bolts.
• Both trays can be adjusted.

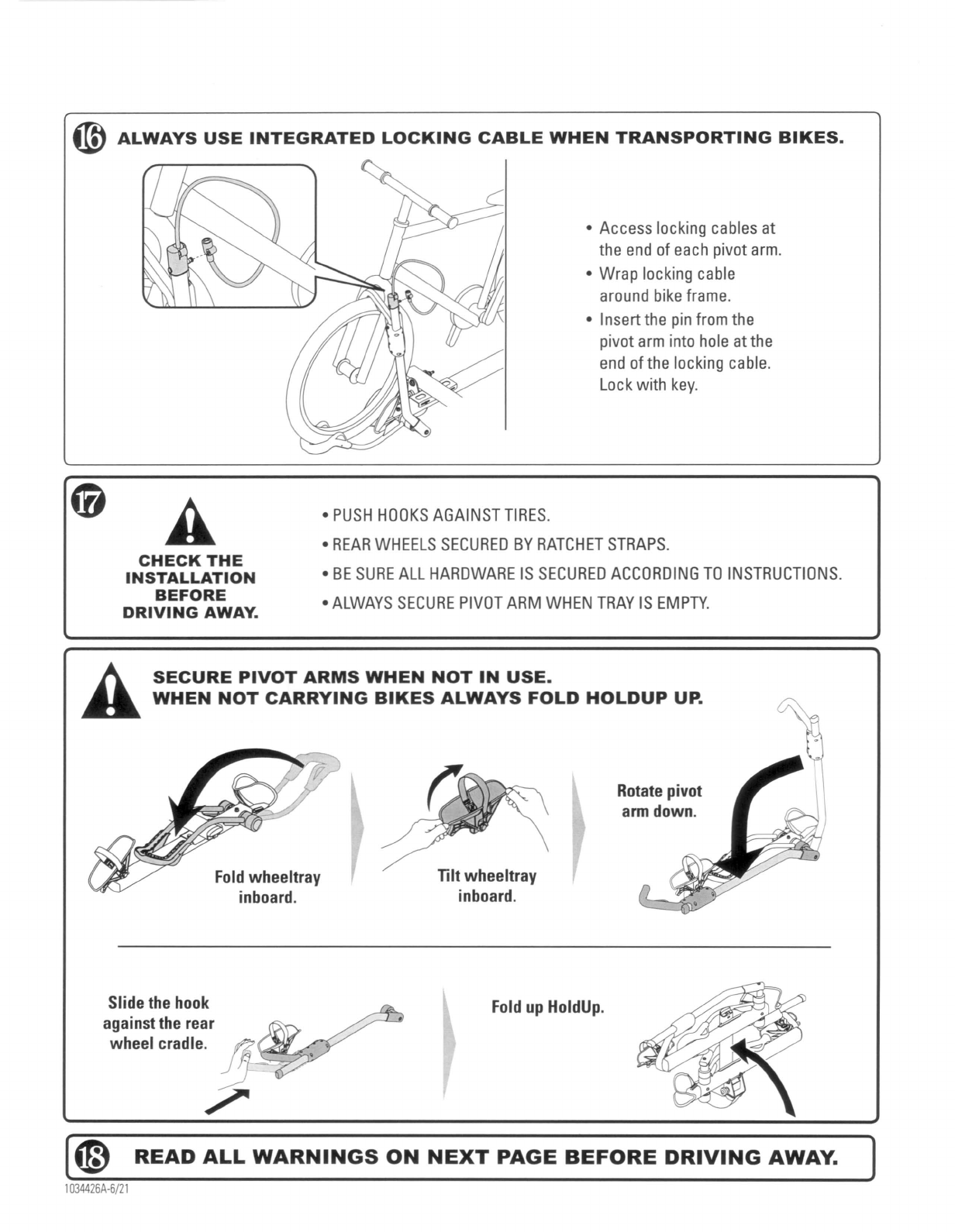

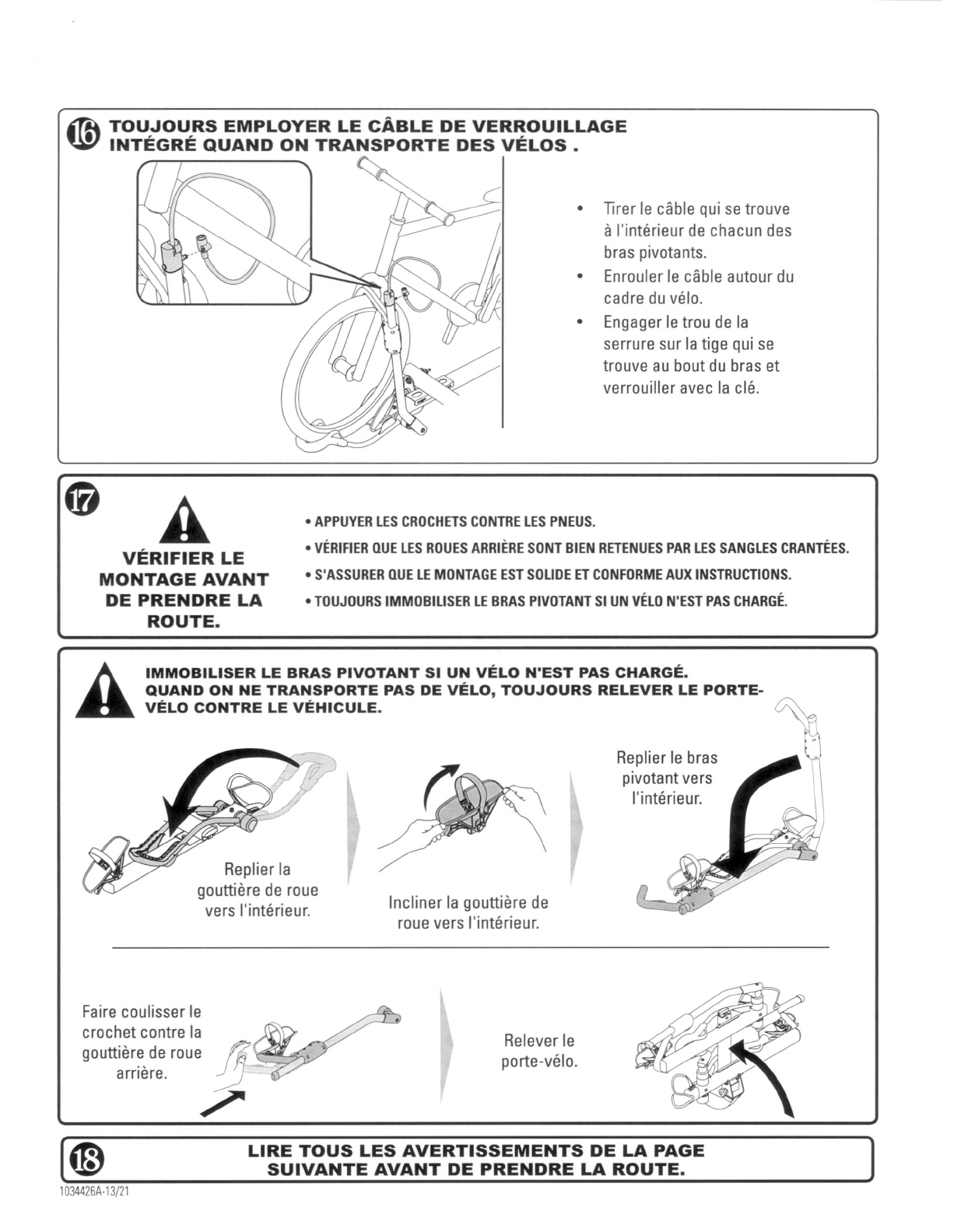

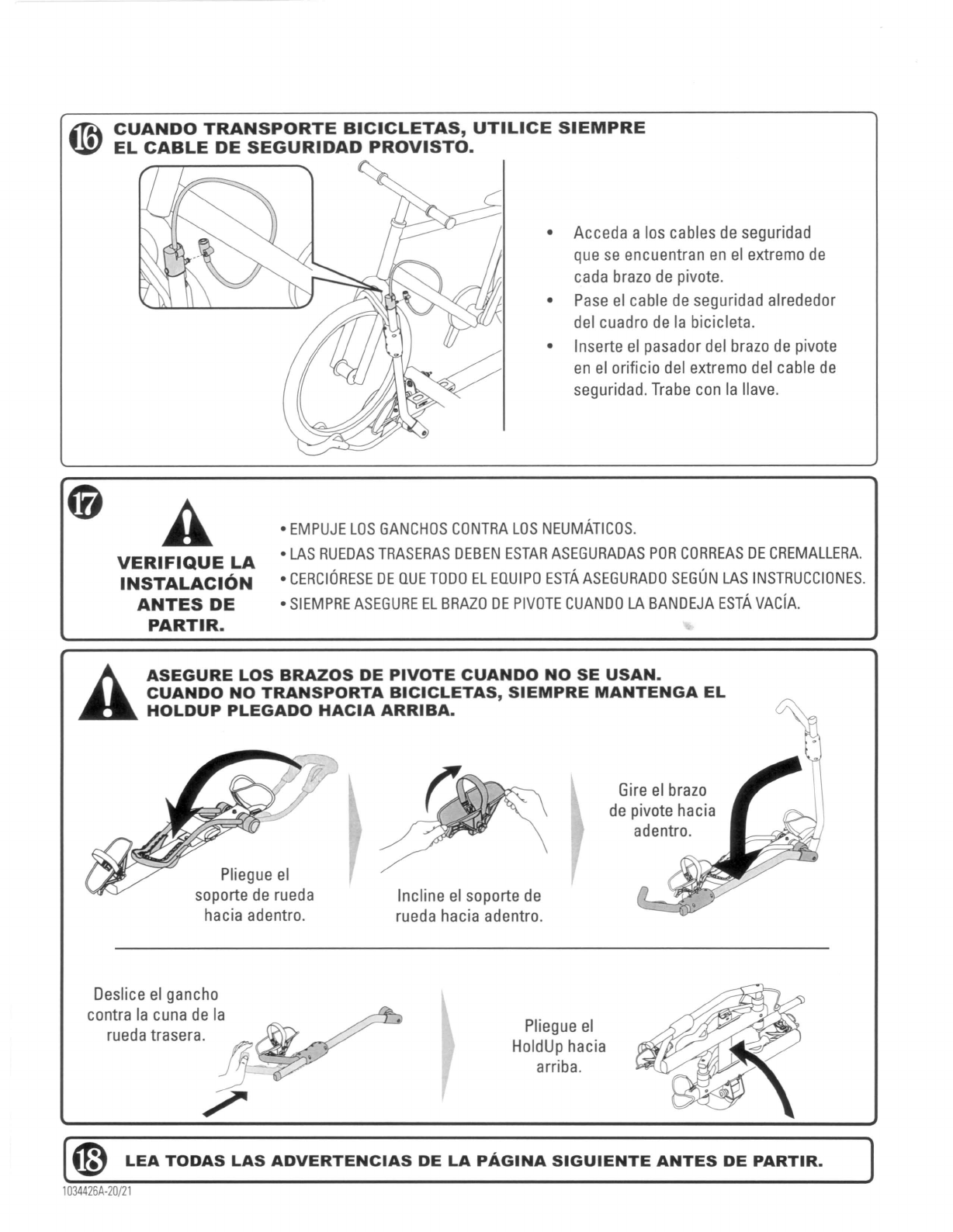

f]) ALWAYS USE INTEGRATED LOCKING CABLE WHEN TRANSPORTING BIKES.
• Access locking cables at
the end of each pivot arm.
• Wrap locking cable
around bike frame.
• Insert the pin from the
pivot arm into hole at the
end of the locking cable.
Lock with key.
A
• PUSH HOOKS AGAINST TIRES.
• REARWHEELS SECURED BY RATCHET STRAPS.
• BE SURE ALL HARDWARE IS SECURED ACCORDING TO INSTRUCTIONS.
• ALWAYS SECURE PIVOT ARM WHEN TRAY IS EMPTY.
CHECK THE
INSTALLATION
BEFORE
DRIVING AWAY.
A. SECURE PIVOT ARMS WHEN NOT IN USE.
a WHEN NOT CARRYING BIKES ALWAYS FOLD HOLDUP UP.
Tilt wheeltray
inboard.
Rotate pivot
arm down.
Fold wheeltray
inboard.
Fold up HoldUp.
Slide the hook
against the rear
wheel cradle.
f i) READ ALL WARNINGS ON NEXT PAGE BEFORE DRIVING AWAY.
1034426A·6/21

IMPORTANT LOAD LIMITS:
e HITCH LOAD IS LIMITED TO 60 LBS. PER BIKE.
• Never drive off-road with bicycles loaded.
• Do not install on trailers, campers, or RVs.
• Do not position bicycle tires near vehicle's
hot exhaust.
• Do not install if spare tire causes
interference with bikes or folded carrier.
INSTALL THIS PRODUCT
ON 2""AND 1 1/4"" HITCH
RECEIVERS ONLY.
• Do not use with a hitch-extender.
• Do not use with a 1-1/4" hitch adapter.
• Not for use on bikes with front fenders.
BIKES:
• Make sure your tires are filled to
recommended pressure found on the tire.
• Do not carry tandem or recumbent bikes.
• Do not transport bicycles with attached
baby seats, panniers, wheel covers, full
bike covers or motors.
In addition, some undersized receivers
may not accept this product. If you do not
know the capabilities of your hitch receiver,
consult an automotive professional.
MAINTENANCE:Periodically use non-water
soluble lubricant on moving metal parts. Use
a soft cloth with water and mild detergent to
clean rubber parts. Enjoy arefreshing beverage.
YourHoldUp endcap
doubles as a bottle opener
ARemovethis rack before entering an
~ automatic car wash, and when not in use.
Attachment hardware can loosen over time. Check before each use, and tighten if necessary.
Failure to obey load limits can result in property damage,personal injury, or death.
TECHNICAL ASSISTANCE ORREPLACEMENT PARTS: GO ONLINE: WWW.YAKIMA.COM
Contact your dealer or call: [phone] Monday through Friday 7:00 am to 5:00 pm PST
This product is covered by YAKIMA's
"Love It Till You Leave If' Limited Lifetime Warranty
To obtain a copy of this warranty, go online to www.yakima.com
or email [email protected]
or call [phone]
KEEP THESE INSTRUCTIONS
1034426A-7/21

CLES(X2)~
CERROJO PARA
ENGANCHE (X 1)~
~
;g>~
BASE 2 PO (X 1)
(HOLDUP 2 PO SEULEMENTj
• Instale este producto SOLAMENTE en
receptores de enganche de 11/4 0 de 2".
• No 10 use con alargadores de enganche
o adaptadores de enganche de 11/4 .
• No 10 instale en remolques, casas
rodantes 0 vehiculos recreativos.
• No 10 instale si la rueda de auxilio
interfiere con las bicicletas 0 el
portabicicletas plegado.
• No 10 utilice en bicicletas con
guardabarros delantero.
Ademas, algunos receptores de menor
temsiio pueden no aceptar este producto.
Si usted no conoce la capacidad de
su receptor de enganche, consulte un
profesional en autom6viles.
SUPPORT
AVANT (X 1)
BOULONS (X 4)
RONDELLES DE fI fI
SECURITE (X 4) ••••
RONDELLES (X 4) U U
CLE(X1) ~
LLAVE~
HEXAGONAL (X 1)
BROCHE DE
SURETE (X 2) ~
BOULON ~
D'ATIELAGE (X 1)
RONDELLE DE \)
SECURITE (X 1)
Eo:?
BASE 11/4 PO (X 1) {#
(HOLDUP 11/4 PO SEULEMENT)
£j D~
IL.EST IMPERATIF QUE LES PORT~-BAfiAGES ET LES ACCESSOIRES YAKIMA SOIENT CORRECTEMENT ET SOUDEMEtn:.RXES AU
VEHICULE. UN MONTAGE MAL REAUSE PO.URRAIT PRQVOQUER UN ACCIDENT D'AUTO~OBILE, QUI POURRAIT ENTRAINER DES
BLESSURES GRAVES OU MEME LA MORT, A VOUS OU A D'}mTRES PERSOPINES. VOUS ETES R~SPONSABLE DE L'INSTALLATION
DU PORTE-BAGAGES ET DES AI;CESSPIRES SUR VOTRE VEHICU~, D'EN. VERIRER LA SOUDITE AVANT DE PRENDRE LA
ROUTE ET DE LES INSPECTER REGUUEREMENT POUR EN CONTROLER L'ETAT, L'AJUSTEMENT ET L'USURE. VOUS DEVEZ DONC
URE ATTENTIVEMENT TOUTES LES INSTRUCTIONS ET TOUS LES AVERTISSEMENTS ACCOMPAGNANT VOTRE PRODUIT YAKIMA AVANT DE
L'INSTALLER ET DE L'UTILISER, SI VOUS NE COMPRENEZ PAS TOUTES LES INSTRUCTIOfliS ET TOUS LES AVERTISSEMENTS, OU SI VOUS N' AVEZ
PAS DE COMPETENCES EN MECANIQUE ET NE COMPRENEZ PAS PARFAITEMENT LA METHODE DE MONTAGE, VOUS DEVRIEZ FAIRE INSTALl.ER
LE PRODUIT PAR UN PROFESSIONNEL
1034426A·8/21

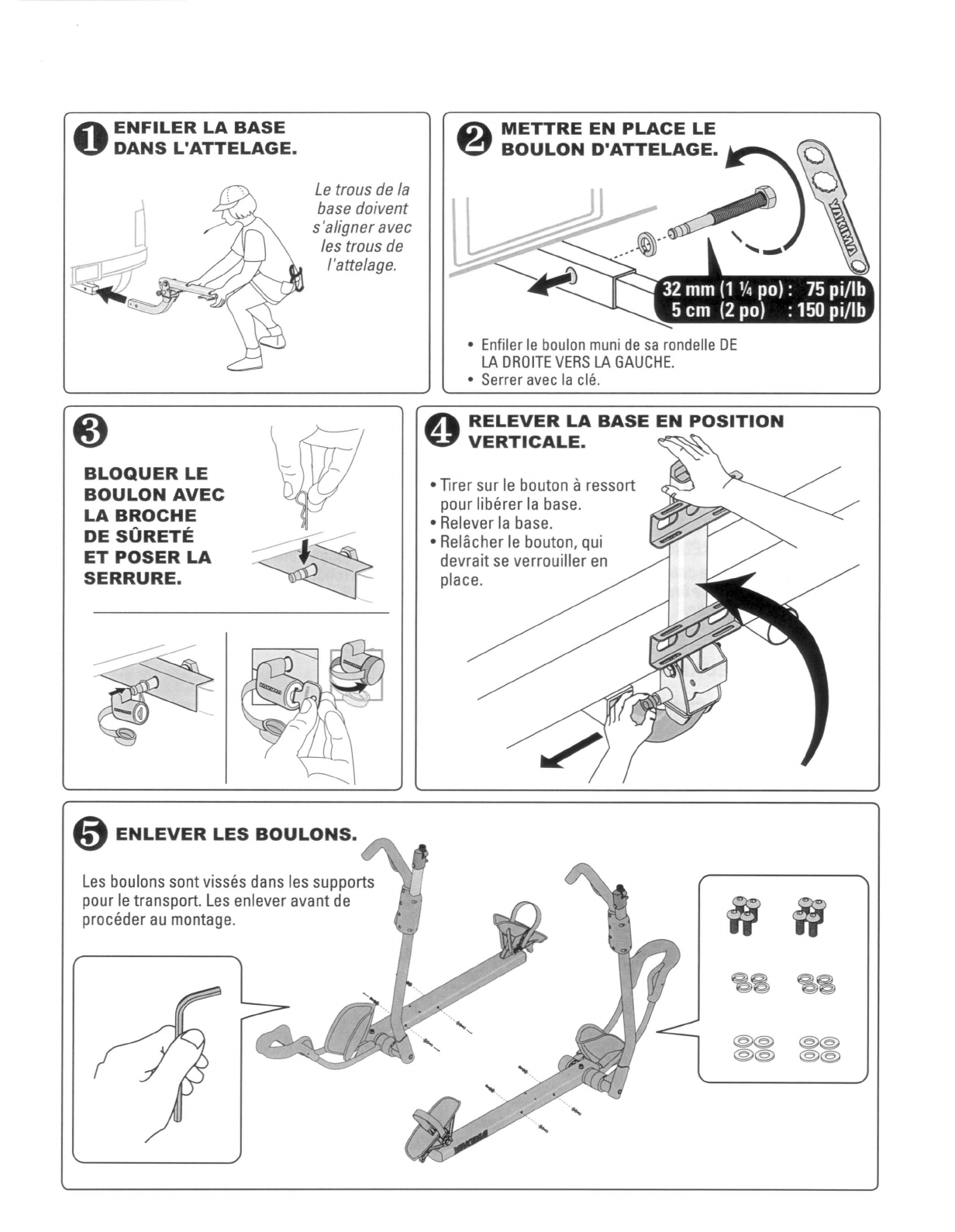

O
ENFILER LA BASE
DANS L'ATTELAGE.
Le trous de la
base doivent
s 'aligner avec
les trous de
/'attelage.
~ METTRE EN PLACE LE
~ BOULON D'ATTELAGE. ~1IIIIiIIIIIII..
• Enfiler Ie boulon muni de sa rondelle DE
LA DROITE VERS LA GAUCHE.
• Serrer avec la cle.
BLOQUER LE
BOULON AVEC
LA BROCHE
DE SURETE
ET POSER LA
SERRURE.
o ENLEVER LES BOULONS.
Les boulons sont visses dans les supports
pour Ie transport. Les enlever avant de
proceder au montage.
~ RELEVER LA BASE EN POSITION
ti3' VERTICALE.
• Tirer sur Ie bouton a ressort
pour liberer la base.
• Relever la base.
• Relacher Ie bouton, qui
devrait se verrouiller en
place.

Courroie crentee

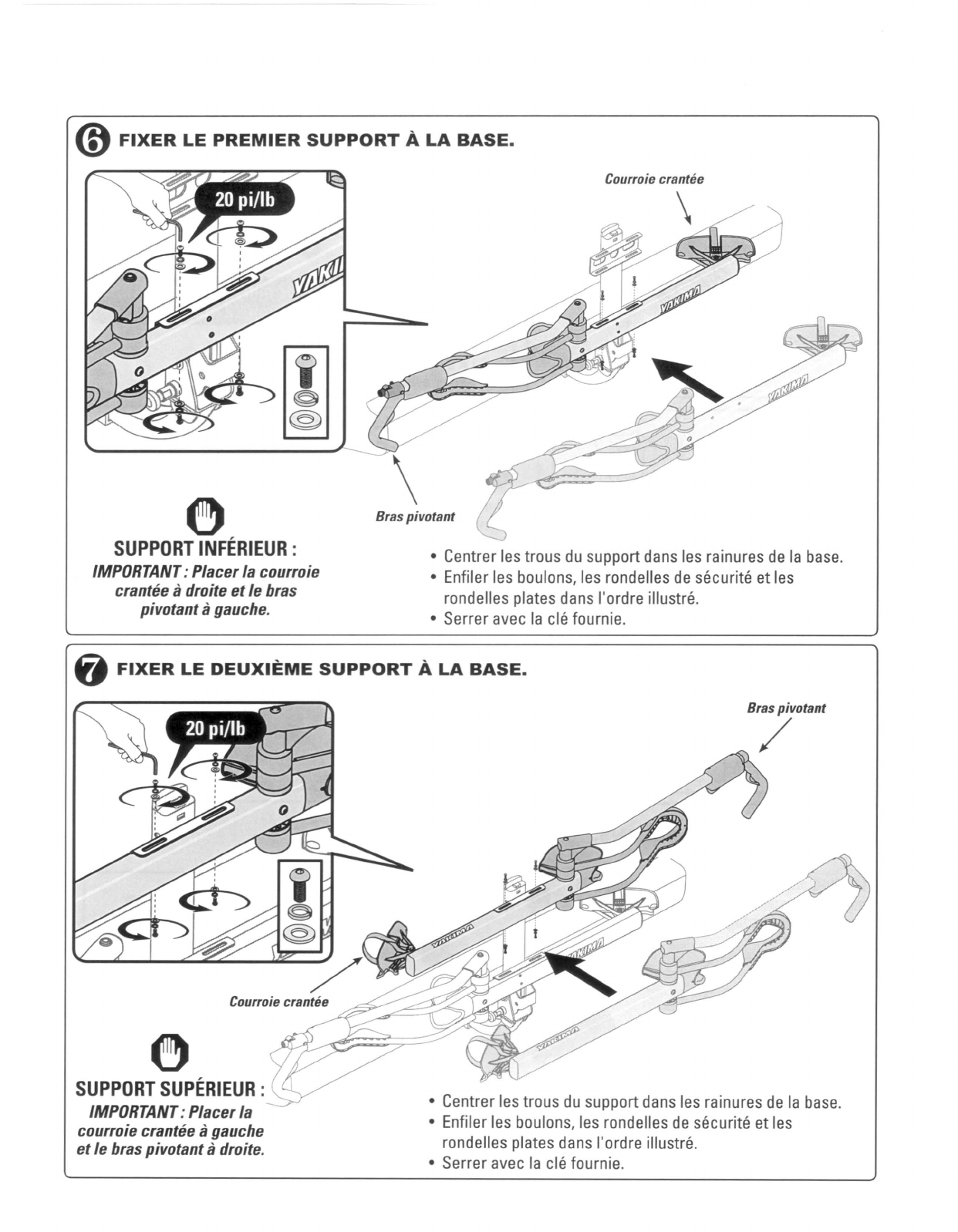

<D FIXER LE PREMIER SUPPORT A LA BASE.
