Yamaha FT60B User manual

OWNER’S MANUAL
F40C
F60A
FT60B
69W-28199-71-E0

EMU25050
Read this owner’s manual carefully before operating your outboard motor.

1
Important manual information
EMU25101
To the owner
Thank you for choosing a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding
of these simple instructions will help you ob-
tain maximum enjoyment from your new
Yamaha. If you have any question about the
operation or maintenance of your outboard
motor, please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
The Safety Alert Symbol means
ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
WARNING
EWM00780
Failure to follow WARNING instructions
could result in severe injury or death to
the machine operator, a bystander, or a
person inspecting or repairing the out-
board motor.
CAUTION:
ECM00700
A CAUTION indicates special precautions
that must be taken to avoid damage to the
outboard motor.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manu-
al, please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Note that if you
do not follow these instructions, not only may
the product break down, but the warranty will
also be voided.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the
warranty may not apply in certain regions.
When planning to take the product to another
country, consult the dealer where the prod-
uct was purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
NOTE:
The F40CET, F60AET, FT60BET and the
standard accessories are used as a base for
the explanations and illustrations in this
manual. Therefore some items may not ap-
ply to every model.
EMU25120
F40C, F60A, FT60B
OWNER’S MANUAL
©2005 by Yamaha Motor Co., Ltd.
1st Edition, March 2005
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan

Table of contents
General information .......................... 1
Identification numbers record.......... 1
Outboard motor serial number .......... 1
Key number....................................... 1
EC label........................................... 1
Safety information ........................... 2
Important labels............................... 3
Warning labels .................................. 3
Caution labels ................................... 3
Fueling instructions ......................... 3
Gasoline............................................ 4

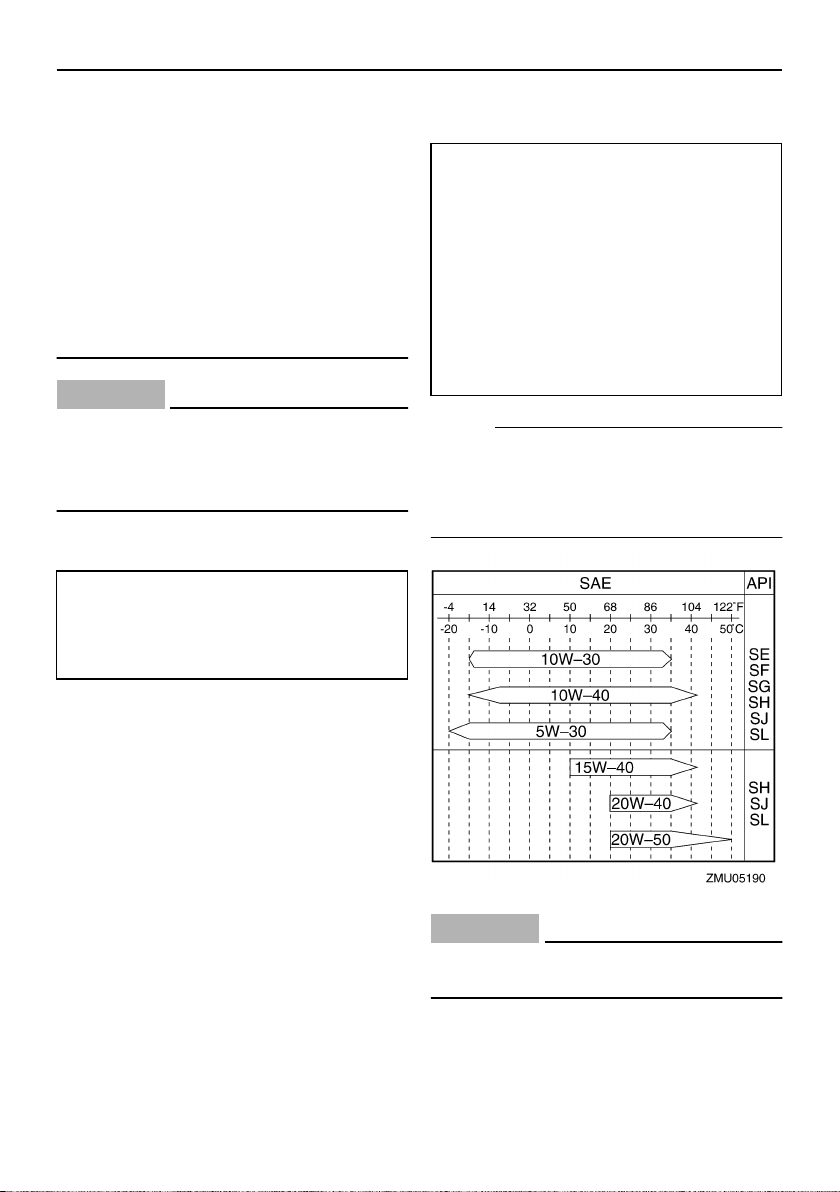

Engine oil .......................................... 4
Battery requirement......................... 5
Battery specifications ........................ 5
Propeller selection........................... 5
Start-in-gear protection ................... 6
Basic components ............................ 7

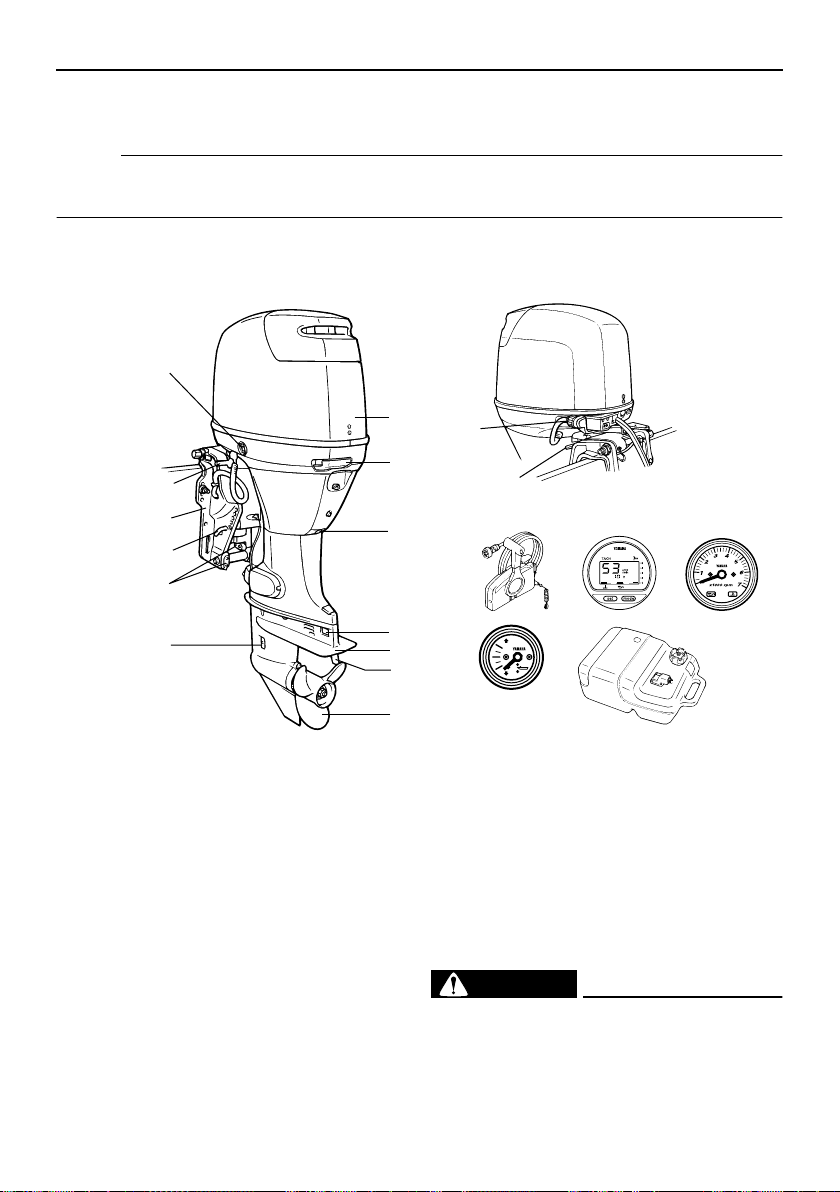

Main components............................ 7

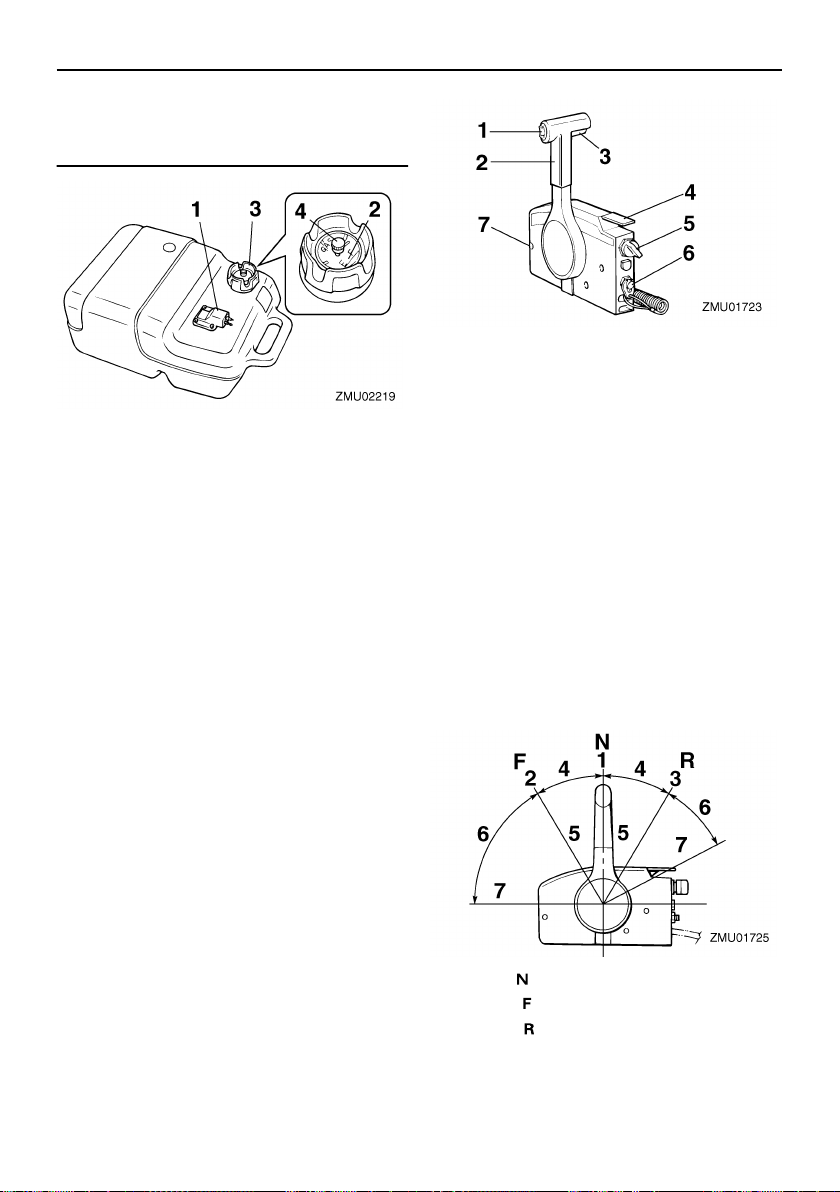

Fuel tank ........................................... 7
Fuel joint ........................................... 8
Fuel gauge ........................................ 8
Fuel tank cap .................................... 8
Air vent screw ................................... 8
Remote control.................................. 8
Remote control lever......................... 8

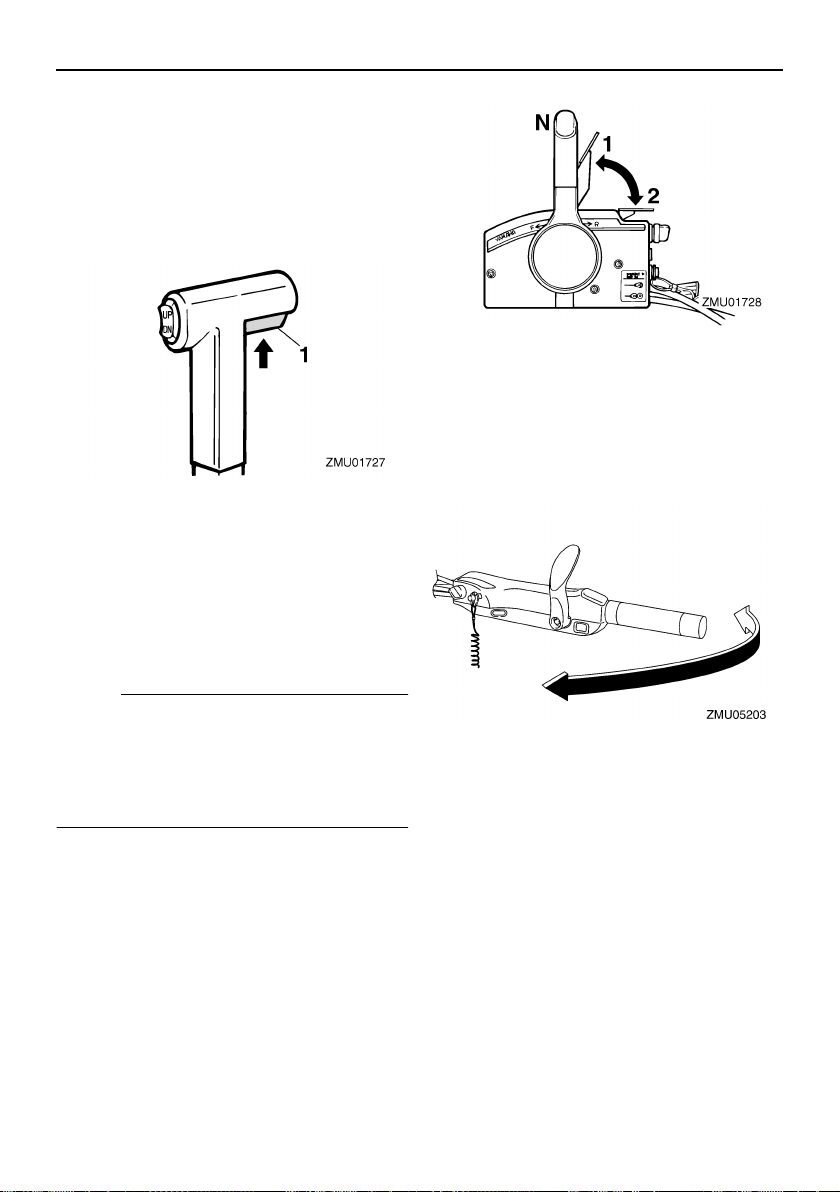

Neutral interlock trigger..................... 9
Neutral throttle lever.......................... 9
Tiller handle ...................................... 9

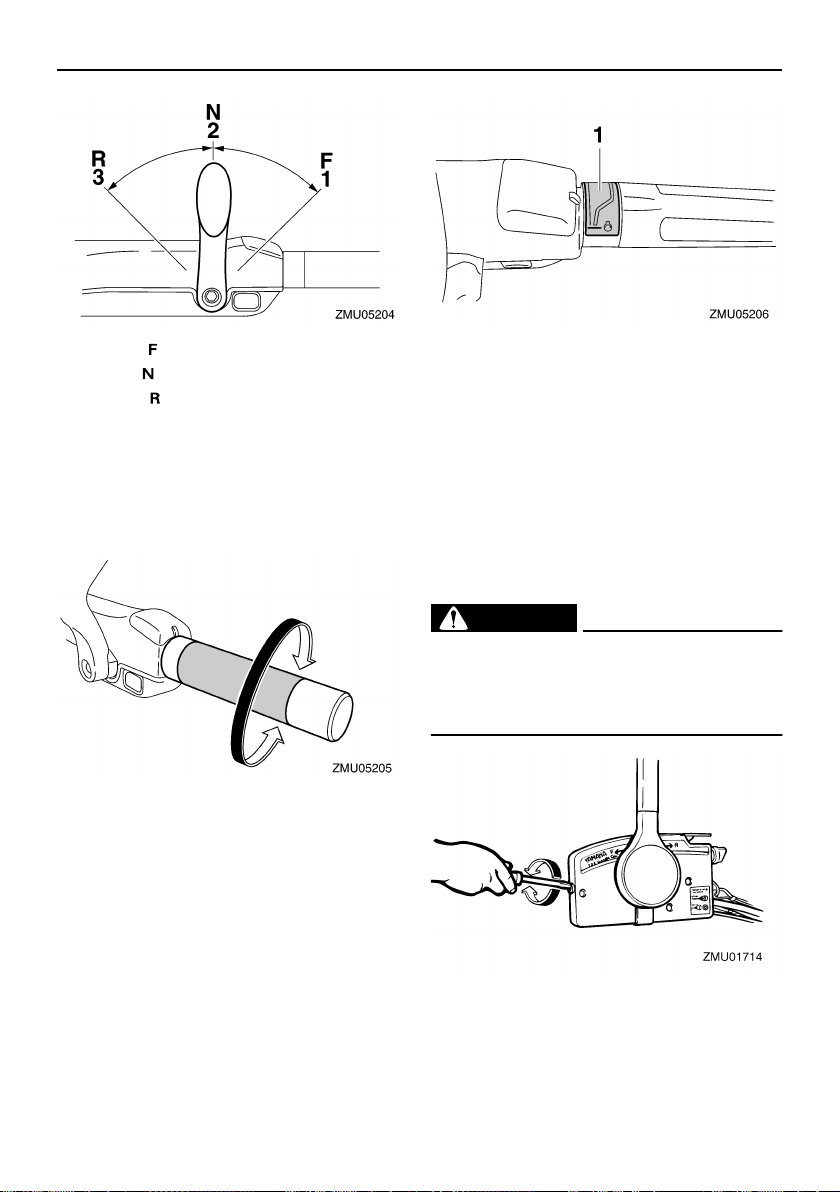

Gear shift lever.................................. 9
Throttle grip..................................... 10
Throttle indicator ............................. 10
Throttle friction adjuster................... 10
Engine stop lanyard switch ............. 11
Engine stop button .......................... 11
Main switch ..................................... 12
Power trim and tilt switch on remote
control or tiller handle ................... 12
Power trim and tilt switch on bottom
engine cowling .............................. 13
Trim tab with anode ........................ 13

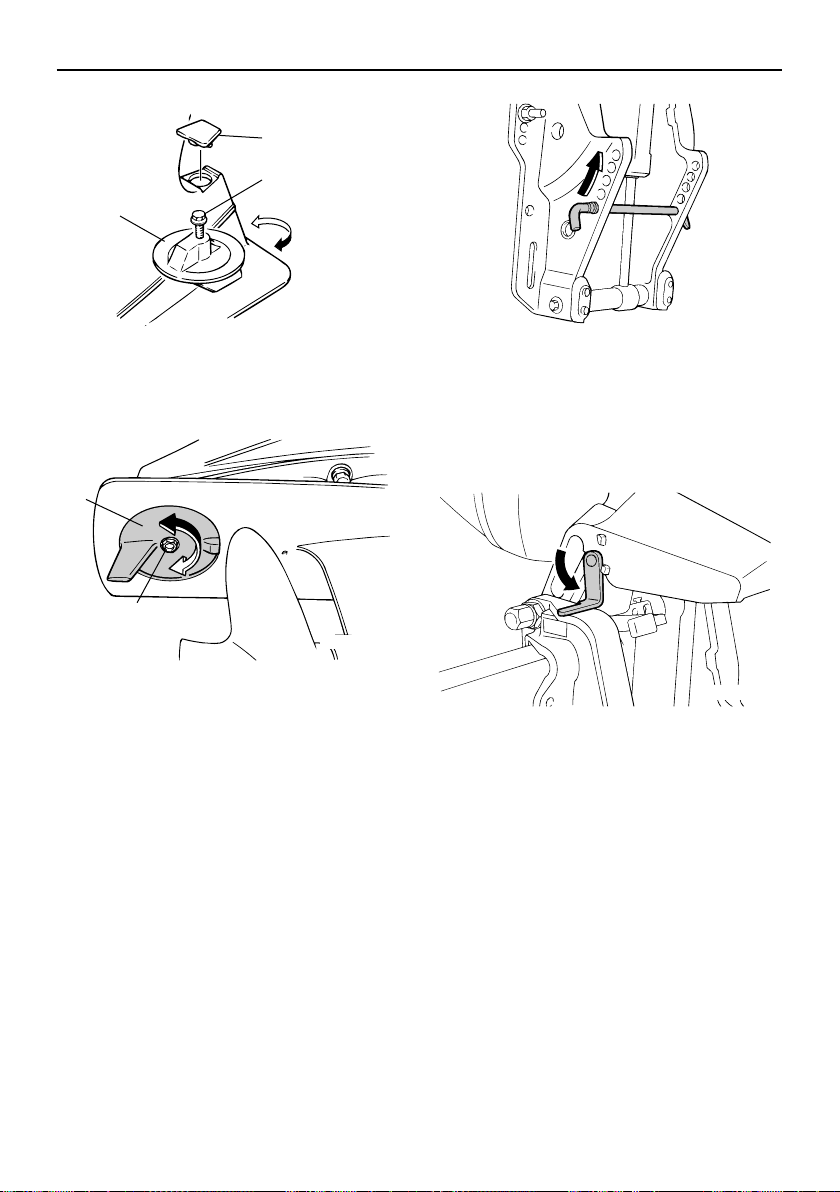

Trim rod (tilt pin).............................. 14
Tilt support lever for power trim and
tilt or hydro tilt model..................... 14
Top cowling lock lever(s) (turn
type).............................................. 14
Flushing device ............................... 15
Warning indicator ............................ 15
Tachometer ..................................... 15
Digital tachometer ........................... 15
Low oil pressure warning
indicator ........................................ 16
Low oil pressure warning
indicator ........................................ 16
Overheat warning indicator ............. 16
Overheat warning indicator (digital
type) .............................................. 17
Trim meter ....................................... 17
Trim meter (digital type) .................. 17
Hour meter (digital type)..................18
Warning system ............................ 18
Overheat warning ............................ 18
Low oil pressure warning ................19
Operation ......................................... 20
Installation..................................... 20
Mounting the outboard motor .......... 20
Breaking in engine ........................ 21
Procedure for 4-stroke models........ 21
Preoperation checks ..................... 21
Fuel ................................................. 21
Controls ........................................... 22
Engine ............................................. 22
Checking the engine oil level ..........22
Filling fuel...................................... 22
Operating engine .......................... 23
Feeding fuel (portable tank) ............ 23
Starting engine ................................ 24
Warming up engine....................... 26
Manual start and electric start
models .......................................... 26
Shifting.......................................... 27
Forward (tiller handle and remote
control models) ............................. 27
Reverse (automatic reverse lock
and power trim and tilt models).....28
Stopping engine............................ 28
Procedure........................................ 28
Trimming outboard motor.............. 29
Adjusting trim angle.........................30
Adjusting boat trim ..........................31
Tilting up and down....................... 31

Table of contents
Procedure for tilting up.................... 32
Procedure for tilting down ............... 33
Cruising in shallow water .............. 34
Power trim and tilt models / power
tilt models...................................... 34
Cruising in other conditions........... 35
Maintenance..................................... 36
Specifications ................................ 36
Transporting and storing outboard
motor ........................................... 37
Storing outboard motor ................... 37
Procedure ....................................... 38
Lubrication (except oil injection
models) ......................................... 40
Battery care..................................... 40
Flushing power unit......................... 41
Cleaning the outboard motor .......... 42
Checking painted surface of
motor............................................. 42
Periodic maintenance.................... 42
Replacement parts.......................... 42
Maintenance chart .......................... 43
Maintenance chart (additional)........ 44
Greasing ......................................... 45
Cleaning and adjusting spark
plug ............................................... 45
Checking fuel system...................... 46
Inspecting fuel filter ......................... 47
Cleaning fuel filter ........................... 47
Inspecting idling speed ................... 48
Changing engine oil ........................ 48
Checking wiring and connectors ..... 50
Exhaust leakage ............................. 50
Water leakage................................. 50
Engine oil leakage........................... 50
Checking power trim and tilt / power
tilt system...................................... 50
Checking propeller .......................... 51
Removing the propeller................... 52
Installing the Propeller .................... 52
Changing gear oil............................ 53
Cleaning fuel tank ........................... 54
Inspecting and replacing
anode(s)........................................ 54
Checking battery (for electric start
models) ......................................... 55
Connecting the battery .................... 56
Disconnecting the battery................57
Checking top cowling ...................... 57
Coating the boat bottom.................. 57
Trouble Recovery............................ 58
Troubleshooting ............................ 58
Temporary action in emergency ... 61
Impact damage ............................... 61
Replacing fuse ................................ 61
Power trim and tilt / power tilt will
not operate.................................... 62
Starter will not operate .................... 62
Emergency starting engine .............63
Treatment of submerged motor .... 64
Procedure........................................ 64

1
General information
EMU25170
Identification numbers record
EMU25182
Outboard motor serial number
The outboard motor serial number is
stamped on the label attached to the port
side of the clamp bracket or the upper part of
the swivel bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU25190
Key number
If a main key switch is equipped with the mo-
tor, the key identification number is stamped
on your key as shown in the illustration.
Record this number in the space provided for
reference in case you need a new key.
EMU25202

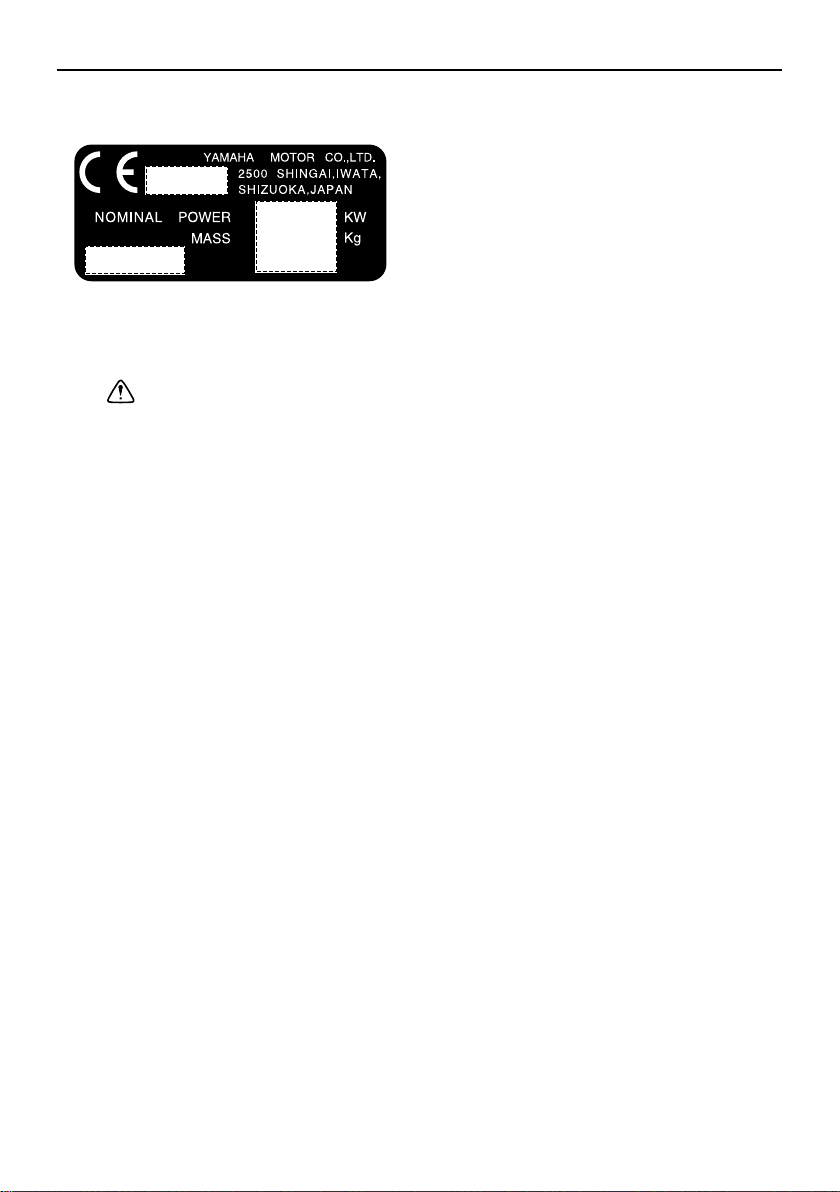

EC label
Engines affixed with this label conform to
certain portions of the European Parliament
directive relating to machinery. Refer to the
label and the EC Declaration of Conformity
for more details.
1. Outboard motor serial number location
1. Key number
1. EC label location
1
ZMU04986

General information
2
EMU25371
Safety information
●
Before mounting or operating the outboard
motor, read this entire manual. Reading it
should give you an understanding of the
motor and its operation.
●
Before operating the boat, read any own-
er’s or operator’s manuals supplied with it
and all labels. Be sure you understand
each item before operating.
● Do not overpower the boat with this out-
board motor. Overpowering the boat could
result in loss of control. The rated power of
the outboard should be equal to or less
than the rated horsepower capacity of the
boat. If the rated horsepower capacity of
the boat is unknown, consult the dealer or
boat manufacturer.
●
Do not modify the outboard. Modifications
could make the motor unfit or unsafe to
use.
●
Incorrect propeller selection and incorrect
use may not only cause engine damage,
but also adversely affect fuel consumption.
Consult your dealer for correct use.
● Never operate after drinking alcohol or tak-
ing drugs. About 50% of all boating fatali-
ties involve intoxication.
● Have an approved personal flotation de-
vice (PFD) on board for every occupant. It
is a good idea to wear a PFD whenever
boating. At a minimum, children and non-
swimmers should always wear PFDs, and
everyone should wear PFDs when there
are potentially hazardous boating condi-
tions.
●
Gasoline is highly flammable, and its va-
pors are flammable and explosive. Handle
and store gasoline carefully. Make sure
there are no gas fumes or leaking fuel be-
fore starting the engine.
●
This product emits exhaust gases which
contain carbon monoxide, a colorless,
odorless gas which may cause brain dam-
age or death when inhaled. Symptoms in-
clude nausea, dizziness, and drowsiness.
Keep cockpit and cabin areas well ventilat-
ed. Avoid blocking exhaust outlets.
●
Check throttle, shift, and steering for prop-
er operation before starting the engine.
●
Attach the engine stop switch lanyard to a
secure place on your clothing, or your arm
or leg while operating. If you accidentally
leave the helm, the lanyard will pull from
the switch, stopping the engine.
● Know the marine laws and regulations
where you will be boating - and obey them.
●
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
●
Tell someone where you are going: leave
a Float Plan with a responsible person. Be
sure to cancel the Float Plan when you re-
turn.
● Use common sense and good judgment
when boating. Know your abilities, and be
sure you understand how your boat han-
dles under the different boating conditions
you may encounter. Operate within your
limits, and the limits of your boat. Always
operate at safe speeds, and keep a careful
ZMU01696

General information
3
watch for obstacles and other traffic.
● Always watch carefully for swimmers dur-
ing the engine operation.
●
Stay away from swimming areas.
● When a swimmer is in the water near you
shift into neutral and shut off the engine.
●
Do not illegally discard empty containers
used to replace or replenish oil. For the
correct processing of empty containers,
consult the dealer where you purchased
the oil.
●
When replacing oils used to lubricate the
product (engine or gear oil), be sure to
wipe away any spilt oil. Never pour oil with-
out using a funnel or similar device. If nec-
essary, verify the necessary replacement
procedure with the dealer.
●
Never illegally discard (dump) the product.
Yamaha recommends consulting the deal-
er on discarding the product.
EMU25382
Important labels
EMU25395
Warning labels
EMU25401
Label
WARNING
EWM01260
● Be sure shift control is in neutral before
starting engine. (except 2HP)
●
Do not touch or remove electrical parts
when starting or during operation.
● Keep hands, hair, and clothes away
from flywheel and other rotating parts
while engine is running.
EMU25465
Caution labels
EMU25472
Label
CAUTION:
ECM01190
Transport and store the engine only as
shown. Otherwise, engine damage could
result from Leaking oil.
EMU25540
Fueling instructions
WARNING
EWM00010
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!
●
Do not smoke when refueling, and keep
away from sparks, flames, or other
sources of ignition.
●
Stop engine before refueling.
● Refuel in a well-ventilated area. Refuel
portable fuel tanks off the boat.
●
Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags.
●
Do not overfill the fuel tank.
● Tighten the filler cap securely after re-
ZMU03678
ZMU04172

General information
4
fueling.
● If you should swallow some gasoline,
inhale a lot of gasoline vapor, or get
gasoline in your eyes, get immediate
medical attention.
●
If any gasoline spills onto your skin, im-
mediately wash with soap and water.
Change clothing if gasoline spills on it.
●
Touch the fuel nozzle to the filler open-
ing or funnel to help prevent electro-
static sparks.
CAUTION:
ECM00010
Use only new clean gasoline which has
been stored in clean containers and is not
contaminated with water or foreign mat-
ter.
EMU25580
Gasoline
If knocking or pinging occurs, use a different
brand of gasoline or premium unleaded fuel.
EMU25683
Engine oil
NOTE:
If the recommended engine oil grades are
not available, select an alternative from the
following chart according to the average
temperatures in your area.
CAUTION:
ECM01050
All 4-stroke engines are shipped from the
factory without engine oil.
Recommended gasoline:
Regular unleaded gasoline with a min-
imum octane rating of 90 (Research
Octane Number).
Recommended engine oil:
4-stroke motor oil with a combination
of the following SAE and API oil classi-
fications
Engine oil type SAE:
10W-30 or 10W-40
Engine oil grade API:
SE, SF, SG, SH, SJ, SL
Engine oil quantity (excluding oil filter):
2.0 L (2.11 US qt) (1.76 Imp.qt)

General information
5
EMU25690
Battery requirement
CAUTION:
ECM01060
Do not use a battery that does not meet
the specified capacity. If a battery which
does not meet specifications is used, the
electric system could perform poorly or
be overloaded, causing electric system
damage.
For electric start models, choose a battery
which meets the following specifications.
EMU25720
Battery specifications
EMU25742
Propeller selection
The performance of your outboard motor will
be critically affected by your choice of propel-
ler, as an incorrect choice could adversely
affect performance and could also seriously
damage the motor. Engine speed depends
on the propeller size and boat load. If engine
speed is too high or too low for good engine
performance, this will have an adverse effect
on the engine.
Yamaha outboard motors are fitted with pro-
pellers chosen to perform well over a range
of applications, but there may be uses where
a propeller with a different pitch would be
more appropriate. For a greater operating
load, a smaller-pitch propeller is more suit-
able as it enables the correct engine speed
to be maintained. Conversely, a larger-pitch
propeller is more suitable for a smaller oper-
ating load.
Yamaha dealers stock a range of propellers,
and can advise you and install a propeller on
your outboard that is best suited to your ap-
plication.
Minimum cold cranking amps (CCA/EN):
430.0 A
Minimum rated capacity (20HR/IEC):
70.0 Ah
ZMU01710
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
ZMU04606
-
x
123
ZMU04609
-
x
123

General information
6
NOTE:
Select a propeller which will allow the engine
to reach the middle or upper half of the oper-
ating range at full throttle with the maximum
boat load. If operating conditions such as
light boat loads then allow the engine r/min to
rise above the maximum recommended
range, reduce the throttle setting to maintain
the engine in the proper operating range.
For instructions on propeller removal and in-
stallation, see page 51.
EMU25760
Start-in-gear protection
Yamaha outboard motors affixed with the
pictured label or Yamaha-approved remote
control units are equipped with start-in-gear
protection device(s). This feature permits the
engine to be started only when it is in neutral.
Always select neutral before starting the en-
gine.
1. Start-in-gear protection label
ZMU01713
1

7
Basic components
EMU25796
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
F40C, F60A, FT60B
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
18
14
11
13
8
10
9
5
6
4
4
7
1
3
11
12
15 16
17
ZMU04995
2
1. Top cowling
2. Top cowling lock lever
3. Drain screw
4. Anode(s)
5. Anti-cavitation plate
6. Trim tab
7. Propeller
8. Cooling water inlet
9. Trim rod
10. Clamp bracket
11. Tilt support lever
12. Power trim and tilt switch
13. Flushing device
14. Remote control box (side mount type)
15. Digital tachometer
16. Tachometer*
17. Trim meter*
18. Fuel tank*

Basic components
8
mercial users should conform to relevant
licensing or approval authority regula-
tions.
EMU25830
Fuel joint
This joint is used to connect the fuel line.
EMU25841
Fuel gauge
This gauge is located on either the fuel tank
cap or on the fuel joint base. It shows the ap-
proximate amount of fuel remaining in the
tank.
EMU25850
Fuel tank cap
This cap seals the fuel tank. When removed,
the tank can be filled with fuel. To remove the
cap, turn it counterclockwise.
EMU25860
Air vent screw
This screw is on the fuel tank cap. To loosen
the screw, turn it counterclockwise.
EMU26180
Remote control
The remote control lever actuates both the
shifter and the throttle. The electrical switch-
es are mounted on the remote control box.
EMU26190
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the le-
ver back from neutral engages reverse. The
engine will continue to run at idle until the le-
ver is moved about 35° (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.
1. Fuel joint
2. Fuel gauge
3. Fuel tank cap
4. Air vent screw
1. Power trim and tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch / choke switch
6. Engine stop lanyard switch
7. Throttle friction adjuster
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Shift
5. Fully closed

Basic components
9
EMU26201
Neutral interlock trigger
To shift out of neutral, first pull the neutral in-
terlock trigger up.
EMU26211
Neutral throttle lever
To open the throttle without shifting into ei-
ther forward or reverse, put the remote con-
trol lever in the neutral position and lift the
neutral throttle lever.
NOTE:
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the closed
position.
EMU25911
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
EMU25922
Gear shift lever
Pulling the gear shift lever towards you puts
the engine in forward gear so that the boat
moves ahead. Pushing the lever away from
you puts the engine in reverse gear so that
the boat moves astern.
6. Throttle
7. Fully open
1. Neutral interlock trigger
1. Fully open
2. Fully closed

Basic components
10
EMU25941
Throttle grip
The throttle grip is on the tiller handle. Turn
the grip counterclockwise to increase speed
and clockwise to decrease speed.
EMU25961
Throttle indicator
The fuel consumption curve on the throttle
indicator shows the relative amount of fuel
consumed for each throttle position. Choose
the setting that offers the best performance
and fuel economy for the desired operation.
EMU25970
Throttle friction adjuster
A friction device provides adjustable resis-
tance to movement of the throttle grip or the
remote control lever, and can be set accord-
ing to operator preference.
To increase resistance, turn the adjuster
clockwise. To decrease resistance, turn the
adjuster counterclockwise.
WARNING
EWM00030
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to move throttle lever or grip,
which could result in an accident.
1. Forward “ ”
2. Neutral “ ”
3. Reverse “ ”
1. Throttle indicator

Basic components
11
When constant speed is desired, tighten the
adjuster to maintain the desired throttle set-
ting.
EMU25990
Engine stop lanyard switch
The lock plate must be attached to the en-
gine stop switch for the engine to run. The
lanyard should be attached to a secure place
on the operator’s clothing, or arm or leg.
Should the operator fall overboard or leave
the helm, the lanyard will pull out the lock
plate, stopping ignition to the engine. This
will prevent the boat from running away un-
der power.
WARNING
EWM00120
●
Attach the engine stop switch lanyard
to a secure place on your clothing, or
your arm or leg while operating.
●
Do not attach the lanyard to clothing
that could tear loose. Do not route the
lanyard where it could become entan-
gled, preventing it from functioning.
●
Avoid accidentally pulling the lanyard
during normal operation. Loss of en-
gine power means the loss of most
steering control. Also, without engine
power, the boat could slow rapidly. This
could cause people and objects in the
boat to be thrown forward.
NOTE:
The engine cannot be started with the lock
plate removed.
EMU26001
Engine stop button
To open the ignition circuit and stop the en-
gine, push this button.
1. Lanyard
2. Lock plate
1. Lanyard
2. Lock plate

Basic components
12
EMU26090
Main switch
The main switch controls the ignition system;
its operation is described below.
●
“” (off)
With the main switch in the “ ” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
● “” (on)
With the main switch in the “ ” (on) posi-
tion, the electrical circuits are on, and the key
cannot be removed.
●
“” (start)
With the main switch in the “ ” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “ ” (on) position.
EMU26141
Power trim and tilt switch on remote
control or tiller handle
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pressing the switch “ ” (up) trims the
outboard motor up, then tilts it up. Pressing
the switch “ ” (down) tilts the outboard mo-
tor down and trims it down. When the switch
is released, the outboard motor will stop in its
current position.
NOTE:
For instructions on using the power trim and
tilt switch, see pages 29 and 31.
ON STARTOFF
ZMU03590

Basic components
13
EMU26151
Power trim and tilt switch on bottom
engine cowling
The power trim and tilt switch is located on
the side of the bottom engine cowling. Press-
ing the switch “ ” (up) trims the outboard
motor up, then tilts it up. Pressing the switch
“ ” (down) tilts the outboard motor down
and trims it down. When the switch is re-
leased, the outboard motor will stop in its
current position.
WARNING
EWM01030
Use the power trim and tilt switch located
on the bottom engine cowling only when
the boat is at a complete stop with the en-
gine off. Attempting to use this switch
while the boat is moving could increase
the risk of falling overboard and could
distract the operator, increasing the risk
of collision with another boat or an obsta-
cle.
NOTE:
For instructions on using the power trim and
tilt switch, see page 31.
EMU26241
Trim tab with anode
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
WARNING
EWM00840
An improperly adjusted trim tab could
cause difficult steering. Always test run
after the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
If the boat tends to veer the left (port side),
turn the trim tab rear end to the port side “A”
in the figure. If the boat tends to veer the right
(starboard side), turn the trim tab end to the
starboard side “B” in the figure.
CAUTION:
ECM00840
The trim tab also serves as an anode to
protect the engine from electrochemical
corrosion. Never paint the trim tab as it
will become ineffective as an anode.
1. Power trim and tilt switch
UP
DN
ZMU03634
1

Basic components
14
EMU26261
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU26340
Tilt support lever for power trim and
tilt or hydro tilt model
To keep the outboard motor in the tilted up
position, lock the tilt support lever to the
clamp bracket.
EMU26372
Top cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling again by returning the lever(s) to the
lock position.
1. Trim tab
2. Bolt
3. Cap
1. Trim tab
2. Bolt
1
2
3
ZMU02525
A
B
ZMU02822
1
2
A
B
ZMU03593
ZMU03595

Basic components
15
EMU26460
Flushing device
This device is used to clean the cooling wa-
ter passages of the motor using a garden
hose and tap water.
NOTE:
For details on usage, see page 41.
EMU26300
Warning indicator
If the engine develops a condition which is
cause for warning, the indicator lights up. For
details on how to read the warning indicator,
see page 18.
EMU26470
Tachometer
This gauge shows the engine speed and has
the following functions.
EMU26491
Digital tachometer
The tachometer shows the engine speed
and has the following functions.
NOTE:
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
1. Top cowling lock lever(s)
1. Flushing device
1
ZMU04041
1
ZMU04042
1. Tachometer
2. Warning indicator(s)
ZMU04578
1
2
