Yamaha SMM5000 User manual

SMM5000
1
SERVICE MANUAL
PA 011697
Copyright (c) Yamaha Corporation. All rights reserved. ’03.09
HAMAMATSU, JAPAN
STEREO/MONO MASTER MODULE
CONTENTS
CIRCUIT BOARD LAYOUT ................. 3
PANEL LAYOUT .................................... 4
DISASSEMBLY PROCEDURE .............................. 4
LSI PIN DESCRIPTION ................................. 4
IC BLOCK DIAGRAM .................................... 4
CIRCUIT BOARDS ......................................... 5
PARTS LIST
CIRCUIT DIAGRAM
SMM5000
200307-270000
（目次） （ユニットレイアウト）
（パネルレイアウト）
（分解手順）
（LSI端子機能表）
（ICブロック図）
（シート基板図）
（回路図）

SMM5000
2
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per-
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi-
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor’s Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to
this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
印の商品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。

SMM5000
3

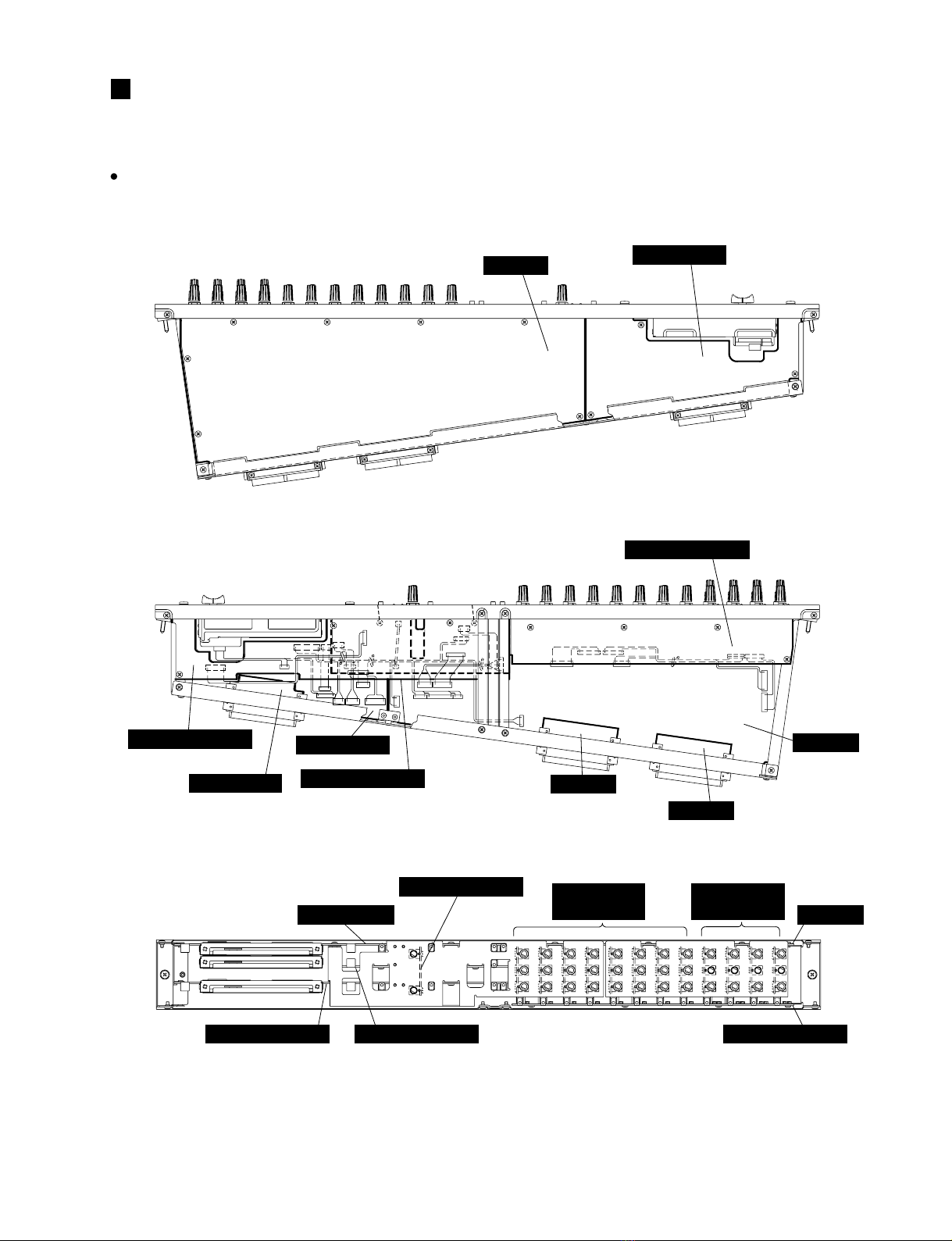

CIRCUIT BOARD LAYOUT
（ユニットレイアウト）
STEREO/MONO MASTER MODULE
（ST/MONOマスターモジュール）
STMAS1 1/3 STMAS2 1/8
STMAS2 2/8
STMAS2 1/8
STMAS1 3/3
STMAS1 2/3
STMAS1 1/3
STMASSUB 3/16
STMASSUB 2/16
STMASSUB 1/16
<Left side view>
<Right side view>
STMASSUB 1/16 STMASSUB 2/16
STMASSUB 4/16
STMASSUB 3/16
STMAS2 1/8 STMAS1 1/3
<Top view> STMASSUB
9/16~16/16 STMASSUB 5/16~8/16

SMM5000
4
PANEL LAYOUT
40.STEREO/MONO Master Module ....................... 66
DISASSEMBLY PROCEDURE OF MODULE ............................ 73
STEREO/MONO MASTER Module Section .88
DISASSEMBLY PROCEDURE
（分解手順）
（パネルレイアウト）
LSI PIN DESCRIPTION
（LSI端子機能表）
IC BLOCK DIAGRAM（IC ブロック図）
（PM5000 サービスマニュアルの 7 ページを参照してください。）
Please refer to 7 page of PM5000 service manual.
（PM5000 サービスマニュアルの 96 ページを参照してください。）
Please refer to 96 page of PM5000 service manual.
（PM5000 サービスマニュアルの 102 ページを参照してください。）
Please refer to 102 page of PM5000 service manual.
（分解手順については下記の項目を参照してください。）
Please refer to the following item about a disassembly procedure.
（ST/MONOマスターモジュール）
（モジュール部の分解）
（ST/MONOマスターモジュール部）

SMM5000
5
STMAS1 1/3Circuit Board (X3046B0)..................................................................232/234
STMAS1 2/3Circuit Board (X3046B0)..................................................................232/234
STMAS1 3/3Circuit Board (X3046B0)..................................................................232/234
STMAS1 1/3Circuit Board (X3046C0) .................................................................236/238
STMAS1 2/3Circuit Board (X3046C0) .................................................................236/238
STMAS1 3/3Circuit Board (X3046C0) .................................................................236/238
STMAS2 1/8 Circuit Board (X2925B0).................................................................160/161
STMAS2 2/8 Circuit Board (X2925B0).................................................................160/161
STMAS2 3/8 Circuit Board (X2925B0)........................................................................162
STMAS2 4/8 Circuit Board (X2925B0)........................................................................162
STMAS2 5/8 Circuit Board (X2925B0)........................................................................162
STMAS2 6/8 Circuit Board (X2925B0)........................................................................163
STMAS2 7/8 Circuit Board (X2925B0)........................................................................163
STMAS2 8/8 Circuit Board (X2925B0)........................................................................163
STMASSUB 1/16 Circuit Board (X3047B0) .........................................................240/241
STMASSUB 2/16 Circuit Board (X3047B0) ................................................................242
STMASSUB 3/16 Circuit Board (X3047B0) .........................................................243/244
STMASSUB 4/16 Circuit Board (X3047B0) .........................................................243/244
STMASSUB 5/16 Circuit Board (X3047B0) ................................................................245
STMASSUB 6/16 Circuit Board (X3047B0) ................................................................245
STMASSUB 7/16 Circuit Board (X3047B0) ................................................................245
STMASSUB 8/16 Circuit Board (X3047B0) ................................................................246
STMASSUB 9/16 Circuit Board (X3047B0) ................................................................246
STMASSUB 10/16 Circuit Board (X3047B0) ..............................................................246
STMASSUB 11/16 Circuit Board (X3047B0) ..............................................................247
STMASSUB 12/16 Circuit Board (X3047B0) ..............................................................247
STMASSUB 13/16 Circuit Board (X3047B0) ..............................................................247
STMASSUB 14/16 Circuit Board (X3047B0) ..............................................................248
STMASSUB 15/16 Circuit Board (X3047B0) ..............................................................248
STMASSUB 16/16 Circuit Board (X3047B0) ..............................................................248
CIRCUIT BOARDS（シート基板図）
（シート基板図については下記の項目を参照してください。）
Please refer to the following item about a circuit boards.

PARTS LIST
CONTENTS
OVERALL ASSEMBLY .................................................. 2
ELECTRICAL PARTS ............................................................ 5
WARNING
Components having special characteristics are marked and must be replaced with parts having
specification equal to those originally installed.
Notes : DESTINATION ABBREVIATIONS
The numbers “QTY” show quantities for each unit.
The parts with “--” in “PART NO.” are not available as spare parts.
This mark “ } ” in the REMARKS column means these parts are interchangeable.
The second letter of the shaded ( ) part number is O, not zero.
The second letter of the shaded ( ) part number is I, not one.
M: South African model
O: Chinese model
Q: South-east Asia model
T : Taiwan model
U : U.S.A. model
V : General export model (110V)
W: General export model (220V)
N,X: General export model
Y : Export model
A : Australian model
B : British model
C : Canadian model
D : German model
E : European model
F : French model
H : North European model
I : Indonesian model
J : Japanese model
K : Korean model
STEREO/MONO MASTER MODULE
印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご
使用ください。
部品価格ランクは、変更になることがあります。
QTY欄に記されている数字は、各ユニット当たりの使用個数です。
PARTNO.が--の部品は、サービス用部品として準備されておりません。
REMARKS欄の「｝」マークの部品は、併用部品です。
網掛けの付いたPARTNO.の2番目の文字は「ゼロ」ではなく、「オー」です。
網掛けの付いたPARTNO.の2番目の文字は「イチ」ではなく、「アイ」です。
（同梱品セット）
（電気部品）
（目次）
SMM5000

SMM5000
2

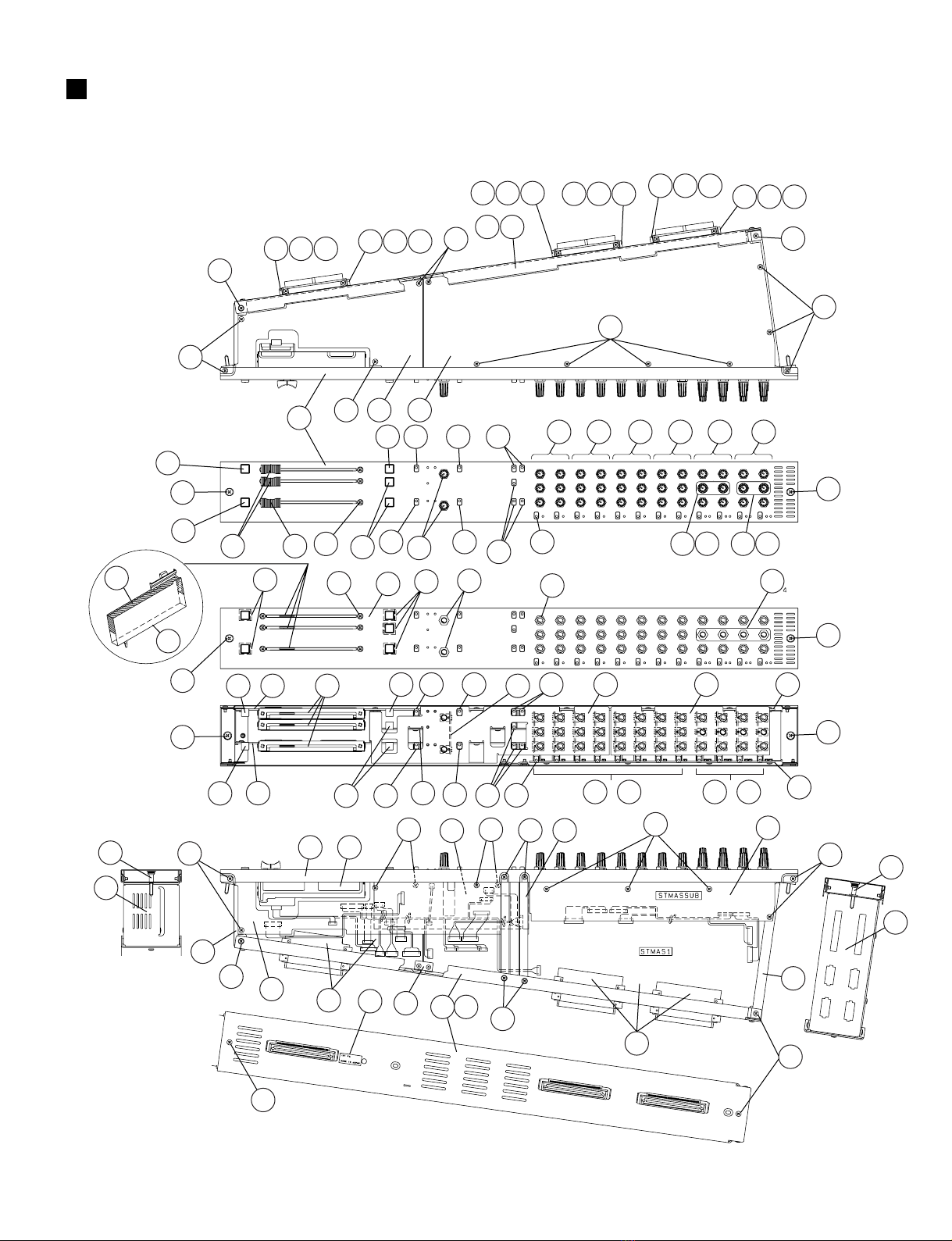

OVERALL ASSEMBLY
<Left side view>
<Top view>
<Right side view>
400
430
440
290
340
35
540
20
230 200a
140
330
330
140
330
330 340
190 190
440
560
200a
250 430
70 440
310 300 190
100c
290 280
270
430
320
130 110
100i 100p ~
110 12
6
110 120
220 210 90 160 150 70
280
280
280
10
230
20 180
550 530 470 480 450 460
520 510 500 500
180
490490
240 200a 70
190
410 420 370 380 390
400 410 420 370 380 390 400 410 420 370 380 390
350 360
260
30
350 360
320
270
10
100b
30
10
100a
100a 100b
30
100e 100h ~
100c
80
100d
60 32
2
66 664 4
222
12
170
130 110 120 110
6
60 110
8090210220
（同梱品セット）

SMM5000
3
: New Parts
REF NO. PART NO. DESCRIPTION REMARKS QTY RANK
RANK: Japan only
OVERALL ASSEMBLY SMM5000
Overall Assembly (WA37550)
Overall Assembly (WA37560)
STEREO/MONO Module (V996210)
10 MD Panel STM
20 Escutcheon BLUE 5
30 Slide Variable Resistor D 10.0K RSA0K11K9 ST,MONO 3 10
35 Fader Felt 150 303
60 Flat Head Tapping Screw-S 3.0X6 MFZN2BL 601
70 Circuit Board PM5K STMAS1
80 Push Button with Lens 5x8 M-GRAY TO MATRIX,TB/OSC L(ST) 2 03
90 Push Button with Lens 5x8 S-GRAY INSERT(ST) 03
100a Circuit Board PM5K STMASSUB 1/16 (V994490)
100b Circuit Board PM5K STMASSUB 2/16 (V994490)
100c Circuit Board PM5K STMASSUB 3/16 (V994490)
100d Circuit Board PM5K STMASSUB 4/16 (V994490)
100e Circuit Board PM5K STMASSUB 5/16 (V994490)
100f Circuit Board PM5K STMASSUB 6/16 (V994490)
100g Circuit Board PM5K STMASSUB 7/16 (V994490)
100h Circuit Board PM5K STMASSUB 8/16 (V994490)
100i Circuit Board PM5K STMASSUB 9/16 (V994490)
100j Circuit Board PM5K STMASSUB 10/16 (V994490)
100k Circuit Board PM5K STMASSUB 11/16 (V994490)
100l Circuit Board PM5K STMASSUB 12/16 (V994490)
100m Circuit Board PM5K STMASSUB 13/16 (V994490)
100n Circuit Board PM5K STMASSUB 14/16 (V994490)
100o Circuit Board PM5K STMASSUB 15/16 (V994490)
100p Circuit Board PM5K STMASSUB 16/16 (V994490)
110 Push Button with Lens 5x8 M-GRAY TB/OSC(ST MATRIX 1-4), 16 03
TB/OSC(MATRIX 1-8),
TB/OSC R(ST),TO MATRIX,
TB/OSC,RECALL SAFE(MONO)
120 Push Button with Lens 5x8 S-GRAY INSERT(MONO) 03
130 Push Button L ASS’Y ON R(ST),ON(MONO) 2
140 Push Button L ASS’Y CUE(MONO) 05
150 MD VR Spacer STM1 (V990660)
160 MD VR Spacer STM2 (V990670)
170 Hexagonal Nut 9.0 11X2 MFZN2BL 32 01
180 Hexagonal Nut 7.0 11X2 MFZN2BL 601
190 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 11 01
200a Circuit Board PM5K STMAS2 1_2/8 (V994450)
210 Push Button with Lens 5x8 M-GRAY RECALL SAFE(ST) 03
220 Push Button L ASS’Y ON L(ST)
230 Push Button L ASS’Y CUE(ST) 05
240 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 01
250 PCB Holder, MD (V987320)
260 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 201
270 Rear Stay, MD STM (V987300)
280 MD Screw S
290 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 501
300 Center Stay, MD MAS (V990570)
310 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 201
320 Front Stay, MD STM (V987270)
330 MD Screw S
340 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 401
350 Bottom Stay, MD STM (V987350)
360 Insulation Sheet, MD MAS (V991830)
370 Connector Holder L, MD LEFT 3
380 Bind Head Screw 2.6X12 MFZN2BL 301
390 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 301
400 Connector Holder R, MD RIGHT 3
410 Bind Head Screw 2.6X12 MFZN2BL 301
420 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 301
430 Flat Head Tapping Screw-S 3.0X6 MFZN2BL 401
440 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 401
450 Knob Lower S-GRAY/D-RED ST MATRIX 1,2(MONO) 2
460 Knob Upper S-GRAY/D-RED ST MATRIX 1,2(MONO) 2
470 Knob Lower S-GRAY/D-BLUE ST MATRIX 3,4(MONO) 2
480 Knob Upper S-GRAY/D-BLUE ST MATRIX 3,4(MONO) 2
490 Knob Small S-GRAY/D-RED ST MATRIX 1,2(ST,SUB IN), 10
--
--
--
V9872400
WA012100
V8367800
VT177400
VD780000
V9944800
VS407900
VS408800
AAX49210
AAX49220
AAX49230
AAX49240
AAX49250
AAX49260
AAX49270
AAX49280
AAX49290
AAX49300
AAX49310
AAX49320
AAX49330
AAX49340
AAX49350
AAX49360
VS407900
VS408800
WA015000
VN680200
--
--
VJ388000
VR991600
EP630210
AAX49140
VS407900
WA015000
VN680200
EP630210
--
EP630210
--
WA595800
EP630210
--
EP630210
--
WA595800
EP630210
--
--
V9905300
WA009300
EP630210
V9905400
WA009300
EP630210
VD780000
EP630210
V9996900
WA000100
V9997000
WA000200
WA000500
部品名
同梱品セット
同梱品セット
同梱品セット
ＳＴ／ＭＯＮＯモジュール
ＭＤパネルＳＴＭ
エスカッション
スライドＶＲ１００
フェーダーフェルト
＋皿Ｓタイト
ＳＴＭＡＳ１シート
プッシュボタン５ｘ８
プッシュボタン５ｘ８
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
プッシュボタン５ｘ８
プッシュボタン５ｘ８
プッシュボタン（Ｌ）
プッシュボタン（Ｌ）
ＭＤ ＶＲスペーＳＴＭ１
ＭＤ ＶＲスペーＳＴＭ２
特殊六角ナット
管用ナット ７Ｘ１１Ｘ２
＋バインドＳタイト
ＳＴＭＡＳ２１＿２シート
プッシュボタン５ｘ８
プッシュボタン（Ｌ）
プッシュボタン（Ｌ）
＋バインドＳタイト
ＭＤ ＰＣＢホルダー
＋バインドＳタイト
ＭＤリアステイＳＴＭ
ＭＤ特殊ネジ
＋バインドＳタイト
ＭＤセンターステイＭＡＳ
＋バインドＳタイト
ＭＤフロントステイＳＴＭ
ＭＤ特殊ネジ
＋バインドＳタイト
ＭＤボトムステイＳＴＭ
ＭＤ 絶縁シートＭＡＳ
ＭＤコネクタホルダーＬ
＋バインド小ネジ
＋バインドＳタイト
ＭＤコネクタホルダーＲ
＋バインド小ネジ
＋バインドＳタイト
＋皿Ｓタイト
＋バインドＳタイト
ノブ（シタ）
ノブ（ウエ）
ノブ（シタ）
ノブ（ウエ）
ノブ（ショウ）

SMM5000
4
: New Parts
REF NO. PART NO. DESCRIPTION REMARKS QTY RANK
RANK: Japan only
MATRIX 1,2(ST,MONO,SUB IN)
500 Knob Small S-GRAY/D-BLUE ST MATRIX 3,4(ST,SUB IN), 10
MATRIX 3,4(ST,MONO,SUB IN)
510 Knob Small S-GRAY/L-BLUE MATRIX 5,6(ST,MONO,SUB IN) 6
520 Knob Small S-GRAY/VIOLET MATRIX 7,8(ST,MONO,SUB IN) 6
530 Knob Small BLACK/S-GRAY SUM GAIN(ST,MONO) 2
540 Fader Knob BLACK/RED ST 2 04
550 Fader Knob BLACK/YELLOW MONO
560 LOT Label (CA80191)
WA000600
WA015800
WA000700
WA015900
VR282700
WB060500
--
部品名
ノブ（ショウ）
ノブ（ショウ）
ノブ（ショウ）
ノブ（ショウ）
ノブ（フェーダー）
ノブ（フェーダー）
ＬＯＴラベル

SMM5000
5
: New Parts
REF NO. PART NO. DESCRIPTION REMARKS QTY RANK
RANK: Japan only
ELECTRICAL PARTS
ELECTRICAL PARTS SMM5000
Circuit Board PM5K STMAS1 (X3046C0)
Circuit Board PM5K STMAS2 1_2/8 MAS2 (V994450)(X2925B0)
Circuit Board PM5K STMASSUB 1/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 2/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 3/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 4/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 5/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 6/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 7/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 8/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 9/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 10/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 11/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 12/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 13/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 14/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 15/16 (V994490)(X3047B0)
Circuit Board PM5K STMASSUB 16/16 (V994490)(X3047B0)
Circuit Board PM5K STMAS1 (X3046C0)
C101 Electrolytic Cap. 220.00 25.0V 01
C102 Electrolytic Cap. 220.00 25.0V 01
C103 Ceramic Capacitor-B (chip) 0.0220 25V K 01
C104 Ceramic Capacitor-B (chip) 0.0220 25V K 01
C105 Ceramic Capacitor-SL(chip) 470P 50V J 01
C106 Ceramic Capacitor-SL(chip) 470P 50V J 01
C109 Ceramic Capacitor-SL(chip) 68P 50V J 01
C110 Ceramic Capacitor-SL(chip) 68P 50V J 01
C111 Electrolytic Cap. 100.00 25.0V 01
C112 Electrolytic Cap. 100.00 25.0V 01
C113 Ceramic Capacitor-SL(chip) 470P 50V J 01
C114 Ceramic Capacitor-SL(chip) 470P 50V J 01
C115 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C116 Ceramic Capacitor-SL(chip) 68P 50V J 01
C117 Ceramic Capacitor-SL(chip) 68P 50V J 01
C118 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C119 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C120 Electrolytic Cap. 100.00 25.0V 01
C121 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C122 Electrolytic Cap. 100.00 25.0V 01
C123 Electrolytic Cap. 47.00 25.0V 01
C124 Electrolytic Cap. 47.00 25.0V 01
C125 Electrolytic Cap. 10.00 25.0V 01
C126 Electrolytic Cap. 10.00 25.0V 01
C127 Mylar Capacitor 0.1000 50V J 01
C128 Mylar Capacitor 0.1000 50V J 01
C129 Ceramic Capacitor-F (chip) 0.1000 25V Z 01
-132 Ceramic Capacitor-F (chip) 0.1000 25V Z 01
C133 Ceramic Capacitor-B (chip) 0.0100 50V K 01
-136 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C137 Ceramic Capacitor-SL(chip) 470P 50V J 01
-140 Ceramic Capacitor-SL(chip) 470P 50V J 01
C141 Ceramic Capacitor-SL(chip) 68P 50V J 01
-144 Ceramic Capacitor-SL(chip) 68P 50V J 01
C145 Electrolytic Cap. 47.00 25.0V 01
-148 Electrolytic Cap. 47.00 25.0V 01
C149 Ceramic Capacitor-SL(chip) 100P 50V J 01
C150 Ceramic Capacitor-SL(chip) 100P 50V J 01
C301 Electrolytic Cap. 220.00 25.0V 01
C302 Ceramic Capacitor-B (chip) 0.0220 25V K 01
C303 Ceramic Capacitor-SL(chip) 470P 50V J 01
C305 Ceramic Capacitor-SL(chip) 68P 50V J 01
C306 Electrolytic Cap. 100.00 25.0V 01
C307 Ceramic Capacitor-SL(chip) 470P 50V J 01
C308 Ceramic Capacitor-SL(chip) 68P 50V J 01
C309 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C310 Electrolytic Cap. 47.00 25.0V 01
C311 Ceramic Capacitor-B (chip) 0.0100 50V K 01
C312 Ceramic Capacitor-F (chip) 0.1000 25V Z 01
V9944800
AAX49140
AAX49210
AAX49220
AAX49230
AAX49240
AAX49250
AAX49260
AAX49270
AAX49280
AAX49290
AAX49300
AAX49310
AAX49320
AAX49330
AAX49340
AAX49350
AAX49360
V9944800
UR848220
UR848220
US044220
US044220
US062470
US062470
US061680
US061680
UR848100
UR848100
US062470
US062470
US064100
US061680
US061680
US064100
US064100
UR848100
US064100
UR848100
UR847470
UR847470
UR847100
UR847100
UA355100
UA355100
US145100
US145100
US064100
US064100
US062470
US062470
US061680
US061680
UR847470
UR847470
US062100
US062100
UR848220
US044220
US062470
US061680
UR848100
US062470
US061680
US064100
UR847470
US064100
US145100
（電気部品）
部品名
電気部品
ＳＴＭＡＳ１シート
ＳＴＭＡＳ２１＿２シート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳＳＵＢシート
ＳＴＭＡＳ１シート
ケミコン
ケミコン
チップセラ（Ｂ）
チップセラ（Ｂ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
ケミコン
ケミコン
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（Ｂ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（Ｂ）
チップセラ（Ｂ）
ケミコン
チップセラ（Ｂ）
ケミコン
ケミコン
ケミコン
ケミコン
ケミコン
マイラーコン
マイラーコン
チップセラ（Ｆ）
チップセラ（Ｆ）
チップセラ（Ｂ）
チップセラ（Ｂ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
ケミコン
ケミコン
チップセラ（ＳＬ）
チップセラ（ＳＬ）
ケミコン
チップセラ（Ｂ）
チップセラ（ＳＬ）
チップセラ（ＳＬ）
ケミコン
チップセラ（ＳＬ）
チップセラ（ＳＬ）
チップセラ（Ｂ）
ケミコン
チップセラ（Ｂ）
チップセラ（Ｆ）
