YAMIT F-700TS HYDROCYCLON User manual

F-700TS HYDROCYCLON
Installation & Operation Manual
v# 10.3.2020
Yamit Filtration & Water Treatment Ltd.. PO Box 232, Moshav Tnuvot, 428300 Israel.
Tel: [phone] Fax: [phone] e-mail: [email protected] www.yamit-f.com

Table of Contents
Pág. No.
1.
Description
3
2.
Application
3
3.
Features
3
4.
Technical Data
4
5.
Installation
4
6.
Sampling
5
7.
Calculating the quantity of the suspended solids
6
8.
IPB
7
9.
International Warranty
8
ALL RIGHTS RESERVED, THIS MANUAL AND THE INFORMATION CONTAINED ARE NOT
ALLOWED TO BE USED WITHOUT WRITTEN PERMISSION FROM YAMIT FILTRATION
F700

1. Description
The suspended solids sampler allows testing the quantities of suspended
solids in water, as a step in a procedure of choosing appropriate filter for
the application.
Suspended solids are an important indicator of water quality. Knowing
the amount of suspended solids in untreated water allows choosing the
right filtration grade and screen area of the filter which will effectively
treat the water, and will not require prolonged maintenance. Taking a
well mixed sample is important for getting accurate results.
The sampler is designed for use at the filtration site, not in laboratory. It
is connected to the supply line of unfiltered water, and small part of the
supply stream passes through it during the sampling time. Suspended
solids are separated from the supply water and accumulated in a sample
tube. The parameters of the filter are calculated using the amount of the
suspended solids accumulated in the sample tube during the sampling
time.
2. Application
The suspended solids sampler is designed for use in:
•Filtration systems.
•Agricultural systems.
•Supply pipes.
•Water reservoirs.
3. Features
•Not affected by color of fluid or particulates.
•Measures suspended solids to thick for optical methods.
•Easy set-up and calibration.
•Non-clogging, smooth-bore, non-intrusive sensor, low maintenance
due to absence of moving parts.
3
F700

4
4. Technical Specifications
•Operating pressure: 2.5–5 bar [36.2-72.5 PSI].
•Flow rate –1 m3/hr [4.4 U.S.GPM] (at operating pressure range).
•Sampling time –6 min. periods.
•Inlet /outlet connector –15 cm. [½"].
5. Installation

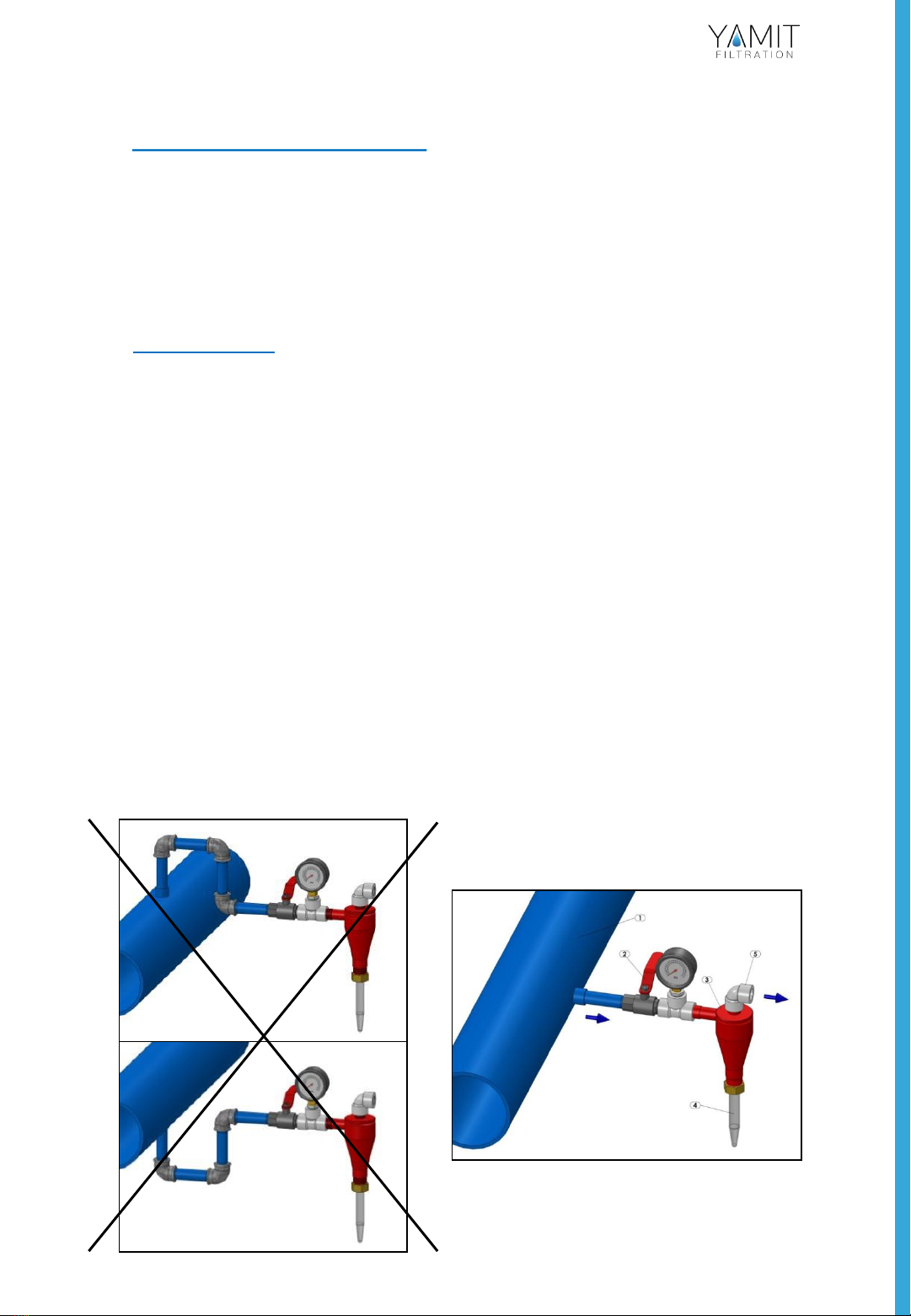

The suspended solids sampler requires a well mixed sample of untreated
water, and unrestricted flow through the sampler. The sampler should be
installed with the body (3) oriented in vertical direction (the sample tube
(4) is oriented downwards), while the inlet (2) is horizontal and located at
the level of the supply line (1).
A 15 cm. [½"] hose, 120 cm. [47"] long should be connected to the outlet
(5) of the sampler.
The opposite end of the hose should be open to the atmosphere, in a place
that splashing water would not cause any damage or danger. In this setup
the water that will flow through the sampler is restricted to approximately
1 m3/hr, and a sampler collects well mixed sample of the untreated water.
It is recommended to install a valve at the outlet of the sampler.
CORRECT
F700

5
6. Sampling
1. Verify correct installation of the sampler, according to instructions in previous
chapter.
2. Verify that the sample tube is clean.
3. Verify that the supply line operates at desired conditions, i.e. there is an average
amount of suspended solids for the application and the flow through the supply line
is developed.
4. Open the inlet valve of the sampler. Verify that the sampler operates in the
recommended pressure range. Keep the inlet valve open for a sampling period of
time. Close the inlet valve at the end of the sampling.
5. When a sufficient amount of suspended solids has accumulated in test tube register
its quantity (in ml.) and the time required for the sample collection (in min).
6. Disconnect the sample tube and identify the size suspended solid particles.
7. Clean the sample tube and connect it to the sampler.
The required amount of test periods is determined a time required for a collection of
at least 1 ml. of suspended solids in the sample tube. The process of determining the
right amount of test periods may require multiple initial sampling attempts, before
taking the sample used for the calculations.
F700

6
7. Calculating the quantity of suspended solids
The quantity of suspended solids is calculated using the following formula:
Notes:
1. Volumes of water passing through the sampler for given time periods at a flow
rate of 1 m3/h:
2. The desired filtration grade of filter in the current application can be defined (if
needed) by a measurement of the suspended solids size from the taken sample.
3. If a test of filtration system is performed, the size of the suspended solids should
be compared to the filtration degree, in order to verify that no particle greater
than the filtration grade has passed through the filter.
Calculation examples
1. For 2 ml. of suspended solids collected during 6 min. the suspended solids
quantity of the supply lines is:
2. For 6 ml. of suspended solids collected during 3 min. the suspended solids
quantity of the supply lines is:
Suspended solids concentration (ppm) =
Amount of accumulated suspended solids (ml)
Volume of water passed through the sampler (m3)
Sampling time
(min)
Water passed through the
sampler in sampling time (m3)
Recommended conditions
3 0.05 Very contaminated supply water
6 0.1 Normal supply
9 0.15 Normal supply
12 0.2 Clean water
TSS =
2 (c.c.)
= 20 (ppm)
0.1 (m3)
TSS =
6 (c.c.)
120 (ppm)
0.05 (m3)
F700

8. IPB
7
F700

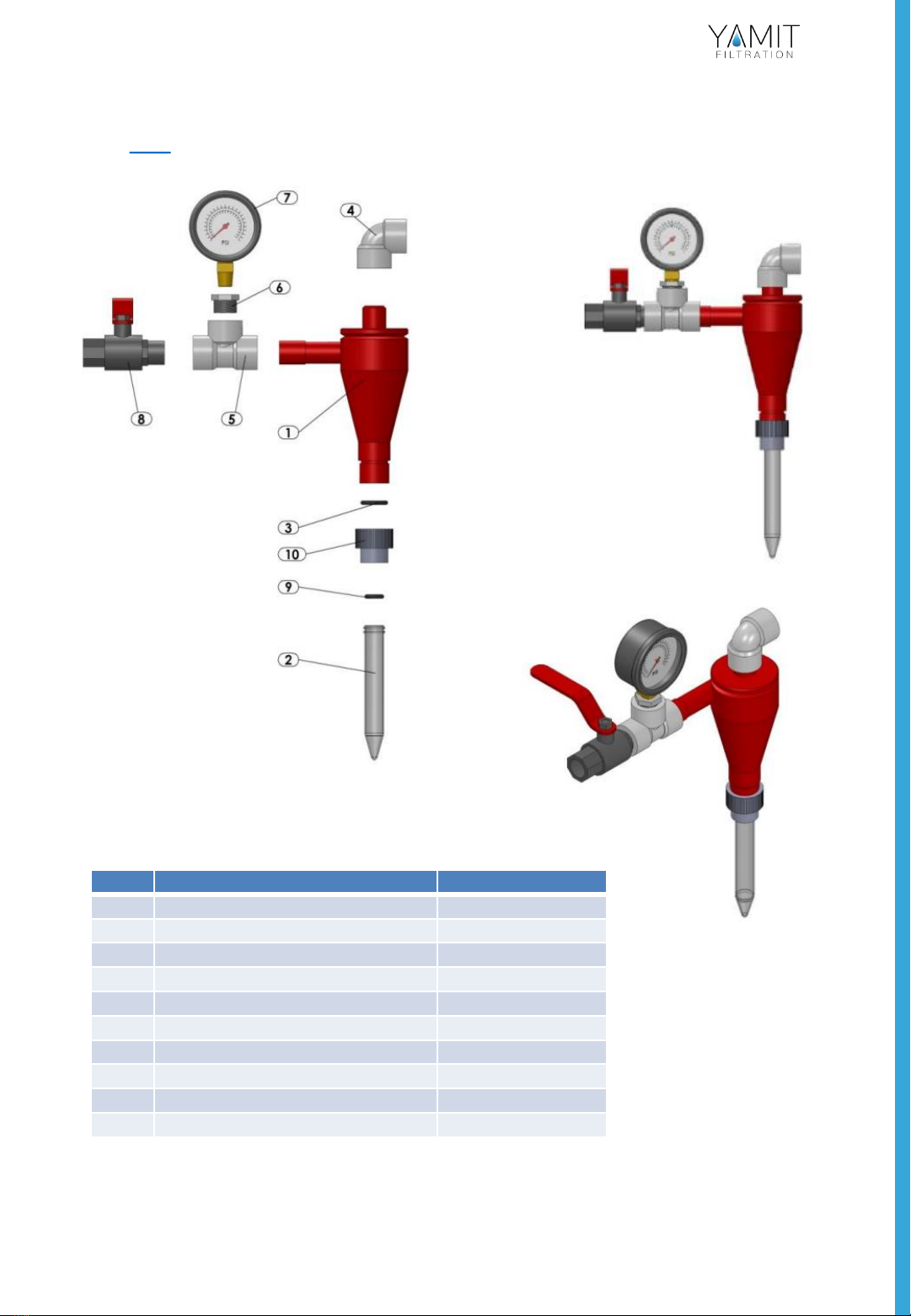

Part Description Cat. No.
1 Body NA
2 Test tube 4820000010
3 O-Ring 4081020110
4 Elbow ½” BSP 4170056501
5 Connector “T” ½” BSP 4190056500
6 Bushing ½” *¼” BSP 4640112141
7 Pressure gauge 4400102502
8 Ball valve 4504005100-01
9 O-Ring 4081012100-112
10 Bushing ¾” BSP for Test tube 6126300701

8
9. International Warranty
Yamit Filtration & Water Treatment Ltd. (hereinafter -" YAMIT") guarantees to
the customers who purchased YAMIT ‘s products directly from E.L.I or through its
authorized distributors, that such products will be free from defect in material
and/or workmanship for the term set forth below, when such products are
properly installed, used and maintained in accordance with YAMIT instructions,
written or verbal.
Should such products prove defective within one year as of the day it left YAMIT
's premises, and subject to receipt by YAMIT or its authorized representative, of
written notice thereof from the purchaser within 30 days of discovery of such
defect or failure - YAMIT will repair or replace or refund the purchase price, at its
sole option, any item proven defective in workmanship or material.
YAMIT will not be responsible, nor does this warranty extend to any
consequential or incidental damages or expenses of any kind or nature,
regardless of the nature thereof, including without limitation, injury to persons or
property, loss of use of the products, loss of goodwill, loss of profits or any other
contingent liabilities of any kind or character alleged to be the cause of loss or
damage to the purchaser.
This warranty does not cover damage or failure caused by misuse, abuse or
negligence, nor shall it apply to such products upon which repairs or alterations
have been made by other than an authorized YAMIT representative.
This warranty does not extend to components, parts or raw materials used by
YAMIT but manufactured by others, which shall be only to the extent warranted
by the manufacturer's warranty.
No agents or representatives shall have the authority to alter the terms of this
warranty nor to add any provisions to it not contained herein or to extend this
warranty to anyone other than YAMIT customers.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THIS WARRANTY
WHICH IS GIVEN IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
