Yard force LT V12 User manual
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.

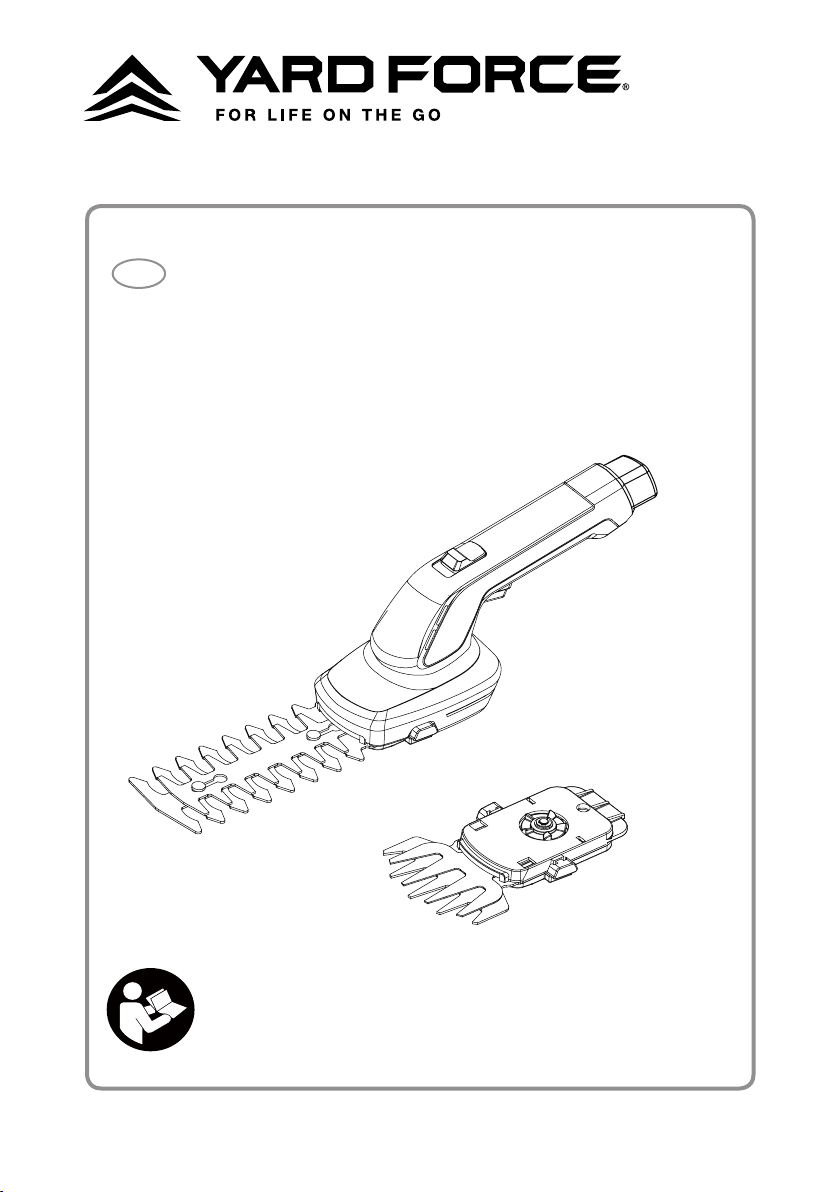

CORDLESS GRASS SHEAR
Original Instructions
GB
LT V12
2 3
LT V12 Original Instruction
CONTENT
Intended use 04
General safety warnings 04
Product safety warnings 10
Symbols 13
Technical data 16
Description of product 17
Installation 18
Operation 19
Maintenance and storage 21
Troubleshooting 22
Declaration of conformity 23
4 5
INTENDED USE
This cordless grass shear is designed for the cutting and trimming of grass, hedges, bushes
and ornamental shrubs in the domestic environment.
For safety reasons it is essential to read this entire instruction manual before initial operation
and to observe all the instructions inside.
This product is intended for private domestic use only, not for commercial trade use. It must
not be used for any purposes other than those described.
GENERAL SAFETY WARNINGS
WARNING: Read all safety directions and instructions.
Omissions in the compliance with safety directions and
instructions can cause electrical shock, re and/or severe
injuries.
Retain all safety directions and instructions for future use.
The term “Power Tools” used in the safety instructions
refers to mains-operated power tools (with power cord)
and to battery operated power tools (without power cord).
Work area safety
1. Keep work area clean and well lit. Cluttered or dark
areas increase the chances of accidents.
2. Do not operate power tools in explosive atmospheres,
in the presence of ammable Iiquids, gases or dust.
Power tools create sparks which may ignite the dust
or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause momentary loss
of control.
Electrical safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodied
plugs and matching outlets will reduce risk of electric
shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
GENERAL SAFETY WARNINGS
6 7
GENERAL SAFETY WARNINGS
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
masks, nonskid safety shoes, hard hats, and hearing
protection can reduce personal injury.
3. Prevent unintentional starting. Ensure the switch is in
the off position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personal injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. The use of dust
collection can reduce dust-related hazards.
Power tool use and care
1. Do not use excessive force while using the power
tool. Use the correct power tool for your application.
The correct power tool will do the job better and more
safely at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect its operation. If
damaged, have the power tool repaired before use.
Many accidents are caused due to poor maintenance.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
GENERAL SAFETY WARNINGS
8 9
less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
Battery tool use and care
1. Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
2. Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
3. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
4. Under intensive use, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs,
ush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery
may cause irritation or burns.
GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS
Service
1. Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
Grass shear safety warnings:
1. Keep all parts of the body away from the cutter blade.
Do not remove cut material or hold material to be cut
when blades are moving. Make sure the switch is off
when clearing jammed debris and material. A moment
of inattention while operating the Grass shear may
result in serious personal injury.
2. Carry the cordless grass shear by the handle with the
cutter blade stopped. When transporting or storing
the blade always t the cutting device cover. Proper
handling of the Grass shear will reduce possible
personal injury from the cutter blades.
3. Keep cable away from cutting area. During operation
the cable may be hidden in shrubs and can be
accidentally cut by the blade.
10 11
PRODUCT SAFETY WARNINGS
Special Safety Directions for cordless grass shear
1. Keep all body parts away from the blade. Do not
attempt to remove clippings while the blade is
operating or to hold on to material which is to be
cut. Only remove trapped clippings when the tool
is switched off. One moment of carelessness when
using the grass shear can lead to severe injury.
2. Carry the grass shear at the handle with an idle blade.
Always pull on the protective cover during transport
and storage of the Grass shear. Careful handling of
the tool reduces the risk of injury from the blade.
3. Hold the power tool only on the insulated handle
surfaces, as the cutting blade may come into contact
with concealed power cables. Contact between the
cutting blade and a live cable may render metallic
components live and result in an electric shock.
4. Before the work, search the lawn or hedge for
concealed objects, e.g. cable etc. To avoid damaging
the equipment.
5. Wear suitable clothing and work clothes when
working with the equipment. Do not hold the
equipment by the cutting blade or lift it on the cutting
blade. Contact with the cutting blade can cause
injuries.
Further safety directions
1. Only switch on the tool when hands, feet and all
other body parts are at a secure distance to the tool.
Standing too close can increase risk of injury from
cuts.
2. Take care not to injure your hands and feet with the
cutting elements.
3. Remove the power supply unit before working with
the equipment.
4. Do not use the hedge cutter in combination with the
telescopic shaft.
5. The tool is designed to shape hedges and grass. Do
not use the tool to cut branches, hard wood or other.
This helps to avoid damaging the equipment, and
also reduce injury to yourself from debris.
6. Do not attempt to dislodge a blocked/trapped blade
before switching the tool off. Always make sure the
tool is turned off, there is a high risk of injury when
the tool is switched on.
7. Always switch off the tool and remove the battery (if
applicable)
- If you leave the tool unsupervised
- Before removing jams
- Before control- maintenance- or cleaning tasks
- If you have come into contact with a foreign
object
- Whenever the machine starts to vibrate
uncontrollably.
PRODUCT SAFETY WARNINGS
12 13
8. Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge or people unfamiliar with these
instructions to use the machine. Local regulations
may restrict the age of the operator.
9. Never operate the machine with defective guards or
shields, or without safety devices, or if the cord is
damaged or worn.
10. Do not connect a damaged cord to the supply or
touch a damaged cord before it is disconnected from
the supply as damaged cords can lead to contact
with live parts.
Special safety directions for battery-operated
tools
1. Do not expose the battery to strong sunlight or a
hot environment over a long period of time. Heat
damages the battery and there is a risk of explosion.
2. Allow a hot battery to cool before charging.
3. Do not open up the battery. Risk of short circuiting,
and fumes may be emitted that irritate the respiratory
tract. In the case of inhaling, ensure you get fresh air
quickly and seek medical assistance in the event of
discomfort.
PRODUCT SAFETY WARNINGS SYMBOLS
Safety symbols
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them require your careful attention
and full understanding. The symbol warnings do not, by
themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident
prevention measures.
WARNING: Be sure to read and understand all safety
instructions in this operator’s manual, including all safety
alert symbols such as “DANGER,” “WARNING,” and
“CAUTION” before using this tool. Failure to follow all
instructions listed below may result in electric shock, re
and/or serious personal injury.
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION. May be used in conjunction
with other symbols or pictographs.
Symbol meaning
This page depicts and describes safety symbols that may
appear on this product. Read, understand and follow
all instructions on the machine before attempting to
assemble and operate.
14 15
Symbols on the battery pack
Do not dispose of a battery pack in water!
Do not set on re to dispose!
Do not expose the battery pack to sunlight or
increased temperatures!
WEEE symbol. Electrical products should not be
disposed of with household waste. Please recycle
where facilities exist. Check with your Local
Authority or local store for recycling advice.
Batteries contain Li-ion waste. Do not dispose
of batteries as unsorted municipal waste with
household waste. Check with your Local Authority
or local store for recycling advice.
SYMBOLS
Read the user manual before using the machine.
Warning! Danger!
Guaranteed sound power level value in 92 dB.
WEEE symbol. Electrical products should not be
disposed of with household waste. Please recycle
where facilities exist. Check with your Local
Authority or local store for recycling advice.
Batteries contain Li-ion waste. Do not dispose
of batteries as unsorted municipal waste with
household waste. Check with your Local Authority
or local store for recycling advice.
Do not expose the product to rain or wet
conditions.
Keep hands away from blades.
A product placed on the United Kingdom market
meets the UKCA Marking requirements
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
92
Li-Ion
SYMBOLS
Li-Ion
16 17
Type LT V12
Degree of Protection IP X1
Cutting length (shrub trimming blades) 120 mm
Cutting width (grass trimming blades) 80 mm
Net weight (without working blade) 1.06 kg
Measured sound power level(LwA)87.01 dB(A), Shrub trimming blade
86.63 dB(A), Grass trimming blade
Guaranteed sound power level (LwA) 92 dB
Vibration 2.559 m/s2Shrub trimming blade
1.909 m/s2Grass trimming blade
Battery pack Type AL V40
Battery capicity 4V 4A, 14.4Wh
Input max. 5V 1A
Out put (USB type A) 5V 1A
The declared vibration value has been measured in accordance with a standard test method
and may be used for comparing one tool with another. The declared vibration value may also
be used in a preliminary assessment of exposure.
TECHNICAL DATA DESCRIPTION OF PRODUCT
Parts description (Fig. A)
1. ON/OFF trigger
2. Working head release button
3. Grass trimming blade
4. Shrub trimming blade
5. Battery pack release lever
6. Safety button
Checking the box contents (Fig. B)
a. Main grass shear body
b. Grass trimming blade
c. Shrub trimming blade
d. Manual
e. Battery pack
f. Charging wire
5
6
3
42
1
a
ef
d
b
c
18 19

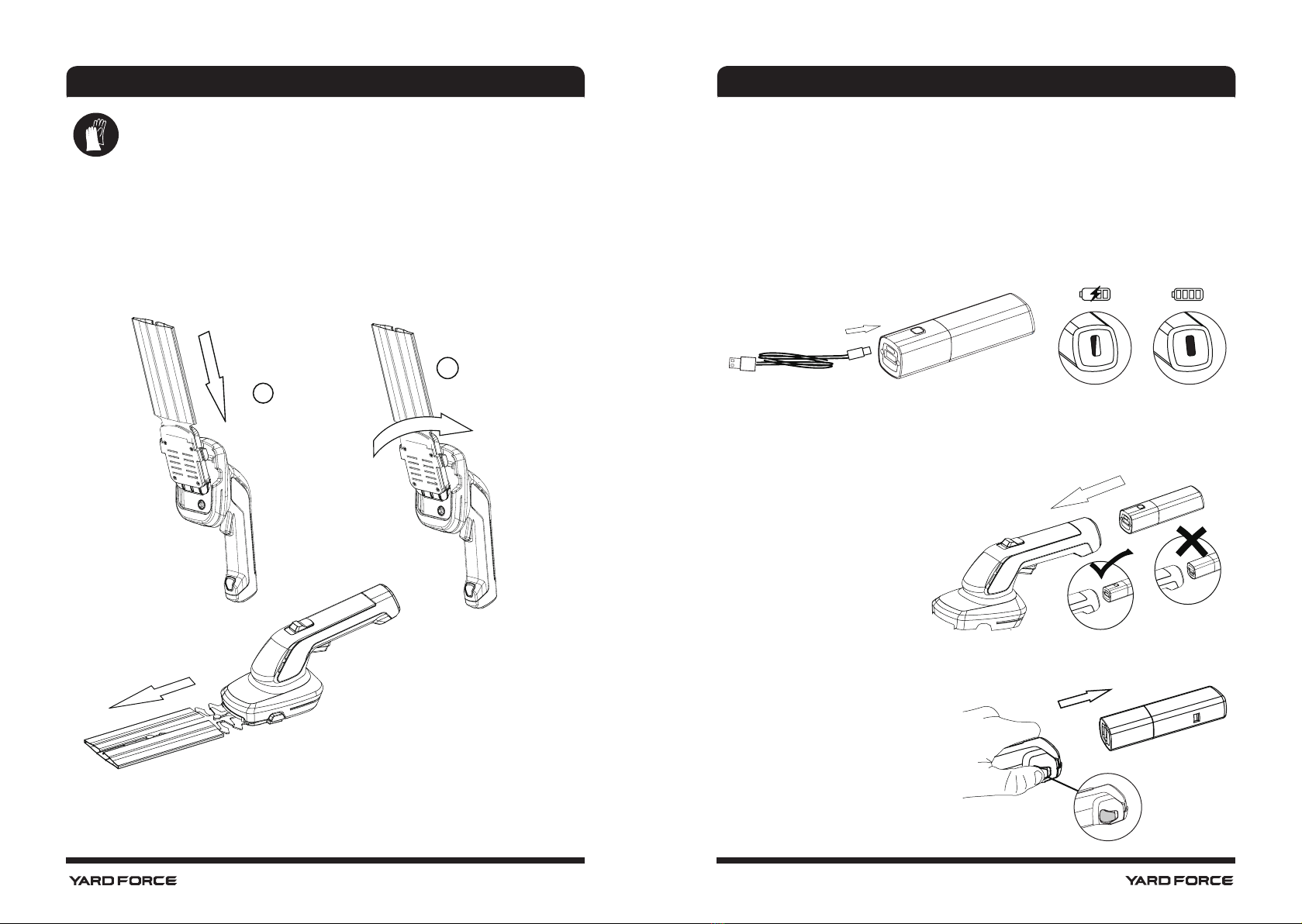

INSTALLATION
WARNING: Wear protective gloves before doing any operation.
NOTE: Make sure the battery pack is removed before any adjustments are
made
Install the working head
- Select required working head (shrub trimming blades or grass trimming blades)
1. Slide the working head into the machine and click into place.
2. Make sure the working head is fully secure.
3. Remove the blade cover.
Removal of the working head
1. Fit the blade cover
2. Press both of the working head release buttons and rotate/slide the working head from
the housing.
1
2
OPERATION
Charging the battery pack
WARNING! Do not use other charging wires which are not recommended by the
manufacturer.
NOTE: The battery is supplied partially charged. To ensure full capacity of the battery, fully
charge the battery before using it on the product.
1. Connect the battery with the charging wire (Type C adaptor).
2. Select an USB type A power source that match to 5V 1A or less.
3. The green indicator will ash during normal charging.
4. The Indicator will show green when battery pack has been fully charged.
Insert the battery
- Insert the battery into the device; make sure the battery pack is in the right orientation.
IMPORTANT: Make sure that the battery pack is inserted in the right orientation, torch light
button on up side.
- If you want to uninstall the battery pack, press the battery pack release lever and then
remove the battery pack .
5V 1A
20 21
To switch ON:
1. Push lock-off button forward and depress the switch trigger.
2. Release the lock-off button.
To switch OFF:
Release the on/off switch.
Cutting hedges
NOTICE! Risk of damage to the unit!
Be especially careful when working near fences! If material such as fence wire should get
caught up in the cutting unit then switch off the device immediately.
Risk of environmental damage! Before cutting a hedge, check no birds are nesting.
Trim smoothly with the broad side of the cutting equipment.
Do not push the device into the hedge.
1
2
OPERATION MAINTENANCE AND STORAGE
WARNING: Wear protective gloves before doing any operation.
Maintenance
1. Always switch the product off, disconnect the battery pack and let the product cool
down before performing inspection, maintenance and cleaning work.
2. Keep the product clean. Remove debris from it after each use and before storage, using
a soft damp cloth.
3. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
4. Inspect the product before each use for worn or damaged parts. Do not operate if you
nd broken or worn parts.
WARNING! Only perform repairs and maintenance work according to these instructions. All
further works must be performed by a qualied specialist.
Cleaning
Before cleaning, inspecting or repairing your unit, make sure that the motor has stopped and
is cool. Disconnect the battery pack to prevent accidental starting.
NOTE: To ensure the best performance of your product, it is important to keep it clean.
Always clean your cordless grass shear immediately after use.
Do not allow grass cuttings and other debris to become dry and hard on any of the product
surfaces. This will directly affect the cutting performance. Never clean the product with a
water jet or high pressure cleaner. The motor must remain dry. Do not use aggressive cleaning
agents such as cold cleaner or petroleum either.
1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
2. Oil the cutting tool. Spray oil on all sides of the blades.
Transportation
1. Switch the product off and disconnect the battery pack from the machine before
transporting it anywhere.
2. Attach transportation guards, if applicable.
3. Always transport the product by its handle. When lifting the product use the
transportation handle as an aid.
4. Protect the product from any heavy impact or strong vibrations which may occur during
transportation in vehicles.
5. Secure the product to prevent it from slipping or falling over.
Storage
1. Clean the product as described above and disconnect the battery pack.
2. Store the product and its accessories in a dry, frost-free area.
3. Always store the product in a place that is inaccessible to children. The ideal storage
temperature is between 10°C and 30°C.
4. We recommend using the original packaging for storage or covering the product with a
suitable cloth or enclosure to protect it against dust.
22 23
TROUBLESHOOTING
Fault Possible cause Troubleshooting
Machine fails to start
Battery pack discharged? Charge the battery
Battery pack defective? Contact service center
Is the device defective? Contact service center
Battery pack not fully inserted Remove and reinsert battery pack
High vibration Blades jammed
Remove blade and reassemble
Check blades are clear of debris
DECLARATION OF CONFORMITY
To the provisions of Council Directives
We
SUMEC UK Co.,Ltd.
Unit A&B, Escrick Business Park
Escrick, York YO 19 6FD
Declare that the product:
Machine Description: Cordless Grass shear
Machine Type: LT V12/ HT03B-ZA
Function: Trimming grass
Complies with the essential health and safety requirements of the following directives:
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012
Standards and technical specication referred to :
EN 60335-1
EN 50636-2-94
EN 62841-1
EN 62841-4-2
EN 55014-1:2017+A11:2020
EN 55014-2:2015
Authorized Signatory
Date: 18.01.2022
Signature: ________________________
Place: York
Name: Mariana Hall
General Manager
SUMEC UK
Unit A&B Escrick Business Park
Escrick, York
YO19 6FD
24
DECLARATION OF CONFORMITY
To the provisions of Council Directives
We
MEROTEC GmbH
Otto-Brenner-Str. 8, 47877 Willich
Germany
Declare that the product:
Machine Description: Cordless Grass shear
Machine Type: LT V12/ HT03B-ZA
Function: Trimming grass
Complies with the essential health and safety requirements of the
following directives:
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/EU
Noise Directive, amended by 2005/88/EC
EC Directive 2011/65/EU and its amendment Directive (EU) 2015/863 (RoHS)
Standards and technical specification referred to:
EN 60335-1
EN 50636-2-94
EN 62841-1
EN 62841-4-2
EN 55014-1:2017+A11:2020
EN 55014-2:2015
Authorized Signatory
Date: 18.01.2022
Signature:________________________
Place: Willich
Name: Ronald Menken
General Manager
MEROTEC GmbH
Otto-Brenner-Str. 8
D-47877 Willich,Germany
Table of contents
