Yard Works TC70020-1 User manual

Your cordless tiller has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the owner’s manual before
using this product.
Thank you for your purchase.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS,
SERVICE QUESTIONS? GO TO WWW.AMERICANLAWNMOWER.COM OR CALL
1-800-633-1501 BETWEEN 8:00 AM—5:00 PM EST FOR ASSISTANCE.
SAVE THIS MANUAL FOR FUTURE REFERENCE
CA Compliant
Charger Included
(Model No.
CHL82000-1)
OWNER’S MANUAL
7.5-Inch 20V Lithium-ion Tiller / Cultivator
With (1) 20V 2.0Ah Lithium-ion Battery
Copyright. All Rights Reserved.
Model TC70020-1
BATTERY MUST BE
CHARGED BEFORE FIRST
USE. TWO TO THREE INITIAL
CHARGING/ DISCHARGING
CYCLES MAY BE REQUIRED
TO ACHIEVE MAXIMUM RUN
TIME/CAPACITY.

GENERAL SAFETY
IMPORTANT SAFETY WARNINGS
TO REDUCE RISK OF INJURY:
Before any use, be sure everyone using this tool reads and
understands all safety instructions and other information contained
in this manual.
CAUTION: Wear appropriate personal hearing protection during
use. Under some conditions and duration of use, noise from this
product may contribute to hearing loss.
Save these instructions and review frequently prior to use and in
instructing others.
WARNING: When using electric gardening appliances, basic safety
precautions should always be followed to reduce risk of fire, electric
shock, and personal injury, including the following:
READ ALL INSTRUCTIONS
2
Model TC70020-1
CHECK FOR DAMAGED PARTS - Before further use of the
product, any part that is damaged should be carefully checked to
determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting and any other condition that may
affect its operation. Any part that is damaged should be properly
repaired or replaced. For assistance call our customer service help
line at 1-800-633-1501.
AVOID DANGEROUS ENVIRONMENTS - Don’t use this product in
rainy, stormy, damp or wet locations. Do not operate in gaseous or
explosive atmospheres. Motors in these products normally spark,
and the sparks might Ignite fumes.
KEEP CHILDREN AWAY - All visitors, children and pets should
stay at a safe distance from the work area.
DRESS PROPERLY- Don’t wear loose clothing or jewelry and wear
protective hair covering to contain long hair. They can be caught in
moving parts. Use of rubber gloves and substantial footwear is
recommended when working outdoors.
USE SAFETY GLASSES - Wear safety glasses with side shields
or goggles that are marked to comply with ANSI Z87.1 standard
when operating this product. Use face or dust mask if environment
is dusty.
REPLACEMENT PARTS - When servicing use only identical
replacement parts.
Don’t Force Appliance – It will do the job better and with less
likelihood of a risk of injury at the rate for which it was designed.
REMOVE THE BATTERY from the tiller/cultivator when not in use
or when servicing or cleaning. Do not leave unattended.
USE RIGHT APPLIANCE - Do not use this product for any job
except that for which it is intended.
DON’T OVERREACH - Guide the tiller/cultivator at a walking pace
only. Keep proper footing and balance at all times.
LIGHTING - Only operate your tiller/cultivator in daylight or good
artificial light.
STORE IDLE UNIT INDOORS - When not in use, the tiller/cultivator
should be stored indoors in a dry area out of children’s reach.
MAINTAIN UNIT WITH CARE - Keep clean for best performance
and to reduce the risk of injury. Inspect extension cord periodically
and replace if damaged. Keep handles dry, clean and free from oil.
Do not operate the tiller/cultivator on a slope that is too steep for
safe operation. When on slopes, slow down and make sure you
have good footing.
Before starting the tiller/cultivator make sure the times are not
touching any object and are free to move.
Grip the tiller/cultivator firmly with both hands. Never operate the
tiller/cultivator with one hand.
CAUTION: The tiller/cultivator may bounce upward and/or jump
forward if the tines strike extremely hard packed soil, frozen ground,
or buried obstacles such as large stones, roots or stumps.
STAY ALERT - Watch what you are doing. Use common sense.
Do not operate the tiller/cultivator when you are tired or under the
influence of drugs, alcohol or medication.
WARNING: Do not operate the tiller/cultivator near underground
electrical cables, telephone lines, pipes or hoses.
If the tiller/cultivator strikes a foreign body, turn it off immediately, wait
for the tines to stop and check for damage. If necessary, repair before
restarting.
If the tiller/cultivator starts to vibrate abnormally, turn it off immediately
and check for the cause. Vibration is generally a warning of trouble.
DANGER: RISK OF CUT - Wear gloves and use caution when cleaning
or performing maintenance on the tiller/cultivator.
Always turn off the tiller/cultivator, remove the battery and wait until the
tines come to a complete stop before carrying out any maintenance or
repairs.
CAUTION: Tines do not stop immediately after the tiller/cultivator is
turned off.
CAUTION: Risk of injury. Do not put hands, feet or any body part or
clothing near the rotating tines.
WARNING: California Proposition 65:
This product contains chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
WARNING: Some dust and debris created by the use of this tool could
contain chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
Some examples of these chemicals are:
- chemicals in fertilizers
- compounds in insecticides, herbicides, and pesticides
- arsenic and chromium from chemically treated lumber
Your risk from exposure to these chemicals varies, depending on how
often you do this type of work. To reduce your exposure, work in a
well-ventilated area and with approved safety equipment such as dust
masks that are specially designed to filter out microscopic particles.
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
WARNING: Do not operate the equipment while barefoot or when
wearing sandals or similar lightweight footwear. Wear protective
footwear that will protect your feet and improve your footing on slippery
surfaces.
DANGER: Don’t use tool if switch trigger does not turn on or off. Call
Customer Service at 1-800-633-1501 for assistance.
DANGER: Do not dispose of the batteries in a fire. The cell may
explode. Check with local codes for possible special disposal
instructions.
DANGER: Do not open or mutilate the batteries. Released
electrolyte is corrosive and may cause damage to the eyes or skin. It
may be toxic if swallowed.
CAUTION: Exercise care in handling batteries in order not to short the
battery with conducting materials such as rings, bracelets, and keys.
The battery or conductor may overheat and cause burns.
CAUTION: Use only the following type and size battery(ies):
BL82120-1.

PRODUCT SPECIFICATIONS
FEATURES
Model: TC70020-1
Input….………………………….……………………...20V, DC Only Working width………………….7.5 in
Battery………………………………….…....20V 2.0 Ah Lithium-ion Working depth max…………….6 in
Tine Speed ………………………..…...............................170 RPM
Weight ………………………………………………...10 lbs. (4.6 kg)
No. Description
1On/Off Switch
2Safety Button
3Auxiliary Handle
4Upper Handle
5Wing Nut
6Lower Handle
No. Description
7Side Cover
8Tilling Head
9Tine 1 (JY2201-1)
10 Tine 2 (JY2201-2)
11 Battery Pack
12 Charger
3
Model TC70020-1

ASSEMBLY
UNPACKING
This product must be assembled correctly before use.
Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
PACKING LIST (Fig. 2)
•Tilling head (1 piece)
•Upper and lower handle sections (1 piece)
•Auxiliary handle (1 piece)
•Wing nuts with bolts attached (2 pieces)
•ST3.9X16 screws (2 pieces)
•Side cover (1 piece)
•Battery pack (1 piece)
•Battery charger (1 piece)
•Owner’s manual (1 piece)
If any parts are damaged or missing, please call our
customer service help line at 1-800-633-1501 for
assistance.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product .
WARNING: Do not install battery until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING: If any parts are damaged or missing do not
operate this product until the parts are replaced. Failure
to heed this warning could result in serious personal
injury.
WARNING: Do not attempt to modify this product or
create accessories not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
PACKING LIST
UPPER AND LOWER HANDLE SECTIONS (Fig. 3A)
•Slide the lower handle section into the upper handle
section.
•Line up the holes on each tube, and make sure the
cable is clear of the mounting holes.
•Secure the two sections together with the M6x45
carriage bolt and wing nut.
4
Model TC70020-1
2

AUXILIARY HANDLE (Fig. 3C)
•Position the auxiliary handle so that the holes are in align-
ment with the holes in the handle support bracket.
•Insert the M6X50 hex head bolt into the hex shaped bolt
hole of the bracket.
•Secure by tightening the wing nut onto the bolt.
•Loosen the wing nut and adjust the angle and height of the
handle to a safe and comfortable position. Secure into
place by tightening the wing nut onto the bolt.
BATTERY INSTALLATION AND REMOVAL
Hold the tool and the battery firmly when installing or removing
battery.
Failure to hold the tool and the battery firmly may cause them to
slip from your hands and may result in damage to the tool and/
or battery and a personal injury.
To remove:
•Depress release button (A) on
the back of battery cartridge
(B) to release the battery.
•Pull the battery out of tool.
To install:
•Align the battery with the cavi-
ty in the handle.
•Insert the battery into the
handle until the battery re-
lease button locks into place.
You should hear a “click” once
the battery is installed.
•Note: The battery can only be installed one way.
OPERATING
To switch ON, hold the tiller/cultivator
firmly with two hands, make sure the
tines are not touching any surface.
Press the safety button (A) while
squeezing the On/Off trigger switch (B).
Once the tiller/cultivator is started, you
can release the safety button.
To switch OFF, simply release the trig-
ger.
ASSEMBLY
LOWER HANDLE WITH TILLING HEAD (Fig. 3B)
•Align the notch on the lower handle with the rib on the tilling
head.
•Push the lower handle into the tilling head.
•Align the side cover with the holes on the lower handle
shaft and push the cover into place.
•Secure with the two ST3.9x16 screws.
WARNING: When connecting the tilling head and lower handle
using the two self-tapping screws supplied, make sure the
screws are securely tightened. Screw heads should be re-
cessed below the surface. DO NOT START THE UNIT UNTIL
TILLING HEAD AND LOWER HANDLE ARE SECURELY
CONNECTED.
Once the tilling head and lower handle are securely connected,
do not remove the self-tapping screws or attempt to disassem-
ble for any purpose. The self-tapping screws will lose their ef-
fectiveness of securing the assembly if removed and re-
installed.
STARTING:
WARNING: The tines start rotating immediately after the
tiller/cultivator is switched on. Keep hands and feet away
from the tines.
Use the tiller/cultivator for breaking sod, preparing seed beds, and
for cultivating gardens and flower beds. The tiller/cultivator can
also dig small holes for planting saplings or potted plants.
For breaking sod or deep tilling, allow the tines to pull the tiller/
cultivator forward to the end of your arm’s reach, then firmly pull it
back toward yourself. You will achieve the best results by repeat-
edly allowing it to move forward and pulling it back.
By pulling the tiller/cultivator back towards yourself, the
tines will dig deeper and more aggressively.
CAUTION: To prevent tripping, take extra precautions when mov-
ing backwards and when pulling the tiller/cultivator back toward
yourself.
5
Model TC70020-1

If the tiller/cultivator digs deep enough to stay in one
spot, gently rock it side to side until it starts moving
forward again.
When working on inclines always stand diagonally to
the incline to retain a firm, safe footing. Do not work
on extremely steep slopes.

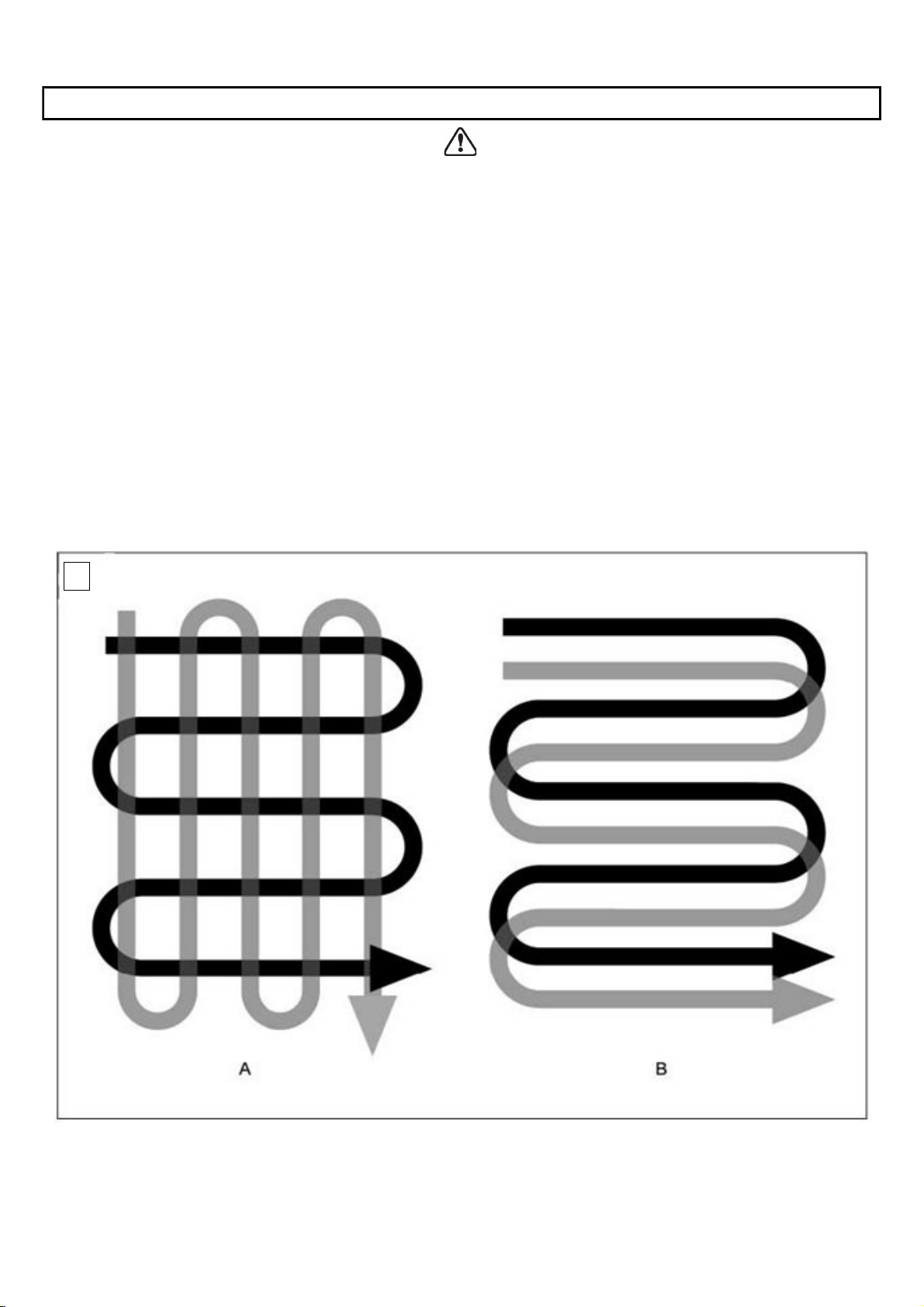

For preparing seed beds, we recommend using one of
these tilling patterns (Fig. 4)
Tilling Pattern A– Make two passes over area to be
tilled, the second at a right angle to the first.
Tilling Pattern B– Make two passes over area to be
tilled, the second overlapping the first.
Before use, remove any visible stones or other foreign
bodies from the area.
CAUTION: Before moving the tiller/cultivator from one
area to another switch off the motor and wait for the
tines to come to a complete stop. Be careful not to let
the tines touch the ground while moving the tiller/
cultivator. The tines as well as the unit itself may be
damaged even if the motor is switched off.
Clearing foreign objects:
During operation a stone or root could become lodged
in the tines, or tall grass or weeds may become
wrapped around the tine shaft. To clear the tines or tine
shaft release the trigger lever, wait for the tines to come
to a complete stop and unplug the tiller/cultivator.
Dislodge or remove the foreign matter from the tines or
tine shaft.
OPERATING
4
6
Model TC70020-1

7
Model TC70020-1
CHARGING THE BATTERY PACK
When fully charged, the battery can be safety stored in temperatures
down to –4° degrees F for a period of up to four weeks, before
requiring charging. Fully charge battery pack every 90 days.
If over a period of time the battery pack quickly runs down after a full
80 minute charging period, a replacement battery pack is needed.
To prevent permanent damage to the battery, never store in a
discharged condition.
WINTER STORAGE—Fully recharge before storage and then again
every 90 days.
Since the battery will not develop a memory, it does not have to be
fully discharged before recharging.
A small leakage of liquid from the battery cells may occur under
extreme usage, charging or temperature conditions. This does
not indicate a failure. However, if the outer seal is broken and this
leakage gets on your skin.
a. Wash quickly with soap and water.
b. Neutralize with a mild acid such as lemon juice or
vinegar.
c. If the battery liquid gets in your eyes, flush them with
clean water for a minimum of 10 minutes and seek
immediate medical attention.
Charge the battery pack only with Yardworks 20V Chargers.
Allow at least 80 minutes of charge time before initial use of the
tiller / cultivator.
Make sure the power supply is normal household voltage,
120volts, 60Hz, AC only.
The battery charger should be operated in temperatures between
39 and 104 degrees F.
The battery should be charged in a cool, dry place.
Two to three initial charging/discharging cycles may be required to
achieve maximum run time/capacity.
Do not attempt to open the charger or the unit. There are no
customer serviceable parts inside. Call the customer service help
line at 1-800-633-1501 for assistance.
DO NOT incinerate battery packs even if they are severely
damaged or completely worn out. They can explode in a fire
causing injury.
Use the battery charger indoors only.
Disconnect charger from the power supply when not in use to
prevent damage to the charger during a power surge.
TO CHARGE—SEE CHARGER MANUAL FOR COMPLETE INSTRUCTIONS
BATTERY DISPOSAL
Remove the battery pack from the chain saw. Cover the terminals with heavy duty adhesive tape. Do not attempt to destroy or disassemble battery
pack or remove any components. This product contains lithium-ion batteries which must be recycled or disposed of properly. Local, state or federal
laws may prohibit disposal of these batteries in ordinary trash.
The RBRC seal on the li-ion battery pack indicates that the costs to recycle the battery pack at the end of its useful life has already been
paid by The Great States Corporation American Lawn Mower Company. It is illegal to place spent li-ion batteries in the local municipal
solid waste or in the trash. RBRC in cooperation with The Great States Corporation American Lawn Mower Company has provided an
environmentally friendly and easy way to recycle spent li-ion batteries. Just contact your local recycling center or call 1-800-8BATTERY
for information on where to drop off the spent battery.
Battery Pack
Charger
Constant Red = Battery is charging
Constant Green = Battery is fully charged

WARNING: Before carrying out maintenance operations, remove the battery from tool.
Before each use, check the condition of the tines and
ensure that all threaded connections are securely
tightened. If the tines become dull or blunt, sharpen or
replace them. Call our customer service help line at
1-800-633-1501 for assistance.
At the end of the season, check the tiller/cultivator for
damage prior to storing. Repair or replace damaged or
broken parts.
CAUTION: Always clean the tiller/cultivator after each
use. Failure to carry out proper cleaning can result in
damage to the tiller/cultivator or result in poor
performance.
Clean the tines with a scrub brush, and a soft cloth
dampened with a mild soap and water mixture.
Never use a water hose to clean the tiller! To remove
soil and debris from the tines, use a stiff brush or a
dampened cloth. Clean the vents on the motor housing
and remove any remaining grass or dirt. Once cleaned,
wipe the tines dry and apply a light coat of oil to prevent
rust.
WARNING: Injury can occur while working on the tines.
Wear protective gloves.
Tines maintenance: Worn tines invite poor performance
and overload of the motor. Check tines before each use.
Sharpen or replace the tine assemblies with new ones
when necessary. Call 1-800-633-1501 for assistance.
Tine Replacement
Tines are identified with part number JY2201-1 or
JY2201-2 stamped on the tine blade.
Replace only the tines with the identical part number.
Tine Removal (Fig. 5)
1. Remove the M8 hex locknut with a hex head wrench,
and then remove the M8x170 bolt.
2. Remove the end caps.
3. Remove the tines and hubs at either end of the shaft.
Tine Installation (Fig. 5)
1. Install the new tine by pressing it onto the hub. The side
with stamped part number must face outward. Be sure to
install tines in the same sequence as shown in Fig 5.
Position the hub so that the larger diameter whole is facing
outward. Make sure the two tines on the same hub are
installed symmetrically with the end of the tine blades
facing downward (Fig. 6).
2. Install the tines with hub onto the shaft. Ensure the larger
diameter whole of the hub is facing outward. The left and
right tine assemblies must be installed symmetrically
(Fig. 6)
3. Install the end caps.
4. Install the M8x170 bolt. Secure the assembly by
tightening the M8 hex locknut with a hex head wrench.
Replace worn or damaged parts with original replacement
parts only. Parts from another tiller/cultivator may not fit
properly causing an unsafe situation.
Make sure all protective devices are secure and in good
condition. Repair or replace if necessary.
MAINTENANCE
Tine P/N
JY2201-1
Tine P/N
JY2201-2 Tine P/N
JY2201-1
Tine P/N
JY2201-2
Hub
Hub
End Cap
End Cap
M8x170
Bolt
M8 Hex
Locknut
Bushing
Bushing
Symmetrically
installed tine blades
facing downward
Larger diameter
whole of the hub
facing outward
Shaft
5
6
8
Model TC70020-1

TROUBLESHOOTING
Call us first with questions about operating or maintaining your product
at 1-800-633-1501 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time,
or get assistance on www.americanlawnmower.com.
CALL US FIRST !!
Problem Possible Couse Possible Solution
-Unit does not Run -Battery not making contact -Check battery is fully inserted
-Trigger switch not operational -Check that lock off button is fully depressed prior to moving trigger
-Battery not installed properly -Check battery installation
-Battery not charged -Check battery charging requirements
Abnormal noises -Tine is jammed.
-Bolts, nuts or other components are loose.
-Switch off. Wait till tines comes to a complete stop. Remove jammed
objects.
-Tighten all components. Arrange for repair if noises continue.
Abnormal vibrations -Tines damaged or worn
-Working depth too large
-Replace damaged or worn tines.
-Adjust working depth.
-Battery will not charge -Battery not inserted into charger -Insert battery into charger until red LED appears
-Charger not plugged in -Plug charger into a working outlet
-Check current at receptacle by plugging in a lamp or other appliance
-Check to see if receptacle is connected to a light switch which turns
power off when you turn out the lights
-Surrounding air temperature too hot or too cold -Move charger and tool to a surrounding air temperature of about 39
degree F (4 degree C) or below 104 degree F (+40 degree c)
Poor results Working depth too small
Worn tines
Adjust working depth.
Replace damaged or worn tines.
STORAGE
Store the Tiller/Cultivator in a dry, clean area out of reach of
children.
During extended periods of storage, ensure that the tiller/
cultivator is protected against corrosion and rust.
At the end of the season, or if the tiller/cultivator is not being
used for longer than a month, wipe over all metal surfaces
with an oil soaked cloth to protect them from corrosion or
spray with a fine coat of oil.
Do not expose to rain. Store indoors.
For parts or service, please call 1-800-633-1501 or visit us online at www.americanlawnmower.com. Be
sure to provide all relevant information when you call or visit.
REPAIR PARTS (KITS/ ITEMS)
The model number of this tool is found on a plate or label attached to the housing. Please record the serial
number in the space provided below.
MODEL NUMBER TC70020-1_____
SERIAL NUMBER_______________
No. Kit/ Item Number Description QTY
1RTC70020/25-FHK Front Handle Kit 1
2RTC70020/25-TK-1 Tine Kit 1
3BL82120-1Battery Pack 1
4CHL82000-1Charger 1
Always mention the model number when ordering kits/items for this tool.
9
Model TC70020-1

In a continued commitment to improve quality, the Manufacturer reserves the
right to make component changes or design changes when necessary.
Rev. 10/20/2020
American Lawn Mower Company
The Great States Corporation
7444 Shadeland Station Way
Indianapolis, IN 46256 USA
Phone [phone]
www.americanlawnmower.com
OWNER’S MANUAL
7.5-Inch 20V Lithium-ion Tiller / Cultivator
With (1) 20V 2.0Ah Lithium-ion Battery
Copyright. All Rights Reserved.
Model TC70020-1
YARDWORKS WARRANTY POLICY
•2 Year limited warranty on all Yardworks 20V lithium ion power tools from date of purchase when used for personal, house-
hold, or family use.
•2 Year limited warranty on all Yardworks 20V lithium ion batteries and chargers from date of purchase when used for personal,
household, or family use.
The Great States Corp. (GSC) warrants to the original owner that this Yardworks product and service part is free from defects in ma-
terials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above.
•Warranty voided if used for commercial or industrial purposes or any other improper use as determined by GSC.
•Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product beyond ca-
pacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the
owner’s manual.
•This warranty does not cover
Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains, mulching
blades, blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure hoses, wheels, handles,
augers, worn bags, power cables, and other items subject to wear over time.
Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme temperature
swings (hot or cold), battery left on charger too long, battery left uncharged for too long, and misuse or abuse of the battery.
•This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes.
•This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products including, but
not limited to scratches, cracks, dents, or damage caused by outside chemicals.
•This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This warranty does
not apply to any product, new or used, purchased through unauthorized third-party channels. For information on authorized deal-
ers, contact our customer support hotline at 1-800-633-1501 (Mon-Fri 8am-5pm Est)
•Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of the products is
not covered by the warranty.
•The warranty does not include installation, assembly or normal adjustments explained in the owner’s manual. The expense of de-
livering the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the
warranty.
Additional Warranty Limitations
Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. Products sold damaged or incomplete, sold ―as is, or sold as reconditioned are not covered under the warranty.
Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper mainte-
nance, improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this warran-
ty.
Proof of purchase, original dated sales receipt, must accompany all warranty claims.
For claims go to americanlawnmower.com or call our customer support hotline from 8am-5pm EST,
Mon-Fri at 1-800-633-1501
