YIHUA 8786D User manual

中文/English
INSTRUCTION MANUAL
使用说明书
GuangZhou YIHUA Electronic Equipment Co.,Ltd.
AD D: YongXing industrial district, LongGui, Guang
C o n g r o a d , G u a n g Z h o u , G u a n g D o n g , C h i n a
电话(TEL):[phone] 传真(FAX):[phone]
广州市谊华电子设备有限公司
地址： 广 东 省广 州 市 广从一 路 龙归永 兴 工业区
声明：本公司保留改进升级产品的权利，产品规格及设计如有变更，恕不另行告知。
Statement: The company reserves the right to improve and upgrade products,
product specifications and design are subject to change without notice.
防静电二合一拆焊台
Thank you for choosing this type of Unsoldering Equipment with Hot Air. The product is
designed for soldering and unsoldering without lead. Please read the User Guide
thoroughly before use, and keep it in a safe place for future reference.
感谢您购买此款热风拆焊台，本产品是专门为无铅拆焊而设计的，使用前请仔细阅读本说明
书，阅读后请妥善保管，以供日后参考。
Anti-Static 2 in 1 Flat IC Rework Station
8786D

1 2
一、产品特点
标准版
1、传感器闭合回路，微电脑 控制，控温精准。 数码可显示风枪/烙铁工作状态，按键切PID LCD
换两种显示模式，方便直观。
2、热风枪功率大，升温迅速，出风柔和，风量大，非常适合无铅拆焊作业。
3、焊台发热体采用低电压电源供电，能有效的保护敏感器件及工作人员安全。
4、完美的二合一组合，采用铁合金外壳，机身小巧，占用工作台面积小。
5、具有故障自我检测和故障报警功能。
1、升级版继承了标准版的所有优点，并增设了风枪手动/自动切换功能。拨动开关切换，方便、
快捷。
2、自动模式下，风枪手柄放回手柄架上，风枪会自动降温到待机状态。此模式适合不是太频繁
焊接的情况，能有效节省电能，并降低机器（主机、发热芯等）的磨损，延长使用寿命。
3、在手动模式下，风枪放回手柄架上，风枪仍然保持当前的工作温度，此模式非常适合需要频
繁使用的情况，可省去风枪反复回温的时间，提高焊接效率。
4、烙铁休眠功能：烙铁自动检测自身工作状态在没有人使用处于静止状态时，到出厂预设的休
眠时间（10分钟），烙铁温度自动降温到200℃进入睡眠状态。 可有效的防止烙铁头氧化和延
长了烙铁头使用寿命，节能环保。
使用本机器，下列基本措施要遵守，以免触电或对人体造成伤害，避免火灾等现象的危害。
1、为了确保人身安全，该机器工作完毕后，请关闭机器总电源开关，长期不使用请拔掉电源
线!!!
、必须使用原厂认可或推荐的零件，否则将招致严重后果。2
、机器故障必须由专业人士或本公司指定人员进行维修。3
、本产品使用三线接地插头，必须插入三孔接地插座内，不要更改插头或使用未接地三头适4
配器而使接地不良。
、热风枪或电焊台开启后，其温度都有可能达到 度以上。切勿在易燃、易爆气体、物体附5 400
近使用。喷管及喷出的热气都十分炎热，能灼伤人体，切勿触摸发热管及热气直接喷向人
体。
、热风枪开启前请确保热风枪处于安全状态, 热风枪开启后切勿离开工作岗位。6
、安装喷嘴时不可在热风枪开启时，必须在发热管与喷嘴冷却后才可安装。7
、请保持进/出风口畅通，不能有堵塞物。8
、使用后，切记9要冷却机身，应将手柄放回手柄架，机器进入休眠后再关机。
10、切勿使用烙铁进行焊接以外的工作；切勿用烙铁敲击工作台面以清除焊剂残余，此举可
能严重损坏烙铁。
11、焊接时会冒烟雾，请做好应有的通风设施。
安全守则
1、如果电源线损坏，为了避免危险，必须由制造商或维修部分的专业人员进行更换。
2、本工具不使用时必须放置在它的支架上。
3、在有易燃材料的地方使用本器具时要小心；不要长时间在同一地方使用本器具。
4、要意识到热可能传递到远处的易燃材料； 器具接通时需有人照看。
5、 器具不打算由存在肢体、感官或精神能力缺陷或缺少使用经验和知识的人（包括儿童）使
用，除非有负责他们安全的人对他们进行与器具使用有关的监督或指导；应照看好儿童，
确保他们不玩耍本器具。
升级版
警告

3 4
四、性能对照表
升级版
标准版
机型
性能
显示形式
风枪手动自动
烙铁休眠功能
LED切换 LED切换
有
有
无
无
热风枪部分
电焊台部分
三、技术参数
二、主机面板示意图
标准版 升级版
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
13
14
15
1、热风枪显示状态指示灯
2、电焊台显示状态指示灯
3、温度升温调节按键
4、温度降温调节按键
5、风枪开关
6、热风枪手柄
7、温度显示屏
8、显示状态切换按钮
9、热风枪风量调节旋钮
10、烙铁开关
11、烙铁插座
12、手动/自动切换拨动开关
13、保险管
14、电源总开关
15、电源线出入接口
气流类型
温度范围
气流量
温度稳定度
工作电压
温度范围
温度稳定度
焊咀对地阻抗
焊咀对地电压
额定电压
整机功率
尺寸
重量
工作环境
储存温度
储存湿度
100℃-480℃
120L/min（最大）
±2℃（静态）
26V±10% 50Hz
200℃-480℃
±2℃（静态）
＜2Ω
＜2mV
≤750W
0~40℃
-20~80℃
220V ±10% 50Hz
35%~45%
无刷风机柔和风
L148xW99xH140mm ±5mm
2.5kg

五、用途
1、适合多种元件的拆焊如：SOIC、CHIP、QFP、PLCC、BGA等（特别适用于手机排线及排
线座的拆焊）。
2、用于热收缩、烘干、除漆、除粘、解冻、预热、胶焊接等。
5 6
六、风枪支架安装
新机器第一次使用时，必须安装热风枪手柄支架，如图 ：1
、根据个人使用习惯，按图所示选择位置旋紧四颗螺丝。1
、根据您的选择，拆下机器左边或右边的两颗固定螺丝孔的螺丝，安装支架，旋紧拆下的两2
颗螺丝。
、把手柄组件搁置在手柄架上，检查是否适宜。3
图1
程序高速跟踪温度补偿指示
图2
在风枪和烙铁同时开启时，要查看相应的温度，可按SET显示状态切换按钮，切换所
需显示。（REWORK蓝灯-风枪温度显示 SOLDER红灯-烙铁温度显示）
温馨提示
安装于左 安装于右
七、操作说明
1、将焊台摆好，连接好电源，装置所需的风咀（尽量使用大口径喷咀），把风枪手柄放在手柄架上。
2、打开总电源开关，打开风枪加热开关，显示窗旁边的蓝色LED灯亮起，显示窗口显示“--
-”，此时风枪处于待机状态。
3、拿起风枪，屏幕显示风枪预设温度2秒，风枪开始从100℃开始高速加热，调节风量旋钮选
择合适的风量，待风枪温度稳定后便可正常作业。
4、可按面板上的“UP（升温按键）”/“DOWN（降温按键）”调节所需温度。
5、恒温后，数码管右下角发光点高速闪动，程序以毫秒为单位高速跟踪补偿风枪实际温度，
风枪进入温度高稳定高精度的恒温状态！（如下图2）
6、工作完毕，必须把手柄放置在手柄架上，拆焊台自动切断加热电源，工作指示灯熄灭，进
入送冷风冷却发热体模式，当温度低于100℃，机器即将进入休眠待机状态。进入休眠时
如烙铁是开机加热状态，则数温度显示屏会自动转换为烙铁显示状态， 否则数码显示热风
枪休眠符“---”。
7、热风枪进入休眠状态后，无论当前显示为哪路的工作状态，只要重新拿起热风枪手柄，数
码显示都将转换热风枪显示状态，恢复之前设置工作。
标准版（风枪部分）
升级版（风枪部分）
升级版增加了风枪手动/自动切换功能，拨动面板上的手动/自动切换拨动开关，可切换相应工作
状态。（AUTO为风枪自动工作状态，MAN.为风枪手动工作状态）
1、风枪自动工作状态：
A、自动模式操作方式与标准版相同。
B、此模式适合不太频繁焊接的情况，手柄放回手柄架，风枪即时开始降温至休眠状态，能有效
节省电能，并降低机器（主机、发热芯等）的磨损，延长使用寿命。

7 8
八、符号说明
、显示“---”：热风枪休眠状态，表示此时热风枪进入了休眠状态。1
、 显示“ - ”：表示当前数码显示的该路工作的传感器或其他部分出现故障，此时机器停止2 S E
输出加热信号。
3、 数码管末位小数点：-常亮为正在加温；-熄灭为停止加温；-闪烁为当前一路在恒温状态。
、 显示“---”一直闪烁，表示机器进入待机状态，提示关闭电源总开关，更加人性节能。4
1、将烙铁手柄连接好，将手柄正确放在手柄架上。
2、打开烙铁电源开关，显示窗旁边的红色LED亮起，显示窗显示烙铁预设温度2秒，烙铁开始从
200℃开始高速加热，待温度升到预设温度并稳定后，便可正常作业。
3、可按面板上的“UP（升温按键）” 、“DOWN（降温按键）”调节所需温度。

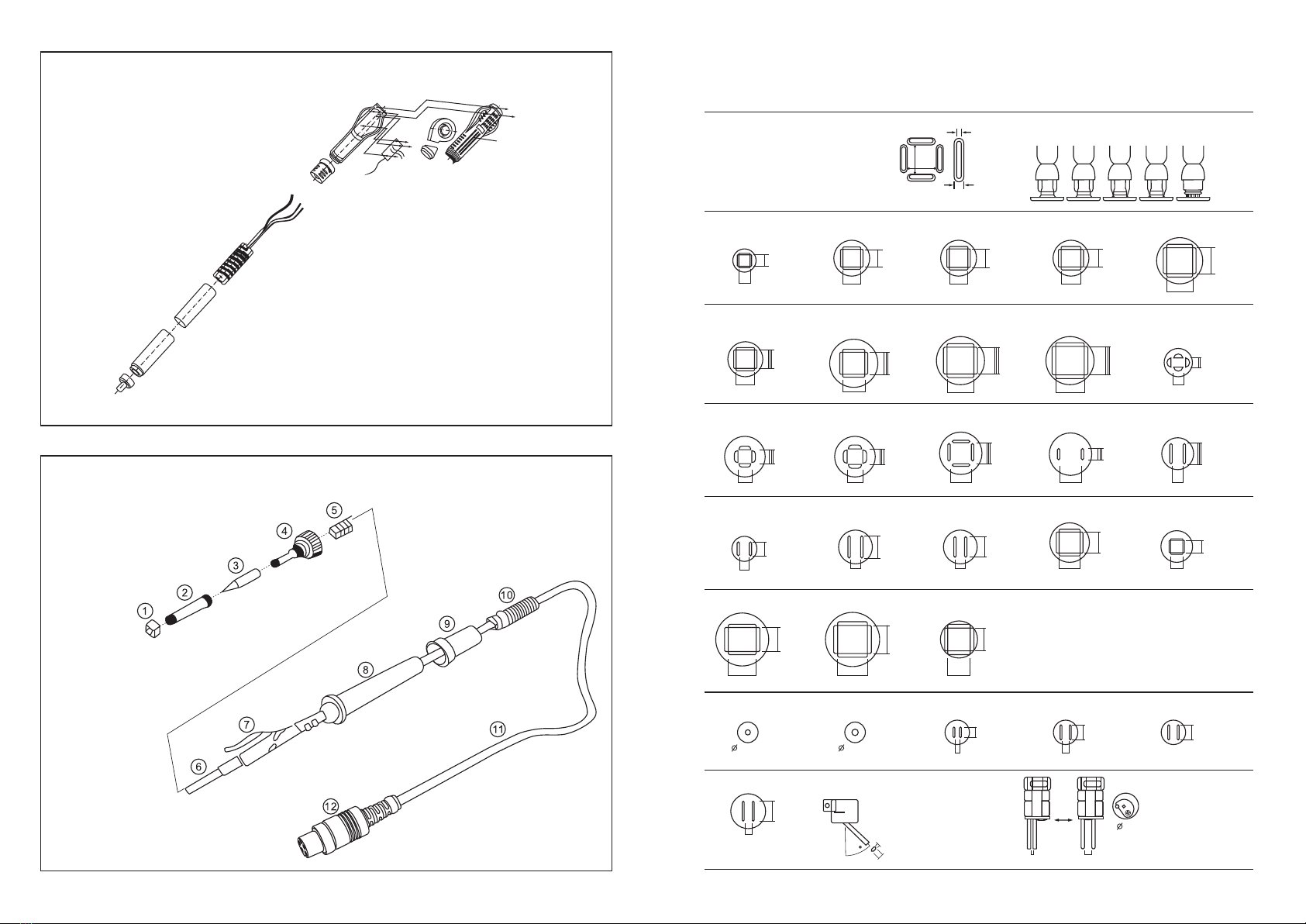

1、旋出螺母1，再将钢管2取出，这时就可以取下烙铁头进行更换了。
2、如需更换烙铁芯可以继续旋出螺纹头4，拔出烙铁芯和线路板7，要注意弹簧5。
3、将烙铁芯从线路板上焊下，更换新的发热芯，装好即可，注意烙铁芯引线的连接线顺序。
因机器风枪和烙铁手柄采用的是高强度不锈钢钢管，在生产过程中机器必须在正常工
作状态通过四次检验或校准，钢筒因高温会出现轻微变黄。当新机拆开使用时发现钢
筒处有轻微的变黄，此为正常现象，请放心使用！
特别说明
九、可换组件说明
风枪发热体的更换（图3）
1、更换发热体应在其冷却时进行更换。
2、如图，松开手柄上的两只固定螺丝。
3、旋出手柄组件1，再将手柄壳2取出。
4、轻轻移出风机，取出固定接线的3只螺丝。
5、将接线板反过来，从接线板上拆开发热体的连接线，注意其连接位置。
6、从钢管中取出发热体与包住发热体的云母纸，注意不要弄断钢管上的接地线。
7、用云母纸包好发热体，将其插入钢管中，注意发热体要安装到位。
8、按照原先的位置连接发热体的各连接线。
9、按拆开时的单反程序会装好手柄。
注意：
更换发热体时，小心不要损坏接地线；不要损坏风机的连接线；回装手柄时，手柄上的固定柱
应在钢管上的固定孔内。
烙铁部分
烙铁发热芯和烙铁头的更换（图4）
2、风枪手动工作状态：
A、打开风枪开关后，显示屏显示风枪预设温度2秒，风枪开始从100℃开始高速加热，待温度升
到预设温度并稳定后，便可正常作业。
B、可按面板上的“UP（升温按键）”/“DOWN（降温按键）”调节所需温度。
C、手动模式下，风枪手柄放回手柄架，风枪仍然保持当前工作温度。此模式非常适合频繁焊接
的情况，可省去风枪回温的时间，提高焊接效率。

I. Product Features
1. Closed loop sensor and microcomputer P ID control make sure precise tempera-
ture. LCD digital display working status of air gun/iron, button switch the gun and
iron display is easy and visual to operate.
2. Hot air gun with bigger power that rapid temperature rising. Airflow soft and
wide, very suitable for lead-free soldering rework.
3. The heating element adopts low voltage power supply, can safely and effectively
protect sensitive components and staff.
4. Perfect in gun and iron combination, the machine using ferroalloy cabinet, com-
pact body occupied small area of table.
5. With self detection and fault alarm function.
Upgrade Version
1. Upgrade Version with all the advantages of Standard Version, and add the air
gun manual/automatic switching function. Toggle switch is convenient and fast.
2. Automatic mode:
Put the gun on the holder that air gun will be down temperature into a standby
state. This model is suitable for not often soldering situation, can effectively save
energy and reduce the loss(host, heater etc.), good for prolong the service life.
3. Manual mode:
Put the gun on the holder, the gun remain current operating temperature. This
mode is very suitable for often soldering situation, can save time of gun repeate-
dly back to the temperature, improve the efficiency of soldering.
4. Iron sleep function:
Can be automatic detection of the working state,the absence of people into sleep
function. Factory preset the iron sleep time ( 10 minutes ), soldering iron temper-
ature automatic cooling to 200°C and then sleep. Can effectively prevent the
oxidation of the soldering iron tips and prolong the service life,energy saving and
environmental protection.
9 10
Use the machine, the following basic measures should abide, avoid electric shock or
cause injury or damage caused by fires.
1. To ensure personal safety, after the machine completed work, please turn
off the main power switch, and unplug the power cord if long time no use.
2. To ensure personal safety, you must use the original approval or
recommendation of the parts, otherwise it will lead to serious consequences.
3. Machine failure must be by professionals or the company designated personnel
for repair.
4. This product is grounded three-wire plug, must be inserted within the three hole
grounded outlet, do not change the plugs or use ungrounded three adapter made
it bad grounded.
5. Hot air gun or soldering station is open, its temperature are likely to reach 400 . °C
Do not use it near flammable gas, objects. Tube and the heat emitted very hot,
can burn the body, do not touch the hot pipe and direct injection to heat the
human body.
6. Before hot air gun turned on, please ensure it is in safety environment, do not
leave the jobs site.
7. When the hot air gun opening do not install nozzle, the heat pipe and the nozzle
must be cooling. Then installed the other nozzle.
8. Please keep inlet and outlet air flow, don’t have obstruction.
9. After used, remember that the cooling body, the handle should be released
into the handle frame, then shut down the machine to sleep.
10. Do not use a soldering iron to weld outside the work; Do not iron percussion table
to clear the residual flux, this could seriously damage the iron.
11. The machine welding will take smoke, please do proper ventilation.
1. If the supply cord is damaged, it must be replaced by a special cord or assemble
available from the manufacturer or its service agent.
2. WARNING: This tool must be placed on its stand when not in use.
3. Be careful when using the appliance in places where there are combustible
materials; Do not apply to the same place for a long time.
4. Be aware that heat may be conducted to combustible materials that are out of
sight; Do not leave the appliance unattended when it is switched on.
5. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge. Unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
Warning!!!
Safety Rules
Standard Version

11 12
II. Schematic Diagram of the Host Panel
13
14
15
1. Hot air gun display status indicator
2. Soldering iron display status indicator
3. Up temperature adjustment button
4. Down temperature adjustment button
5. Gun switch
6. Air gun handle
7. Temperature display
8. Display status switch button
9. Airflow adjustment knob
10. Iron switch
11. Iron socket
12. Automatic / manual switch
13. Fuse
14. Power switch
15. Power line interface
1
2
3
4
5
6
7
8
9
10
11
Standard Version
12
1
2
3
4
5
6
7
8
9
10
11
Upgrade Version
III. Specifications
Hot air gun part
Soldering iron part
IV. Performance Comparison Table
Performance Model The standard version Updated version
NO
NO
YES
YES
The LED switch The LED switch
According to the form
Automatic blower gun manually
Soldering iron dormancy
100 ~480°C °C
±2（Static state）°C
200 ~480°C °C
±2 (Static state)°C
＜2Ω
＜2mV
≤750W
0~40°C
-20~80°C
35%~45%
L148xW99xH140mm ±5mm
2.5kg
Machine
240V/230V/220V/110V ±10% 50Hz/60Hz
Brushless fan gentle wind
120L/min (MAX)
26V±10% 50Hz/60Hz
Rated voltage
Whole device power
Overall size
Weight
Work environment
Storage temperature
Storage humidity
Temperature range
Temperature stability
Airflow type
Airflow
Work voltage
Temperature range
Temperature stability
Tip-to-ground impedance
Tip-to-ground voltage

V. Application
1. Suitable for a variety of elements soldering and de-soldering such as: SOIC,
CHIP, QFP, PLCC, BGA (especially suitable for mobile phone board and cable
seat de-soldering).
2. For thermal shrinkage, drying, paint, adhesive removal, thawing, preheating,
welding glued.
VI. Air gun Holder Installation
At first use the machine must install the gun holder, as Figure 1.
1. According to the personal habits, according to the figure shown in select position
and tighten the four screws.
2. According to personal habits, as shown in select position tighten the four screws.
3. The handle assembly on the holder, check if appropriate
Installed on the left Installed on the right Figure 1
Figure 2
Application of high-speed track temperature
compensation instructions
13 14
Upgrade version add to air gun manual /auto. conversion function ,toggle the panel
manual /auto. switch over toggle switch, then switch over corresponding work state.(
AUTO . is air gun automatic work state ,MAN. is air gun manual work state)
1. Air gun AUTO. work state:
A. AUTO. mode operation way same as the standard version .
B.This mode not suitable all-too-frequent soldering ,handle back into the handle
frame, air gun immediate start down to a sleep state, can effectively save
energy and reduce machine (host, heater, etc.) wear and prolong life.
When the gun and iron work together, if you want check each of them could be
press set to look it.( Rework blue bright mean gun temperature, SOLDE R red
bright mean soldering iron temperature)
Warm Prompt:
VII. Operating Instructions
1. Connect the power supply, air nozzle device required (as far as possible use
large diameter nozzle), put the gun on the gun holder.
2. On power switch and gun switch, the beside of display blue LED bright, display
“---”, and then the gun at standby status.
3. Take the gun, the display show the preset temperature 2sec, and then start
heating up. Adjust the airflow for suitable airflow , when the gun temperature
steady start to work.
4. Press “UP”/ “DOWN” adjust the temperature.
5. After Constant temperature, the lower right corner of point blink, program in
milliseconds to tracking and compensation the temperature.(as figure 2)
6. After work, put the gun back to the gun holder, the machine will stop heat up and
down to 100°C, and then into standby mode. If the soldering iron still in work, the
display will be show the iron temperature. If the iron also not work will be show
“---”
7. The gun into standby, if display show iron temperature, when you take the gun
from the gun holder the display will be show the gun temperature, and stard the
setting temperature for work.
Standard version (Gun parts)
Upgrade version (Gun parts)

Soldering iron part
1. Connect the soldering iron handle, put the iron on the iron holder.
2. On iron power switch ,the display beside Red LED bright ,the display window
shows iron preset temperature 2 seconds ,iron start from 200 high-speed °C
heating until the temperature rose to the preset temperature and stable, then
able to work properly.
3. Print front panel “UP”(temperature rise key)”/”DOWN(drop in temperature key)”
adjust what you need temperature.
Dear User! Our air gun and soldering iron handle adopt high strength stainless
steel tube, the machine must be inspected or calibrated four times in normal
working condition during the production process, the copper tube could be slight
yellowing due to high temperature! When use the new machine first time, it is
normal that the steel tube at a slight yellowing , please be assured!
Special Instructions:
VIII. Symbol Show
1. The displays --- , hot air gun sleep state, it shows air gun handle enter into show “ ”
sleep state.
2. The displays show “S-E”, it means the soldering iron and hot air gun of sensor is
having a problem or other parts have faulty, then the machine stops heating
output signal.
3. LED Digital last place the decimal point: - Always bright is the entire heating;
- goes off to stop heating; - flashing at a constant temperature all the way to the
current state.
4. Shows “---” always flashing, it means that the machine into standby, prompt you
turn off the power switch, more human and saving energy.
1. Unscrews the nut NO.1, and then removes the steel tube NO.2, followed by rem-
oving the tips which is going to be replaced.
2. For the replacement of heating core’s element can be performed by unscrewing
the plastic cap NO.4, pulls out gently the heating core’s element NO.6 along with
the circuit board NO.7,please carefully remember the connection of spring NO.5.
3. The iron core from the circuit board welding, the replacement of the heating core,
can be fitted well. Note that the order of the iron core wire connection.
IX. Interchangeable Component Description
Attention:
When replacing the heating element, be careful not to damage the ground; do not
damage the cable of fan; while back install handle, the handle is fixed on the column
should be fixed on the pipe in the hole.
15 16
1. Ensure the hot air rework is fully cooled down before replacing the element
2. Figure, loosen the two screws on the handle.
3. Unscrew the handle assembly 1, and then remove the handle shell 2.
4. Gently takes out the fan, loosen the three screws to remove the fixed wiring
board.
5. The wiring board in turn, heating elements connector apart from the wiring board,
pay attention to its connection position.
6. Remove from the heat pipe heat body wrap body with mica paper, careful not
broken ground wire of the steel.
7. Wraps well with the new heater mica, inserted into the tube, the attention heater
to install in place.
8. According to the original location of the connection to connect heater.
9. When the reverse process by open bottles and handle back.
Replacement of Hot Air rework heating element (Figure 3)
2. Air gun manual work state:
A. Open air gun switch, the display shows the air gun preset temperature 2 seco-
nds, air gun start from 100°C high-speed heating until the temperature rose to
the preset temperature and stable, then able to work properly.
B. Print front panel “UP(temperature rise key)”/“DOWN(drop in temperature key)”
adjust what you need temperature.
C. Manual Mode, air gun handle back into the air gun frame,air gun also keep the
currently work temperature. This mode is very suitable for all-too-frequent
soldering ,it can save air gun heating up time, raise soldering efficiency.
Replacement of the soldering iron’s tip and soldering iron heating core’s
element (Figure 4)

10
10
(0.39)
(0.39)
A:10.2(0.4)
B:10.2(0.4)
QFP 10x10
(0.39x0.39)
A1125 QFP 14x14
(0.55x0.55)
A1126 QFP 17.5x17.5
(0.68x0.68)
A1127 QFP 14x20
(0.55x0.78)
A1128 QFP 28x28
(1.1x1.1)
A1129
15
15
(0.59)
(0.59)
A:15.2(0.6)
B:15.2(0.6) 19
(0.75)
19
(0.75)
A:19.2(0.76)
B:19.2(0.76) 21
(0.83)
15
(0.59)
A:15.2(0.6)
B:21.2(0.83)
29 (1.14)
29
(1.14)
A:29.7(1.17)
B:29.7(1.17)
PLCC 17.5x17.5
(0.68x0.68)
(44针)needle
A1135 PLCC 20x20
(0.78x0.78)
(52针)needle
A1136 PLCC 25x25
(0.98x0.98)
(68针)needle
A1137 PLCC 30x30
(1.18x1.18)
(84针)needle
A1138 PLCC 12.5x7.3
(0.49x0.49)
(18针)needle
A1139
15
15
(0.59)
(0.59)
A:18.5(0.73)
B:18.5(0.73)
19
(0.75)
19 (0.75)
A:21(0.83)
B:21(0.83)
24
(0.94)
A:26(1.02)
B:26(1.02)
A:26(1.02)
B:26(1.02)
29
(1.14)
6.9
(0.27)
10(0.39)
10
(0.39)
PLCC 11.5x11.5
(0.45x0.45)
(28针)needle
A1140 PLCC 11.5x14
(0.45x0.55)
(28针)needle
A1141 BOFP 24x24
(0.94x0.94)
A1182 TSOL 18.5x8
(0.73x0.31)
A1187 SOP 11x21
(0.43x0.83)
A1257
A:13(0.51)
B:13(0.51)
A:15(0.59)
B:13(0.51)
15
(0.59)
10(0.39) 21(0.83)
21
(0.83)
A:24.2(0.95)
B:24.2(0.95) 18.5(0.73)
10
(0.39)
11.7(0.46)
21
(0.83)
A1258 SOP 13x28
(0.51x1.1)
A1259 SOP 8.6x18
(0.34x0.71)
A1260 OFP 20x20
(0.78x0.78)
A1261 OFP 12x12
(0.47x0.47)
A1262
11 7.
(0.83)
8.2(0.32)
29
(1.14)
13.5(0.53) 8.7(0.34)
19
(0.75)
21
(0.83)
21(0.83) 12(0.47)
12
(0.47)
QFP 28x40
(1.1x1.57)
A1263 QFP 40x40
(1.57x1.57)
A1264 QFP 32x32
(1.26x1.26)
A1265
39(1.54) 39(1.54)
39
(1.54)
31
(1.22)
31(1.22)
A:27.2(1.09)
B:39.7(1.56)
A:40.2(1.58)
B:40.2(1.58)
A:32.2(1.27)
B:32.2(1.27)
单管式 φ 2.5
(1.1x1.57)
A1124
2.5(1D)
(0.09)
4.4(1D)
(0.17) 4.8(0.19) 5.7(0.22) 7.2(0.29)
单管式 φ 4.4
(0.17)
A1130 SOP 4.4x10
(0.17x0.39)
A1131 SOP 5.6x13
(0.22x0.51)
A1132 SOP 7.5x15
(0.3x0.59)
A1133
29
(1.14)
15
(0.39)
15
(0.39)
16
(0.63)
SOP 7.5x18
(0.3x0.7)
A1134
7.2(0.28)
19
(0.75)
弯型单管式 1.5x3
(0.06x0.12)
A1142 单管式 φ 1.5x5.10
(0.06x0.02-0.39)
A1325
管脚距离可调
5(0.2)
管脚距离
可调
5-10mm
10(0.39)
喷嘴正面
1.5(1D)
(0.06)
45
1.5(0.06)
(1D)
3
(0.12)(1D)
A
B
0.8
(0.03)
(0.07)
1.8
空气流量
QFB SOP P L CC SOJ B G A(CSP)
mm(inch)
General parts
*Nuzzle specification
and sizemeans the IC size
通用部件
*喷嘴的规格尺寸
表示该IC的尺寸
Airflow
Pin distance
adjustable
Front nozzle
Single-tube Single-tube
Single-tube
Curved single tube
Pin distance
adjustable
图4 (Figure 4)
接地弹簧
螺纹头
烙铁头
钢管
螺母
线尾
硅胶套
手柄壳
线路板线路板线路板
发热芯发热芯发热芯
手柄线
航空座
Earthing Spring
Thread Head
Tips
Tebe
Screw
Spool
Glovelike
Handle Cover
BoardBoardBoard
HeaterHeaterHeater
Handle Line
Voyage Seat
风机型 图3
Wind Models Figure 3
手柄壳1
手柄壳2
手柄组件
骨架式发热芯
高温云母带
钢筒
喷嘴
Handle Cover 1
Handle Cover 2
Component Handle
Skeleton-Type Heater
Mica Paper
Tube
Nozzle

900M-T-0.8D
0°C 0°C 0°C 0°C 0°C 0°C 0°C
900M-T-1.2D 900M-T-1.6D 900M-T-2.4D 900M-T-3.2D 900M-T-1.2LD 900M-T-SB 900M-T-B
-10°C/-18°F
900M-T-LB
-10°C/-18°F 0°C 0°C 0°C 0°C 0°C 0°C
900M-T-0.5C 900M-T-0.8C 900M-T-1C 900M-T-1.5CF 900M-T-2C 900M-T-3C 900M-T-4C
0°C
900M-T-K
30°C/54°F 0°C 0°C -10°C/-18°F -10°C/-18°F 0°C 0°C
900M-T-R 900M-T-RT 900M-T-SI 900M-T-I 900M-T-H 900M-T-1.8H 900M-T-S4
-20°C/-36°F
0.8mm
1.2mm1.6mm2.4mm3.2mm
1.2mm
2mm
.2r
.5r
17mm 17mm 17mm 17mm 17mm
25mm
14mm
17mm
.2r
25mm
15mm
17mm
15mm
15mm
17mm
17mm
17mm
15mm 17mm
17mm
13mm
17mm
19mm
14mm
15mm
7.5mm
7.5mm
25°
25°
3.5mm 1.8mm
.25r
45°
45°
45°
60°
45°
45°
45°
0.5mm
0.8mm
1.0mm1.5mm
2.0mm
3.0mm
4.0mm
.2r
.2r
2.0mm 5.0mm
5.0mm
3.2mm
2.0mm
4.2mm
900M系列外径φ6.5mm 900M Series Tip Out Diam 6.5mm
附：电焊台使用烙铁头型号图
Attachment: Electric welding machine using welding head model figure
