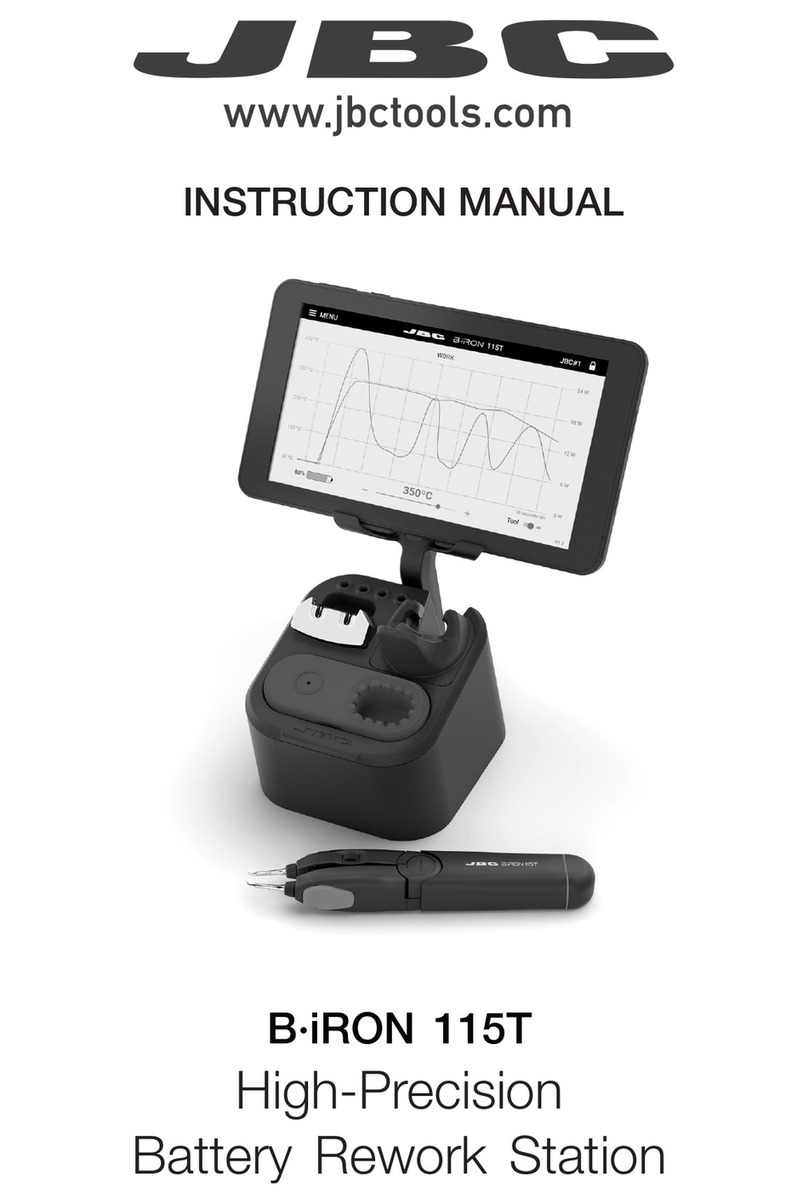

jbc B-IRON 115T User manual
Packing List
The following items are included:
Power Cord ........................................................................................................................................................ 1 unit*
Ref. 0027380 120V - N. America, Taiwan 0027378 230V - United Kingdom
0027381 230V - India 0027379 230V - China
0027382 230V - Europe 0028103 100V - Japan
* according to purchased station reference.
Manual .............................. 1 unit
Ref. 0028298
Stand for B 115T Nano
B·iRON Tweezers ......... 1 unit
Ref. B210-SA
Brass Wool ..................... 1 unit
Ref. CL0300
already assembled in the stand
B 115T Nano B·iRON
Twe ezers ........................ 1 unit
Ref. B210-A
This manual corresponds to the following references:
Console included*:
BI115TUA 120 V - N. America, Taiwan
BI115TIA 230 V - India
BI115TA 230 V - Europe
BI115TKA 230 V - United Kingdom
BI115THA 230 V - China
BI115TJA 100 V - Japan
Cable USB ....................... 1 unit
Ref. 0028092
B·iRON Console 7”...... 1 unit*
*included according purchased
reference
Console not included*:
BI115TUQA 120 V - N. America, Taiwan
BI115TIQA 230 V - India
BI115TQA 230 V - Europe
BI115TKQA 230 V - United Kingdom
BI115THQA 230 V - China
BI115TJQA 100 V - Japan
2
Wiper
Features and Connections
B 115T Nano
B·iRON Tweezers
Console Support
Quick Tip Changer
Brass Wool (inside)
Tool Stand and Charger
Cartridge Storage
B·iRON Console 7”
Note: for references without console blue tooth
device like PC or mobile can be connected.
Power Socket
USB Connector
USB Cable
(only for charging)
Bluetooth
Connection
Stand for B 115T Nano
B·iRON Tweezers
Antisplash Membrane
Screw to
detach the
Support
C115
Cartridge
Range,
not included
3
Quick Start
Connect the stand to the mains (100 - 240 V).
Insert a cartridge into the tool (1) and place it into
the charger on the stand (2).
Note: Charge the tool completely (30 min)
before using for the first time.
The status indicator light idicates as follows the
tool status:
21
Status Indicator Light
1. Connection
2. Cartridge Insertion and Charging
green working/soldering
green blinking charging
alternating
red/green blinking
low battery,
less than 20%
red blinking: no cartridge
no color: power OFF
4
JBC
JBC
JBC
JBC
JBC
JBC
JBC
Tool1
Tool2
Devices
MENU
JBC
Return to Work
JBC
210
JBC
Tool
ON
MENU
24 W
18 W
12 W
6 W
0 W
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC#1
3. Switching on Console/Device
Select the tool from the detection list.Turn on the console/device and open the B·iRON
Application:
4. Selecting Tool
Console Work Screen
Temperature
and Power
Grafics
Application Menu Connected Tool
Temperature
Selection Slider
Tool Status
Battery
Level
Tool
Status
The work screen shows the graph of the current tip temperature and the power supplied to the tip by
moving the graph permantely to the left.
5
JBC
Tool
ON
6 W
0 W
10 seconds/div
V1.2
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
Operation
The JBC Most Efficient Soldering System
This revolutionary technology is able to recover tip temperature extremely quickly. This allows the
user to work at a lower temperature.
Work Charging and Hibernation
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
When the tool is in the stand
enters into Hibernation Mode
and cools down to room
temperature.
While the tool remains in the
stand, it charges.
Hibernation
When the tool is outside of the
stand and remains inactive (no
movement), the tool enters into
Hibernation mode and cools
down to room temperature.
To turn the tool on, put it back
into the stand.
Note: When the tool is lifted from stand the Soldering System acts as follows:
If the tool has been inactive
for a longer period of time, it is
turned off.
long time
inactive
Turned Of f Turned On
Note: If desired, the tool can be swithed off/on. Tab the Tool Power
button at the tablet screen (bottom right) to switch it off/on.
Tool Power Button
6
JBC
JBC
JBC
Tool
ON
MENU
24 W
18 W
12 W
6 W
0 W
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
JBC
JBC
JBC
JBC
JBC
348ºC
6 W
Grafics
The work screen shows the automatic recording of the temperature and power grafics.
The automatic recording can be paused by tapping the screen at the grafic area. The automatic
recording stops also when the tool stops working.
While the automatic recording is stopped, you can get the temperature/power value on a certain
point by tapping the graph on the tablet screen.
When the tool ist not in use
the grafics stops recording
The grafic can be moved to the left and right by swiping the touch screen sideways with one finger.
The recording starts automatically as soon as the tool is removed from the stand and the graphic
automatically jumps to the end of the last recording and continues with the recording.
Note: When the tool is placed in the stand and is not in use, the temperature/power recording
stops. A gap can then be seen in the curve grafics.
7
Tip Cleaner
Select the option to suit your needs and improve the tip thermal transfer.
Antisplash Membrane with Wiper
Ref. CL0301
The antisplash membrane prevents splashing and keeps
the work area clean.
Includes a temperature resistant wiper for removing
excess solder by gently tapping or wiping the cartridge
tip.
If the tip is very dirty, JBC recommends first cleaning it
with the wiper to remove excess solder and then with
the brass wool.
Brass Wool
Ref. CL0300
Very effective
cleaning method.
Leaves a small layer
of solder on the tip
preventing oxidation
between cleaning
and rewetting.
Tap gently to remove excess solder. Use the slots to remove remaining particles.
Wiper
Tapping Wiping
8
Replacing Brass Wool
1. Lifting 2. Replacing
Space
3. Assembling 4. Pressing on
Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make
sure that the brass wool is on the far left and that
there is space for the wiper on the right.
Assemble the antisplash membrane in vertical
direction onto the stand.
Press the antisplash membrane down. Make sure
that the membrane is correctly inserted all around.
Note: The brass wool and the wiper position can be reversed by rotating the antisplash
membrane 180 degrees
9
Yes
No

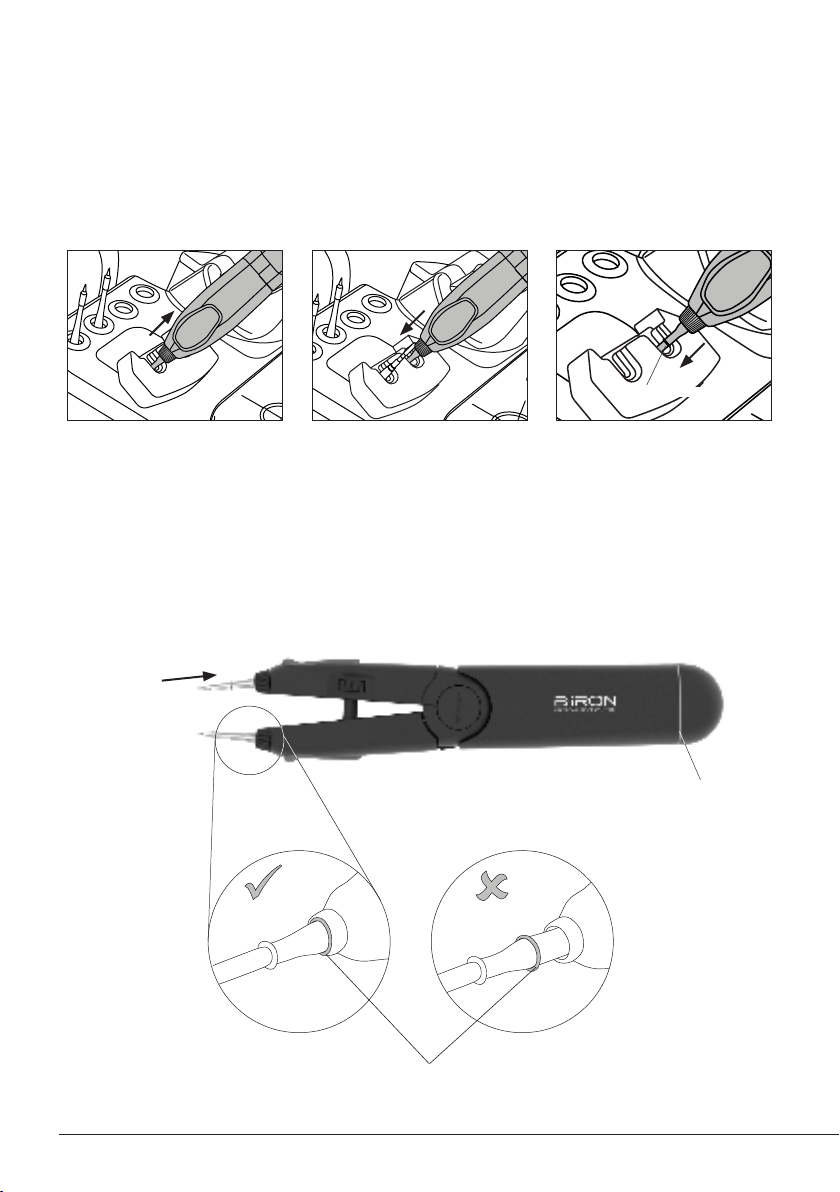

Quick Tip Changer
Save time and change cartridges safely without switching the station off.
Place the tweezers with the
cartridge in the extractor slot
and pull to remove it.
Place the tweezers on top of
the new cartridge and gently
push the tweezers down.
Place the tweezers with the
cartridge in the slot, so that its
reference ring rests in the slot,
and gently press the cartridge
into the tweezers*.
*Important: Push the cartridge in as far as it will go, until the reference ring rests against the
tweezers. The charging indicator light changes from red to green when the cartridge is proprely
inserted.
until “stop”
1. Removing 2. Inserting 3. Fixing
Reference
Ring
Charging Indicator
Reference Ring
10
Tweezer Chisel BladeTwe ezer
Conical Bent
Compatible Cartridges
B 115T Nano B·iRON Tweezers works
with C115 Cartridges.
Find the model that best suits your
soldering needs in www.jbctools.com
Cartridge Tip Alignment
Nano B·iRON Tweezers offers an intuitive cartrige tip alignment function. Cartridge tips can be
rotationally and vertically aligned.
Rotationally Tip Alignment
Rotate the bushings slightly
(1) to rotationally align the
tips (2).
Wheel for vertically
tip aligntment
Bushings for rotationally
tip alignment
1
2
Vertically Tip Alignment
Rotate the wheel slightly
(1) to vertically align the
cartridge tips (2).
Bushings
Wheel
Not aligned
Aligned
1
2
11
JBC
JBC
JBC
JBC#1
JBC
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
JBC
JBC
JBC
JBC

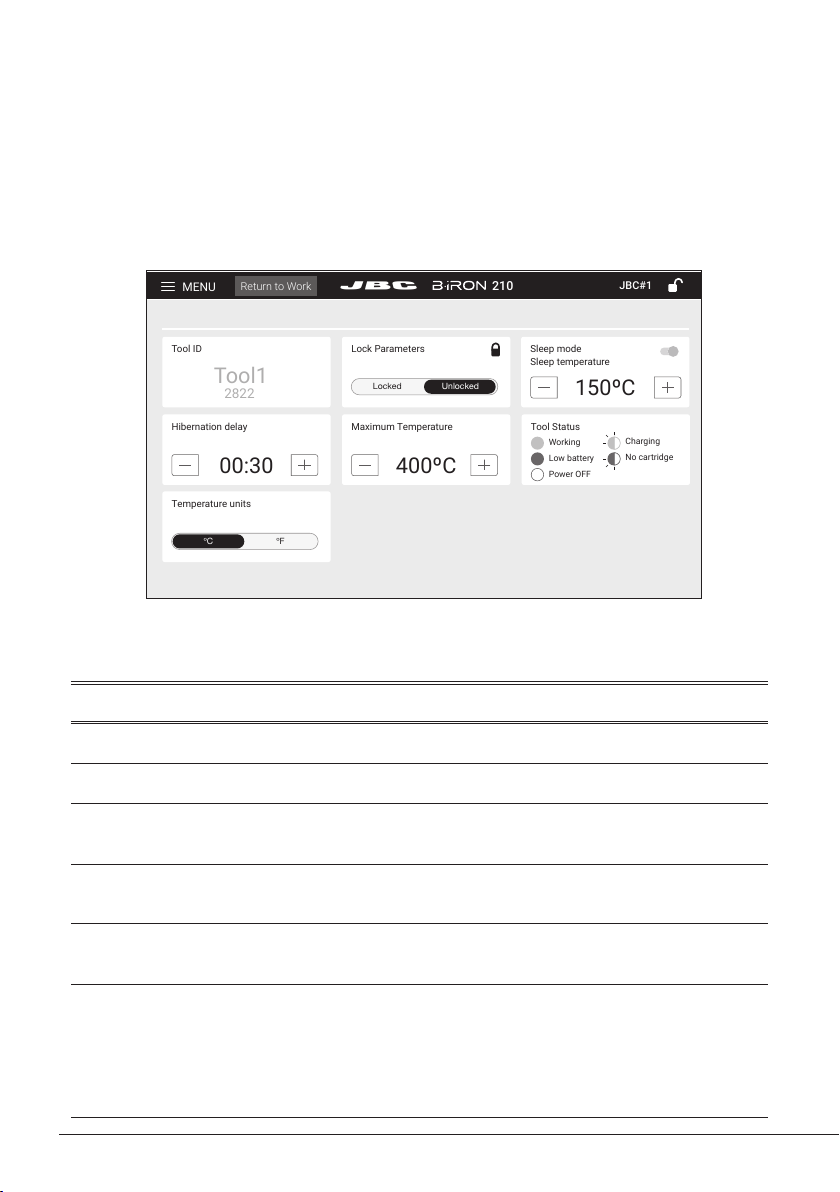

Menu Settings
The B·iRON Console offers an intuitive user interface which provides quick access to station
parameters.
Parameter
Tool ID
PIN
Hibernation Delay
Sleep Mode /
Sleep Temperature
Maximum
Temperature
Tool Status
Description
Allows to change the tool identifier.
Allows to change the PIN
Set hibernation delay from 5 to 15 sec. Countdown starts when no
movement ist detected.
Set sleep mode ON/OFF. The tip temperature will drop to the selected
sleep temperature.
Allows selection of the maximum temperature that can be set for the work
mode
The tool status light indicates as follows the tool status:
- Green: working / soldering
- Green blinking: charging
- Alternating red/green blinking: low battery, less than 20%
- Red blinking: no cartridge
- No color: power OFF
Parameters
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
12
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
MENU
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
80%
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC
JBC
JBC
JBC
JBC
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
JBC
JBC
JBC
2822

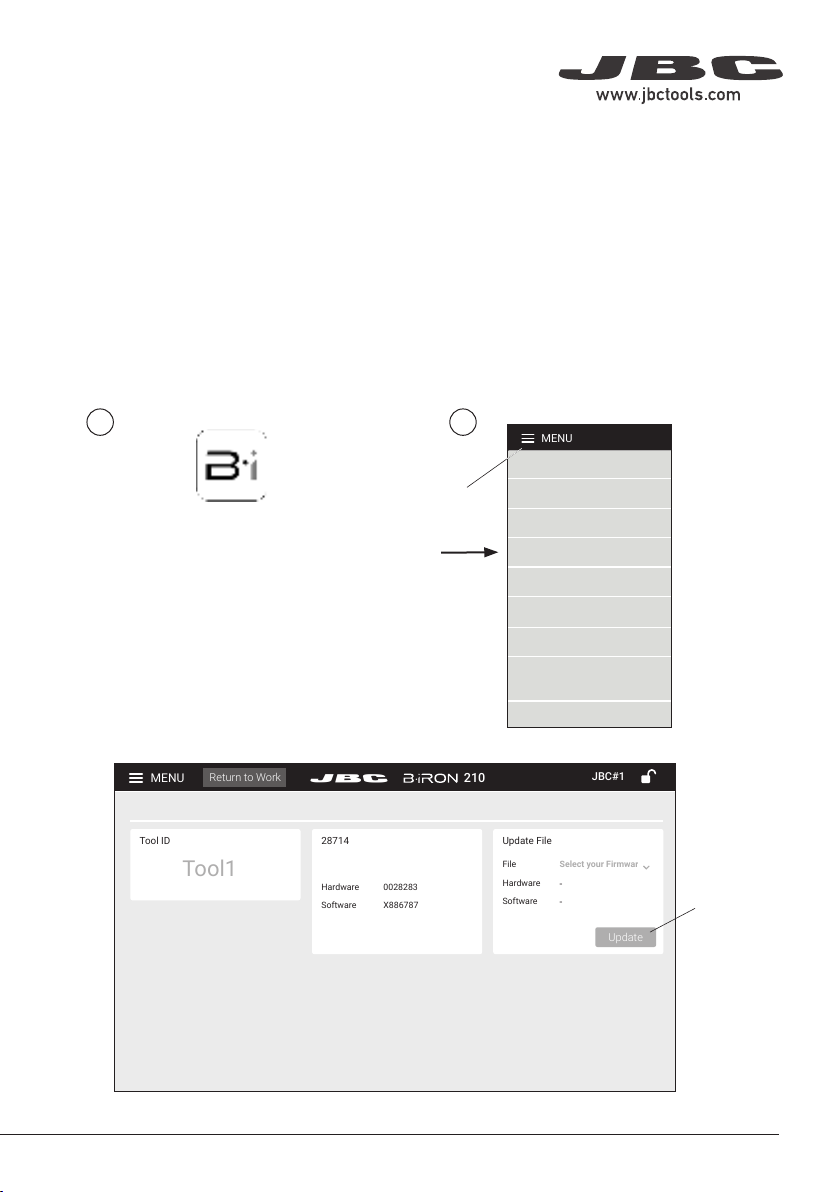

- Download the JBC update file from: https://www.jbctools.com/jbcsoftware.html
- Connect the console/device via USB connection to the PC.
- On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”.
- On the PC copy the downloaded file to “IT706/internal share storage/JBC”.
- Once copying is finished, disconnect the console/device from the PC.
- On the console/device open the Application (1) and then select “update” (2) on the Application Menu.
- Use the update button of the version to be downloaded.
B·iRON Update
21
Update
Button
Application
Menu
13
Before carrying out maintenance, always extract the cartridge and disconnect de B·iRON from the
mains. Allow the equipment to cool down.
- Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.
- Periodically check that the metal parts of the tool and stand are clean so that the charging works
properly.
- Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty
surfaces reduce heat transfer to the solder joint.
- Do not use liquid such as alcohol, thinner or benzene to clean the console.
- Repairs should only be performed by a JBC authorized technical service.
Maintenance
Clean
periodically
Clean
periodically
14
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to charge the batteries.
- The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the
station is turned off.
- Do not leave the appliance unattended when it is on.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensory or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
- Do not expose the console to high temperatures, humidity or dust. Avoid direct sunlight.
- Do not drop the console as it may cause damage or malfunction.
- Do not disconnect your device when it is in file transfer mode.
- Do not use the console in places were electronic devices are resticted.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
15
Notes
16
Notes
17
Notes
18
Specifications
B·iRON 115T
Nano Tweezers B·iRON Station
With Console:
Ref. BI115TUA 120 V - N. America, Taiwan
Ref. BI115TIA 230 V - India
Ref. BI115TA 230 V - Europe
Ref. BI115TKA 230 V - United Kingdom
Ref. BI115THA 230 V - China
Ref. BI115TJA 100 V - Japan
Stand:
- Input: 100 V - 240 V 50/60 Hz
- Power: 15 W
- Tool output: 12 V / 350 mA
- USB output: 5 V / 1000 mA
Tool:
- Output Peak Power: 5 W
- Battery: Li-Ion 7.4 V / 180 mAh
- Charge Time: 40 minutes
- Temperature Range: 200 - 450 °C / 390 - 840 °F
- Idle Temp. Stability (still air): ±1.5 °C / ±3 °F
- Temp. Accuracy: ±3% (Using reference cartridge)
- Connections: Bluetooth Low Energy (BLE)
- Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
- Tool Weight: 55 g / 0.12 lb
With Console
- Total Net Weight: 1462 g / 3.22 lb
- Total Package Dimensions/Weight: 265 x 223 x 160 mm / 2020 g
(L x W x H) 10.43 x 8.78 x 6.30 in / 4.45 lb
Without Console
- Total Net Weight: 998 g / 2.20 lb
- Total Package Dimensions/Weight: 225 x 223 x 160 mm / 1556 g
(L x W x H) 8.86 x 8.78 x 6.30 in/ 2.34 lb
Complies with CE standards
ESD safe
Not grounded device. No ESD discharge feature.
Without Console:
BI115TUQA 120 V - N. America, Taiwan
BI115TIQA 230 V - India
BI115TQA 230 V - Europe
BI115TKQA 230 V - United Kingdom
BI115THQA 230 V - China
BI115TJQA 100 V - Japan
19
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
0028298-080722
This manual suits for next models
13
Table of contents
Other jbc Rework Station manuals
