SAFETY INSTRUCTIONS
Ex/I.S. installation:
• For correct use and installation the manufacturer’s manual must be fol-
lowed.
When programming the Transmitter by PC and communication interface
or a HART® terminal the intrinsically safe data shall be observed.
•The designation galvanic isolation between the transducer input and the
loop supply indicates signal isolation only. It shall not be interpreted as an
Intrinsically Safe galvanic isolation like an isolating barrier. Therefore
ordinary care in selecting barrier and grounding shall be considered.
•The apparatus must be installed in an enclosure with an Ingress Protec-
tion of at least IP 20.
• The terminals 1 and 2 of the equipment have to be electrically connected
to a linear barrier located in the non hazardous area.
• For Ex/I.S. data, see chapter 7. SAFETY APPROVALS.

IM 01C50C03-01E
2
The YTA70 is a head mount type of temperature transmitter that accepts
thermocouple or RTD input and converts it to a 4 to 20 mA DC signal for
transmission. The YTA70 specifies HART communication protocol for re-
mote configuration.
It is imperative that usres observe the instructions in this manual to ensure
the protection and safety of operators.
1.MODEL AND SUFFIX CODES
Temperature Transmitter
4 to 20mA DC with digital communication
(HART protocol)
T01E.EPS
Model Suffix code Descriptions
YTA70 ..................
Output
Signal
Optional
Specifications
-E .............
/KS2 EEx ia llC T1-6
Amb. Temperature
T1-4: -40 to 85°C
(-40 to 185°F),
T5-6: -40 to 60°C
(-40 to 140°F)
CENELEC ATEX/FM intrinsically
safe approval combination
CENELEC:
EEx ia llC T1-6
FM: IS Class I, Div.1,
Groups A, B, C & D
/DS2
CENELEC ATEX intrinsically
safe approval
2.WARRANTY
The warranty period of the instrument is as of condition shown when pur-
chasing. Any trouble arising during the warranty period shall be replaced
at free of charge. The following problems or troubles shall not be eligible of
charge-exempt repair.
• Caused by improper usage or storage of the customer which
exceeds the specification requirements.
• Caused by mishandling or modification.
• Caused by fire, earthquake or other acts of God that are not directly
a result of problems of the instrument.

IM 01C50C03-01E 3
3.HANDLING PRECAUTIONS
(1) Read this manual throughly and carefully before handling the instru-
ments. Observe the instructions.
(2) Store the product in location that meets the following requirements.
• No exposure to rain or water
• No major mechanical vibration or shock
• Humidity and Temperature limitations
• Ordinary conditions(25°C, 65%) is preferable.
Otherwise, as of specified in “Standard Specifications.”
(3) Avoid corrosive atmosphere for storage and installation.
(4) For safe installation of the transmitter in hazardous area, the
following must be observed. The module must only be installed by quali-
fied personnels who are familiar with the national and international laws,
directives, and standards that apply to this area.
(5) Yokogawa will not be liable for malfunctions or damage resulting from
any modification made to this instrument by the customer.
4.STANDARD SPECIFICATIONS
Accuracy (see table below)
Sensor
type Standard Input ranges Minimum span Accuracy
<T/C>
⬚C⬚C
B 400 to 1820 200 ±0.1% of span or ±1.0⬚C
E IEC584 -100 to 1000 50
J -100 to 1200 50 ±0.1% of span or ±0.5⬚C
K -180 to 1372 50
N -180 to 1300 100
R -50 to 1760
200 ±0.1% of span or ±1.0⬚C
S -50 to 1760
200
T -200 to 400 50
±0.1% of span or ±0.5⬚C
L DIN43710 -100 to 900 50
U -200 to 600 75
W3 ASTM 0 to 2300 200 ±0.1% of span or ±1.0⬚C
W5 0 to 2300 200
<RTD>
Pt100 -200 to 850 10 ±0.1% of span or ±0.1⬚C
Ni100 -60 to 250 10
T02E.EPS
752 to 3308
-148 to 1832
-148 to 2192
-292 to 2502
-292 to 2372
-58 to 3200
-58 to 3200
-328 to 752
-148 to 1652
-328 to 1112
32 to 4172
32 to 4172
-328 to 1562
-76 to 482
⬚F⬚F(value whichever is greater)
360
90
90
90
180
360
360
90
90
135
360
360
18
±0.1% of span or ±0.2⬚C
DC Voltage
Resistance
-800 to 800 [mV]
0 to 7000 [Ω]
2.5 [mV]
25 [Ω]
±0.1% of span or ±0.01mV
±0.1% of span or ±0.1Ω
18DIN43760
IEC751

IM 01C50C03-01E
4
Cold Junction Compensation Accuracy(For T/C only)
±1°C(±1.8°F)
Ambient Temperature Effects (per 10°C Change)
For E, J, K, L, N, T and U thermocouple inputs:
±0.05% of span or ±0.25°C, whichever is greater
For R, S, B, W3 and W5 thermocouple inputs:
±0.05% of span or ±1°C, whichever is greater
For Pt100 and Ni100 RTD inputs:
±0.05% of span or ±0.05°C, whichever is greater
For DC voltage input:
±0.05% of span or ±5µV, whichever is greater
For Resistance(ohm) input:
±0.05% of span or ±0.05Ω, whichever is greater
Power Supply Effects
±0.005% of FS per Volt
RFI Effects
Tested per EN 61326, field intensity up to 10 V/m.
EMC Conformity
EN 61326
Maximum Zero Offset
±50% of the maximum temperature
Input Signal Source Resistance (for T/C input)
10 MΩ, or 3 kΩat power-off
Input Lead Wire Resistance (for RTD input)
5 Ωper wire or lower
Burnout
High(NAMUR NE43 upscale) , Low(NAMUR NE43 downscale) or value
within 3.5 to 20 mA
Output
Two wire 4 to 20 mA DC
Response Time
1to 60 sec programmable
Ambient Temperature Limits (Option code may affect limit)
–40 to 85°C (–40 to 185°F)
Ambient Humidity Limits
5 to 90% RH at 40°C (104°F)

IM 01C50C03-01E 5
Supply Voltage
8 to 35 V DC
8 to 30 V DC for Intrinsically safe type
13.8 to 35 V DC for digital communication
Load Resistance
Limitation: 0 to (E–8)/0.0236 [Ω], where E is power supply voltage.
Isolation
Input/output isolated to 1500 V AC.
Mounting
DIN form B head mounting
Terminals
M3 screws
Weight
50 g(0.11 lb)
5.BLOCK DIAGRAM
mV
mV TC
MUX
4 mA
supply +
8–35VDC
supply
-
4–20 mA
HART
Comm.
CPU
EEPROM
A/D
D/A
PGA
Int.
CJC
RTD.lin.R
- Wire
+
-
+
-
4 3 2
6
2
1
5
4
3
0_16
mA
F01E.EPS
A
YTA70
6.WIRING
See wiring diagram. For output signal, use twisted pair or cables with
performance equivalent to 600V vinyl insulate cable. For wiring in high or
low temperature, use a wire or cable suitable for such temperature. Use
cables and wires which meet atmospheric conditions. Take necessary
measure to avoid corrosion or damage of cables and wires.
IMPORTANT
When mounting on a sensor head, do not overtighten the screws.

IM 01C50C03-01E
6

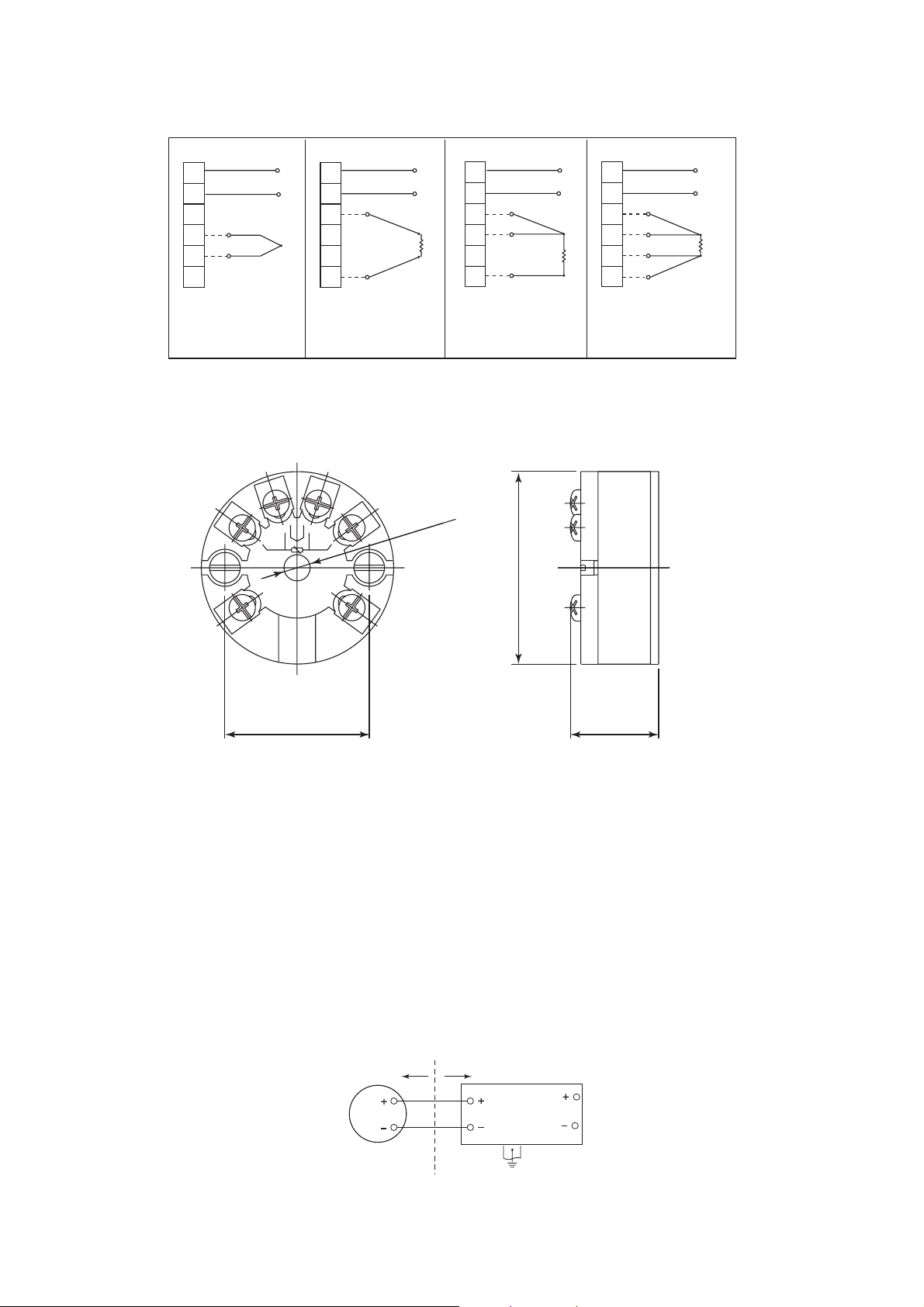

■WIRING DIAGRAM
T/C or
DC milivolts
Two-wire
RTD or ohm
Three-wire
RTD or ohm
Four-wire
RTD or ohm
1
2
3
4
5
6
(–)
(+)
(B)
(B)
1
2
3
4
5
6
(B)
(B)
1
2
3
4
5
6
(B)
(A)
SUPPLY
1
2
3
4
5
6
(A)
(A)
(A)
(–)
(+)
SUPPLY
(–)
(+)
SUPPLY
(–)
(+)
SUPPLY
(–)
(+)
F03E.EPS
■DIMENSIONS
6
54
3
21
3
-
+
-
+
(0.80)
(0.24)
20.2
33 (1.30)
φ44 (1.73)
φ6
Unit : mm (approx. inch)
F02E.EPS
7.SAFETY APPROVALS
7.1 CENELEC ATEX(DEMKO) Intrinsically safe model
(/KS2, /DS2)
Certificate: DEMKO 01 ATEX 130870
Applicable Standard: EN 50014, EN 50020, EN 50284
Non-Hazardous Location
Hazardous Location
YTA70 Safety
Barrier
F04E.EPS
[ Installation diagram ]

IM 01C50C03-01E 7
Intrinsically safety rating(maximum value)
Output/Power supply :
Ui=28 V, Ii=120 mA, Pi=0.84 W, Ci<1 nF, Li<10 µH
Sensor :
Uo=9.6 V, Io=28 mA, Po=67 mW, Co<3.5 µF, Lo<35 mH
Applicable in Zone
0, 1, or 2
Maximum Ambient Temperature
For T1-T4: 85°C, For T5/T6: 60°C
7.2 FM Intrinsically safe model (/DS2)
Applicable Standard: FM 3600, FM 3610, FM 3611, FM 3810
Installation diagram
see note 1,2
see note 1,2
Non-hazardous
Locations
Hazardous Locations
YTA70 Safety
barrier
Class I,
Div. 1,Groups A,B,C,D
Power supply
buit into
receiver
Seperate
Power supply
+ -
Seperate
Power supply
-+
Receiver
Non-hazardous
Locations
Hazardous Locations
YTA70 Safety
barrier
F08E.EPS
[ Connection with power supply buit in receiver ]
[ Connection with seperate power supply and receiver ]
Class I,
Div. 1,Groups A,B,C,D
+
-
+
-
-
+
-
+
Output
Standard 4 to 20 mA loop
Note
1. Maximum entity parameters ;
VMAX=30 VDC, IMAX=120 mA, PMAX=0.84 W, CI=1 nF, LI=10 µH
2. Maximum power PMAX=0.84 W is limited by the resistor in the barrier.
If VOC=28 V, the resistor shall be more than 233.3Ω.
If VOC=30 V, the resistor shall be more than 250.0Ω.

IM 01C50C03-01E
8
8.HART COMMUNICATION
8.1 Connection and Requirements
A standard HART communicator can be used for programming the YTA70.
The HART communicator must be loaded with the appropriate DDL driver
for YTA70.
Minimum loop resistance is 250Ω. If the receiving equipment has a lower
resistance, a serial resistor must be inserted to communicate with the
HART communicator.
HART
communicator
HART
communicator
HART
communicator
YTA70 Distributor
Control room
Terminal board
Relaying
terminals
F05E.EPS
+
-
Connection
(Ω)
Power supply voltage E (V DC)
600
250
R
8.0 13.8 21.8
External
load
resistance
E-8
0.0236
R=
Digital
Communication
range
F06E.EPS
35.0
Communication requirement

IM 01C50C03-01E 9
8.2 Parameters
1.Device
setup
2.PV
3.Electr
4.Snsr1
5.PV AO
6.PV %rnge
1.Process
Variable
2.Diag/
Service
3.Basic
Setup
4.Detailed
Setup
5.Review
1.PV
2.Electr
3.Snsr1
4.PV AO
5.PV % rnge
1.PV LRV
2.PV URV
3.PV unit
4.LSL
5.USL
1.PV
2.Snsr1
3.PV unit
4.Sensor setup
5.Sensor info
1.PV AO
2.Output rnge
3.Sensor error
values
4.Loop test
5.Scaled
D/A trim
6.D/A trim
7.Override
D/A trim
1.Poll addr
2.Num req preams
3.Num resp preams
1.Process
sensor
2.Electr
1.Sensor config
2.Error detection
3.Cable
resistance
4.Snsr s/n
1.Broken sensor
2.Shorted sensor
1.Sensor errors
2.ADC errors
3.Misc. errors
1.Range values
2.D/A trim
3.Scaled
D/A trim
4.Override
D/A trim
1.Write protect
2.New password
1.Analog
output
2.HART
output
1.Status
2.Loop test
3.Calibration
4.Write
Protection
5.Read
max/min log
6.Reset
max/min
Online Menu
(Device setup) (Process Variables)
(Diag/Service)
1.Tag
2.Range
values
3.Sensor
config
4.PV Damp
5.Snsr s/n
(Basic Setup)
1.Sensors
2.Signal
condition
3.Output
condition
4.Device
information
(Detailed setup)
(Status)
(Calibration) (Range values)
1.PV LRV
2.PV URV
3.PV unit
4.LSL
5.USL
(Range values)
(Sensors)
1.PV LRV
2.PV URV
3.PV unit
4.PV % rnge
5.PV Damp
(Signal condition)
(Process sensor)
(Output condition)
(HART output)
(Analog output)
1.USL
2.LSL
3.Min span
1.AO 0%
2.AO 100%
3.AO lo lim
4.AO up lim
(Output range)
(Sensor error values)
(Sensor setup)
1.Enter value
2.Measure value
(Cable resistance)
1.Br(Sh) sensor
2.NAMUR down
3.NAMUR up
(Broken/shorted
sensor)
F07E.EPS

IM 01C50C03-01E
10
Parameters List(1/3)
Item Selection/ Setting Range Initial
Setting
HART
Communicator
Measured variables in engineering
unit.
Te r minal temperature
Output value in mA
Output value with respect to the
range in %
Reads the maximum / minimum PV
stored in the memory
Clears the PV maximum / minimum
log and restart logging
Lower / upper range value to
defines the 0% /100% value of the
measurement
Shows the max. / min. usable value
for upper / lower range value
Engineering unit to be displayed
with such digital value as PV, URV,
LRV, USL, LSL,min.span, etc.
Damping time constant in seconds
applied to the digital value.
0 to 62.5(s) [see note in page 11.]
Sensor type and related settings.
[When T/C or milivots is selected ]
Always select "single" for a
measurement type.
[When RTD or ohm is selected ]
Always select 2-,3- or 4-wire but
others for the number of sensor
wires.
For RTD only. Leave it to "1".
For T/C only. Always leave it to
"1.internal sensor".
Type of sensor errors to be
detected for burnout operation.
(1)No test performed, (2)broken
sensor, (3)shorted sensor, or
(4)broken & shorted
Enter new value of the RTD/ohm
cable resistance for compensation.
Actually measure the cable
resistance of 2-wire RTD/ohm for
compensation.
Minimum settable span
PV
Electr
PV AO
PV % rnge
Read
max/ min log
Reset
max/min
PV LRV /
PV URV
LSL / USL
PV unit
PV Damp
Sensor type
(wire, unit)
RTD factor
Cold Junction
Compensation
Error detection
Enter value
Measure value
Min.span
Process
Variable
Signal
Condition
Sensor
Setup
Process
Variable
Output
value
PV Log
Range
value
Range
Limit
Unit
Damping
Sensor
config
Sensor
Errors
Cable
resistance
Minimum
span limit
T03E_1.EPS
—
—
—
—
—
—
LRV: 0
URV:100
(note1)
—
°C
0.43(s)
(note1)
Pt100
3-wire
°C
(note1)
1
Internal
sensor
broken
sensor
5 (ohm)
—
—
Note 1) Or as specified upon ordering.

IM 01C50C03-01E 11
Parameters List (2/3)
Item Selection/ Setting Range Initial
Setting
HART
Communicator
Output value for 0%(100% ) in mA.
Output lower(upper) limit in mA.
NAMUR, or 3.8 to 23mA
Enter or select the output value
when sensor error is detected.
NAMUR upscale, NAMUR
downscale, or value within 3.5 to
23mA
Change the output manually for
testing the loop.
4mA, 20mA, or value within 3.5 to
23mA
Show error status related to a
sensor. When any one of the
errors turns "ON", check the
sensor and wiring.
Show error status related to analog
to digital conversion. When any
one of the errors turns "ON", Re-
power the device. If error remains,
replace the device.
Show error status related to a
device. When any one of the
errors turns "ON", Re-power the
device. If error remains, replace
the device.
Write-protects the device, if correct
password is entered.(note 2)
Sets a new password for wirte
protection, if correct password is
entered.
Allows the calibration of a selected
analog output with an external
reference at the operating
endpoint.
Allows the calibration of the analog
output with the external reference
which is scaled at 0 to 100%.
Overrides any previous D/A
trimming by restoring factory
calibration values.
AO 0%(100%)
AO lo(up) lim
Sensor Error
values
Loop test
Sensor errors
ADC errors
Misc. errors
Write protect
New password
D/A trim
Scaled D/A
trim
Override D/A
trim
Output
Condition
Diagno-
stics
Calibra-
tion
Analog
Output
range
Error
status
Write
protection
Apply trim
Clear trim
T03E_2.EPS
4 (0%)
20 (
100% )
NAMUR
NAMUR
upscale
[high]
(note1)
—
—
—
—
Not
protected
—
—
—
—
Note 1) Or as specified upon ordering.
Note 2) The initial setting of password upon shipment is "********".

IM 01C50C03-01E
12
Parameters list (3/3)
Item Selection/ Setting Range Initial
Setting
HART
Communicator
Manufacturer identification code
Model name
Ta g number, up to 8 alpha-
numerical characters.
Text which can be used by user in
any way. Up to 16 alpha-numerical
characters
Text which can be used by user in
any way. Up to 32 alpha-numerical
characters
Date information. MM/DD/YY.
Not inclemented. The date is
updated whenever changing
configuration via PC configurator.
Indicates whether the device is
write-proteced.
Not used.
Not used.
—
Software/hardware revision
number
Error stauts (see "Error status" in
this table.)
List of input variables
List of output variables
See "Device information" in this
table.
Manufacturer
Model
TAG
Descriptor
Message
Date
Write protect
Snsr s/n
Final
assembly
number
Distributor
Revision #'s
Status
Input info
Output info
Device
information
Device information
Review
T03E_3.EPS
Yo k ogawa
YTA70-E
—
—
—
Factory
calibra-
tion date
Not
protected
0
0
Yo k ogawa
—
—
—
—
—

◆Revision Record
● Manual No. : IM 01C50C03-01E
● Title : YTA70 Temperature Transmitter
Edition Date Page Revised item
1st
2nd
3rd
4th
5th
6th
Mar. 1999
Jun. 1999
Feb. 2000
Mar. 2002
July 2003
Feb. 2007
—
1
6
10
2,3
4
9
11
1
2
1,5,6
2,3,6
New Publication
Add code "/DS1" in the table
Add "7.2 FM intrinsically safe model"
Add "note 2" .
Revise accuracy & temperature effect.
Correct "Isolation".
Add explanation
Add "Note".
Change Optional code KS1 and DS1 to KS2
and DS2 respectively.
Add description(4) based on ATEX directives.
Delete code "/KS1" and "/DS1".
Add handling precaution.
Change specifications of FM Intrinsically safe
model.

Nov. '06
YOKOGAWA ELECTRIC CORPORATION
Headquarters
2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN
Branch Sales Offices
Nagoya, Osaka, Hiroshima, Fukuoka, Sapporo, Sendai, Ichihara, Toyoda,
Kanazawa, Takamatsu, Okayama, and Kitakyusyu.
YOKOGAWA CORPORATION OF AMERICA
Headquarters
2 Dart Road, Newnan, Georgia 30265-1094, U.S.A.
Phone : [phone] Fax : [phone]
YOKOGAWA EUROPE B. V.
Headquarters
Databankweg 20 Amersfoort 3821 AL, THE NETHERLANDS
Phone : [phone] Fax : [phone]
Branch Sales Offices / Wien (Austria), Zaventem (Belgium), Ratingen (Germany),
Madrid (Spain), Runcorn (United Kingdom), Milano (Italy), Velizy Villacoublay (France),
Roodeport (Republic of South Africa), Budapest (Hungary), Stockholm (Sweden)
YOKOGAWA AMERICA DO SUL Ltda.
Head Office
Praca Acapulco, 31 - Santo Amaro. Sao Paulo/SP - BRAZIL
Phone : [phone] Fax : [phone]
YOKOGAWA ELECTRIC ASIA PTE. LTD.
Head Office
5 Bedok South Road, 469270 SINGAPORE
Phone : [phone] Fax : [phone]
YOKOGAWA ELECTRIC KOREA CO., LTD.
Head Office
14-1, Yangpyongdong-4Ga, Youngdeungpo-Gu, Seoul, 150-866 KOREA
Phone : [phone] Fax : [phone]
YOKOGAWA AUSTRALIA PTY. LTD.
Head Office (Sydney)
Tower A, 112-118 Talavera Road, Macquarie Park, N.S.W.2113, AUSTRALIA
Phone : [phone] Fax : [phone]
YOKOGAWA INDIA LTD.
Head Office
Plot No.96 Electronic City Complex, Hosur Road, Bangalore 560100, INDIA
Phone : [phone] Fax : [phone]
YOKOGAWA CHINA CO., LTD.
K. Wah Centre 29F, 1010 Huai Hai Zhong Rd., Shanghai 200031, CHINA
Phone : [phone] Fax : [phone]
