5. Configuration and work mode
5.1 Adding devices
www.sukcesgroup.pl
Information on how to add radio receiver can be found in instruction of that device.
Recently performed action is marked in the app.
As radio receivers can be controlled with different devices with app, recently performed action may not represent the state
of the radio receiver status.
Widgets can be created for app installed on Android system.
Widgets allow for different devices to be controlled even more easily without the need to run the app. It can be switched
between local network and remote access service, the size of the widget can be changed. It is functional and makes it
easier for different devices even faster - e.g. when driving into the garage less focus is needed to control the app.
5. Configuration and work mode
5.2 Controlling devices
In the ‘Settings’ tab press ‘Devices’. Tap ‘Add device’. Choose type of the device and
specify its name, than press ‘Next’.
Using programming button ‘Prog’ and
controlling buttons add device using
instruction of the radio receiver.
Yooda SmartControl
Devices groups
LAN
Network connections
Date, time
Advanced
My home My scenarios Settings YOODA shop
Yooda SmartControl
Roller blind
Projection screen
Curtain 1
Curtain 2
Light
Socket
Gate
Close
Yooda SmartControl
Device
Cancel
The name of the device must be unique, other
device cannot share the same name.
Impulse mode
deactivated
Yooda SmartControl
Device
OK
Impulse mode
Device control
deactivated
Device type
Device name
Outside shutter
Bedroom
Devices
Add device
Prog
Device type
Device name
Outside shutter
CancelNext
Controlling of the devices can be
performed by using controlling
buttons. There are 4 types of
control depending on the device.
1. Standard control
Control is performed via three
buttons – ‘UP’, ‘STOP’, ‘DOWN’.
This mode is best to control roller
shutters or roller blinds, horizontal
blinds, projection screen, roller gate
etc.
2. Horizontal control
Control is performed via three
buttons – ‘OPEN’, ‘STOP’, ‘CLOSE’.
(e.g. curtains, awnings or pergolas).
Yooda SmartControl
Device
Device control
deactivated
Device type
Device name
Outside shutter
Bedroom
Prog
impulse mode
OK Cancel
3. On / off control
Device is controlled by two witches
- on and off, e.g. lighting, power
socket.
4. Step-by-step control
Device is controlled with a single
switch, e.g. sectional garage door,
up and over garage door,
double-leaf garage door, sliding
gate, garden watering system.

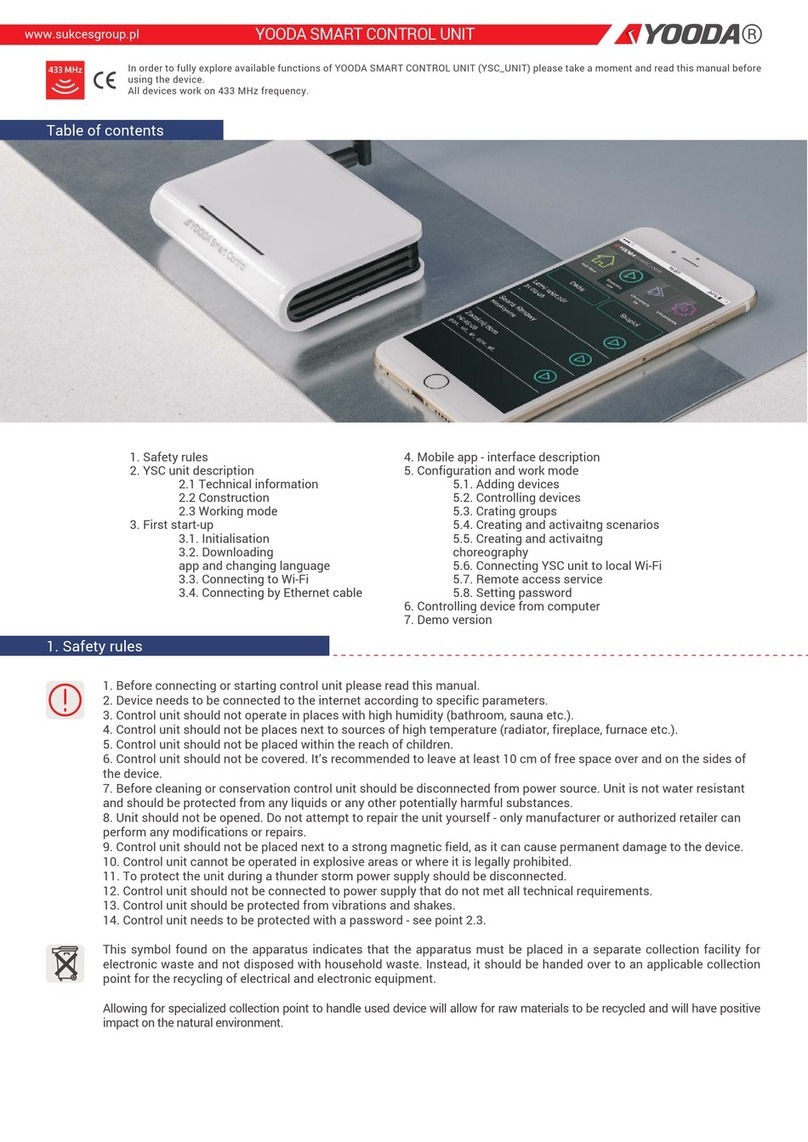

YOODA SMART CONTROL UNIT
In order to fully explore available functions of YOODA SMART CONTROL UNIT (YSC_UNIT) please take a moment and read this manual before using
the device.
All devices work on 433 MHz frequency.
5. Impulse control
Some devices, such as roller blind
and horizontal blind, can be
controlled using impulse mode.
Before choosing this type of
control device needs to be set to
impulse as it is described in its
instruction. Activating impulse
mode changes control buttons.
Control buttons will be sending
amount of impulses equal to the
length of uninterrupted time of button
being pushed. Motor works as long
as the button is being pushed.
Pushing button longer than for
2 seconds will result in moving
the shade to its limit position.
