YOSensi AgriBox User manual

AgriBox
1. Unscrew the device: remove 4 screws from the enclosure.
2. Unscrew the cable gland and remove the caps.
1
Quick Installation Guide
4
Version 2 - February 2021
8. Status, colour and behaviour of the diode (if the device is properly
connected):
Device is working correctly (power and memory) - single GREEN ash
Device is working incorrectly (power and memory) - single RED ash
Connecng to LoRaWAN - ashing BLUE
LoRaWAN frame sent - single WHITE ash
Conrmaon from the server aer receiving the frame - single
WHITE ash
Frame failed to conrm within specied meout - single RED ash
LoRaWAN Disconnected - ashing BLUE
Connecng to BLE - ashing BLUE
3. Pull the soil moisture sensor through the cable gland. You can
connect one, two or three soil moisture sensors as required.

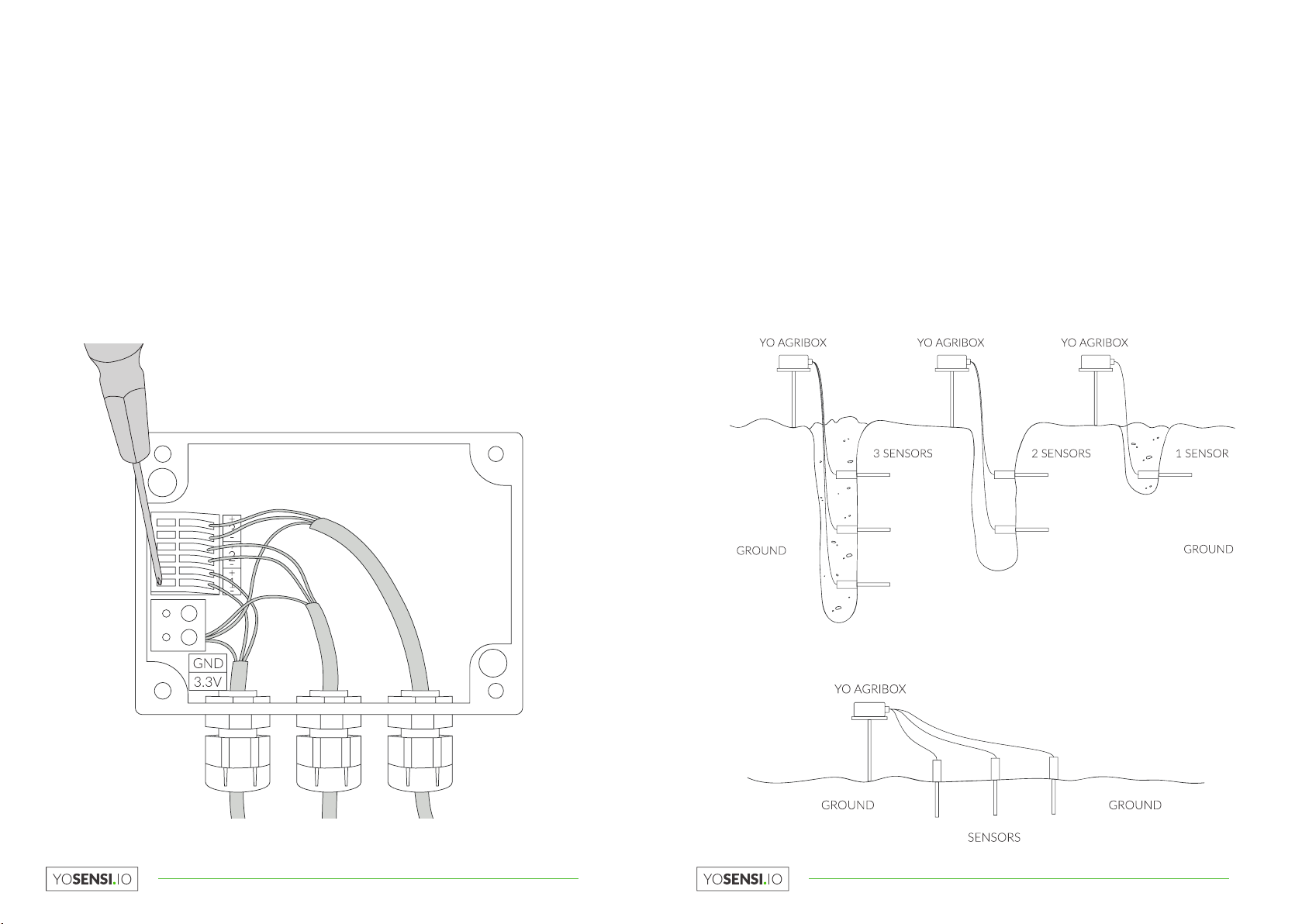

4. The soil moisture sensors should be connected according to the
markings: the sensor placed in CH1 (mark on the enclosure) should be
inserted into the connectors marked „1” on the PCB etc.
Press the spring contact and insert the appropriate wire into the
corresponding slot in the connector:
brown wire (GND) - selected channel marked with „-” symbol
green wire (OUT) - selected channel marked with „+” symbol
Connect the white cable (VCC) to the 3,3 V socket.
Tighten the cable gland to immobilize the external sensor wires
and maintain ghtness.
32
7. The accuracy of the reading depends on the correct installaon of
the sensor in soil. Depending on the needs there are several
possibilies of sensor installaon.
Pictures A,B,C: the measuring probes can be completely buried and
can be placed at dierent depths in the soil. Soil moisture can be
measured with one, two or three sensors.
It is also possible to place the sensors without burying them as in
picture D.
A B C
D
5. Place three AA baeries in the device.
6. Assemble the device and screw it back together.
