Owner’s Manual
E-SCOUT

1
Table of Contents
ABOUT THIS MANUAL............................................................................................................. 2
YOUNG ELECTRIC BICYCLE OVERVIEW…..................................................................................3
SPECIFICATIONS….....................................................................................................................4
SAFETY PRECAUTIONS............................................................................................................. 5
ASSEMBLLY INSTRUCTIONS….............................................................................................. 6-18

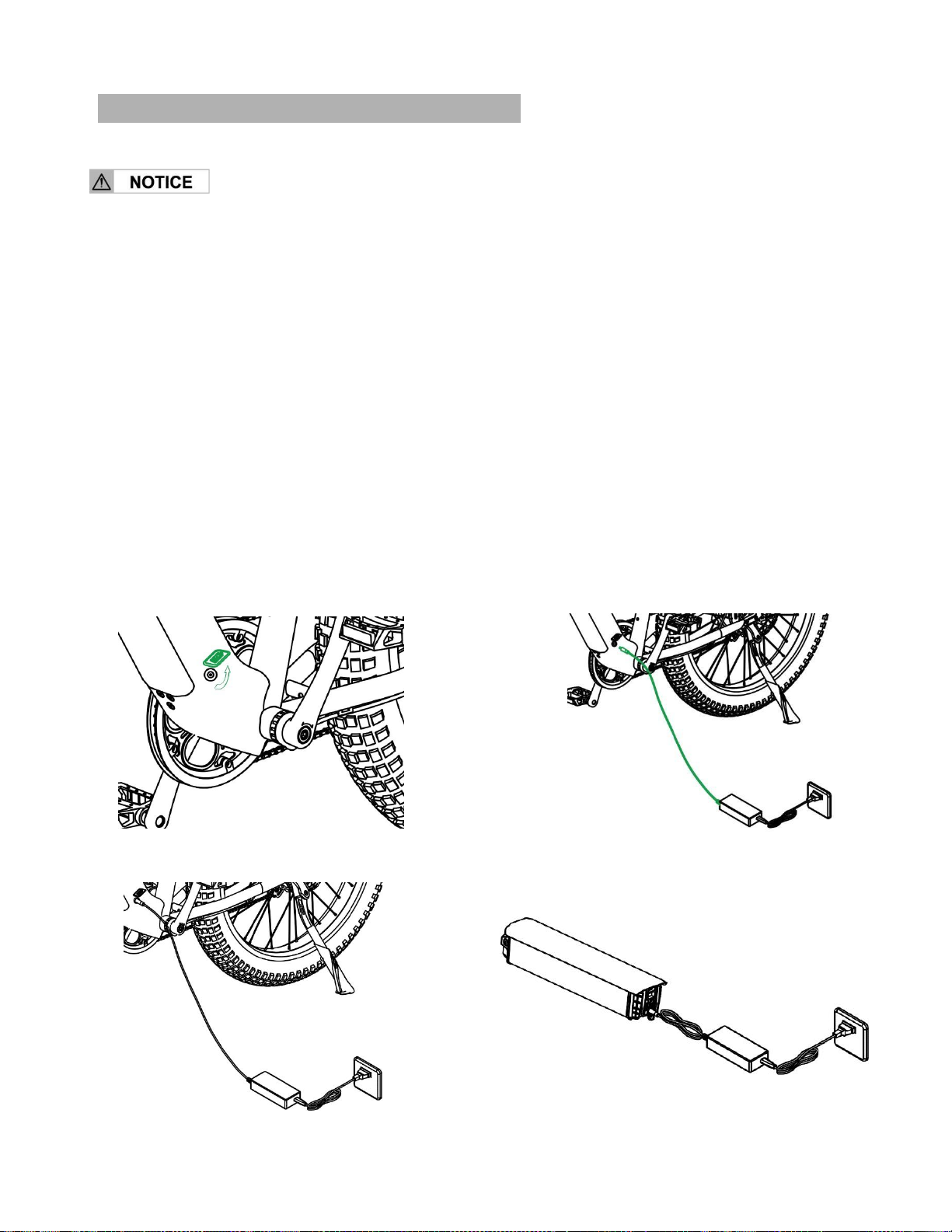

BATTERY CHARGING & STORAGE…................................................................................... 19-22
PRE-RIDING CHECK…..........................................................................................................23-25
HMI CONTROL….................................................................................................................26-28
MAINTANCE….................................................................................................................... 29-33
SERVICE PARTS....................................................................................................................34-35
LIMITED WARRANTY...........................................................................................................36-38

2
YOUNG ELECTRIC is not liable for accidentsor injuries due to improperuse of the product,failureto adhere
to theinstructions given in this guide,or modifications to the product. While every effort has been made
to ensure that the information contained in the guide is accurate and complete, YOUNG ELECTRIC is not
liable for any errors or omissions.
THANK YOU FOR CHOOSING A YOUNG ELECTRIC BICYCLE !
YOUNGELECTRICbikes are designed tomake your ridingexperiencea pleasure. Carefully read this
Owner’s Manualbefore assembly and first ride. It will give you all the information necessary for
assembly, adjusting, and maintenance of your bike.
YOUNGELECTRICworkshard to guarantee you a bicycle thatisproperlyassembled and correctly adjusted
when itleavesourfactory. Please contact our Help Center if you still have questions about your new
bikeafter reading this manual. Our customer service staff will work to answer questions regarding
assembly, performance, operation,service parts or general service.
Email: [e-mail]
About this Manual:
Keep this Owner’s Manual in a safe place for future reference. All content in this manual is subject
to change as we continually work to refine our products.
This manual contains warnings, cautions, and notes for your safety. Carefully read all of this
information and share with others that may ride this bike before attempting to operate the bike for
the first time. Give special attention to any information that has a warning or caution symbol before
or next to it. Also pay attention to any information preceded by NOTICE as this will be important
information that may not be related to safety.
Always properly maintain and care for your bicycle so original quality and safety are retained.
Maintenance, adjusting and repairs
To reduce the risk of accidents and injury, regularly inspect your bicycle and have it repaired at our
authorized distributors or after sales service shop. Assembly and adjustment of this bike may
require special tools and skills. It is recommended that assembly and adjustment of this bike be
completed by a certified, reputable bike mechanic if possible.
All users must read and understand this manual before riding their bike from A YOUNG ELECTRIC Bike.
Additional manuals for components used on the bike may also be provided and should be read
before installing or using those components.

3
OVERVIEW
A
Grip
H
Headlight
O
Rear Wheel
V
Rear Hub Motor
B
Shift Lever
I
Suspension Fork
P
Rear Disc Brake
W
Front Fender
C
HMI Display
J
Front Wheel
Q
Front Disc Brake
X
Rear Fender
D
Remoter
K
Frame
R
Pedal
Y
Rear Rack
E
Throttle
L
Saddle
S
Crank Set
Z
Reflector
F
Brake Lever
M
Seat Post Clamp
T
Rear Derailleur
G
Handlebar
N
Seat Post
U
Kickstand

4
SPECIFICATIONS
Model Name
YOUNG ELECTRIC E-Scout
Max. Load Capacity
300Ibs./136kg
Max. Speed
28MPH
Motor
48V 750W Brushless Hub Motor
Battery
48V 15AH (720Wh) Li-ion
Light
Front
Wheel Size
26’’X4.0’’ Front/Rear
Tire Pressure
5-30 P.S.I. (0.4-2.1 BAR ; 40-210 KPA)
Charger
48V 2Ah
Charging Time
Approx.6-7 Hours
Water Resistance
IPX4
Weight
74lbs/33.3kg

5
SAFETY PRECAUTIONS
The following safety signal words indicate the following information is a safety message. The
symbols are to alert you to potential hazards. Failure to pay attention to the safety message may result
in property damage, injury or death. This manual contains many WARNING and CAUTION messages
related to safety and the potential hazard. It also contains NOTICE messages that information the
user should pay special attention to.
Indicates a hazard or unsafe practice that can result in severe injury or death if the user fails to read,
understand and follow the safety information in this manual.
Indicates a hazard or unsafe condition that could result in minor injury if the user fails to read,
understand and follow the safety information.
Indicates information that the user should pay special attention to but is not related to physical injury.
Always carry out a complete check before riding. Thoroughly read the safety section.
Electric Bicycles can be dangerous to use. The user or consumer assumes all risk of personal injuries,
damage,or failure of the bicycle or system and all other losses or damages to themselves and others and
to any property arising as a result of using the electric bicycle.
Never disassemble, modify or replace electrical parts.
Always wear an approved helmets when you are riding to protect your head in a fall. It is your
responsibility to familiarize yourself with the laws of where you ride your YOUNG ELECTRIC bicycle and
comply with all applicable laws.
If you are riding at night or in bad weather
Wear reflective and bright color clothing and/or a reflective vest. Check your bicycle headlight and
white reflector are in place and function properly. Check your rear red reflectors and wheels
reflectors are also in place.
Extra precautions must be taken if you will be riding your bike in the rain. Braking distances
increase during rain, visibility and tire traction are reduced. Allow extra stopping distance and take
extra caution in the rain and on wet surfaces. Avoid riding the bike on ice and in snow.
Access to pathways, responsible riding and code of good riding.
Do not consider access to pathways guaranteed. Your behavior on your next ride will influence
accessibility to pathways in the years to come. Limit skidding, avoid muddy areas and remain
courteous to walkers and horse riders.
All frames and components should be checked regularly Inspect for signs of wear and/or essential
breakage (cracks, corrosion, breaks). These are important safety verifications to avoid accidents, body
injuries and that your bike continues to last and give you pleasure.

6
13
ASSEMBLY INSTRUCTIONS
 YOUNG ELECTRIC Bicycle Assembly Checklist
1
E-Bike
4
Right Pedal
7
Charger
10
Headlight
13
Owner’s
Manual
2
Kickstand
5
Tools kit
8
Cable
11
Accessory Box
3
Left Pedal
6
Key x 2
9
Quick
Release Lever
12
Master Carton

7
 YOUNG ELECTRIC Bicycle Assembly Guide
The following assembly information is only a general guide to assist during the assembly of YOUNG
ELECTRIC bikes. It is not a complete or comprehensive manual of all aspects of the bike assembly,
maintenance, and repair. Consult a certified bike mechanic to assist with the assembly, adjustment,
repair, and maintenance of YOUNG ELECTRIC bikes.
Step 1: ATTACH THE KICKSTAND
Open shipping carton and carefully remove your bike from the bottom tray. Kickstand come with 2
bolts. Remove 2 bolts from kickstand with M4 hex key. Position the kickstand under the bike. Thread
the bolt with your fingers into the threaded hole in the kickstand and tighten it with M4 hex key .
Step ❶

8
Step 2:PREPARE TO ATTACH THE FRONT WHEEL
Gently place it on a soft surface to prevent scratches during assembly.
Remove all zip ties and inside protective covers or packing materials. (scissors not included)
Step 3: ATTACH THE FRONT WHEEL
Step ❷
Remove the front axle bolt and shipping bracket from front fork. Remove plastic caps from front
wheel hub. Insert the front wheel into the fork dropouts. Make sure the brake disc is centered in
the caliper to avoid damage. Insert the quick release axle bolt into the front wheel hub and tighten.
Do not over tighten the quick release and do not use any tools to increase leverage, close it firmly by
hand. There should be no play in the front wheel.
All quick-release levers should be inspected before every ride to be sure they are fully closed and
secure. Failure to properly close a quick-release lever can cause loss of control of the bicycle resulting
in injury or death. Make sure the wheel is properly seated and the quick-release lever is properly
closed.
 Assembly explosion diagram
Outer spring
Inner spring
Adjustment
Skewer
Quick-release

9


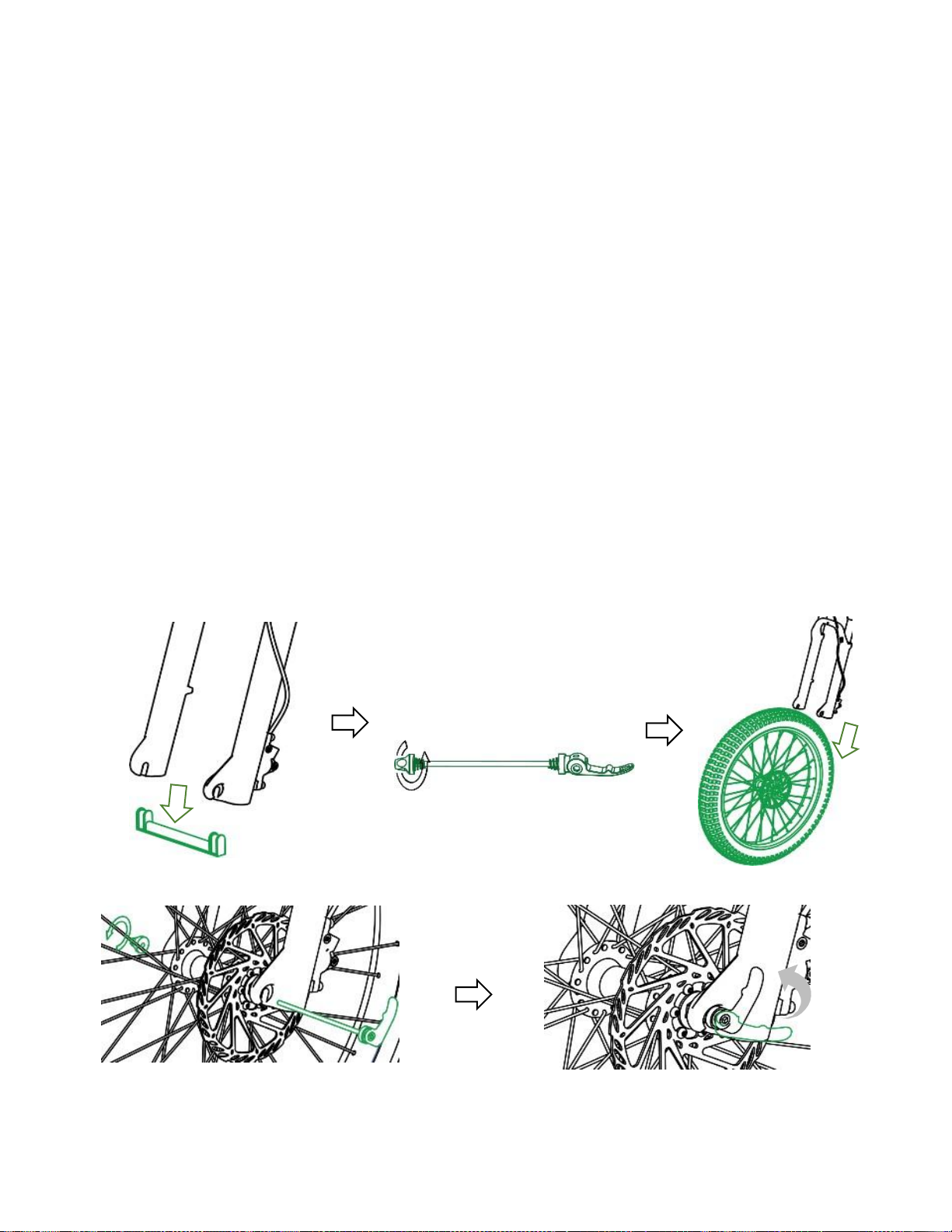

Installation guide
① Remove plastic caps from front wheel hub.
② Unscrew the adjustment nut from the skewer, remove outer spring and slide the skewer through
the front wheel axle so the quick-release lever is on the same side of the chain.
③ Begin to thread the adjustment nut back onto the skewer, but do not tighten too far. Allow
enough play so you can place the axle into the fork drop out.
④ Slide the wheel into the fork dropout slots. Insert the disc rotor into the center of the disc brake
at the same time you are inserting the wheel axle into the fork drop out.
⑤ Move the quick-release lever into the open position. With one hand on the quick-release lever
and one hand on the adjustment nut, start to hand tighten the adjustment nut until you start to
feel some resistance against the fork.
⑥Try to close the quick-release lever. If it closes easily, open it up and tighten the adjustment nut
further. If it is too difficult to close, open the quick- release lever up and loosen the adjustment
nut a little and try again. Do not attempt to tighten by turning the quick-release lever. The quick-
release lever is for closing, the adjustment nut is for adjusting the tension.
① ② ③
④ ⑤

10

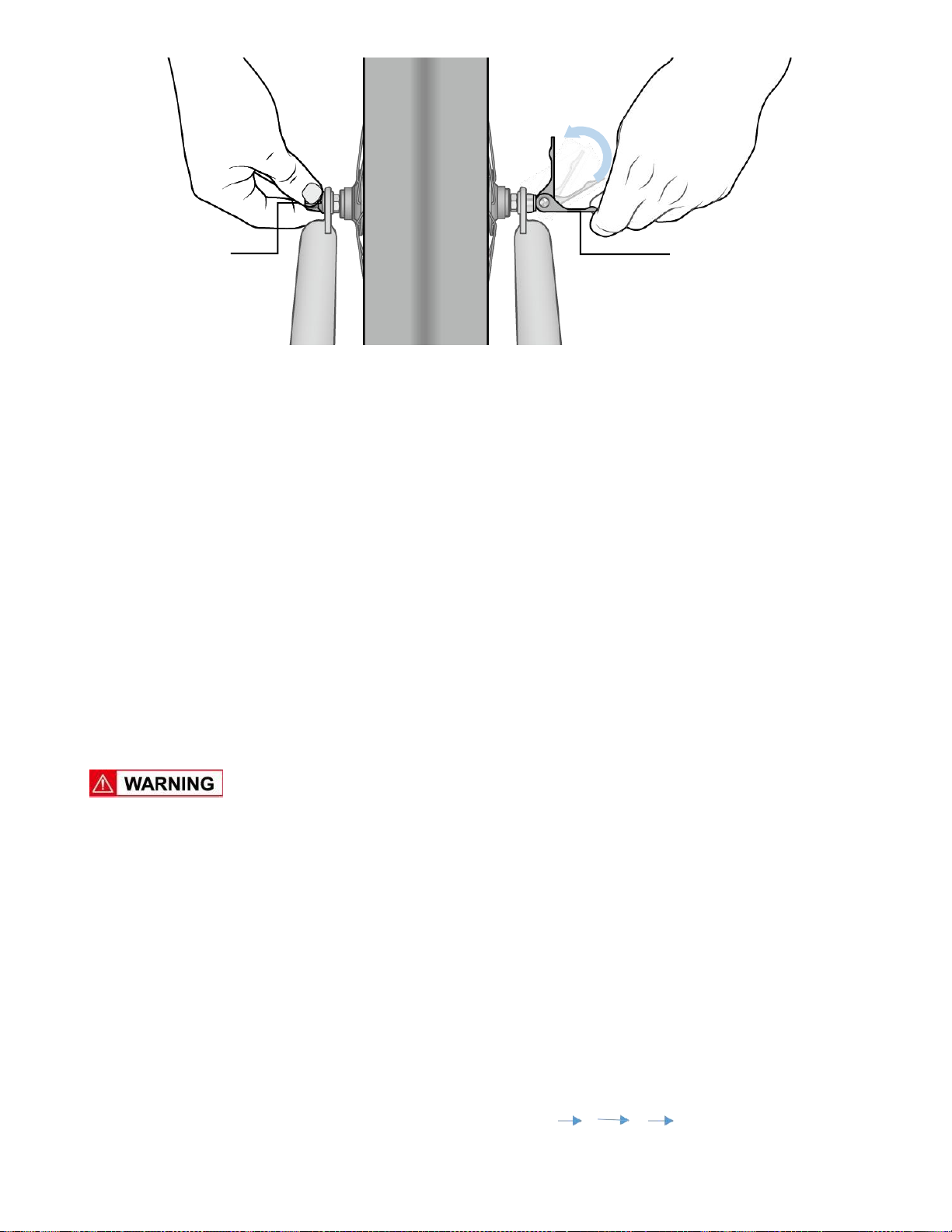

Quick- release
lever in closed
position.
Important!
Only tighten the
quick- release with the
adjustment nut.
Quick-release lever in the
open position.
⑥
Step ❸
Important! You should feel resistance when you close the quick-release lever that should leave a
temporary impression on your fingers. Open and close the handle to ensure the wheel is securely
locked in place.
Step 4: ATTACH THE HANDLEBAR
Remove the handlebar clamp from the stem by removing all screws with M5 Allen wrench. Insert
the handlebar into the stem and reinstall the clamp. Make sure the handlebars are aligned with the
front wheel before tightening and the stem is not set above the maximum height indicator. Tighten
all screws evenly in crosswise pattern. Make sure handlebars are in preferred position before final
tightening of screws. Tighten the 2 bolts on the stem. Make sure all screws are tightened evenly to
ensure maximum stability of handlebars.
Make sure all fasteners used to secure the handlebars and stem are torqued according to specification.
Loose handlebars could cause the rider to lose control and result in serious injury. Do not extend any
component beyond any minimum insertion mark. Damage to bike, property, serious injury or death
could occur.

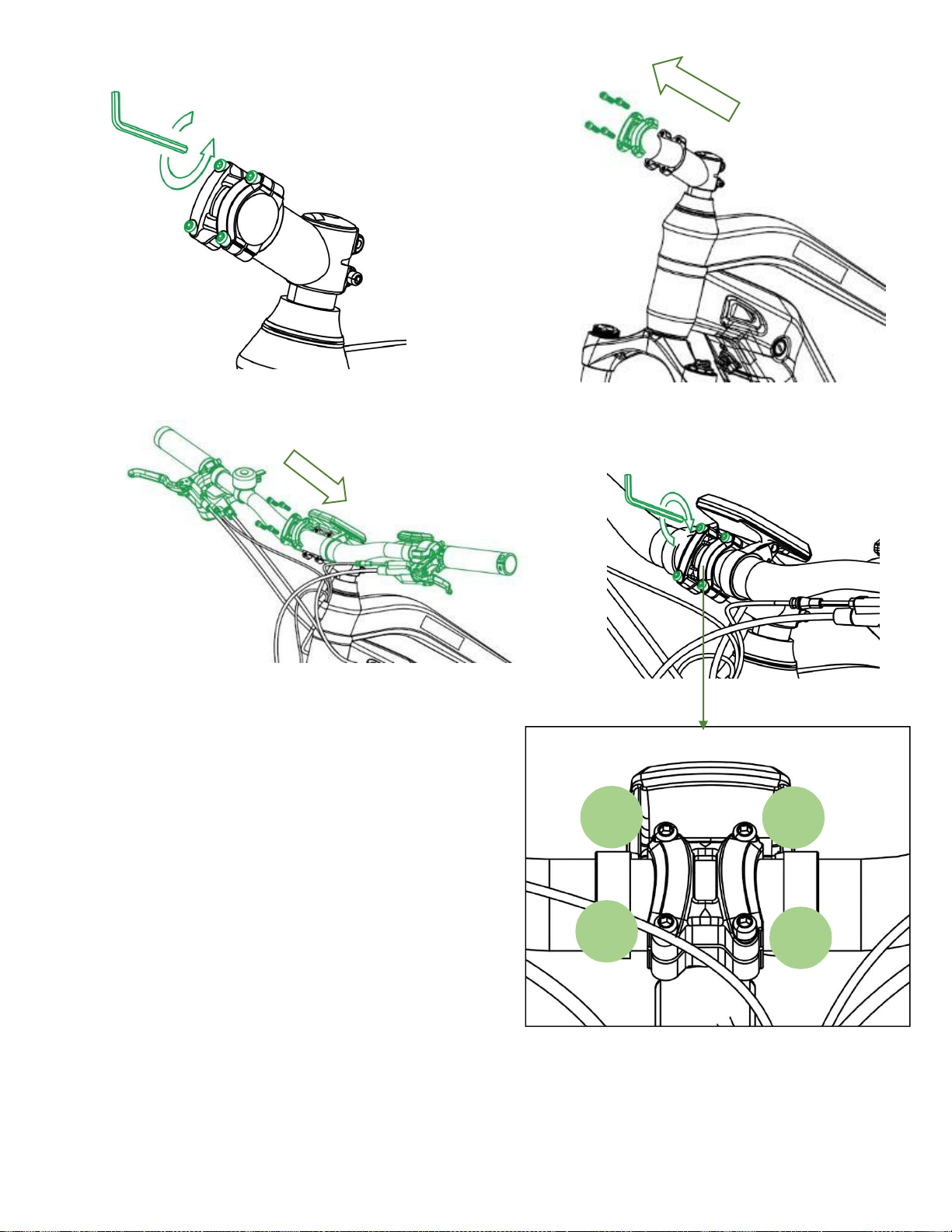

 Installation guide
①—② Remove all four stem faceplate bolts with M4 hex key.
③—④ Place the handlebar on the stem correctly. Center the handlebar and screw in the four stem
faceplate bolts evenly, however do not tighten all the way down for further adjustment.
Tighten 4 screws in diagonal with M4 hex key .（A B C D）

11
A
D
C
B
③
④
① ②
Step ❹

12
L
R

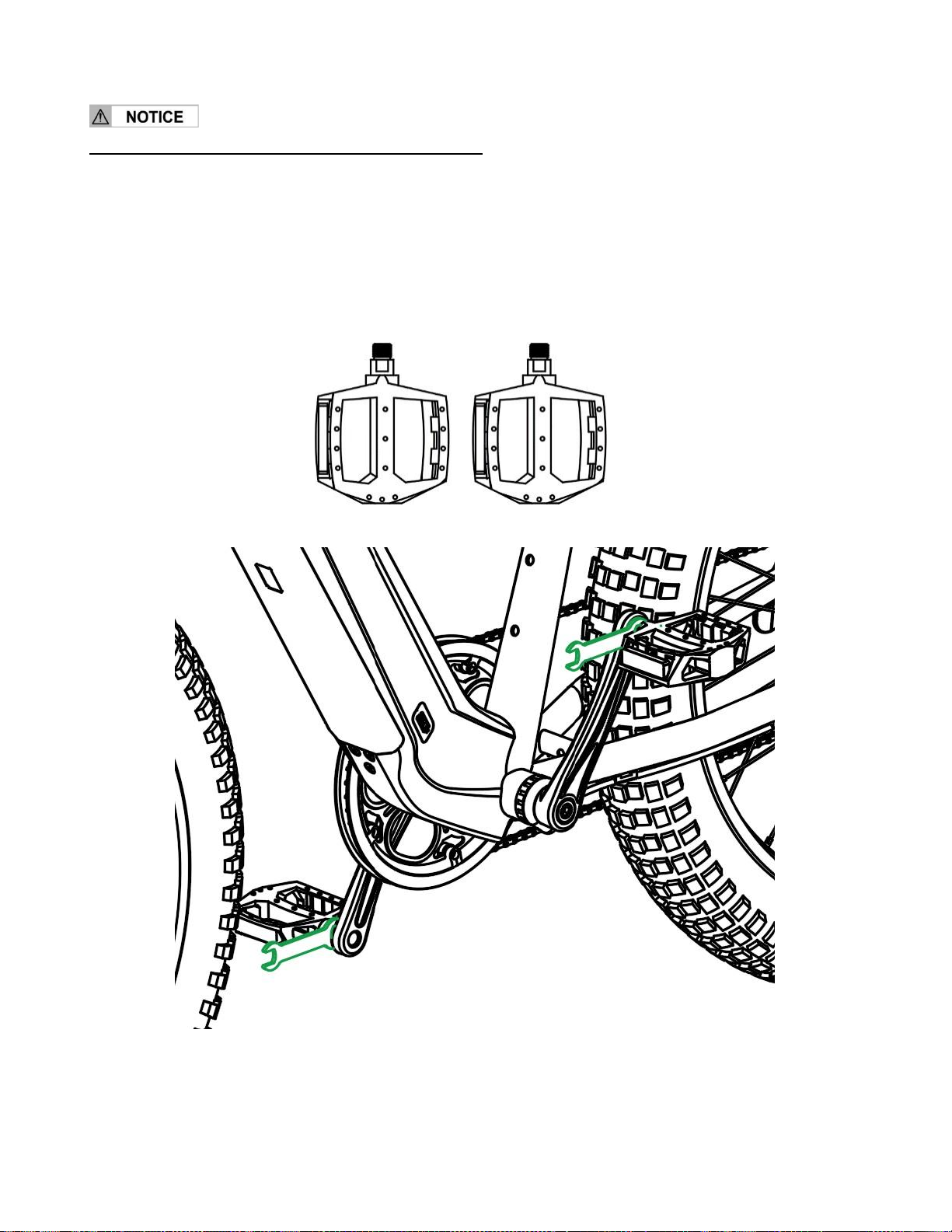

Step 5: ATTACH THE PEDALS
The pedals are marked “L” for Left and “R” for Right. Attachment of an incorrect pedal into a crank
arm can strip pedal threads and cause irreparable damage. Visually match the R and L stickers on the
pedal and crank arm before attaching the pedals. Before your first ride, please check to ensure your
pedals are attached correctly. It is very important that you check the crank set for correct
adjustment and tightness before riding your bicycle.
L
Step ❺
R

13
Step 6: ATTACH THE FRONT FENDER AND HEADLIGHT
After plugging the waterproof connector of the cable, tighten the nut on the plug to be sure to align
the upper arrow of the two connectors, and tighten the screw .
①Take the front fender and pass through the shoulder of the front fork from the front of the front
wheel.
②Position the front fender so the fender bracket is on the inside of the frame. Align the hole in the
bracket to the hole in the front of fork crown.
③Loose screw on the bottom of fork and insert the screw through the hole of the fender struts.
④Tighten the screws with M4 hex key.
⑤Unscrew the nut and gasket at the end of the long bolt and position the headlight bracket so the
bracket is on the inside of the frame. Align the hole in the bracket to the hole in the back of fork
crown.
⑥Pass the long screw through the hole in the fork along with the headlight bracket. Tighten the
screwed nut to the end of the long screw with M5 hex key and 10mm open wrench.
① ②
③ ④

14
⑤ ⑥
Connect Headlight ：Keep the arrows aligned and insert the connectors plug
Step ❻
Step 7: ADJUSTED SEAT HEIGHT
Loosen the seat post clamp bolt with M6 hex key . Adjust the seat post up or down to a comfortable
height, while ensuring the seat post is inserted into the frame past the minimum insertion point .For
your safety, the saddle should not be raised above the marker on the seat post.
The seat assembly should be adjusted with the seat centered on the rails and level. It is
recommended to add some grease to all threads and binders on a bicycle, especially on the outside of
the seat post. Otherwise it may corrode over time and not be able to be adjusted again.
Improperly adjusted seat height could affect the rider’s ability to reach the handlebar and pedals
resulting in unexpected movement, loss of control and serious injury or death. Follow these
guidelines when adjusting the seat height. Always ensure the seat post minimum insertion marks are
below the seat clamp and cannot be seen. Ensure the seat clamp is locked and the seat cannot move.

15
① ②
③
Step ❼
Torque Specs
Item
Nm
Item
Nm
Handlebar
5Nm
Seat post Clamp
6-8 Nm
Stem
8Nm
Pedals
25Nm

16

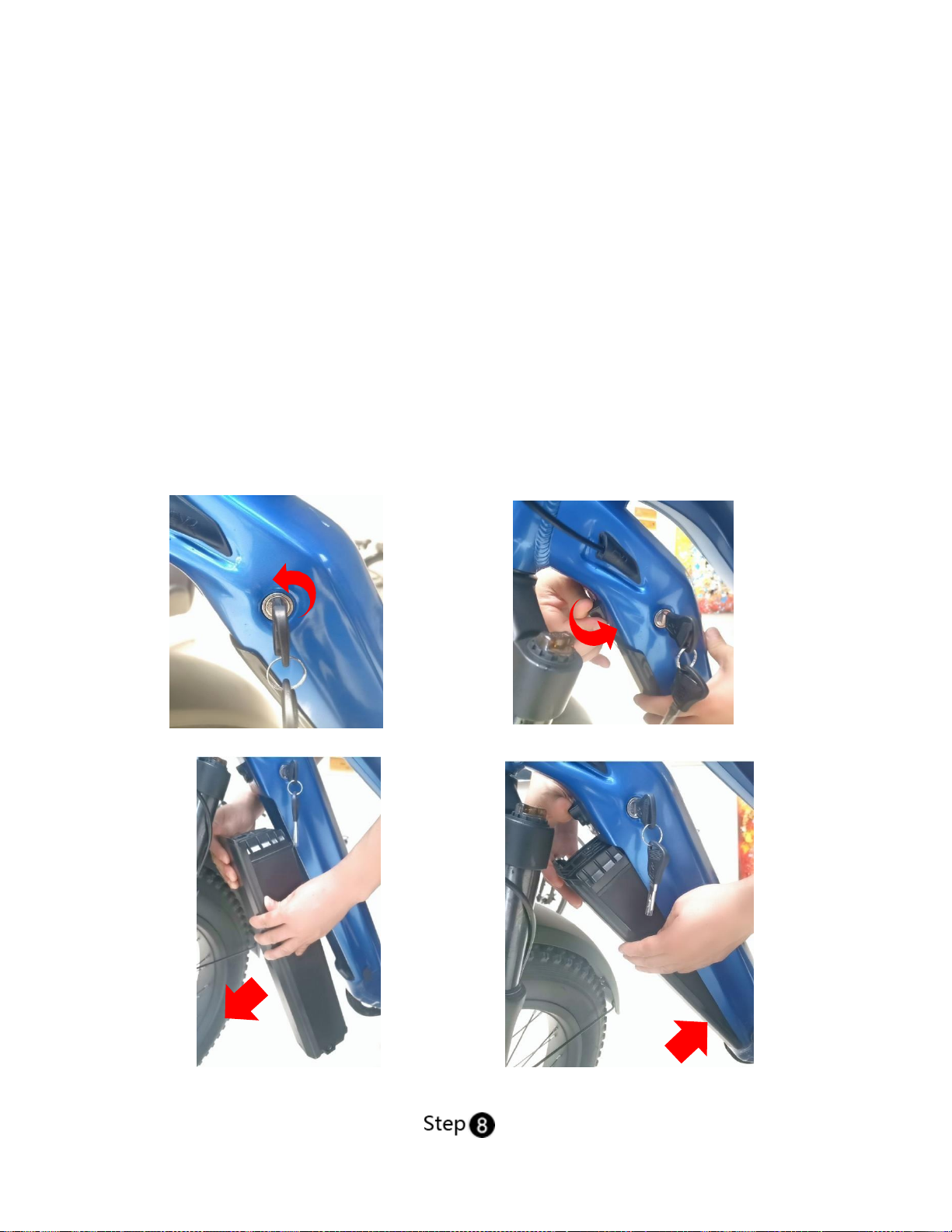

Step 8: BATTERY REMOVAL AND INSERTION
The battery must be installed by sliding the battery forward in the battery holder. The key locks the
battery to the bike when the key is turned clockwise to the locked position. The battery must be
locked when riding or it may fall out. The key does not have to be in to operate the bike.
① Insert the key and turn left to open the first lock.
② Turn the safety lock in the direction of the arrow shown while holding the top of the battery with
your other hand.
③ As shown in the picture, carefully remove the battery.
④ When installing the battery, first insert the low end of the battery into the internal slot of the
downtube to ensure that the terminals at the bottom of the battery and the slot inside the
downtube are inserted smoothly. Then push the upper end of the battery into the downtube and
turn the key to the right to lock it.
unlock①unlock ②
Remove ③Installing ④

17
Step 9:TURNING THE E-BIKE ON AND OFF
ON ：By pressing and holding the button , the display will start to work and the working power
supply of the controller will be turned on. If YOUNG ELECTRIC bikes is not used for more than 10
minutes, the display will be automatically powered off.
OFF ：In the power-on state, by pressing the button , YOUNG ELECTRIC bikes will be powered off.
In the power-off state, the display will no longer use the battery power, and its leakage current will be
less than 1uA.
Thumb Throttle : Bike can works on the assist level 1-5 except on 0 level when use the thumb
throttle.
Headlight :on/off
Assist Level Button
Function Setting Button
Headlight Button
Thumb Throttle
Power ON/OFF

18
Step 10: USING THE MOTOR ASSIST LEVELS

Motor Assist Mode：
1. Throttle Assist Mode (No Assist on PAS 0)；The power output is determined by the rotation of
the thumb throttle. None of the PAS level are associated with the throttle when using the
throttle assist mode .
2. Pedal Assist Mode (PAS 1-5) ；The power output from motor gradually increases on PAS 1-5
level. The maximum power output from motor will be on PAS 5 level and the minimum power
output from motor will be on PAS 1 level.


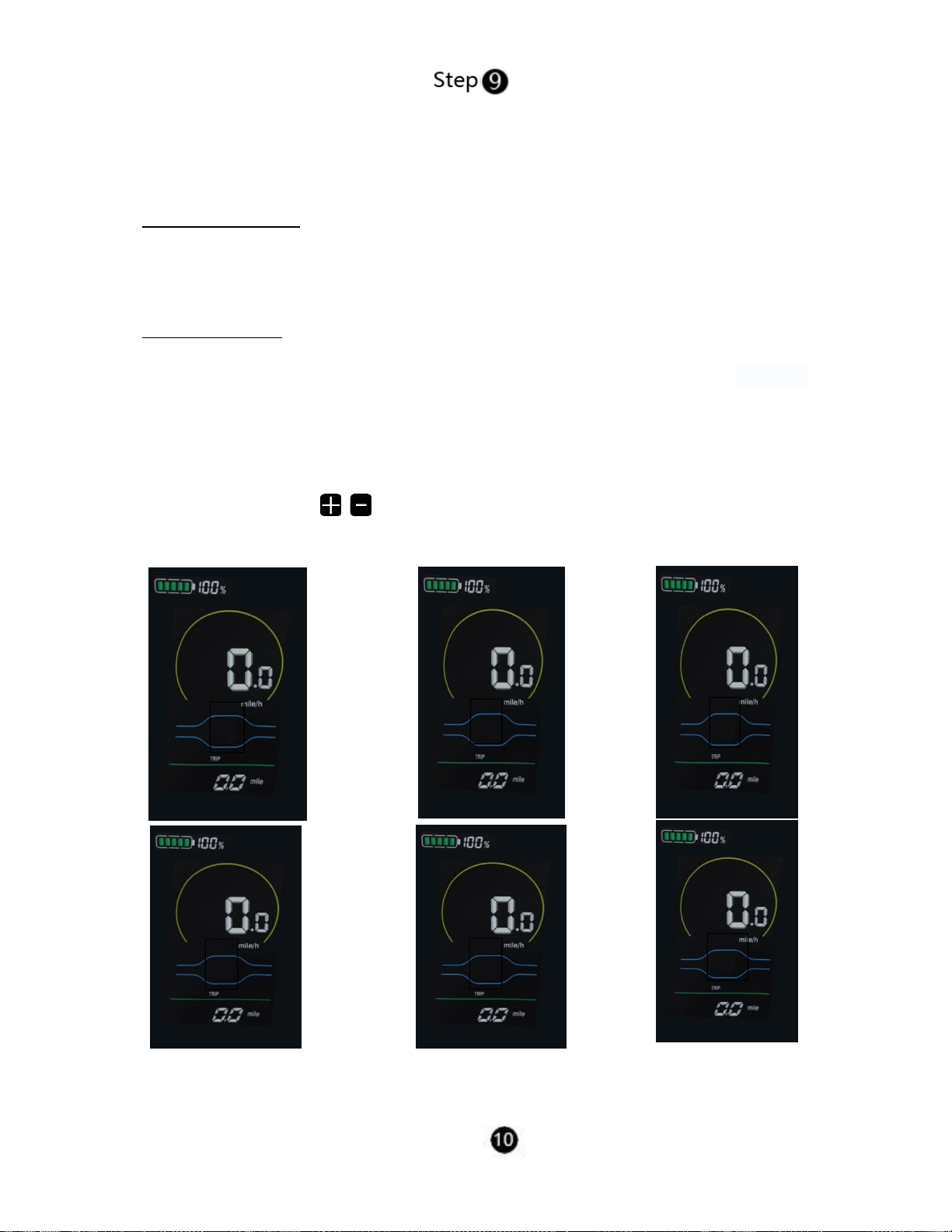

PAS Assist Level Changing:
By pressing the button / , the e-bike assist level will be switched to change the motor
output power.
0
1
2
3
4
5
Assist Level Switching Interface
Step

19
BATTERY CHARGING & STORAGE

Battery Charging
Only use the battery charger that is provided with your e-bike to charge the battery. Connect the
charger input plug (110/240-volt plug) to the power outlet.
The red indicator light turns on and will remain red until it is fully charged. The indicator light
turns green once the battery is fully charged and please unplug the AC plug from power outlet first.
①Open the charger cover.
②Plug the charger into the battery’ s charging port , Insert the charger probe into the charger port
on the e-bike battery before plugging charger into power outlet.
③Insert the pronged end of the battery cord into the battery charger. Insert the AC plug into an AC
outlet.
④The YOUNG ELECTRIC battery may be charged while on the bike or removed and charged at a
location away from the YOUNG ELECTRIC bike in a dry location.
Plug the charger into the battery’ s charging port before plugging charger into power outlet .
① ②
③ ④
