Youtopia SP80 User manual

1
MP3 Player with SD Card Slot
User Manual
Model SP80

2
Table of Contents
Introduction & Basic Care…………………………...3
The MP3 Player………………………………………4
Operating the Player …………………………...…...8
Menu Options………………………………………11
Downloading & Deleting Song Files………………17
Troubleshooting………..…………………………...19
Technical Specifications…………………………...21
FCC Information…………………………………….22
Questions? Visit www.youtopiallc.com or call [phone].

3
Introduction & Basic Care
Before using the player, please read this manual carefully
to obtain the best possible performance from your player.
Keep this manual for future reference.
IN THE BOX
•MP3 player
•Earphones
•Battery
•Instruction manual
BASIC CARE AND OPERATION
•Do not immerse or operate in or near water. These
units are neither waterproof nor water-resistant.
•Do not disconnect unit from computer while uploading
or downloading files, or formatting the memory. Allow
the operation to be completed before disconnecting
or you may lose or corrupt your data/files.
•Store and operate units in temperatures between -14
degrees F and 113 degrees F.
•Avoid dropping or involving unit in high impact.

4
The MP3 Player

5
FEATURES and FUNCTIONS
1. USB cap – Cover for USB plug
2. USB plug – Connects player to USB port
3. Display Screen – Displays lyrics/ID3 tag and
function icons (see following section)
4. BACK / PREVIOUS SONG – Plays previous song;
or, scrolls back through current song
5. FORWARD / NEXT SONG – Plays next song; or,
scrolls forward through current song
6. VOLUME UP – Increases volume
7. VOLUME DOWN – Decreases volume
8. PLAY / PAUSE / STOP – Plays and pauses/stops
song. This function button will be referred to as
“PLAY” in this guide.
9. MENU – Selects different player features, including
SD CARD-INTERNAL MEMORY
10. POWER – Turns power on or off
11. HOLD – Locks function buttons to prevent
accidental activation
12. Earphone Jack – Insert earphone plug
13. Battery Compartment – Use 1 x AAA alkaline
battery
14. Lanyard eyelet (1) – Eyelet for lanyard
15. SD card slot – Compartment for your SD card
16. Lanyard eyelet (2) – Eyelet for lanyard

6
SCREEN DISPLAY DETAILS
1. SD Card / Internal Memory Usage – Shows if
player is accessing SD card or internal memory
files
2. Bit rate and File format – Shows file specifications
3. Playback Mode – Shows operation selected in
REPEAT options (see MENU “A” options)
4. Song number and Total number of songs – Top
number shows song number being played; Bottom
number shows total number of songs
5. Equalizer Mode – Indicates operation selected in
EQUALIZER Mode (see MENU “A” options)
6. Running and Total song time – Top number shows
current run time; Bottom number shows total song
time duration
7. Battery Level – Shows battery power level
8. Song Text – Shows song title or ID3 tag
BATTERY INSTALLATION / REPLACEMENT

7
The player requires one “AAA” battery to operate. An
alkaline battery is recommended for the longest playtime.
To install or replace the battery:
1. Remove the USB cap to access the battery cover
2. Slide the battery cover following the direction of the
arrow
3. Remove the old battery if replacing it
4. Install new “AAA” (1.5V) battery according to the
correct polarity indicated, (+) and (-)
5. Put the battery cover back on until the latch snaps
in place
6. Place the USB cap securely back on the player
Precautions:
•Use only the size and type of battery specified
•Battery polarity must be inserted correctly for safe
and proper use. Reversed polarity may cause
damage to the device
•If the device will not be used for a long period,
remove the battery to prevent damage or injury
from possible battery leakage
•If battery leakage occurs and comes in contact with
skin, immediately flush affected area with running
water (not hot) and contact nearest Poison Control
Center
1.5VAAA


8
Operating the Player
TURNING THE PLAYER ON / OFF
•Press down and hold the POWER button for
approximately 3 seconds to turn ON the player.
The screen will activate and “YOUTOPIA LLC” will
appear. The player will then be set in the MUSIC
mode with the following default screen.
•To turn OFF the player, press down and hold the
POWER button for approximately 3 seconds.
The sign-off will be displayed followed by the
screen deactivating.
VOLUME SETTING
Press the VOLUME UP or VOLUME DOWN button
to adjust the volume accordingly.
INSERTING AND REMOVING SD CARD
•Make sure the player is turned OFF before
inserting your SD card.

9

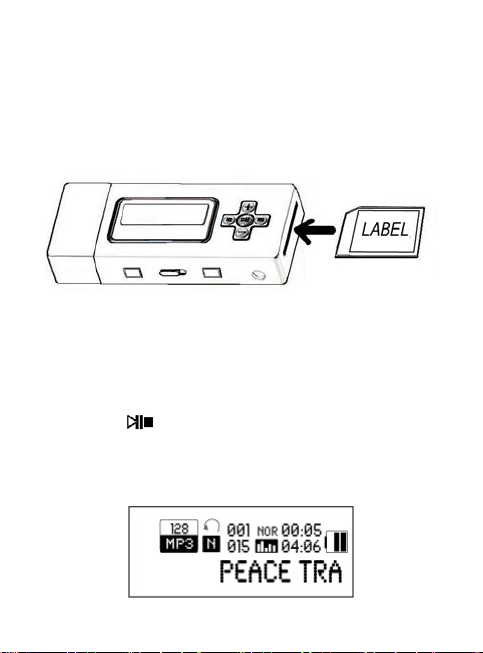

•Insert the SD card into the slot with the label side
facing same side as the display screen and front-
end (Connection pins located on bottom-side of SD
card) going in first. See illustration.
•Gently slide and push in the SD card until it is
securely in the slot. This should be indicated by a
click.
•To remove the SD card, turn OFF the player, then
press down gently on the card, release, and the
player will eject the card from the player.
MUSIC PLAYBACK
•With the player ON and SD card inserted, press the
PLAY button. The song file files from the
player’s internal memory will be accessed first
since this is the default source. Your screen should
have the following display.

10
•To listen to song files stored on your SD card, your
player should be ON with SD card inserted. Press
and hold the PLAY button for several seconds
to switch to the SD card source and start playing

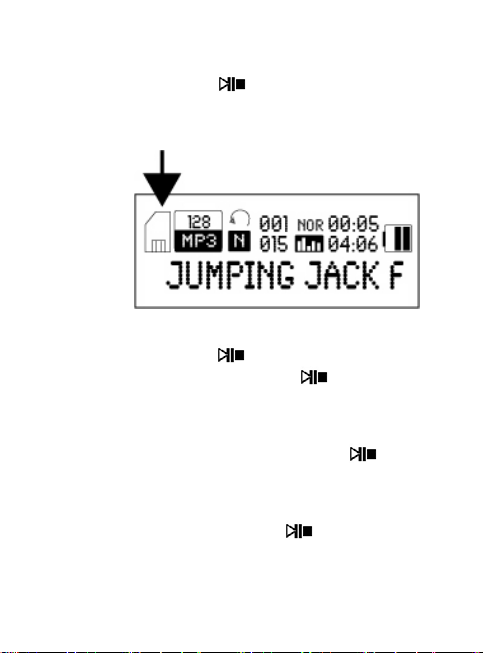

songs. The screen will then display an SD card
icon on the far left side.
If the player does not immediately activate after
pressing the PLAY button, please wait several
seconds and then press PLAY again. The
player may need a moment to read the SD card.
To switch between the player’s internal memory
and SD card, press and hold the PLAY button
for several seconds each time.
NOTE: It is suggested that you lower the volume to a
safe level before pressing PLAY to prevent any
excessive noise that could damage or harm your
hearing.
