Ysoft BE3D DEERED User manual

3D PRINTER
USER MANUAL
DEERED — USER MANUAL VERSION 2.0
INSTALLATION AND SERVICE INSTRUCTIONS,
WARRANTY TERMS AND CONDITIONS

CONTENT
1. Specifications 6
2. Certification 6
3. Safety Precautions 7
3.1 Classifications Used 7
3.2 Safety Precautions 8
4. Overview 9
4.1 Description of Printer Components 9
4.2 Safety Components 13
4.3 Accessories 14
5. Material Description and Selection 15
6. Printer Setup 17
6.1 Operating Requirements 17
6.2 Printer Installation 17
6.3 Connecting the Printer to the Network 17
7. Working with the Printer 18
7.1 Working with the Printer Touchscreen – Main Menu Options 18
7.2 Working with the Printer Touchscreen – General Settings 18

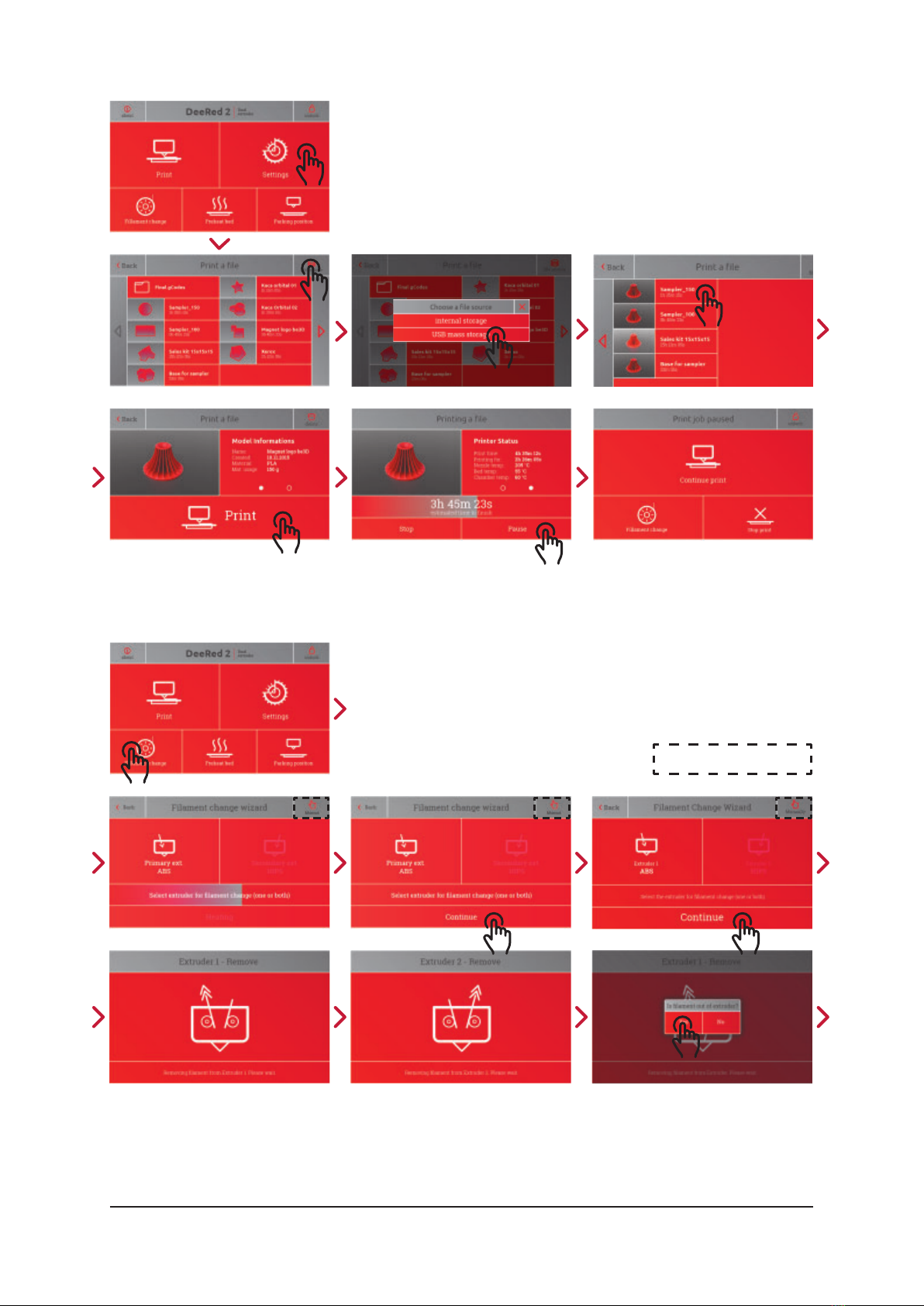

7.3 Working with the Printer Touchscreen – Assigning Print Jobs 19

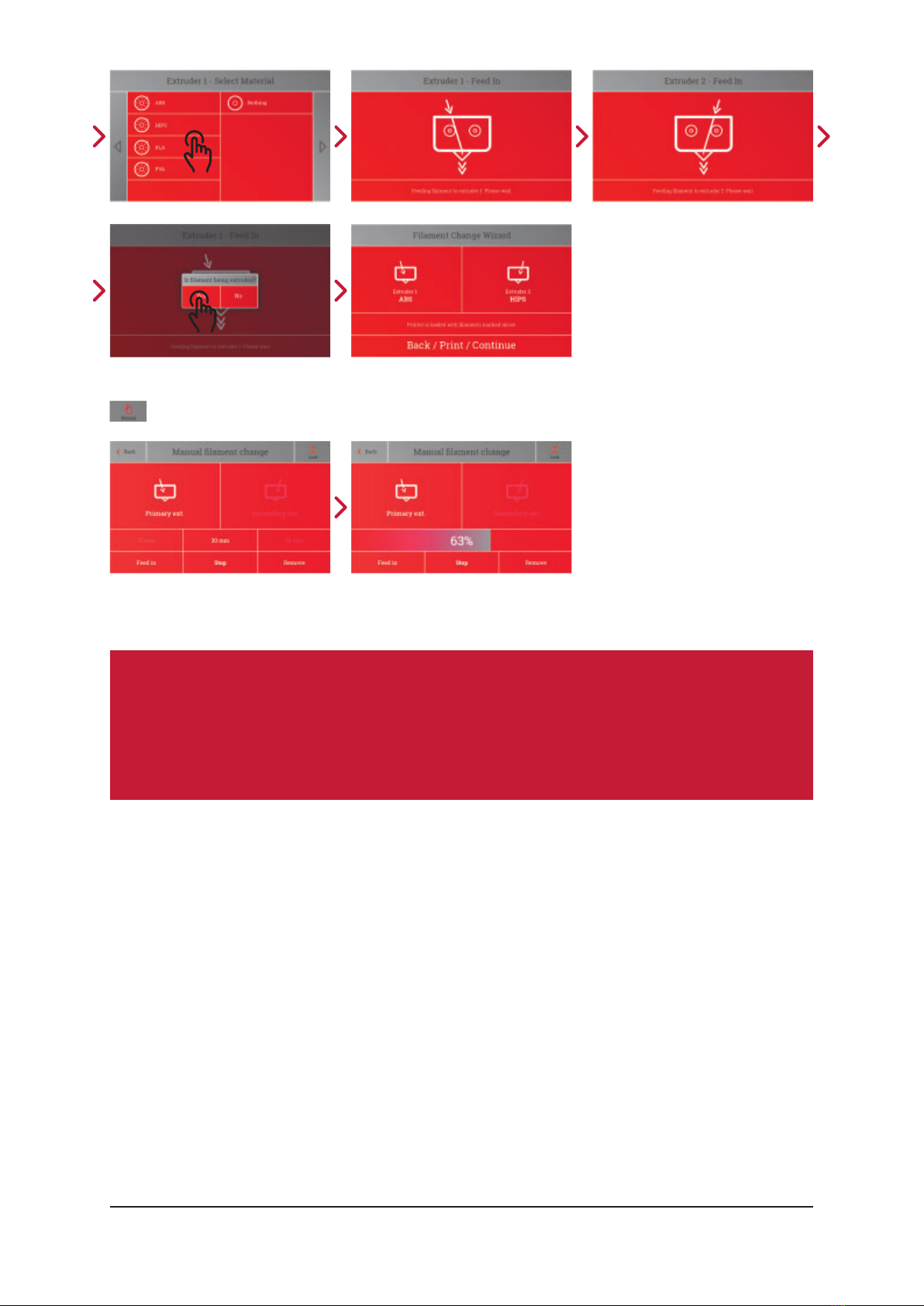

7.4 Working with the Printer Touchscreen – Replacing the Filament 19
7.5 Removing and Inserting the Filament 20
7.6 Preparing the Print Bed 24
8. Printing 25
8.1 Checking and Preparing the Printer 25
8.2 Checking and Preparing the Filament 25
8.3 Checking the Print Bed 25
8.4 Selecting the Print Job 26
8.5 Starting the Printing Process 26
8.6 The Printing Process 26
8.7 Removing the Model 26
DEERED — USER MANUAL 3

9. User Servicing and Maintenance 27
9.1 Maintenance 27
9.2 Replacing the Nozzle 28
9.3 Replacing the Print Head 29
9.4 Replacing the Tubing 30
9.5 Replacing the Glass Print Bed 32
9.6 Refilling the Lubricant 33
9.7 Replacing the Fuses 34
9.8 Resetting the Circuit Breakers 35
9.9 Connecting Peripherals 36
9.10 Periodic proactive maintenance 37
10. Troubleshooting 37
10.1 What to Do If the Printer Runs Out of Filament While Printing and Stops 37
10.2 Removing Supports 38
10.2.1 Insoluble Supports: 38
10.2.2 Soluble Supports: 38
11. Support 39
11.1 Ordering Consumable Materials (Contact and Instructions) 39
11.2 Ordering Consumable Components (Contact and Instructions) 39
11.3 Support and Maintenance in Case You Need Help (Contact and Instructions) 39
12. Warranty Terms and Conditions 39
12.1 The Directive on Liability for Defective Products 39
12.2 Terms and Conditions 39
12.3 Not Covered by the Warranty 40
12.4 User Obligations 40
12.5 Cases in Which the Warranty is Forfeited 40
13. Contact Us 41
DEERED — USER MANUAL 4

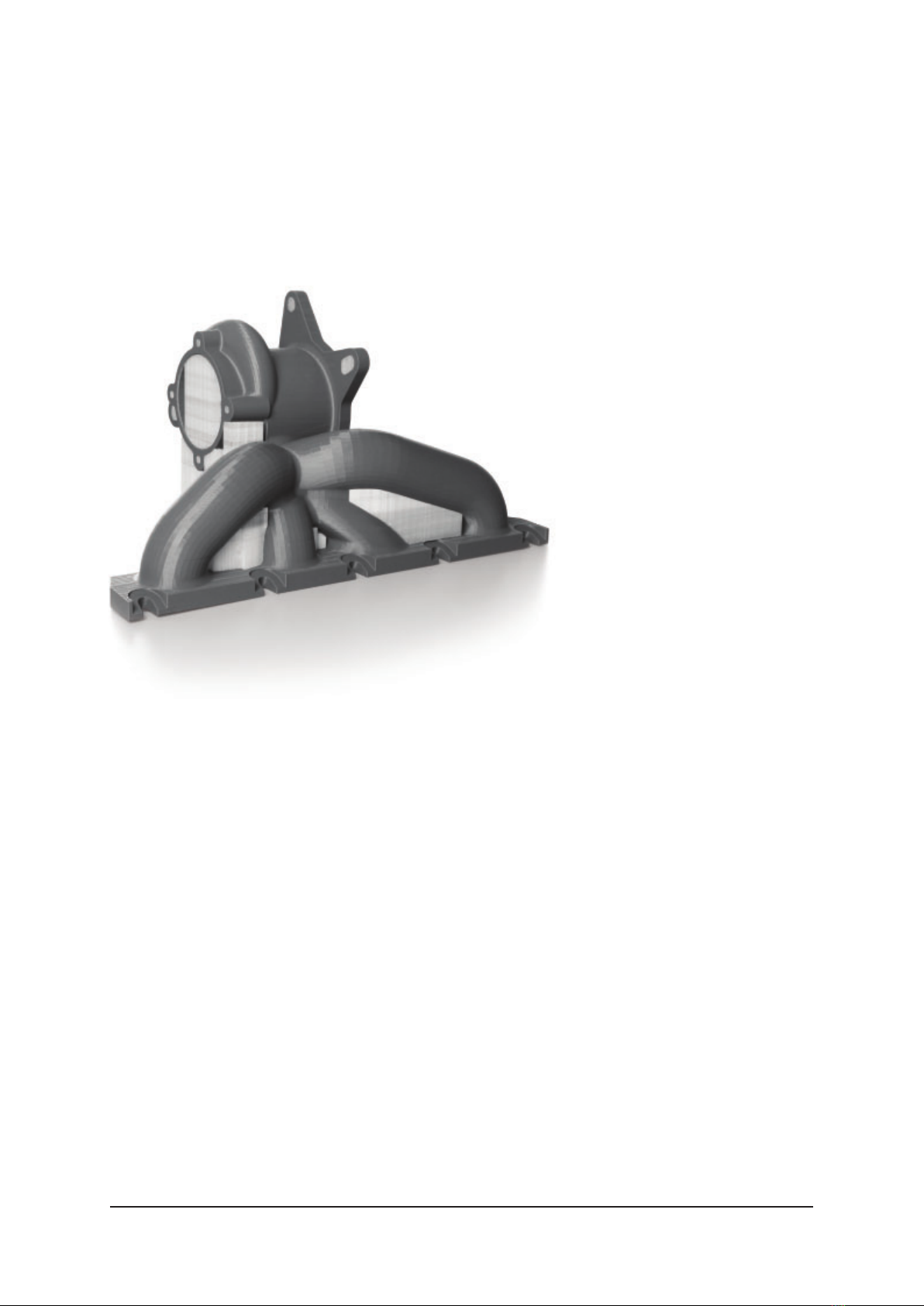

Meet DeeRed, a professional 3D printer whose print volume and quality meets the
requirements of every demanding designer, manufacturer, or project architect. With
two extruders, a large build volume, and a user-friendly interface, not to mention
high print quality, DeeRed is one of a kind.
The printer’s build volume is one of the largest available in printers using the Fused
Filament Fabrication (FFF) technology, allowing DeeRed to print models up to the
dimensions of 400 x 600 x 800 mm. The printer’s two extruders enable printing
using two different materials or two different colors.
User control is as simple as ever with a large touchscreen and the DeeControl
software, an application that prepares project files for 3D layering. DeeControl,
developed by be3D, is available for both Macs and PCs running Windows.
Connect DeeRed to your network via an Ethernet port and monitor the printing
process remotely using the included webcam. Print with a wide array of polymers,
including PLA (polylactic acid), ABS (acrylonitrile butadiene styrene), and PVA
(polyvinyl alcohol). Finally, do not worry about electricity requirements – all the
DeeRed 3D printer needs is a standard power socket.
DEERED — USER MANUAL 5

1. SPECIFICATIONS
Print technology FFF
Build volume (X, Y, Z) 600 × 400 × 800 mm
Extruders 2
Print bed heated glass bed
Print accuracy 0.1 mm
Nozzle diameter 0.6 mm
Layer thickness 0.1 / 0.2 / 0.3 mm
Maximum print speed 100 mm/s
Maximum movement speed 200 mm/s
User interface 7” touchscreen
Internal lighting LED
Power supply 100–240 VAC / 50–60 Hz
Input power 120 V / 1.3 kW; 240 V / 2.6 kW
Full dimensions 1150 × 750 × 1950 mm
Weight 250 kg
Connectors LAN, USB (mass storage)
2. CERTIFICATION
§ 15.105 Information to user
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
DEERED — USER MANUAL 6

3. SAFETY PRECAUTIONS
3.1 Classifications Used
Caution
Use heightened caution when working with this device.
Read the manual
Read the User Manual before using this device. Follow the included
instructions.
Unplug the device
Unplug the device from the power source before moving it or using it in
any other way than indicated in the User Manual.
Danger of injury
This device includes moving parts that may cause injury.
Hot components
This device contains components that may be hot and cause injury.
DEERED — USER MANUAL 7

3.2 Safety Precautions
• No part of the printer, its accessories, the consumables it uses, or the models
itproduces are intended for consumption.
• Some accessories are sharp, please use heightened caution.
• The user is responsible for any damage to the printer caused by improper
manipulation or use that is in conflict with the User Manual.
• The printer should not be used by children. It should be used by persons aged 18
and over; in all other cases, the supervision of adults is required.
• Do not leave the printer unattended when in use.
• Some parts of the printer may operate at temperatures higher than 60°C. There
isdanger of burning; avoid contact with hot parts.
• Persons with a physical disability that are unable to use the printer to its full
extent by themselves, can only use it under adult supervision.
• Make sure the printer is complete and does not show any signs of damage
beforeuse.
• Incorrect use may lead to electrical injury.
• The printer is heavy. Do not drop it; failure to observe this may injure the user
ordamage the printer.
• The printer must be disposed of in accordance with environmental law.
• The printer must be kept away from any flammable substances.
• The printer generates an electromagnetic field that can influence the functionality
of cardiac pacemakers, cochlear implants, and pumps.
DEERED — USER MANUAL 8

4. OVERVIEW
4.1 Description of Printer Components
1. Display
The display is the main component used for interacting with the printer. It carries
out the user’s instructions and reports on the status of the printer and the
processes that are taking place.
v
v
v
v
1
2
3
4
7
7.1
7
.2
7
.
3
5
1
0
9
8
6
6
.
2
6
.
4
6.
3
6
.
5
6
.1
2
.2
2.1
DEERED — USER MANUAL 9

2. Filament Storage Area
Open the doors of the printer by pushing on the lower part of the frame. This area
is used for storing filament spools. Only use filaments authorized by the printer’s
manufacturer.
2.1. Filament Entry Points
The filament storage area contains two filament entry points, each for a different
type (or color) of filament. Both entry points contain a sensor that detects whether
filament has been fed into the feeder tube, as well as detecting whether filament
has run out during printing. If this occurs, the printing process is paused and the
user is prompted to end the printing job or to replace the filament.
The left filament entry point is considered primary. The right filament entry point is
considered secondary.
2.2. Spool Holders
The filament storage area contains two spool holders. The spool holders have been
constructed to carry a maximum of 2 spools weighing up to 10 kg. Only one spool
may be placed on each spool holder.
3. USB Connector
The USB connector is used for connecting external USB devices to the printer, such
as USB flash drives, external USB power supplies, or memory card readers. Please
check with the supplier/manufacturer the compatibility of any USB device not part
of the delivery.
4. Electrical Installation
The electrical installation components are located behind a locked door. The
printer’s power supply, output electronics, and communication bus system are
covered by a metal plate. The visible, uncovered section, contains motor control
units, fuses, and circuit breakers. Do not handle the motor control units when using
the printer.
4.1. Fuses
The fuses protect the low-current circuit of the printer. If a power surge (the
excessive consumption of electric current) occurs, the fuses will blow – this will
generally happen during an overload or in the case of a short circuit. In order for the
printer to become functional again, the fuses must be replaced (see chapter 9.7
“Replacing the Fuses”, on page 34).
4.2. Circuit Breakers
The printer’s wiring is protected by circuit breakers. If a power surge (the excessive
consumption of electric current) occurs, the circuit breakers will be switched off–
this will generally happen during an overload or in the case of a short circuit. In
order for the printer to become functional again, the circuit breakers must be reset
(see chapter 9.8, “Resetting the Circuit Breakers”, on page 35).
DEERED — USER MANUAL 10
