ZANUSSI
P R O F E S S I O N A L
FREESTANDING GAS SOLID TOPS
N 900
Model 200232
2/1 GN CHROME GRID 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 171 207 130
Total Power - kW 19 35 30
Front burners power - kW 6 6
Front burners dimension - mm Ø 60 Ø 60
Back burners power - kW 10 10
Back burner dimensions - mm Ø 100 Ø 100
Solid top heat input - kW 10.5 10.5 5.5
height 350
depth 740
width 335
Storage cupboard - mm
temperature min-max - °C 120, 280 120, 280 120, 280
heat input - kW 8.5 8.5 8.5
Oven
height 300 300 300
depth 700 650 700
width 575 575 575
Oven cavity - mm
depth 700 700 700
width 800 800 380
Solid top area - mm
height adjustment 50 50 50
height 850 850 850
depth 900 900 900
width 800 1200 800
External dimensions - mm
Power supply Gas Gas Gas
NTFG800
200231
NTFG1200
200232
NTFG810
200233
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
N 900: a range of over 150 models for the
professional caterer designed to guarantee
the highest level of performance, reliability,
energy saving, safety standards and
ergonomic operation. These concepts are
reflected in the total modularity of the range
that ensures innumerable configurations,
either free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of the
professional caterer.

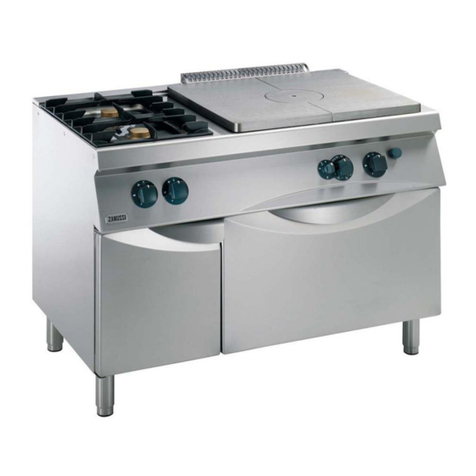

The models detailed on this sheet are three
free-standing gas solid tops, one on a gas
oven, one with 2 burners on a gas oven and
one with 2 burners on gas oven and
cupboard (simple service) ideal for cooking
items requiring differentiated heating zones.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Central burner with optimized combustion,
maximum power 10.5 kW, with flame failure
device and protected pilot light. Piezo ignition.
� Durable cast-iron cooking plate with
differentiated heating zones, maximum
temperature in the centre, 500°C, decreasing
towards the perimeter.
� Worktop in 20/10 stainless steel. Front
and side panels in stainless steel with Scotch
Brite finish.
� All models have right-angled side edges to
allow flush fitting between units, eliminating
gaps and dirt traps.
� Gas oven with stainless steel burners,
self-stabilizing flame positioned beneath the
base plate and a thermostat adjustable from
120° to 280°C.
� Stainless steel oven chamber with 3 levels
of runners to accommodate 2/1GN shelves
� Ribbed, cast-iron oven base plate.
� Stainless steel feet adjustables up to a
height of 50 mm.
� Handles on the base cupboard and oven
in stainless steel.
� The special design of the control knob
system guarantees against water infiltration.
� Main connections can be via the base of
the unit.
� All models provided with service duct to
facilitate installation.
� All gas appliances are supplied for use
with natural gas, with LPG conversion jets
supplied as standard.
� IPX5 water protection.
*In accordance with H regulations for gas models
belonging to Class B11 (power over 14 kW), it is
necessary to install a chimney (if installed under a
hood) or chimney and draft diverter if the waste gases
are vented directly outside.

BACG2 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
WATER COLUMN WITH SWIVEL ARM 206288 206288 206288
WATER COLUMN EXTENSION FOR 900 LINE 206290 206290 206290
SUPPORT FOR "BRIDGE" SYSTEM 800 MM 206137 206137 206137
SUPPORT FOR "BRIDGE" SYSTEM 400 MM 206154 206154 206154
SUPPORT FOR "BRIDGE" SYSTEM 1600 MM 206141 206141 206141
SUPPORT FOR "BRIDGE" SYSTEM 1400 MM 206140 206140 206140
SUPPORT FOR "BRIDGE" SYSTEM 1200 MM 206139 206139 206139
SUPPORT FOR "BRIDGE" SYSTEM 1000 MM 206138 206138 206138
SINGLE BURNER(6KW)RADIANT PLATE-900 LINE 206170 206170
SINGLE BURNER SMOOTH PLATE 206171 206171
SINGLE BURNER RIBBED PLATE 206172 206172
SIDE HANDRAIL-RIGHT/LEFT HAND 206165 206165 206165
S/S GRID FOR DOUBLE BURNER-900 LINE 206298 206298
RIGHT SIDE DOOR FOR OPEN BASE CUPBOARD 206194
REAR FLUE UPSTAND FOR LARGE CHIMNEY 206160 206160 206160
PRESSURE REGULATOR FOR GAS UNITS 927225 927225 927225
PAIR OF COVERING STRIPS FOR END ELEMENTS 206234 206234 206234
PAIR OF CAST IRON GRIDS 206208 206208
MATCHING RING FOR FLUE CONDENSER 150DIAM 206133 206133 206133
LEFT SIDE DOOR FOR OPEN BASE CUPBOARD 206195
LARGE HANDRAIL(PORTIONING SHELF)800 MM 206186 206186 206186
LARGE HANDRAIL(PORTIONING SHELF)400 MM 206185 206185 206185
JUNCTION SEALING KIT 206086 206086 206086
FRONTAL KICKING STRIP 800 MM 206176 206176 206176
FRONTAL KICKING STRIP 400 MM 206175 206175 206175
FRONTAL KICKING STRIP 200 MM 206174 206174 206174
FRONTAL KICKING STRIP 1600 MM 206179 206179 206179
FRONTAL KICKING STRIP 1200 MM 206178 206178 206178
FRONTAL KICKING STRIP 1000 MM 206177 206177 206177
FRONTAL HANDRAIL 800 MM 206167 206167 206167
FRONTAL HANDRAIL 400 MM 206166 206166 206166
FRONTAL HANDRAIL 1600 MM 206192 206192 206192
FRONTAL HANDRAIL 1200 MM 206191 206191 206191
FRONT.KICK.STRIP F.CONCRETE INST.800 MM 206148 206148 206148
FRONT.KICK.STRIP F.CONCRETE INST.400 MM 206147 206147 206147
FRONT.KICK.STRIP F.CONCRETE INST.200 MM 206146 206146 206146
FRONT.KICK.STRIP F.CONCRETE INST.1600 MM 206152 206152 206152
FRONT.KICK.STRIP F.CONCRETE INST.1200 MM 206151 206151 206151
FRONT.KICK.STRIP F.CONCRETE INST.1000 MM 206150 206150 206150
FLUE CONDENSER FOR 1 MODULE DIAM.150MM 206156 206156 206156
FLANGED FEET KIT 206136
ELECTRIC HEATING UNIT FOR CABINETS 206142
DRAUGHT DIVERTER WITH 150 MM DIAMETER 206132 206132 206132
CHIMNEY UPSTAND 800MM 206304 206304
CHIMNEY UPSTAND 1200MM 206306
4 WHEELS (2 WITH BRAKE) 206188 206188 206188
4 FEET FOR CONCRETE INSTALLATION 206210 206210 206210
2 SIDE KICKING STRIPS F.CONCRETE INSTAL. 206157 206157 206157
2 SIDE KICKING STRIPS 206180 206180 206180
2 SIDE COVERING PANELS H=700 D=900 206134 206134 206134
2 SIDE COVERING PANELS FOR TOP-D=900MM 206278 206278 206278
2 PANELS FOR SERVICE DUCT (SINGLE INST.) 206181 206181 206181
2 PANELS FOR SERVICE DUCT (BACK TO BACK) 206202 206202 206202
NTFG800
200231
NTFG1200
200232
NTFG810
200233
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
H - Gas connection 1/2" 1/2" 1/2"
NTFG800
200231
NTFG1200
200232
NTFG810
200233
LEGEND
200231, 200233, 200232
52
56 688 / 1088 56
674 100126
52800748
1600
70
299
900
200
180 20 20 250
H
H
664236
H
H
56148856
50 I
I
44
176 724
I
55
900
1600 400/800/1200
356 / 756
400 / 800 / 1200
348/748/1148
