Zanussi ZEV6940XBV User manual

EN User manual
Hob
ZEV6940XBV

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Environment concerns _ _ _ _ _ _ _ _ _ _ _ _ 9
GREAT BRITAIN & IRELAND - Guarantee/
Customer Service _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10
European Guarantee _ _ _ _ _ _ _ _ _ _ _ _ 10
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates
or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you
activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
• The appliance and its accessible parts become hot during use.
Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or
separate remote-control system.
2
www.zanussi.com

• Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
• Never try to extinguish a fire with water, but switch off the appli-
ance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.
• If the glass ceramic surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Keep the minimum distance from the other
appliances and units.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Seal the cut surfaces with a sealant to pre-
vent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• If the appliance is installed above drawers
make sure that the space, between the bot-
tom of the appliance and the upper drawer,
is sufficient for air circulation.
• The bottom of the appliance can get hot. We
recommend to install a non-combustile sepa-
ration panel under the appliance to prevent
access to the bottom.
Electrical connection
Warning! Risk of fire and electrical shock.
• All electrical connections must be made by a
qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure
that the appliance is disconnected from the
power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure the mains cable or plug (if appli-
cable) does not touch the hot appliance or
hot cookware, when you connect the appli-
ance to the near sockets
• Make sure the appliance is installed correct-
ly. Loose and incorrect electricity mains ca-
ble or plug (if applicable) can make the termi-
nal become too hot.
• Make sure that a shock protection is instal-
led.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the mains
plug (if applicable) or to the mains cable.
Contact the Service or an electrician to
change a damaged mains cable.
• The electrical installation must have an isola-
tion device which lets you disconnect the ap-
3
www.zanussi.com

pliance from the mains at all poles. The isola-
tion device must have a contact opening
width of minimum 3 mm.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
Use
Warning! Risk of injury, burns or electric
shock.
• Use this appliance in a household environ-
ment.
• Do not change the specification of this appli-
ance.
• Do not let the appliance stay unattended
during operation.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not put cutlery or saucepan lids on the
cooking zones. They become hot.
• Set the cooking zone to “off” after use.
• Do not use the appliance as a work surface
or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance from
the power supply. This to prevent an electri-
cal shock.
Warning! Risk of fire or explosion.
• Fats and oil when heated can release flam-
mable vapours. Keep flames or heated ob-
jects away from fats and oils when you cook
with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants, can
cause fire at a lower temperature than oil
used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be dam-
aged.
• Do not activate the cooking zones with emp-
ty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause scratches
on the glass ceramic. Always lift these ob-
jects up when you have to move them on the
cooking surface.
Care and Cleaning
Warning! Risk of damage to the
appliance.
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Do not use water spray and steam to clean
the appliance.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
Disposal
Warning! Risk of injury or suffocation.
• Contact your municipal authority for informa-
tion on how to discard the appliance correct-
ly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
4
www.zanussi.com

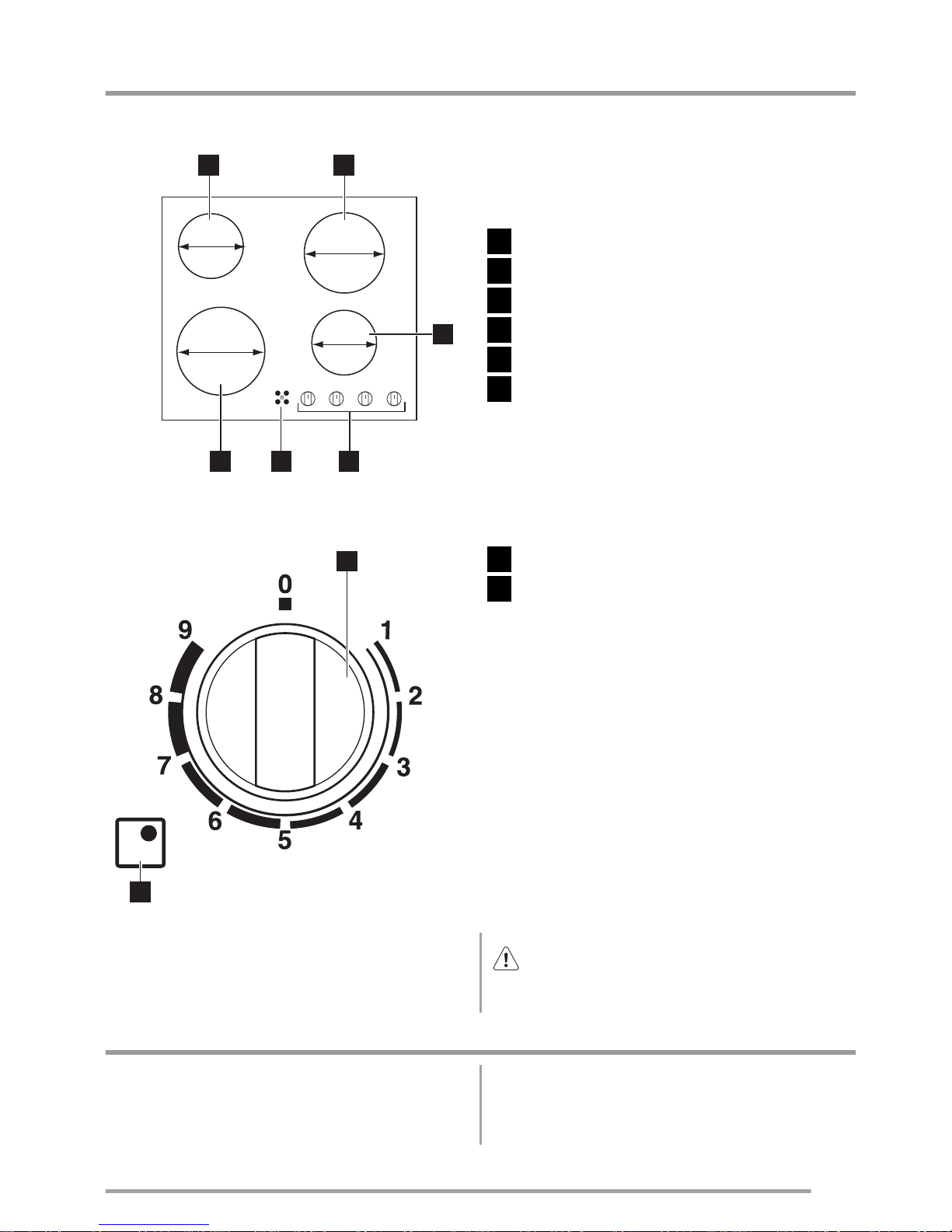

Product description
General overview
180
mm
210
mm
145
mm
145
mm
56
1 2
3
4
1Cooking zone 1200 W
2Cooking zone 1800 W
3Cooking zone 1200 W
4Control knobs
5Residual heat indicator
6Cooking zone 2300 W
The control knob
2
1
1Heat setting (0-9)
2Assignment of control knobs
Residual heat indicator
The residual heat indicator comes on when a
cooking zone is hot.
Warning! The risk of burns from residual
heat!
Daily use
The heat setting
To activate and increase the heat setting turn
the knob clockwise. To decrease the heat set-
ting turn the knob counterclockwise. To deacti-
vate turn the knob to the 0.
5
www.zanussi.com

Helpful hints and tips
Cookware
• The bottom of the cookware must be as
thick and flat as possible.
• Cookware made of enamelled steel and
with aluminium or copper bottoms can
cause the color change on the glass-
ceramic surface.
Energy saving
• If it is possible, always put the lids on
the cookware.
• Put cookware on a cooking zone before
you start it.
• Stop the cooking zones before the end
of the cooking time to use residual heat.
• The bottom of pans and cooking zones
must have the same dimension.
The Examples of cooking applications
The data in the table is for guidance only.
Heat
setting
Use to: Time Hints
1Keep warm the food you cooked as re-
quired
Put a lid on a cookware
1-2 Hollandaise sauce, melt: butter, chocolate,
gelatine
5-25 min Mix from time to time
1-2 Solidify: fluffy omelettes, baked eggs 10-40
min
Cook with a lid on
2-3 Simmer rice and milkbased dishes, heating
up ready-cooked meals
25-50
min
Add the minimum twice as much liquid
as rice, mix milk dishes part procedure
through
3-4 Steam vegetables, fish, meat 20-45
min
Add some tablespoons of liquid
4-5 Steam potatoes 20-60
min
Use max. ¼ l water for 750 g of pota-
toes
4-5 Cook larger quantities of food, stews and
soups
60-150
min
Up to 3 l liquid plus ingredients
6-7 Gentle fry: escalope, veal cordon bleu, cut-
lets, rissoles, sausages, liver, roux, eggs,
pancakes, doughnuts
as nec-
essary
Turn halfway through
7-8 Heavy fry, hash browns, loin steaks, steaks 5-15 min Turn halfway through
9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep-fry chips
Care and cleaning
Clean the appliance after each use.
Always use cookware with clean bottom.
Warning! The sharp objects and abrasive
cleaning agents can cause damage to the
appliance.
For your safety, do not clean the appliance with
steam cleaners or high-pressure cleaners.
Scratches or dark stains on the glass-ce-
ramic cause no effect on how the appli-
ance operates.
6
www.zanussi.com

To remove the dirt:
1. – Remove immediately: melted plastic,
plastic foil, and food with sugar. If not,
the dirt can cause damage to the appli-
ance. Use a special scraper for the
glass . Put the scraper on the glass sur-
face at an acute angle and move the
blade on the surface .
–Remove after the appliance is suffi-
ciently cool: limescale rings , water
rings, fat stains, shiny metallic discolora-
tions. Use a special cleaning agent for
glass ceramic or stainless steel.
2. Clean the appliance with a moist cloth and
some detergent.
3. At the end rub the appliance dry with a
clean cloth.
Troubleshooting
Problem Possible cause Remedy
You cannot activate or operate the
appliance.
The appliance is not connected to
an electrical supply or it is con-
nected incorrectly.
Check if the appliance is correctly
connected to the electrical supply
(refer to connection diagram).
Problem with the house electrical
system.
Examine the fuse in the electrical
system of the house in the fuse
box. If the fuses blow again and
again, speak to qualified electri-
cian.
The residual heat indicator does
not come on.
The cooking zone is not hot be-
cause it operated only for a short
time.
If the cooking zone operated suffi-
ciently long to be hot, speak to the
service centre.
If you tried the above solutions and cannot re-
pair the problem, speak to your dealer or the
customer service. Give the data from the rating
plate, three digit letter code for the glass ce-
ramic (it is in the corner of the glass surface)
and an error message that comes on.
Make sure, you operated the appliance correct-
ly. If not the servicing by a customer service
technician or dealer will not be free of charge,
also during the warranty period. The instruc-
tions about the customer service and condi-
tions of guarantee are in the guarantee booklet.
Installation
Warning! Refer to the Safety chapters.
Before the installation, note down the
serial number (Ser. Nr.) from the rating
plate.The rating plate of the appliance is
on its lower casing.
ZEV6940XBV
Made in Germany
949 595 548 00
ZANUSSI
220-240 V 50-60 Hz58 PEE 15 AO
6,5 kW
Built-in appliances
• Only use the built-in appliances after you as-
semble the appliance into correct built-in
units and work surfaces that align to the
standards.
Connection cable
• Use the correct mains cable of type H05BB-
F Tmax 90°C (or higher) for a single phase or
two phase connection.
• Replace the damaged mains cable with a
special cable (type H05BB-F Tmax 90°C or
higher). Speak to your local Service Centre.
7
www.zanussi.com

Assembly
min.
50mm
min.
500mm
min.
55mm
R 5mm
560+1mm
490+1mm
min.
12 mm
min.
20 mm
8
www.zanussi.com

min.
28 mm
If you use a protection box (the additional ac-
cessory
1)
), the protective floor directly below
the appliance is not necessary.
You can not use the protection box if you install
the appliance above an oven.
1) The protection box accessory may not be available in some countries. Please contact your local supplier.
Environment concerns
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your
household waste disposal service or the shop
where you purchased the product.
Packaging material
The packaging materials are friendly to the
environment and can be recycled. The
plastic components are identified by marking:
>PE<,>PS<, etc. Discard the packaging mate-
rials as household waste at the waste disposal
facilities in your municipality.
9
www.zanussi.com

GB
IE
GREAT BRITAIN & IRELAND - Guarantee/Customer Service
Standard guarantee conditions:
We, Electrolux, undertake that if within 12
months of the date of the purchase this Electro-
lux appliance or any part thereof is proved to be
defective by reason only of faulty workmanship
or materials, we will, at our option repair or re-
place the same FREE OF CHARGE for labour,
materials or carriage on condition that:
• Appliance has been correctly installed and
used only on the electricity supply stated on
the rating plate.
• Appliance has been used for normal domes-
tic purposes only, in accordance with manu-
facturer's instructions.
• Appliance hasn't been serviced, maintained,
repaired, taken apart or tampered with by
person not authorised by us.
• Electrolux Service Force Centre must under-
take all service work under this guarantee
• Any appliance or defective part replaced
shall become the Company's property.
• This guarantee is in addition to your statutory
and other legal rights.
Exclusions
• Damage, calls resulting from transport, im-
proper use, neglect, light bulbs, removable
parts of glass, plastic.
• Costs for calls to put right appliance which is
improperly installed, calls to appliances out-
side United Kingdom.
• Appliances found to be in use within a com-
mercial environment, plus those which are
subject to rental agreements.
• Products of Electrolux manufacturer that are
not marketed by Electrolux
Service and Spare Parts.Please contact your
local Service Force Centre: 08445 616
616(Call will be routed to Service Force Centre
covering your postcode area). For address of
local Service Force Centre and further informa-
tion, please visit: www.serviceforce.co.uk
Before calling out an engineer, please ensure
you have read the details under the heading
"What to do if... / Troubleshooting". When you
contact the Service Force Centre you will need
to give the following details: Your name, ad-
dress and postcode, your telephone number,
clear concise details of the fault, model and se-
rial number of the appliance (found on the rat-
ing plate), the purchase date. Please note a val-
id purchase receipt or guarantee documenta-
tion is required for in guarantee service calls.
Customer Care.Please contact our Customer
Care Department: Electrolux Major Appliances,
Addington Way, Luton, Bedfordshire, LU4
9QQ or visit our website at www.electro-
lux.co.uk
Customer
Care De-
partment,
Tel: (Calls may be recorded for
training purposes)
Electrolux 08445 613 613
AEG-Elec-
trolux
08445 611 611
Zanussi-
Electrolux
08445 612 612
For Customer Service in The Republic of
Ireland please contact us at the address
below:
Electrolux Group (Irl) Ltd, Long Mile Road,
Dublin 12, Republic of Ireland
Tel: [phone], Email: serv-
[email protected]
European Guarantee
GB
This appliance is guaranteed by Electrolux
in each of the countries listed at the back of
this user manual, for the period specified in the
appliance guarantee or otherwise by law. If you
move from one of these countries to another of
the countries listed, the appliance guarantee
10
www.zanussi.com

will move with you subject to the following qual-
ifications:-
• The appliance guarantee starts from the date
you first purchased the appliance which will
be evidenced by production of a valid pur-
chase document issued by the seller of the
appliance.
• The appliance guarantee is for the same peri-
od and to the same extent for labour and
parts as exists in your new country of resi-
dence for this particular model or range of
appliances.
• The appliance guarantee is personal to the
original purchaser of the appliance and can-
not be transferred to another user.
• The appliance is installed and used in ac-
cordance with instructions issued by Electro-
lux and is only used within the home, i.e. is
not used for commercial purposes.
• The appliance is installed in accordance with
all relevant regulations in force within your
new country of residence.
The provisions of this European Guarantee do
not affect any of the rights granted to you by
law.
www.electrolux.com
Albania [phone] Rruga “Kavajës”, ish-parku autobuzëve, Ti-
ranë
Belgique/België/Belgien [phone] Raketstraat 40, 1130 Brussel/Bruxelles
Česká Republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Strevelinsvej 38-40, 7000 Fredericia
Deutschland [phone] Fürther Str. 246, 90429 Nürnberg
Eesti [phone] Pärnu mnt. 153, 11624 Tallinn
España [phone] Carretera M-300, Km. 29,900 Alcalá de He-
nares Madrid
France 08 92 68 24 33 (0.34€/
min)
www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedfordshire LU4
9QQ
Hellas [phone], Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] Corso Lino Zanussi, 30 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lietuva [phone] Ozo 10a, LT-08200 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország (06-1)467-3205
[phone]
H-1142 Budapest XIV, Erzsébet Királyné
útja 87
Nederland [phone] Vennootsweg 1, 2404 CG - Alphen aan den
Rijn
11
www.zanussi.com

Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich 0810 955030 Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, 01–217 Warszawa
Portugal [phone] Quinta da Fonte - Edifício Gonçalves Zarco -
Q 35 -2774-518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera 0848 848 111 Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone] Gerbičeva ulica 110, 1000 Ljubljana
Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce spotre-
biče SK, Galvaniho 17/B, 821 04 Bratislava
Suomi 030 600 5200
Lankapuhelinverkosta 0,0828€/puhelu+0,032€/min Matkapuhelinverkosta 0,192€/min
Sverige [phone] Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Türkiye [phone] Tarlabaşıcaddesi no : 35 Taksim İstanbul
Россия 8-800-200-3589 129090 Москва, Олимпийский проспект,
16, БЦ "Олимпик"
Україна [phone] 04074 Київ, вул.Автозаводська, 2а, БЦ
"Алкон"
12
www.zanussi.com

13
www.zanussi.com

14
www.zanussi.com

15
www.zanussi.com

www.zanussi.com/shop
892947885-C-012013
