Zanussi ZOFR5003 User manual

Oil Filled Radiator
For Customer Services & Spare Parts please call0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number:
ZOFR5003 2000W
220-240V AC 50Hz/60Hz
This product is only suitable for well insulated spaces or occasional use

Page(s)
Unpacking
your appliance 3
Safety
Instructions 3-6
Feature
Diagram 7
Base
Assembly 8
Using
your Oil Filled Radiator 9 –13
Cleaning
and Care 14
Problem
Solving 15
Guarantee
and Customer Services 16
Spare
Parts 17
Connection
to the Mains Supply 18
Specification
19
Disposable
Information 20
CONTENTS
Page 2

UNPACKING YOUR APPLIANCE
Before you use your appliance
1. Remove all the packaging.
2. Check the appliance after unpacking for any visual damage such as:
•Misaligned or damaged parts
•Damage to the controls
•Damage to the plug or cable
•If you can see any damage do not use the appliance
The appliance should not be used if it has been dropped or there are any visible signs
of damage.
This appliance must be placed on a solid stable surface, away from walls, cabinets,
furniture, curtains, etc. Position the appliance with minimum spacing of 100cm from
the top and sides, front and back.
SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should
always be observed, including the following:
•Read all instructions.
•Check that the mains voltage corresponds with the rating on
the appliance.
•The appliance must not be left unattended while it is connected
to the mains supply.
•Do not touch hot surfaces. Use the handle or the controls.
•To protect against electrical shock do not immerse cord, plug, or
appliance in water or other liquid. Do not operate with wet
hands.
•Do not let the cord hang over the edge of a worktop, table etc.
or touch hot surfaces.
Page 3

SAFETY INSTRUCTIONS
•Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. The supply cord can not be replaced. If the cord is
damaged the appliance should be scrapped.
•The use of accessory attachments not recommended by the
appliance manufacturer may cause fire, electric shock or injury.
•This appliance must not be immersed in any liquid
•To disconnect, remove the plug from the mains outlet. Do not
pull the plug out by the cord.
•Warning: In order to avoid overheating, do not cover the heater.
•Never remove parts from the appliance, such as the feet,
screws and so on.
•Never use the appliance near a bath, shower or a swimming
pool.
•Never place flammable objects or clothing on top of the
appliance.
•Allow a 100cm safe area around the appliance on the top and
sides, front and back.
•Never use the appliance in a room with explosive gas such as
petrol, or while using any kinds of flammable glues, sprays or
solvents.
•Prevent overheating of the appliance by keeping the air inlets
and outlets clean and free of anything that may cause blockage.
Check all inlets and outlets regularly for accumulated dust. DO
NOT COVER.
•Do not place any part of your body near the air inlet, outlet or
on the fins ,to avoid personal injury, electric shock or fire.
•If overheating should occur, the built-in overheating safety
device will shut the appliance off. Note, the appliance will turn
on again when it has cooled down sufficiently.
Page 4

SAFETY INSTRUCTIONS
•Do not insert any foreign objects into the ventilation.
•Keep all ventilation clear of any draped fabric or curtains.
•The appliance must not be located immediately below a mains
socket. Do not use the appliance with a programmer, timer or
any other device that switches the appliance on automatically. A
fire risk exists if the appliance is covered or positioned
incorrectly.
•Caution: Some parts of this product can become very hot and
cause burns. Particular attention must be given when children
or vulnerable people are present.
•Do not operate this appliance for anything other than its
intended use.
•This appliance is not intended for commercial use.
•This product is intended for household use only. Do not use
outdoors.
•This product is only intended for heating.
•Warning: It is hazardous for anyone other than a competent
person to carry out any service or repair operation which
involves the removal of a cover which gives protection against
exposure to electrical parts.
•This heater is filled with a precise quantity of special oil. Repairs
requiring opening of the oil container are only to be made by
the manufacturer or a service agent who should be contacted if
there is an oil leak.
•When scrapping the heater, follow the regulations concerning
the disposal of oil.
•Warning: Children should not use this appliance. Close
supervision is necessary when any appliances are used near
children.
Page 5

SAFETY INSTRUCTIONS
•Warning: Children of less than 3 years should be kept away
unless continuously supervised.
•Warning: Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and
they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved.
•Warning: Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user
maintenance.
•Warning: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children
should be supervised to make sure that they do not play with or
use the appliance.
•Warning: In order to avoid overheating, do not cover the heater
•Warning - Do not touch hot surfaces, do not block openings or
cover appliance.
Page 6

FEATURE DIAGRAM
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
1. Handle
2. Fins
3. Power switch
4. Castors/Wheels
5. LED display
6. Controls
7. Power cable storage
8. Remote control
Page 7
1
2
4
5
6
7
3
8

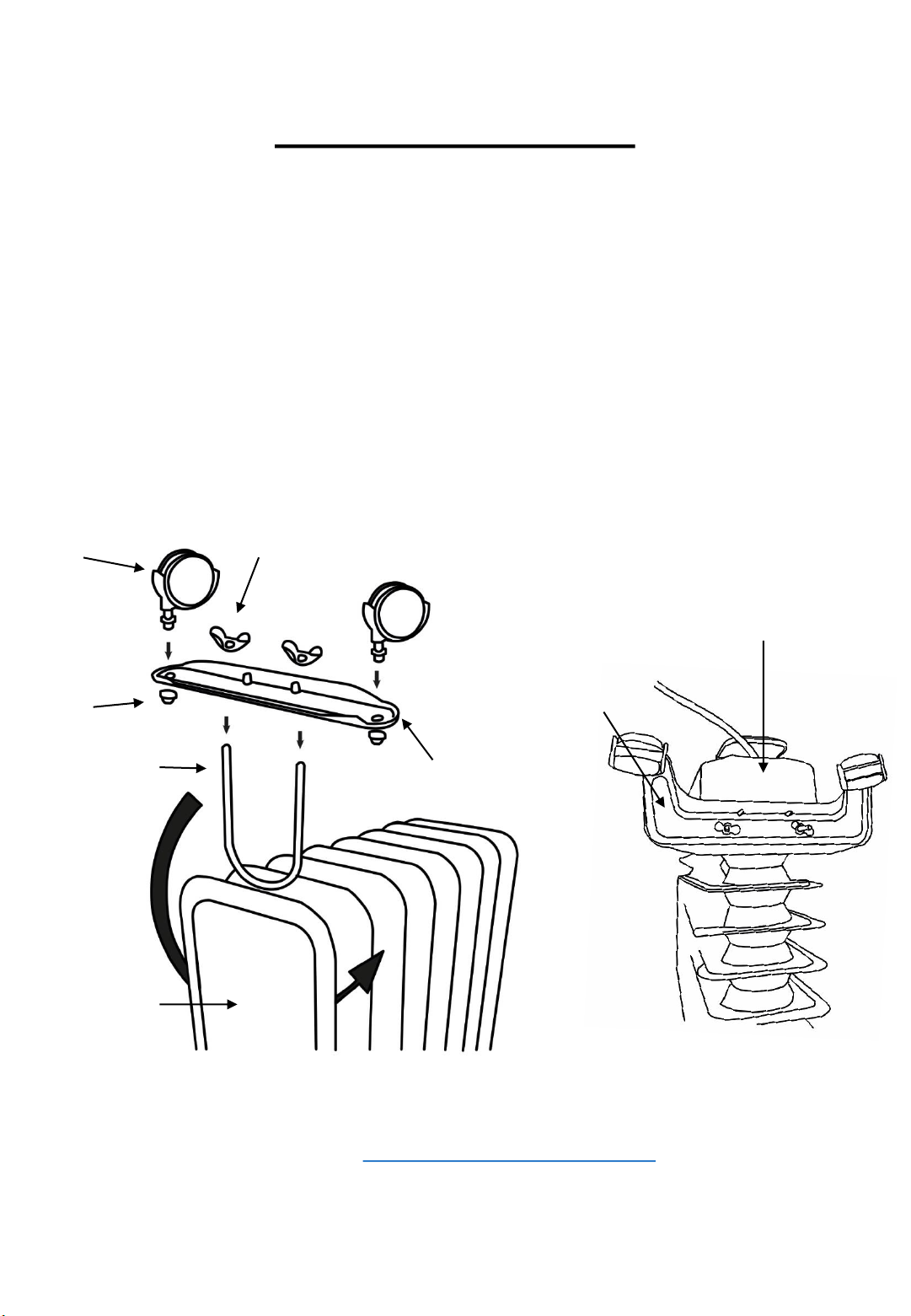

BASE ASSEMBLY
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
Page 8
1. Attach the castors to the base plate and secure using
the 4 x nuts supplied.
2. Then turn the heater upside down and position
between the end fins.
3. Attach the base plates by hooking the 2 x U-bolts
through the fins and securing with the 4 x wing nuts.
4. Once secure, turn the radiator round so that it is
sitting on the wheels.
Castor Wing nut
Nut
U bolt
Rear of the
appliance
U shaped
base plate
Front of the
appliance
Flat base plate

USING YOUR OIL FILLED RADIATOR
Page 9

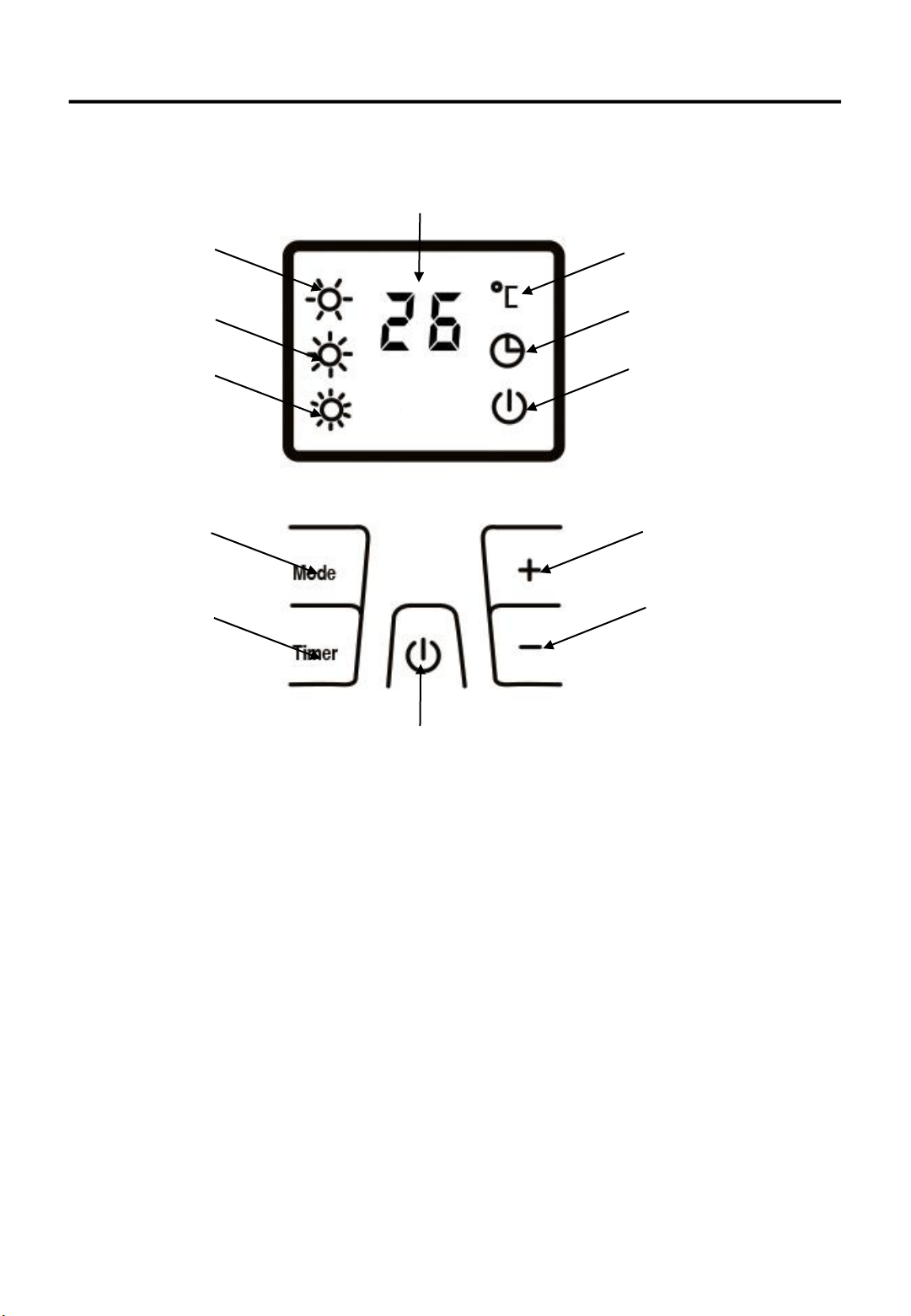

Display & controls
1
2
3
4
5
6
7
8
9
10
11
12
1. Temperature & timer display
2. Low heat setting symbol &
indicator
3. Medium heat setting symbol &
indicator
4. High heat setting symbol &
indicator
5. Mode button (Heating setting)
6. Timer button
7. ⁰C symbol & indicator
8. Timer symbol & indicator
9. Power symbol & indicator
10. Up temperature control button
11. Down temperature button
12. Power button

USING YOUR OIL FILLED RADIATOR
Page 10

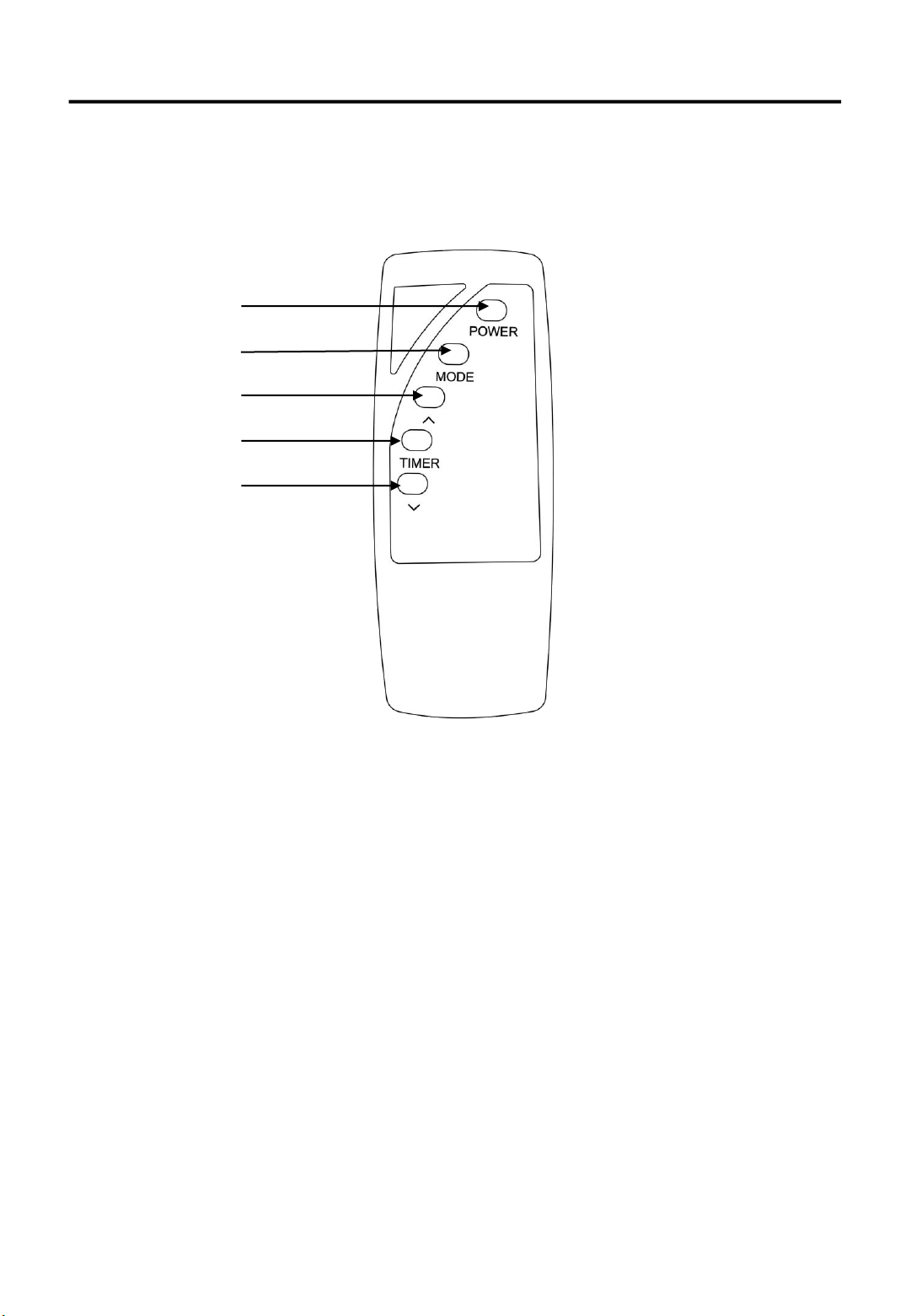

Remote control
1
2
3
4
5
1. Power button
2. Mode button (Heating setting)
3. Up temperature control button
4. Timer button
5. Down temperature control
button

USING YOUR OIL FILLED RADIATOR
Page 11
MANUAL OPERATION
1. Before connecting your appliance to the mains socket,
position the appliance upright on the floor, at least 100cm
away from the wall, away from curtains, furniture or wall
coverings.
2. Insert the mains plug into a suitable 13 amp mains socket.
3. Turn on the power switch on the left hand side of the unit.
4. Press the power button on the unit or the power button
on the remote control to power on the unit. The
temperature of the unit will be at its highest setting.
5. Press the mode button on the unit or the remote control
and select the heat setting you require. The appliance has
3 power settings and the indicator light on the display will
light up for each setting.
Power Control Position ZOFR5003
Low heat ON 800W
Medium heat ON 1.2kW
High heat ON 2.0kW
6. Select the required temperature by using the ‘+’ and ‘-’
buttons on the unit or the remote control. It is
recommended to select the highest temperature to pre
heat the appliance. It will take 5 - 10 minutes for the
appliance to fully heat up. The thermostat has a range of
15⁰C -35⁰C.
7. When the room reaches the desired temperature, the
radiator will cycle off and turn on again when the
temperature drops.

USING YOUR OIL FILLED RADIATOR
Page 12
8. If the room temperature falls below the desired
temperature, the heating elements will turn on again until
the room temperature reaches the desired temperature.
Note: this radiator is oil filled, and will cool down slowly after
the power is shut off. Allow the radiator heater to cool prior to
any movement, the built in carry handle should be used for
easy movement.
TIMER
1. The heater has a 12 hour timer and it can be set between
1 and 12 hours.
2. To set the timer press the timer button on the unit or the
remote control. The display will show ‘00’, press the timer
button again and the display will show ‘01’. This indicates a
timer setting of 1 hour and if no button is pressed then
this will be set and the unit will shut off in 1 hour
3. Note, the heat setting and temperature setting can be
changed after the timer setting has been confirmed.
4. To cancel the timer setting you can either change the timer
setting to ‘00’ or press the power button to turn the unit
off.

USING YOUR OIL FILLED RADIATOR
Page 13
Safety Protective Devices - The appliance is fitted with an over
heat and tip over protection system.
1. Overheat protection - the power to the heating elements
will automatically cut off if the temperature of the heating
elements exceeds a certain limit. In the event of
overheating, the heater will stop operating. Once the
appliance has completely cooled the appliance will then
resume operating as normal.
2. Tip Over Switch - The unit needs to be placed on a flat,
firm and stable surface to ensure that the appliance
contacts the floor firmly and internal tip over switch is
level. If in the event that the unit tips over or is placed on
an uneven or very soft surface the appliance will not
operate.
POWER CABLE STORAGE
When the appliance is not in use wrap the power cord around
the storage hook to keep your appliance tidy and easy to store
away. The power cord must be completely unwrapped when
plugged into the plug socket or in use.

CLEANING AND CARE
Page 14
WARNING: Electrical Shock Hazard.
Before you clean the appliance, disconnect the mains plug from
the wall socket.
•Allow the appliance to cool down completely before
cleaning.
•Do not immerse cord, plug or appliance in any liquid or allow
moisture to come into contact with electrical parts.
•Clean the outer surface using a moist cloth and wipe over
with a dry, soft cloth.
•Do not use harsh detergents, abrasives or spray on cleaners.
•Don’t allow water to seep into the openings or come into
contact with electrical connections.
•Allow sufficient drying time before operating again.
•Clean the air inlets and outlets regularly with a vacuum
cleaner using the brush attachment (with regular use, at
least twice a year).
•When the appliance is not in use. We recommend that, the
heater is re-packed in its original packaging and stored in a
cool, dry place.

PROBLEM SOLVING
Page 15
My appliance does not work when I turn it on:
1. Check that your appliance is plugged in, the power is turned
on at the mains socket and the power switch on the side of
the unit is powered unit.
2. Try another mains socket.
3. Check the appliance is in an upright position.
4. Check that the temperature setting has not been set too
low.
5. Check if the Overheat protection has operated by leaving
the appliance plugged in, power on and giving it time to cool
down. The heater should start to resume operating
normally.
6. If the appliance still doesn’t work, do not try to repair it
yourself.
If your appliance power is automatically cut off, follow the step
below:
1. Unplug your appliance from the mains socket and allow it to
completely cool down.
2. Inspect your appliance. Clean the air inlet and air outlet with
a vacuum cleaner if necessary. If there are any signs of
physical damage (e.g. melting, or burning of the case), do
not attempt to use the appliance. Please leave all
maintenance work to qualified personnel.
3. Plug in the appliance and switch it on again. If it cuts off
again, move the appliance to a better ventilated location.

At Zanussi, we take all our customer feedback seriously.
Feel free to contact our Customer Service Team, on 0330 1230 597,
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship,
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original proof of
purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
GUARANTEE AND CUSTOMER
SERVICES
Page 16
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk

SPARE PARTS
Page 17
To check the availability of the following spare parts, simply
contact our friendly Customer Services team using the details
provided at the bottom of this page.
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
Castors
U-bolts
Base Plate
Remote control

CONNECTION TO THE MAINS
SUPPLY
Page 18
This appliance is designed to operate from a mains supply of
220-240V~50Hz/60Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.

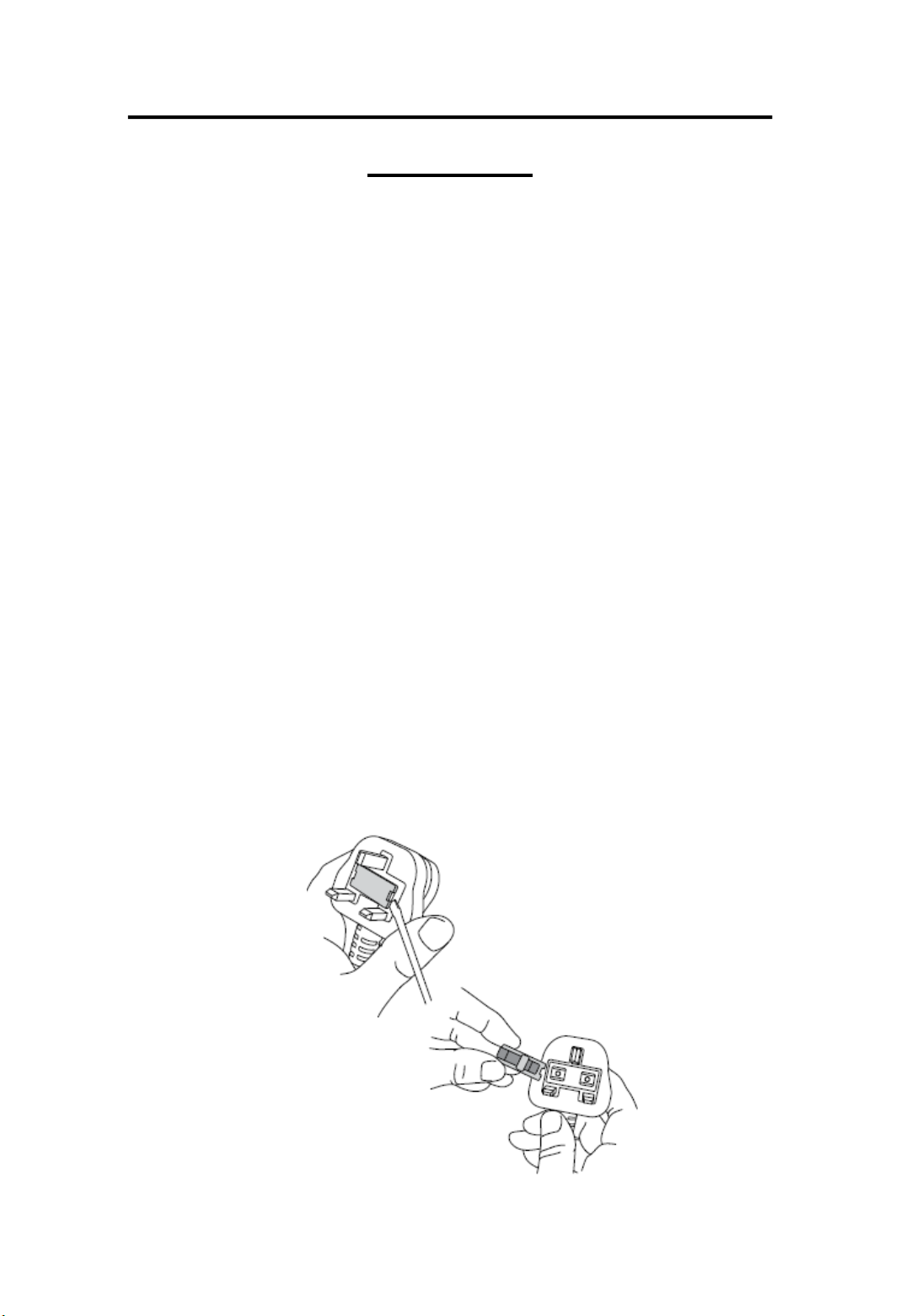

How to change the fuse
1. Slot the end of a screwdriver into the recess in the fuse
holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide
the fuse out.
3. Replace the fuse and replace fuse holder, pushing down
until locked into place.
Important: Only ever use a 13 amp fuse.

SPECIFICATION
Page 19
Model number ZOFR5003
Rated voltage 220V -240V ~ 50Hz/ 60Hz
Power consumption 2000W
Product dimensions (CMS) (H)59.5 x (W)24 x (D)40.5
Model number
ZOFR5003
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters only
Nominal heat
output
Pnom 0.9655 kW
manual heat charge control, with
integrated thermostat
NA
Minimum
heatoutput
(indicative)
Pmin 0.0006 kW
manual heat charge control with
room and/or outdoor temperature
feedback
NA
Maximum
continuous heat
output
Pmax,c 0.9655 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
NA
fan assisted heat output
NA
Auxiliary electricity consumption
Type of heat output/room temperature control
At nominal heat
output
elmax N/A kW
single stage heat output and no
room temperature control
No
At minimum heat
output
elmin N/A kW
Two or more manual stages, no
room temperature control
No
In standby mode
elSB N/A kW
with mechanic thermostat room
temperature control
No
with electronic room temperature
control
Yes
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections possible)
room temperature control, with
presence detection
No
room temperature control, with
open windowdetection
No
with distance control option
No
with adaptive start control
No
with working time limitation
Yes
with black bulb sensor
No
Contact details
G2S LIMITED
WIGAN, WN2 4AY

Revision 1
Model: ZOFR5003
This symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that
the product/batteries should not be disposed of with your general
household waste. Only discard electrical/electronic/battery items
in separate collection schemes, which cater for the recovery and
recycling of materials contained within. Your co-operation is vital
to ensure the success of these schemes and for the protection of
the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right, due to possible changes to design, to alter
the instruction manual without prior notice.
For Customer Services & Spare Parts
please call
0330 1230 597
Or visit us at
www.zanussiheatingandcooling.uk
ZANUSSI is a registered trademark used
under license from AB Electrolux (publ).
Made under license by G2S Limited, Wigan,
WN2 4AY.
Page 20
