Recommendations
and suggestions
• The Instructions for Use apply
to several versions of this ap-
pliance. Accordingly, you may
nd descriptions of individual
features that do not apply to
your specic appliance.
• The manufacturer will not be
held liable for any damages
resulting from incorrect or im-
proper installation.
• The minimum safety distance
between the cooker top and
the extractor hood is 650 mm
(some models can be installed
at a lower height, please refer
to the paragraphs on working
dimensions and installation).
• Check that the mains voltage
corresponds to that indicated
on the rating plate xed to the
inside of the hood.
• For Class I appliances, check
that the domestic power supply
guarantees adequate earthing.
Connect the extractor to the
exhaust ue through a pipe of
minimum diameter 120 mm.
The route of the ue must be
as short as possible.
• Do not connect the extractor
hood to exhaust ducts carry-
ing combustion fumes (boilers,
replaces, etc.).
• If the extractor is used in
conjunction with non-electrical
appliances (e.g. gas burning
appliances), a sufcient degree
of aeration must be guaranteed
in the room in order to prevent
the backow of exhaust gas. The
kitchen must have an opening
communicating directly with the
open air in order to guarantee
the entry of clean air. When
the cooker hood is used in
conjunction with appliances
supplied with energy other than
electric, the negative pressure in
the room must not exceed 0,04
mbar to prevent fumes being
drawn back into the room by
the cooker hood.
• In the event of damage to the
power cable, it must be replaced
by the manufacturer or by the
technical service department, in
order to prevent any risks.
• If the instructions for installation
for the gas hob specify a greater
distance specied above, this
has to be taken into account.
Regulations concerning the dis-
charge of air have to be fullled.
• Use only screws and small parts
in support of the hood.
Warning: Failure to install the
screws or xing device in ac-
cordance with these instructions
may result in electrical hazards.
• Connect the hood to the mains
through a two-pole switch having
a contact gap of at least 3 mm.
Use
• The extractor hood has been de-
signed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes
other than for which it has been
designed.
• Never leave high naked ames
under the hood when it is in
EN

3
www.zanussi.com
operation.
• Adjust the ame intensity to
direct it onto the bottom of the
pan only, making sure that it
does not engulf the sides.
• Deep fat fryers must be con-
tinuously monitored during use:
overheated oil can burst into
ames.
• Do not ambè under the range
hood; risk of re.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental ca-
pabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.
• “CAUTION: Accessible parts
may become hot when used
with cooking appliances.”
Maintenance
• The symbol on the product
or on its packaging indicates
that this product may not be
treated as household waste.
Instead it shall be handed over
to the applicable collection point
for the recycling of electrical
and electronic equipment. By
ensuring this product is dis-
posed of correctly, you will
help prevent potential negative
consequences for the environ-
ment and human health, which
could otherwise be caused by
inappropriate waste handling of
this product. For more detailed
information about recycling of
this product, please contact your
local city ofce, your household
waste disposal service or the
shop where you purchased the
product.
• Switch off or unplug the ap-
pliance from the mains supply
before carrying out any main-
tenance work.
• Clean and/or replace the Filters
after the specied time period
(Fire hazard).

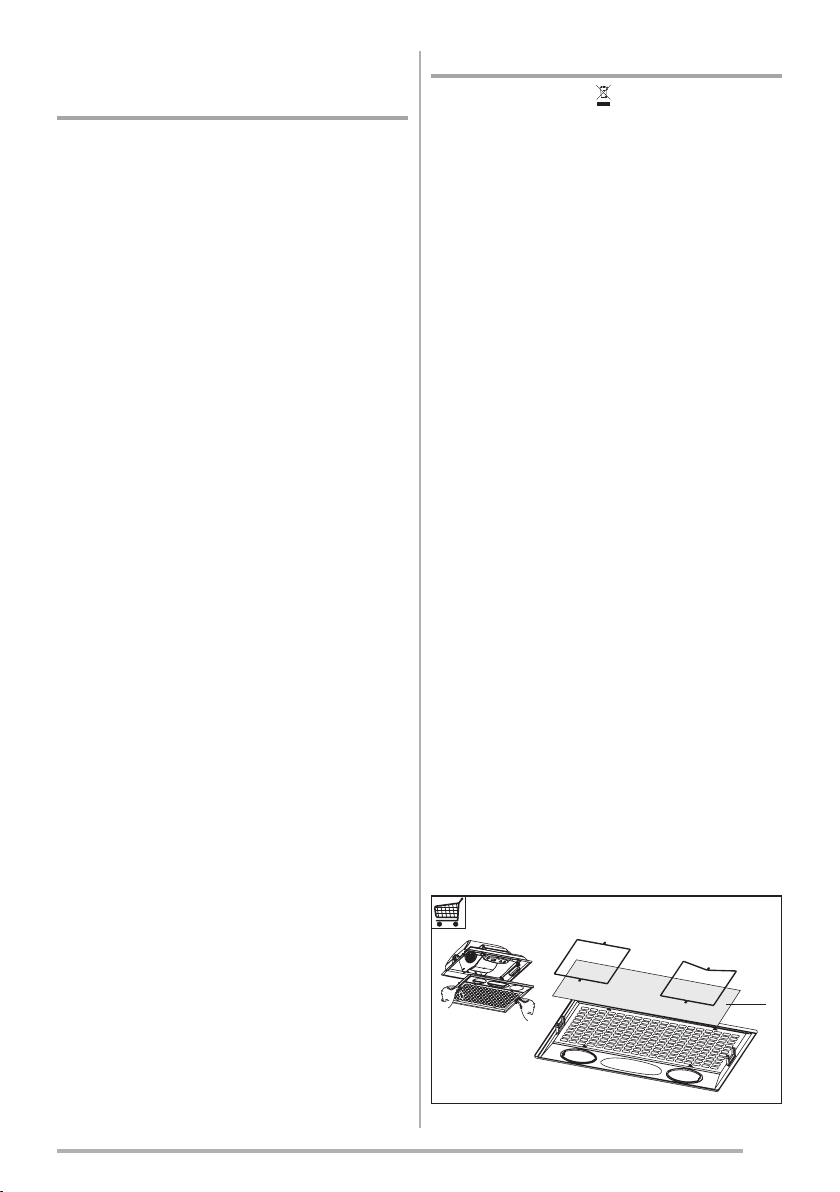

- This lter cannot be washed
and should be replaced every
2 months (H).
H
- The Activated charcoal lter
is not washable and cannot
be regenerated, and must be
replaced approximately every
4 months of operation, or more
frequently for particularly heavy
usage (W).

4www.zanussi.com

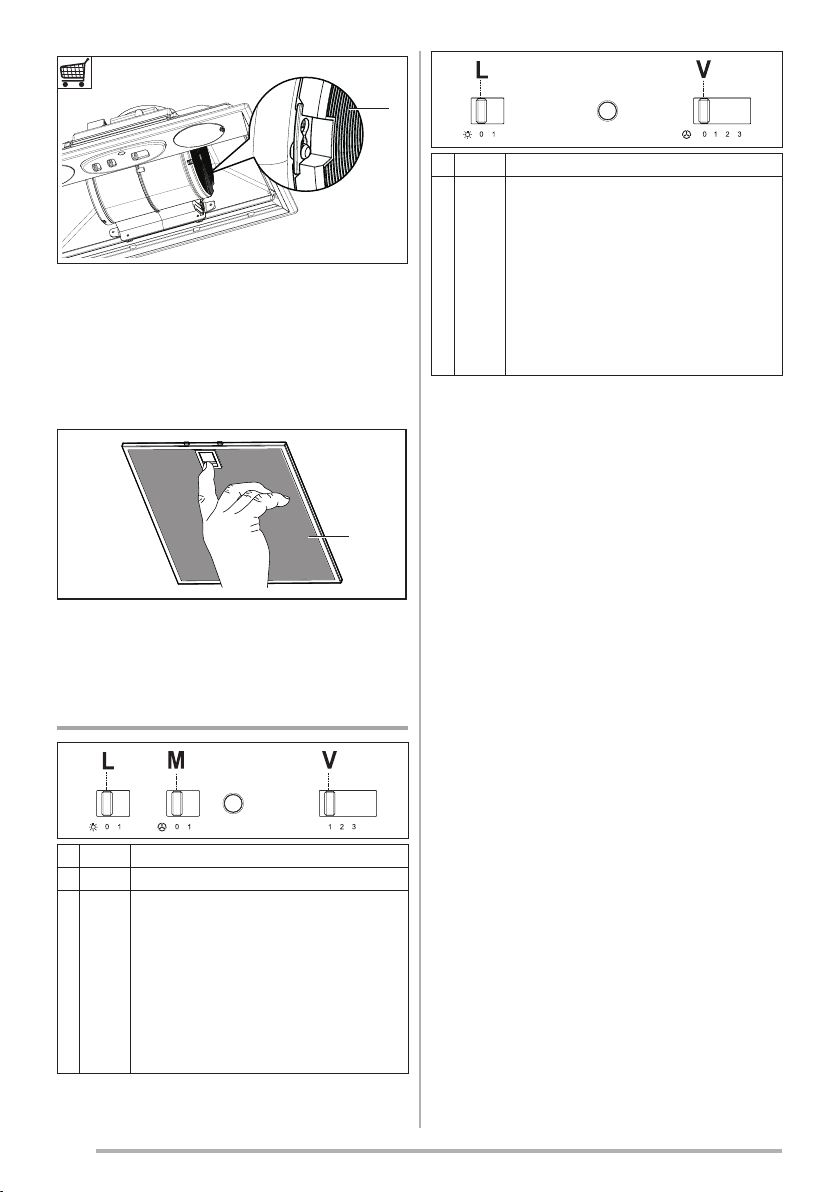

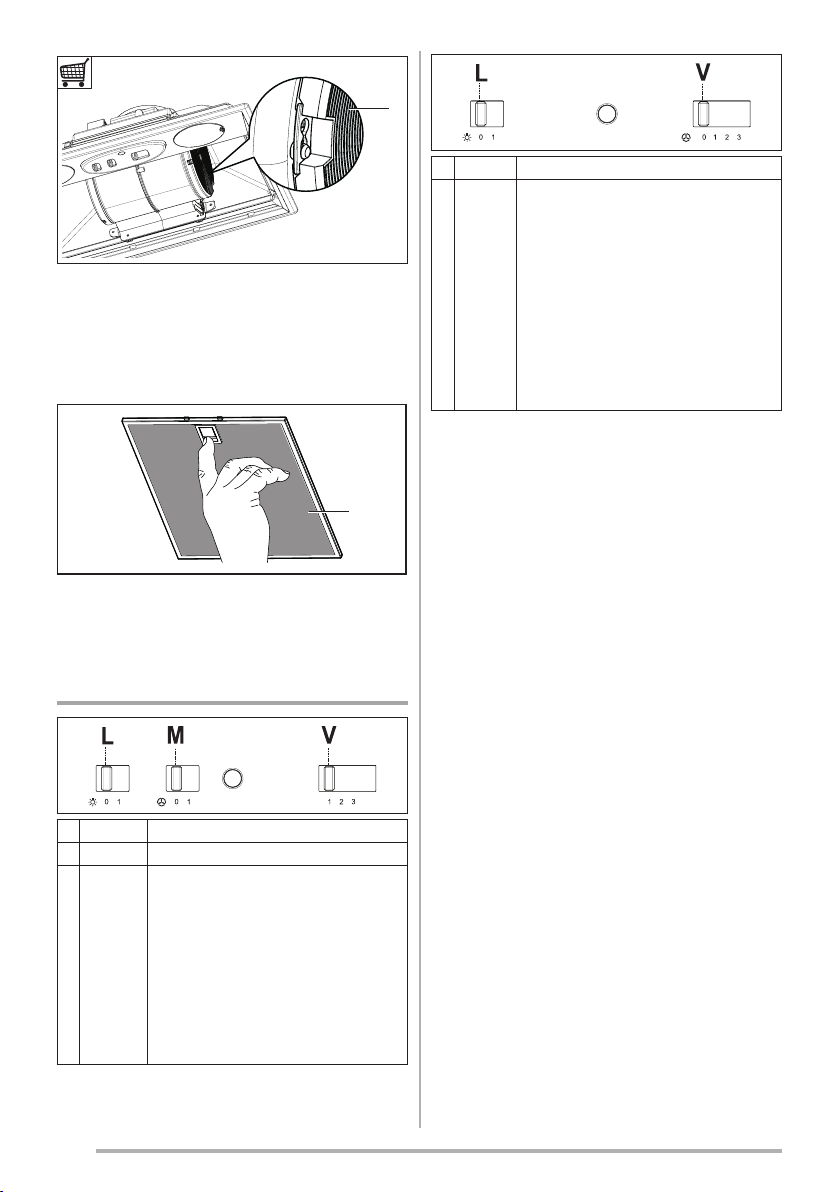

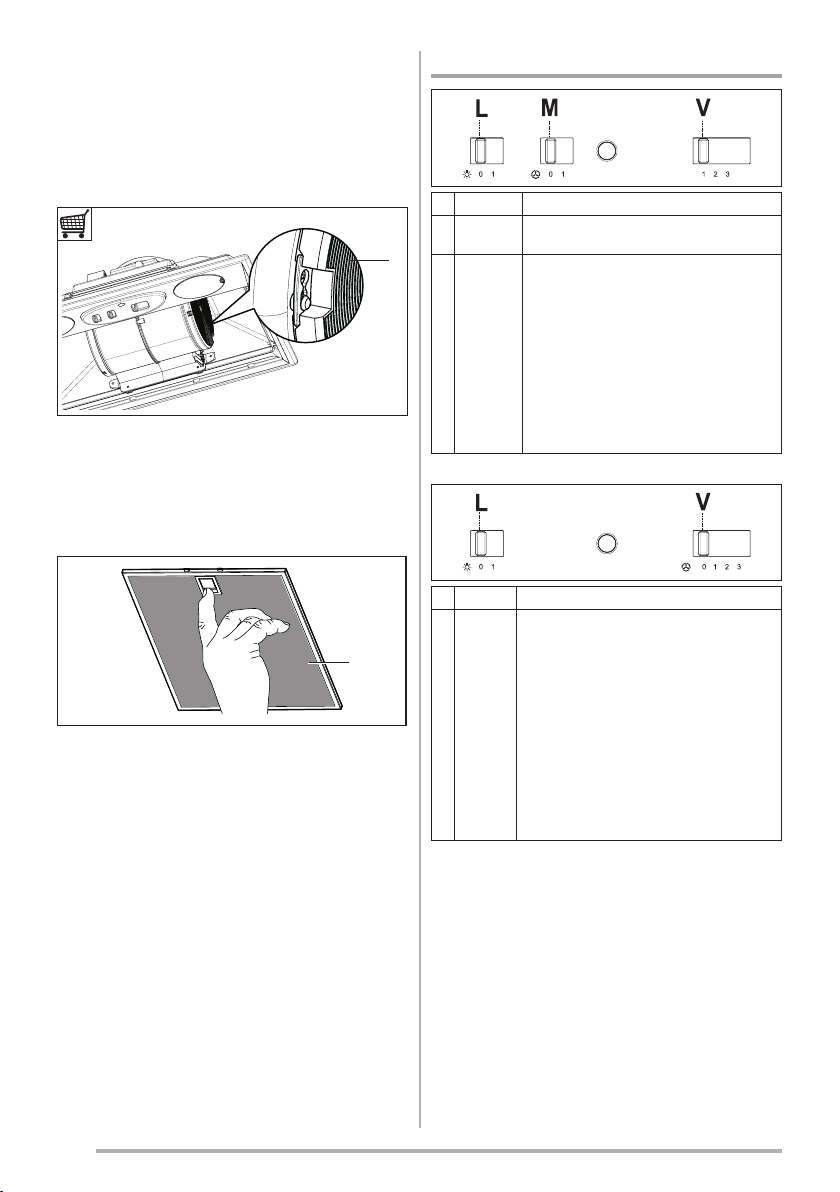

W
- The Grease lters must be
cleaned every 2 months of
operation, or more frequently
for particularly heavy usage,
and can be washed in a dish-
washer (Z).
Z
• Clean the hood using a damp
cloth and a neutral liquid de-
tergent.
Controls
LLight Switches the lighting system on and off
MMotor Switches the extractor motor on and off
VSpeed Sets the operating speed of the extractor:
1. Low speed, used for a continuous and silent
air change in the presence of light cooking
vapour.
2. Medium speed, suitable for most operating
conditions given the optimum treated air
ow/noise level ratio.
3. Maximum speed, used for eliminating the
highest cooking vapour emission, including
long periods.
LLight Switches the lighting system on and off
VSpeed Sets the operating speed of the extractor:
0. Motor Off.
1. Low speed, used for a continuous and silent
air change in the presence of light cooking
vapour.
2. Medium speed, suitable for most operating
conditions given the optimum treated air
ow/noise level ratio.
3. Maximum speed, used for eliminating the
highest cooking vapour emission, including
long periods.

5
www.zanussi.com

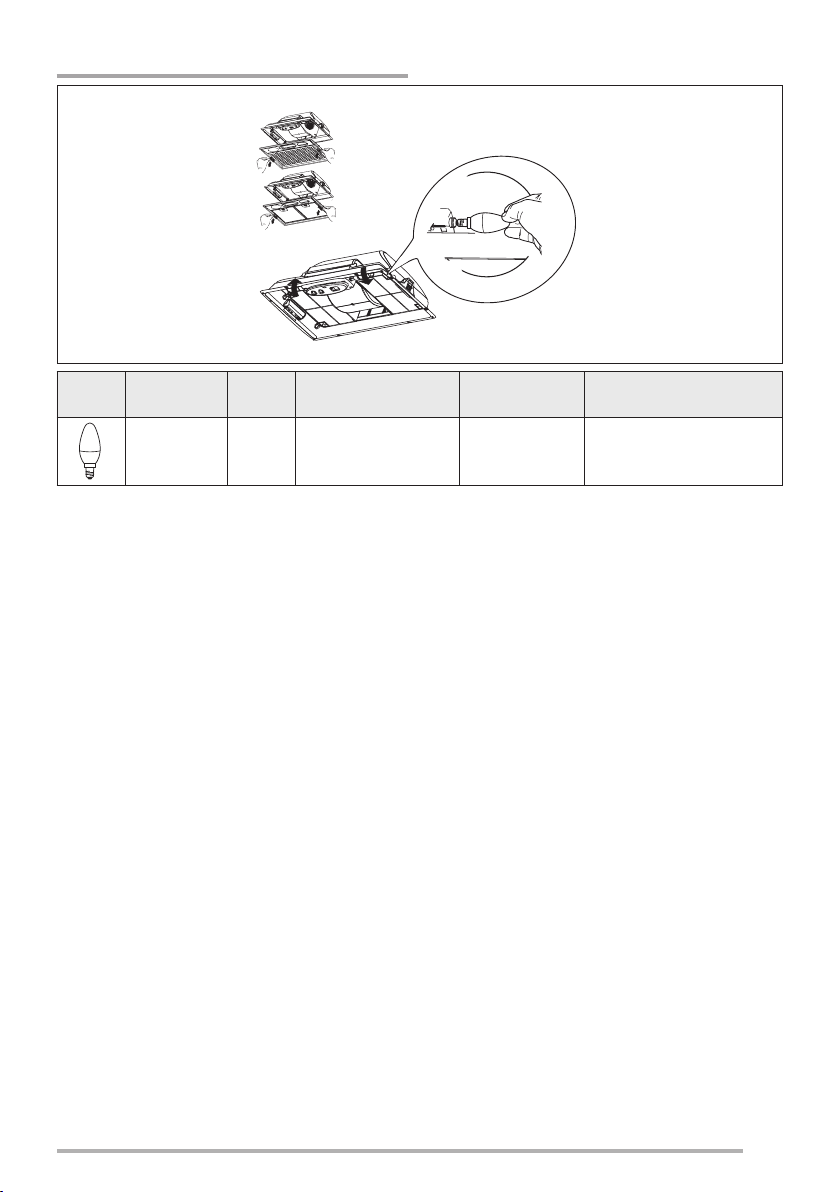

Lighting
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100
